Chungho WHI CAFFE CHP-5230S User manual

Rev,No.00
2F. K M S B/D, 10, D DANG-D NG, W NMI-GU, BUCHE N-SI, GYE NGGI-D , K REA (P. .B X: 420-800)
TEL: [phone] / FAX: [phone] / E-MAIL: [email protected] / http://eng.chungho.co.kr
커피얼음정수기_메뉴얼_영문2_T_461_메뉴얼_5170S 14. 9. 22. 오전 10:22 페이지 1

CHP - 5230S
✽Design and color may differ from the picture.✽Unit appearance, specification, etc. are subject to change without prior notice if necessary for improving unit performance.✽The rated voltage of this unit is 220-240V~ / 50Hz only.
User's manual
The world’s first
Water purifier
with coffee and ice maker
http://eng.chungho.co.kr
커피얼음정수기_메뉴얼_영문2_T_461_메뉴얼_5170S 14. 9. 22. 오전 10:22 페이지 2

01
1.?????
Product features
The World's first water purifier with coffee and ice maker
Extract function for coffee and tea is applied to allow users to enjoy Italian flavor of coffee and tea.
All-in-one caffe
Water with 4 different temperature (hot, cold, warm and ambient), ice and extract function offer various beverages onuser's preference.
Detachable capsule holder and hygienic operation Extract method is easy to follow by inserting a capsule to the holder and push the desired beverage button.Detachable capsule holder helps stay clean by rinsing it with water simply
.
Selection key for optimized taste of various coffee capsules Buttons for Espresso, Americano and tea are designed for the best taste of its coffee and tea. Easy and quick extract for Americano
In case“AMERICANO”button is applied, hot water is added while extracting coffee.
Tulip-shaped crystal-clear ice
This unit is a new water purifier that makes the tulip-shaped crystal-clear ice by advanced ice making technology.
24 hour natural water circulation system(N.W.P.W)ChungHo Nais purification system is designed to allow water to continuously flow for 24 hours within the water purifierby adopting a natural circulation method. This mode, entitled N.W.P.W. applies the natural weight of water pressure inorder to always supply clean and fresh water. (patent : No.105585)Water purification system providing an integrated ice making function
WHI CAFFE is an innovative hybrid of a reverse osmosis water purification system with an ice maker which is utilizingthe freezing point method. It is designed not only for a user convenience, but also for a system efficiency which isintended to obtain cold water as a result of making ice. Hot, cold, ambient, warm water and ice are all in one. (Patentapplication: No.2005-99663, 2005-365293, 200510127096.9, 11/342,117)
Warm water selection
Warm water (104℉~122℉(40℃~50℃)) is used for various purposes such as dissolving dry milk for baby.
Smart cleaning function
This makes users not to worry about contamination by bacteria as it empties cold water tank automatically every 15days in fixed time and fill the clean water. Display of abnormal occurrence and reinforced safety function
The safety features of the unit has been enhanced in order to prevent various problems from occurring. The system willinform the user(s) of abnormal occurrences through a flashing display LED and by automatically stopping the ice makingfunction and water purification function when an abnormality in the system is detected.
1234567891011
커피얼음정수기_메뉴얼_영문2_T_461_메뉴얼_5170S 14. 9. 22. 오전 10:22 페이지 3

Safety precautions 03~06
Names of each part 07
Installation cautions 08~09
Installation method 10
How to extract coffee and tea 11~12Display and coffee extract button11Extracting coffee and tea12
Using coffee and tea extract method 13~14Descaling coffee outlet 14
Coffee recipe 15
Operation 16Display and function settings (A)16Water dispensing selection (B)16
Usage 17~20Operation beep sound 17Function setting and releasing17~18Ice and water dispensing method19Draining method for relocation/installation19Smart cleaning function20Understanding the ice making process and operation20
Usage safeguards 21
Cleaning 22~25Ice dispensing spout22Water tank23~24Capsule holder25Coffee outlet packing25Drip tray25
Maintenance 26
Filters 27Filter function 27Filter service life27
Replacement 28~29
Specification 30
Flow diagram 31
Recommended replacement part 31
Troubleshooting 32~33
MEMO 34We greatly appreciate your purchase of WHI CAFFE. The unit is manufactured according to standard specification, andproduced with a reliability test on all integrated components.The system is tested thoroughly on strict quality guidelines including temperature, moisture, shock, dust, vibration, drop,etc. We are sure that these various production processes will provide the utmost customer satisfaction in both qualityand excellence.Before installing or using the unit read this user's manual in detail and please keep it for your future refer-ence.
02
Greetings
커피얼음정수기_메뉴얼_영문2_T_461_메뉴얼_5170S 14. 9. 22. 오전 10:22 페이지 4

●When the power cord hasbeen damaged, change thepower cord in order to pre-vent danger such as anelectric shock, etc.(Do not use damaged or loosewall outlets. An electricshock or fire may occur.)● Keep the cord out of heavy traffic areas.(This can lead to overheating the outlet.)● Insert the plug to the outlet firmly to avoid loosening. (Unstable connection maycause a fire.) ● Do not bend the power cord excessively or put heavyobjects over the power cord.(An electric shock or fire may occur.)
ITALIANCAPSULECOFFEEITALIANCAPSULECOFFEE
WHI CAFFEWHI CAFFE
● If the unit is damaged ormalfunctioning, do not disa-ssemble, repair, or remodel iton your own.
ITALIANCAPSULECOFFEEITALIAN CAPSULE COFFEE
WHI CAFFEWHI CAFFE
● Do not put candles, lit cigarettes, etc. on the unit.(There is a danger of a fire.) ● Do not put a bowl containing water, chemicals, small metals, etc. on the unit.(If these materials drop into the inside of the unit, this may cause an electric shock or fire. )
Associated with the possibility for serious injury or death.
Danger
Cautionsaredividedinto2 categories:‘Danger’and‘Caution’
Safety precautions
ITALIANCAPSULECOFFEEITALIAN CAPSULE COFFEE
WHI CAFFEWHI CAFFE
● Leave the unit unplugged,before cleaning the inside of the unit.(An electric shock or fire may occur.)● Do not touch the powerplug with wet hands.(An electric shock may accur.)● While coffee is extracting, donot stay close to coffee outlet.(Coffee splashs and it can cause burns.)
03
커피얼음정수기_메뉴얼_영문2_T_461_메뉴얼_5170S 14. 9. 22. 오전 10:22 페이지 5

● Do not reuse the capsule. (Capsule can have deformation and it cause leakage. ) ●
Use designated capsule sizeonly.
(Do not use other sized capsules. Different size cancause malfunction and burns.
)
●
Remove used capsulefrom the capsule holder.
(Leaving the capsule for long time can cause germ and mold in the holder.) ●
Be careful of burns whenyou throw away capsulesafter extract.
(Small amount of hot water remaining capsule holder can cause burns.)
●
Do not insert finger to the cof-fee outlet with capsule holderseparated.
(Finger can be injured by being caught.)
● While coffee is extracting,never try to separatecapsule holder. (Coffee machine can havedamage and hot beveragecan cause burns.)
ITALIANCAPSULECOFFEEITALIANCAPSULECOFFEE
WHI CAFFEWHI CAFFE
● Close supervision isrequired when any appli-ance is used by or nearchildren.
● Make sure that drip tray isproperly installed whenyou extract coffee. (Hot coffee can spill over.)
● Do not try to extract coffeeor tea without cup. (Beverage can overflow from drip tray and it can cause burns.) Associated with the possibility of injury, property damage and reduced performance of unit.
Caution
25mm36mm
04
Safety precautions
커피얼음정수기_메뉴얼_영문2_T_461_메뉴얼_5170S 14. 9. 22. 오전 10:22 페이지 6

05
●
When taking ice, avoid usinga glass cup and avoid takingice with cup filled with bever-age, coffee etc.
(A glass cup can be broken by abrupt temperature change or the ice strike. Beverage and coffee can splash intoice dispensing hole and it can cause mold.)●
To avoid burns from beverage, use containers such as a cup duringextract.
● To avoid burns from hotwater, use containers suchas a cup during hot waterdispensing.
● When taking ice, place a container close to the ice dispensing hole not to drop ice on the floor.(Be careful in order not toallow containers such as cups, etc. to be inserted into the inside of ice dispensing hole.)
● Do not put foreign materialsinto the ice dispensing hole or block the dispensing hole.(This can cause systemmalfunction.)
ITALIANCAPSULECOFFEE ITALIANCAPSULECOFFEE
WHI CAFFEWHI CAFFE
● Do not operate the unit standing unbalanced. (It can cause malfunctioning.)● Do not tilt the unit over45。during transportation.(Severe inclination cancause performance degrad-ation.)● Do not install the unit in asloped or unstable position.(This can cause a reduced performance, system dama-ging or overall trouble.)
ITALIANCAPSULECOFFEEITALIANCAPSULECOFFEE
WHI CAFFEWHI CAFFE
● Do not install the product in a place where the temper-ature may drop below 32°F.(0°C)(Some pieces of ice can clingto each other. Ice may notbe served well.)
ITALIANCAPSULE COFFEEITALIANCAPSULECOFFEE
WHI CAFFEWHI CAFFE
I
Associated with the possibility of injury, property damage and reduced performance of unit.
Caution
Safety precautions
커피얼음정수기_메뉴얼_영문2_T_461_메뉴얼_5170S 14. 9. 22. 오전 10:22 페이지 7

06
ITALIANCAPSULECOFFEEITALIANCAPSULECOFFEE
WHI CAFFEWHI CAFFE
● To disconnect the unit, be sure to pull by the plug and not the cord.(Damage to the power cord cancause an electric shock.)● After installation, arrange thepower cord so that it will not be stepped on or stepped over.● If there is dust, water or etc on the power plug pin, wipe it off well.(There is a danger of an elec-tric shock or fire.)● Do not put any covering onthe rear and side of the unit. Blocking ventilation holes may raise inside temperatures and cause system malfunctionor even system stoppage.● Do not install the unit inor around largely damp areas, at a place near flammable materials, or at a place exposed to rain or snow.(There is a danger of anelectric shock or fire.)● Keep tubes fixed properly so as not to splash around area with water from brine and drain tube.Symptoms under normal operations1. During use of the unit, a murmuring water-flow sound, a clattering ice dropping sound, etc. may occur during cold water unition process or ice unition process.2. Opaque ice may occasionally be served, but there is no abnormality in unit performance or ice quality.3. TDSs (Total Dissolved Solids) found in ambient water, cold water, and ice may vary from one another. (This is a result of the freezing point method.)4. After the system power source is interrupted and then again restarted, irregular ice may temporarily be served.
AFTER
30 MINUTES
ITALIANCAPSULECOFFEEITALIANCAPSULECOFFEE
WHI CAFFEWHI CAFFE
● After transporting the unit,do not supply the power forat least 30 minutes to stabilize the unit.Associated with the possibility of injury, property damage and reduced performance of unit.
Caution
Safety precautions
커피얼음정수기_메뉴얼_영문2_T_461_메뉴얼_5170S 14. 9. 22. 오전 10:22 페이지 8

07
Names of each part
Drain waterPowercordSource waterBrine waterDrain switchIce dispensing touch buttonPower button for extractEspresso selection buttonAmericano selection buttonTea selection buttonCapsule holderCold water dispensing touch buttonHot water dispensing touch buttonAmbient/Constant water dispensing touch button Warmwaterdispensingtouch buttonWater dispensing buttonWater dispensing spoutDrip trayIce/Water full displayICE/LOCK setting touch buttonHot water/Power saving touch button Ice dispensing spout
커피얼음정수기_메뉴얼_영문2_T_461_메뉴얼_5170S 14. 9. 22. 오전 10:22 페이지 9

08
Do not install the product at the following places.
•Near fire or heater•Near flammable material•Wet place•A place exposed to rain or snow •A place exposed to direct sunlight•Near chemicals(volatile material, organic solvent, etc.)•A place below 32。F(0。C) or a place with the possibility of dropping below 32。F(0。C).•A place above 104。F(40。C) or a place with the possibility of climbing above 104。F(40。C).※When the product is installed in a dark place while "ECONO" is on, hot water may not operate even during daytime due to lack of light. (Please install it in a brighter location.)
ITALIANCAPSULECOFFEEITALIANCAPSULECOFFEE
WHI CAFFEWHI CAFFE
ITALIANCAPSULECOFFEE ITALIANCAPSULECOFFEE
WHI CAFFEWHI CAFFE
ITALIANCAPSULECOFFEEITALIANCAPSULECOFFEE
WHI CAFFEWHI CAFFE
When transporting the product, do not tilt it over 45。
※Severe tilting can cause performance degradation.
Install the product at a place where the surface is flat, and after instal-lation, always adjust the level of the product by using a level gauge.
※Tilting can cause performance degradation.
Keep the product approximately 8" (20cm) away from the wall forproper ventilation.
※If not, performance degradation and malfunction can occur.
Use the following water quality range.
•Ph : 5~10•Water pressure : 7~100psi(0.5~7kgf/cm2)•Water temperature : 39~100OF(4~38OC)•Water hardness : 300ppm or less •Evaporated residue : 500ppm or less •Water quality : Biologically safe water quality※When using the water out of range, discuss it with the company. If not, the product can be excluded from the stated warranty.
Do not connect hot water over 100。F(38。C) to this product.
※This can cause trouble and decline in ice making performance.
123456
Safety precautions
Do not place any electric heater near the rear of the product.
7
커피얼음정수기_메뉴얼_영문2_T_461_메뉴얼_5170S 14. 9. 22. 오전 10:22 페이지 10

09
ITALIANCAPSULECOFFEEITALIANCAPSULECOFFEE
WHI CAFFEWHI CAFFE
A bad wall outlet or plug may cause an electric shock or fire.When installing more than one product(water purifier, shower soften-er, etc.), hoses of source water, brine water and drain water need tobe independent for one another.
Adjust the tubes so that brine water and drain water may not splash around area.
※Brine water or drain water can easily be used for other purposes, such asbathroom cleaning, house cleaning, laundering, washing, etc. Never use thedrainage water for drinking or cooking.
When connecting tube, ensure that the tube is not bent or pressed down byheavy objects, etc.
※If tube is bent or pressed, water does not flow well and can cause problems.
891011
Installation cautions
커피얼음정수기_메뉴얼_영문2_T_461_메뉴얼_5170S 14. 9. 22. 오전 10:22 페이지 11

10
Connect tube to drain and brine on the back of the product. Andthen, connect tubes to drain hole such as sink, toilet etc..
※Install the brine water and drain water line separately. If drainage does not function properly due to improper installation, it can cause water overflowing up to the water gutter.
Fix the tubes not to splash around areas with water.Turn on water supply valve connected to the house and position theadapter(source water valve) "OPEN".Do not plug in the power for 30 minutes in order to stabilize thecooling system and safe use of product.Check if water is supplied into the product properly and there areany leakages on every connection.Check every connection part for leaks.After 1 hour has passed from supplying the power, check if water iscoming out by pressing the water dispensing button.
ITALIANCAPSULECOFFEEITALIANCAPSULECOFFEE
WHI CAFFEWHI CAFFE
30 Minutes
ITALIANCAPSULECOFFEEITALIANCAPSULECOFFEE
WHI CAFFEWHI CAFFE
ITALIANCAPSULECOFFEEITALIANCAPSULECOFFEE
WHI CAFFEWHI CAFFE
Install horizontally.Shut off water supply valve and separate the connector part of tapwater in order to connect an adapter(source water valve). Then, connect the adapter.
※If a sealing rubber(packing) is missing or the thread of a screw is damaged, it may occur water leakage.
Connect the adapter(source water valve) and a water inlet on therear of the product with a tube.123
4
5678910
※Brine water or drain water can easily be used for other purposes, such as bathroom cleaning, house cleaning, laundering, washing, etc.
Fix hose!
Installation method
커피얼음정수기_메뉴얼_영문2_T_461_메뉴얼_5170S 14. 9. 22. 오전 10:22 페이지 12

11
Turns ON/OFF the extractfunctionEspresso extracting buttonAmericano extractingbuttonUsed to extract theespresso.Used to extract theAmericano.Tea extracting buttonUsed to extract the tea..Espresso selection button LEDAmericano selectionbutton LEDLights up when it is set.Lights up when it is set.Tea selection button LEDLights up when it is set.
Display and capsule extract button
Power/Warm-up buttonLights up when it is set.Power/Warm-up button LED
Ho to extract coffee and tea
커피얼음정수기_메뉴얼_영문2_T_461_메뉴얼_5170S 14. 9. 22. 오전 10:22 페이지 13

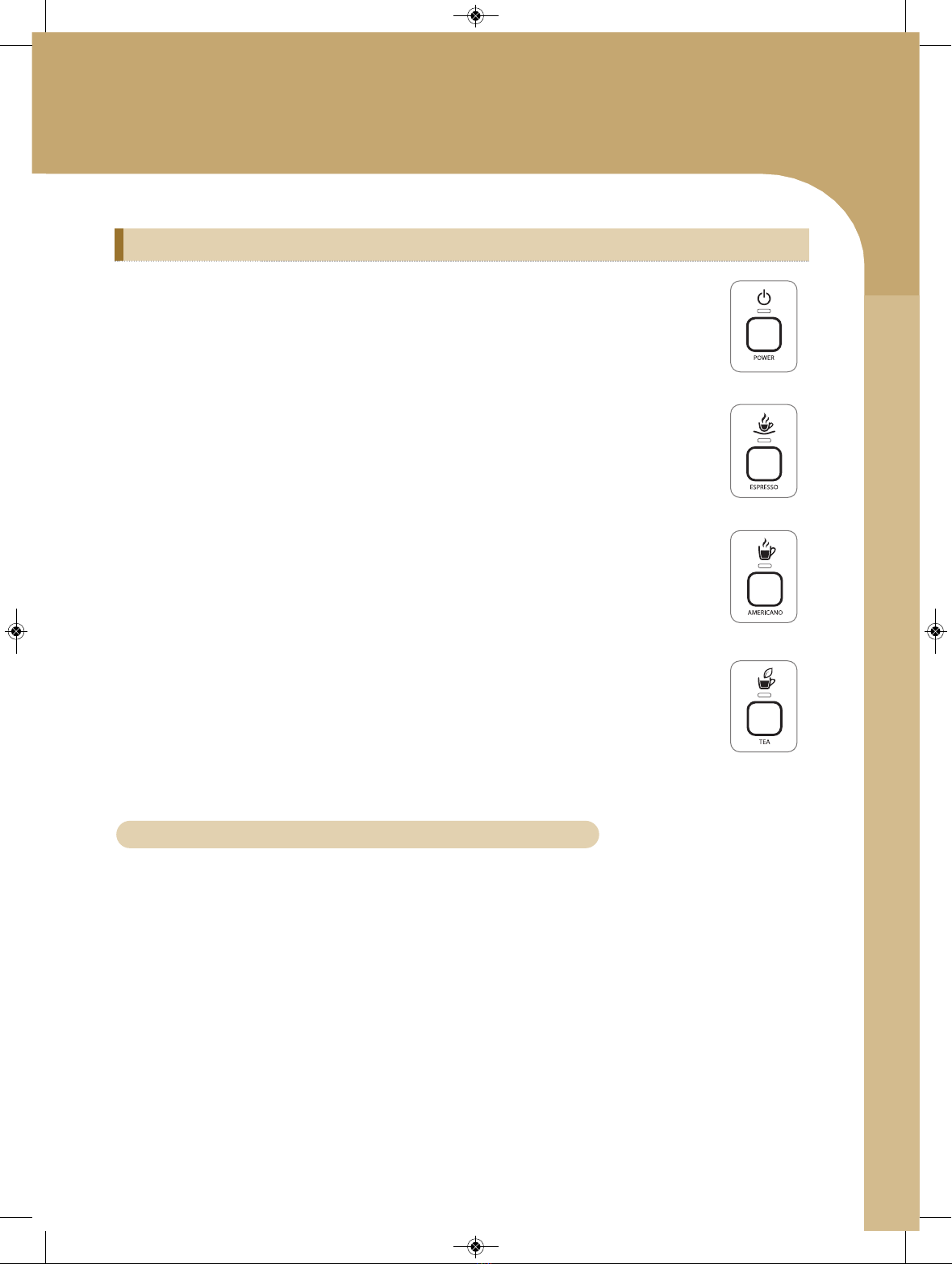

12
Ho to extract coffee and tea
█ Power buttonPress "POWER" to turn on the unit before extracting Espresso/Americano/Tea. POWER LED is blinking while heating water to extract. █ EspressoPress "ESPRESSO" to extract the coffee after inserting the coffee capsule. Press "ESPRESSO" again to release this function. █ AmericanoPress "AMERICANO" to extract the coffee after inserting the coffee capsule. Press "AMERICANO" again to release this function. █ TeaPress "TEA" to extract the tea after inserting the tea capsule. Press "TEA" again to release this function..
Extracting coffee and tea
※Refer to the detailed method of use on 13~14 page.
커피얼음정수기_메뉴얼_영문2_T_461_메뉴얼_5170S 14. 9. 22. 오전 10:22 페이지 14

13
① Press“POWER”
※POWER LED blinks as red for maximum 40 seconds.※
After warm-up completion, LED lights with beepsound. (Sound : Ding-Ding-Ding)
② Pull out capsule holder. ④ Put the cup on the drip tray. ※ Drip tray can be adjustable as 2 heights. Adjust the drip tray to container's height. ※ Place drip tray properly. Otherwise, extracted beverage can be spilled out of drip tray. ⑤ Press the "ESPRESSO", "AMERICANO" or "TEA" on user's preference.※ Use designated capsule size only. ※ Refer to the table below. ⑥ Coffee or tea is extracted by high pressure. ButtonESPRESSOAMERICANOTEARecommended capsuleArabica 100MorningLunchArabica 100MorningLunchTEAExtracting timeExtract Amount③
Insert the coffee or tea capsule to the holder and push it.
※ Extracting the coffee or tea causes noise and vibration from motor and high pressure pump. This is normal operation. ※ The most proper temperature for enjoying the taste and aroma of coffee is 149℉ ~ 158℉(65℃ ~ 70℃) In case of our coffee capsule, user(s) can taste the most full of flavor between 167℉ ~ 176℉(75℃ ~ 80℃)30 seconds30 seconds25 secondsAbout 40 ~ 50 mlAbout 120 ~ 130 mlAbout 70 ~ 140 ml
Using coffee and tea extract method
커피얼음정수기_메뉴얼_영문2_T_461_메뉴얼_5170S 14. 9. 22. 오전 10:22 페이지 15

14
⑦ Extracting is completed with beep sound. (Sound : Ding-Ding-Ding)⑧
Remove capsule and water in capsule holder.
※ Extracting can generate small amount of water in capsule holder under normal operation.⑨ Add the "HOT", "COLD" or "AMBI". water onuser's preference. ※For iced coffee, we recommend that you take icecubes first and extract coffee.
※ When extracting the coffee or tea, be careful as beverage is hot. ※ Do not separate capsule holder while extracting the coffee or tea. There is danger of burns. ※ For iced coffee, we recommend that you take ice cubes first and extract coffee to avoid spattering beverage and burns. It can cause germ and mold in ice spout. Check point!
① Press "POWER" to turn off. ② Do not insert the coffee/tea capsule. ③ Place big-sized cup prepared for high pressured water. ④ Press "ESPRESSO" for 5 seconds. ⑤ Hot and ambient water come out for 12 seconds to clean up the coffee outlet.
Descaling coffee outlet5SECONDS
※ Make sure that capsule holder is empty for cleaning. ※ After warm-up completion, coffee or tea can be extracted immediately.
Using coffee and tea extract method
커피얼음정수기_메뉴얼_영문2_T_461_메뉴얼_5170S 14. 9. 22. 오전 10:22 페이지 16

15
※ 1 shot means a cup of extracted espresso.
Recipe
Ingredients : Espresso arabica 100(1 shot) + Ice(10 cubes) + Water(100 ml)① Fill the glass with chilled filtered water and ice. ② Pour the espresso over the ice.Ingredients : Espresso lunch(1 shot) + Ice cream(1 scoop)① Put the 1 scoop of ice cream in the glass.② Pour the espresso over the ice cream.③ Put topping like nuts on user's preference.Ingredients : Espresso lunch(2 shots) + Ice(8 cubes) + Milk(120 ml)① Put the 8 cubes of ice in the glass.② Add the chilled milk.③ Pour the 2 shots of espresso over the ice.Ingredients : Espresso morning(1 shot) + Ice(6 cubes) + Syrup(15 ml)① Fill the cocktail shaker(Tumbler) with ice and syrup.② Shake the cocktail shaker after pouring 1 shot of espresso.③ Take the crema with coffee to the transparent glass.Ingredients : Espresso morning(2 shots) + Milk(120 ml) + Ice(10 cubes) + Vanilla syrup(20 ml)① Put the vanilla syrup in the glass.② Add the ice and milk.③ Pour the espresso slowly in the glass.Ingredients : Espresso arabica 100(1 shot) + Milk(100 ml) + Ice(6 cubes) + Chocolate sauce(15 ml)① Put the chocolate sauce in the glass.② Pour the espresso to melt the chocolate sauce.③ Pour the milk into the glass and quickly stir it. And then add the ice. ④ Put the whipping cream on the top and decorate it on user's preference.Ingredients : Espresso morning(1 shot) + Whipping cream① Extract the espresso in the warm demitasse glass.② Put the whipping cream rapidly.Ingredients : Espresso arabica 100(1 shot) + Honey yuzu(4 spoons) + Ice(10 cubes) + Water(100 ml)① Put the 4 spoons(Tea spoon) of honey yuzu and water in the glass and stir them.② Put the 10 cubes of ice.③ Extract the espresso and pour it in the glass.
※ Putting extra 10 ml of hot water can easily melt the honey yuzu.Ingredients : Espresso arabica 100(1 shot) + Sugar(5 g) + Hot water(75 ml) + Ice(8~9 cubes)① Put the hot water in the warm glass.② Put the sugar and stir it.③ Add the 1 shot of espresso and put the whipping cream on it.④ Decorate it on user's preference adding cimanom, nuts or syrup.
Menu
IcedAmericanoAffogatoIcedCaffeLatteShakeratoIcedVanillaLatteCaffeMochaEspressoConPannaYuzuAmericanoCaffevienna
Coffee recipe
커피얼음정수기_메뉴얼_영문2_T_461_메뉴얼_5170S 14. 9. 22. 오전 10:22 페이지 17

16
Light detection sensorDetects a light density of around the unit.Hot water system is automatically ON/OFFin accordance with light density. (This func-tion is valid only when "ECONO" is on.)ICE FULL LEDLights up when ice storage is full.(Yellow green)WATER FULL LEDLights up when ambient water tank isfull. (Yellow green)ICE/LOCKHOT LEDHOT/ECONOSetting/Releasing "LOCK" or "ICE".
ICE LEDLOCK LED
Lights up when "ICE" is set. (Red)Lights up when "LOCK" is set. (Red)Lights up when "HOT" is set. (Red)Setting/Releasing "HOT" or "ECONO".ECONO LEDLights up when "ECONO" is set. (Red)
A
Display and function settings (A)
HOT(HOT WATER SELECTION)HOT LED(HOT WATERSELECTION LED)Used to take hot water.Displayshotwaterselection. (Red) WARM(WARMWATERSELECTION)WARM LED(WARM WATER SELECTION LED)Used to take warm water.Displays warm water selection.(Orange)COLD(COLD WATER SELECTION)COLD LED(COLD WATER SELECTION LED)
Used to take cold water.
Displayscoldwaterselection.(Blue)AMBI/CONSTWATER DISPENSING BUTTONICE(ICE DISPENSER)AMBILED(AMBIENTWATERSELECTIONLED)Usedtoselect“AMBI”or“CONST”Used to take water into a con-tainer such as a cup afterselecting the desired waterselection among hot, cold,ambient and warm water.Used to take ice.Displaysambientwaterselection.(Yellow Green)CONST LED(CONSTANT WATERSELECTION LED)Displaysconstantwaterselection.(Red)
Water dispensing selection (B)
BOperation
커피얼음정수기_메뉴얼_영문2_T_461_메뉴얼_5170S 14. 9. 22. 오전 10:22 페이지 18

17
Section1BEEPRemarks/OccurrenceDing~Dong~Daeng~OncePowerON2Ding~OnceKeyinput3Ding~Ding~Ding~OnceICE/LOCKsettingDing~OnceICE releasing4Ding~OnceWater dispensing start5Dong~OnceWaterdispensingending678Ding~Ding~Ding~Ding~Ding~Ding~Ding~Ding~1 second interval0.75 secondintervalDrain/OverflowIcedispensing※A beep sound following operation of the Whi cafe█ Lock Function (Ice/Hot water locking function) Setting① Press "ICE/LOCK" touch button softly for over 3 seconds. ② "LOCK" LED (Red) is turned on and lock function is set. (Setting sound : Ding~Ding~Ding~) ③ A hot water operation, hot water dispensing button, ice dispensing function and "HOT/ECONO" selection button do not work after the lock function is set. ※ LOCK" is designed to avoid any accidental burns or spout of ice cube due to carelessness. █ Lock Function Releasing ① Press "ICE/LOCK" touch button softly for over 3 seconds. ② "LOCK" LED (Red) is turned off and the lock function is released. (Releasing sound : Ding~Ding~Ding~) ③ A hot water operation, hot water dispensing selection, the ice dispensing function and "HOT/ECONO" selection button work when the setting of lock function is released.█ Ice-making function setting① Press“ICE/LOCK”touch button for 10 seconds.※ Press the "ICE/LOCK" touch button for 3 seconds to change the lock function. And then, keep pressing the "ICE/LOCK" touch button until 10 seconds to set the ice-making function. After setting the ice-making function, set the lock function again according to user's preference. ② "ICE" LED (Red) is turned on and the ice making function is set. (Setting sound : Ding~ Ding~ Ding~) █ Ice-making function releasing ① Press "ICE/LOCK" touch button for 10 seconds.② "ICE" LED(Red) is turned off and the ice making function is released. (Releasing sound : Ding~) ※ When it is released, ice-making function will be disabled. However, ice is served until the ice storage is empty. ※ Press the "ICE/LOCK" touch button for 3 seconds to change the lock function. And then, keep pressing the "ICE/LOCK" touch button until 10 seconds to release the ice-making function. After releasing the ice-making function, set the lock function again according to user's preference.
HOT:ONECONO:OFFTOUCHTOUCHTOUCHHOT:OFFECONO:OFFHOT:ONECONO:ON
Operation beep soundFunction setting and releasing3SECONDS
HOT:ONECONO:OFFTOUCHTOUCHTOUCHHOT:OFFECONO:OFFHOT:ONECONO:ON
10SECONDS
Usage
커피얼음정수기_메뉴얼_영문2_T_461_메뉴얼_5170S 14. 9. 22. 오전 10:22 페이지 19

18
•Press“HOT/ECONO”touch button for 2 seconds.
HOT:ONECONO:OFFTOUCHTOUCHTOUCHHOT:OFFECONO:OFFHOT:ONECONO:ON
HOT:ONECONO:OFFTOUCHTOUCHTOUCHHOT:OFFECONO:OFFHOT:ONECONO:ON
█ Beep function releasing ① Press "HOT/ECONO." and "WARM" touch button simultaneously for 3 seconds. ② Beep sound is released. (Releasing sound: Ding~Ding~Ding~Ding~Ding) ③ LED of "ICE/LOCK" and "HOT/ECONO" flickers 5 times by 1 second interval. █ Beep function resetting① Press "HOT/ECONO." and "WARM" touch button simultaneously for 3 seconds. ② Beep sound is set. (Setting sound: Ding~Ding~Ding~Ding~Ding) ③ LED of "ICE/LOCK" and "HOT/ECONO" flickers 5 times by 1 second interval.
HOT:ONECONO:OFFTOUCHTOUCHTOUCHHOT:OFFECONO:OFFHOT:ONECONO:ON
█ Hot water operation setting ① Press "HOT/ECONO" for 2 seconds. ② Press the button until "HOT" LED(Red) is turned on. ③ Hot water operation works as turning on "HOT" LED. ※ Hot water system is operated by a detection sensor which automatically detects the temperature inside of the hot water tank. █ Hot water operation releasing ① Press "HOT/ECONO" for 2 seconds. ② Press the buttonuntil "HOT" LED(Red) is turned off. ③ Hot water operation stops working as turning off "HOT" LED. █ Power saving function setting ① Press "HOT/ECONO" for 2 seconds. ② Press the buttonuntil "ECONO" LED(Red) is turned on. ③ Power saving function starts working as turning on "ECONO" LED. ※While operating hot water, light detection sensor reacts to the light density (CDS sensor) and it controls heater operation. When it is dark, it sends a signal of stopping operation to the heater. This function is very useful for an empty office after business hour, closed restaurant and night at home. If it gets bright around the units (Light is turned on), hot water operation sets back into motion automatically. █ Power saving function releasing ① Press "HOT/ECONO" for 2 seconds. ② Press the buttonuntil "ECONO" LED(Red) is turned off. ③ Power saving function stops working as turning off "ECONO" LED.•HOT/ECONO function is available only when LOCK is released.•Cautions for use of power saving function If power saving function is selected, the hot water system is automatically turned on/off according to brightness around the unit. So, hot water cannot be immediately served after it becomes bright again around the unit. Therefore, do not use the power saving function in order to use hot water all the time.
2 SECONDS
Usage
