CHY 506A User manual

OPERATOR'S MANUAL
MODEL 506A

B. Status Sets (from Instrument to Remote)
B.1 Condition:
Case: PC queries the all of logger counters from meter.
Ex. PC send “$001G/r”, then meter response “!001G005150000200000/r”
Means:
Here meter ID: 001
Save counter: 515
Log Group counter: 2
ALM logger counter: 0
/r <CR> <LF> (Hex, 0D, 0A).
B.2 Condition:
Case: PC queries the LOG data in GROUP 6th of meter ID 001.
Ex. PC send “#001L00006/r”, then meter response
“>001L0000111554170704111220420900115000001/r”
PC sends “#001D00006/r”, then meter will dump all of data of group 6th.
“> 001D00006/rxxxxxx/rxxxxxx/rxxxxxx/r……………”
Means:
>001L: meter response, Here meter ID: 001
Scale: degree C
Logging Mode: 1 (logging T1 input)
T1_type: K type
T2_type: K type
Decimal Point: 1
ChA_type: ohm
ChB_type: User define, %RH
Time: year: 2004; month: 11; day: 12; hour: 20; minute: 42; second:09
Logger counts: 115
Interval: 1 second
xxxxxx: Value
/r <CR> <LF> (Hex, 0D, 0A).
23
Ver. 3 05/10/2021
17008-506A-2

Alarm Log Data(AD)
mode=1,mode=2
7+
30*n
S GroupID (/r) c/f mode T1_type T2_type
AC Time Value
5+2 1 1 1 1
5 12 6
H/L ST/SP
1 2
ˇ
Alarm Log Data(AD)
mode=3
7+
32*n
S GroupID (/r) c/f mode dp cha_type
AC Time Value
5+2 1 1 1 1
5 12 6
H/L ST/SP /r
1 2 2
ˇ
Alarm Log Data(AD)
mode=4
7+
39*n
S GroupID (/r) c/f mode dp chb_type
chb_text AC Time
5+2 1 1 1 2
6 5 12
Value H/L ST/SP /r
6 1 2 2
ˇ
Battery Voltage(VB) 6 S 00 . 00 V
2 1 2 1 ˇ
Note:
1. Communication Protocol : 9600, 8, E, 2.
2. /r <CR> <LF> (Hex, 0D, 0A).
22
TABLE OF CONTENTS PAGE
1. Safety Notice.............................................................................................................................1
2. Specifications............................................................................................................................2
2.1 Electronic Specifications........................................................................................................2
2.2 Accuracy .................................................................................................................................2
3. Names of Outer Parts ..............................................................................................................3
4. Battery Installation ..................................................................................................................6
5. Turn On and Off Model 506A .................................................................................................7
6. Check Battery Voltage .............................................................................................................7
7. Measurement and Main Function of Buttons ........................................................................7
7.1 MIN/MAX Button..................................................................................................................8
7.2 HOLD Button.........................................................................................................................8
7.3 Hi/Lo Button...........................................................................................................................8
7.4 RELΔButton ..........................................................................................................................8
7.5 Button ..............................................................................................................................8
7.6 LOG Button............................................................................................................................8
7.7 SAVE Button...........................................................................................................................9
7.8 ALM LOG Button..................................................................................................................9
8. Measurement and Main Function of Buttons ........................................................................9
8.1 D1-Setting the Main Display .................................................................................................9
8.2 D2-Setting Second Display ..................................................................................................10
8.3 D3-Setting Third Display.....................................................................................................10
8.4 T1 TYPE and T2 TYPE-Setting the Types of Thermocouple for T1 or T2 .....................10
8.5 T1 ADJ and T2 ADJ-Setting the Off-Set Adjustment for T1 or T2..................................10
8.6 CHA TYPE-Setting the Types of RTD for CHA................................................................ 11
8.7 CHA ADJ-Setting the Off-Set Adjustment for RTD.......................................................... 11
8.8 CHA RNGE-Setting the Resolution for Channel A (CHA)............................................... 11
8.9 CHB TYPE-Setting the Unit for Channel B ......................................................................12
8.10 CHB PARA-Create Special Unit for Channel B (CHB)..................................................12
8.11 CHB RNGE-Select the Resolution for Channel B (CHB) ...............................................13
8.12 MEN VIEW CLR-Setting..................................................................................................13
8.13 °C/°F Selecting Temperature Unit (°C/°F) .......................................................................16
8.14 REL-Setting Reference Value for Relative Reading........................................................16
8.15 Hi/Lo-Setting High and Low Limits for Alarm and Alarm Log.....................................16
8.16 -Setting Time Length of Backlight ..............................................................................16
8.17 APO-Auto Power Off Time Setting...................................................................................17
8.18 INVT-Set Time interval of data logging ...........................................................................17
8.19 PERIOD-Set length of Time of data logging....................................................................18
8.20 TIME-Time Setting............................................................................................................18
8.21 DATE-Date Setting ............................................................................................................18
9. Maintenance ...........................................................................................................................18
A. Command Sets (from Remote to Instrument) ...................................................................19
B. Status Sets (from Instrument to Remote) ..........................................................................23

2. Data Format Definition
Name Len
B
y
te Type Description Rd Wr
ID Number (ID) 3 S 1 ~ 999 (ASCII) ˇˇ
Description (DE) 40 S ˇˇ
Time (TI) 12 S YYMMDDHHMMSS ˇˇ
Time_INV set 19 S GroupID hour minute second /r
5 4 4 4 2 ˇˇ
DATA OUT (#IDN) 47 S
GroupID T1_data T1_type T2_data T2_type
c/f cha_data
5 6 1 6 1
1 7
chat_ype chb_data chb_type chb_text
cha/chb /r
1 7 2 6
2 2
ˇ
Saved Data Counter (SC) 5 S Counts
5 ˇ
Log Data Counter (LC) 5 S Counts
5 ˇ
Alarm Counter (AC) 5 S Counts
5 ˇ
Saved Data (SD)
mode=1, mode=2 34 S
GroupID SC c/f mode T1_type
T2_type Time Value /r
5 5 1 1 1
1 12 6 2
ˇ
Saved Data (SD)
mode=3 34 S
GroupID SC c/f dp cha_type Time
Value /r
5 5 1 1 1 2
6 2
ˇ
Saved Data (SD)
mode=4 41 S
GroupID SC c/f dp chb_type
chb_text Time Value /r
5 5 1 1 2
6 12 6 2
ˇ
Log Status (LS) 43 S
GroupID c/f mode T1_type T2_type
dp cha_type
5 1 1 1 1
1 1
chb_type chb_text TI LC
TSEC /r
2 6 12 5
6 2
ˇ
Log Data (LD)
n = recorded channel x LC 7+ 8*n S GroupID( /r) D1 /r D2 /r … Dn /r
5+2 6 2 6 2 … 6 2 ˇ
Sampling Time (TSEC) 6 S HHMMSS
Alarm Limit Counts
(LMS) 12 S
Hi-Limit Lo-limit
6 6 ˇ
21

A4. Quick Reference
1. 506A-Program
Mode: Channel: Record mode
MODE=1 Record T1 SAVE,ALARM and Logge
r
MODE=2 Record T2 SAVE,ALARM and Logge
r
MODE=3 Record CHA SAVE,ALARM and Logge
r
MODE=4 Record CHB SAVE,ALARM and Logge
r
MODE=5 Record T1and T2 Logge
r
MODE=6 Record T1,T2 and CHA Logge
r
MODE=7 Record T1,T2 and CHB Logge
r
20
1. Safety Notice
The following safety information must be observed to ensure maximum personal safety dur-
ing the operation at this meter:
This instrument contains no operator serviceable part. Service should be done by qualified
person only.
Do not use the meter if the meter or test leads look damaged, or if you suspect that the
meter is not operating properly.
Before open the case of the meter, be sure to remove all the accessories including thermo-
couples connected to the meter.
When the low battery indicator ( ) shown in the display, please change the battery
immediately.
Do not use this meter in the dangerous circumstances (such as: explosive gas, vapor).
Please use this meter according to instruction, or it may cause damage of the protective
function of the meter.
AC
Alternating Current Ground
DC
Direct Current
1

2. Specifications
Display: 4 1/2 digit liquid crystal display (LCD) with a maximum reading of 19999.
Low Battery Indication: The “ ” displayed and blinking when the battery voltage drops below
the operating level.
Measurement Rate: 2.5 times per second (nominal).
Continuous Record:
1. Single channel recording: 32000 records (T1 or T2 or CHA or CHB).
2. Multi channel recording: 6500 records (T1+T2 or T1+T2+CHA or T1+T2+CHB).
ALM Record: 5400 samples with start/stop time. (Max.)
Single Record: 6500 samples with real-time data. (Max.)
Operating Environment: 0°C to 50°C at < 70% R.H.
Storage Temperature: -20°C to 60°C, 0 to 80% R.H. with battery removed from meter.
Safety: CE
Power: Single standard 9-volt battery (NEDA 1604, JIS 006P, IEC 6F22).
Battery Life: 100 hours typical with carbon-zinc.
Dimensions: 192mm (H) x 91mm (W) x 52.5mm (D).
Weight: 435g including battery.
Software download link:
http://WWW.chy-meter.com//data/outer_web/1492-00506A/1492-00506A-102.zip
Accessories:
K-type thermocouples (2 pcs)
Co-axial cable (RTD) (1pcs)
RS232 transmission cable (1pcs)
9V battery (installed) (1pcs)
Operating manual
2.1 Electronic Specifications:
Thermocouple(T1、T2)Measuring Range:
K-TYPE (Resolution 0.1°): -200°C to 1372°C, -328°F to 2501°F
J-TYPE (Resolution 0.1°): -210°C to 1200°C, -346°F to 2192°F
T-TYPE (Resolution 0.1°): -200°C to 400°C, -328°F to 752°F
E-TYPE (Resolution 0.1°): -210°C to 1000°C, -346°F to 1832°F
R-TYPE (Resolution 1°): 0°C to 1767°C, 32°F to 3212°F
S-TYPE (Resolution 1°): 0°C to 1767°C, 32°F to 3212°F
N-TYPE (Resolution 0.1°): -50°C to 1300°C, -58°F to 2372°F
Resolution: 0.1°C /1°C, 0.1°F /1°F (Auto Ranging)
2.2 Accuracy:
K/J/T/E TYPE
±(0.05% rdg + 0.3°C) on -50°C to 1370°C
±(0.05% rdg + 0.7°C) on -50°C to -210°C
±(0.05% rdg + 0.6°F) on -58°F to 2501°F
±(0.05% rdg + 1.4°F) on -58°F to -346°F
N -TYPE
±(0.05% rdg + 0.8°C) on -50°C to 0°C
±(0.05% rdg + 0.4°C) on 0°C to 1300°C
±(0.05% rdg + 1.6°F) on -58°F to 32°F
±(0.05% rdg + 0.8°F) on 32°F to 2372°F
2
A. Command Sets (from Remote to Instrument)
A. 1 Instrument Setup (%) , only use for broadcasting
Command Syntax Command Name Description
%ID IID New ID ID: original ID
ID: New ID
%000
R
Read ID
%ID D DE Setu
p
descri
p
tion DE: Descri
p
tive Text
%ID
T
TI Timer setup TI: timer count
%ID
L
LM Limit settin
g
LM: Hi/Lo limit and Ran
g
e
%ID
S
TSEC Lo
g
sam
p
lin
g
time TSEC: Lo
g
sam
p
lin
g
time
%ID
M
Clean Memor
y
Unknown or Error Echo?
A.2 Instrument Status ($)
Command Syntax Command Name Description
$ID GRead group counter Echo: ! ID GSC , LC , AC
SC: saved group count
LC: log group count
AC: alarm count
$ID DRead description Echo: ! ID DDE
$ID
T
Read Time
r
Echo: ! ID
T
TI
$ID
L
Rea
d
Limits Value Echo: ! ID
L
LMS
$ID
S
Read Sampling Time Echo: ! ID
S
TSEC
$ID
B
Read Batter
y
Volta
g
e Echo: ! ID
B
VB
Unknown or Error Echo ?
A.3 Measurement (#)
Command Syntax Command Name Description
#ID NRead current data Echo: > ID N#IDN
#IDN: Current Data
#ID S [SC] Read saved data Echo: > ID SSD
SD: Saved Data
#ID
L
[LC] Read log status Echo: > ID
L
LS
#ID D[LC] Read lo
g
data Echo: > ID DLD
#ID G [Start] , [Stop]
5 1 5
Read saved data group Echo: > ID GSDG
#ID B Read alarm log data Echo: > ID BAD
AD: Alarm Lo
g
Data
Unknown or Error Echo?
19

8.20 TIME-Time Setting
To set or change the system time. Place rotary switch at position “TIME” mode. The time and
date on the third display panel should blink. Enter from left to right in the following format
HH:MM:SS. Press On ( ), under ( ) button printed on the overlay in white word to set the
system date. Press the “ENTER” button to confirm. Exit this function by pressing ESC button.
Except these 2 positions mentioned above, all other position are for system setting, the indica-
tor “SET” shows at left side of LCD when place the rotary switch at any of these system setting
positions. And 2nd functions of buttons are active.
HH: Interval Hour (0~23)
MM: Interval Minute (0~59)
SS: Interval Second (0~59)
MAX: 23:59:59
MIN:00:00:01
8.21 DATE-Date Setting
To set or change the system data. Place rotary switch at position “Date” mode. The time and
date on the third display panel should blink. Enter from left to right in the following format YY:
MM: DD. Press On ( ), under ( ) button printed on the overlay in white word to set the sys-
tem date. Press the “ENTER” button to confirm. Exit this function by pressing ESC button.
Except these 2 positions mentioned above, all other position are for system setting, the indica-
tor “SET” shows at left side of LCD when place the rotary switch at any of these system setting
positions. And 2nd functions of buttons are active.
Y: Interval year (20 "00" ~20 "99")
M: Interval month (1~12)
D: Interval date (1~31)
MAX: 99:12:31
MIN: 00:01:01
9. Maintenance
Periodically wipe the case with a damp cloth, detergent and do not use abrasives or solvents.
WARNING:
To avoid possible electrical shock, disconnect the
thermocouple connectors from the thermometer
before removing the cover.
18
R/S-TYPE
±(0.05% rdg + 2°C) on 0°C to 1767°C
±(0.05% rdg + 4°F) on 32°F to 3212°F
CHA (RTD) Measuring Range:
Acceptable RTD Type: Pt385(100ohm)、Pt3916(100ohm)、Pt3926(100ohm).
Temperature: -200°C to 800°C, -328°F to 1472°F
Resolution: 0.01, 0.1 for above ±200 °C/°F.
Accuracy: ±0.05% rdg + 0.2°C or ±0.05% rdg + 0.4°F
Resistance: 0 ohm to 199.99 ohm, 200.0 ohm to 400.0 ohm.
Resolution: 0.01, 0.1 for above 200 ohm.
Accuracy: ±0.05% rdg + 0.1 ohm.
CHB (ADAPTER) Measuring Range:
Accuracy: ±(0.1% rdg + 10dgts) on 200mV
±(0.5% rdg + 4°dgts) on 2000mV
Stated accuracy at 23°C ± 5°C, <75% R.H.
Temperature Coefficient: 0.1 times the applicable accuracy specification per °C from 0°C to
18°C and 28°C to 50°C (32°F to 64°F and 82°F to 122°F).
Input Protection: 24V DC or 24V AC rms maximum input voltage on any combination of
input pins.
3. Names of Outer Parts:
Front Side:
1. LCD.
2. Push buttons.
3. Rotary switch.
4. Socket of CHB (channel B) for voltage input.
3

Top Side:
1. Socket of power (DC 12V, more then 100mA).
2. RS232 (Optical Interfaced) port.
3. Socket of CHA (channel A) for RTD input.
4. Sockets of K type thermocouples T1 and T2.

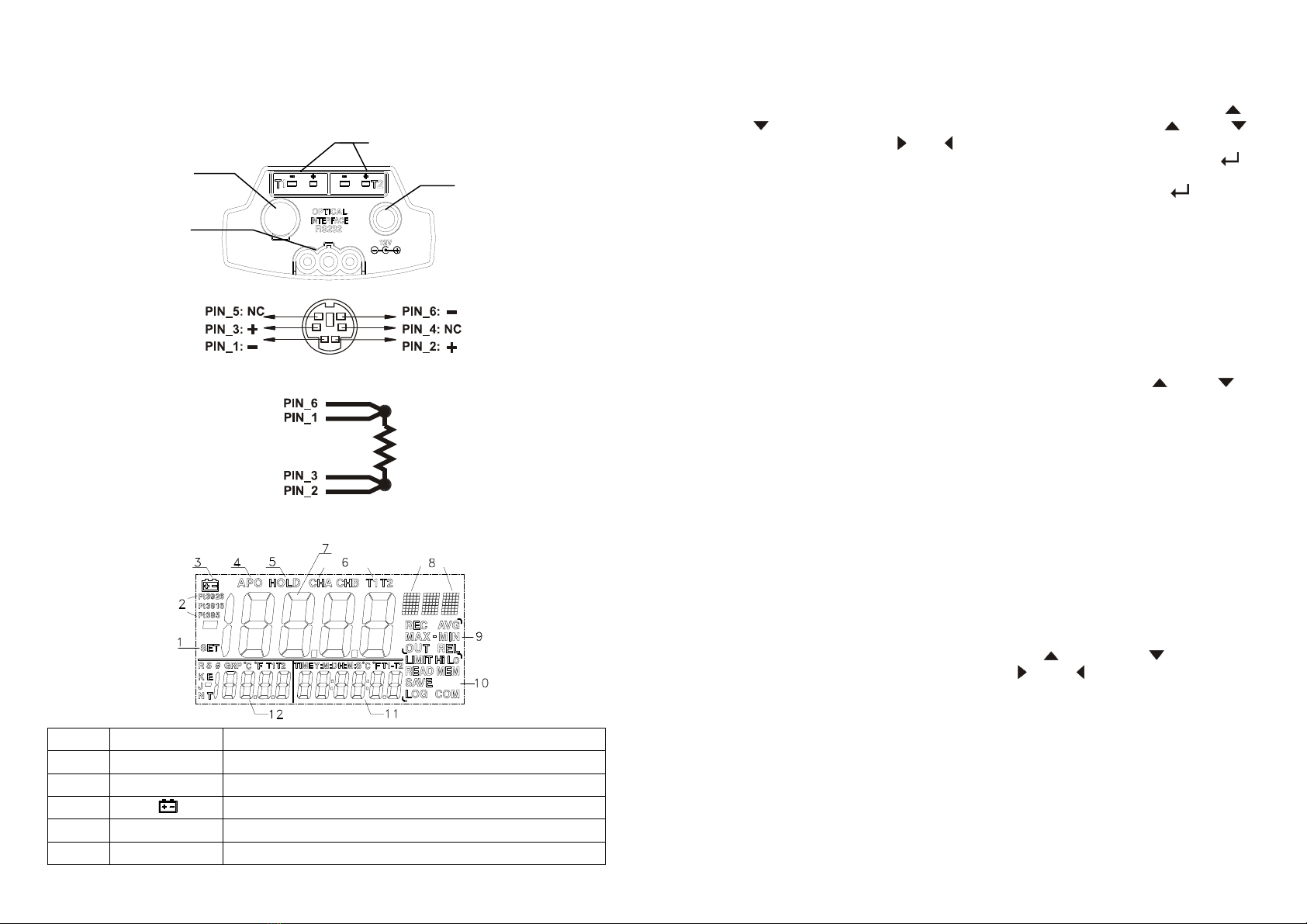

Connection Of RTD
Configuration of Mini-Din Connector
Wire connection to RTD
LCD:
Number Display Function
1 SET Setting mode
2 Pt385/3916/3926 Type of RTD at CHA (channel A)
3 Low battery
4 APO Auto power off
5 HOLD Hold measured reading
4
3
2
1
4
8.17 APO-Auto Power Off Time Setting
Use this function to change the time for the auto power off (APO) function. Place rotary
switch at position “INVT”, and the indicator “APO” and the main display will blink on the LCD,
and the previous setting will be displayed. The default time for APO is 1 minute. Press On ( ),
under ( ) button printed on the overlay in white word to set the APO time. On ( ), under ( )
direction key: Time value, right ( ), left ( ) direction key: Time figure. Press “CANCEL” button
to back to previous setting. Confirm selection and exit setting mode by pressing “confirm ( )”
button. Press “ESC” button to abort change and exit the setting mode with previous setting re-
mains unchanged. Confirm selection and exit setting mode by pressing “confirm ( )” button.
MAX: 9998 minutes
MIN: 0001 minutes
Disable APO function: To set the time at 9999 will disable APO function.
APO Function will be Disabled also in Follow situation:
External power is used.
RS-232 function is used.
MAX, MIN, MAX-MIN, AVG function is used.
Data logger function is used.
8.18 INVT- Set Time interval of data logging
Place rotary switch at position “INVT” mode to set the time. The indicator “INV” will be
b
link
on the top-right of the LCD and the pervious settings are displayed. Press On ( ), under ( )
button printed on the overlay in white word to change the time interval. Setting is from left to
right of the following format (HH:MM:SS).
Pressing overlay “ENTER” button to confirm. To exit this function, press the ESC button.
Except these 2 positions mentioned above, all other position are for system setting, the indicator
“SET” shows at left side of LCD when place the rotary switch at any of these system setting po-
sitions. And 2nd functions of buttons are active.
HH: Interval Hour (0~23)
MM: Interval Minute (0~59)
SS: Interval Second (0~59)
MAX: 23:59:59
MIN: 00:00:01
8.19 PERIOD- Set length of Time of data logging
Place the rotary switch at position “Period” to set the total length of time for data recording in
the format of DD.HH.MM. At this position, indicator “PER” blinks at right upper corner of the
LCD and the third display (the lower right display) shows the previous setting with the HH
blinks. The blinking number can be changed with upward ( ) or downward ( ) direction but-
tons, and blinking position can be changed with right ( ) or left ( ) direction buttons.
17

8.13 °C/°F-Selecting Temperature Unit (°C/°F)
Place the rotary switch at position “°C/°F”, LCD shows the indicator “SET” at left side and a
blinking °C or °F at upper-right corner. Press direction keys ( ) or ( ) to change between °C
and °F. Press “ESC” key to end the set-up mode (indicator °C or °F ends blinking, and indicator
“SET” disappears, but keep the previous setting unchanged. Press “CANCEL” key to return to
previous setting but remain in setting mode. Press enter key ( ) to confirm the selection and
end the setting mode.
8.14 REL-Setting Reference Value for Relative Reading
Place the rotary switch at position “REL”, LCD shows the indicator “SET” at left, and a
blinking “REL” at upper-right corner. Main display shows previously set reference value with
right most digit blinking. Change the value of blinking digit with ( ) and ( ) keys and change
between “+” and “–” with “+/-” key. Change the blinking position with ( ) and ( ) key.
Press “ESC” key to end the set-up mode (indicator REL ends blinking, and indicator “SET”
disappears, the previous setting remains unchanged). Press “CANCEL” key to return to previous
setting but remain in setting mode. Press enter key ( ) to confirm the setting and end the setting
mode.
8.15 Hi/Lo-Setting High and Low Limits for Alarm and Alarm Log
Refer to 6.5 “Hi/Lo” button and 6.8 “ALM LOG” button for functions of “Hi/Lo alarm” and
“alarm log”. Place the rotary switch at position “Hi/Lo”, LCD shows the indicator “SET” and
“limit” at left and right, respectively, and a blinking “Hi” at upper-right corner.
Main display shows previously set Hi-limit with right most digit blinking.
Change the value of blinking digit with ( ) and ( ) keys and change between “+” and “–” with
“+/-” key. Change the blinking position with ( ) and ( ) key.
Press “ESC” key to end the set-up mode (indicator °C or °F ends blinking, and indicator
“SET” disappears, but keep the previous setting unchanged). Press “CANCEL” key to return to
previous setting but remain in setting mode. Press enter key ( ) to confirm the setting, end the
setting mode of Hi-limit and enter setting mode of Lo-limit with the indicator “Lo” blinking at
upper-right corner.
Set the Lo-limit value same way as setting Hi-limit.
Based on measuring types to set the resolution, there is no decimal point when setting.
8.16 -Setting Time Length of Backlight
Place the rotary switch at position “ ”, LCD shows the indicator “SET” at left. Main display
shows previously set value with right most digit blinking. Change the value of blinking digit with
() and ( ) keys and change between “+” and “–” with “+/-” key. Change the blinking position
with ( ) and ( ) key. Press “ESC” key to end the set-up mode (indicator REL ends blinking, and
indicator “SET” disappears, the previous setting remains unchanged).
Press “CANCEL” key to return to previous setting but remain in setting mode.
Press enter key ( ) to confirm the setting and end the setting mode.
16
6 CHA/CHB/T1/T2 Channel of main display
7 Main display
8 Unit of main display
9
REC
AV G
MAX-MIN
OUT
REL
REC: Record MAX/MIN value
AVG: Average value
MAX-MIN: Maximum value and minimum value
REL: Relative value
10
LIMIT/Hi Lo
READ
MEM
SAVE
LOG
COM
Function indications
11 3rd Display
12 2nd Display

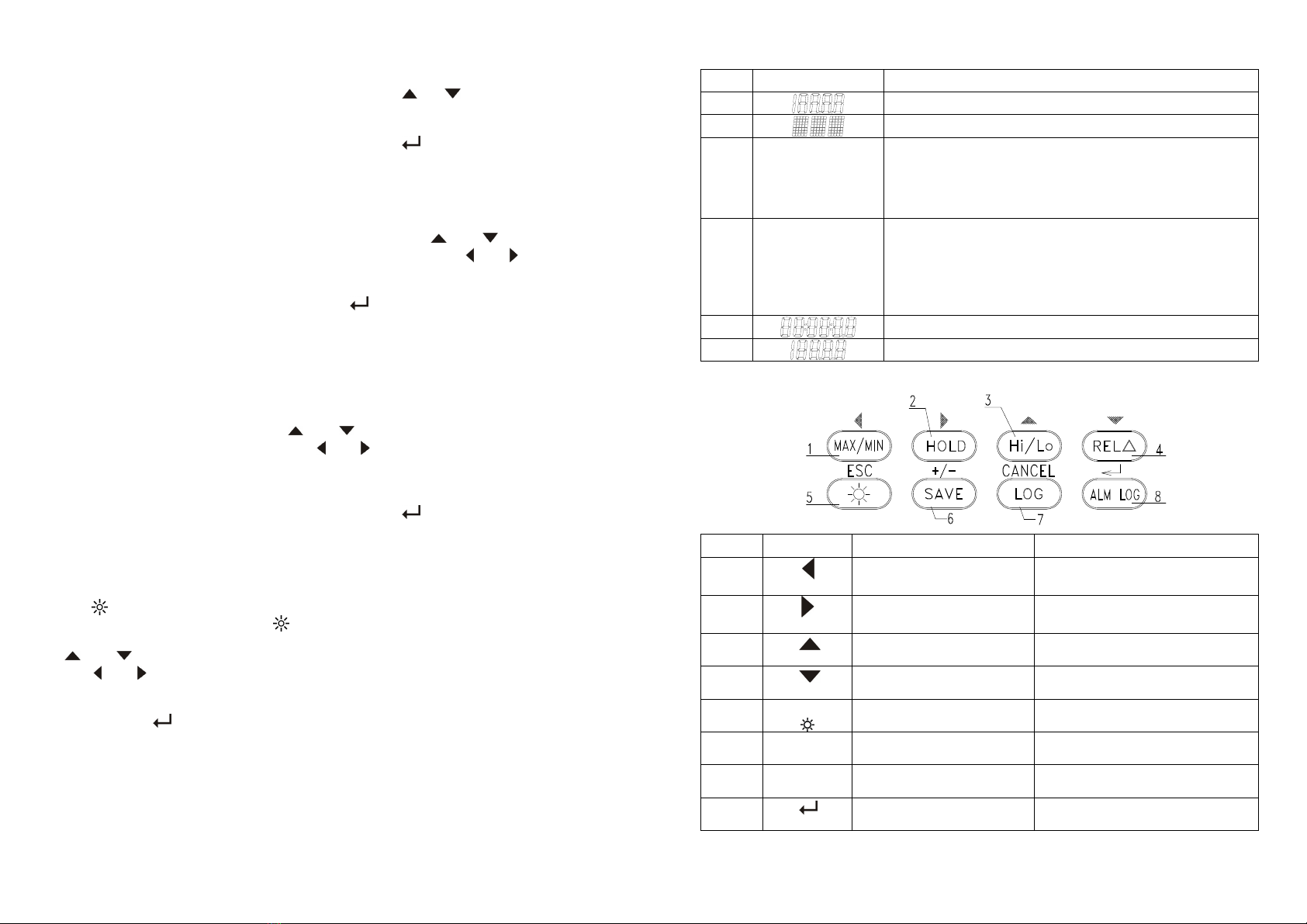

Buttons:
Number Functions Main Function 2nd Function
1
MAX/MIN MAX/MIN Move to left
2
HOLD Data hold Move to right
3
Hi Lo Alarm when out of set limits Move upward
4
REL Display relative value Move downward
5 ESC
Backlight On/OFF Exit
6 +/-
SAVE Single record Change between positive and nega-
tive
7 CANCEL
LOG Continuous record Abandon setup
8
ALM LOG
Record the out of limit data
and time Enter
5

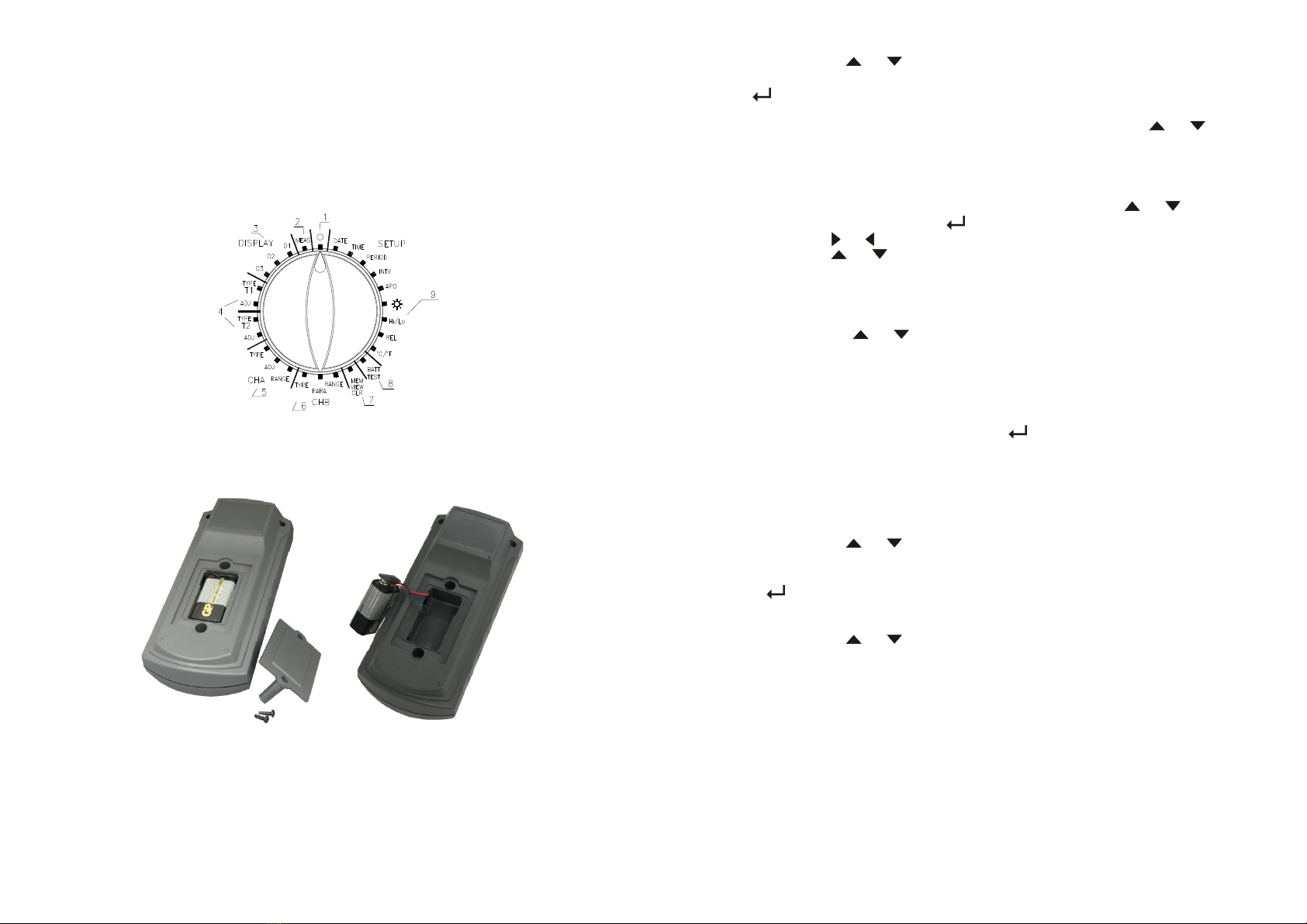

Rotary Switch:
1. Off position.
2. Work position.
3. Main/2nd/3rd display setup.
4. Sockets of K type thermocouples T1 and T2 setup.
5. RTD (CHA) setup.
6. ADAPTER (CHB) setup.
7. Data processing.
8. Battery test.
9. Setting.
4. Battery Installation
Remove the two screws from the back of the meter and lift off the battery case.
Note:
It is need to replace the battery less than 20 sec. to avoid the time of system was reset.
6
Press direction keys or to change the indicator among “READ MEM SAVE”, “READ
MEM LOG” and “READ MEM LIMIT”.
Press “ ” key to enter the indicated set of recorded data.
In “READ MEM SAVE” and “READ MEM LIMIT”, press direction keys or to move
among the data with the measurement reading shown in main display, sequence number in sec-
ond display and time in third display.
There may be more than one group of data in “READ MEM LOG”, right after entering
“READ MEM LOG” data, second show GRP 0001, press direction keys or to move
among the different group of data, press “ ” key to enter the group indicated in second display.
Press direction keys or to move to the data of different channels in the same record and
press direction keys or to move among the different records of same channel.
Press “ESC” button to leave “VIEW” function and return to “Memory Access Functions Se-
lection mode” with blinking indicator “SET” at upper-right corner.
Press direction keys or to change the blinking indicator to “SET” (SET function) or
“CLR” (Memory Clear function), or to leave this function by turning the Rotary Switch to an-
other position.
SET (SET function : Select the channels for data logging)
When the blinking indicator shows “SET”, press “ ” key to enter SET function. The indica-
tor “SET” stops blinking and another small indicator “SET” appears at left side of LCD.
Note: When there is data in the memory, you can not enter “SET” function.
To erase recorded data, please execute “CLR” function mention above.
Right after entering “SET function”, previously selected channel is shown at top of LCD.
Press direction keys or to change the channel among “T1”, “T2”, “CHA”, “CHB”,
“T1T2”, “CHA T1T2” and “CHB T1T2”.
Press “ ” key to confirm selection and return to function selection with indicator “SET”
blinking at upper-right corner of LCD.
Press direction keys or to change the blinking indicator to “CLR” (Memory Clear
function) or “VIE” (VIEW function), or to leave this function by turning the Rotary Switch to
another position.
Note: When single channel (i.e. T1 or T2 or CHA or CHB) is selected, the selected channel
will be automatically assigned to Main Display and overwrite the previous setting of Main Dis-
play. When multi channel (i.e. “T1 T2” or “CHA T1 T2” or “CHB T1 T2”) is selected the first
channel (i.e. T1 for “T1 T2” or “CHA” for “CHA T1 T2” or CHB for “CHB T1 T2”) will be au-
tomatically assigned to Main Display and overwrite the previous setting of Main Display.
If you do not want this automatic assigned channel shown in Main Display, please re-set the
Main Display (see section 8.1 for setting Main Display). This resetting of Main Display does not
influence the set channel(s) for data logger.
15

14

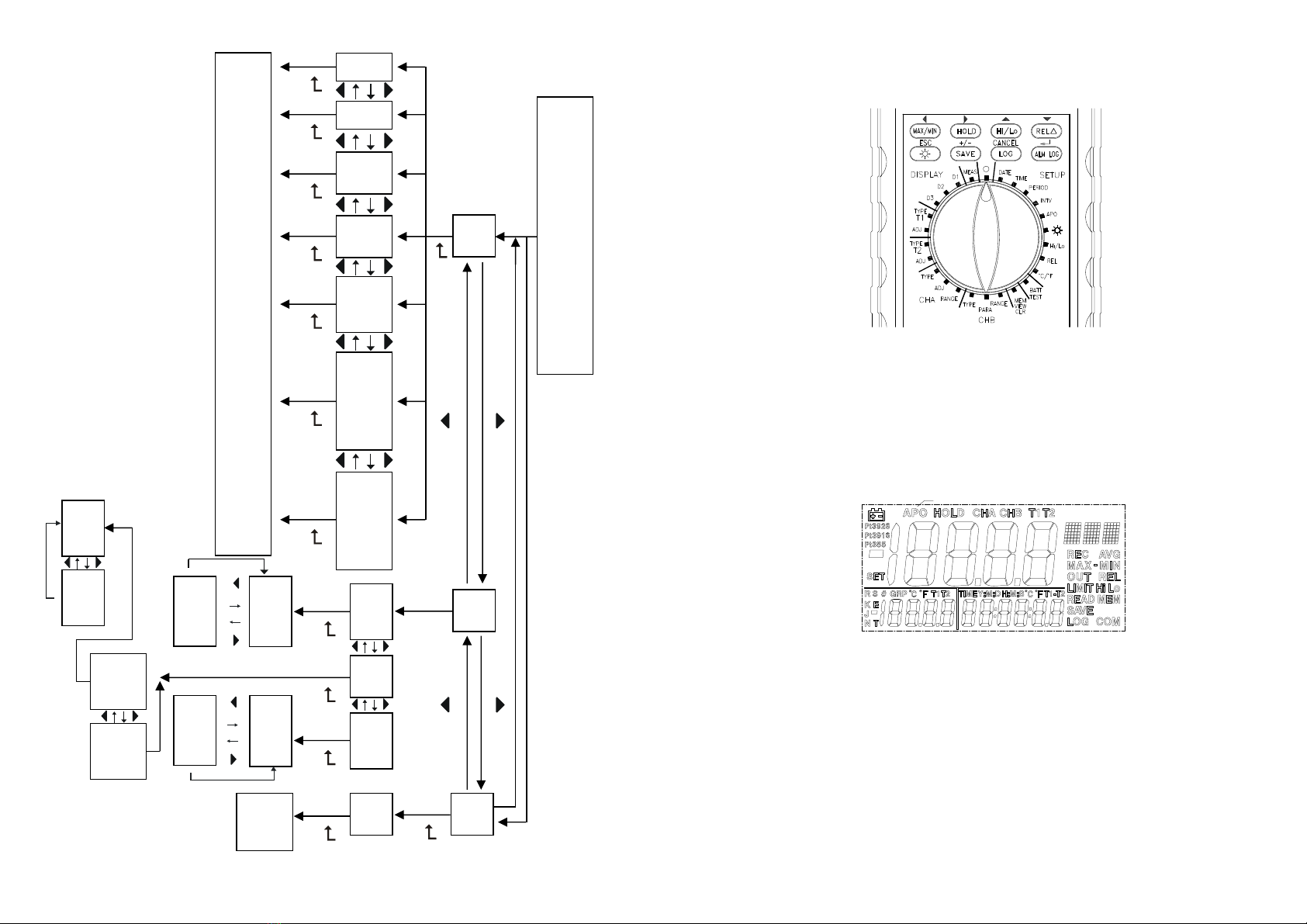

Place Rotary Switch at MEM VIEW CLR
p
osition to enter Memor
y
Access Function
SET
01
T1
02
T1
003
CHA
004
CHB
05
T1+T2
006
CHA+T1+T2
007
CHB+T1+T2
VIE
SAVE
CLR
LOG YESLIMIT
GRP
0001
GRP
XXXX
#0001
#XXXX
#0001
#XXXX
Memory
Cleared
#0001 #XXXX
1. Shown channel(s) selected
2. Main Dis
p
la
y
Reset
(
*
)
NOTE :
Press
“
ESC
”
or
“
cancel
”
button or turn Rotary Switch
to another position before finishing SET and CLR function ; previous setting and recorded data will remain unchangeed.
*
Pl
ftf8
12 ( 1
3
)
Indication of APO Enabled
5. Turn On and Off Model 506A:
Power is off when the “Rotary Switch” points to the upper center, the position marked with
“”, turning the rotary switch to any other position automatically turns on Model 506A5. Num-
bers and marks appear in the LCD display.
When APO (Auto Power Off) is enabled (refer to 8.17 for enable and disable of APO), power
is automatically turn off if no operation for a period of time. (Factory setting = 5 min. settable by
user).
6. Check battery Voltage:
Place the rotary switch at the position “BATT TEST”, main display shows the voltage of bat-
tery.
7. Measurement and Main Function of Buttons
Place the rotary switch at “MEAS” position, the meter starts to measure.
Main display shows the measurement reading of the channel assigned to main display. (to select
channel for main display, please refer to 8.1)

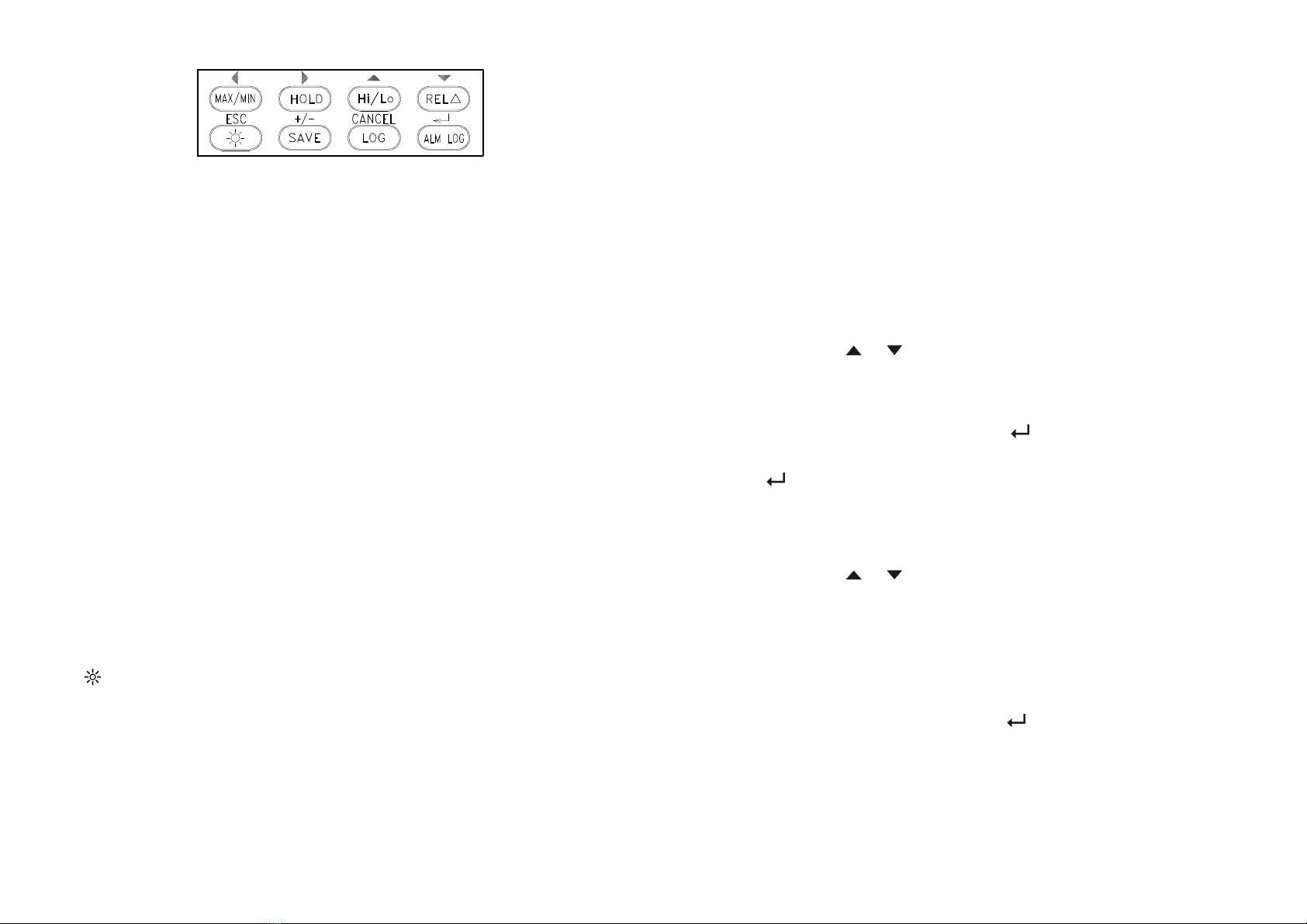

While measuring, press push buttons to change the function of main display and perform rec-
ord functions.
7

7.1 MAX/MIN : (This function only applies to the channel shown in main display)
Pressing “MAX/MIN” button, the indicator “REC” appears at right side of LCD, the meter
will start to record the Maximum and Minimum values and calculate average value of measure-
ment reading.
Press “MAX/MIN” button again each time, main display changes from current measurement
reading to maximum value recorded with indicator “MAX” below “REC”, minimum value rec-
orded with indicator “MIN” at lower right side of “REC”, the difference between maximum and
minimum values with indicator “MAX-MIN” below “REC”, the average value during recording
with indicator “AVG” right to “REC”, and then back to current measurement reading.
Press and hold the “MAX/MIN” button for longer than 5 seconds to end the MAX/MIN record-
ing.
7.2 HOLD : (This function only applies to the channel shown in main display)
Press the “HOLD” button, the display holds the current reading and the meter stops further
measurement. Indicator “HOLD” is shown at top of the LCD.
Press the “HOLD” button again to release from the holding function and resume normal meas-
urement.
7.3 Hi/Lo : (This function only applies to the channel shown in main display)
Press the “Hi/Lo” button, to activate the out of limit alarm function. The indicator “LIMIT” ap-
pears at right side of LCD.
When the measurement value is higher than upper limit the beep send out an intermittent sound.
When the measurement value is lower than lower limit the beep send out a continuous sound.
Press the “Hi/Lo” button again, to disable the alarm function.
Refer to 8.15 for setting upper and lower limits.
7.4 REL Δ: (This function only applies to the channel shown in main display)
REL Δ: (This function only applies to the channel shown in main display)
Press “REL Δ” to store the current value as the reference, relative value against this reference
will be displayed for the measurements afterward.
7.5 :
Press this button to turn on the backlight function, press it again to turn the backlight off.
7.6 LOG (Data Logging) :
During measuring, press “LOG” button to continuously record the measurement readings of
the set channels at the set time interval until the “LOG” button is pressed again.
To set the channel for LOG function, please refer to section 8.12
To set the time interval for LOG function, please refer to section 8.18
To read the logged data, please refer to section 8.12
8
8.11 CHB RANGE-Select the Resolution for Cannel B (CHB)
Channel B can accept the voltage signal up to 2 volts; above 2 volts display shows OL. Place
the rotary switch at position “CHB RANGE”, change among Auto (“--.-.-” and “AUT” is shown
in display), “0.1” (“---.-” and “MAN” is shown in display) and “0.01” (“--.—” and “MAN” is
shown in display).
When “Auto” is selected, the meter will select most suitable resolution between “0.1” and
“0.01”, while the other two, the reading will be fixed in the selected resolution.
8.12 MEM VIEW CLR - Selecting the channel for data logging, Read recorded data and
Clear memory
There are 3 functions in this position “MEM VIEW CLR” :
1. SET function: Select the channels for data logging.
2. VIEW function: To read recorded data.
3. Memory Clear function: Clear memory and erase all the recorded data.
Place rotary switch at position “MEM VIEW CLR”, the meter enter the “Memory Access
Functions Selection Mode” with LCD shows the indicator “MEM” at lower-right corner and a
blinking indicator “SET” at upper-right corner.
Press direction keys or to change the blinking indicator among “SET” (SET func-
tion), “VIE” (VIEW function) and “CLR” (Memory Clear function).
To exit this function, just turn the Rotary Switch to another position.
CLR (Memory Clear function: Clear memory and erase all the recorded data)
When the blinking indicator shows “CLR”, press “ ” key to enter Clear function. The blink-
ing indicator changes to “YES”.
Press “ ” key to clear memory and erases all the data recorded in the memory (this will take
some seconds), and return to “Memory Access Functions Selection mode” with blinking indica-
tor “SET” at upper-right corner.
Or press “ESC” key to abort the job and keep the data in the memory unchanged, and return to
“Memory Access Functions Selection mode” with blinking indicator “SET” at upper-right corner.
Press direction keys or to change the blinking indicator to “SET” (SET function) or
“VIE” (VIEW function), or to exit this function by turning the Rotary Switch to another position.
VIE (VIEW function : to read recorded data)
There are 3 sets of data you can choose to read, namely “SAVE”, “LOG” and “LIMIT”, (cor-
responding to the functions of buttons “SAVE”, “LOG” or “ALMLOG”, respectively. Please re-
fer to section 7.6, 7.7, 7.8 for the functions of these buttons.)
When the blinking indicator shows “VIE”, press “ ” key to enter VIEW function. The
blinking indicator “VIE” disappears. Indicators “READ MEM” and “SAVE” are shown at low-
er-right corner of LCD.
13

8.9 CHB TYPE-Select the Unit for Channel B
CHB only shows the voltage, and the unit represented by this voltage has to be given. At posi-
tion “CHB TYPE”, change the unit with upward ( ) or downward ( ) direction buttons among
AAA, →˚C→ppt→μs→ms→s→FPM→%RH→%→ppm→mV→V→μA→mA→A→ohm.
The first unit, AAA, can be redefined by user for other special unit, see next section. Press the
confirm button ( ) to select the unit. The selection is kept even power turned off.
CHB is for a transducer with output of 1 mV = 1 “unit”.
CHB always measures the input voltage with mV.
The “unit” is only a human readable indicator for the convenience of user, it does not change
the measurement.
The “unit” can be set as “mV” or “V” or “%RH” or “%” or “ohm” or “ABC”, and it only make
sense when it is set according to the output property of the transducer.
For example if we connect a humidity transducer with output 1 mV = 1 %RH to the CHB
(channel B) of the meter, the “unit” should be set as “%RH”. If user does not do so, then the
the unit becomes meaningless, but the measurement will not influenced.
8.10 CHB PARA-Create Special Unit for Channel B (CHB)
Changing each individual character of “AAA” to one of following can create special units.
(Characters available: upper case characters A to Z, lower case a to z, o, /, %, μ, dot and blank
space).
Place rotary switch at position “CHB PARA”, This user defined unit (set as “AAA” when
shipment) shows at right-upper corner of LCD with the left character blinking. The blinking char-
acter can be changed with upward ( ) or downward ( ) direction buttons.
With right ( ) or left ( ) direction buttons, the blinking can be moved to another character. Af-
ter all 3 character are changed to the desired ones, press confirm button ( ).
(AUTO) (MANUAL)
12
Main Display
7.7 SAVE :
SAVE: This function only apply to the channel shown in main display. And not function when
LOG function is set as multi-channel logging.)
During measuring, press “SAVE” button to record current measurement reading of the channel
shown in Main Display and time.
To read the recorded data, please refer to section 8.12
To set the channel for Main Display please refer to section 8.1
To set the channel for LOG function please refer to section 8.12
7.8 ALMLOG: (This function only apply to the channel shown in main display. And not
function when LOG function is set as multi-channel logging)
Every time when the measurement reading of the channel shown in Main Display the Alarm
Log function records the first measurement reading which is out of limits and time, when the
measurement value returns to within the limits the last out of limit data and time will also be rec-
orded.
Press the “ALMLOG” button, to activate the alarm log function, and the indicators “LIMIT” and
“LOG” are shown at lower-right corner of the LCD.
Press the “ALMLOG” button again to disable this function.
To read the recorded data, please refer to section 8.12
To set the channel for Main Display please refer to section 8.1
To set the channel for LOG function please refer to section 8.12
8. System Setting and second Functions of Buttons:
Except these 3 positions mentioned above, all other position are for system setting, the indicator
“SET” shows at left side of LCD when place the rotary switch at any of these system setting posi-
tions. And 2nd functions of buttons are active.
8.1 D1-Setting the Main Display
Main display can be set to show the reading of any of the 4 channels. Place rotary switch at po-
sition “D1”, and select the channel with “right ( )”or “left ( )” direction keys to change the chan-
nel. “D1”, name of active channel is shown at top of LCD. Press “CANCEL” button to back to
previous setting. Press “ESC” button to abort change and exit the setting mode with previous set-
ting remains unchanged. Confirm selection and exit setting mode by pressing “confirm ( )”
button.
9

Third Display
Second Display
8.2 D2-Setting Second Display (Lower-Left Display)
Second display can be set to show the reading of T1 or T2. When the power is turn on, the me-
ter remains in the previous setting. Turn the rotary switch to the position “D2”, and use right ( ) or
left ( ) direction buttons to change between T1 and T2.
8.3 D3-Setting Third Display (Lower-Right Display)
Third display can be set to show the value of T1-T2, Date (YY: MM: DD) and time
(HH:MM:SS). When the power is turn on, the meter remains in the previous setting. Turn the ro-
tary switch to the position “D3”, and use right ( ) or left ( ) direction buttons to change between
T1 and T2.
8.4 T1 TYPE and T2 TYPE-Selecting the Types of Thermocouple for T1 or T2
Both T1 and T2 can accept the thermocouples of type K, J, T, E, R, S and N. When the power is
turn on, the meter remains in the previous setting.
Turn the rotary switch to the position “T1 Type” or “T2 Type”, current selection is shown at up-
per-right corner of LCD, adjacent to unit of temperature, change type of thermo couple with
upward ( ) or downward ( ) direction buttons after right type is shown, and press confirm key
() to select.
8.5 T1 ADJ and T2 ADJ-Setting the Off-Set Adjustment for T1 or T2
If the offset error of your thermo couples, and to which socket those particular thermocouples
are known, the offset adjustments can be set to each of T1 and T2 for compensating the off-set er-
ror.
10
RTD TYPE

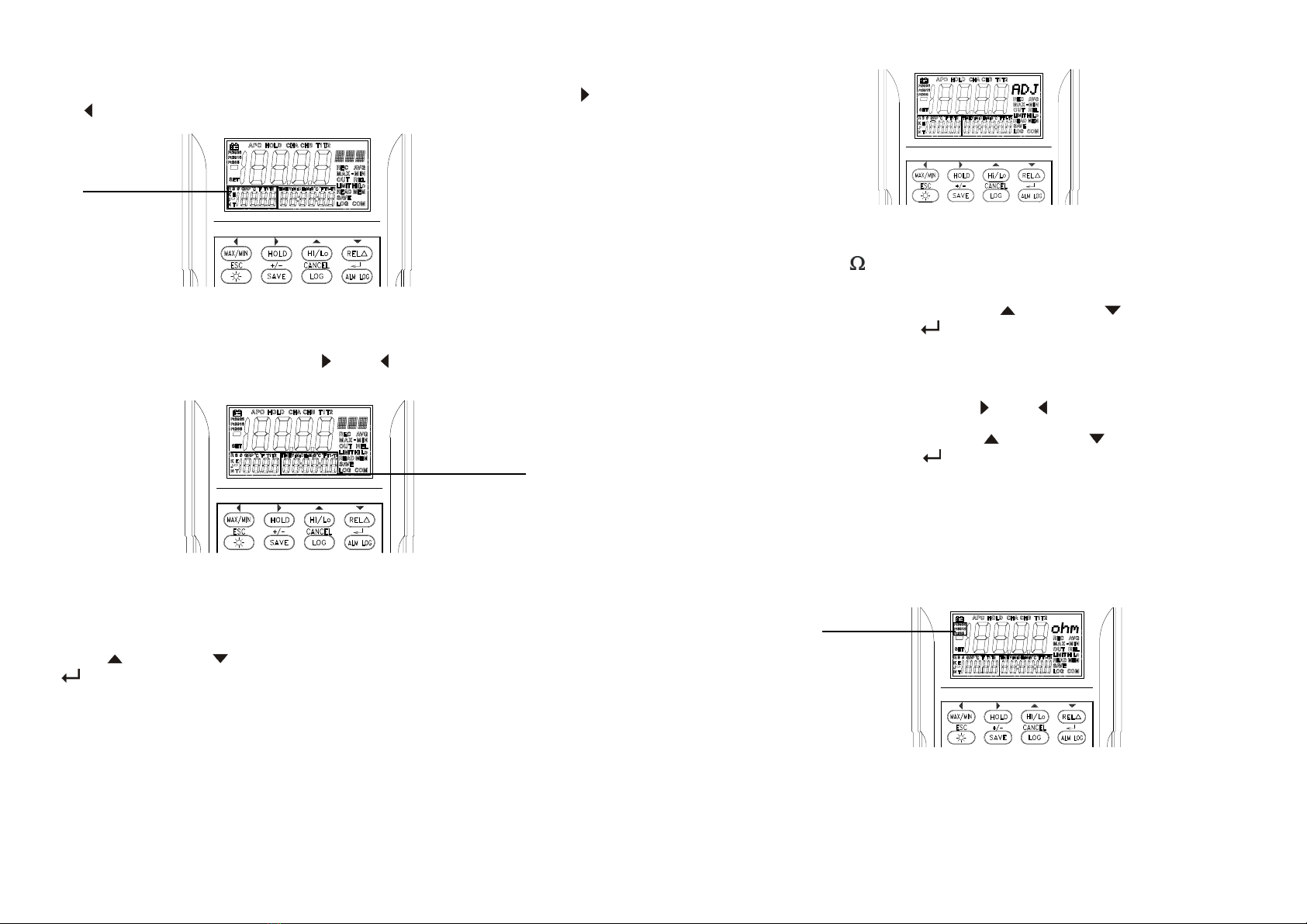

8.6 CHA TYPE-Selecting the Types of RTD for CHA
Besides accepting the RTD of type Pt 385, Pt3916 and Pt3926, this meter can also display the
resistance value in ohm ( ) of the sensor.
When the power is turn on, the meter remains in the previous setting. Turn the rotary switch to the
position “CHA-Type”, current selection is shown at left side of LCD for RTD sensors and right
hand side, for ohm. Change the types with upward ( ) or downward ( ) direction buttons after
right type is shown, press return key ( ) to select.
8.7 CHA ADJ-Setting the Off-Set Adjustment for RTD
If the off-set error of your RTD is known, the off-set adjustments to the channel A (CHA).
Place the rotary switch at positions “ADJ” just below “CHA-Type”.
Select the digit you want to adjust with right ( ) or left ( ) direction buttons, (Setting of the ad-
justment value is done one individual digit after the other).
Change the value of blinking digit with upward ( ) or downward ( ) direction buttons. After
reach desired value, press return key ( ) to confirm.

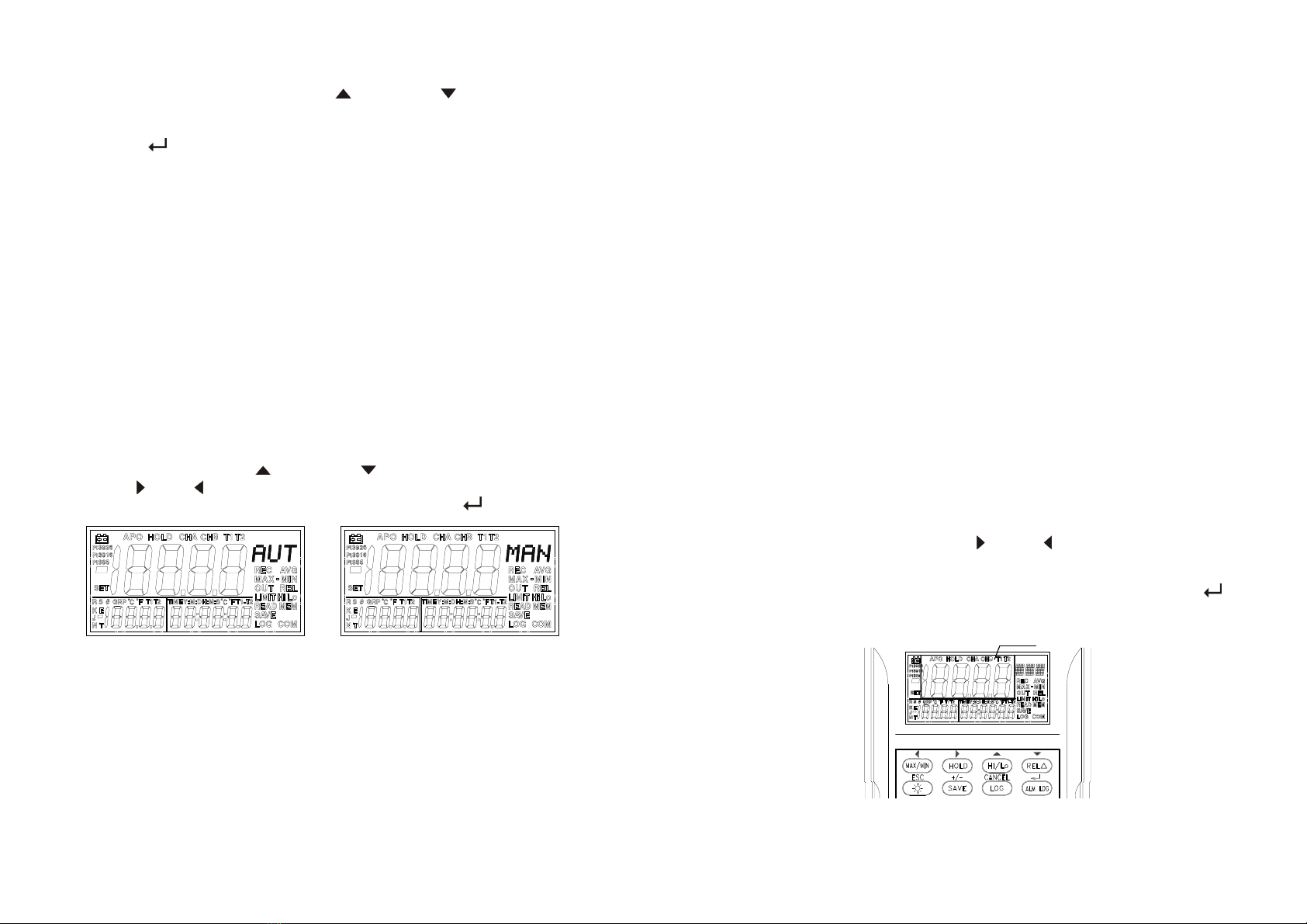

8.8 CHA RANGE-Select the Resolution for Channel A (CHA)
Place the rotary switch at position “CHA RANGE”, change among Auto (“--.-.-” and “AUT” is
shown in display) and “0.1” (“---.-” and “MAN” is shown in display) and “0.01” (“--.--” and
“MAN” is shown in display).
When “Auto” is selected, the meter will select most suitable resolution between “0.1” and
“0.01”, while the other two, the reading will be fixed in the selected resolution.
11
