Cinetron CR-88S2 User manual

CR-88S2

220-240V~

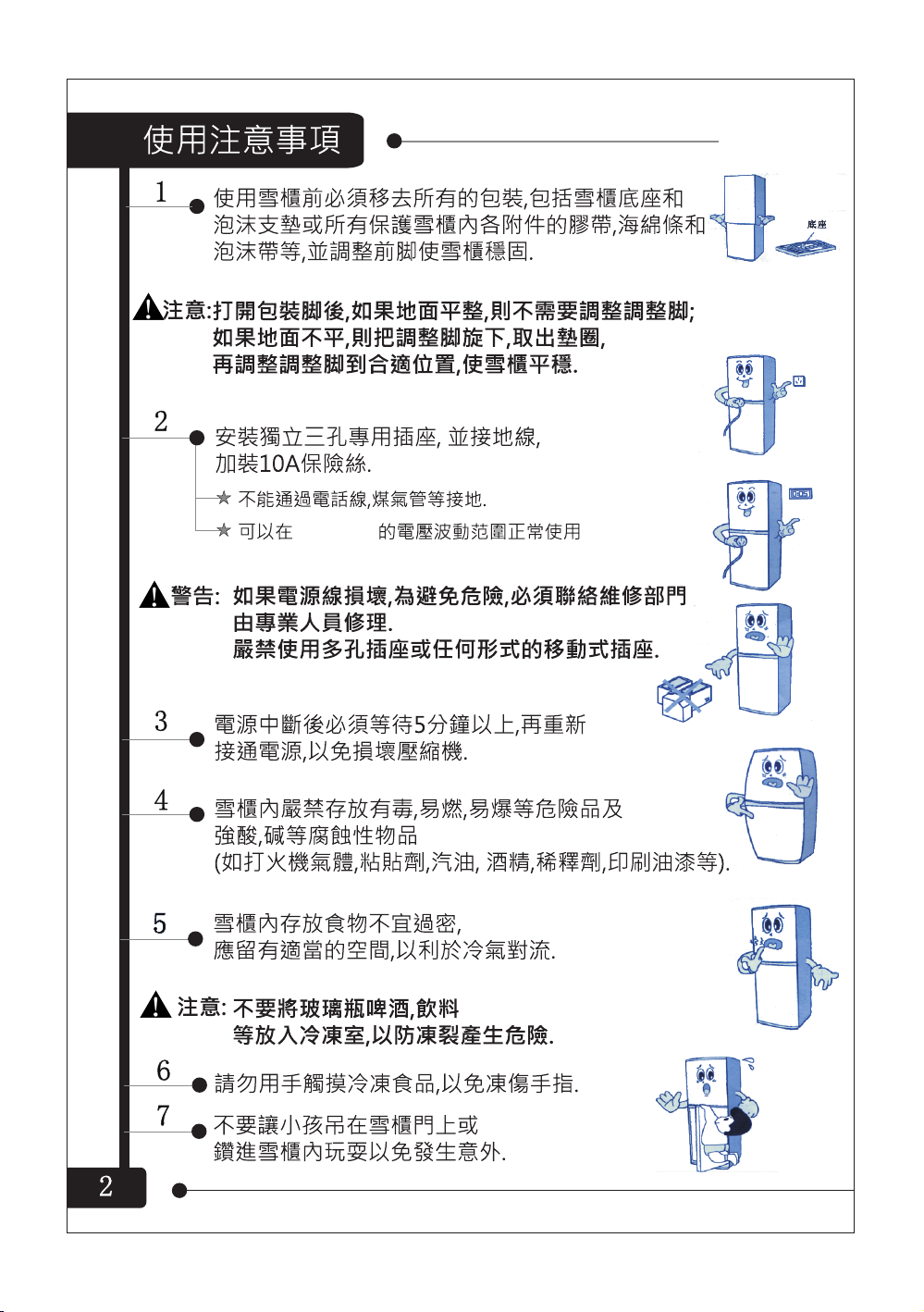

使用雪櫃前請您詳細閱讀本說明書，以便正確使用，並請妥善保存本說明書以供日
後參考。
請遵守本說明書操作說明及注意事項。
若雪櫃出現故障，請勿自行修理或本公司未授權的維修部門修理。請直接聯絡第一
電業維修服務中心2993 1733。
。
,3
,6

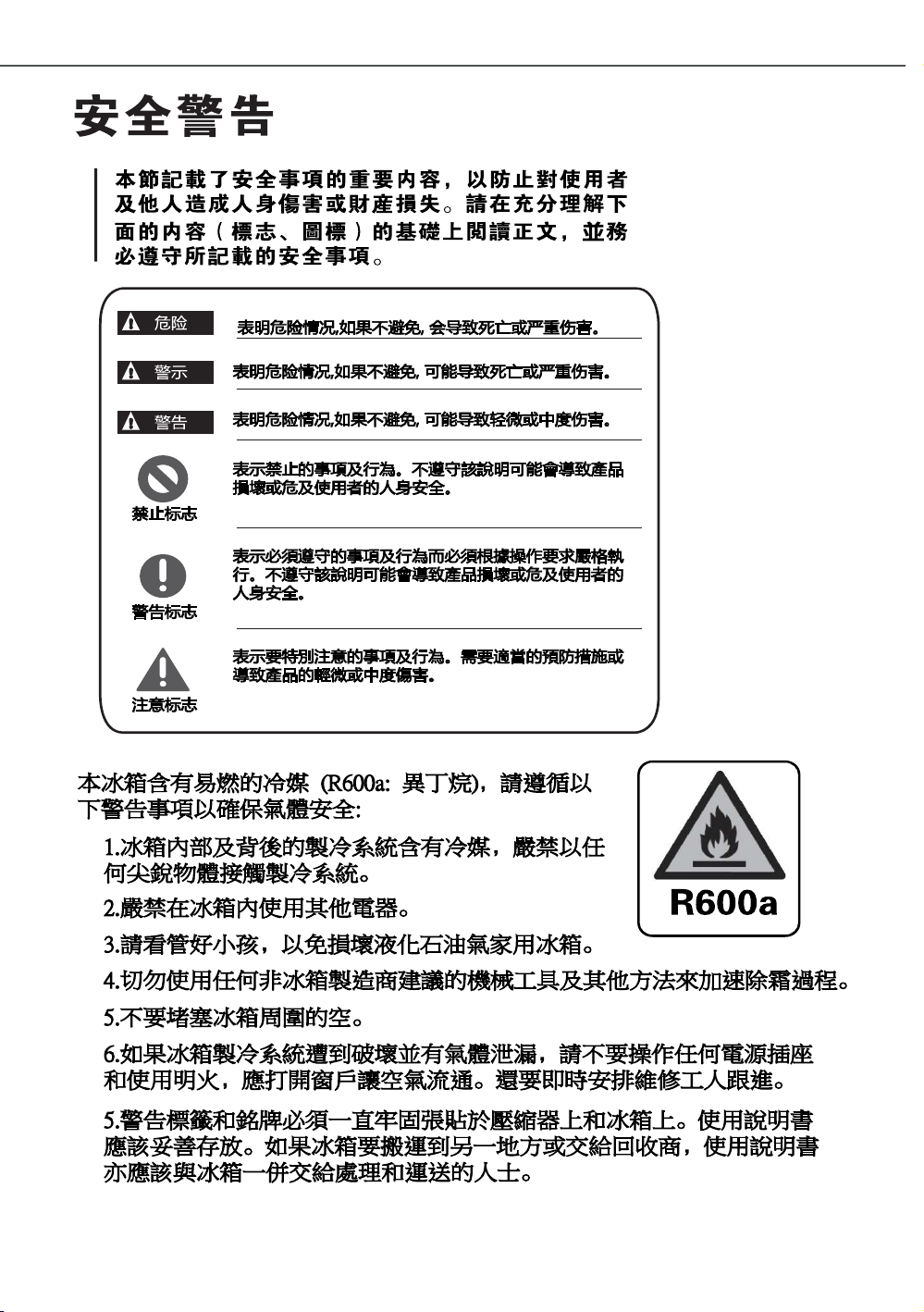

安全警告 9

蔬果保鮮室玻璃蓋板
可調較支腳
蔬果保鮮室

220-240V~

異

，
。
熱
。
。
。
？
？
？
？
？
？

好
維修
。
。

型號
總容量
保鮮格容量
冰格容量
2星容量
氣候類型
製冷劑/注入量
額定電壓
額定頻率
額定電流
燈泡功率
冷凍能力
機身重量
保溫層
外形尺寸(寬*深*高) 485X520X850mm
CR-88S2
brown
orange
SWITCH
Lamp
10W MAX
blue
blue
CAPACITOR*
L
E
N
brown
brown
red
POWER PLUG
blue
OVERLOAD
PROTECTOR
yellow/
green
yellow/
green
*:Optional component may be not used. PTC STARTER COMPRESSOR
C
S
M
5
6
θ
THERMOSTAT
yellow/
green
此冰箱必須由受過訓練的技師在工場進行維修。
80
57L

1
Dear customer:
Thank you for purchasing our products and thank you for placing your confidence in us.
Please read this manual carefully before using. Follow instructions and keep it for future
reference.
Please ensure that the packaging material is disposed of in accordance with the current
environmental requirements.
Please follow the operating instructions and safety notices in the manual.
If any trouble arise, do not fix it yourself or hand it to the after sales service center which has
not been authorized. Please contact the local authorized.
CONTENTS
NAMES OF THE PARTS…………………………………………………………....……………...2
WARNINGS AND IMPORTANT INFORMATION……………………………………………….3-4
BEFORE PUTTING INTO USE………………………………………….……………….….……5
INSTRUCTION FOR USE…………………………….……………………….……………….….……5
TIPS FOR ENERGY SAVINGS ………………………………………..……….……….….………5
IMPORTANT……………………………………….……………..………………………………..6
HOW TO OPERATE…………………………………..……………...….……....………...….……....7
TEMPERATURE CONTROL…………..………………………………….…..........…………….…....7
HOW TO DEFROST……………………………………………….………...…..………...….........7
HOW TO CLEAN..……………………………………………..……..…..........…………….........8
HOW TO INSTALL…..……………………………………………………....…..…………………..8
WHAT TO DO……………………………………………………………...........…………................8-9
HOW TO DISPOSE OF THE PACKING MATERIALS..……………………………….....…………9
WEEE..…………………………………………………………………………………………...….....9
SPECIFICAITONS AND PARAMETERS.....................................................................10
SAFETY WARNINGS...........................................................................11
The voltage and frequency of this product should be 220-240V/50Hz. Contact with the local
maintenance station or retailer if the wire is damaged.

2
NAMES OF THE PARTS

3
WARNINGS AND IMPORTANT INFORMATION
Always keep this instruction manual together with the appliance for future consultation.
In the event of resale of the appliance or change of ownership, ensure that the instruction
manual is supplied with the appliance so that new owner is fully aware of all instructions and
warnings present in this document.
These warnings have been drawn up to ensure the safety of the user and others. Therefore
read all instructions carefully prior to appliance installation and use.
 Disconnect the mains plug before carrying out any cleaning or maintenance operations (e.g.
bulb replacement).
 This appliance has been designed to be used exclusively by adults. Ensure that children do
not play near or with the appliance.
 All modifications to the electrical mains to enable appliance installation must be carried out
by a qualified technician.
 Do not use an extension cord. On completion of installation, check that the appliance is not
standing on the power cable.
 Domestic refrigerators and/or freezers are designed exclusively to store and/or freeze
foodstuffs.
 During normal operation, the condenser and compressor, located at the rear of the
appliance can reach high temperatures. Ensure that installation is carried out according to
the instructions contained in this booklet. Insufficient ventilation will impair operation and
damage the appliance. Never cover or obstruct the ventilation slats on the appliance.
 Never allow children to play with the appliance. Children must never be allowed to sit on
the drawers or hang on the appliance doors.
 If the appliance is transported in a horizontal position, the oil in the compressor may flow
into the refrigerant circuit.
 Leave the appliance standing vertically for at least two hours before switching it on, to
ensure that oil flows back into the compressor.
 All refrigerators and freezers have surfaces that are subject to the formation of frost.

4
 Depending on the model, this frost can be removed automatically. (Automatic defrosting) or
manually when necessary. Never attempt to remove frost with sharp objects as this may
damage the evaporator and impair efficient appliance operation. Let the frost thaw naturally;
never use hot water.
 Never put sparkling drinks or bottles of water in the low temperature compartments
(freezer/cooler) as they can explode.
 We strongly advise against putting hot liquids or food in the refrigerator or filling ridded
containers to the maximum capacity.
 Never carry out any modifications to your appliance.
 Never attempt to repair the appliance alone. Repairs carried out by unqualified persons can
cause serious damage; always contact your nearest Service Center and use original spare
parts only.
 The refrigerant and insulation in this appliance do not contain any gases harmful to the
ozone or which contribute to the greenhouse effect. However, disposal must be carried out
in compliance with the relative standards regarding protection of the environment.
 Never use the base, drawers, doors etc. to stand on or as supports.
Warning: Keep ventilation openings in the appliance enclosure or in the built-in structure clear
of obstruction.
Warning: Do not use mechanical devices or other means to accelerate defrosting process,
other than those recommended by the manufacturer.
Warning: Do not damage the refrigerant circuit.
Warning: Do not use electrical appliance inside the food storage compartments of the
appliance, unless they of the type recommended by the manufacturer.
Caution: Please keep the products away from the fire or similar glowing substance before you
dispose the refrigerator.
Warning: If the supply cord is damaged, it must be replaced by the manufacturer or its service
agent or a similarly qualified person in order to avoid a hazard.
Warning: This appliance can not be used in camping.
Warning: This appliance can not be used in public transportations.
Warning: The appliance shall be used for indoor only.
This appliance is not intended for use by persons (including children) with reduced physical,
sensory and mental capabilities, or lack of experience or knowledge, unless they have been
given supervision or instruction concerning use of the appliance by a person responsible for
their safety.
Children should be supervised to ensure that they do not play with the appliance.

5
BEFORE PUTTING INTO USE
 Before connecting the appliance to the power supply, let it stand for about 2 hours, which
will reduce a possibility of malfunctions in the cooling system due to transport handling.
 Clean the appliance, and be thorough, especially in the interior (See “HOWTO CLEAN”).
 In case the interior accessories are not correctly placed, rearrange them as described in
chapter “NAME OF THE PARTS”.
INSTRUCTIONS FOR USE
These instructions for use are intended for the user. They describe the appliance and its correct
and safe use. They were prepared for various types/models of refrigerators therefore you may
find in it description of some functions and accessories that your appliance does not have.
TIPS FOR ENERGY SAVINGS
 Try not to open the door too often, especially when the weather is wet and hot. Once you
open the door, mind to close it as soon as possible.
 Every now and then check if the appliance is sufficiently ventilated (adequate air
circulation around the appliance).
 Set thermostat from higher to lower settings as soon as possible (depends on how loaded
the appliance is ambient temperature etc).
 Before loading the appliance with packages of fresh foods, make sure they are cooled to
ambient temperature.
 Ice and frost layer increase energy consumption, so defrost the appliance as soon as the
layer is 1/4” thick.

6
IMPORTANT
DANGER:Risk of child entrapment. Before you throw away your old refrigerator or freezer:
 Take off the doors.
 Leave the shelves in place so that children may not easily climb inside.
 The appliance must be correctly connected to the power supply.
(See: “HOW TO INSTALL”).
 Do not use an extension cord.
 Do not touch the cooled surfaces while the appliance operates, especially not with
wet hands, because the skin may stick to the cold surfaces.
 Do not freeze bottles containing liquid, especially soft drinks, such as mineral water,
sparkling wine, beer, cola etc., because liquid expands during freezing and the glass
bottle is very likely to blow up.
 Do not eat frozen food (bread, fruit, vegetables), because you can get frostbites.
 If the food has strange smell or color, throw it away, because it is very likely that it is
spoiled and therefore dangerous to eat.
 Disconnect the appliance from the power supply before repairing it (only a qualified
technician should repair it), before cleaning.
 Do not defrost the appliance with other electric devices (hair dryer etc.) and never
scrape the ice or frost layer with sharp tools.
 The rating plate is inside the appliance or outside on the rear wall.

7
HOW TO OPERATE
Starting Your New Refrigerator
1. Clean the refrigerator thoroughly. Wipe the outside with a soft dry cloth, the interior with a
clean moist cloth.
2. Insert the power supply cord into the socket.
3. Turn the thermostat dial to “7”. Close the doors and let the refrigerator operate for 15-20
minutes.
Temperature Control.
To control the internal temperature, adjust the thermostat dial.
“1” is the warmest setting. “7” is the coldest.
The Dial may be set any place on the scale. It does not have to be set exactly on a number.
Note: Wait 3-5 minutes before restarting if you unplug the refrigerator.
The unit may fail to operate properly if restarted too quickly.
How To Defrost
Defrost the freezer compartment when the frost accumulated is about 1/4” thick.
Set the thermostat dial to “0” before defrosting. Remove all contents from the freezer
compartment. Use the attached plastic spade to remove frost and ice. If the ice/frost becomes
hard and difficult to remove, you need to wait with the door open till the ice/frost melted. Do not
use hot water or other electric devices (hair dryer etc.) to heat it. After defrosting, take the water
out and wipe the compartment dry with a soft cloth and then return the thermostat dial to the
desired position.
Don’t use a knife or other metal instrument to scrape ice/frost from the evaporator. It
may destroy the cooling system.

8
HOW TO CLEAN
Cleaners: Never use harsh, abrasive cleaners, heavy-duty cleaners, or solvents on any
surface.
Exterior: Wipe with damp, sudsy cloth, rinse and dry. For stubborn stains and for periodic
waxing, use silicon wax.
Freezer Section: Do not use sharp instruments to scrap off ice/frost.
Refrigeration Section: Wash shelves and other removable parts in warm sudsy water, rinse
and dry. Wash interior with baking soda solution (3 tablespoons to I
liter of water) or warm sudsy water, rinse and dry.
Magnetic Door Seals: Wash with warm sudsy water.
The Finishing Touch: Replace all parts and return thermostat dial to desired setting.
HOW TO INSTALL
 Install the refrigerator in a convenient location away from extreme heat and cold. Allow
sufficient clearance between the refrigerator and side wall so
the door(s) will open without obstruction. Refrigerator is not
designed for recessed installation.
 Select a space with strong level floor.
 Allow 10 cm of space between the refrigerators side and the
wall.
 The appliance must be correctly connected to the power
supply.
POWER CORD REPLACEMENT
If the refrigerators power cord is damaged, it have replaced by a qualified repair agent.
WHAT TO DO
When the fridge is not in use for a prolonged period:
 Remove the power plug from the power point.
 Remove all contents from the fridge.
 Dry the interior and leave the door open for a few days.
When you wish to move the fridge:
 Secure all movable parts and contents. (Package them separately if necessary.)
 Transport the fridge only in an upright position. In any other position you may damage the
compressor.
