CONTENTS
Warnings .................................page 11
Installation ................................page 12
Positioning ................................page 12
Electrical connection .............................page 12
Cleaning the interior .............................page 12
Instructions for totally built-in appliances ......................page 12
Inner door reversal..............................page 13
Use ...................................page 14
Operation .................................page 14
Temperature regulation ............................page 14
Fresh food refrigeration ............................page 14
Inner arrangement ..............................page 14
Storage of frozen food ............................page 15
Thawing .................................page 15
Ice-cube production .............................page 15
Defrosting.................................page 16
Maintenance ...............................page 17
Periodic cleaning ..............................page 17
Periods of non-operation ...........................page 17
Interior light ................................page 17
Customer service and spare parts........................page 17
Printed on recycled paper

11
WARNINGS
It is most important that this instruction book
should be retained with the appliance for future
reference. Should the appliance be sold or trans-
ferred to another owner, or should you move
house and leave the appliance, always ensure that
the book is supplied with the appliance in order
that the new owner can be acquainted with the
functioning of the appliance and the relevant
warnings.
These warnings are provided in the interest of
safety. You must read them carefully before
installing or using the appliance.
“This appliance is designed to be operated by
adults. Children should not be allowed to tamper
with the controls or play with the appliance.
“Any electrical work required to install this appliance
should be carried out by a qualified electrician or
competent person.
“This appliance should be serviced by an authorized
Service Centre, and only genuine spare parts
should be used.
“It is dangerous to alter the specifications or modify
this appliance in any way.
“Care must be taken to ensure that the appliance
does not stand on the electrical supply cable.
“The domestic refrigerators and freezers are designed
to be used specifically for the storage of edible food-
stuffs only.
“Frozen food must not be re-frozen once it has been
thawed out.
“Manufacturers’ storage recommendations should
be strictly adhered to. Refer to relevant instructions.
“During normal operation, the condenser and
compressor at the back of the appliance heat up
considerably. For safety reasons, minimum ventila-
tion must be as shown in the relevant Figure.
Attention: keep ventilation openings clear of
obstruction.
“Before any cleaning or maintenance work is carried
out, be sure to switch off and unplug the appliance.
“If the appliance is transported horizontally, it is
possible that the oil contained in the compressor
flows in the refrigerant circuit. It is advisable to wait
at least two hours before connecting the appliance
to allow the oil to flow back in the compressor.
“The inner lining of the appliance consists of chan-
nels through which the refrigerant passes. If these
should be punctured this would damage the appli-
ance beyond repair and cause food loss. DO NOT
USE SHARP INSTRUMENTS to scrape off frost or
ice. Frost may be removed by using the scraper
provided. Under no circumstances should solid ice
be forced off the liner. Solid ice should be allowed
to thaw when defrosting the appliance. See defrost
instructions.
“Do not use a mechanical device or any artificial
means to speed up the thawing process other than
those recommended by the manufacturer.
“Do not place carbonated or fizzy drinks in the
freezer as it creates pressure on the container,
which may cause it to explode, resulting in damage
to the appliance.
“This appliance is heavy. Care should be taken when
moving it.
“Ice lollies can cause frost burns if consumed
straight from the appliance.
“This appliance contains hydrocarbons in its cooling
unit; maintenance and recharging must therefore
only be carried out by authorized technicians.
“Never use metal objects for cleaning your appliance
as it may get damaged.
“Under no circumstances should you attempt to
repair the appliance yourself. Repairs carried out by
inexperienced persons may cause injury or more
serious malfunctioning. Refer to your local Service
Centre, and always insist on genuine spare parts.
“This appliance does not contain gasses which
could damage the ozone layer, in either its
refrigerant circuit or insulation materials. The
appliance shall not be discarded together with
the urban refuse and rubbish. Avoid damaging
the cooling unit, especially at the rear near the
heat exchanger. Information on your local
disposal sites may be obtained from your
municipal authorities.
“Take utmost care when handling your appliance
so as not to cause any damages to the cooling
unit with consequent possible fluid leakages.
“The appliance must not be located close to radi-
ators or gas cookers.
“Avoid prolonged exposure of the appliance to
direct sunlight.
“There must be adequate ventilation round the
back of the appliance and any damage to the
refrigerant circuit must be avoided.
“For freezers only (except built-in models): an
ideal location is the cellar or basement.

12
INSTALLATION
If this appliance featuring magnetic door seals is
to replace an older appliance having a spring lock
(latch) on the door or lid, be sure to make that
spring lock unusable before you discard the old
appliance.
This will prevent it from becoming a death-trap for
a child.
Positioning
The appliance should be installed well away from
sources of heat such as radiators, boilers, direct sun-
light etc.
Best performance is obtained with ambient tempera-
ture between +18°C and +43°C (class T); +18°C and
+38°C (class ST); +16°C and +32°C (class N); +10°C
and +32°C (class SN).
The class of your appliance is shown on its rating
plate.
For building into kitchen units follow the special
“Building-in” instructions given.
Electrical connection
Before plugging in, ensure that the voltage and fre-
quency shown on the serial number plate correspond
to your domestic power supply.
Voltage can vary by ±6% of the rated voltage.
For operation with different voltages, a suitably sized
auto-transformer must be used.
The appliance must be earthed.
The power supply cable plug is provided with a con-
tact for this purpose.
If the domestic power supply socket is not earthed,
connect the appliance to a separate earth in compli-
ance with current regulations, consulting a specialist
technician.
The Manufacturer declines all responsibility if the
above safety precautions are not observed.
This appliance complies with EEC directive
number 87/308 of 2/6/87 relative to radio inter-
ference suppression.
This appliance complies with the following
E.E.C. Directives:
-73/23 EEC of 19.2.73 (Low Voltage Directive) and
subsequent modifications;
-89/336 EEC of 3.5.89 (Electromagnetic Compatibil-
ity Directive) and subsequent modifications.
Cleaning the interior
Before using the appliance for the first time, wash the
interior and all internal accessories with lukewarm wa-
ter and some neutral soap so as to remove the typical
smell of a brand-new product, then dry thoroughly.
Do not use detergents or abrasive powders, as these
will damage the finish.
Instructions for totally built-in appliances
Dimensions of the recess
Height 880 mm
Depth 550 mm
Width 560 mm
The appliance’s door has been locked in position
for transport by means of pins on both sides. Ac-
cording to the door opening direction, remove rel-
evant pins at the top and at the bottom.
For safety reasons, minimum ventilation must be as
shown in Fig. 1.
Attention: keep ventilation openings clear of ob-
struction.
Fig. 1
Fig. 2
Push appliance into
the housing until
stop strip (A) touch-
es the kitchen unit.
Fig. 3
Ifafterhavingcarried
out the previously
described operation
there is still some
space left between
the appliance and
the kitchen unit, fit
the trimming provid-
ed together with the
appliance on the
stop strip (A).
50 mm
min.
cm
2
200
200 cm
2
min.
D567
A
D022
D265
A

13

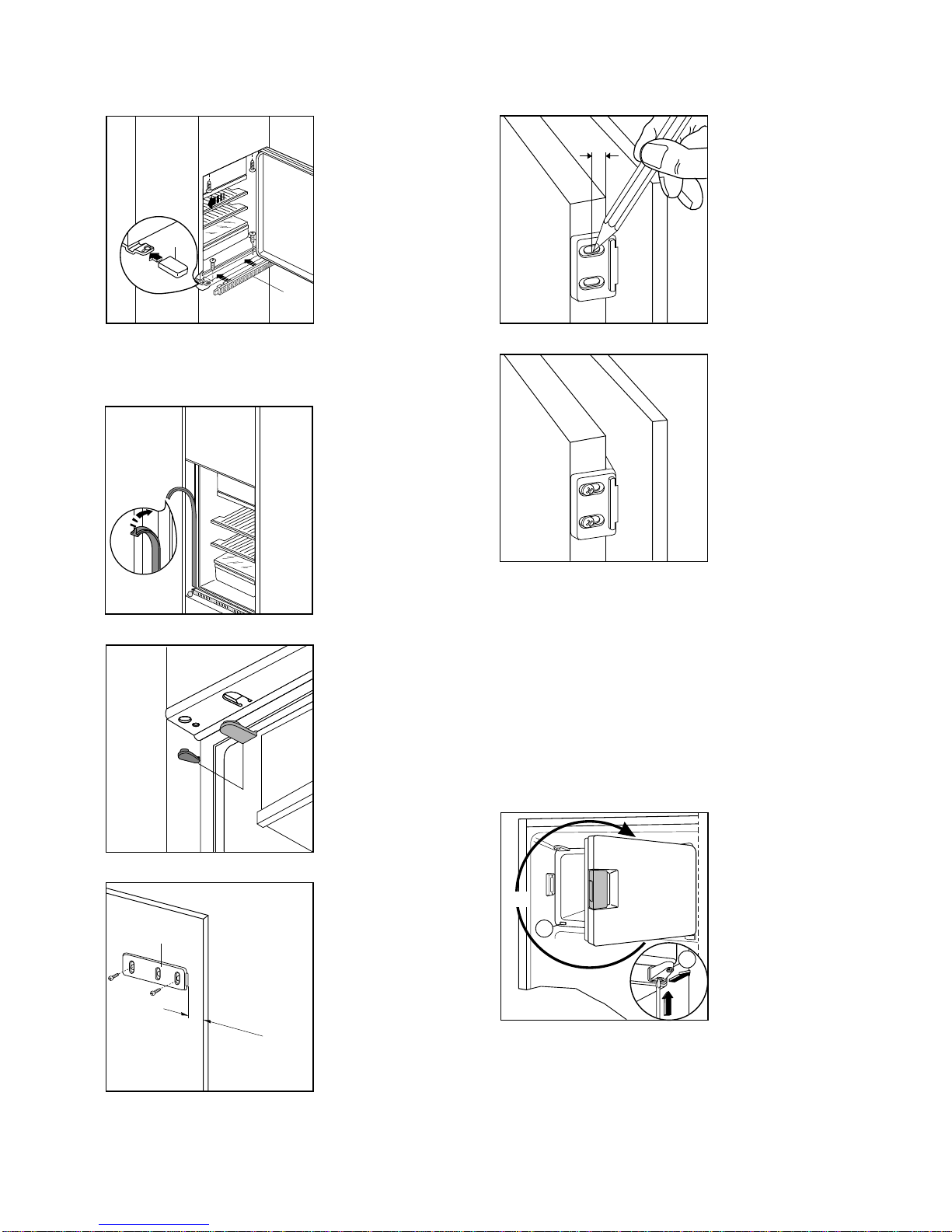

Fig. 4
Open the door and
push the appliance
against the side of
the kitchen unit op-
posite to that of ap-
pliance hinges.
Fastentheappliance
with 4 screws pro-
vided in the kit in-
cluded with the ap-
pliance. Snap vent
grille (C) and hinge
cover (D) into posi-
tion.
Fig. 5
Press in the joint
covers between the
appliance and the
kitchen unit.
Fig. 6
Apply covers (B) on
joint cover lugs and
into hinge holes.
Fig. 7
Position the runners
(H) at the top and
bottom of the inside
of the kitchen unit as
shown in Fig. 7
and mark the posi-
tion of the external
holes.
After preparing the
holes,screwtherun-
ners to the kitchen
unit door using
3.5x16 mm screws.
D130
C
D
D128
D013
BB
D094
20mm
H
Fig. 8
Openboththeappli-
ancedoorandthatof
the kitchen unit to
approx. 90°.
Place the little plates
over the runners.
Holdthedoorsofthe
appliance and the
unit together and
mark the holes.
Fig. 9
Remove the little
plates and make the
holes with a diam. of
2 mm. Replace the
little plates over the
runnersandscrewin
the screws provided
(3.5x16 mm).
For the alignment of
thekitchenunitdoor,
ifnecessary,usethe
clearance size of the
slotted holes.
At the end of the procedure, check that the doors of
the appliance and the kitchen unit open properly.
Inner door reversal
(Only for models JKI 1332 - JKI 4332)
Using a screwdriver release bracket (1) by pressing on
the internal spring (Fig. 10) and withdraw it from its
seat together with the door;
remove plug (2) and fit it in the hole left open on the
opposite side;
Fig. 10
turn the door through
180°, remove the
bracket (1) and refit it
on the opposite side.
Refit the door and in-
sert the top pin and
bottom bracket (1),
pushing it into place.
To ensure correct
storage of food, the
door is fitted with a
simple spring device
which holds it in the
openpositionuntilitis
properly closed.
8mm
PR34
PR35
PR140
1
2
180°
