Citizen CT-E351ET User manual

MODEL : CT-E351ET
Ethernet Interface function
Manual
Ver.1.01

2
Contents
Contents.........................................................................................................................2
Read before using .........................................................................................................3
1. Introduction .............................................................................................................4
1-1. Specifications ......................................................................................................................... 4
1-2. Part Names and Functions................................................................................................... 5
1-3. LED Functions....................................................................................................................... 6
1-4. Using the Panel Button ........................................................................................................ 7
1-4-1. Printing the Network Configuration................................................................................... 7
1-4-2. Returning the Network Configuration to Factory Default Settings ................................. 8
1-5. Print Server ........................................................................................................................... 9
1-5-1. Accessing Print Server Configuration screen..................................................................... 9
1-5-2. Changing the Print Server Configuration ........................................................................ 10
2. Network Settings...................................................................................................12
2-1. Network settings from the browser ................................................................................... 12
2-1-1. Accessing the Print Server configuration screen ............................................................. 12
2-1-2. Setting the IP address........................................................................................................ 12
2-1-3. Changing other settings..................................................................................................... 13

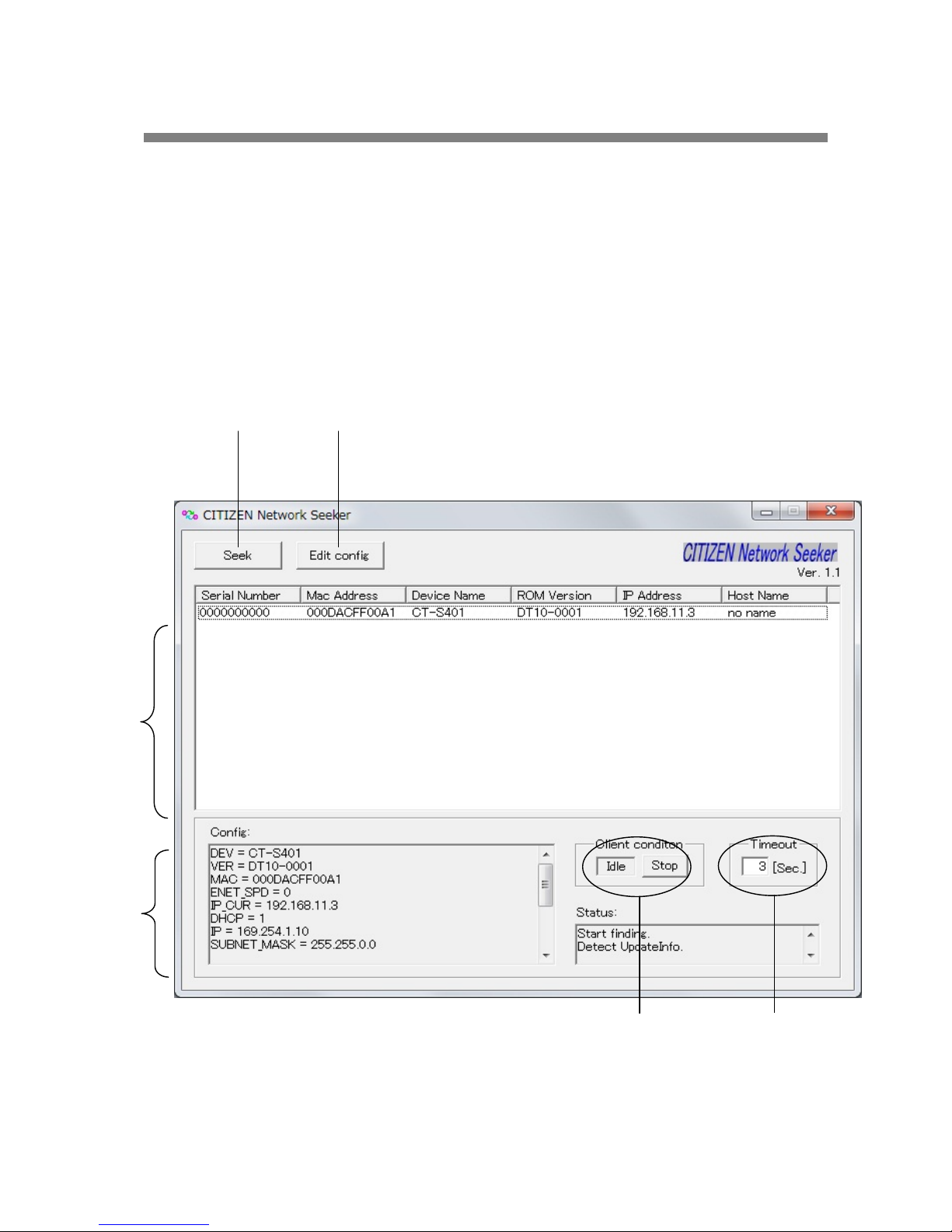

2-2. Network setting from “Network Seeker”........................................................................... 14
2-2-1. Starting Network Seeker ................................................................................................... 14

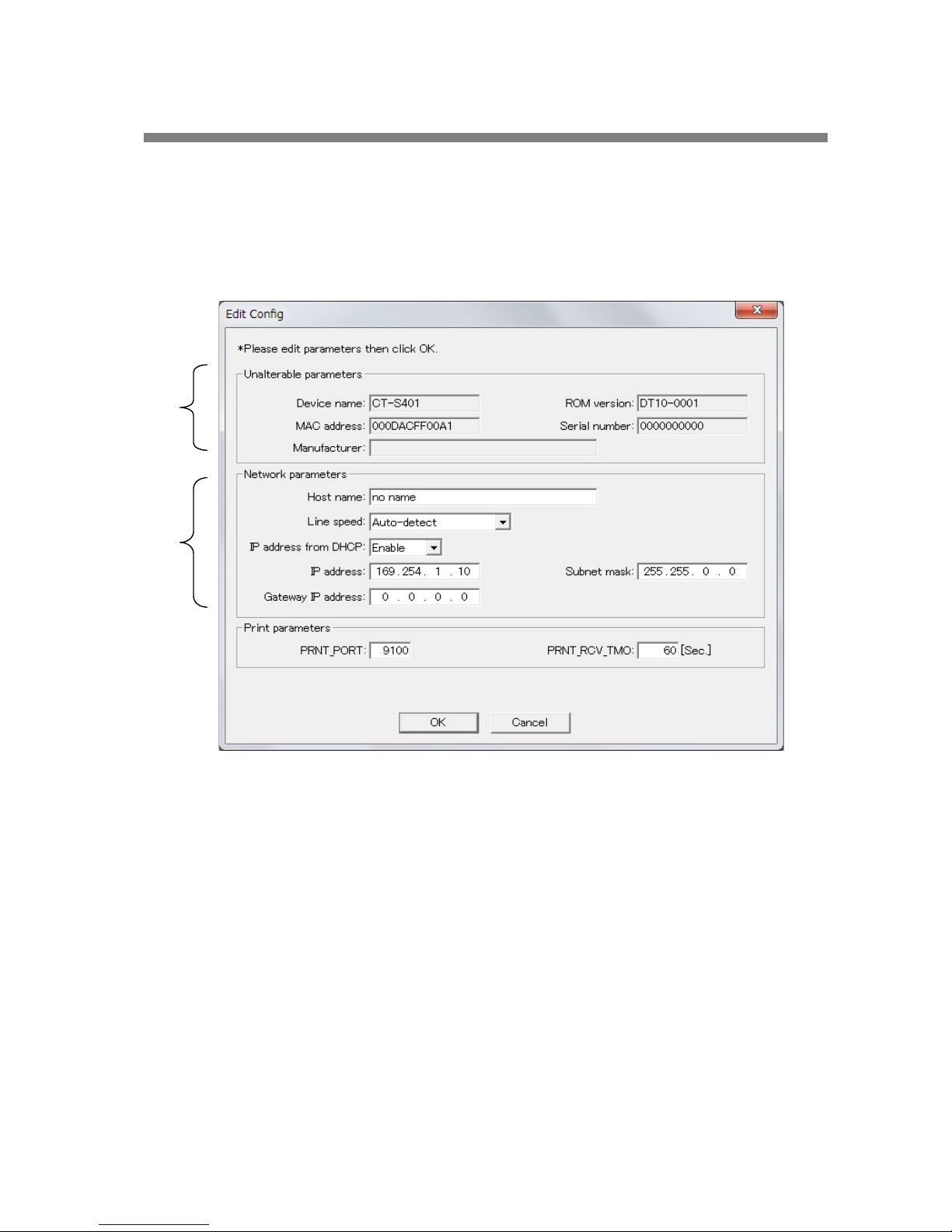

2-2-2. Changing Settings.............................................................................................................. 16

3
Read before using
Be sure to read this manual carefully before using the product. After you read it, store it in a
safe place so that you can reread it when necessary.
Contents of this manual may be changed without notice.
Reproducing and/or copying the contents of this manual by any means without
permission are prohibited.
We will not be responsible for any adverse occurrence that results from the use of this
manual, regardless if it contains omissions, errors/misprints, etc.
Note that we will not be responsible for (a) loss caused by improper operation or
mishandling of the device by the user, or (b) loss due to operational environment.
Data etc., are basically impermanent; long time or permanent storing/saving of data by
the device is not possible.
Note that we will not be responsible for any loss or loss of profits owing to loss of data
due to breakdown, repairs, inspections, etc.
Please contact us if there are omissions, errors, ambiguities, etc. in this manual.
Refer to this document along with the user manual of the printer.
This product operates by setting up a wireless connection between itself and other
wireless LAN equipment for data transmission. Therefore, other wireless LAN
equipment is required to use this product. While we have confirmed the operation of
this product with certain wireless LAN equipment, operation with all types of wireless
LAN equipment is not guaranteed. Carry out a sufficient evaluation before using this
product.
Trademarks
・Microsoft, Windows XP, Windows Vista, Windows 7, Windows 8 and Windows10 are
registered trademarks of Microsoft Corporation U.S.A.
・Ethernet is a registered trademark of Fuji Xerox Co., Ltd.
・Other company names and product names mentioned here are trademarks or
registered trademarks of those companies.

4
1. Introduction
Thank you for purchasing the Citizen CT-E351 printer.
This manual is to explain the details of the Ethernet interface function of the printer.
Using Ethernet function, you can relay data between a network of multiple computers and
the printer. In addition, the computers and printer are able to communicate with each other:
the operational status, print settings, and other information about the printer can be
checked from computers on the network.
1-1. Specifications
Printer model name CT-E351ET （Ethernet Interface model）
Operation panel LED: 2 (RJ45 connector)
Button: 1 (on panel)
Network Interface Auto-Negotiation (100Base-TX/10-Base-T)
AUTO-MDIX (Straight/Cross cable auto detection)
IP Version IPv4
Network protocols TCP, UDP, HTTP, SNMP, ICMP, DHCP
Port number for printing TCP 9100 (Default)
Configuration changes
from the browser Yes
Interactive communication Yes (only when CITIZEN TCP/IP port driver is used)
Safety standards VCCI Class A

CITIZEN Label Printer Library for Windows - Programming Manual
5
1-2. Part Names and Functions

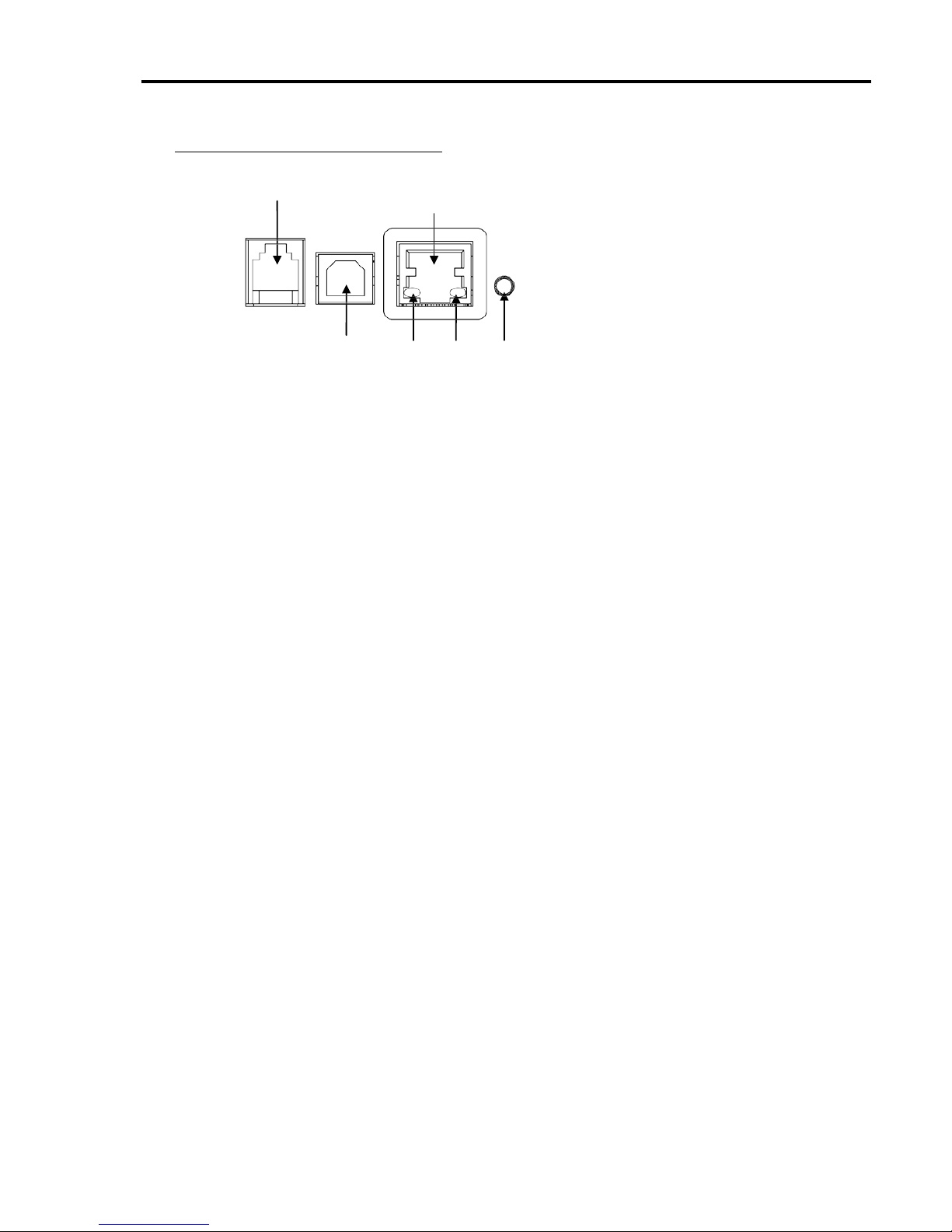

External view of Ethernet interface
①Cash Drawer connector
Connection for cash drawer
②USB connector
Works as standard USB connector
③RJ45 connector (compatible with 10Base-T/100Base-TX)
Connection for LAN cable.
④Green LED
Shows network transmission speed with steady/blinking light.
⑤Yellow LED
Shows network connection status (disconnected, receiving data, etc.)
⑥Panel button
Used to operate the Ethernet function.
①
②
③
④
⑤
⑥

Introduction
6
1-3. LED Functions
The following charts show what each LED indicator indicates.
①Network transmission speed
Transmission speed
LED (green)
100 Mbps
On
10 Mbps / disconnected
Off
②Link status with network
Link status
LED (yellow)
Connected
On
Disconnected
Off
Transmitting data
Flashing
①
②

CITIZEN Label Printer Library for Windows - Programming Manual
7
1-4. Using the Panel Button
The panel button on the operation panel is used to operate the Ethernet function. You can
use it to print settings information and restore factory default settings.
1-4-1.Printing the Network Configuration
Press the panel button to print out the network configuration.
■Configuration items that are printed
①Title of the printout.
②Firmware version of printer..
③Network settings such as the IP address
currently being used. When the network is
not connected, the IP address is “0.0.0.0”.
*** With DHCP setting ON, DHCP status is
printed as follows.
ON (Acquiring) - Still trying to get IP address
ON (Success) - Getting IP address succeeded
ON (Fail) - Getting IP address failed.
If panel button is pressed within 60 seconds
after power on with DHCP enabled settings, IP
address may not be obtained yet. In such
case, IP address is shown as 0.0.0.0.
①
②
③
Panel Button
Network
Information
Firm Ver. : ES00-000X
Current Status
MAC : 00:01:02:0a:0b:0c
Host Name : no name
DHCP : ON (Success)
IP Addr. : 192.168.11.4
Subnet : 255.255.255.0
Gateway : 192.168.11.1
Timeout : 60
PrintPort : 9100

Introduction
8
1-4-2.Returning the Network Configuration to Factory Default Settings
1) Press and hold the panel button.
2) When you hear the beep, press and hold the panel button again within 3 seconds.
The following message is printed, and the network settings return to factory default
settings.
]
When the operation is complete, the printer restarts automatically.
When the network setting is set to automatically obtain the IP address from the DHCP
server, the IP address assigned may be different from the previous one.
Warning
I/F Board
Information
--!Caution!--
Printer will
automatically restart.
Network
Information

CITIZEN Label Printer Library for Windows - Programming Manual
9
1-5. Print Server
Using a Web browser, you can go to the Print Server Configuration screen to view or
change the network settings.
1-5-1.Accessing Print Server Configuration screen
1) Launch your browser and go to the URL of the Print Server Configuration screen.
For the URL, enter the IP address assigned to the printer.
(For example, if the IP address is “169.254.1.10”, enter “http://169.254.1.10”.)

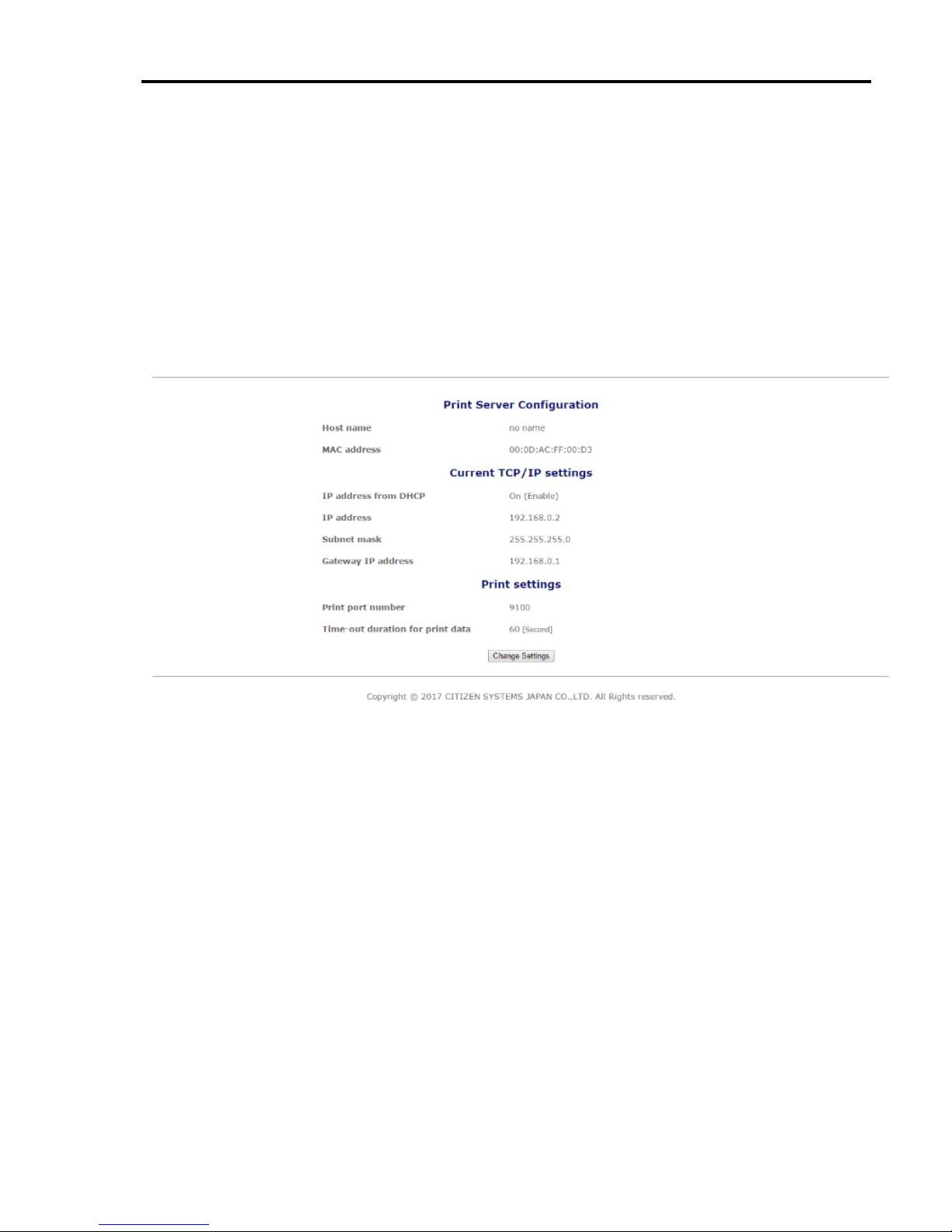

2) Print Server Configuration page to show current settings appears.
3) By clicking “Change Settings” button, screen move to the page to change the settings.

Introduction
10

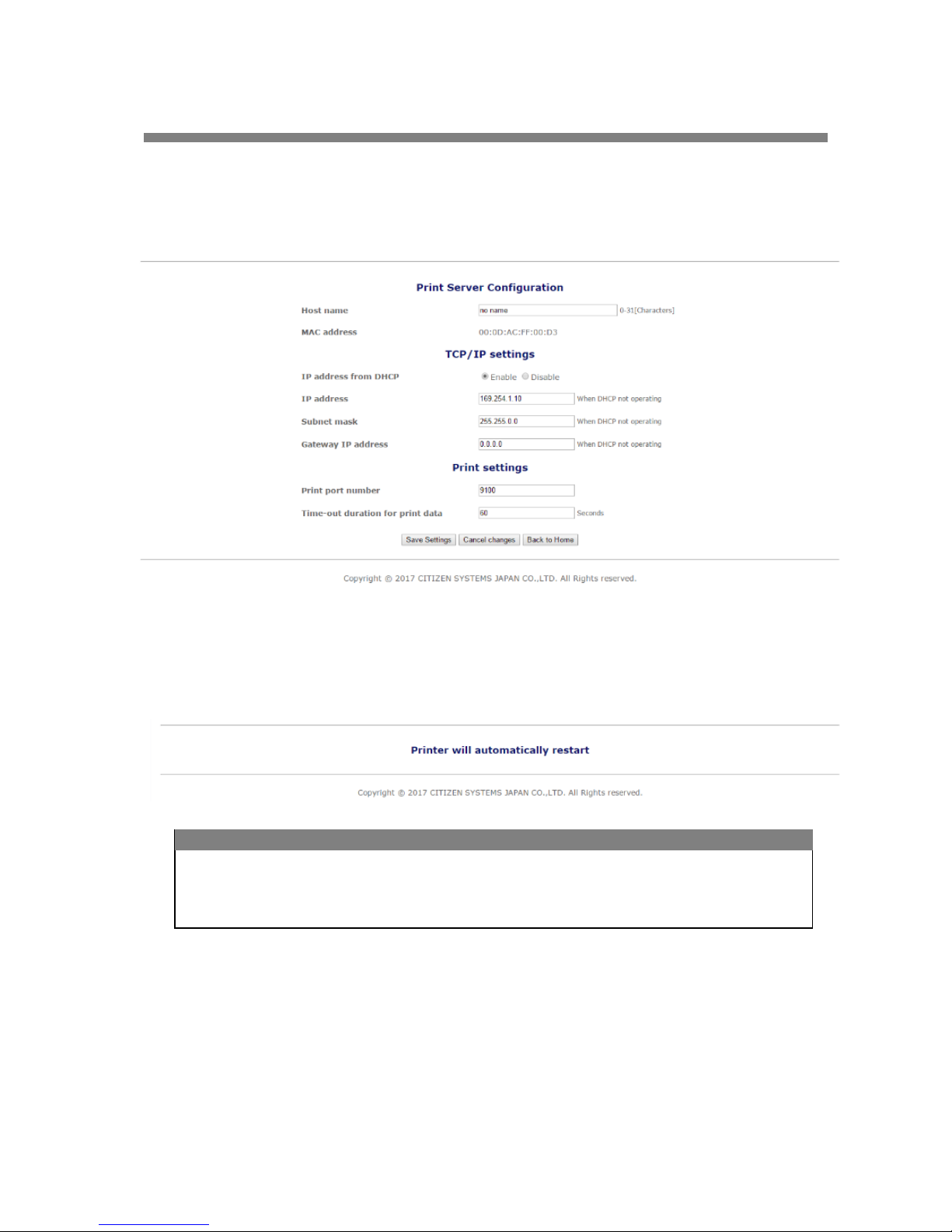

1-5-2.Changing the Print Server Configuration
By clicking “Change Settingst” button, screen is changed for the page to change the
network settings.
[Back To Home] button: The page moves back to the page to check the current network settings.
[Cancel Settings] button: The entry data on this page is canceled.
[Save Settings] button: The entry data on this page is saved and move the page below then the
printer reboots after few seconds.
When the operation is complete, the printer restarts automatically.
When the network setting is set to automatically obtain the IP address from the DHCP
server, the IP address assigned may be different from the previous one.
Warning

CITIZEN Label Printer Library for Windows - Programming Manual
11
■List of network setting items
Classification
Item
Description
Changeable
Network
setting Host name Name to identifying the printer
“no name” (factory default)
Available character for the host name is
ASCII code 0x20 to 0x7E and 0 to 31
characters.
Yes
TCP/IP
settings
MAC address
MAC address
No
IP address
from DHCP Setting to obtain IP address from DHCP server
Enable: ON (factory default)
Disable: OFF
Yes
IP address Static IP address
169.254.1.10 (factory default)
Yes
Subnet mask
Subnet mask
255.255.0.0 (factory default)
Only when
“IP address
from
DHCP” is
“Disable”
Gateway IP
address
Gateway IP address
0.0.0.0 (factory default)
Only when
“IP address
from
DHCP” is
“Disable”
Print
settings Print port
number
Print port number used for TCP
9100 (factory default)
Yes
Time out
duration for
print data
Time-out duration of connection to host
machines (0 to 65535 seconds).
“0” means no time-out.
60 (factory default)
・We recommend setting the time-out
duration for at least 30 seconds.
Yes

12
2. Network Settings
2-1. Network settings from the browser
2-1-1.Accessing the Print Server configuration screen
The followings are examples of the PC/printer preparation to access the print server.
Example 1: Setting the static IP address from browser on directly connected PC
Press panel button to check IP address of the printer.
Connect the printer and the PC via LAN cable directly.
On the TCP/IP setting of the PC, set the IP address of the same network as the printer.
You can access the print server function from the browser by entering IP address as URL
(If IP address of the printer is 169.254.1.10, IP address of PC should be like 169.254.1.11
and URL on the browser should be http://169.254.1.10)
Example 2: Setting static IP address from browser using DHCP server
Connect the printer to the network that DHCP server is working.
As IP address is supposed to be assigned from DHCP sever, check IP address by pressing
panel button after 60 seconds.
You can access the print server function from the browser of the PC that is in the same
network as the printer by entering printer IP address as URL.
（If IP address assigned to the printer is 192.168.1.100, URL is like http://192.168.1.100）
2-1-2.Setting the IP address
Network communication is based on the IP addresses assigned to each network devices.
IP address setting is either by automatic assignment from DHCP server or by setting static
IP address manually. Default setting is automatic assignment by DHCP server.
■Setting to get IP address from DHCP server automatically
1) Using the Web browser, access the Print Server Configuration screen. (Refer to “1-5.
Print Server” for the setting screen access method.
2) In “TCP/IP settings” group, set “IP address from DHCP” to “Enable”.
3) Click “Save” to save the changes. (Printer will reboot with new network settings.)
4) Switch on the printer.
After the printer is switched on, the printer automatically obtains the IP address from the
DHCP server within 60 seconds. If IP address cannot be obtained in 60 seconds,
default IP address （169.254.1.10）will be assigned. (If you check IP address during
obtaining IP address, the address will be shown as 0.0.0.0）

2. Network Settings
13
■Setting the IP address manually
1) Using the Web browser, access the Print Server Configuration screen. (Refer to “1-5.
Print Server” for the setting screen access method.
2) In “TCP/IP settings” group, set “IP address from DHCP” to “Disable” and enter the
necessary IP address to the “IP address”.
3) Click “Save” to save the changes. (Printer will reboot with new network settings.)
2-1-3.Changing other settings
If necessary, change the other settings than IP address.
The way to change setting is same as IP address settings.
For the details of changeable setting, refer to List of network setting items in section 1-5-2
“Changing Print Server Configuration”

Network Settings
14
2-2. Network setting from “Network Seeker”
By using “CITIZEN Network Seeker”, utility software that runs on Windows, you can check
and change the Ethernet interface settings.
2-2-1.Starting Network Seeker
After obtaining the program “NetSeeker.exe” from the CD-ROM or our website, double click
the program. A dialog box appears.
Click “Seek” to start a LAN IF search.
（Shown model name above “CT-S401” is Japanese model and it is identical to CT-E351.）
①
②
③
④
⑤
⑥
⑦
⑧

2. Network Settings
15
①“Seek” button
Start a search for the printers on the network.
The search function waits for a response for the duration set for ⑦.
②“Edit config” button
Change the settings of the selected printer.
③Printer information list
A list of discovered printers.
④Printer information
Single click to select a printer and double click to change settings.
⑤Configuration display section
View the settings of the selected printer.
⑥Client condition display
When “Busy” is displayed, operations to search, change settings, and so on are
prohibited.
If you click “Stop”, the “Busy” status is cleared forcibly.
⑦Communication timeout
You can configure the time-out duration for searches and other operations.
⑧Status log
View the status of the utility.

Network Settings
16
2-2-2.Changing Settings
You can configure a printer by selecting it at the main dialog box, and then clicking “Edit
config”.
（Shown model name above “CT-S401” is Japanese model and it is identical to CT-E351.）
①These are unalterable parameters. These parameters are for display purposes
only.
②These are changeable parameters. Users can change these parameters.
①
②
