Citizen H145 User manual

1

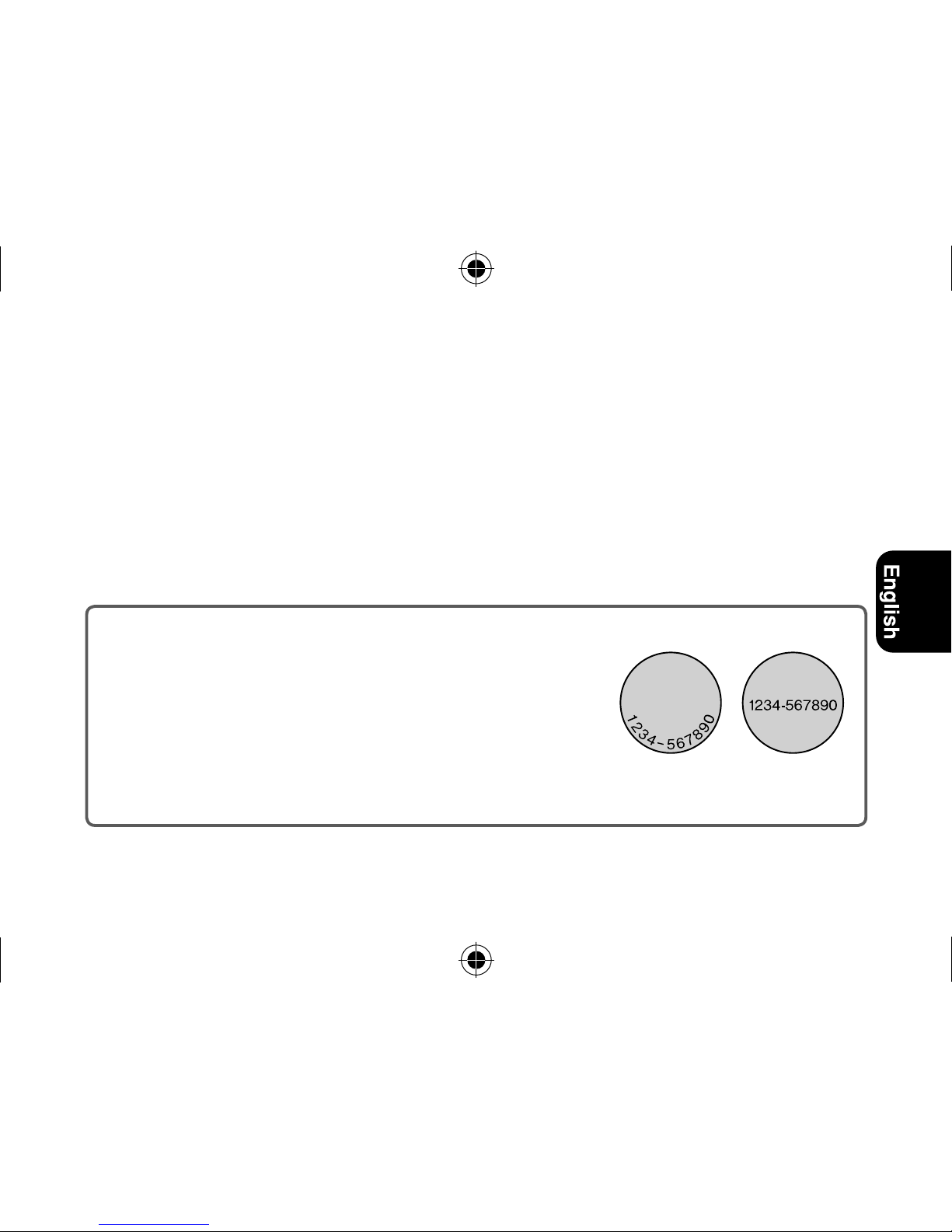

To check the movement number
A case number is engraved on the case back.
(Figure on the right)
The first 4 digits of the case number represent the
movement number of the watch.
In the example on the right, “1234” is the movement
number.
Engraving position example
The engraving position may differ
depending on watch model.
Thank you for your purchase of this Citizen watch.
Before using the watch, read this instruction manual carefully to ensure correct use.
After reading the manual, store it in a safe place for future reference.
✳The case has different features depending on the model.
Details of the case features are not contained in this manual, see
“http://www.citizenwatch.jp/support/default.htm”.
EN_H145[DOM]-f.indd Sec1:1EN H145[DOM]-f.indd Sec1:1 11.3.29 5:17:29 PM11.3.29 5:17:29 PM

2
Safety precautions
This manual contains the following instructions that should be strictly followed at all times
to prevent injury to yourself and other persons as well as damage to property.
■ Injuries and damage that might be caused by using the watch improperly or neglecting any
of the instructions or precautions contained in this manual are classified with the following
symbols.
DANGER Highly likely to cause death or serious injury
WARNING
Can cause serious injury or death
CAUTION
Can or will cause minor or moderate injury or damage
EN_H145[DOM]-f.indd Sec1:2EN H145[DOM]-f.indd Sec1:2 11.3.29 5:17:30 PM11.3.29 5:17:30 PM

3
■ Important instructions that should be followed are classified with the following symbols.
Warning (caution) symbol followed by instructions that should be
followed or precautions that should be observed.
Warning (caution) symbol followed by prohibited matters.
<Notes before use—Protective stickers>
Prior to the watch being shipped from the manufacturing plant, its glass, case, metal
band, and metal parts of the clasp are covered with stickers to protect them from getting
fingerprints or scratches during transit from the plant to the store.
If the watch is worn without first removing these stickers, perspiration or moisture may enter
the gaps between the protective stickers and the parts, which may result in a skin rash and/or
corrosion of the metal parts.
For this reason, please be sure to peel off the stickers before wearing the watch.
EN_H145[DOM]-f.indd Sec1:3EN H145[DOM]-f.indd Sec1:3 11.3.29 5:17:30 PM11.3.29 5:17:30 PM

4
Features
“Radio controlled watch”
Receives a time signal from one of the five
signal stations located in four regions and
automatically adjusts the time and calendar.
“Eco-Drive”
No need for periodical changing
of rechargeable cells. The watch
is charged by light.
“Perfex”
Preventing the hands from
unwanted movement due to
impacts or magnetism, the
accuracy of the radio controlled
watch is maintained.
“Perpetual calendar”
No need for date correction
at the end of each month.
The leap year is also updated
automatically.
“World Time”
Easy to see the time and
calendar of cities all over the
world.
* “Eco-Drive” and “Perfex” are Citizen original technologies.
EN_H145[DOM]-f.indd Sec1:4EN H145[DOM]-f.indd Sec1:4 11.3.29 5:17:30 PM11.3.29 5:17:30 PM

5
Before using the watch
The following must be done before using the watch:
●Checking the power reserve Page 10
Check the charge level of the watch.
●Setting the World Time Page 12
Select the city for which you want to indicate the time and date.
●Checking the time signal reception Page 11
Check the result of the time signal reception.
This watch has a rechargeable cell which is charged
by exposing the dial to light such as direct sunlight or
fluorescent lamps.
Expose the dial to light regularly to charge the watch.
For details of charging, see pages 32 to 37.
EN_H145[DOM]-f.indd Sec1:5EN H145[DOM]-f.indd Sec1:5 11.3.29 5:17:31 PM11.3.29 5:17:31 PM

6
Before using the watch...................5
Component identification...............8
Checking the power reserve..........10
Checking the time signal
reception ..................................11
Setting the World Time.................12
Notes on the time signal
reception ..................................16
Receiving the time signal manually
(On demand reception)..............24
Switching Summer Time and
standard time ...........................26
Recharging your watch.................32
Adjusting the time/calender
manually...................................38
Checking and correcting the current
reference position .....................42
Table of contents
EN_H145[DOM]-f.indd Sec1:6EN H145[DOM]-f.indd Sec1:6 11.3.29 5:17:31 PM11.3.29 5:17:31 PM

7
Troubleshooting...........................46
Resetting the watch—All Reset ...50
Solar-powered watch handling
precautions...............................52
Water resistance ..........................54
Precautionary items and
usage limitations.......................56
Warranty and service....................62
Information .................................64
Specifications...............................66
Customer support center ..............68
EN_H145[DOM]-f.indd Sec1:7EN H145[DOM]-f.indd Sec1:7 11.3.29 5:17:31 PM11.3.29 5:17:31 PM

8
Component identification
The illustrations in this instruction manual may differ from the actual appearance of your watch.
Hour hand
Summer Time
indication (ON/OFF)
Second hand
Signal reception
indication (OK/RX/NO)
Upper right button ( )
Crown
Minute hand
Lower right button ( )
Date indicator
City indication
EN_H145[DOM]-f.indd Sec1:8EN H145[DOM]-f.indd Sec1:8 11.3.29 5:17:31 PM11.3.29 5:17:31 PM

9
How to use the screw down crown and screw down push button
Some models feature a screw down crown and/or screw down push button.
Locking the crown and/or button prevents accidental operation. These must be unlocked
prior to using certain features of your watch such as setting the time or date.
Unlock Lock
Screw down
crown
Rotate the crown
counterclockwise until it
releases from the case.
Push the crown in to the case.
With gentle pressure towards
the case, rotate the crown
clockwise to secure it to the
case. Be sure to tighten firmly.
Screw down
push button
Rotate the locking screw
counterclockwise, and
loosen until it stops.
Rotate the locking screw
clockwise, and tighten firmly.
Some models feature a recessed button.
Press the button with a narrow-tipped object such as a wooden toothpick.
Component identification
EN_H145[DOM]-f.indd Sec1:9EN H145[DOM]-f.indd Sec1:9 11.3.29 5:17:32 PM11.3.29 5:17:32 PM

10
Checking the power reserve

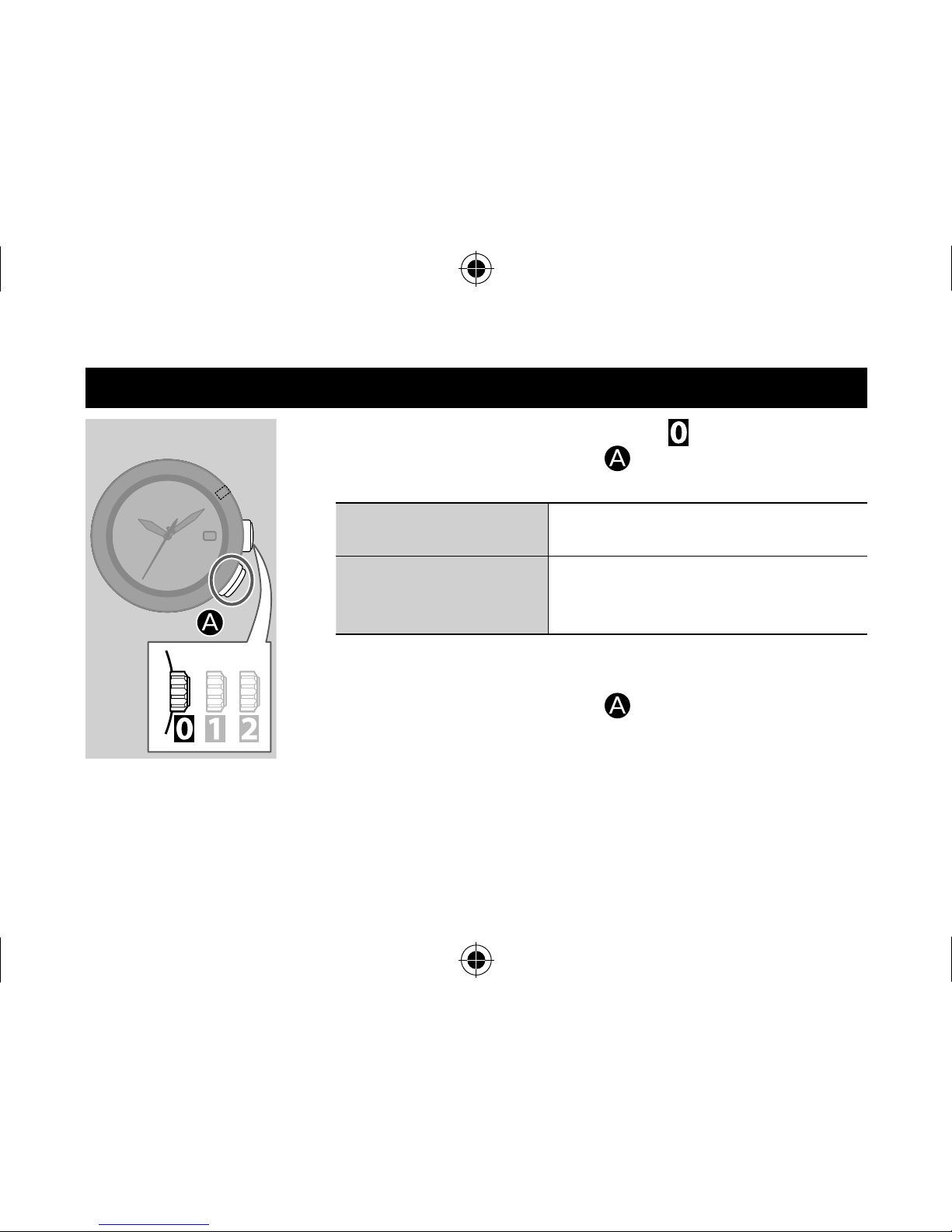

1. Ensure that the crown is in position .
2. Press the lower right button briefly.
The second hand moves to indicate the power reserve.
The second hand
indicates “OK” or “NO”
The watch is sufficiently charged.
The second hand rotates
counterclockwise, then
indicates “OK” or “NO”
The charge of the watch is low.
Charge the watch. See pages 32 to
37.
• “OK” and “NO” indicate the reception result of the time
signal and no relationship to the power reserve.
3. Press the lower right button briefly to finish the
procedure.
The current time is indicated.
• The current time will be indicated automatically after 10
seconds even without pressing the button.
EN_H145[DOM]-f.indd Sec1:10EN H145[DOM]-f.indd Sec1:10 11.3.29 5:17:32 PM11.3.29 5:17:32 PM

11
Checking the time signal reception

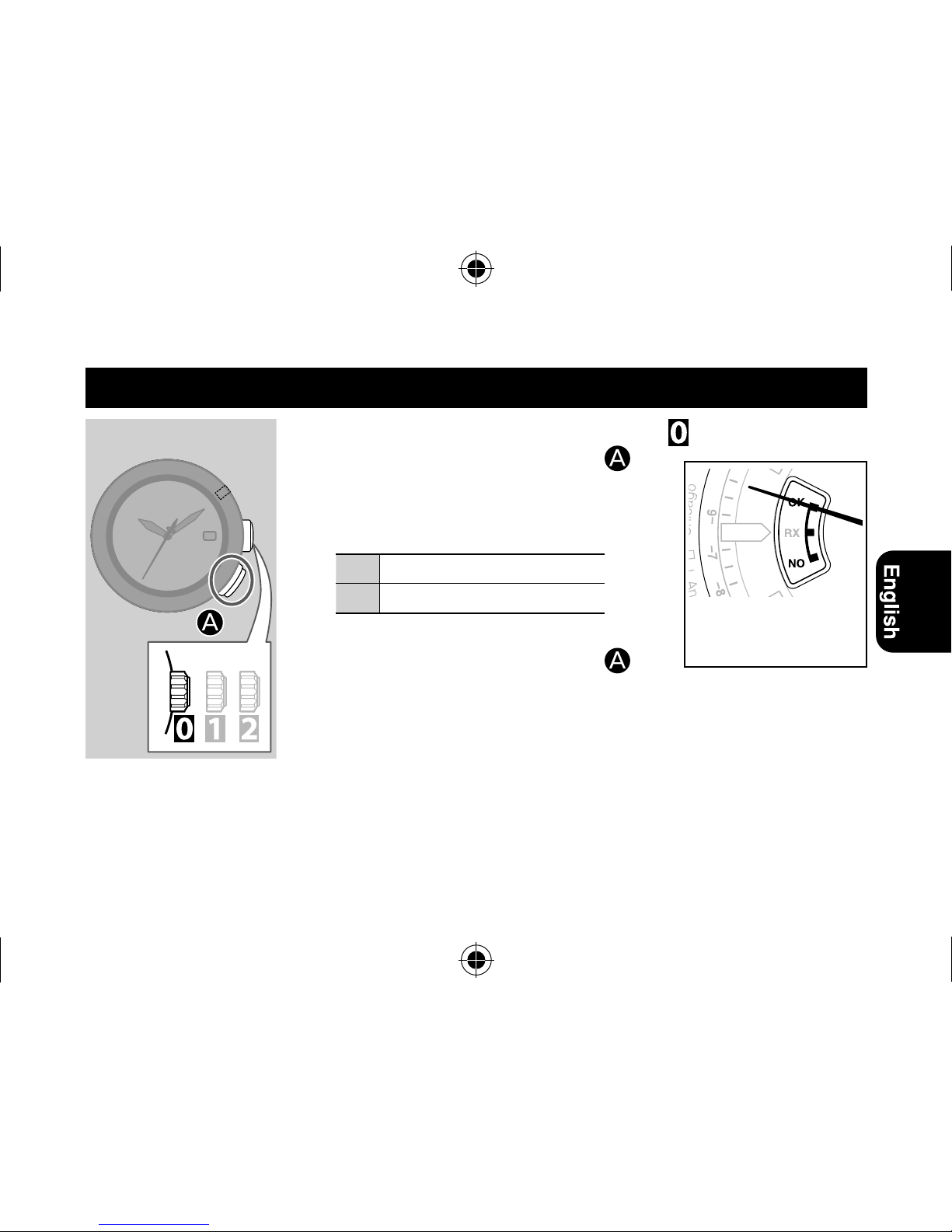

1. Ensure that the crown is in position .
2. Press the lower right button
briefly.
The second hand indicates the
reception result.
OK Reception has succeeded.
NO Reception has failed.
When reception has failed, see page 22.
3. Press the lower right button
briefly to finish the procedure.
The current time is indicated.
• The current time will be indicated automatically after 10
seconds even without pressing the button.
When reception
has succeeded
EN_H145[DOM]-f.indd Sec1:11EN H145[DOM]-f.indd Sec1:11 11.3.29 5:17:32 PM11.3.29 5:17:32 PM

12
Setting the World Time
Select the city for which you want to indicate the time and date.
1. Pull the crown out to position .
The second hand moves and indicates the city currently
selected.
2. Rotate the crown to select the city for
which you want to indicate the time
and date.
• For details of the selection of cities, see
pages 13 to 15.
• Each time you select a city, the time and
date of the city you have selected will be
indicated.
3. Push the crown in to position to
finish the procedure.
When “New York” (49
seconds position) is
selected
After setting the World Time, check the displayed time—Summer Time or standard time.
(See pages 26 to 31.)
EN_H145[DOM]-f.indd Sec1:12EN H145[DOM]-f.indd Sec1:12 11.3.29 5:17:33 PM11.3.29 5:17:33 PM

13
Table of selectable cities
• The indications in the table below are written differently on some models.
• The signal station is changed depending on the selected city.
• Cities out of receivable range cannot receive the signal though a signal station is assigned
in the list.
• When you use the watch in a place which is not shown in the table below, select the city in
the same time zone as the city you want to indicate.
• The time difference in the table below is based on UTC.
• The standard time for each area or country may change according to their situation.
• For cities indicated by *, the watch shows Summer Time/standard time in common.
• For cities indicated by **, the watch shows Summer Time/standard time in common.
Indication Second hand position City name Time difference Signal from...
*London LON 0 London 0
Germany
*Paris PAR 2 Paris +1
*Athens ATH 4 Athens +2
*Moscow MOW 7 Moscow +3
Dubai DXB 9 Dubai +4
Continued on the next page
Setting the World Time
EN_H145[DOM]-f.indd Sec1:13EN H145[DOM]-f.indd Sec1:13 11.3.29 5:17:33 PM11.3.29 5:17:33 PM

14
Indication Second hand
position City name Time difference Signal from...
Karachi KHI 11 Karachi +5
China
Delhi DEL 14 Delhi +5.5
Dhaka DAC 16 Dhaka +6
Bangkok BKK 18 Bangkok +7
Hong Kong
or Beijing
HKG or
BJS 21 Hong Kong or
Beijing +8
Tokyo TYO 23 Tokyo +9
Japan
Adelaide ADL 25 Adelaide +9.5
Sydney SYD 28 Sydney +10
Noumea NOU 30 Noumea +11
Auckland AKL 32 Auckland +12
Setting the World Time
EN_H145[DOM]-f.indd Sec1:14EN H145[DOM]-f.indd Sec1:14 11.3.29 5:17:33 PM11.3.29 5:17:33 PM

15
Indication Second hand
position City name Time difference Signal from...
Midway MDY 35 Midway Island -11
USA
Honolulu HNL 37 Honolulu -10
** Anchorage ANC 39 Anchorage -9
** L.Angeles LAX 42 Los Angeles -8
** Denver DEN 44 Denver -7
** Chicago CHI 46 Chicago -6
** New York NYC 49 New York -5
Santiago SCL 51 Santiago -4
R.Janeiro RIO 53 Rio de Janeiro -3
F.Noronha FEN 56 Fernando de Noronha -2 Germany
*Azores PDL 58 Azores (Ponta Delgada) -1
Setting the World Time
EN_H145[DOM]-f.indd Sec1:15EN H145[DOM]-f.indd Sec1:15 11.3.29 5:17:33 PM11.3.29 5:17:33 PM

16

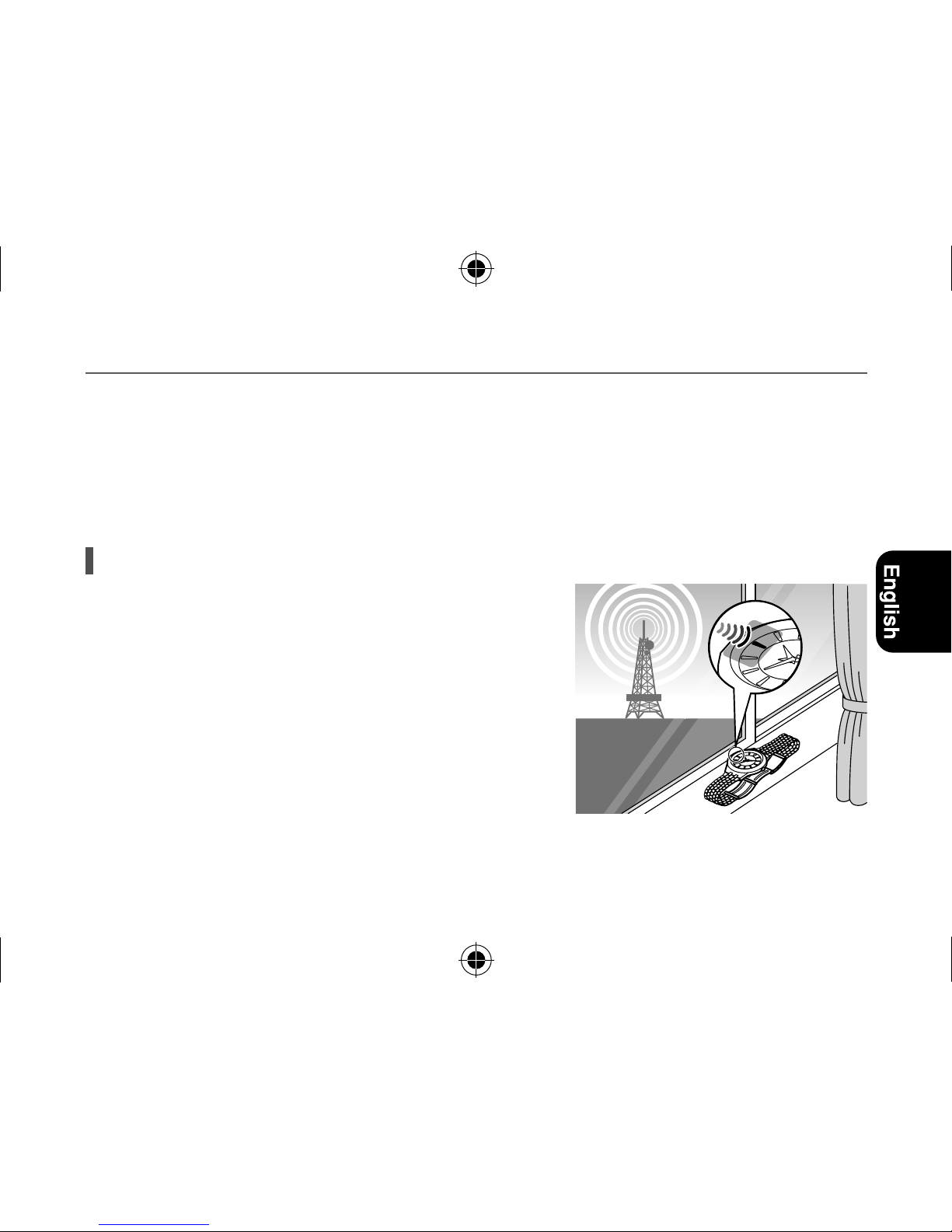

Notes on the time signal reception
Receiving the time signal
There are three ways to receive the time signal:
• The second hand indicates the reception result (OK/NO). (See page 11.)
Methods Explanations
Automatic reception Receives the signal at 2:00 a.m. every day. If reception is
unsuccessful, the watch tries to receive at 3:00 a.m. and 4:00 a.m.
On demand reception Receives the signal when you want to adjust the time and date.
See page 24.
Recovery automatic
reception
Automatically receives the signal once after charging when the
watch stops due to insufficient charge.
* These reception methods are possible only when the crown is in position .
• The watch will not receive the time signal when in a low charge state as indicated by the
second hand moving in two second increments (the insufficient charge warning). Charge
the watch before reception.
EN_H145[DOM]-f.indd Sec1:16EN H145[DOM]-f.indd Sec1:16 11.3.29 5:17:33 PM11.3.29 5:17:33 PM

17
• The automatic reception function and recovery automatic reception function cannot be
deactivated.
• Even when this watch receives the time signal successfully, the accuracy of the displayed
time will be dependent on the reception environment and internal processing.
• If the watch is not able to receive the signal, it will operate normally within an accuracy
range of ±15 seconds per month.
When receiving the time signal
Remove the watch and place it on a stable surface where
it can receive the signal better, such as next to a window.
• The reception antenna is located at the 9:00 position
of the watch. Place the watch with the 9:00 position
facing toward the station.
• Do not move the watch during time signal reception.
Notes on the time signal reception
EN_H145[DOM]-f.indd Sec1:17EN H145[DOM]-f.indd Sec1:17 11.3.29 5:17:33 PM11.3.29 5:17:33 PM

18
Note on the time signal
This watch receives the time signal from one of the five signal stations located in four regions.
The receivable signal stations are listed as follows:
Signal stations Kind of the time signal
Fukushima station, Japan JJY
Kyushu station, Japan
Fort Collins station, Denver, Colorado, USA WWVB
Mainflingen station, Southeast Frankfurt, Germany DCF77
Shangqiu station, Henan, China BPC
Refer to the maps on pages 19 to 21 to see the locations of the signal stations and their
receivable area roughly.
• Either signal station in Japan is automatically selected for receiving the JJY signal (Automatic
selection of time signal stations).
Notes on the time signal reception
EN_H145[DOM]-f.indd Sec1:18EN H145[DOM]-f.indd Sec1:18 11.3.29 5:17:34 PM11.3.29 5:17:34 PM

19
Approximate receivable area
The receivable range is often affected by the receiving environment, weather, and season.
Use the diagram only as an approximate value.

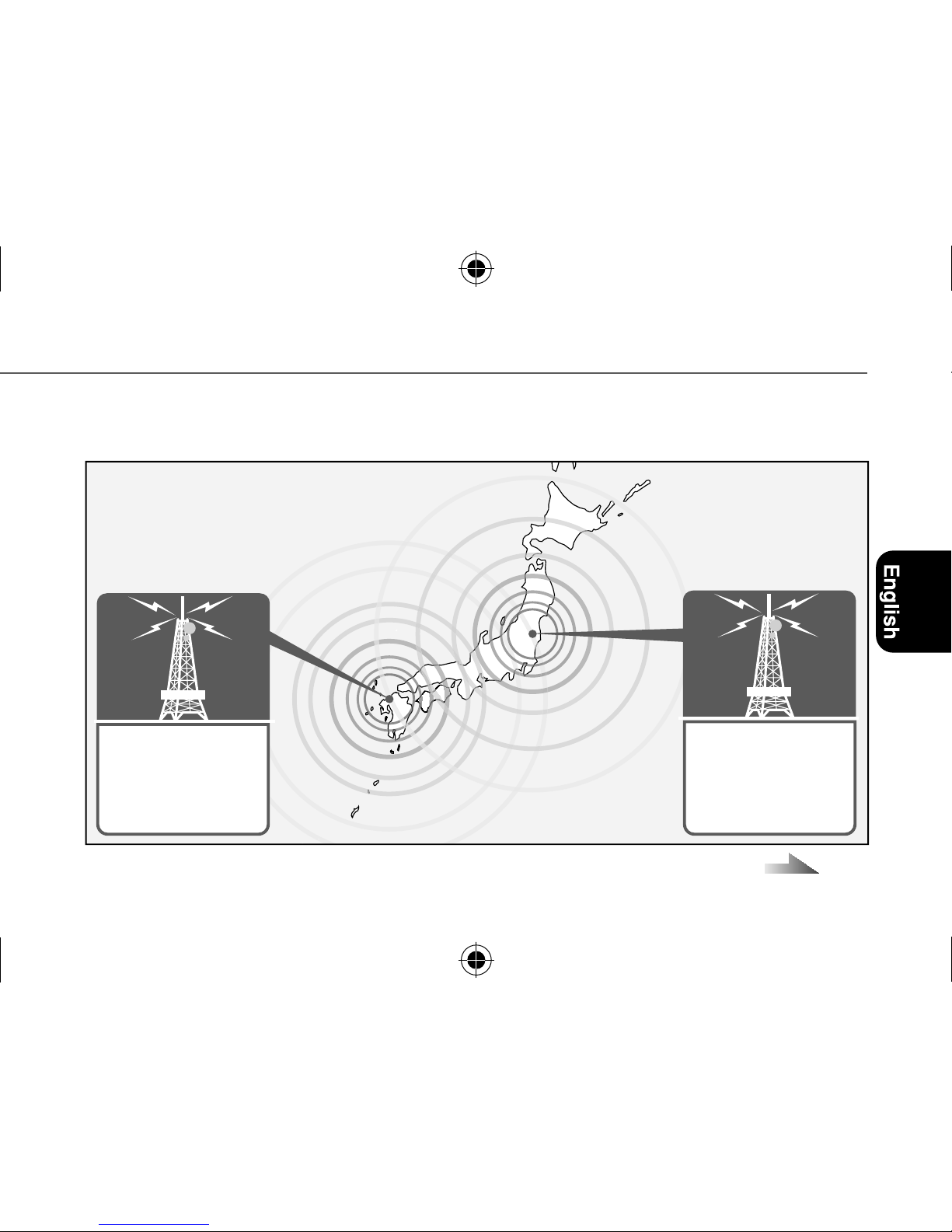

JJY (Japan):
Approx. 2000 km
Kyushu station
JJY (Japan):
Approx. 1500 km
Fukushima station
Continued on the next page
Notes on the time signal reception
EN_H145[DOM]-f.indd Sec1:19EN H145[DOM]-f.indd Sec1:19 11.3.29 5:17:34 PM11.3.29 5:17:34 PM

20

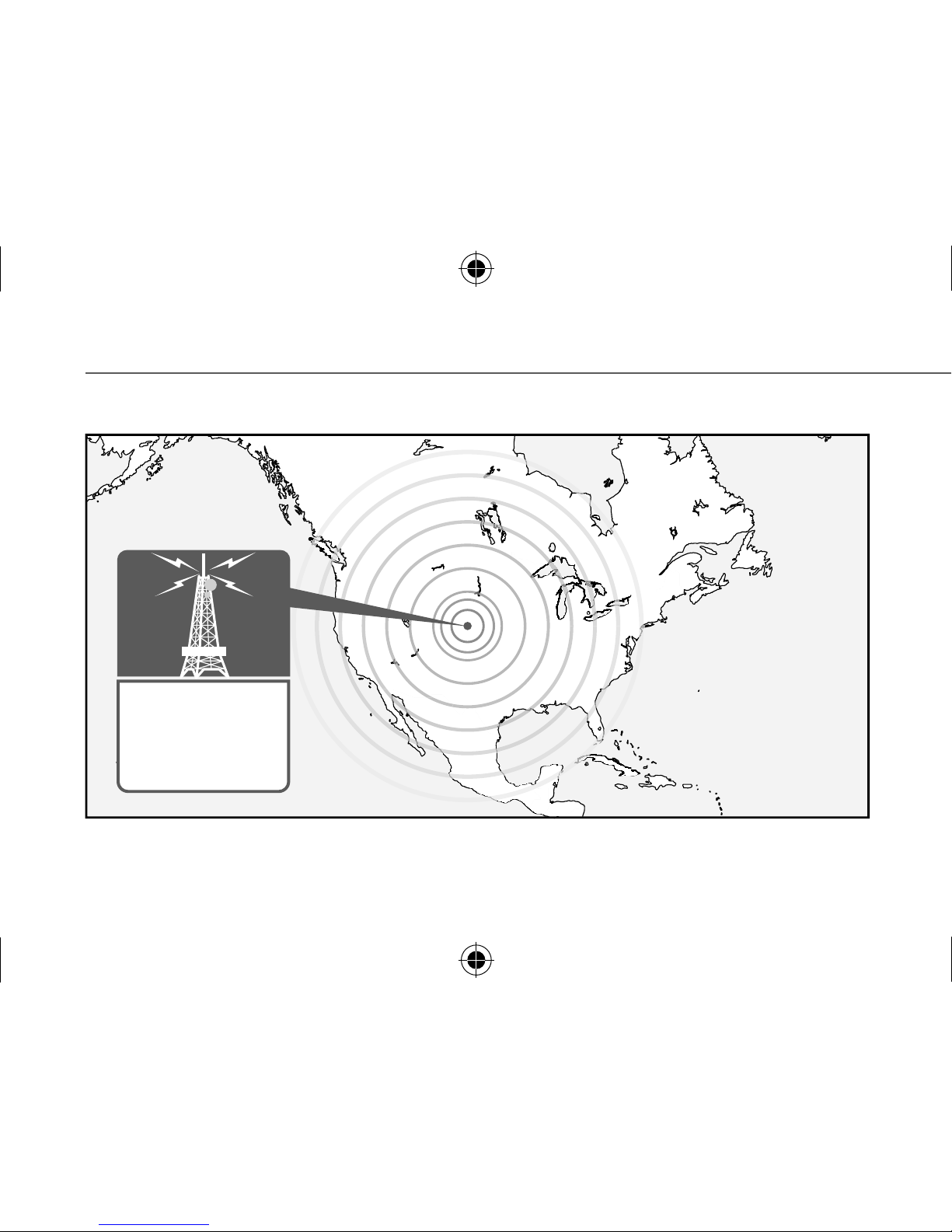

WWVB (USA):
Approx. 3000 km
Fort Collins station
The receivable range is often affected by the receiving environment, weather, and season.
Use the diagram only as an approximate value.
Notes on the time signal reception
EN_H145[DOM]-f.indd Sec1:20EN H145[DOM]-f.indd Sec1:20 11.3.29 5:17:34 PM11.3.29 5:17:34 PM
