Citroën C4 picasso User manual

CITROEN

Compiled

C4owners.org

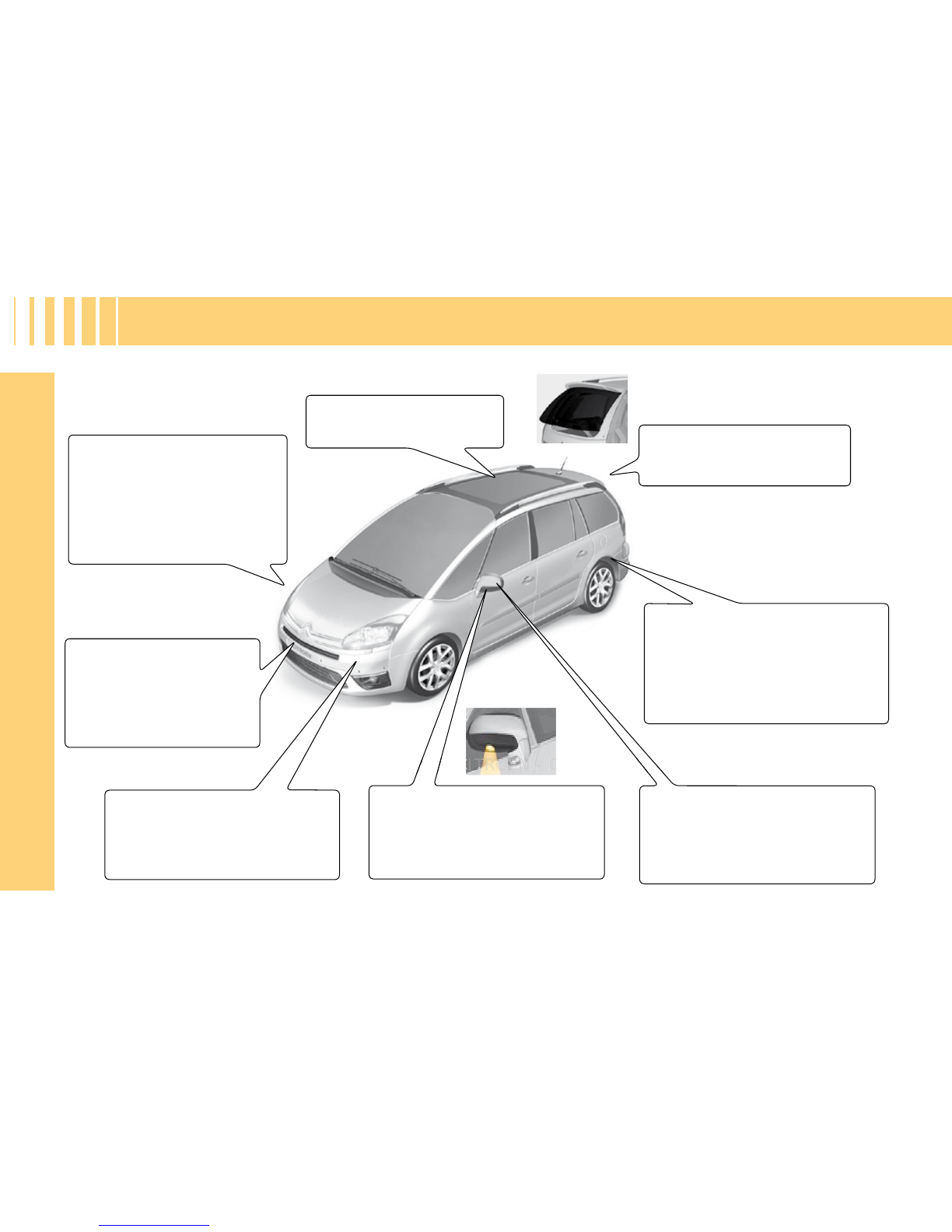

FAMILIARISATION

Panoramic glass roof

81

Xenon directional headlamps

Whether on dipped or main

beam, this function allows the

lighting to follow the direction

of the road ahead.

88

Opening rear screen

80

Pneumatic rear suspension

Thisenhancesdrivingcomfortand

maintains a constant body height,

whatever the vehicle load.

153

Exterior side spotlamps

These light up the zones facing

the driver’s and passenger’s

doors.

87

Front/rear parking

assistance

Sensors, located in the

bumpers, detect obstacles.

151

Parking space sensor

This measures the size of a

space and advises whether or

not parking is possible.

148

Exterior rear view mirrors

With electric foldback.

Automatically tilts in reverse

gear.

66

EXTERIOR

CITROEN

Compiled

C4owners.org

FAMILIARISATION

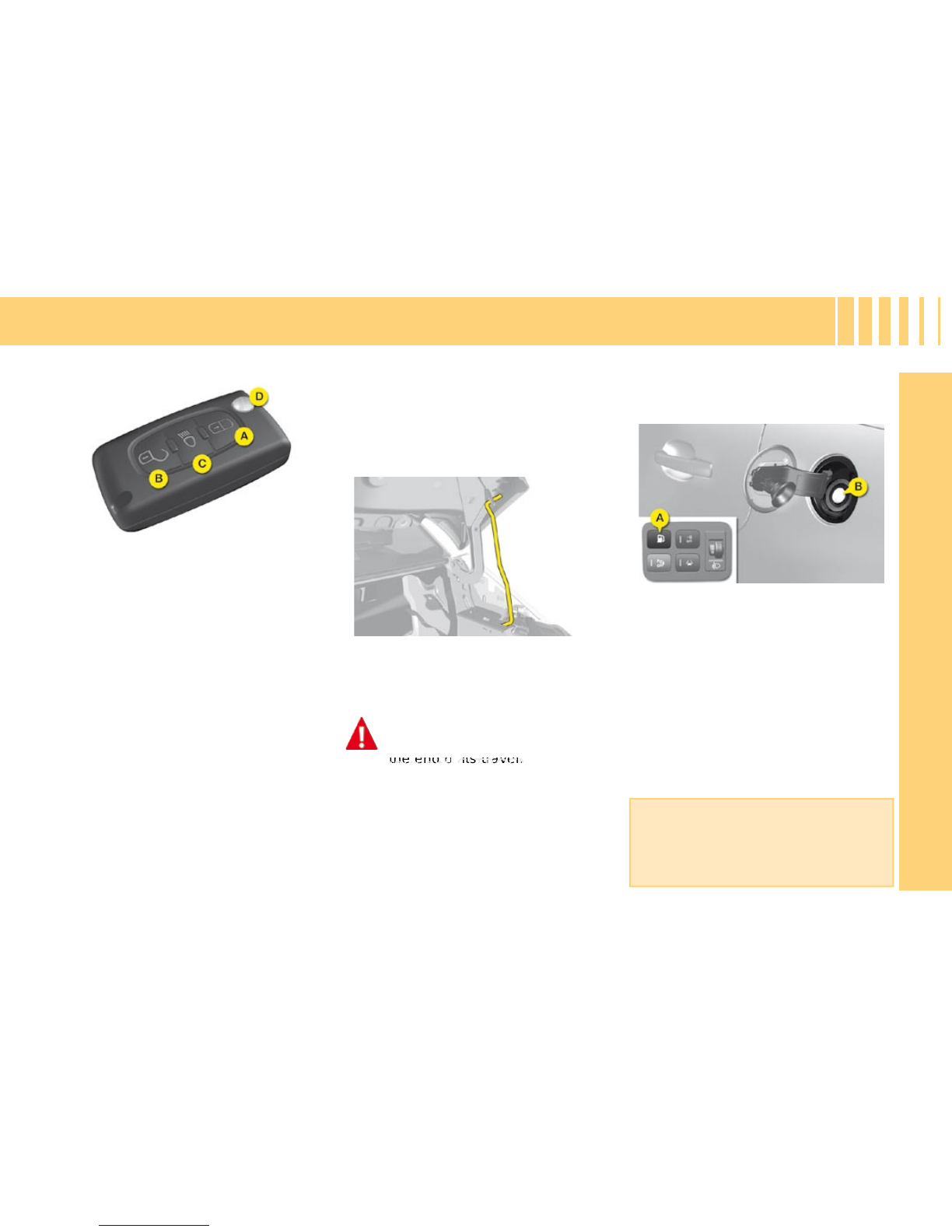

A. Central locking

B. Unlocking

C. Guide-me-home lighting

D. Key release/storage

Press on control A, located on the con-

trol panel to the left of the dashboard.

The fuel ﬂ ap automatically opens up

fully.

Insert the nozzle so as to push in the

metallic gate valve B.

Push the fuel ﬂ ap to close it.

After switching off the ignition, con-

trol Ais only active for a few minutes.

If necessary, switch on the ignition

again to reactivate it.

Bonnet stay: detach the stay and

pivot it upwards to insert it into the

notch.

6 8

Bonnet opening/closing

To unlock, pull the control located under

the dashboard towards you.

156

8 2

Opening

Using the multifunction screen, you can

choose from the following options when

opening your vehicle with the remote

control:

- either all of the doors and the tail-

gate,

- or the driver’s door with a ﬁ rst press,

then all of the other doors with a

second press.

To close: move the stay back to

its initial position, lower the bon-

net, then allow it to slam shut at

the end of its travel.

OPENING

Remote control key Fuel tank

Capacity: approximately 60 litres.

the end of its travel.

CITROEN

the end of its travel.

CITROEN

the end of its travel.

Compiled

C4owners.org

FAMILIARISATION

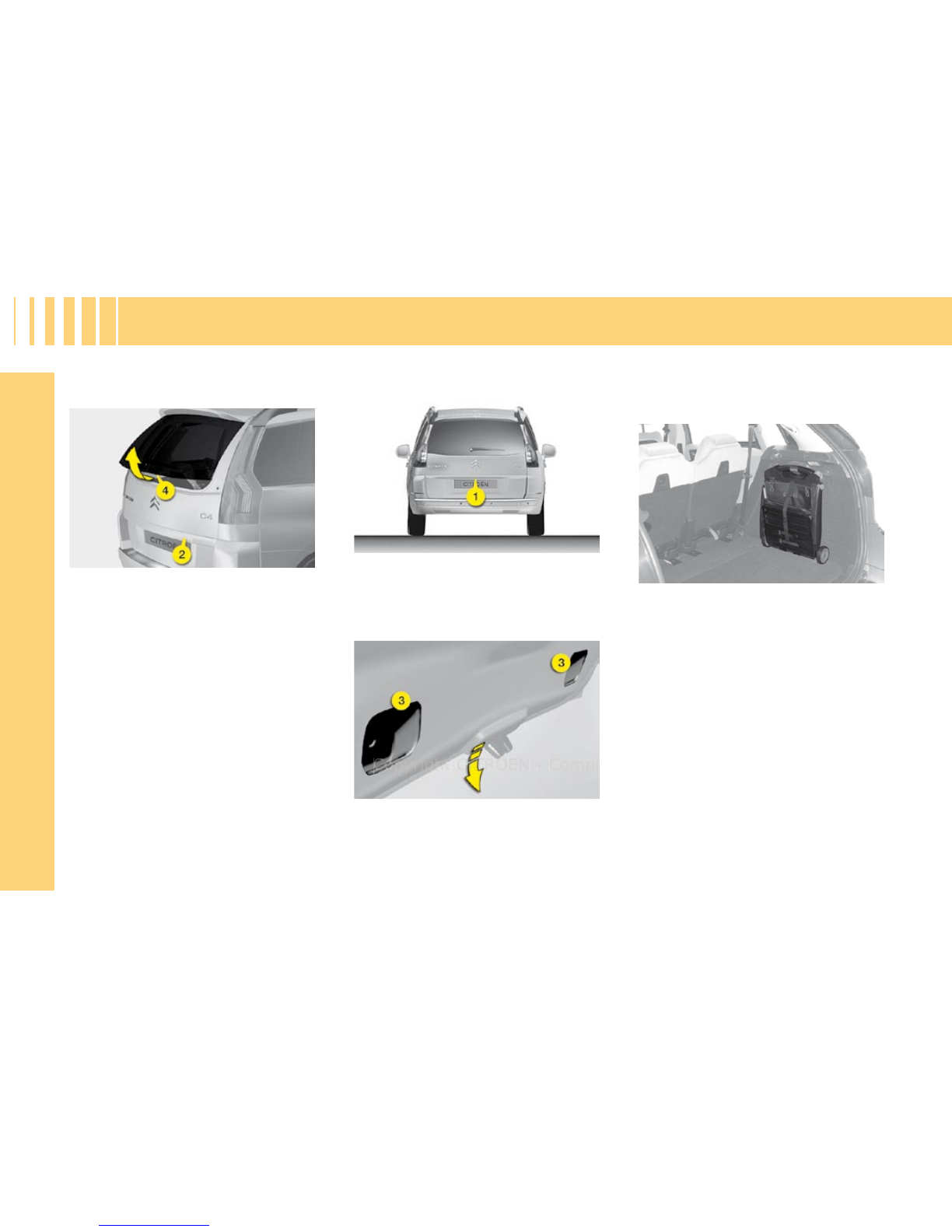

This opening gives easy access to the

boot, even if you are parked close to a

wall or to another vehicle.

Opening rear screen

Opening

Press on control 2. The handhold 4

is in line with the rear wiper.

Closing

Lower the rear screen.

8 0

Press on control 1.

You cannot open the tailgate if the rear

screen is already open.

Lower the tailgate, using one of the

handholds 3, located on the interior

tailgate trim.

Past the balancing point, allow the

tailgate to close itself (do not assist

it or slow it down).

The Modubox is composed of a shop-

ping trolley and a ﬂ exible bag which can

be used independently of each other

depending on your needs. 100

OPENING

Opening the tailgate

Closing the tailgate

Modubox (C4 Picasso)

Load: 22 kg maximum.

CITROEN

Compiled

C4owners.org

FAMILIARISATION

Grand C4 Picasso

Torch

Pneumatic rear

suspension

Allows the height of the rear

of the vehicle to be adjusted

Access to

spare wheel

Puncture repair kit

Depending on model, the kit is located either in the boot well or in the compartment under the left hand

second-row passenger (open the ﬂ ap by turning the screw a quarter turn).

This kit is a complete system for a temporary repair; it is made up of a compressor and a sealing product.

Luggage cover blind

Luggage cover

in two sections

Torch

99 100

169

153

165

104

C4 Picasso

BOOT

Refer also to the section "Practical information - § Changing a wheel". 168

CITROEN

Compiled

C4owners.org

FAMILIARISATION

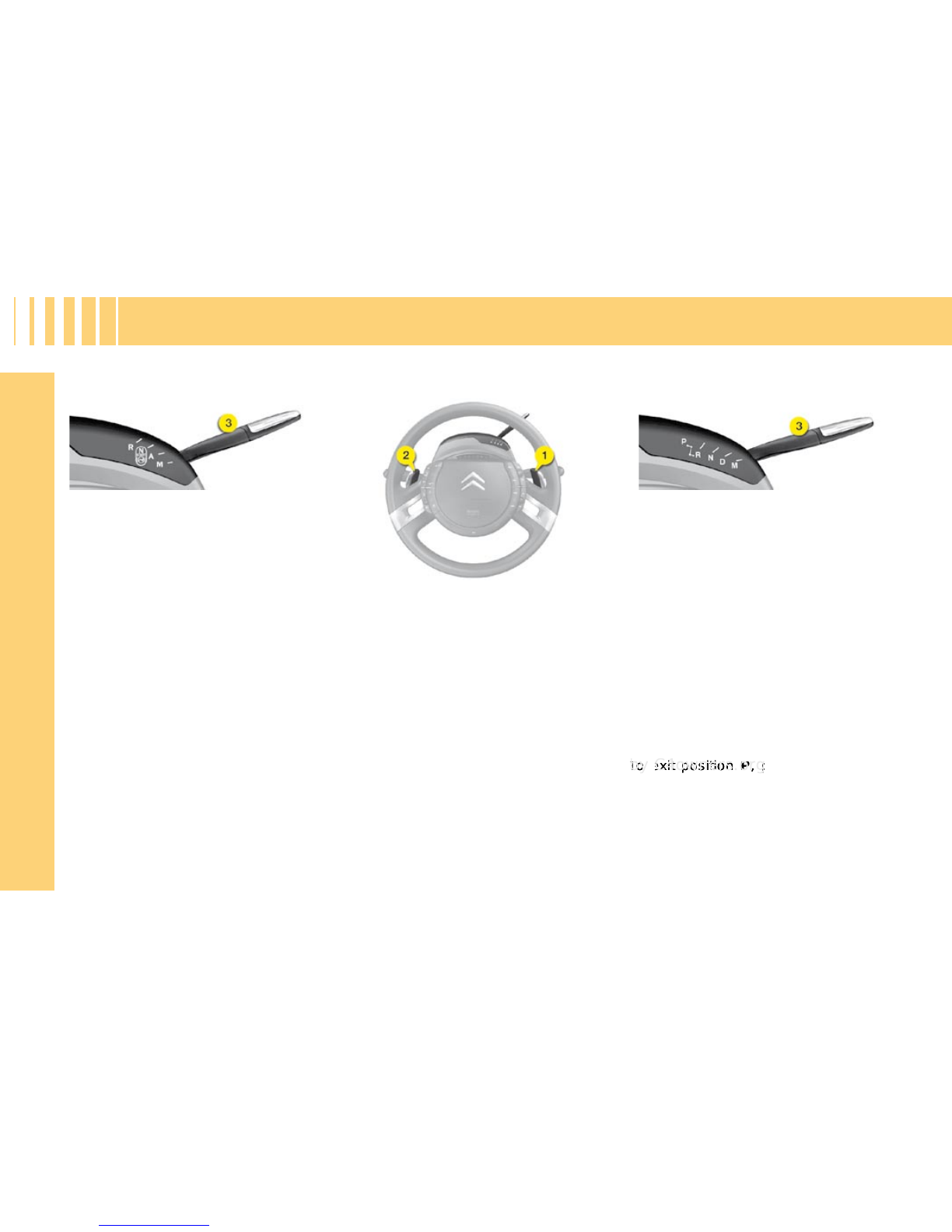

6-speed electronic gearbox

This offers a fully automatic mode, a

manual mode and an auto-sequential

mode which combines the advan-

tages of the automatic and manual

modes, using the levers on the steer-

ing wheel. 133

Speed limiter/Cruise control

These functions control the speed of

the vehicle to the value that you have

programmed.

144, 146

Electric parking brake

For holding and releasing the vehicle.

Operation is automatic with manual

operation possible using the dash-

board control.

125

Scented air freshener

This diffuses the fragrance that you

have chosen throughout the passen-

ger compartment from its location in

the ventilation system. 5 5

Ambiance lighting

This soft lighting of the passenger

compartmentimprovesvisibilityinside

the vehicle when the light is poor.

9 2

INTERIOR

CITROEN

Compiled

C4owners.org

FAMILIARISATION

Fold the concertina boards (1 2 3) ar-

ranged above each of the third-row

seats.

Pull on the black strap F, located on the

seat backrest.

6 4

Before moving the third-row seats,

do not forget to lock in the rigid pan-

els ﬁ rst (located at the base of the

second-row seat backrests).

Installing the seats

Put the three sections of the concertina

boards (1 2 3) to their vertical position,

then pull on the red strap G.

Before moving the third-row seats, re-

turn the rigid panels to the upright posi-

tion and lock them.

Pull on control E, located at the top of

the second-row seats backrest.

6 3

INTERIOR

Stowing the seats Access to third-row seats

Do not leave objects either on or un-

derneath the second-row seats when

you are folding them.

THIRD - ROW SEATS – GRAND

C4 PICASSO

CITROEN

Compiled

C4owners.org

FAMILIARISATION

Folding the seats

From the boot - whilst loading, for

example (Grand C4 Picasso)

Take care to attach the third-row pas-

senger seat belts to the rings provided

for this purpose.

Do not attach the belts to the load

anchorage points marked with a red

cross (see illustration above).

Stowing the tongue of the third-row

seat belt

SECOND - ROW SEATS

11 9

Advice on third-row passenger

seat belts

From outside

 Pull ﬁ rmly upwards on strap C, as

indicated by the red arrow, to unlock

the seat; keep pulling until the seat

is fully folded.

Slide latch Aof the panel down-

wards, to unlock it.

Return the panel to the upright posi-

tion, then slide latch Aupwards to

lock it.

Beforedeployingtherigidpanels,check

that the second row seats are in their

fully rear position.

6 2

INTERIOR

THIRD - ROW SEATS – GRAND

C4 PICASSO

Having ﬁ rstly folded the third-row

seats.

Pull on strap Dto unlock the re-

quired seat.

Repositioning the seats

Return the rigid panels of the second-

row seats to their initial (upright) posi-

tion and lock them in position (Grand

C4 Picasso).

Raise the backrest and push it back-

wards until it locks in position.

Rigid panel (Grand C4 Picasso)

Arigidpanelisattachedtoeachsecond-

row seat backrest.

Unlocking/Locking the rigid panel

seats.

Pull on strap

CITROEN

Pull on strap

CITROEN

Pull on strap

CITROEN

to unlock the re-

CITROEN

to unlock the re-

Compiled

to unlock the re-

Compiled

to unlock the re-

Beforedeployingtherigidpanels,check

that the second row seats are in their

C4owners.org

Beforedeployingtherigidpanels,check

C4owners.org

Beforedeployingtherigidpanels,check

that the second row seats are in their

C4owners.org

that the second row seats are in their

FAMILIARISATION

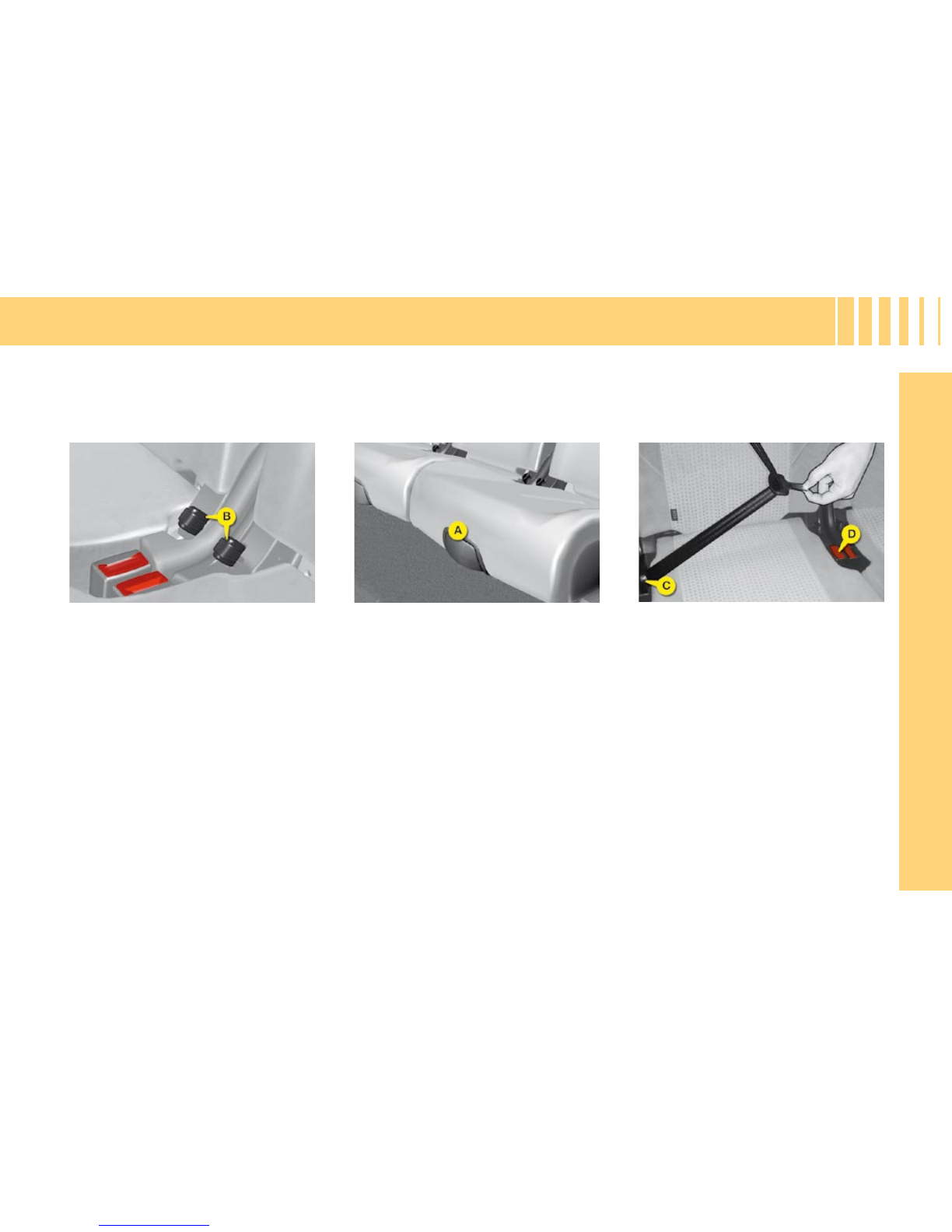

SECOND - ROW SEATS

The 3 second-row seats are independ-

ent of each other and are all the same

width. They can all be adjusted to the

"comfort" position.

Placing a seat in the "comfort"

position

Returning the seat to its original position

6 0

Longitudinal adjustment

Lift up control A, located at the front of

the seat, and adjust the seat into the

desired position.

Insert tongue Cinto the buckle on

the right, then insert the second

tongue Dinto the buckle on the left.

11 8

INTERIOR

"Comfort" position

Pull on control B.

Thebackrest reclines and the seatbase

pivots slightly.

Pull on control Band allow the seat

to come forward.

Positioning the central seat belt

CITROEN

Compiled

C4owners.org

FAMILIARISATION

DASHBOARD

CITROEN

Compiled

C4owners.org

FAMILIARISATION

13.Controls:

● Trip mileage recorder reset

button

● Lighting rheostat

● CHECK or COLOR (choice of

background colour)

● Personalisation

14.Warning lamps display (NaviDrive)

15.Central air vents

16.Electric parking brake

17.Instrument panel

18.Hazard warning lamps

19.Right hand upper storage

20.Front passenger’s airbag

21.Loudspeaker (Tweeter)

(right and left)

22.Passenger’s air conditioning

controls

23.Lower glovebox:

● Air freshener clips

● Various storage

24.Key switch:

● Front passenger’s airbag

activation/deactivation

25.Central locking button

26.Audio and telematics system

27.Scented air freshener

28.Refrigerated storage

29. 12 V accessories socket or USB

socket

30.Removable ashtray

31. 12 V accessories socket or lighter

32.ESP deactivation button

33.Ambiance lighting control

34.Steering lock - Ignition switch

35.Controls for multifunction screen

(on steering wheel)

36.Horn

37.Optional function controls

(on steering wheel)

38. Fusebox access ﬂ ap

39.Controls:

● Fuel ﬂ ap

● Parking assistance

● Lane departure warning system

● Volumetric alarm deactivation

● Headlamps adjustment

40.Bonnet release

1. Controls:

● Rear view mirrors

● Windows

● Child safety

2. Side air vent

3. Driver’s air conditioning controls

4. Controls:

● Lighting

● Direction indicators

● Front and rear foglamps

5. Paddles for automatic gearbox or

electronic gearbox system

(6 speed)

6. Cruise control and speed limiter

(controls on steering wheel)

7. Driver’s front airbag

8. Direction indicator warning lamps

9. Left hand upper storage

10.Audio and telematics system

controls on steering wheel

11. Selector for automatic gearbox or

electronic gearbox system

(6 speed)

12.Controls:

● Windscreen wipe

● Screen wash

● Rear screen wipe

● Trip computer

DASHBOARD

Key switch:

● Front passenger’s airbag

CITROEN

● Front passenger’s airbag

CITROEN

● Front passenger’s airbag

Compiled

● Front passenger’s airbag

Compiled

● Front passenger’s airbag

C4owners.org

FAMILIARISATION

Front seats

Head restraint

Backrest angle

Seat height adjustment

Lumbar support

Longitudinal adjustment

Armrest

Electric adjustmentsManual adjustments

58

Heated seat control (located

on the inside of the front seats)

5 7

1. Adjustment of seat height, angle and

longitudinal position

2. Adjustment of backrest angle and

lumbar support

3. Driver: memorisation of driving posi-

tions

The seats can also be adjusted on a

temporary basis:

- on opening one of the front doors,

- after switching on the ignition.

GETTING STARTED

Lumbar support

CITROEN

Lumbar support

CITROEN

Lumbar support

Compiled

C4owners.org

FAMILIARISATION

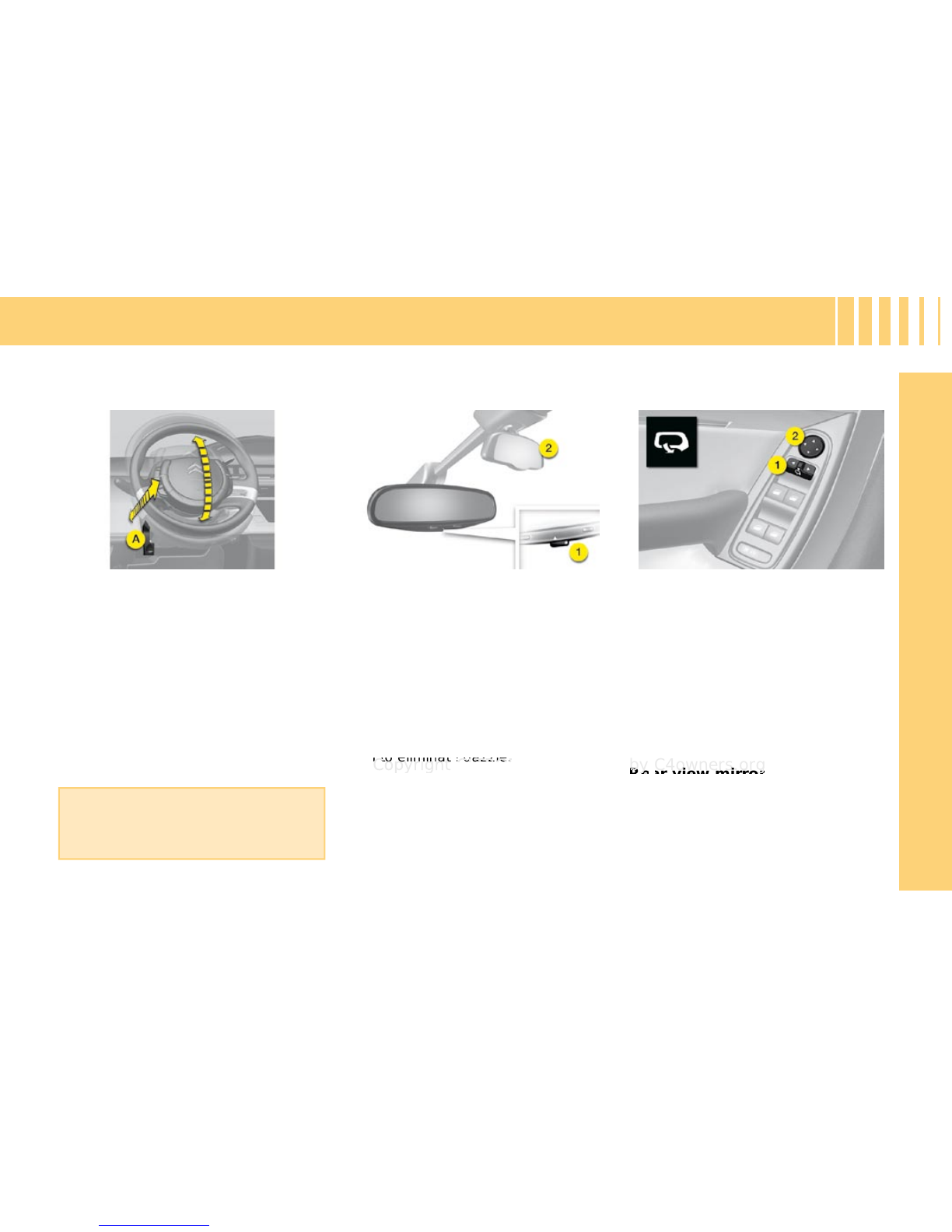

Adjusting the steering wheel

The steering wheel can be adjusted for

height and reach.

Unlock the steering wheel by pulling

control Atowards you.

Adjust the position of the steering

wheel then lock it pushing the control

fuly back.

6 7

Itautomaticallyandprogressivelychang-

es between day use and night use.

It can be deactivated using control 1.

This operates with the ignition switched on.

From the driver’s seat, select the rear

view mirror by moving control 1to the

left or right, then adjust the rear view

mirror as required in four directions us-

ing control 2.

Demisting-deicing of the rear view mir-

rors is linked to that of the rear screen.

9 3

6 6

For safety reasons, these adjust-

ments must not be carried out whilst

driving.

Child monitoring mirror

This additional mirror 2allows you to

monitor the rear passengers. It can be

tilted to eliminate dazzle. Rear view mirrors foldback

When the vehicle is parked, the rear

view mirrors can be folded back either

manually or automatically.

GETTING STARTED

Automatic photochromic

interior rear view mirror Rear view mirrors adjustment

6 7

tilted to eliminate dazzle.

CITROEN

tilted to eliminate dazzle.

CITROEN

tilted to eliminate dazzle.

Compiled

Rear view mirrors foldback

C4owners.org

Rear view mirrors foldback

C4owners.org

Rear view mirrors foldback

FAMILIARISATION

Adjusting the seat belt height

To adjust the seat belt, squeeze the

control and slide it in the direction re-

quired.

11 7

From the driver’s seat position, the con-

trols located on the door are used to op-

erate the electric windows.

7 6

Slide the blind on the visor to the

desired position by pushing the

area A.

The blinds are extended on the sun

visor rails.

Fold the visor downwards, to pre-

vent being dazzled.

Panoramic glass roof blind

Opening (positions 1to 9)

Closing (position 0)

The blind has an anti-pinch device.

8 1

GETTING STARTED

Electric windows controls Sliding sun visors

9 3

CITROEN

Compiled

Opening (positions

C4owners.org

Opening (positions

C4owners.org

Opening (positions

C4owners.org

FAMILIARISATION

Ring B

Ring D: rear screen wipe

Stop.

Intermittent.

Timed wash and wipe.

Fixed centred controls steering

wheel

Lighting control

Ring A

8 5

Control C: windscreen wipe

8 9

DRIVING

1. Off

2. Automatic lighting

3. Sidelamps

4. Dipped beam/Main beam

Front foglamps

Rear foglamp

Wiper control

1. Optional function controls

2. Cruise control/speed limiter and

parking space sensor

3. Audio system controls

4. Multifunction screen controls

1 4 2

5. Horn

11 3

6. Warning lamps for direction indica-

tors and vehicle lamps

2 7

8 4

Switching on "AUTO" mode

Press the control down and release it.

Switching off "AUTO" mode

Press the control up and return it to

position "0".

Automatic wipe must be reactivated

each time the vehicle is started.

Ring D: rear screen wipe

CITROEN

Ring D: rear screen wipe

CITROEN

Ring D: rear screen wipe

Compiled

C4owners.org

tors and vehicle lamps

C4owners.org

tors and vehicle lamps

FAMILIARISATION

6-Speed electronic gearbox

system

RReverse

NNeutral

AAutomatic mode

MManual mode

Using control paddles 1 "+" and 2 "-":

- gear changing in manual mode,

- temporary manual operation in au-

tomatic mode.

PPark

RReverse

NNeutral

DAutomatic mode

M Sequential mode

Using control paddles 1 "+" and 2 "-":

- gear changing in sequential mode,

- temporary manual operation in au-

tomatic mode.

Starting

Check that the selector 3is in neu-

tral (position N).

 Press ﬁ rmly on the brake pedal and

turn the ignition key.

133

Starting

Check that the selector 3 is in po-

sition Por Nand turn the ignition

key.

To exit position P, press on the brake

pedal before moving the selector.

138

DRIVING

Automatic gearbox

CITROEN

Compiled

To exit position

C4owners.org

To exit position

C4owners.org

To exit position

C4owners.org

, press on the brake

C4owners.org

, press on the brake

FAMILIARISATION

148

Electric parking brake

Before leaving the vehicle, check

that the electric parking brake warn-

ing lamp P(red) is permanently on.

If you leave the vehicle with the en-

gine running, manually apply the

parking brake.

Never leave a child alone inside the

vehicle with the ignition on, as they

could release the parking brake.

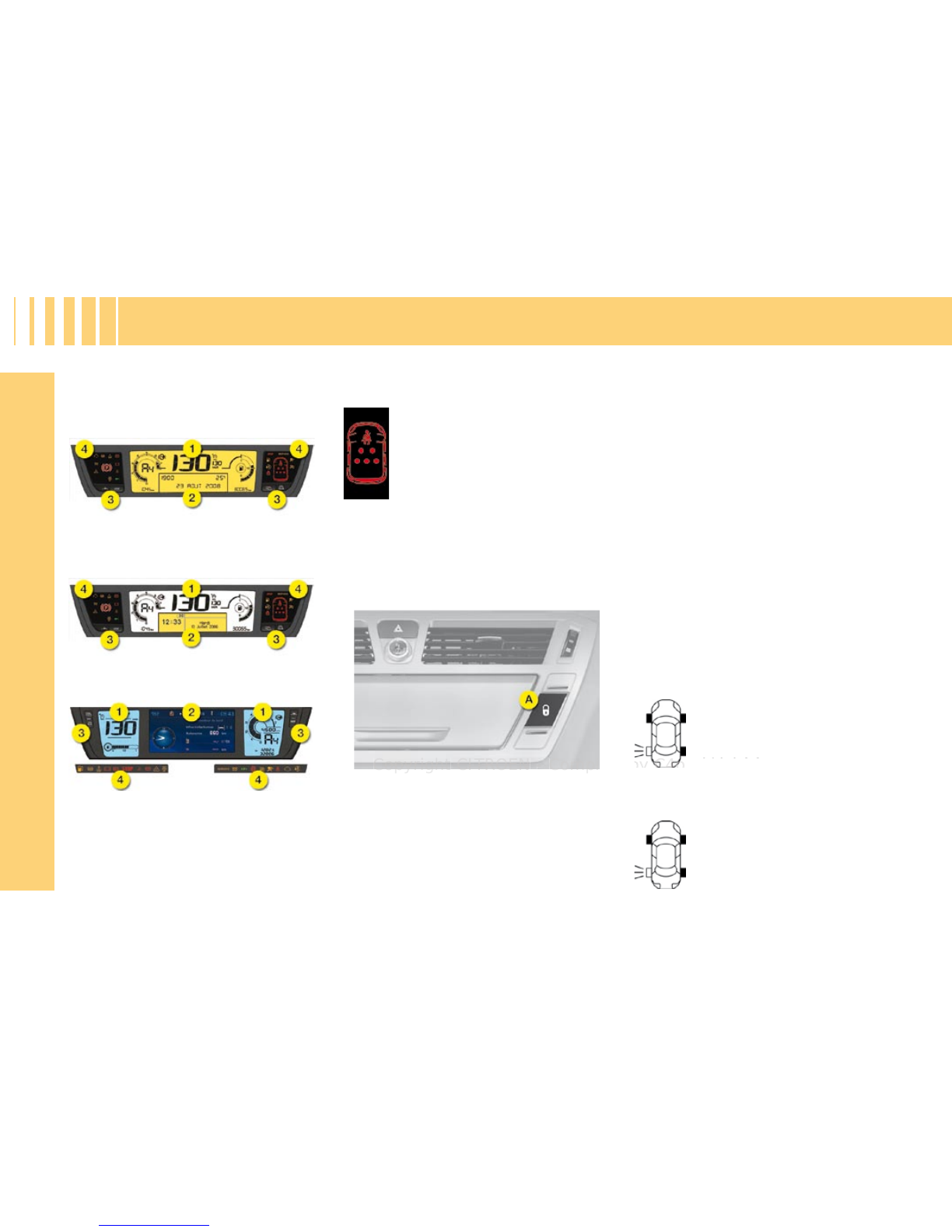

Parking space sensor

You can select this function by pressing

on button A.

Once the space has been measured, the

function displays the following messages:

< 20 km/h (12 mph)

Parking possible

Parking difﬁ cult

Parking not advised

This device combines:

- automatic functions: Automatic ap-

plication when the engine stops and

automatic release on use of the ac-

celerator (automatic operation by

default);

- manual use: Manual application/re-

lease of parking brake is possible

by operating control A.

Hill start assist

To aid starting on a gradient, your ve-

hicle is equipped with a system which

keeps it immobilised for about 2 sec-

onds, the approximate time it takes to

move your foot from the brake pedal to

the accelerator pedal.

132

DRIVING

125

CITROEN

Compiled

C4owners.org

FAMILIARISATION

Driver's and front passenger's control panel

Automatic air conditioning

Rear passengers' control panel

VENTILATION

1. Automatic comfort regulation.

2. Adjustment and display of driver's

temperature.

3. Adjustment of air blower speed.

Maintaining of ventilation with the

engine switched off (REST).

4. Adjustment and display of air distri-

bution.

5. Air recirculation.

6. Mode of adjustment for rear pas-

sengers.

7. Panel and buttons display mode

(black panel).

8. Demisting/defrosting of rear screen

and rear view mirrors.

9. Rapid demisting/defrosting of wind-

screen and windows.

10.Air conditioning.

11. Adjustment and display of front pas-

senger's temperature. 49, 54

12.Adjustment of air blower speed.

52

13.Temperature adjustment (no warm

air distribution).

14.Adjustment of air blower speed.

5 3
