We draw your attention to the following...
Key
safety warning
additional information
contributes to the protection of the environment
refer to the page indicated
The "Familiarisation" section at the start of this
document is intended as a quick way of getting
to know your vehicle. Reading the detailed
sections is essential to make the most of your
vehicle, in complete safety.
The fitting of electrical equipment or
accessories which are not recommended
by CITROËN may result in a failure of your
vehicle's electronic system. Please note this
specific warning and contact a CITROËN
dealer for information on the recommended
equipment and accessories.
CITROËN has a presence on every continent,
a complete product range,
bringing together technology and a permanent spirit of innovation,
for a modern and creative approach to mobility.
We thank you and congratulate you on your choice.
Happy motoring!
At the wheel of your new vehicle,
getting to know each system,
each control, each setting,
makes your trips, your journeys
more comfortable and more enjoyable.
Your vehicle is fitted with only some of the
equipment described in this document,
depending on the trim level, version and the
specifications for the country in which it is sold.
336.4348.9
348.9
348.9 292.7
810.1810.1 810.1

4
Familiarisation
E3_en_Chap00b_prise-en-main_ed01-2014

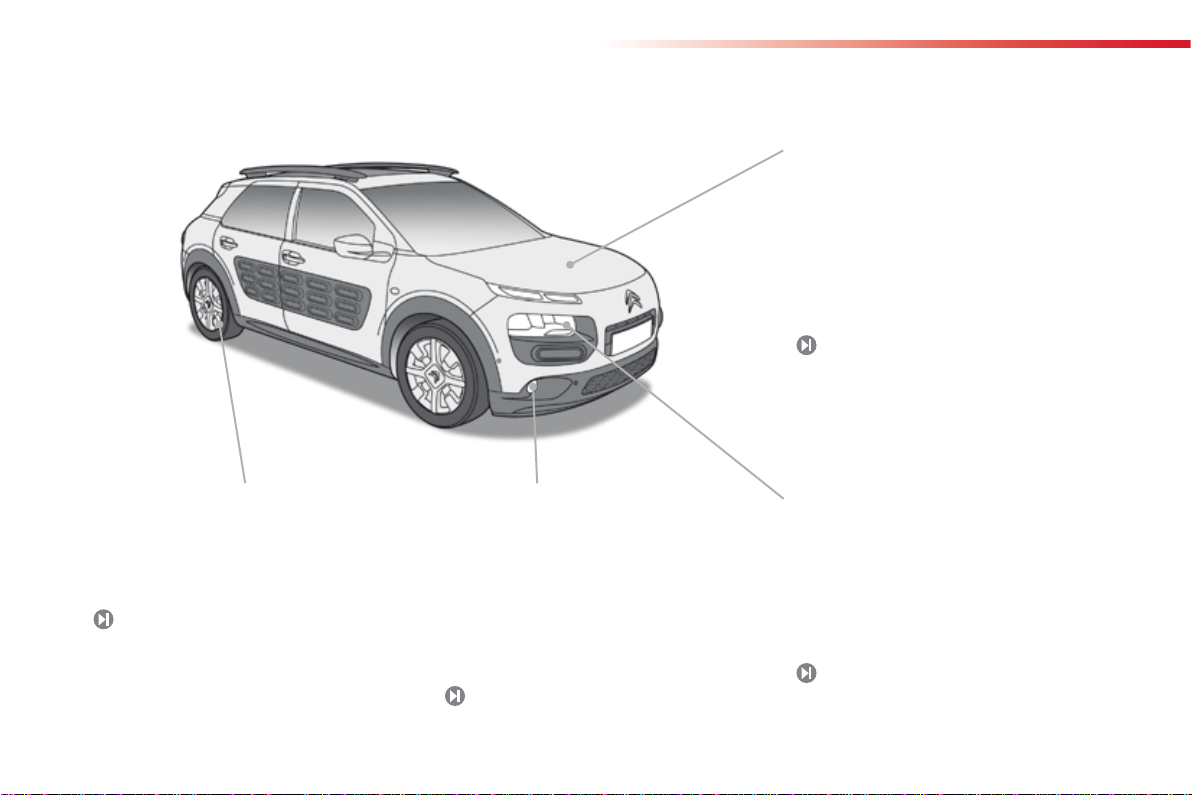

Exterior
Automatic illumination of
headlamps
117
Cornering lighting
Stop & Start
121
95
131
Under-inflation detection
This system monitors the pressures in the tyres
and alerts you in the event of an under-inflated
tyre. At low speed, this additional lighting increases
the driver's field of vision in corners,
junctions, when parking... by switching on the
corresponding front foglamp.
This system puts the engine temporarily into
standby during stops in the traffic (traffic
lights, traffic jams, etc...). The engine restarts
automatically as soon as you want to move
off. The Stop & Start system reduces fuel
consumption and exhaust emissions, as well as
noise levels when stationary.
The number plate lamps, sidelamps and dipped
beam headlamps come on automatically
without any action by the driver when a low
level of ambient light is detected.

.
5
Familiarisation
E3_en_Chap00b_prise-en-main_ed01-2014
Exterior
Park AssistReversing camera
AIRBUMP®protectors
108107 105
216
174
Temporary puncture
repair kit
This kit is a complete system, consisting of a
compressor and a sealant cartridge, for the
temporary repair of a tyre.
This system is activated automatically on
engaging reverse and provides an image in the
the touch screen tablet.
This system provides active assistance when
parallel parking, both entering and exiting a
space. It detects a parking space, operates
the vehicle's steering and provides visual and
audible signals to the driver.
These protect the body by reducing the effect
of minor impacts experienced in everyday use
(parking knocks, opening a door, scrapes, ...).
Parking sensors
This system detects and warns you of the
presence obstacles in front of and behind the
vehicle when manoeuvring the vehicle.

6
Familiarisation
E3_en_Chap00b_prise-en-main_ed01-2014
Access
A. Unfolding / Folding the key.
Remote control key
47
161
Locking the vehicle
(direction indicators
on fixed).
Unlocking the boot.
Unlocking the vehicle
(rapid flashing of the direction
indicators). 220
1. Opening the filler flap.
2. Removing the filler cap.
A. Interior release lever.
B. Exterior safety catch.
C. Bonnet stay.
Fuel tank Bonnet
3. Hooking the filler cap.
Petrol: approximately 50 litres, Diesel:
approximately 45 or 50 litres (depending version).

.
7
Familiarisation
E3_en_Chap00b_prise-en-main_ed01-2014
Interior
7-inch touch screen tablet
37
241
Multimedia controls
Electronic gearbox
90
Speed limiter / Cruise
control
99, 101
These two systems allow you to control the
speed of the vehicle to a value you have
programmed.
It offers the ease of automatic management of
the gears, without intervention by the driver. It gives access to the air conditioning controls,
settings for vehicle systems, controls for
the audio navigation and telematic systems,
configuration of the display, ...
They allow access to the various sources
(radio, MP3, portable player, jukebox,
telephone) and volume adjustment.

8
Familiarisation
E3_en_Chap00b_prise-en-main_ed01-2014

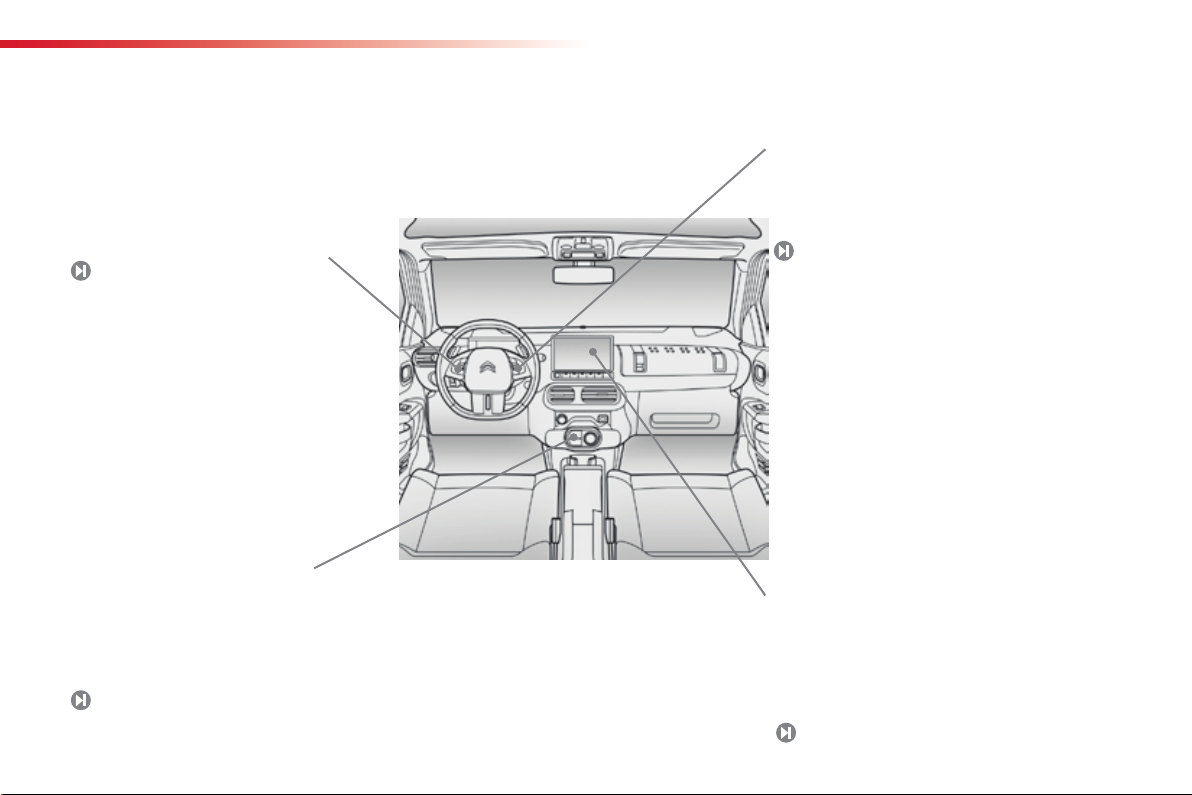

Instruments and controls
1. Vents for demisting or defrosting the front
side windows.
2. Side adjustable air vents.
3. Door mirror controls.
4. Headlamp height adjustment.
5. Lighting and direction indicator stalk.
6. Controls for the speed limiter / cruise
control.
7. Steering mounted controls (electronic
gearbox).
8. Instrument panel.
9. Driver's front airbag.
Horn.
10. Audio system and telephone steering
mounted controls.
11. Wiper / screenwash / trip computer stalk.
12. 7-inch touch screen tablet.
13. Controls for: front/rear demisting and
defrosting, central locking, deactivating
DSC, Park Assist, hazard warning lamps.
14. Central adjustable air vents.
15. 12V accessory socket.
16. USB port.
17. Control panel (electronic gearbox).
18. Central storage.
19. Parking brake.

.
9
Familiarisation
E3_en_Chap00b_prise-en-main_ed01-2014

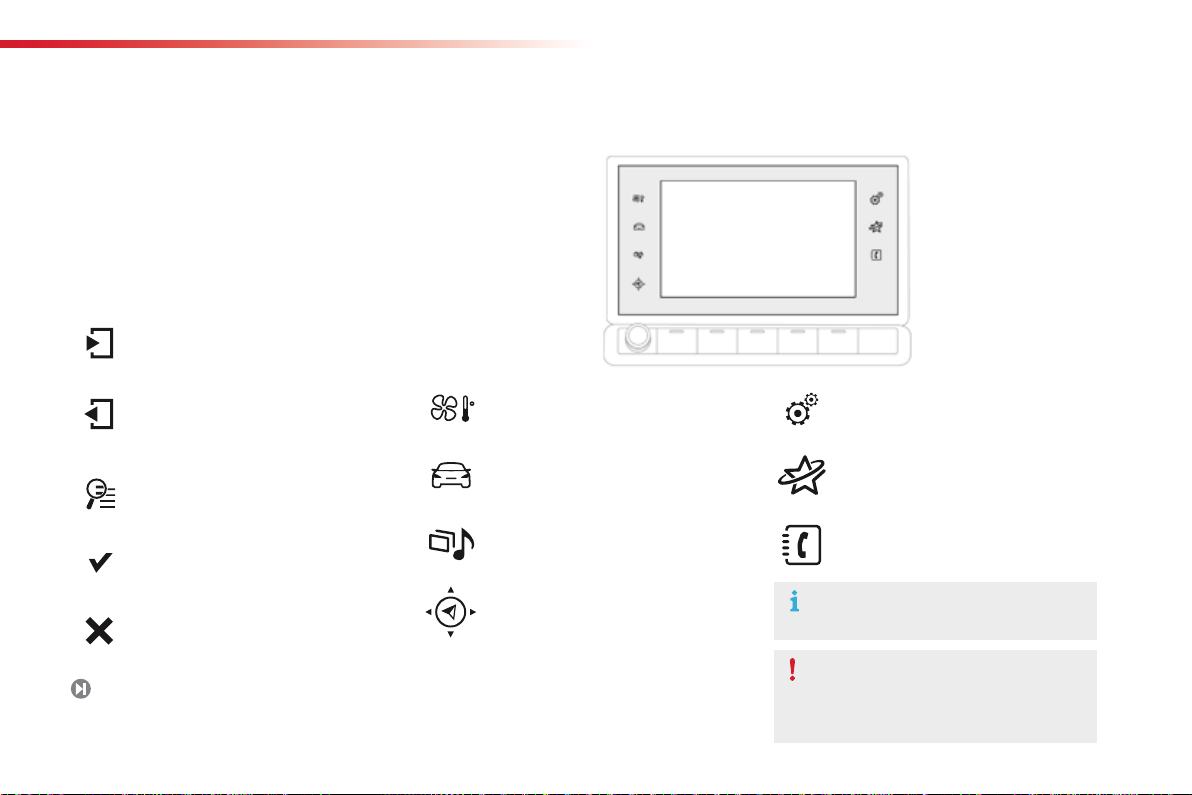

7-inch touch screen tablet
Operation
Use the buttons arranged either side of the
touch screen tablet for access to the menus,
then press on the virtual buttons in the screen.
Each menu is displayed over one or two pages
(primary page and secondary page).
For access to the secondary page
(from the primary page).
To return to the primary page
(from the secondary page).
For access to additional information
and to the settings for certain
functions.
To confirm.
To quit.
Menus
37
"Air conditioning".
Do not use pointed objects on the touch
screen.
Do not touch the touch screen with wet
hands.
Use a clean soft cloth to clean the touch
screen tablet.
"Driving assistance".
"Media".
"Navigation".
"Configuration".
"Connected services".
"Telephone".

10
Familiarisation
E3_en_Chap00b_prise-en-main_ed01-2014
Sitting comfortably
Driver's seat
1. Forwards-backwards adjustment.
2. Adjustment of the backrest angle.
3. Adjustment of the cushion height.
57
As a safety precaution, adjustments
to the drivers seat most only be made
when stationary.

.
11
Familiarisation
E3_en_Chap00b_prise-en-main_ed01-2014
Sitting comfortably

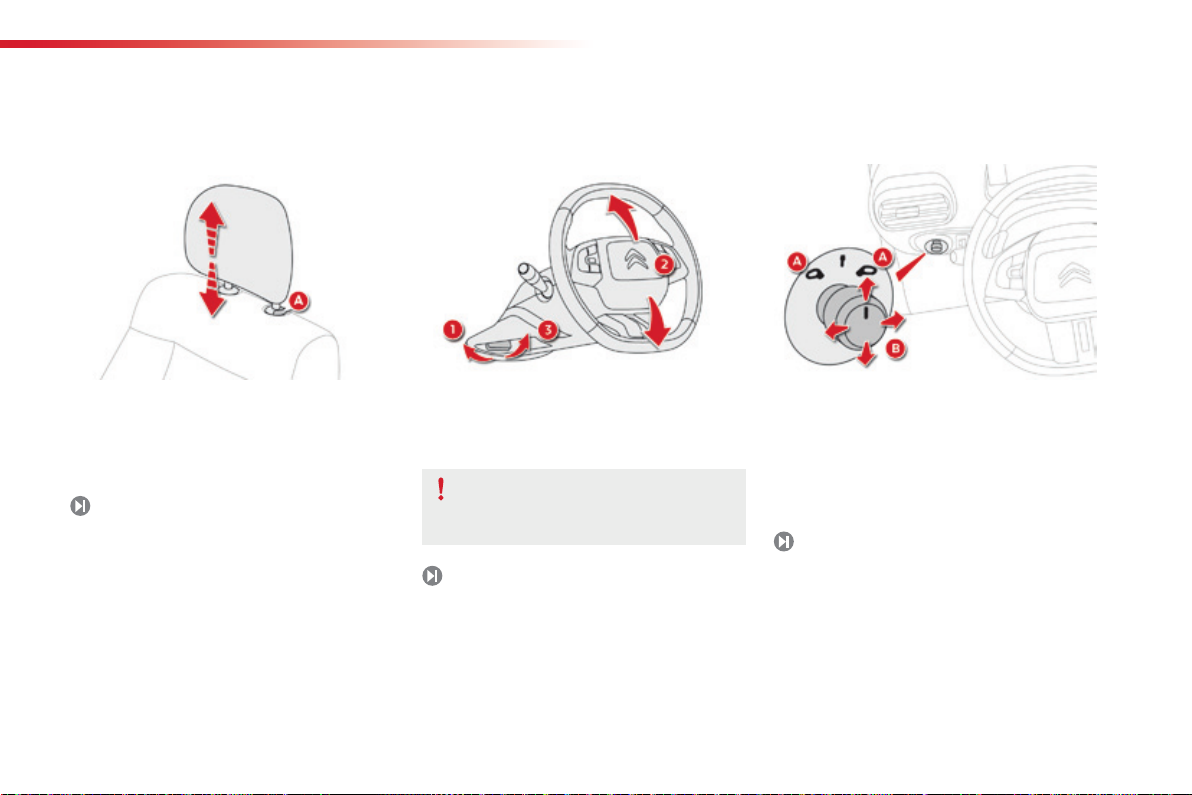

Head restraint adjustment
To raise it, pull it upwards.
To lower it, press on the lug Aand on the head
restraint at the same time.
62
58
1. Release.
2. Adjust for height.
3. Lock.
Steering wheel adjustment
64
Door mirrors
Adjustment
A. Turn to select the mirror to adjust.
B. Adjust the mirror position in four
directions.
As a safety precaution, these
operations must only be carried out
when stationary.

12
Familiarisation
E3_en_Chap00b_prise-en-main_ed01-2014
Sitting comfortably
Rear view mirror
1. Selection of the "day" position of the mirror.
2. Adjustment of the mirror.
63
Fastening the buckle. 0: Off.
1: Low.
2: Medium.
3: High
Front seat belts Heated seats
137 59

.
13
Familiarisation
E3_en_Chap00b_prise-en-main_ed01-2014
Seeing clearly
Lighting
Ring A
Ring B
Lighting off/daytime running lamps.
Automatic illumination of headlamps.
Sidelamps.
Dipped / main beam headlamps.
123
114
115
Rear foglamp only.
Wipers
Stalk A: windscreen wipers
2. Fast wipe.
1. Normal wipe.
Int. Intermittent wipe.
0. Off.
âSingle wipe: pull the stalk briefly towards
you.
or
AUTO Automatic wiping.
122
Switching on "AUTO"
FPress the stalk downwards.
Switching off "AUTO"
FPress the stalk downwards again or place
the stalk in another position (Int, 1 or 2).
124
Ring B: rear wiper
Park.
Intermittent wipe.
Wipe with screen wash.
Front foglamps and rear
foglamp.

14
Familiarisation
E3_en_Chap00b_prise-en-main_ed01-2014
Passenger's front airbag
Passenger safety
160
141
1. Not fastened / unfastened front seat belts,
in the instrument panel.
2. Left hand front.
3. Right hand front.
4. Right hand rear.
5. Centre rear.
6. Left hand rear.
138
Seat belt warning lamps
This manual device prevents the opening of a
rear door from the inside.
The control is located on the edge of each rear
door.
Manual child lock
1. Open the glove box.
2. Insert the key.
3. Select the position:
"OFF" (deactivated), with "rearward facing"
child seat,
"ON" (activated), with front passenger or
"forward facing" child seat.
4. Remove the key keeping the switch in the
new position.

.
15
Familiarisation
E3_en_Chap00b_prise-en-main_ed01-2014
Driving safely

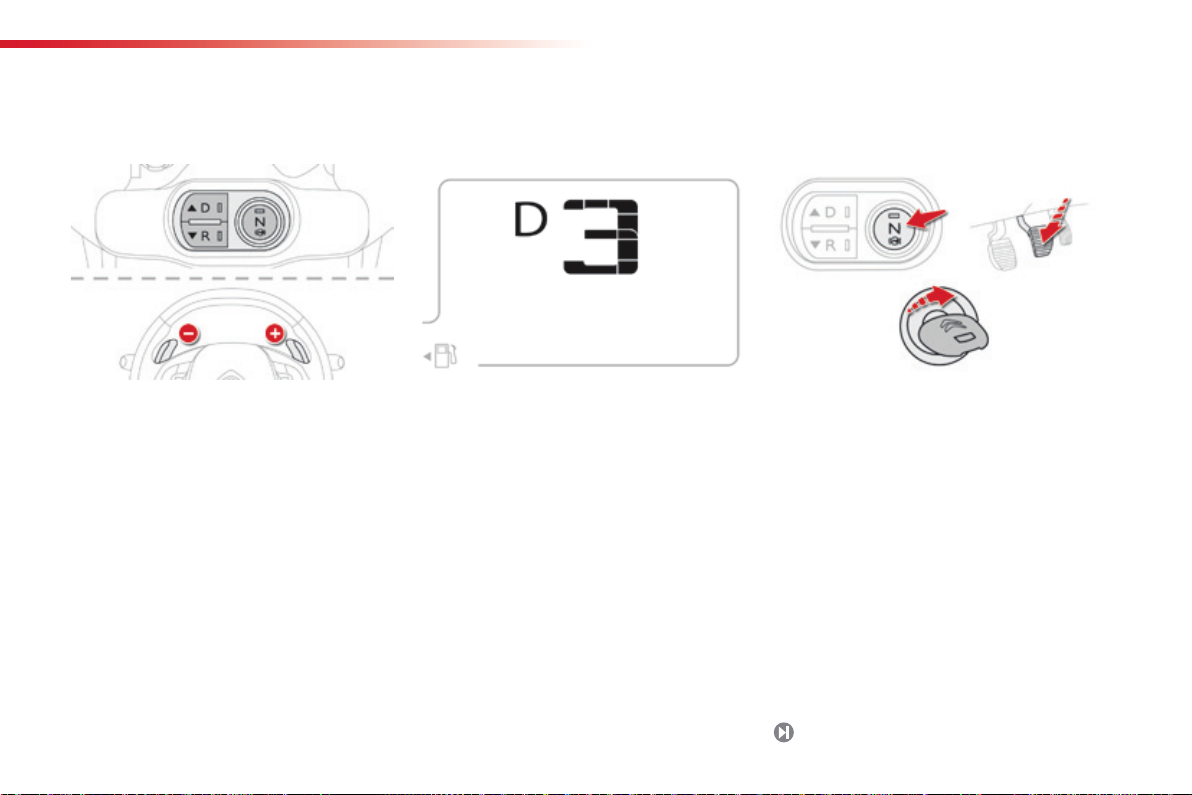

Electronic gearbox
This five or six speed electronically controlled
gearbox offers the ease of automatic
management of the gears, without intervention
by the driver. The steering mounted paddles
allows temporary manual control of the gears.
Display in the instrument panel
NNeutral.
Dand 12345/ 6Drive (forward drive) and
the gear engaged.
RReverse.
Moving off
FSwitch the ignition on.
FPress the N(Neutral) control.
FPress firmly on the brake pedal.
FStart the engine.
FPress control Dto select forward drive,
or
Press control Rto select reverse gear.
FRelease the parking brake.
FProgressively release the brake pedal: the
vehicle moves off.
90

16
Familiarisation
E3_en_Chap00b_prise-en-main_ed01-2014
Stop & Start
Going into engine STOP mode
95
The "ECO" warning lamp comes on in
the instrument panel and the engine
automatically goes into standby:

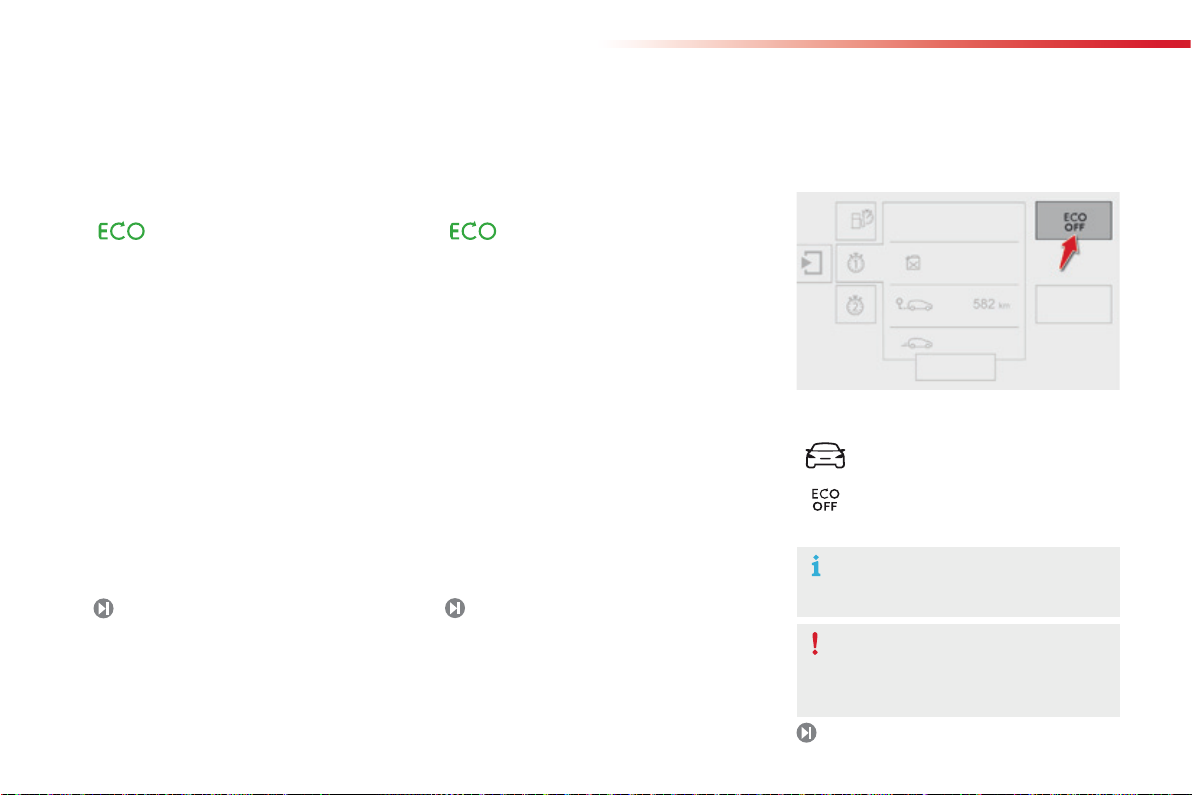

Going into engine START mode Deactivation / Reactivation
96
97
The "ECO" warning lamp goes off
and the engine restarts automatically:
- with a manual gearbox, when you fully
depress the clutch pedal,
- with an electronic gearbox:
● control on D, when you release the brake
pedal,
● control on Nand brake pedal released,
when you press control D,
● when you engage reverse.
- with a manual gearbox, vehicle
stationary, when you put the gearbox into
neutral and release the clutch pedal,
- with an electronic gearbox, vehicle
stationary or at speeds below 5 mph
(8 km/h) (depending on version), when you
put the gearbox into neutral (control on N)
or when you press the brake pedal.
In certain special circumstances, START mode
may be invoked automatically; the "ECO"
warning lamp flashes for few seconds, then
goes off.
In some circumstances, STOP mode may not
be available; the "ECO" warning lamp flashes
for few seconds, then goes off.
Driving safely
FSelect the "Driving assistance"
menu.
FPress on "Stop & Start".
Pressing this button again reactivates
Stop & Start.
Before refuelling or doing anything
under the bonnet, you must switch off
the ignition with the key.
The system is reactivated automatically
at every new start using the key.
The Stop & Start system can be deactivated in
the the touch screen tablet.

.
17
Familiarisation
E3_en_Chap00b_prise-en-main_ed01-2014
Driving safely
1. Select speed limiter mode.
2. Decrease the programmed speed
3. Increase the programmed speed.
4. Speed limiter On / Pause.
5. Display the list of memorised speeds.
Speed limiter
"LIMIT"
98
1. Select cruise control mode.
2. Activation of cruise control at the current
speed of your vehicle, then decrease the
programmed speed.
3. Activation of cruise control at the current
speed of your vehicle, then increase the
programmed speed.
4. Cruise control Pause / Resume.
5. Display the list of memorised speeds.
Cruise control
"CRUISE"
101
When selected, the speed limiter or cruise
control mode is displayed in the instrument
panel, accompanied by the value of the
programmed speed.
Display in the instrument panel
Speed limiter
Cruise control
Operation of the speed limiter requires
a programmed speed of at least 20 mph
(30 km/h).
Operation of the cruise control requires
a vehicle speed of at least 25 mph
(40 km/h).

18
Familiarisation
E3_en_Chap00b_prise-en-main_ed01-2014
Optimise the use of your gearbox
With a manual gearbox, move off gently and change up without waiting.
During acceleration change up early.
The gear shift indicator invites you engage the most suitable gear: as
soon as the indication is displayed in the instrument panel, follow it
straight away.
Control the use of your electrical
equipment
Before moving off, if the passenger compartment is too warm, ventilate it
by opening the windows and air vents before using the air conditioning.
Above 30 mph (50 km/h), close the windows and leave the air vents
open.
Remember to make use of equipment that can help keep the
temperature in the passenger compartment down (sunroof and window
blinds...).
To save energy, do not set the air conditioning at too low a temperature.
As soon as the desired temperature has been reached, limit the use of
the air conditioning, except if regulation is automatic.
Switch off the demisting and defrosting controls as soon as you consider
possible.
Switch off the heated seat as soon as possible.
Switch off the headlamps and foglamp when the level of light does not
require their use.
Avoid running the engine before moving off, particularly in winter; your
vehicle will warm up much faster while driving.
As a passenger, if you avoid connecting your multimedia devices
(film, music, video game...), you will contribute towards limiting the
consumption of electrical energy, and so of fuel.
Disconnect your portable devices before leaving the vehicle.
Eco-driving
Eco-driving is a range of everyday practices that allow the motorist to optimise their fuel consumption and CO2emissions.
With an electronic gearbox, do not press the accelerator pedal heavily
or suddenly.
Drive smoothly
Maintain a safe distance between vehicles, use engine braking rather
than the brake pedal, and press the accelerator progressively. These
practices contribute towards a reduction in fuel consumption and CO2
emissions and also help reduce the background traffic noise.
If your vehicle has cruise control, make use of the system at speeds
above 25 mph (40 km/h) when the traffic is flowing well.
Eco-driving

19
.Familiarisation
E3_en_Chap00b_prise-en-main_ed01-2014
Limit the causes of excess consumption
Spread loads throughout the vehicle; place the heaviest items in the
bottom of the boot, as close as possible to the rear seats.
Limit the loads carried in the vehicle and reduce wind resistance (roof
bars, roof rack, bicycle carrier, trailer...). Use a roof box in preference.
Remove roof bars and roof racks after use.
At the end of winter, remove snow tyres and refit your summer tyres.
Observe the recommendations
on maintenance
Check the tyre pressures regularly, when cold, referring to the label in
the door aperture, driver's side.
Carry out this check in particular:
- before a long journey,
- at each change of season,
- after a long period out of use.
Don't forget the spare wheel and the tyres on any trailer or caravan.
Have your vehicle serviced regularly (engine oil, oil filter, air filter,
passenger compartment filter...) and observe the schedule of
operations recommended in the maintenance and warranty guide.
When refuelling, do not continue after the third cut-off of the nozzle to
avoid any overflow.
At the wheel of your new vehicle, it is only after the first 1 800 miles
(3 000 kilometres) that you will see the fuel consumption settle down to
a consistent average.

20
Monitoring
Instrument panel
1. Service indicator, then total distance
recorder (miles or km).
These functions are displayed in turn when
the ignition is switched on.
2. Cruise control or speed limiter settings.
3. Digital speedometer (mph or km/h).
4. Information related to the electronic
gearbox.
Display screens 5. Gear shift indicator.
6. Engine oil level indicator.
7. Fuel gauge.
