INSTRUMENTS and CONTROLS
Panel grouping together the vehicle operation indication dials and warning lamps.
PETROL - DIESEL MANUAL GEARBOX INSTRUMENT PANELS
5. Display management button
Servicing information.
Adjust the time and choose units.
Reset the service indicator.
6. Instrument panel lighting button.
Adjusts the brightness of the lighting
of the instruments and controls.
For further information, refer
to the paragraph relating to the
button or function and its associ-
ated display.

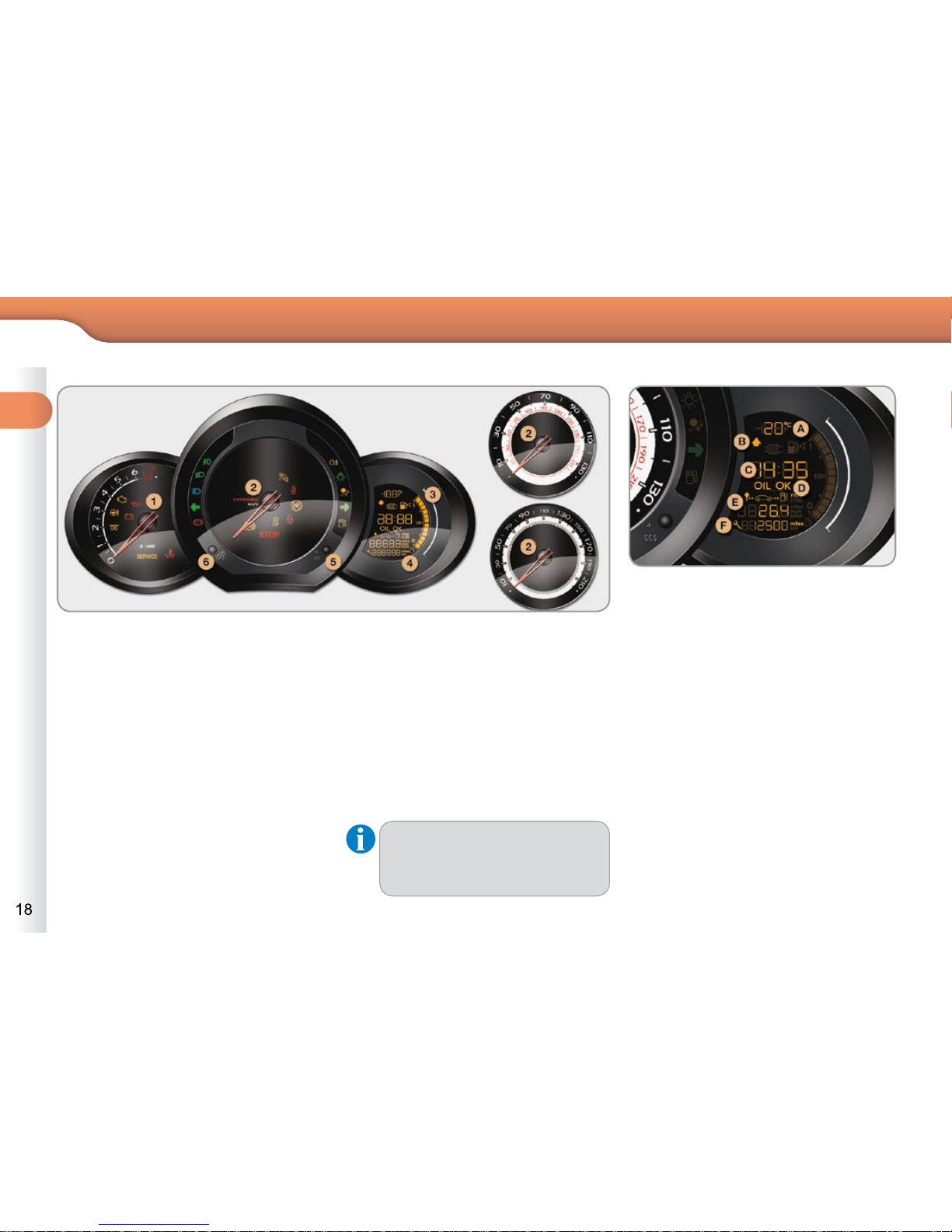

Dials
1. Rev counter.
Indicates the speed of rotation of the
engine (x 1 000 rpm).
2. Vehicle speed.
Indicates the current speed of the
moving vehicle (mph or km/h).
3. Fuel level.
Indicates the quantity of fuel remain-
ing in the tank.
4. Screen.
A. Ambient temperature.
(°Celsius or °Fahrenheit)
B. Gear change indicator.
C. Time.

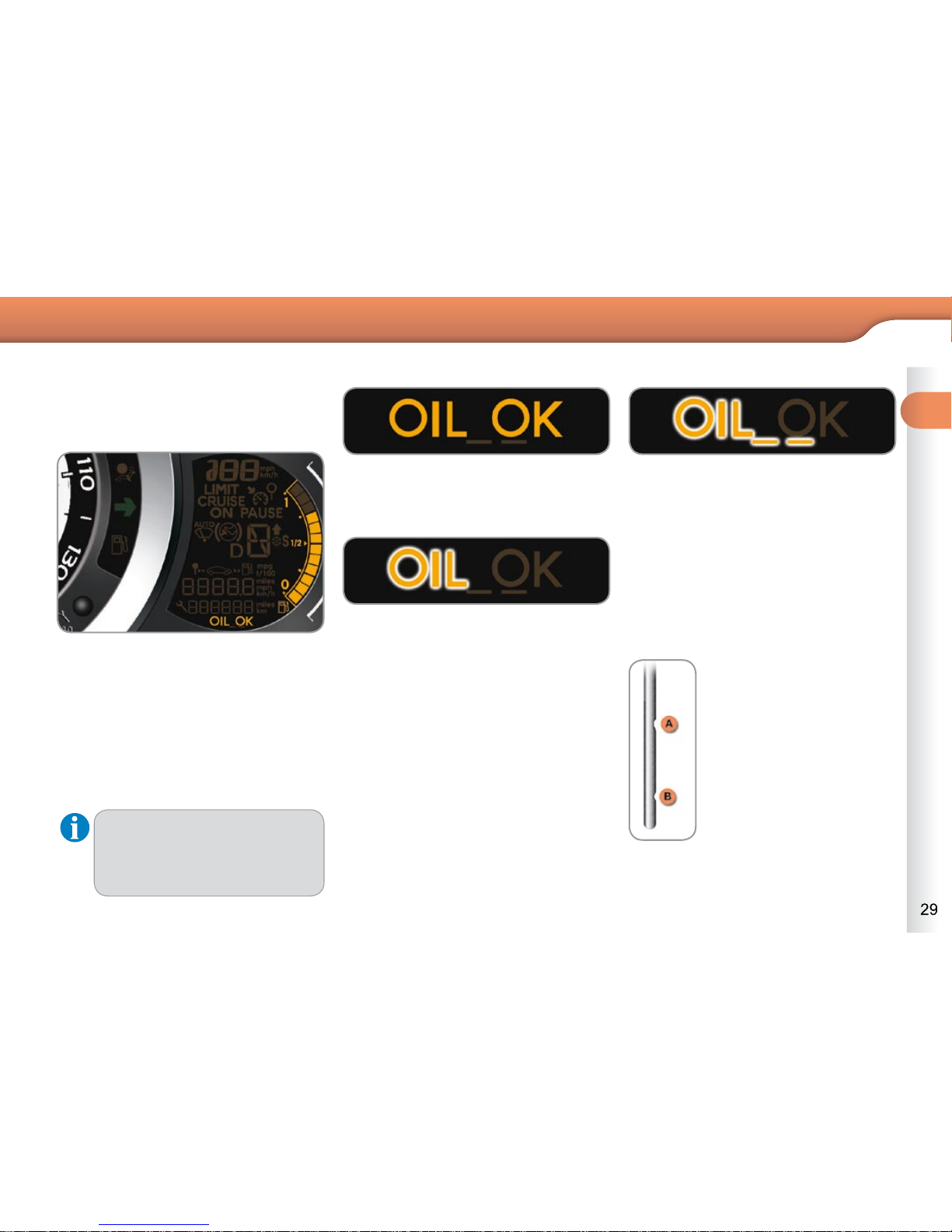

D. Engine oil level indicator.
Appears a few seconds after switch-
ing on the ignition, then disappears.
E. Trip computer.
F. Service indicator
(miles or km) then,
Total mileage.
These two functions are displayed
successively when switching on the
ignition.
Screen

1 1
1 1
19
INSTRUMENTS and CONTROLS
PETROL - DIESEL MANUAL OR AUTOMATIC GEARBOX
INSTRUMENT PANELS
Panel grouping together the vehicle operation indication dials and warning lamps.
Depending on the version, the instrument panel may have permanent back-lighting.
Dials
1. Rev counter.
Indicates the speed of rotation of the
engine (x 1 000 rpm).
2. Vehicle speed.
Indicates the current speed of the
moving vehicle (km/h or mph).
3. Fuel level.
Indicates the quantity of fuel remaining
in the tank.
4. Screen.
5. Display management button
Alternates display between range
and trip mileage recorder.
Servicing information.
Resets the selected function to zero
(trip distance recorder or service
indicator).
6. Instrument panel lighting button.
Adjusts the brightness of the lighting
of the instruments and controls.
For further information, refer
to the paragraph relating to the
button or function and its associ-
ated display.
A. Speed limiter
(mph or km/h) or
Cruise control.
B. Gear change indicator.
C. Automatic gearbox information.
D. Range
(miles or km) or
Trip mileage recorder.
E. Service indicator
(miles or km), then
Total mileage recorder
These two functions are displayed
successively when switching on the
ignition
F. Engine oil level indicator
Appears a few seconds after switch-
ing on the ignition, then disappears.
Screen

1 1
1 1
20
INSTRUMENTS and CONTROLS
Indicator and warning lamps
Visual indicators informing the driver that a system is in operation (operation or
deactivation indicator lamps) or of the occurrence of a fault (warning lamp).
When the ignition is switched on
Certain warning lamps come on for a few seconds when the vehicle's ignition is
switched on.
When the engine is started, these same warning lamps should switch off.
If they remain on, before moving off, refer to the information on the warning lamp
concerned.
Operation indicator lamps
If one of the following indicator lamps comes on, this confi rms that the corresponding
system has come into operation.
The warning lamps may come
on continuously (fi xed) or fl ash.
Certain warning lamps may
come on in two different modes.
Only by relating the type of light-
ing to the operating status of the
vehicle can it be ascertained
whether the situation is normal
or whether a fault has occurred.
Associated warnings
The switching on of certain warning lamps may be accompanied by an audible
signal and a message on the multifunction screen.
Warning lamp is on Cause Action/Observations
Left-hand direction
indicator
fl ashing with
buzzer. The lighting stalk is pressed down.
Right-hand direction
indicator
fl ashing with
buzzer.
The lighting stalk is pushed up.
Sidelamps fi xed. The lighting stalk is in the
"Sidelamps" position. Turn the control to the desired position.
Dipped beam
headlamps fi xed. The lighting stalk is in the
"Dipped beam headlamps"
position. Turn the control to the desired position.

1 1
1 1
21
INSTRUMENTS and CONTROLS
Front
foglamps fi xed. The front foglamps are switched on. Turn the ring on the stalk rearwards twice to switch off the front foglamps.
Rear
foglamps fi xed. The rear foglamps are switched on. Turn the ring on the stalk rearwards to switch off the rear foglamps.
Diesel engine
pre-heating fi xed. The ignition switch is at the 2
nd position (ignition on).
Wait until the warning lamp has switched off before starting.
The duration for which the warning lamp is on is
determined by the climatic conditions.
Parking brake fi xed. The parking brake is applied or not properly
released.
Release the parking brake to switch off the
warning lamp, keeping your foot on the brake
pedal.
Observe the safety recommendations.
For further information on the parking brake, refer
to the "Driving" section.
Warning lamp is on Cause Action/Observations
Engine coolant
temperature fi xed blue. On starting the engine, it
indicates that the engine is
cold.
After a few minutes driving, it swiches off to
indicate that the engine temperature is normal.
In order to protect your engine, avoid driving too
hard until the warning lamp has switched off.
Foot on the
brake pedal fi xed. The brake pedal must be pressed. To start the engine, put the automatic gearbox selector lever in position P.
Automatic
wiping fi xed. The wiper control is pushed downwards. Automatic front wiping is activated.
Main beam
headlamps fi xed. The lighting stalk is pulled towards you. Pull the stalk to return to dipped beam headlamps.

1 1
1 1
22
INSTRUMENTS and CONTROLS
Deactivation warning lamps
If one of the following warning lamps comes on, this confi rms that the corresponding system has been switched off intentionally.
Passenger's air bag
system fi xed.
The control, located in the
glove box, is set to the OFF
position.
The passenger's front
airbag is deactivated.
Set the control to the ON position to activate the
passenger's front airbag. In this case, do not fi t a
child seat in the rear-facing position.
The passenger's airbag system is put into service
automatically when the vehicle is started.
ESP/ASR fi xed.
The button, located at
the bottom left of the
dashboard, is pressed. Its
indicator lamp is on.
The ESP/ASR is
deactivated.
ESP: electronic stability
programme.
ASR: anti-skid regulation.
Press the button to activate the ESP/ASR. Its
indicator lamp switches off.
From approximately 30 mph (50 km/h), the
system is reactivated automatically.
The ESP/ASR system is activated automatically
when the vehicle is started.
Warning lamp is on Cause Action/Observations

1 1
1 1
23
INSTRUMENTS and CONTROLS
Warning lamps
When the engine is running or the ve-
hicle is being driven, the switching on
of one of the following warning lamps
indicates a fault which requires action
on the part of the driver.
Any fault resulting in the switching on of a warning lamp must be investigated
further by reading the associated message on the multifunction screen.
If you encounter any problems, do not hesitate to contact a CITROËN dealer.
Warning lamp is on Cause Action/Observations
STOP
fi xed, associated
with another
warning
lamp and
accompanied by
an audible signal.
It is associated with the
braking system or the
engine coolant temperature.
Stop as soon as it is safe to do so.
Park, switch off the ignition and call a CITROËN
dealer.
Service
temporarily. A minor fault has occurred for which there is no
specifi c warning lamp.
Identify the fault by reading the message shown
on the screen, such as, for example:
- the engine oil level,
- the screenwash level,
- the remote control battery,
- saturation of the particle emission fi lter (Diesel).
For any other faults, contact a CITROËN dealer.
fi xed. A major fault has occurred for which there is no
specifi c warning lamp.
Identify the fault by reading the message shown
on the screen and contact a CITROËN dealer.
Braking
fi xed. The braking system fl uid level has dropped
signifi cantly.
Top up with brake fl uid recommended by
CITROËN.
If the problem persists, have the system checked
by a CITROËN dealer.
+
fi xed, associated
with the ABS
warning lamp.
The electronic brake force
distribution (EBFD) system
has a fault. Have it checked by a CITROËN dealer.

1 1
1 1
24
INSTRUMENTS and CONTROLS
Warning lamp is on Cause Action/Observations
Anti-lock
Braking
System
(ABS)
fi xed. The anti-lock braking
system has a fault.
The vehicle retains conventional braking without
servo assistance.
Drive carefully at reduced speed and contact a
CITROËN dealer without delay.
Dynamic
stability
control
(ESP/ASR)
fl ashing. The ESP/ASR regulation is
active. The system optimises traction and improves the directional stability of the vehicle.
fi xed.
Unless it has been
deactivated with the indicator
lamp on the button on, the
ESP/ASR system is faulty.
Have it checked by a CITROËN dealer.
Engine autodiagnosis
system
fi xed. The emission control
system has a fault.
This lamp should switch off when the engine is started.
If it does not switch off, contact a CITROËN
dealer urgently.
fl ashing. The engine management
system has a fault.
Risk of destruction of the catalytic convertor.
Have it checked by a CITROËN dealer.
Low fuel level
fi xed with
the last two
segement
bocks
fl ashing.
When it fi rst comes on there
remains approximately
5 litres of fuel in the tank.
Refuel as soon as possible to avoid running out
of fuel.
This warning lamp wil come on every time the
ignition is switched on, until a suffi cient addition
of fuel is made.
Fuel tank capacity: approximately 50 litres
(petrol) or 45 litres (Diesel).
Never continue to drive until you run out of fuel,
this could damage the emission control and
injection systems.

1 1
1 1
25
INSTRUMENTS and CONTROLS
Warning lamp is on Cause Action/Observations
Maximum coolant
temperature fi xed red. The temperature of the
cooling system is too high.
Stop as soon as it is safe to do so.
Wait until the engine has cooled down before
topping up the level, if necessary.
If the problem persists, contact a CITROËN
dealer.
Engine oil
pressure fi xed. There is a fault with the engine lubrication system.
Stop as soon it is safe to do so.
Park, switch off the ignition and contact a
CITROËN dealer.
Battery
charge fi xed.
The battery charging circuit
has a fault (dirty or loose
terminals, slack or cut
alternator belt, ...).
This lamp should switch off when the engine is
started.
If it does not switch off, contact a CITROËN
dealer.
Door(s) open
fi xed if the
speed is
below 6 mph
(10 km/h).
A door or the boot is still
open. Close the door or boot.
fi xed and
accompanied
by an audible
signal if the
speed is
above 6 mph
(10 km/h).

1 1
1 1
26
INSTRUMENTS and CONTROLS
Airbags
temporarily.
This lamp comes on for
a few seconds when you
turn on the ignition, then
switches off.
This lamp should switch off when the engine is
started.
If it does not switch off, contact a CITROËN
dealer.
fi xed. One of the airbag or seat belt pretensioner systems
has a fault. Have it checked by a CITROËN dealer.
Seat belt not fastened/
unfastened
fi xed then
fl ashing
accompanied
by an
increasing
audible signal.
The driver and/or the front
passenger has not fastened
or has unfastened their seat
belt.
Pull the strap then insert the tongue in the
buckle.
Water in
Diesel fi xed. The diesel fi lter contains water.
Risk of damage to the injection system on Diesel
engines.
Contact a CITROËN dealer without delay.
Power
steering fi xed. The power steering has a fault.
Drive carefully at reducd speed.
Have it checked by a CITROËN dealer.
+ Particle emissions
fi lter (Diesel)
fi xed, associated
temporarily with
lighting of the
service warning
lamp.
This indicates that the
particle emissions fi lter
is starting to become
saturated.
As soon as driving conditions allow, regenerate the
fi lter by driving at a speed of at least 35 mph
(60 km/h) until the service warning lamp switches off.
fi xed, associated
temporarily with
lighting of the service
warning lamp.
This indicates the minimum
level for the Diesel fuel
additive reservoir.
Have the reservoir topped up as soon as
possible by a CITROËN dealer.
Warning lamp is on Cause Action/Observations

1 1
1 1
27
INSTRUMENTS and CONTROLS
Service indicator
System which informs the driver when the
next service is due, in accordance with
the manufacturer's servicing schedule.
The point at which the service is due is
calculated from the last indicator zero re-
set. It is determined by two parameters:
- the distance travelled,
- the time elapsed since the last service.

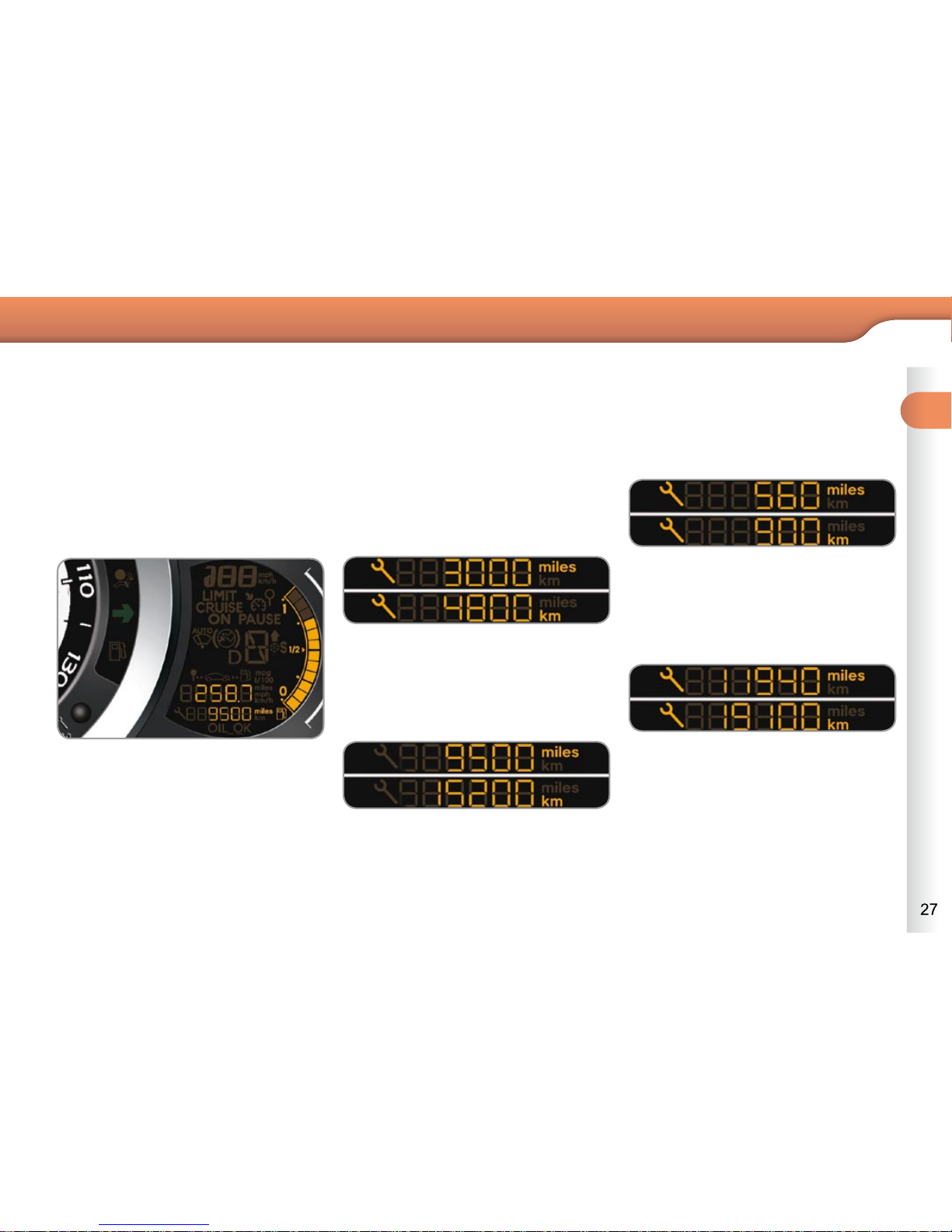

More than 600 miles (1 000 km)
remain before the next service is due
For 5 seconds after the ignition is
switched on, the spanner symbolising
the service operations comes on. The
distance recorder display line indicates
the distance remaining before the next
service is due.
Example: 4 800 km remain before the
next service is due.
For 5 seconds after the ignition is
switched on, the display indicates:
Less than 600 miles (1 000 km)
remain before the next service is due
Example: 400 miles (900 km) remain
before the next service is due.
For 5 seconds after the ignition is
switched on, the display indicates:
5 seconds after the ignition is switched
on, the spanner is switched off; the
distance recorder resumes its normal
operation. The display then indicates
the total and trip distances.
5 seconds after the ignition is switched
on, the distance recorder resumes its
normal operation. The spanner re-
mains on to indicate that a service
must be carried out soon.

1 1
1 1
28
INSTRUMENTS and CONTROLS

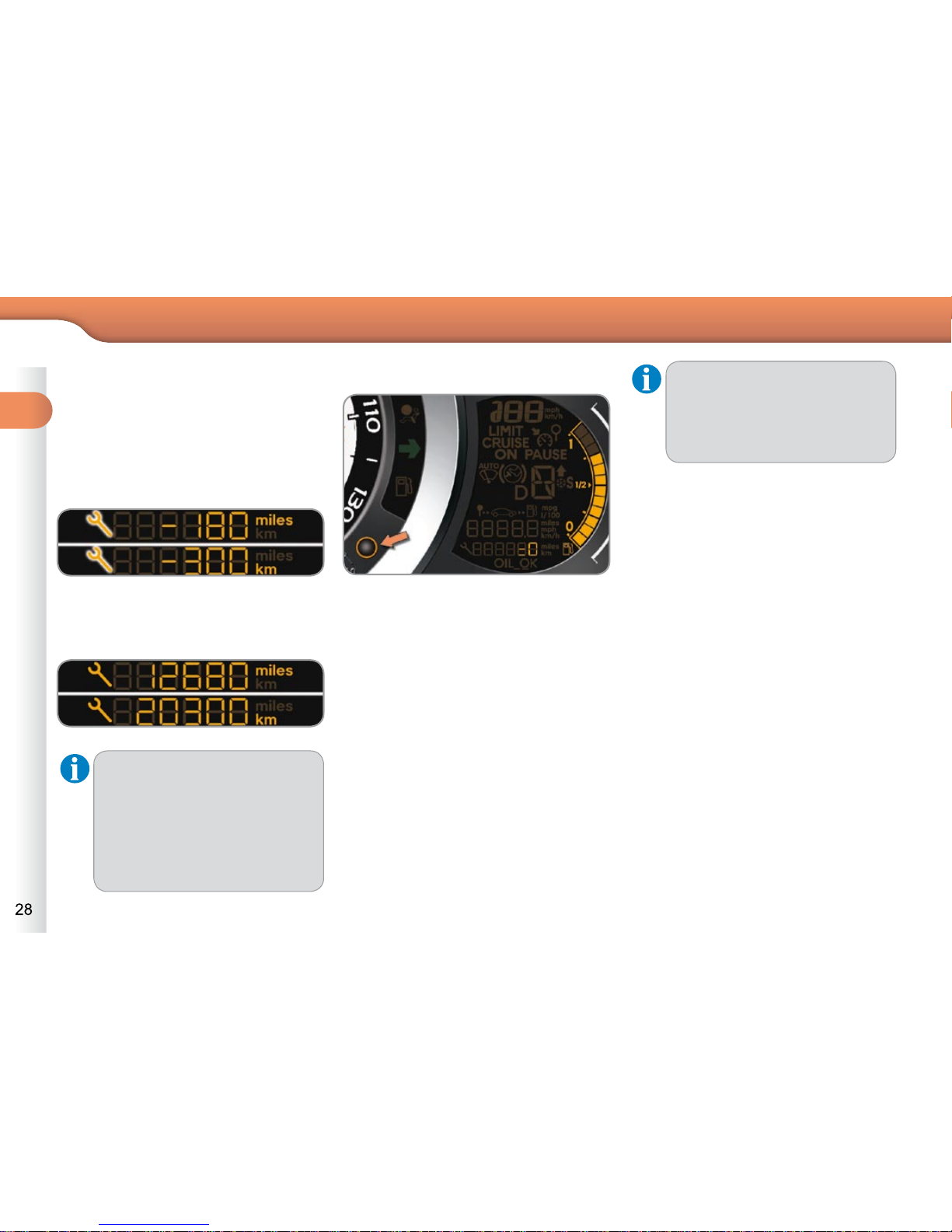

Service overdue
For 5 seconds after the ignition is
switched on, the spanner fl ashes to
indicate that the service must be carried
out as soon as possible.
Example: the service is overdue by
300 km.
For 5 seconds after the ignition is
switched on, the display indicates:
5 seconds after the ignition is switched
on, the distance recorder resumes its
normal operation. The spanner re-
mains lit.
The distance remaining may be
weighted by the time factor, de-
pending on the driver's driving
habits.
Therefore, the spanner may also
come on if you have exceeded
the two year service interval.
Service indicator zero reset
After each service, the maintenance in-
dicator must be reset to zero.
The procedure for resetting to zero is as
follows:
switch off the ignition,
press and hold the trip distance re-
corder zero reset button,
switch on the ignition; the distance
recorder display begins a count-
down,
when the display indicates "=0",
release the button; the spanner dis-
appears.
Retrieving the service information
You can access the service information
at any time.
Press the trip distance recorder zero
reset button.
The service information is displayed for
a few seconds, then disappears.
Following this operation, if you
wish to disconnect the battery,
lock the vehicle and wait at least
fi ve minutes for the zero reset to
be taken into account.

1 1
1 1
28
INSTRUMENTS and CONTROLS
Service overdue
For 5 seconds after the ignition is
switched on, the spanner fl ashes to
indicate that the service must be carried
out as soon as possible.
Example: the service is overdue by
300 km.
For 5 seconds after the ignition is
switched on, the display indicates:
5 seconds after the ignition is switched
on, the distance recorder resumes its
normal operation. The spanner re-
mains lit.
The distance remaining may be
weighted by the time factor, de-
pending on the driver's driving
habits.
Therefore, the spanner may also
come on if you have exceeded
the two year service interval.
Service indicator zero reset
After each service, the maintenance in-
dicator must be reset to zero.
The procedure for resetting to zero is as
follows:
switch off the ignition,
press and hold the trip distance re-
corder zero reset button,
switch on the ignition; the distance
recorder display begins a count-
down,
when the display indicates "=0",
release the button; the spanner dis-
appears.
Retrieving the service information
You can access the service information
at any time.
Press the trip distance recorder zero
reset button.
The service information is displayed for
a few seconds, then disappears.
Following this operation, if you
wish to disconnect the battery,
lock the vehicle and wait at least
fi ve minutes for the zero reset to
be taken into account.

1 1
1 1
29
INSTRUMENTS and CONTROLS
The level read will only be correct
if the vehicle is on level ground
and the engine has been off for
more than 15 minutes.

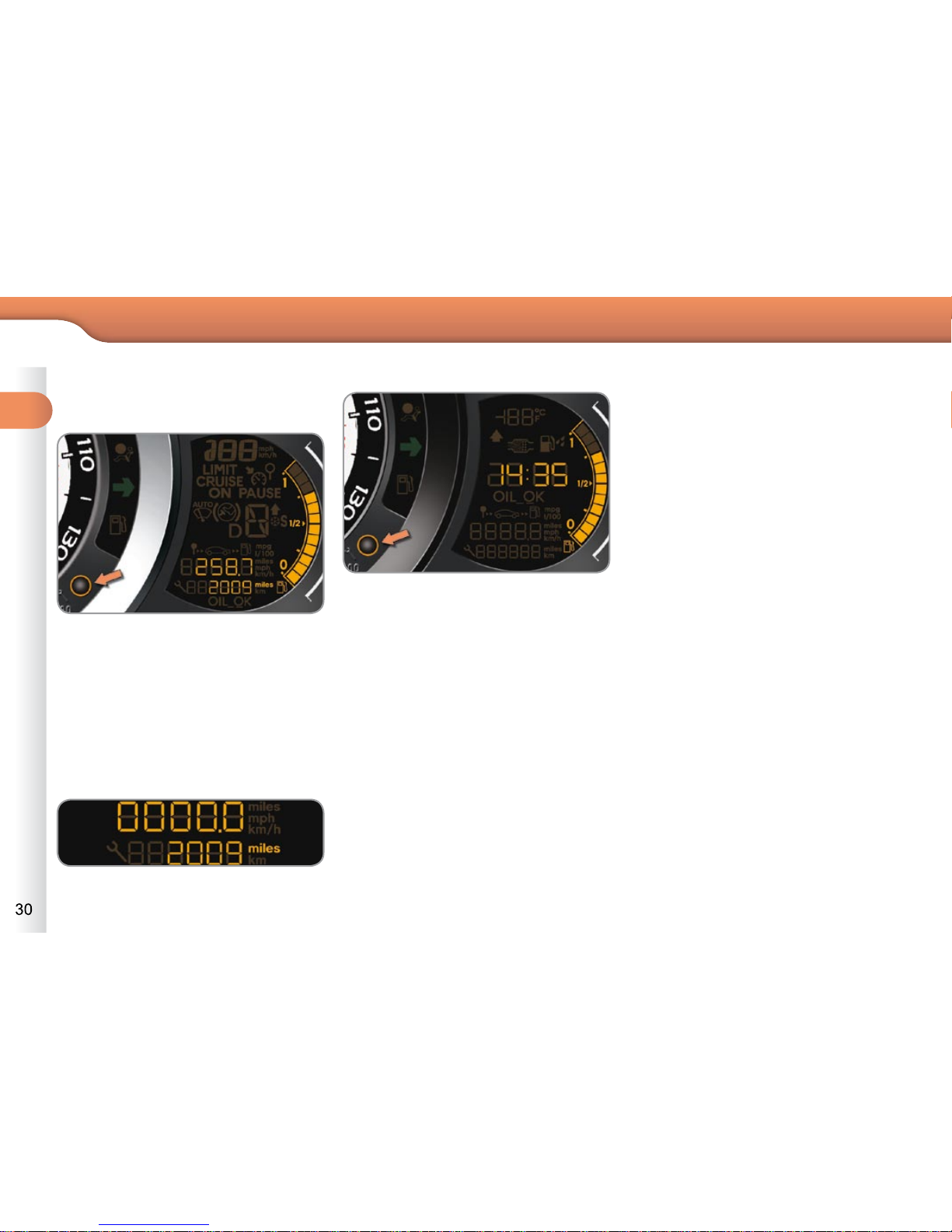

Engine oil level indicator
System which informs the driver whether
the engine oil level is correct or not.
This information is indicated for a few
seconds when the ignition is switched
on, after the service information.
Oil level correct
This is indicated by the fl ashing of
"OIL", linked with the service warning
lamp, accompanied by an audible sig-
nal and a message on the multifunction
screen.
If the lack of oil is confi rmed by a check
using the dipstick, it is essential that the
level is topped up to prevent damage to
the engine.
Lack of oil
This is indicated by the fl ashing of
"OIL--". Consult a CITROËN dealer.
Oil level indicator fault
Dipstick
There are 2 marks on the
dipstick:
- A = max; never exceed
this level (risk of dam-
age to the engine),
- B = min; top up the level
via the oil fi ller cap, using
the grade of oil suited to
your engine.
Refer to the "Checks" section to locate
the dipstick and the oil fi ller cap on your
engine.

1 1
1 1
30
INSTRUMENTS and CONTROLS
Total distance recorder
System which measures the total dis-
tance travelled by the vehicle during its
life.
The total and trip distances are dis-
played for thirty seconds when the igni-
tion is switched off, when the driver's
door is opened and when the vehicle is
locked or unlocked.
With the ignition on, press the button
until zeros appear.
Trip distance recorder
System which measures a distance
travelled during a day or other period
since it was reset to zero by the driver.
Clock
Adjusting the time - Choice of units
press the button for more than
two seconds: °C or °F is displayed,
press the button to select °C or °F,
press the button for more than
two seconds to complete the adjust-
ments.
After approximately 30 seconds without
any action, the screen returns to the
normal display.
To adjust the time of the clock and
choose the units used by the screen,
use the right-hand button on the instru-
ment panel, carrying out the operations
in the following order:
press the button for more than
two seconds: the minutes fl ash,
press the button to increase the
minutes,
press the button for more than
two seconds: the hours fl ash,
press the button to increase the
hours,
press the button for more than
two seconds: 24 H or 12 H is dis-
played,
press the button to select 24 H or
12 H,

1 1
1 1
31

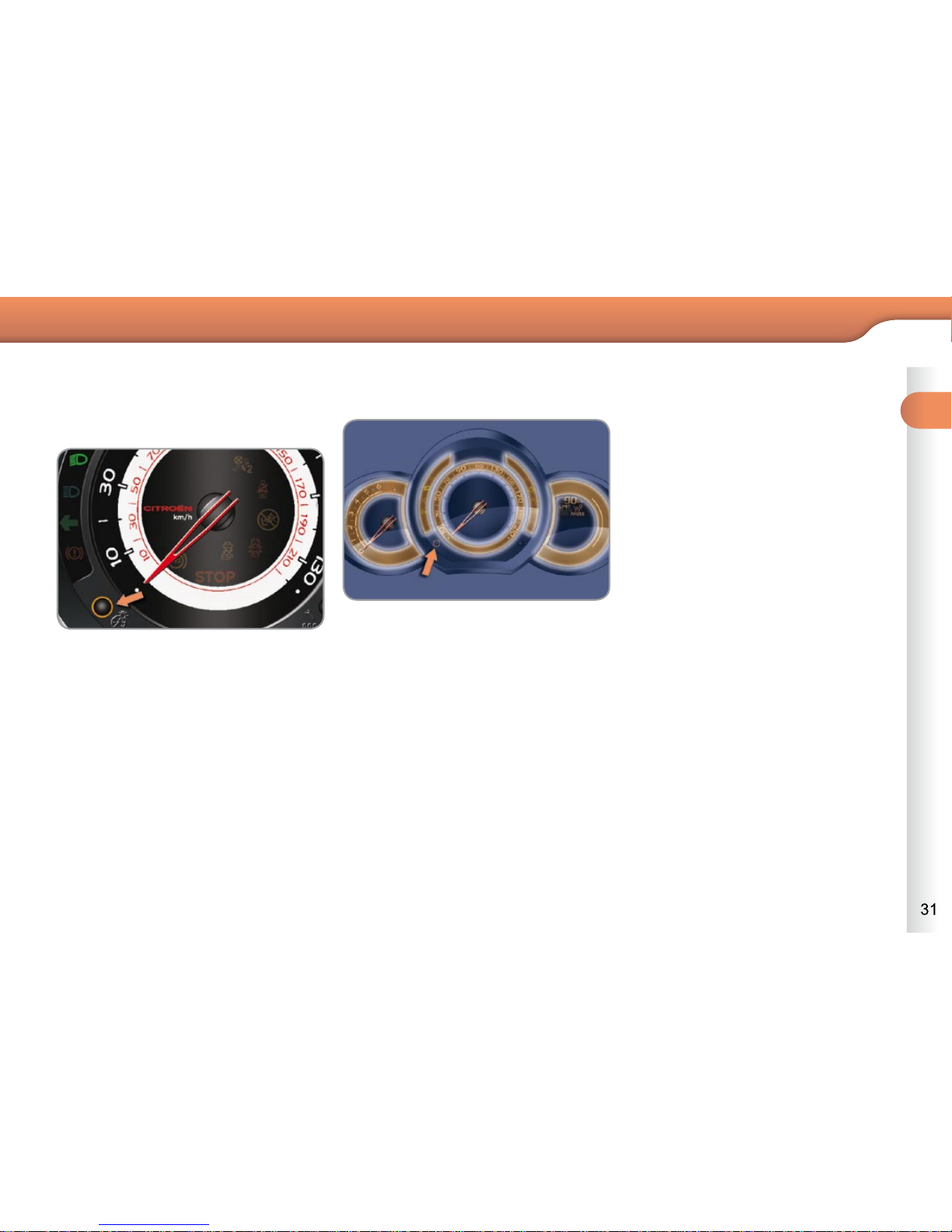

INSTRUMENTS and CONTROLS
The instrument panel remains lit with
the vehicle speed and cruise control or
speed limiter information, if in use.
If there is an alert or a change in a func-
tion or to a setting, the black panel mode
is interrupted.
Activation
With the lighting on, press the left
hand button of the instrument panel
several times to progressively re-
duce the dashboard lighting level.
Press the button again to reduce the
lighting to the minimum level and
switch off the ambience lighting.
Press the button again to activate
the black panel.
The dashboard lighting rheostat re-
mains operational when in black panel
mode.
Black panel
System allowing certain displays to be
switched off for night driving.
Activation
When the lighting is on:
press the button to change the
brightness of the instruments and
controls,
when the level of brightness required
is reached, release the button.
Deactivation
When the lighting is off, or in day mode
on vehicles fi tted with daytime running
lamps, pressing the button does not
have any effect.
Lighting rheostat
System for manual adjustment of the
brightness of the instruments and con-
trols in relation to the exterior brightness.

1 1
1 1
32
INSTRUMENTS and CONTROLS
TRIP COMPUTER
System which provides current infor-
mation concerning the route travelled
(range, consumption...).
Screen in instrument panel
Monochrome screen A
Zero reset
Data displays
Press the button, located at the end
of the wiper stalk, to display the
various items of trip computer data
in succession.
Press the control for more than
two seconds to reset to zero the
distance travelled, the average
fuel consumption and the average
speed.
The trip computer provides the following
information:
- range,
- current fuel consumption,
- distance travelled,
- average fuel consumption,
- average speed.
The next press then returns you to
the normal display.

1 1
34
INSTRUMENTS and CONTROLS
A few definitions…
Range
(miles or km)
This indicates the distance which can
still be travelled with the fuel remain-
ing in the tank in relation to the average
consumption over the last few miles
(kilometres) travelled.
Current fuel consumption
(mpg or l/100 km or km/l)
This is the average fuel consump-
tion during the last few seconds.
Average fuel consumption
(mpg or l/100 km or km/l)
This is the average fuel con-
sumption since the last trip computer
zero reset.
Average speed
(mph or km/h)
This is the average speed cal-
culated since the last trip computer zero
reset (ignition on).
Distance travelled
(miles or km)
This indicates the distance
travelled since the last trip computer
zero reset.
This fi gure may vary following a
change in the style of driving or
the relief, resulting in a signifi -
cant change in the current con-
sumption.
If dashes are displayed continu-
ously while driving in place of
the digits, contact a CITROËN
dealer.
This function is only displayed
from 20 mph (30 km/h).
When the range falls below 20 miles
(30 km), dashes are displayed. After
fi lling with at least 5 litres of fuel, the
range is recalculated and is displayed
when it exceeds 60 miles (100 km).
Distance remaining to
destination
(miles or km)
This is the distance remaining to be
travelled to the fi nal destination. It can
be entered by the user.
If the distance is not entered, dashes
are displayed in place of the digits.

1 1
1 1
33
INSTRUMENTS and CONTROLS
TRIP COMPUTER
System which provides current infor-
mation concerning the route travelled
(range, consumption…).
Monochrome screen C
Data displays
Route zero reset
Press the button, located at the end
of the wiper stalk, to display the
various trip computer tabs in suc-
cession:
When the route required is dis-
played, press the control for more
than two seconds.
Trips "1" and "2" are independent but
their use is identical.
Trip "1" permits, for example, daily calcu-
lations, and trip "2" monthly calculations.
- the current information
tab with:
● the range,
● the current fuel
consumption,
● the distance remaining
to be travelled,
- the trip "1" tab with:
● the distance travelled,
● the average fuel
consumption,
● the average speed, for
the fi rst route.
- the trip "2" tab with:
● the distance travelled,
● the average fuel
consumption,
● the average speed, for
the second route.
Pressing the button again returns
you to the normal display.

1 1
34
INSTRUMENTS and CONTROLS
A few definitions…
Range
(miles or km)
This indicates the distance which can
still be travelled with the fuel remain-
ing in the tank in relation to the average
consumption over the last few miles
(kilometres) travelled.
Current fuel consumption
(mpg or l/100 km or km/l)
This is the average fuel consump-
tion during the last few seconds.
Average fuel consumption
(mpg or l/100 km or km/l)
This is the average fuel con-
sumption since the last trip computer
zero reset.
Average speed
(mph or km/h)
This is the average speed cal-
culated since the last trip computer zero
reset (ignition on).
Distance travelled
(miles or km)
This indicates the distance
travelled since the last trip computer
zero reset.
This fi gure may vary following a
change in the style of driving or
the relief, resulting in a signifi -
cant change in the current con-
sumption.
If dashes are displayed continu-
ously while driving in place of
the digits, contact a CITROËN
dealer.
This function is only displayed
from 20 mph (30 km/h).
When the range falls below 20 miles
(30 km), dashes are displayed. After
fi lling with at least 5 litres of fuel, the
range is recalculated and is displayed
when it exceeds 60 miles (100 km).
Distance remaining to
destination
(miles or km)
This is the distance remaining to be
travelled to the fi nal destination. It can
be entered by the user.
If the distance is not entered, dashes
are displayed in place of the digits.
