CITROEN C1 Platinum User manual

VERY IMPORTANT
As the booklet is constantly re-edited, this one only covers vehicles for this
particular model year.
It is therefore necessary to order a new booklet each year and RETAIN THE
OLD ONES.
COUV-C1-2005 9/01/06 8:41 Page 1

PRIVATE CARS
CITROËN C1
PRIVATE CARS
CAR 000 022
2005
AC/QCAV/MTD
Méthodes techniques documentation
쏘 «The intellectual property rights relating to the technical information contained in this document belong
exclusively to the manufacturer. Reproduction, translation or distribution in whole or in part without prior
written authorisation from the manufacturer is forbidden».
«The technical information contained in this document is intended for the exclusive use of the trained personnel
of the motor vehicle repair trade. In some instances, this information could concern the security and safety of
the vehicle. The information is to be used by the professional vehicle repairers for whom it is intended and they
alone would assume full responsibility to the exclusion of that of the manufacturer».
«The technical information appearing in this brochure is subject to updating as the characteristics of each
model in the range evolve. Motor vehicle repairers are invited to contact the CITROËN network periodically for
further information and to obtain any possible updates».
2005
COUV-C1-2005 9/01/06 8:41 Page 2

PRESENTATION
THIS HANDBOOK summarises the specifications, adjustments, checks and special features concerning CITROËN C1.
The handbook is divided into groups representing the main functions :
GENERAL - ENGINE - INJECTION - IGNITION - CLUTCH, GEARBOX, DRIVESHAFTS - AXLES, SUSPENSION, STEERING - BRAKES - AIR CONDITIONING.
FR-C1-Index-2005 9/01/06 8:43 Page I

IMPORTANT
If you find that this handbook does not always meet your requirements, we invite you to send us your suggestions which we will take into account when preparing future
publications. For example :
– INSUFFICIENT INFORMATION
– SUPERFLUOUS INFORMATION
– NEED FOR MORE DETAILS
Please send your comments and suggestions to :
CITROEN U.K. Ltd.
221, Bath Road,
SLOUGH,
SL1 4BA.
U.K.
FR-C1-Index-2005 9/01/06 8:43 Page II

GENERAL
Vehicle identification 1 - 4
Specifications & dimensions 5 - 6
Weight specifications 7
Operations to be performed following 8
Towing specifications 9 - 12
Lifting and supporting the vehicle 13 - 15
Capacities 16 - 17
Lubrication system 18
Lubricants 19 - 21
ENGINES
Specifications 22
Presentation of CFA engine 23 - 32
Tightening torques on CFA engine 33 - 37
Tightening torques on 8HT engine 38 - 41
Tightening torques : cylinder head : all types 42
Auxiliary drive belt 44
Checking and setting the valve timing 51
IGNITION
Sparking plugs 125
CLUTCH-GEARBOX-TRANSMISSION
Clutch specifications 127
Tightening torques : clutch 128
Checking and adusting clutch pedal
travel 129 - 130
Specifications :
MT (TOYOTA) manual gearbox 131 - 132
Tightening torques : MT
(TOYOTA) manual gearbox 133 - 136
Recommendations - precautions :
MMT piloted manual gearbox 137 - 140
Specifications :
MMT piloted manual gearbox 141 - 144
Tightening torques :
MMT piloted manual gearbox 145 - 147
Driveshafts 148
CONTENTS
Exhaust specifications 78 - 82
Cooling system specifications 83 - 86
Checking the oil pressure 87
Valve clearances 88
Draining, filling and bleeding the
cooling circuit 89 - 92
INJECTION
BOSCH ME 7.9.5 injection 93 - 105
Air filter on CFA engine 106
Fuel supply system 107 - 110
Injectors 111
Safety requirements : HDi direct injection 112 - 113
Prohibited operations : HDi direct injection 114 - 115
Pre-postheating system 116
Checking the low pressure fuel supply
circuit 117 - 118
Checking turbo pressure 119 - 121
Air supply circuit 122 - 124
FR-C1-Index-2005 9/01/06 8:43 Page III

AXLES-SUSPENSION-STEERING
Wheels and tyres 149
Axle geometry 150 - 152
Front axle 153 - 154
Tightening torques: front axle 155
Rear axle 156
Tightening torques : rear axle 157
Suspension 158
Tightening torques: suspension 159 - 160
Manual steering 161
Power steering 162 - 163
Setting the steering rack
mid-point 165
BRAKES
Brake specifications 166 - 168
Tightening torques: brakes 169 - 171
Checking the brake pedal 172 - 174
Checking the braking amplifier 175 - 176
CONTENTS
Checking the vacuum pump 177 - 178
Adjusting the handbrake 179
Draining, filling, bleeding the braking 180 - 183
AIR CONDITIONING
R134.a capacity 184
Air conditioning circuit 185 - 186
Pollen filter 187
Filtering cartridge 188 - 189
Aircon circuit : CFA engine 190
Aircon circuit : 8HT engine 191
FR-C1-Index-2005 9/01/06 8:43 Page IV

IDENTIFICATION OF VEHICLES
E1A2004D
A- Manufacturer’s plate
(On the centre pillar : 3-door version)
(On the rear door aperture : 5-door version)
A- AS/RP No. and RP paint code.
B - Chassis stamp
(Cold stamp on the crossmember, under the front RH seat).
C - Tyre pressures and tyre type
(Label on the front pillar on driver’s side).
GENERAL
FR-C1-page001-21-2005 9/01/06 8:46 Page 1

2
GENERAL
Structure Version (Depollution gearbox) (4)
P Family (1) Gearbox Depollution
N Bodywork (2) V5-speed gearbox E5
PN CFAC/T CFA Engine (3) CE4
C Version (4) Variants (5)
T Variant (5) IF Fiscal incentives
Family (1) T Entreprise van-convertible
P C1 P Piloted manual gearbox
Body shape (2)
M 3-door saloon (4 seats)
N 5-door saloon (4 seats)
Engine (3)
CFA 1.0i 384F/E4
8HT 1.4 HDi DV4TD/E4
IDENTIFICATION OF VEHICLES
Type approval
FR-C1-page001-21-2005 9/01/06 8:46 Page 2

GENERAL
3
Petrol Diesel
1.0i 1.4 HDi
Emission standard E4
Type code PN CFAC PN 8HTC
Engine type CFA 8HT
Cubic capacity (cc) 1.0i 1.4 HDi
Fiscal rating (hp) 43
Gearbox type MT MMT MMT
Gearbox ident. plate C 551 (m) (*) C 551A (mp) (**) C 552 (m) (*)
(*) = Manual gearbox
(**) = Piloted manual gearbox
IDENTIFICATION OF VEHICLES
FR-C1-page001-21-2005 9/01/06 8:46 Page 3

4
GENERAL
E1A2002D
IDENTIFICATION OF VEHICLES

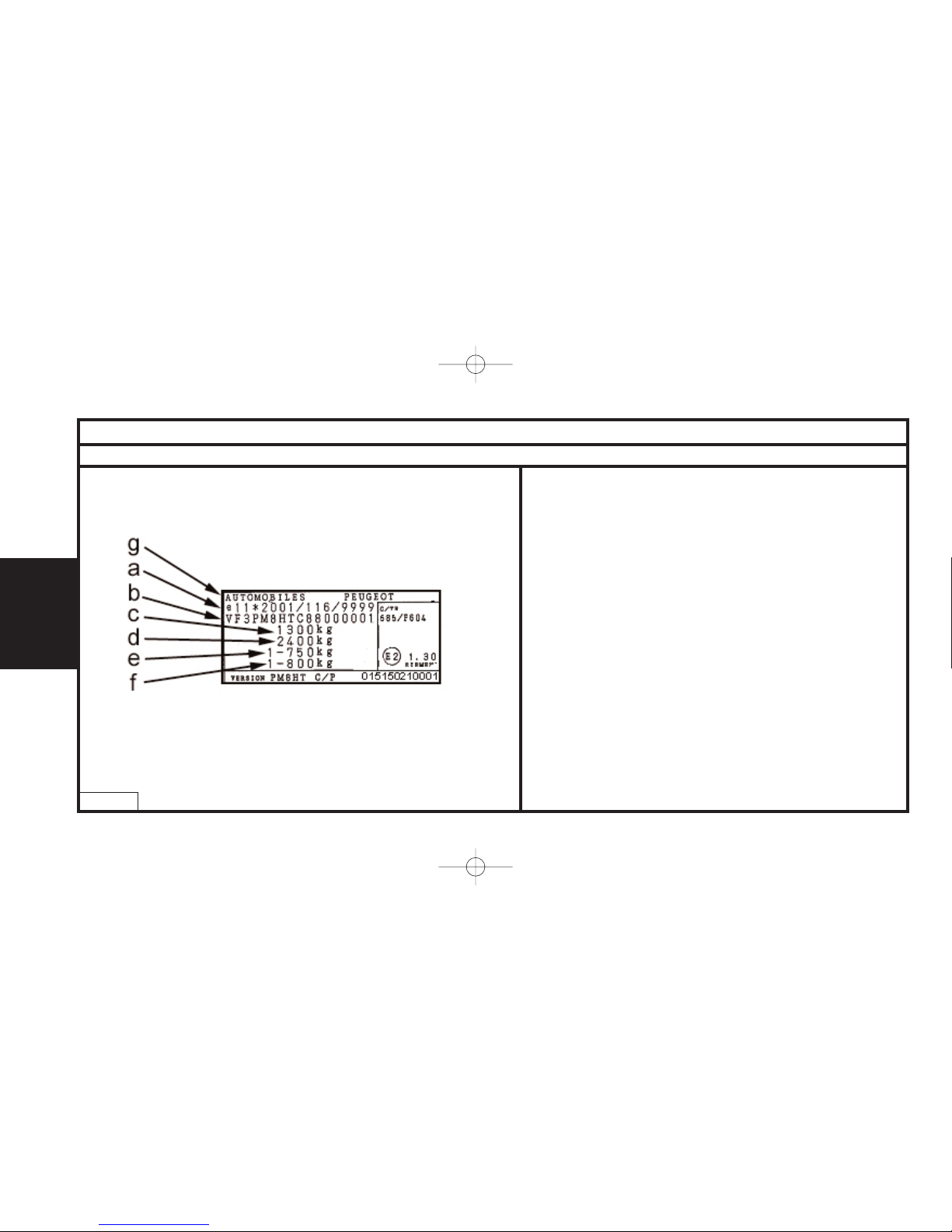

The manufacturer’s plate carries the following information :
(a) Type approval number (*).
(b) Type serial number (VIN).
(c) Gross vehicle weight (*).
(d) Gross vehicle weight (*).
(e) Maximum weight on front axle (*).
(f) Maximum weight on rear axle (*).
(g) Manufacturer identification.
(*) = according to marketing country
Manufacturer’s plate.
FR-C1-page001-21-2005 9/01/06 8:46 Page 4

5
GENERAL
GENERAL SPECIFICATION : DIMENSIONS
E1A2001D
Exterior dimensions (mm)
FR-C1-page001-21-2005 9/01/06 8:46 Page 5

6
GENERAL
GENERAL SPECIFICATION : DIMENSIONS
ODM = Vehicle in running order (vehicle empty, levels topped up) .
Exterior dimensions (mm)
Vehicles All types
Wheelbase A 2340
Length overall B 3429
Front overhang C 653
Rear overhang D 436
Rear track at ground level E 1410
Front track at ground level F 1420
Width overall * G 1630
Height overall * H 1460
Height with longitudinal roof bars
Interior dimensions and volumes (mm)
3-door version 5-door version
Elbow width, front 1379 1377
Elbow width, rear 1336 1358
Boot
Height of boot below shelf (between boot carpet and parcel shelf) 436
Minimum floor width 510
Volume of boot below parcel shelf (dm3)199
FR-C1-page001-21-2005 9/01/06 8:46 Page 6

7
GENERAL
GENERAL SPECIFICATION : WEIGHTS
3-door 5-door
Petrol Diesel Petrol Diesel
1.0i 1.4 HDi 1.0i 1.4 HDi
Engine type 384F E4 DV4TD E4 384F E4 DV4TD E4
Gearbox type C551 C551A C552 C551 C551A C552
Payload 370 355 355 370 355 355
Weight empty in running order 790 825 880 800 835 890
Gross Vehicle weight 1160 1180 1235 1170 1190 1245
Gross Train weight 1160 1180 1235 1170 1190 1245
Max. trailer weight with brakes : 8% incline
Max. trailer weight with brakes : 10% incline
Max. trailer weight with brakes : 12% incline
Max. trailer weight without brakes
Maximum nose weight
Maximum weight on roof bars (kg) 50
FR-C1-page001-21-2005 9/01/06 8:46 Page 7

8
GENERAL
OPERATION TO BE CARRIED OUT FOLLOWING A RECONNECTION OF THE BATTERY
Radio
Before disconnecting the battery, make a note of the customer’s rado stations.
After reconnecting the battery, reprogramme the radio stations.
FR-C1-page001-21-2005 9/01/06 8:46 Page 8

9
GENERAL

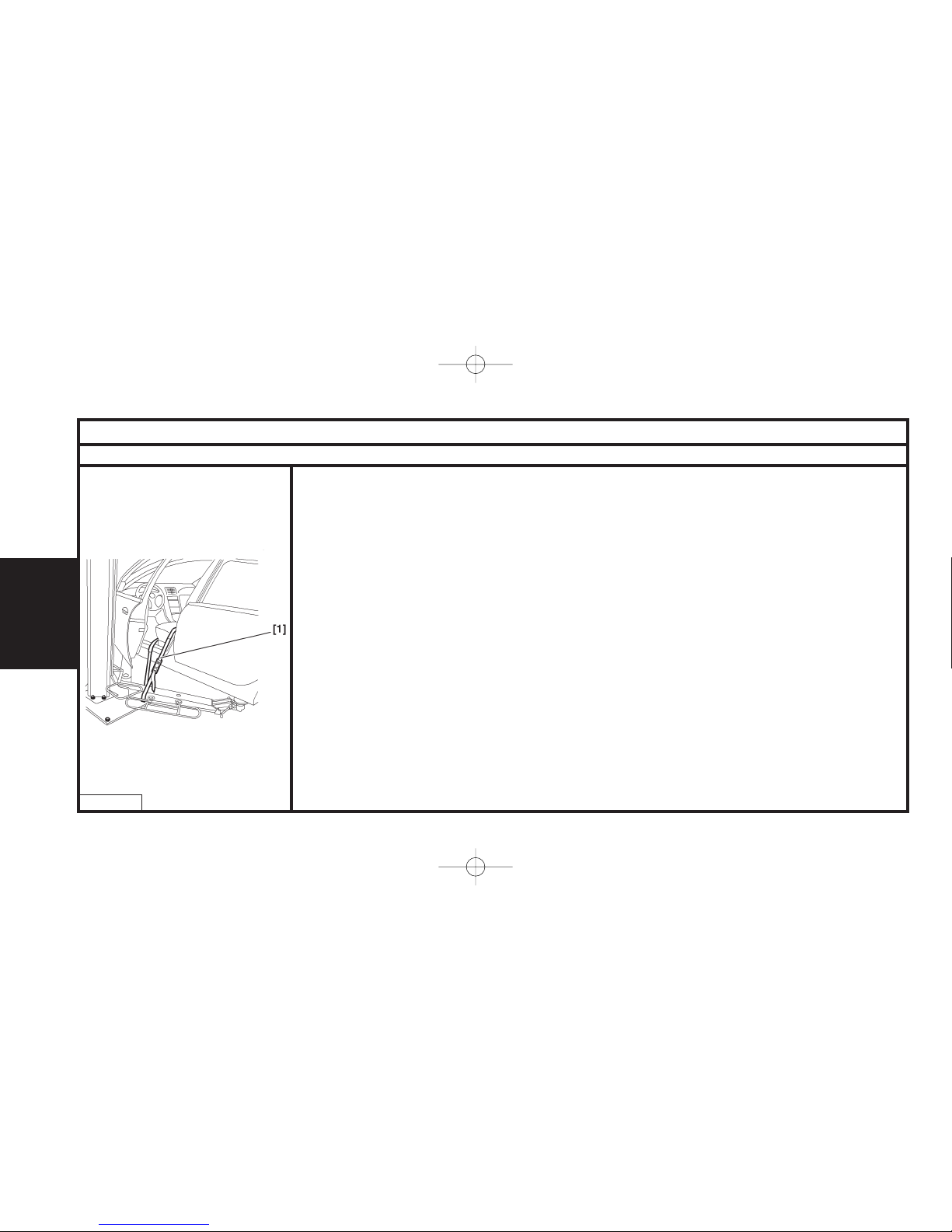

GENERAL SPECIFICATION : TOWING THE VEHICLE
WARNING : When the engine is not running, steering and braking are no longer power-assisted.
The towing eye (1) is to be found in the vehicle toolkit.
NOTE : The vehicle toolkit is stowed in the boot
E2A200DD
E2A200CD
Vehicle towing
Towing eye
FR-C1-page001-21-2005 9/01/06 8:46 Page 9

10
GENERAL
GENERAL SPECIFICATION : TOWING THE VEHICLE
Vehicle towing : Precautions to be taken
Manual gearbox Piloted manual gearbox
ESSENTIAL : Never tow the vehicles with wheels hanging
(towing by the wheels) .
Vehicle equipped with a piloted manual gearbox
IMPERATIVE : It is necessary to lift the front of the vehicle in order to
tow it, having placed the gear selector in neutral.
If there is a gearbox malfunction or fault, the vehicle may remain
immobilised depending on the seriousness of the fault.
If a gear is engaged, the conditions for immobilisation of the vehicle
may be :
- engine stopped (no starting)
- clutch open (clutched)
IMPERATIVE : If a gear is engaged and it is impossible to disengage
it, it is compulsory to tow the vehicle with the front wheels lifted.
If it not possible to lift the front of the vehicle, there is more than one
way of unjamming the gearbox :
- engaging "N" with the aid of a diagnostic tool
- engaging "N" without the aid of a diagnostic tool
FR-C1-page001-21-2005 9/01/06 8:46 Page 10

11
GENERAL
GENERAL SPECIFICATION : TOWING THE VEHICLE
Vehicle towing : Precautions to be taken
Piloted manual gearbox
Engaging "N" with the aid of a diagnostic tool
Preliminary operations :
- Vehicle stationary, engine stopped
- Battery voltage higher than 12.5 volts
- Ignition switched on
- Gear selector on position "N"
Connect the diagnostic tool to the vehicle’s diagnostic socket.
Using the diagnostic tool menus, select :
- "DIAGNOSIS"
- MMT piloted manual gearbox
- Actuator tests
- Gearbox actuator test
- Engaging Neutral
NOTE : The letter "N" should appear in the instrument panel. If not, see
the following solution : engage "N"; without the help of a diagnostic tool.
Engaging "N" without the aid of a diagnostic tool
In this configuration, the gearbox actuator is jammed, gear engaged.
IMPERATIVE : This emergency solution is to be used only where
the above solutions for setting the gearbox actuators using the dia-
gnostic tool have failed (destruction of the gearbox actuator).
Preliminary operations:
Disconnect the negative terminal of the battery.
Remove the blank on the gearbox actuator
FR-C1-page001-21-2005 9/01/06 8:46 Page 11

12
GENERAL
GENERAL SPECIFICATION : TOWING THE VEHICLE
Vehicle towing : Precautions to be taken
Piloted manual gearbox

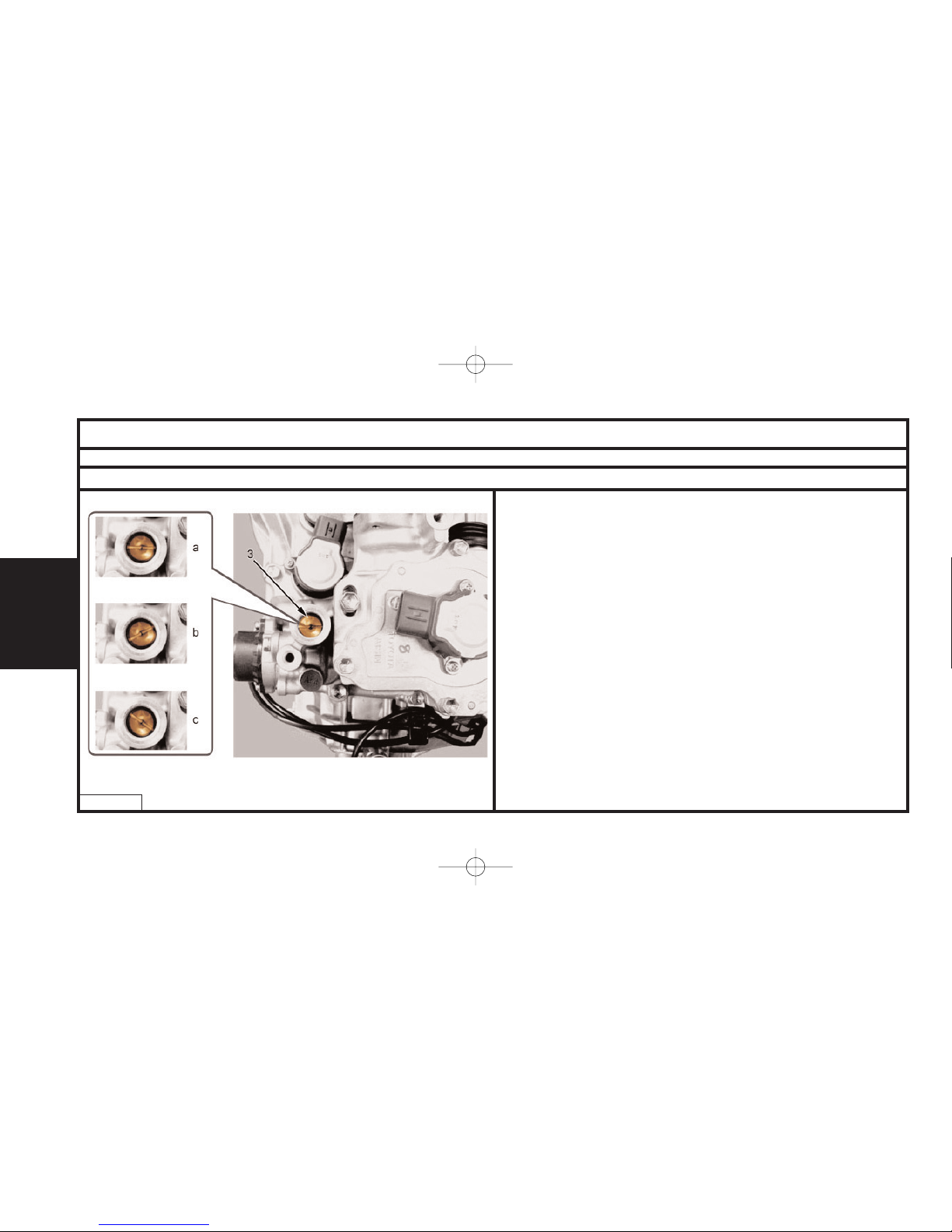

"a" Neutral.
"b" 1st, 3rd, 5th.
"c" 2nd, 4th, reverse gear.
Using a large screwdriver, move the screw (3) to bring the gearbox
actuator to the neutral position.
When this position is reached, "N" is engaged.
Driving
IMPERATIVE : Never drive with the ignition switched off.
Never push the vehicle to attempt to start it (impossible with a
piloted manual gearbox).
B2C201TD
FR-C1-page001-21-2005 9/01/06 8:46 Page 12

13
GENERAL

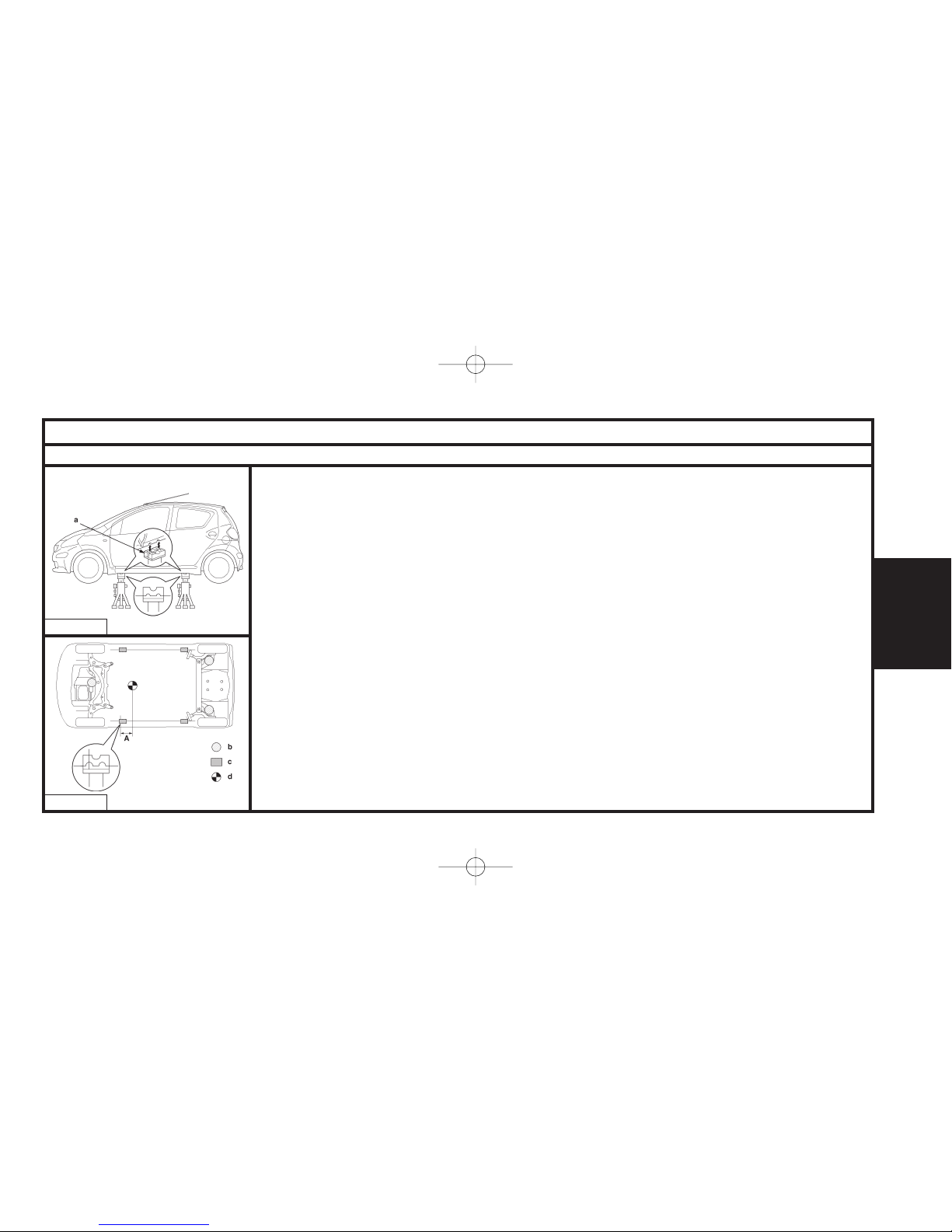

GENERAL SPECIFICATION : LIFTING AND SUPPORTING THE VEHICLE
Note on status of the vehicle before lifting
The vehicle should be unloaded before any lifting operation. Never place a loaded vehicle on a jack or on a lift.
When you remove a heavy component, such as the engine or the gearbox, the vehicle’s centre of gravity moves.
Note on use of a 4-column lift
Respect the safety requirements set out in the user instructions.
Immobilise the vehicle with wheel locks.
Note on use of jacks and axle stands
Work on a flat surface and always use wheel blocks.
Use axle stands with rubber blocks "a", as indicated.
Place the jack and the axle stands on the prescribed lifting points on the vehicle. Do not use the jack without axle
stands.
To raise the front wheels, release the parking brake and place blocks at the rear of the rear wheels only. To raise
the rear wheels, place blocks at the front of the front wheels only.
To raise the front wheels only, or the rear wheels only, place blocks on either side of the wheels that are in contact
with the ground.
To relower a vehicle raised at the front, release the parking brake and place blocks at the front of the rear wheels
only. To relower a vehicle raised at the rear, place blocks at the rear of the front wheels only.
"b" : jacking point.
"c" : pantograph jacking point lugs.
"d" : centre of gravity of the vehicle (excluding load).
A:
3-door : OFFSET 331 mm LEVEL 1370 mm
5-door : OFFSET 349 mm LEVEL 1387 mm
E2A2001D
E2A2000D
Lifting and supporting the vehicle
FR-C1-page001-21-2005 9/01/06 8:46 Page 13

14
GENERAL
GENERAL SPECIFICATION : LIFTING AND SUPPORTING THE VEHICLE
Note on use of a 4-point lift with moving arms
IMPERATIVE : Position the safety straps, if placing the vehicle on a lift supported from the jacking points
(risk of the vehicle overbalancing when a heavy component is removed).
Equip the moving arms with rubber blocks as indicated.
To use this lift, align the middle of it as far as possible with the centre of gravity of vehicle.
Present the vehicle as far as possible in the axis of the moving arms. Adjust the moving arms to the
vehicle’s jacking points.
WARNING : Do not raise the vehicle too high, to avoid all risk of instability.
Lock the moving arms while the repairs are being carried out.
Raise the vehicle just off the ground and check that it is stable.
Example :
2-column lift
Place the safety straps [1] under the lift arm and criss-crossing the vehicle
E2A200BD
Lifting and supporting the vehicle
FR-C1-page001-21-2005 9/01/06 8:46 Page 14
