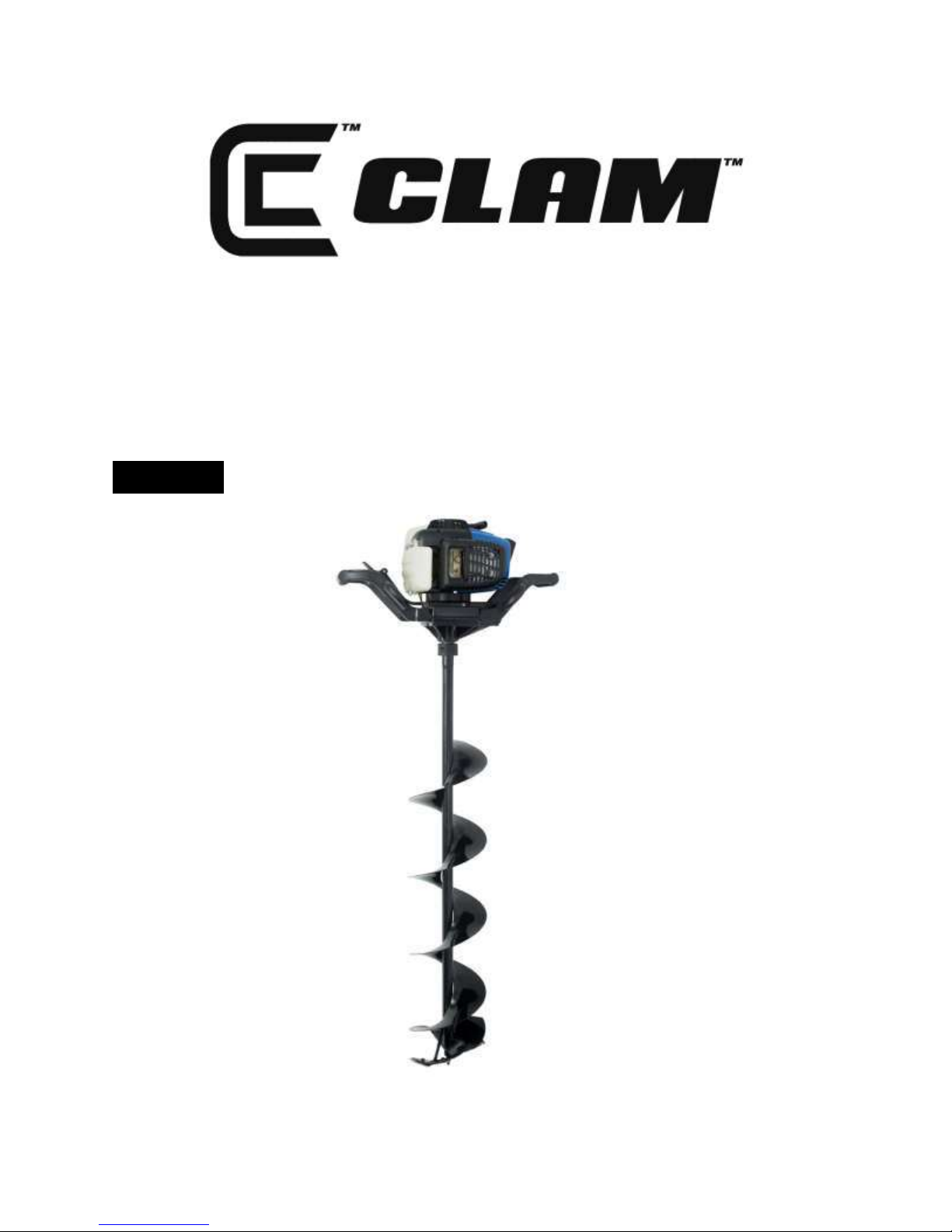

Clam EDGE User manual

EDGE™ POWER AUGERS
OPERATING AND PARTS MANUAL
p/n 104081
Clam
Corporation
12135 Brockton Lane N. •Rogers, MN 55374
Phone ( 763)231-4120 •Fax [phone]
www.clamoutdoors.com

Please follow these Important safety precautions regarding your
Clam Edge auger during use
1. This product is solely intended for use in drilling holes in the ice. It should be handled and used with
caution as there are very sharp edges on the blades and a spinning auger during use that could
cause bodily harm if not used properly.
2. Keep all articles of clothing as well as body parts away from the powerhead and spinning auger
during operation at all times. Your auger is a tool that should be handled with caution.
3. This product should not be altered in any way from its original, purchased condition unless with an
authorized Clam accessory or part. Using parts other than from Clam could be potentially damaging
to the product or dangerous to the user, and will void all warranties by the manufacturer.
4. Person(s) using this auger should weigh a minimum of 100 lbs., and not be under the influence of
any chemicals or mind-altering substances. The Edge auger operates with a lot of torque and speed,
and the operator must be fully aware and prepared for that during its use.
5. If by any chance, something is not in proper working condition on your auger-recoil, auger, throttle,
etc…, do not use it. Bring it to an authorized service center for repair.
6. Verify all hardware-especially the 4 bolts on the blades and the one socket head bolt holding the
auger to the powerhead, are secure prior to usage.
7. If by any chance, the auger stops spinning during cutting, release the throttle and pull up on the
auger to release the torque. Then reapply the throttle and continue drilling.
8. When the auger is not in use, turn off the power by pressing the stop switch. Do not let it run while
leaving your auger unattended.
1

1. Recoil (starter) Handle
2. Fuel Cap
3. Fuel Tank
4. Full Fuel Level
5. Decompression Button
6. Throttle Lever
7. Air Filter Cover
8. Throttle Rod
9.Choke Lever
10.Transmission
11.Stop Switch
12.Spark Plug Cap
13.Recoil
14.Muffler Guard
15. Muffler
16.Rigid Handle System
2

Assembly of your Edge auger
1. Remove the black protective cap from the motor shaft on
powerhead.
2. Remove the Allen wrench from the auger, then remove the
socket head bolt from the auger with the Allen wrench.
3. Insert motor shaft on powerhead into auger. Line up the
holes between components and reinstall socket head bolt.
Tighten with the provided Allen wrench. Verify the bolt is
tight on a regular basis between uses.
Verifying your Edge auger is ready to start
1. Make sure there is free movement of the throttle lever. Verify it can be fully depressed and then return
to its “idle” position on its own after releasing the throttle.
2. Verify all hardware is secure-especially the four bolts on the blades and the single socket head bolt
holding the auger onto the powerhead.
3. Periodically inspect to make sure the ignition wire is firmly connected to the spark plug.
3

Fueling your Edge auger
Always take precautions when handling fuel or fuel/oil mix, as it is a highly flammable liquid. Avoid open
flames, sparks or static electricity. Also avoid breathing in any fumes as they are hazardous to your health.
Verify that the engine is not running and is cool to the touch.
Remove the fuel cap slowly to prevent the risk of fuel spraying out from any built up pressure.
Always store fuel in a proper, labeled container. If any is spilled on the auger, itself, clean thoroughly.
Recommended fuel for your Edge auger
DO NOT USE E85 OR LEADED FUEL. IT SHOULD ALSO BE FRESH AND CLEAN OF DEBRIS.
USE REGULAR, PREMIUM OR NON-OXYGENATED PREMIUM UNLEADED FUELS ONLY.
USE ONLY WINTER BLENDED FUELS AVAILABLE AFTER NOVEMBER 1
ST
THAT HAVE A
MINIMUM OCTANE RATING OF 87.
FAILURE TO FOLLOW FUEL PRECAUTIONS COULD CAUSE DAMAGE TO YOUR AUGER THAT WOULD
NOT BE COVERED BY YOUR MANUFACTURER’S WARRANTY.
Recommended oil for your Edge auger
USE ONLY HIGH QUALITY 2 CYCLE OIL WITH APPROPRIATE FUEL
OIL SHOULD BE MIXED WITH FUEL AT A RATIO OF 40:1 OR 3.2 FL OZ TO 1 GALLON OF GAS
DO NOT MIX OIL TO FUEL AT A RATIO LESS THAN 50:1 ( 2.6 FL OZ TO 1 GALLON OF GAS) OR
DAMAGE COULD OCCUR TO YOUR AUGER THAT WOULD NOT BE COVERED BY THE
MANUFACTURER’S WARRANTY
DO NOT USE SYNTHETIC OIL
Adding fuel/oil mix to your Edge auger
REMOVE FUEL CAP-ITEM #2 FOUND ON PAGE 2
ONCE PROPER FUEL/OIL MIX HAS BEEN BLENDED, POUR GAS FROM AN APPROVED, SAFE
CONTAINER INTO FUEL TANK UNTIL FLUID LEVEL REACHES THE “FULL” LEVEL. ITEM #4 ON
PAGE 2 –DO NOT OVERFILL
REINSTALL FUEL CAP BACK ONTO FUEL TANK
YOUR CLAM EDGE AUGER IS NOW READY TO BE STARTED!
4

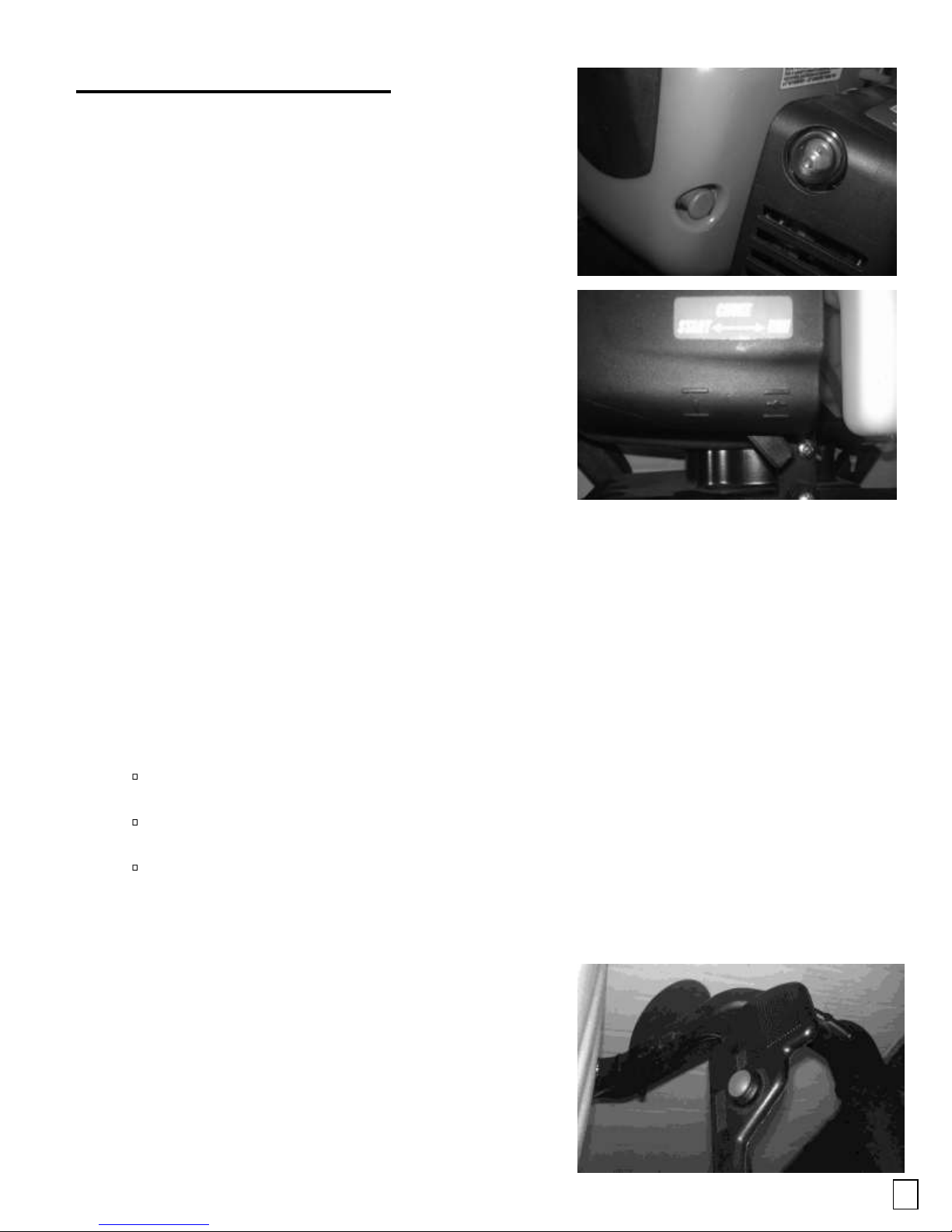

Starting your Edge Auger
1. Press the fuel primer bulb between 5 and 8 times-or until
you see fuel returning in the fuel line. (Button on the right in
bubble)
2. Push in the decompression button. (Button on the left)
3. Position the choke lever to the “Start” position. (shown in
“Run” position)
4. Pull the recoil handle in short, fast pulls. If your Edge auger doesn’t start on the first pull, you will need to
push in the decompression button again. Note: each time you pull on the recoil handle to start the engine,
you will need to reset the decompression button.
5. Repeat step 4 until engine starts. Once running, position the choke lever to the “Run” position and for best
performance, allow the auger’s engine to run at idle for 1-2 minutes before drilling.
Note: Edge auger might be harder to start in extreme cold as all engines can be a little harder in very cold
temperatures. Under these very cold conditions you might want to apply a little pressure to the throttle
lever to aid in the starting process. In warmer conditions this shouldn’t be necessary.
In the event your engine becomes flooded and won’t start, you will need to remove and clean the
spark plug.-Removing the spark plug is covered in the “Maintenance” section of this manual.
Once the spark plug is removed, apply full throttle to the throttle lever and pull the recoil handle a
couple times to clear the combustion chamber.
Replace the spark plug and cap, keep the throttle lever in “Idle” position or without applied force,
and start the engine with the choke lever in the “Run” position.
6. To turn off your Edge auger once it’s running, simply push the momentary stop switch found on the throttle
lever assembly. Doesn’t get any easier…
Note: In the event your stop switch fails, position choke lever
to “Start” position and allow engine to shut off. Bring your
auger to an authorized service center for immediate
attention.
5

Maintenance of your Edge auger
Spark plug inspection and replacement
You should inspect your spark plug for proper gap after approximately every 50 hours of use
For optimum performance, the spark plug gap should measure .019”
Replace when electrodes have become badly worn-or approximately every 100 hours of use
1. Remove the spark plug cover-item #12 on page 2, by pressing down on it and
pulling back from the powerhead. You’ll need to slightly lift it to fully remove.
2. Once the cover has been removed, you can gently pull off the ignition wire, and
remove the spark plug with a ¾” socket and ratchet.
3. Measure the gap on your spark plug. Adjust or repace as necessary.
4. Reinstall spark plug, ignition wire and spark plug cover.
Note: Replacement spark plugs are offered in several
brands. Champion’s RCJ-6Y and Bosch’s WSR6F are
two viable options.
Air filter inspection, cleaning and replacement
You should inspect your air filter for cleanliness after approximately every 50 hours of use
Inspect and clean the air filter more frequently if you notice a performance reduction in your auger.
Or, if you notice your auger using more gas than typical.
1. Set your choke to the “Start” position, which will close the choke
and prevent any contaminants from entering your carburetor.
2. Turn the wing screw (knob of left side of image) counter-
clockwise and pull the air filter cover toward you from the left
side to remove it.
3. Once the cover has been removed, remove air filter by gently
pressing down on the upper part of the filter on the rubber-not
element, itself.
4. To clean, lightly tap on the filter to free contaminants. Do not
use compressed air or clean with water.
5. Reinstall cleaned or new filter. (New filter p/n is 2048154)
6. Reinstall Air Filter cover by installing the guide pins on the right
hand side first, then pushing the left side towards the motor.
Turn wing screw Clockwise to secure.
Never adjust the carburetor to compensate for the air
filter. Replace as necessary or damage could occur.
6

Prolonged shutdown of your Edge auger
If you plan on storing your auger for more than a month, you should perform the following-
Completely drain the fuel tank until it’s empty.
Start and run the auger with the fuel tank empty until the engine shuts off. This will ensure the carburetor has
been fully emptied and won’t have any fouling due to residual fuel/oil mix. This will also help in starting the
auger the next time you run it.
Thoroughly clean the powerhead-including the air and fuel filter areas, as well as the air intake area.
Store safely in a dry, controlled area away from heat, flames, or even kids.
Note: If your Edge auger is stored with stabilized fuel, you should start it at least once a month to
ensure that it stays in good working order. Letting it sit too long between starts could cause fouling of
the carburetor that you warranty would not cover.
Limited Warranty
You Edge auger has a warranty that will cover the cost of replacing parts that are found to be defective from
the manufacturer. The initial purchaser has a 2 year warranty on the engine through Central Power
Distributors-including the emissions system, while Clam Corp. provides the initial purchaser with a one year
warranty on the transmission, auger and blades.
The following circumstances will result in the voiding of your warranty
Not performing any maintenance work on your auger
Adjusting components such as the carburetor away from the factory setup
Misuse and abuse of your auger
Damage from excessive dirt or buildup on your auger
Repairs made by a non-authorized repair center
Use of incorrect fuels or oils
Not following the operational instructions
Some parts are not covered by the warranty, and are considered normal wear and tear. Both filters-air and fuel,
the clutch, spark plugs, recoil, blades and rubber parts that handle gas are not covered by your warranty.
Warranty repairs should be performed only by a Clam authorized repair center.
For a list of Clam Edge authorized service centers, as well as registering your warranty, please visit
www.clamoutdoors.com.
For ordering parts for your Clam Edge engine, please see one of our warranty repair service centers or visit
Central Power Distributors online at www.cpdonline.com.
Thank you for purchasing a Clam Edge auger. For a list of other great Clam products, visit
www.clamoutdoors.com.
Good luck fishing!
