Clam Expedition User manual

M o
d
e
l
N o .
– 8419 Expedition –
– 8396 Expedition FLR –
S p e c i f i c a t i o n s
▪Center He i g h t - 7 8 i n c h e s
▪Footprint - 60x72 inches
▪Hub-to-hub - 70x80 inches
▪W e i g h t – 2 6 l b s . (Expedition)
75 l b s . (ExpeditionFLR)
PartNumbers:
Expedition: 108419;ExpeditionFLR:108396
InstructionNo:103262
- Clam Cust omer Serv i
c
e I n for m ation -
The Clam Ex
p
edition & Ex
p
edition FLR
- Limitation of Liability -
It is expressly understood that Clam Corporation’s liability for its products, whether due to breach of warranty,
negligence, strict liability, or otherwise, is limited to the repair of the product as stated above. Clam Corporation is
not liable for any injury, loss, damage, or expense, whether direct or consequential, including but not limited to loss
of use, income, profit, or damage to material arising in connection with the sale, installation, use of, inability to use,
or the repair or replacement of Clam Corporation products. Clam Corporation reserves the right to make alterations
or modifications in its products at any time, which in its opinion, may improve the performance and efficiency of the
product. Clam shall not be obligated to make such alterations or modifications to products already in service.
NOTICE: Once used, this shelter cannot be returned to the sto
r
e. Please contact Customer
Service directly at the email address or phone number below.
Customer Service Hrs: 9am to 4pm, Monday – Friday Central Standard Time
Phone: [phone]
Fax: [phone]
Email: [email protected]
** Warranty cannot be honored without an original, dated receipt **
IMPORTANT! PLEASE READ: Warranty Information
This product is warranted to the original retail purchaser (not transferable) its product to be free
from manufacturers defects for one (1) year from the date of the original purchase. Warranty does
not cover cracked windows, tent tears, broken or bent hoops due to high wind
weather conditions or unattended use. The part will replaced or repaired (manufacturer’s
option) if found defective within the one (1) year time frame. Warranty will be void if product has been
subject to neglect, misuse, improper installation, misapplication, alteration, or accident including, but not
limited to, improper maintenance or use of unauthorized parts or attachments. Please read this entire
owner’s manual to ensure proper installation, use, storage, and care for your Clam shelter.
To submit a Warranty Claim Request, please use one of the following methods:
• Email: [email protected] (Preferred Method)
• Call: 763-231-4120
• Write: Customer Service – Warranty Department
600 Clydesdale Trail
Medina, MN 55340
Information needed to submit a warranty claim: If you need to submit a warranty claim, please e-
mail Clam’s Customer Service Department at customers[email protected]. In your e-mail, please
include your full name, address, phone number, a copy of your receipt, a brief description of the problem,
and pictures to clearly show the area(s) of concern. Clam’s warranty department will review your request
and a Clam representative will contact you regarding your claim status. All returns must be returned with
postage pre-paid.

SAFETY INSTRUCTIONS
Please fully understand and follow all safety instructions
outlined in this booklet. Failure to do so could result in
severe injury.
• Do not use open flame heaters in your ice shelter.
Open vents for cross ventilation.
• Ice Armor fabric will melt when contact is made with
hot surfaces (i.e., heaters).
• Never leave shelter unattended when set up.
• Due to the increase in traffic (snowmobiles, autos,
etc.) on area lakes, ice fishing can be hazardous at
night. If you choose to fish at night or in poor visibility
conditions, be sure to take precautions with lights or
reflectors to show drivers your whereabouts.
• Use extra tie-downs during excessive wind conditions
Death from asphyxiation may result from use o
f
oxygen depleting heaters. Open all vents fo
r
fresh air ventilation.
Injury or death may result from fire if tent fabric is
exposed to open flame.
Tent fabric is not fireproof. Fabric will burn wit
h
extended exposure to open flame. Do not us
e
open flame products inside tent. Tent fabric i
s
treated with fire retardant. Application of any for
-
eign substance may render the flame retardan
t
properties ineffective.
Night time: exterior reflectors must be visible to
reduce risk of collisions.
This tent is made with flame resistant fabric
which meets C
P
AI-84 s
p
eci
f
ications.
CL
A
M EXPEDITION & EXPEDITION FLR P
A
R
T S LIST
ITEM # DESCRIPTION
Q
TY . P
A
R
TNO.
1 HUB ASSY 5 103243
2 ICE ANCHOR 4 102457
3
TIE DOWN ROPE 4 102458
4 FIBERGLASS POLE-Front, Rear, & Roof 12 103248
5 FIBERGLASS POLE-Sides 8 103249
6 BUCKLE ASSY WITH STRAP 4 103244
7 CARRY BAG 1 103252
8 FLOOR ASSEMBLY KIT 1 108418
9 INSTRUCTIONS/OWNER’S MANUAL 1 103262
Ice Anchors and ropes included in small carry pouch
1. Unzip the storage bag completely and remove the shelter.
Use care not to misplace the anchor & rope pouch (Photo
1). It is advised to store your anchors, ropes, and pouch
in the storage pocket of your carry bag.
Pa
g
e 2
Photo 1
ASSEMBL YINSTRUCTIONS
BEFORE A TTEMPTING TO USE THIS PRODUCT ON THE ICE practice setting up and taking
down at home in the comfort of a heated area. Repeat several times until comfortable. This will make
your on-ice set-up much easier.
Anchor & rope pouch
Customer service hours:
9am – 4pm, (Central Time)
Monday-Friday.
[email protected]
Replacement parts can be ordered on-line at http://www.clamcorp.com/Resources/Parts.

HUB & BASE CAMP EXPLODED D
R
A
WING
Pa
g
e 3
ASSEMBL YINSTRUCTIONS
4. Once the roof is popped up, go to one of the short (5
foot) side of the shelter. Step on the skirt, feet wide
(Photo 4), grab the top corners on both sides and pull
straight up (Photo 5 & 6). Once the wall is up, grasp the
loop sewn onto the eyelet in the center of the short side wall
and pull outward until the wall pops out (Photo 7).
Repeat this procedure for all the walls, going around the
shelter either clockwise or counter-clockwise (Photo 8).
NOTE: It may take a few practice times to get the set-up
process down. Lifting straight up on the side walls is
critical to set-up of the Expedition. This alleviates
binding of the hubs & poles.
3. Stand on the skirt of the long side of the shelter, grasp
the loop sewn onto the eyelet in the center of the roof with
one hand, and place your other hand on the opposite side at
the roof line. Pull upward on the loop while pushing on the
roof line until the roof section pops up. (Photo 3).
Photo 2
Photo 3
Photo 4 Photo 5 Photo 6
Photo 7
Photo 8
Photo 9
2. Open the shelter so that the gray top is facing
upward. Make sure that the tent is not twisted or
overlapping the ends of any poles (Photo 2) . Do NOT
force the shelter while unfolding.

ASSEMBLY INSTRUCTIONS
Pa
g
e 4
5. Your shelter should be standing up completely (Photo 9) .
Anchor the shelter to the ice by using ice anchors and
ropes (Expedition models). For Expedition FLR
models skip to page 5.
Screw ice anchors into the ice near the corners of the
shelter using Clam’s Ice Anchor Installation Tool PN
108348 (not included). Feed the adjustable strap grommet
onto the ice anchor and cinch the strap tight (Photo 10).
Repeat for each anchor drilled into the ice. In windy
conditions you may need to screw an anchor outside the
shelter several feet away from the hub on the windward
side and attach a rope from the hub eye bolt to the remote
anchor. This will help keep the shelter in place and the
walls from collapsing. If more anchors are needed, order
PN 102457 via www.clamcorp.com/resources/parts.
Photo 10
Ice Anchors in corners. Shelter is
secured to the ice by hooking the
grommet on the strap to the anchor and
cinching the strap tight.

When assembling your Expedition FLR, bolt the female buckles to the base in the positions shown.
Insert the bolt through the bottom of the base, place the grommeted hole from the buckle strap onto the
bolt, add the washer and the nut and tighten with a 7/16” wrench and Phillips screwdriver.
Place female buckles with short straps
Correctly Assembled
Place bolt
through these
holes.
Do not use
these holes.
ASSEMBLY INSTRUCTIONS-FLR MODEL
Page 5

ASSEMBLY INSTRUCTIONS-FLR MODELS
6. For FLR (floor) models, open the plastic base
and place the shelter in the base (Photo 11). All
four corners of the shelter fit inside of the base
(Photo 12).
Attach the four male buckles affixed to the inside
of the tent to the female buckles attached to the
floor and adjust tension (Photo 13).
In windy weather, anchoring one or more side
hubs to ice anchors mounted in the ice several
feet from the shelter may be needed.
Stra
p
s & Buckles
Photo 11
Photo 12
Photo 13
Pa
g
e 6

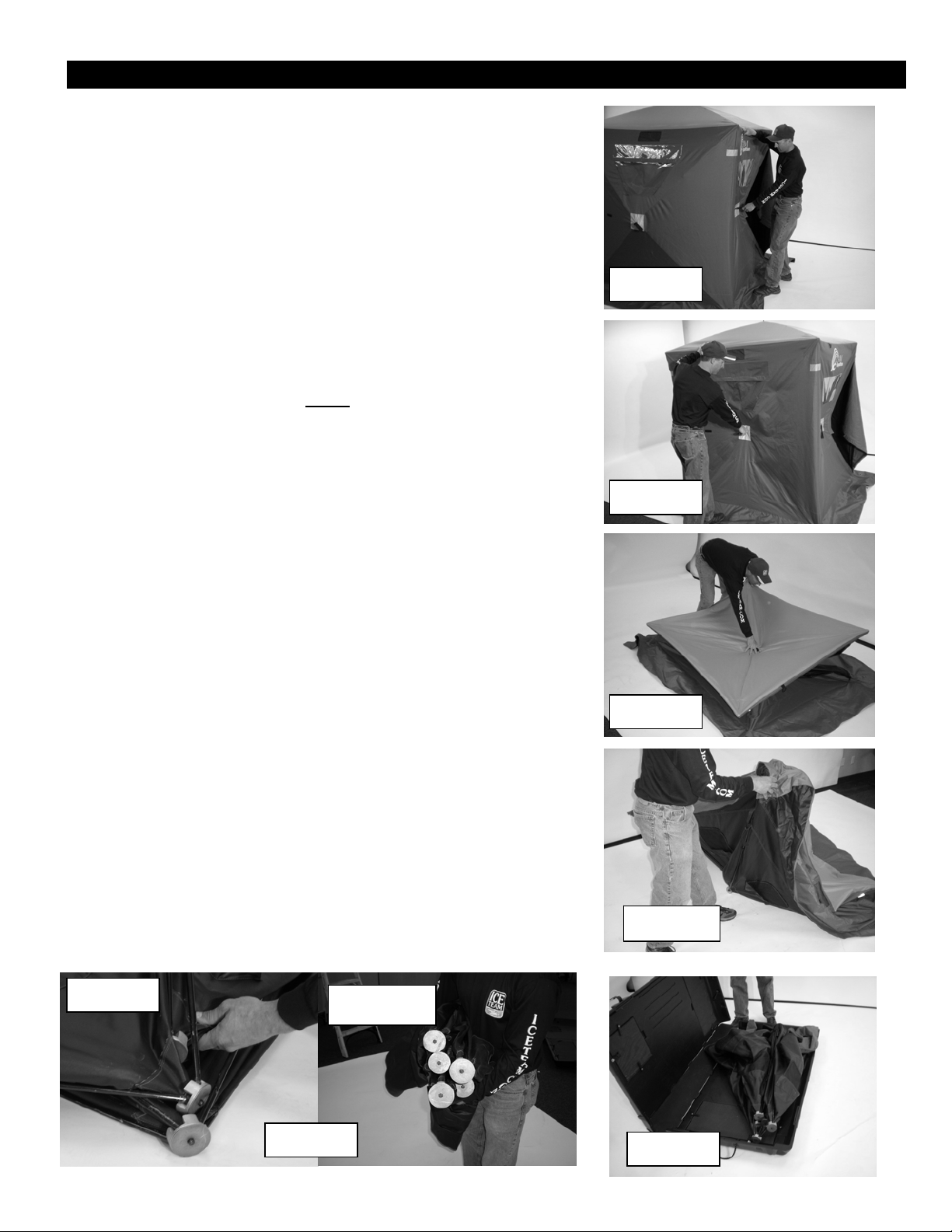

TAKE-DOWN INSTRUCTIONS
1. Close all windows. Leave one or both doors open to allow
air to escape.
2. Remove all ropes and ice anchors and store them in the
provided pouch or in the carry bag side pocket. In windy
conditions, remove ice anchors after collapsing the roof and
walls.
3. Step on the skirt of the short (5 foot) side. Push the center
hub until the wall collapses inward (Photo 14).Continue either
clockwise or counter-clockwise pushing each wall inward until
all the walls are collapsed (Photo 15). The shelter will fall to
the ice on its own.
4. Push the hub of the roof down until it collapses (Photo
16).
NOTE: Make sure the roof collapses all the way. You may
have to pull up on the edge of the roof to get the roof hub to
collapse.
TAKE-DOWN INSTRUCTIONS
5. Unclip the shelter from the base on FLR models. Fold up
the shelter (Photo 17).
6. When folding the Expedition up for storage, inspect the hub
systems and poles for entanglement.
NOTE: The Expedition hub systems may tangle when
taking it down. It is extremely important to untangle the
hub systems and poles before completely folding the tent
up for storage (Photo 18).
7. Once the hub systems and poles are free and the tent is
completely folded, store in carry bag. Place the folded shelter
and the ice anchor/rope pouch into the carrying case with the
hubs toward the bottom end of the bag.
8. For Expedition FLR models, simply place the folded
shelter and the ice anchor/rope pouch inside of the base and
close the base (Photo 19).
Make sure your ice shelter is completely dried out afte
r
each use and before storing. Store your ice shelter in a
cool, dry place. Keep away from rodents.
Pa
g
e 7
Photo 14
Photo 15
Photo 16
Photo 17
Photo 18 Photo 19
Tangled Untangled

Death from asphyxiation may result from use of oxygen depleting heaters. Open all vents fo
r
fresh air ventilation.
Injury or death may result from fire if tent fabric is exposed to open flame.
Tent fabric is not fireproof. Fabric will burn with extended exposure to open flame. Do no
t
use open flame products inside tent. Tent fabric is treated with fire retardant. Application o
f
any foreign substance may render the flame retardant properties ineffective.
Night time: exterior reflectors must be visible to reduce risk of collisions.
This tent is made with flame resistant fabric which meets CPAI-84 specifications.
- Safety Instructions -
Please fully understand and follow all safety instructions as outlined. Failure to do so could result in
severe injury or death.
▪Do not use open flame heaters in your ice shelter. Injury or death may result from fire if tent fabric is
exposed to open flame. The tent is not fireproof, but the fabric is treated with a fire retardant that meets
CPAI-84 specifications. Application of any foreign substance may render the flame retardant properties
ineffective. Ice Armor fabric will melt when contact is made with hot surfaces (i.e., heaters).
▪Death from asphyxiation may result from use of oxygen depleting heaters. Open all vents for fresh air
ventilation.
▪Never leave shelter unattended when set up.
▪Due to the increase in traffic (snowmobiles, autos, etc.) on area lakes, ice fishing can be hazardous at
night. If you choose to fish at night or in poor visibility conditions, be sure to take precautions with
lights or reflectors to show drivers your whereabouts. Night time: exterior reflectors must be visible to
reduce risk of collisions.
*For replacement parts, frequently asked questions, shelter information, and all of your ice fishing needs
visit our web site at www.clamcorp.com.
Pa
g
e 8

9
Q: I can see pin holes in my fabric:
A: There are a few explanations as to why those pin holes exist.
Simply the color and/or black-out coating being worn off the fabric due exposure in the elements and
wear due to friction.
Ice Armor fabric is a woven material and these pin holes are parts of the thread that the coating did not
attach to. Either way this has no effect on the function of the fabric and is simply an appearance issue.
Q: There are cracks on the inside finish of the fabric:
A: This is normal, when you fold up your shelter, lines develop in the fabric. The inside coating may even appear to
be peeling. This is normal and will not affect the overall function of the ice house.
Q: Will my Fish House leak because I can see pin holes in the fabric?
A: Quite the opposite, as you heat your house and the snow and ice begin to melt, the vapors can better escape the
shelter through an uncoated fabric. When it snows or rains, the water molecules are larger than the vapor
molecules and cannot pass through the fabric and into the house.
Q: Are patch kits available for my Fish Trap and Clam shelter?
A: Patch kits are available they can be purchased online www.clamcorp.com under “Resources” “Parts”
Q: How do I apply the patch material?
A: When applying a patch it works best to spray some adhesive (we recommend using 3M #77 or 3M #90 spray
adhesive) on to both surfaces; the part of the tent where the patch is going to be applied and the patch itself. Wait
until the adhesive begins to dry and becomes tacky, then place the patch on the tent, and they will stick together.
Q: Is there anything can be put on outside of the tent to prevent water from coming through, when we are using it?
A: Customers have been known to spray or apply water repellant on the outside of the shelter that you would use for
camping tents or boots. (Camp Dry would be an example of this type of product). These products will not
damage your tent in anyway.
Q: What will help keep mice or rodents from eating my Clam Hub?
A: Some of our customers have had success with the following ways to keep mice out.
Keep your tent in a sealed plastic tote with DRYER SHEETS and or MOTH BALLS
Q: The zipper on my canvas freezes up and or sticks; is there anything I can use to help prevent this from happening?
A: Yes, there are a couple of zipper lubricants out there that our customers and pro staff have had good luck with.
Zipper Lube - A gel that you can apply just by squeezing it onto the zipper and moving the zipper
back and forth. This brand can be found in the camping section of most sporting goods store.
Silicone spray may also be used as well.
Q: Would it be best to completely dry my shelter out every time it gets used?
A: It is recommended to dry your tent out completely after each use, if not dried completely moisture left in the
house may cause damage to your tent.
Q: How do I wash my shelters canvas?
A: You can use a bleach and water solution (10 parts water to 1 part bleach) to get rid of the mildew smell. If you
want to wash the tent you can use a standard soap to wash it.
*** Please note - We do not recommend placing your shelter canvas/tent into a washing machine for cleaning.
Q: Am I able to order parts and accessories from your website?
A: Absolutely, if you would like to order parts you can go to www.clamcorp.com under “Resources” “Parts”
FREQUENTLY ASKED QUESTIONS
Pa
g
e 9

10
FREQUENTLY ASKED QUESTIONS
