Clarion NXS09 Repair manual

Owner's manual & Installation manual
Mode d'emploi et manuel d'installation
Manual de instrucciones y de instalaci6n
NXS09
2-DIN MEMORY NAVIGATION &DVD MULTIMEDIA STATION
WITH 7-inch TOUCH PANEL CONTROL
SYSTEME DE NAVIGATION &STATION MULTIMEDIA
DVD
2DIN AVEC COMMANDE PAR ECRAN TACTILE 7 pouces
SISTEMA DE NAVEGACIONYEaUIPO DVD MULTIMEDIA
2-DIN CON PANEL DE CONTROL
TAcTIL DE 7 pulgadas

CLARION PRODUCT'REGiSTRAiiON INFORMATION!
For USA and Canada only I
www.clarion.com i
Dear Customer: I
Congratulations on your purchase of aClarion mobile electronic product. We are .1
confident that you'll enjoy your Clarion experience. I
There are many benefits to registering your product. We invite you to visit our website at i
www.clarion.com to register your Clarion product. •
We have made product registration simple with our easy to use website.
The registration I
form is short and easy to complete. Once you're registered, we can keep you informed of I
important product information. J
Register at www.clarion.com-it.seasytokeepyourClarionproductup to date~_ .... _. •
INFORMATIONS DE L'ENREGISTREMENT DE PRODUITS CLARION
Pour les Etas Unis et Ie Canada seulement
www.clarion.com
Cher client:
Nous vous remercions d'avoir achete
ce produit electronique mobile Clarion. Nous sommes
confiants que vous apprecierez votre experience Clarion.
II y a beaucoup d'avantage aenregistrer votre produits. Nous vous invitons avisiter notre site
Web
www.clarion.com pour enregistrer votre produit Clarion.
Nous avons facilite
la tache d'enregistrement de produit simple et facile grace anotre site Web.
Le formulaire d'enregistrement est court et facile acompleter. Lorsque vous etes enregistrer,
nous pouvons vous tenir informe des informations important de produits.
Enregistrer a
www.clarion.com -c'est facile de mettre ajour votre produit Clarion.
INFORMACION DEL REGISTRO DE PRODUCTO DE CLARION
Para USA yCanada nomas
www.clarion.com
Querido Cliente:
Felicitaciones por
su compra de producto electronico movil de Clarion. Estamos seguros que
usted gozara de
su experiencia con el producto de Clarion.
Hay muchas ventajas
al registrar su producto. Le invitamos aque visite nuestro sitio en internet
www.clarion.com para registrar su producto de Clarion.
Hemos hecho
el registro de producto facil en nuestro sitio. La forma de registro es corta yfacil
de completar. Una vez que
10 registre, podremos proporcionarle la informacion de su producto.
Registrese
en www.clarion.com - es facil mantener su producto de Clarion actualizado.

Thank you for purchasing the Clarion NX509.
•Please read this owner's manual thoroughly before operating this equipment.
•After reading this manual, be sure to keep it
in ahandy place (e.g., glove compartment).
•Check the contents of the enclosed warranty card and keep it carefully with this manual.
Contents
1. FEATURES 2
Expanding Systems 2
Playable Discs 3
DVD Video Features 3
2. PRECAUTIONS 4
Operation Panel/Generalities 5
Cleaning 5
About the Registered Marks, etc 6
3. CONTROLS 6
Functions of Buttons 6
Outline of Button and Touchkey Operation 8
Remote Control Unit 13
4. BASIC OPERATIONS 14
Turning On and Off the Power 14
Adjusting the Volume 15
Opening the Operation Panel and Adjusting the Angle 15
Turning the Audio OFF 16
Turning the Monitor OFF 17
Displaying the Clock Screen 17
Setting/Ejecting aDisc 17
Connecting/Disconnecting an USB Media Device 18
Selecting aMedia Source 20
2-Zone Function 20
5. SOURCE OPERATIONS 21
Radio Operations 21
DVD Video Operations 23
Audio CD Operations 29
MP3IWMAIAAC Operations 30
DivX Operations 33
6. SOURCE OPERATIONS {ACCESSORIES) 36
Satellite Radio Operations 36
iPod Operations 39
USB Memory Operations 42
Navigation System Operations 43
AUX Operations 44
7. SYSTEM SETTINGS 45
Audio Settings 45
General Settings 47
Adjusting the Monitor 51
8. TROUBLESHOOTING 52
9. ERROR DiSPLAyS 54
10.SPECIFICATIONS 56
INSTALLATION AND WIRE CONNECTION MANUAL ..........•........................................ 57
NX509 1

~NET
~
~
IDDOLBY.
ill]o"~~
IR?3
RADIO
DIGITAL IDtGlTALAUOIO
ID3TAG
READY
VIDEO
I TEXT I
IAACI
@JI~
lusnl
II11E®MP
D.c;.-r.A.L
1. FEATURES
•USB Direct Connection for iPod®
.AII-in-one AV &Navigation unit with Touch Panel control
.Sirf III GPS module with 20-channel receiver
Expanding Systems
Expanding audio features Expanding visual features
Rear
Monitor
Rear Vision
Camera
(CC20111
CAA185)
o - :5 -+ D
~VTRetc.
~~
n;::::::====:::::::;;;;;====:::::;;_.'J1 ~
Sirius Tuner
XM Mini-Tuner
(via Translator Adapter
sold separately)
iPod
Bluetooth® cellular phone
Note:
The items listed outside of the frames are the
commercial products generally sold.
2
NX509

This DVD player can play the following discs:
Note on region numbers of DVD
video discs
The DVD video system assigns aregion number
to DVD players and DVD discs by sales area.
The DVD video region number playable
in this
system
is marked on the disc jacket as shown
below.
This unit provides the following functions
in
addition to the high image quality and sound
quality of DVD video.
Note:
•The functions described in this section differ
depending on the DVD video disc. Refer to the
instructions provided with the DVD video.
•Some disc functions
may operate differently from
described in this manual.
DVD Video Features
Discs that cannot be played back
This player cannot play DVD Audio, DVD-RAM,
Video CDs, Photo CDs, etc.
Note:
• It maynotbe possible to play backdiscs recorded
on some CDIDVD drive units. (Cause: disc
characteristics, cracks, dust/dirt, dust/dirt on
player's lens, etc.)
• If aCD-RIRW, DVD-RIRW, or DVD+RIRWdisc
that has
not been finalized is played, it will take a
long time to startplaying. Also, it may notbe
possible
to play depending on its recording
conditions.
•You cannot
play SuperAudio CDs. Playback of the
CD playeris notsupported even
if it is ahybrid
disc.
Aboutplaying aDVD-R/RW or
DVD+R/RWdisc
This playercan play DVD-R/RWand DVD+R/RW
discs previously recorded
in DVD video format or
format with MP3/WMAlAAC/DivX files.
ffi]Dl~3~
DIGITAL AUDIO
I TEXT I
CD TEXT
DivX
WMA
AAC
\AAC\
RI"~
ID3TAG
MP31D3 TAG
DYD (illDo~~
v IDE 0 DIGITAL AUDIO
DVD video discs Audio CDs
Aboutplaying aCD-R/RWdisc
This player can play CD-R/RW discs previously
recorded
in Audio CD format orformat with MP3/
WMAIAAC/DivX files.
About CD Extra discs
ACD Extra disc is adisc in which atotal of two
sessions have been recorded. Thefirstsession is
Audio session and the second session is Data
session.
Your personally-created CDs with more than
second datasessions recorded cannot be played
on this DVD player.
Note:
•When you
playa CD Extra disc, only the first
session will be recognized.
Fordetailed information, seethe sections entitled
"MP3/WMAlAAC Operations" (page 30) and
"DivX Operations" (page 33).
Playable Discs
In addition, the DVD player can play CD-R/RW,
DVD-R/RW, and DVD+R/RW discs
on which the
following media files have been recorded:
NX509 3

Multi-sound function
DVD video can store up to 8languages for one
film; select the language of your preference.
•The languages stored on the disc are indicated
by the icon shown below.
0))
Multi-angle function
ADVD video that is filmed from multiple angles
allows you to select the angle of choice.
•The number of recorded angles
is indicated by
the icon shown below.
Subpicture (subtitles) function
ADVD video can record subtitles for up to 32
languages and you can select the language of
the subtitles you wish to see.
•The number of recorded subtitle languages is
indicated by the icon shown below.
Multi-story function
When aDVD video contains more than one story
for afilm, you can select the story you wish to
enjoy. The operation procedures vary with the
disc; observe the instructions for selecting astory
provided during playback.
DVDmenu
DVD Menus can be called up during DVD video
playback to perform menu setting.
•Example showing DVD menu
4 NX509
2. PRECAUTIONS
AWARNING
For your safety,the driver should not watch
the DVD video/movie data
or operate the
controls while driving. Please note that
watching and operating the DVD video/
movie data while driving are prohibited by
law in some countries. Also, while driving,
keep the volume to alevel at which external
sounds can be heard.
1. When the inside ofthe car is very cold and the
player is used soon after switching on the
heater, moisture may form on the disc (DVDI
CD) or the optical parts of the player and
proper playback may not be possible. If
moisture forms on the disc (DVO/CD), wipe it
off with asoft cloth. If moisture forms on the
optical parts of the player, do not use the
player for about one hour. The condensation
will disappear naturally allowing normal
operation.
2. Driving on extremely bumpy roads which
cause severe vibration may cause the sound
to skip.
3. This unit uses aprecision mechanism. Even
in the event that trouble arises, never open
the case, disassemble the unit, or lubricate
the rotating parts.
4. This equipment has been tested and found to
comply with the limits for aClass Bdigital
device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide
reasonable protection against harmful
interference
in aresidential installation. This
equipment generates, uses, and can radiate
radio frequency energy and, if not installed
and used
in accordance with the instructions,
may cause harmful interference to radio
communications. However, there
is no
guarantee that interference will not occur
in a
particular installation. If this equipment does
cause harmful interference to radio or
television reception, which can be determined
by turning the equipment off and on, the user
is encouraged to consult the dealer or an
experienced radio/TV technician for help.

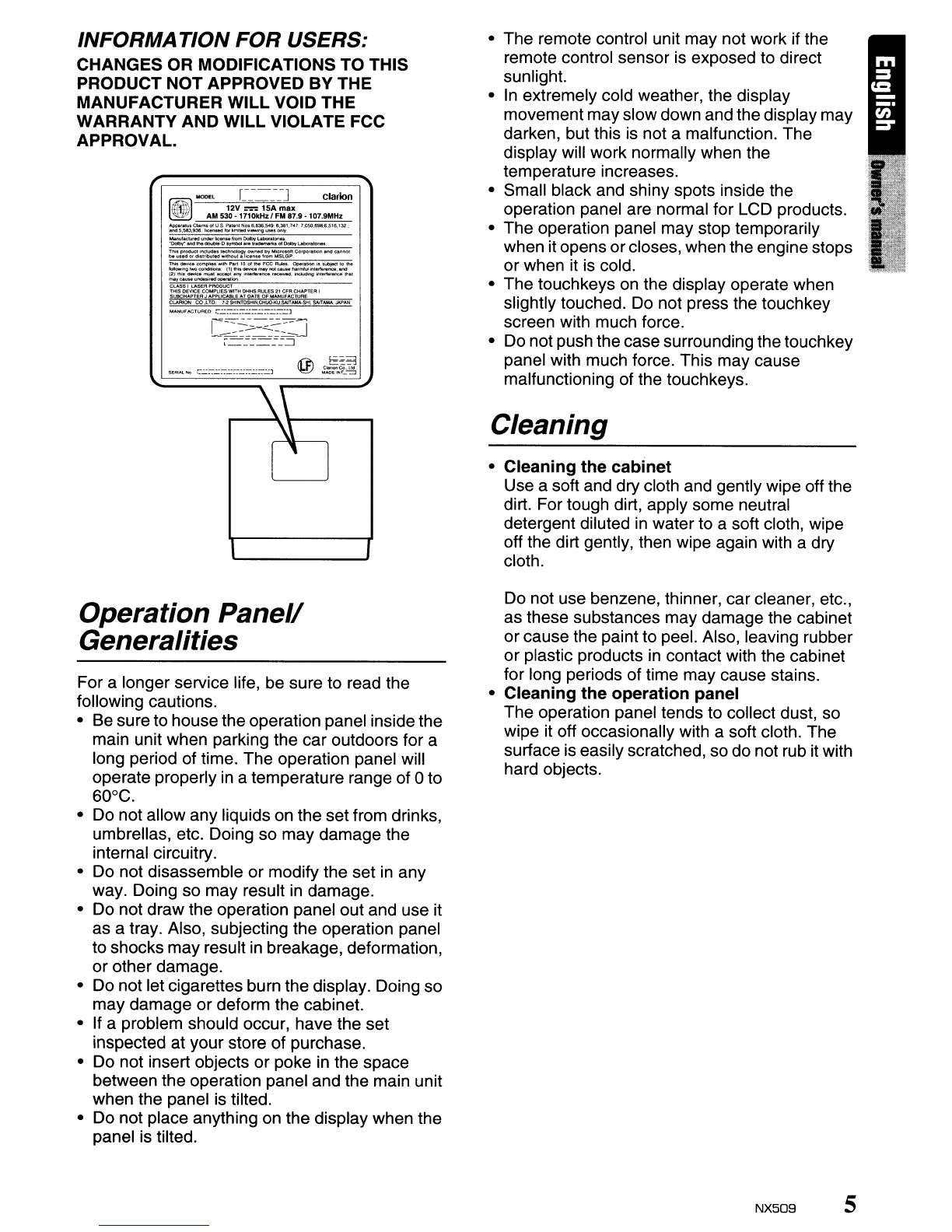

INFORMATION FOR USERS:
CHANGES OR MODIFICATIONS TO THIS
PRODUCT NOT APPROVED
BY THE
MANUFACTURER
WILL VOID THE
WARRANTY AND WILL VIOLATE FCC
APPROVAL.
"00'" rJclarion
~ 12V 15A max
~ AM 530 -1110kHz IFM 87.9 -107.9MHz
"Ppa' .. os Claims of us PtlWilNos.6.836.5411;6.381,747;7.0S0.698:6.516.t32:
8""5,583,936. licflnSOod lo<~mitfl<l"'-ingUSfl.Otl""_
MoonuraC1u'WU"""flic_ •• romD<llbyl.aborato~ ...
"DoIt1('andtl>8OOub1.-0SymlXlI ... lJadolmfIrlwolDolbylabofa\c, ...
TI\I.p.olluC1;nclu<l"IIH:~nology.,....nedbyM'c<o.oflCo,po"""'n anclcannot
beu"dOllli'lrib",.aw~ho,,'.lic.n .. ""'" lolSlOP
This __ ~ ... II> Pa<l 15 of the FCC Fl ap",-al"'" " subjOCllo ltla
"-~ng .... ~C<lnd,,"""': llllhi.~mo.y flO1COlU harrnfuljnterlWr...ca.aod
(')lhl.~m"'"'accept.nyinl.rt."''''''''''''''iYed,inclu,;;n{lin1.'''''ltnCfIth.1
rnaycauM~~ion
ClASS ILASERPROOUCT
THIS DEVICE COMPLIES WITH OHHS RULES 21 CFR CHAPTER I
SUSC......PTER JAPPLICABLE AT DATE OF I.!>\NUFACTURE
CLARION CO .• LTD. 7·2 SHINTOSHIN,CHIJO.I(U,SAlTAMA·SH.SA,lT"-'M,J",PAN
MANU'ACTUREO· C.:.: __ ~ __ ..:: __ .:.: __ .:.: __ .:.:]
I
Operation Panel/
Generalities
For alonger service life, be sure to read the
following cautions.
•Be sure to housethe operation panel inside the
main unit when parking the car outdoors for a
long period of time. The operation panel will
operate properly in atemperature range of 0to
60°C.
•Do not allow any liquids on the set from drinks,
umbrellas, etc. Doing so may damage the
internal circuitry.
•Do not disassemble or modify the set
in any
way. Doing so may result
in damage.
•Do not draw the operation panel out and use it
as atray. Also, subjecting the operation panel
to shocks may result in breakage, deformation,
or other damage.
•Do not let cigarettes burn the display. Doing so
may damage or deform the cabinet.
•If aproblem should occur, have the set
inspected at your store of purchase.
•Do not insert objects or poke in the space
between the operation panel and the main unit
when the panel is tilted.
•Do not place anything on the display when the
panel is tilted.
•The remote control unit may not work if the
remote control sensor is exposed to direct
sunlight.
•
In extremely cold weather, the display
movementmayslow down and the display may
darken, but this is not amalfunction. The
display will work normally when the
temperature increases.
•Small black and shiny spots inside the
operation panel are normal for LCD products.
•The operation panel may stop temporarily
when it opensorcloses, when the engine stops
or when it is cold.
•The touchkeys on the display operate when
slightly touched. Do not press the touchkey
screen with much force.
•Do notpush the case surrounding the touchkey
panel with much force. This may cause
malfunctioning of the touchkeys.
Cleaning
•Cleaning the cabinet
Use asoft and dry cloth and gently wipe off the
dirt. For tough dirt, apply some neutral
detergent diluted
in water to asoft cloth, wipe
off the dirt gently, then wipe again with adry
cloth.
Do not use benzene, thinner, car cleaner, etc.,
as these substances may damage the cabinet
orcause the paint to peel. Also, leaving rubber
or plastic products in contact with the cabinet
for long periods of time may cause stains.
•Cleaning the operation panel
The operation panel tends to collect dust, so
wipe it off occasionally with asoft cloth. The
surface
is easily scratched, so do not rub it with
hard objects.
NX509 5

•With the operation panel open
Functions of Buttons
[VOL +]
[S C]
elation u
...
~Jb-~~+~~
sensor j Jl- 1
[VOL -] Blink LEDI
RReset
button
SD memory ---i:;-;'--+-,
card slot
3. CONTROLS
Note:
•Be sure to read this section while referring to the
front diagram.
Sensor
•Receiver for the remote control unit (operating
range: 30°
in all directions).
[VOL -], [VOL +] buttons
•Use these buttons to increase/decrease the
volume.
•Operation Panel
About the Registered
Marks, etc.
•This product incorporates copyright protection
technology that is protected by U.S. patents
and other intellectual property rights. Use of
this copyright protection technology must be
authorized by Macrovision, and
is intended for
home and other limited viewing uses only
unless otherwise authorized by Macrovision.
Reverse engineering or disassembly is
prohibited.
•Manufactured under license from Dolby
Laboratories.
"Dolby" and the double-D symbol are
trademarks of Dolby Laboratories.
•Windows Media
TM, and the Windows@ logo are
trademarks, or registered trademarks of
Microsoft Corporation
in the United States and/
or other countries.
•"DivX", "DivX Certified", and associated logos
are trademarks of DivX, Inc., and are used
under license.
•©2008 SIRIUS XM Radio Inc. "SIRIUS", "The
Best Radio on Radio", the SIRIUS logos,
channel names and logos and related marks
are trademarks of SIRIUS XM Radio Inc. All
othertrademarks, service marks, and logos are
the property of their respective owners. All
rights reserved.
•"Made for iPod" means that
an electronic
accessory has been designed to connect
specifically to iPod and has been certified by
the developer to meet Apple performance
standards.
Apple is not responsible for the operation of
this device or its compliance with safety and
regulatory standards.
iPod is atrademark of Apple Inc., registered
in
the U.S. and other countries.
•BBE MP (Minimized Polynomial Non-Linear
Saturation) Process improves digitally
compressed sound, such as MP3, by restoring
and enhancing the harmonics lost through
compression. BBE MP works by regenerating
harmonicsfrom the source material, effectively
recovering warmth, details and nuance.
•Manufactured under license from BBE Sound,
Inc.
•Licensed by BBE Sound, Inc. under one or
more of the following US patents: 5510752,
5736897. BBE and BBE symbol are registered
trademarks of BBE Sound, Inc.
6 NX509

[SRC] button
•Press this button to display/hide the Source
screen to switch the source mode.
Blink LED
•When the Blink LEO function is set to "On" from
the System tab menu on the General screen,
blinks when the ACC power is turned off.
SO memory card slot
• SO memory card function is available in the
Navi mode. For more information about the
SO
memory card function, see your User Manual
(for the Navi mode).
Note:
•When youinsertthe SO memory card storedmusic
files, they cannot
be read in this unit.
NX509 7

Outline of Button and Touchkey Operation
Turning the power on
Clallon
""'"
01
..
~
-+ HD
JL
i_,
SRC
•
•
•
8
System check
The CeNETformat utilized on this unit is provided
with asystem check function. When the system
check function is performed under the following
conditions, the power is automatically turned off.
Once turn off the engine switch, then restart the
engine again.
•When power is first turned
on after initial
installation.
•When an external device
is connected or
disconnected.
•When Reset button is pressed.
* In addition to the above conditions, the system
check function
can be performed from the System
tab menu
on the General screen.
Note:
*1 These images indicate the buttons to press or
keys to touch.
NX509
You can change the media sources.

Tuner mode operation
(Source screen)
•Select desired station after
selecting radio band.
Preset ch.
NX509 9
=
IS
=
CD
..
fA~
3
ClJ
=
c:
e!.

(DVD Video mode screen) *2
DVD Video mode operation
(Setup screen)
(Options screen)
Top Menu
(Source screen) ,..........-~..,J
*Screen during DVD Video mode
when automobile moving.
(DVD top menu) *2
Note:
*2 If you do not touch the screen for about 7seconds, all the keys on the screen
will disappear. Touch the screen surface to redisplay them.
10
NX509

Adjusting the General settings
(Source or Mode screen)
(Settings screen)
(System tab screen)
NX509
11

Adjusting the Audio settings
(Source or Mode screen)
(Settings screen)
(Beat EQ tab screen)
~.J"O~>
io'~
-/11
Audio
Back
-..
Il<.t EO llAl/fAD
0tl1 ....
..
~
:x:
8E01 BED3
Custom Off
Tr .. ~
, .......
Bass Boost
~+-
..
T~'
!
11 :00
ElK<
(Others tab screen)
(BAUFAD tab screen)
~''''1~>
0
-/11
Audio
Back
R~ ..
Beat EO IlAl/fAD
Others
..
:x:
Balance
~
•
Tfac~
fI."ot"",
Fader
••
..
I"",
!
11 00
E""
12
NX509

Remote Control Unit
oNames of buttons
Signal transmitter
Operating range: 30°
in all directions
I
[AUDIO)-H-
[TOP MENUj--l-+-
11---+-1:--[.), [T], [ ..... ], [~)
i---+-!f---- [RETURN)
~~++--[-), [+)
'-------'---+-if---- [ .... ], [~]
clarion
o Inserting the Battery
1. Slide the rear cover in the direction of the
arrow, and remove it.
2. Insert the CR2025 battery bundled with the
remote control unit
in the directions shown in
the figure, then close the rear cover.
Note:
Using battery improperly can cause it to explode.
Take note
of the following points:
•Do
not short-circuit, disassemble or heatbattery.
•Do
not dispose of battery into fire or flames.
•Dispose
of spent batteryproperly.
Rear cover
o Functions of Remote Control
Unit Buttons
You can usethe remote control unit to control the
NX509. When the 2-Zone function
is ON, the
controls work upon the Sub zone only.
Note:
•The steering wheelremote controloperations work
upon the Main zone even when the 2-Zone
function is
ON.
[AUDIO] button
•Press to set the Audio language. (in DVD Video
and DivX modes)
[SUBTITLE] button
•Press to display subtitles. (in DVD Video and
DivX modes)
[ANGLE] button •
•Press to switch among the angles when DVD
video discs recorded in multiple angles are
played back.
[TOP MENU] button
•Press to display the DVD top menu stored on
the DVD video disc. Some discs are not
displayed the DVD top menu. (in DVD Video
mode)
[MENU] button
•Press to display the DVD menu stored on the
DVD video disc. (in DVD Video mode)
[ENT] button
•Press to fix the selected menu item on the DVD
menu. (in DVD Video mode)
[A], ['], [ ..... ], [~] buttons
•Press to select desired menu item displayed on
the DVD menu. (in DVD Video mode)
NX509 13

~ EngineON
~ position
Note:
•Be sure to readthis chapterreferring to the chapter
"3. CONTROLS"(page 6).
4. BASIC
OPERATIONS
. ···1
~ .. ····A~AUTIQN: .
The unit automatically memorizes its last
operation mode and will automatically switch
to display that mode.
2. To turn off the power, turn off the engine
switch.
.About the CT (Clock Time) display
•The displayed clock data is based on the CT
(clock time) data
in the Navigation system.
•When the CT data cannot be received,
"_-:-_"
appears in the display.
Turning On and Off the
Power
When the unit is turned on, starting and
stopping the engine with its volume raised to
the maximum level may harm your hearings.
Be careful about adjusting the volume.
Note:
•Start the engine before using this unit.
•Be carefulabout using this unit for along time
without running the engine. Ifyou drain the car's
battery too
far, you may notbe able to start the
engine
and this can reduce the service life of the
battery.
1. Start the engine. The power is supplied to this
unit.
[SOURCE] button
•Press to switch the source modes such as
Tuner mode, DVD mode, etc. (in any mode)
*Only DVD, USB, and AUX modes are selectable
when 2-Zone
ON.
•Keep pressing more than 1second to turn the
2-Zone function ON/OFF. (in any mode)
[RETURN] button
•Press to return to the previous screen while the
DVD menu is being displayed. However, it may
occur that this button operation dose not work
on some discs. (in DVD Video mode)
[BAND] button
•Switches reception bands. (in Tuner, Sirius,
and XM modes; disabled when 2-Zone ON)
•Keep pressing more than 1second to switch
the HomelTravel modes. (in Tuner mode;
disabled when 2-Zone ON)
•Press to select the next higher folder. (in MP3/
WMAJAAC/DivX and USB memory modes)
[VOL -], [VOL +] buttons
•Decreases or increases the volume. (in any
mode; disabled when 2-Zone ON)
[~ II] button
•Press to play or pause video and audio media.
(in DVD and USB modes; disabled
in USB
mode when 2-Zone ON)
•Keep pressing more than 1second to stop
video playback. (in DVD Video mode)
[ ..... ], [~] buttons
•Press to select the next lower or higher preset
station. (in Tuner, Sirius, and XM modes;
disabled when 2-Zone ON)
•Press to select the next lower or higherchapter
number. (in DVD Video mode)
•Press to select the next lower or higher track.
(in CODA, MP3IWMAJAAC/DivX, and USB
modes)
•Keep pressing to perform fast backward or fast
forward playback. (in DVD and USB modes)
14 NX509

Adjusting the Volume
1. Press the [VOL -]l[VOL +] buttons to adjust
the volume.
[VOL -]: Decreases the volume.
[VOL +]: Increases the volume.
•The volume level indicated
in the display is
in arange from 0(min.) to 33 (max.).
1':,,·"·i: .. ·;.: ....• ·.4¢AlrlTIQN~;,'··:;;t"·;;,.:,·;l
While driving, keep the volume level at which
external sounds can be heard.
Opening the Operation
Panel
and Adjusting the
Angle
The operation panel can be opened/closed to
insert/eject adisc. The angle of the operation
panel can be adjusted depending on the
mounting angle ofthe unit or light coming into the
car. AWARNING
• To prevent the battery from going dead,
operate this unit with the engine running
if possible.
• When the operation panel is operating, be
careful not to get your hand or finger
caught between the panel and main unit
or the instrument panel of the car.
• Do not move the operation panel by hand.
Opening/closeing the operation
panel
1. Touch the [~ (Eject)] key to display the
following Eject screen:
2. Touch the [Open/Close] key.
The operation panel will
be opened.
3. Touch the [Open/Close] key when the
operation panel
is open.
The operation panel will
be closed.
•The operation panel will close automatically
when leaving it open for awhile.
4. Touch the [Back] key to return to the previous
screen.
NX509 15

Adjusting the angle of the operation
panel
The angle of the operation panel can be adjusted
in the range of 0° to 30°
1. Touch the [~ (Eject)] key to display the Eject
screen.
2. Repeat touching the [Tilt] key to adjust the
angle of the operation panel. Every touching
the [Tilt] key tilts the operation panel forward
or backward.
The adjusted angle is stored
in memory.
Once you adjust the angle of the operation
panel, the operation panel will return to the
adjusted angle even after it is opened/closed.
3. When the adjustment is finished, touch the
[Back] key to return to the previous screen.
Returning the operation panel to the
original angle
1. Touch and hold the [Tilt] key.
The operation panel will move and stop at 30°.
2. Touch and hold the [Tilt] key again.
The operation panel will move and stop at
0° .
•
16 NX509
Turning the Audio OFF
You can turn off all of the AV features.
1. Press the [SRC] button to display the Source
screen.
2. Touch the [Audio Off] key.
The AV features are turned off.
Turning the AV features on
1. Press the [SRC] button to display the Source
screen.
2. Touch the desired Source key.
The AV features are turned on, and the
system enters into the specified mode.

Turning the Monitor OFF
You can turn off the monitor screen, and change
it to ablack screen.
1. Touch the [SET] key to display the Settings
screen.
2. Touch the [Monitor Off] key.
The monitor screen is turned off.
Turning the monitor on
1. Touch the monitor screen.
The monitorscreen is turned on, and resumes
the last screen.
•You can also turn on the monitor by
pressing the [SRC] button.
Displaying the Clock
Screen
You can change the screen to display only the
digital clock on ablack screen.
1. Touch the clock display on most screens.
The Clock screen is displayed.
2. To return to the current mode screen, touch
the monitor screen.
•Pressing the [SRC] button displays the
Source screen.
Setting/Ejecting aDisc
oNotes on handling discs
Handling
•New discs may have some roughness around
the edges. If such discs are used, the player
may not work or the sound may skip. Use a
ball-point pen or the like to remove any
roughness from the edge of the disc.
Ball-point pen
~
~K~
=
•Never stick labels on the surface of the disc or
mark the surface with apencil or pen.
•Never
playa disc with any cellophane tape or
other glue on it or with peeling off marks. If you
try to play such adisc, you may not be able to
get it back out of the DVD player or it may
damage the DVD player.
•Do not use discsthat have large scratches, are
misshapen, cracked, etc. Use of such discs
may cause misoperation or damage.
•To remove adisc from its storage case, press
down
on the center of the case and lift the disc
out, holding it carefully by the edges.
•Do not use commercially available disc
protection sheets or discs equipped with
stabilizers, etc. These may damage the disc or
cause breakdown of the internal mechanism.
Storage
•Do not expose discs to direct sunlight or any
heat source.
•Do not expose discs to excess humidity or
dust.
•Do not expose discs to direct heat from
heaters.
Cleaning
•To remove fingermarks and dust, use asoft
cloth and wipe
in astraight line from the center
of the disc to the circumference.
•Do not use any solvents, such as commercially
available cleaners, anti-static spray, or thinner
to clean discs.
•After using special disc cleaner, let the disc dry
off well before playing
it.
On Discs
•Exercise agood precaution when loading a
disc with the panel open.
•Never turn off the power and remove the unit
from the car with adisc loaded.
•Do not use lens cleaning discs. These may
damage the lens of this unit.
•When there seemsto be something wrong with
reading discs, please consult yourdealer or
an
authorized Clarion service center.
NX509 17

o Setting a disc
1. Touch the [~ (Eject)) key to display the Eject
screen.
2. Touch the [Open/Close] key.
The operation panel will
be opened.
3. Insert adisc into the center of the insertion
slot with the label side facing up.
The disc will automatically be drawn into the
DVD player.
After setting a disc
The system will automatically be switched to the
relevant source media mode according to the
disc, and start playing back the disc.
When aDVD
video disc is set:
The system
is switched to the OVO Video mode.
See "OVO Video Operations" (page 23).
When an
Audio CD is set:
The system
is switched to the CODA mode. See
"Audio
CO Operations" (page 29).
When aCD/DVD with MP3IWMAlAAC/DivX
files is set:
The system is switched to the MP3IWMAJAAC
mode or OivX mode according to the Playform
setting. See "MP3IWMAJAAC Operations"
(page 30) or "DivX Operations" (page 33).
Note:
• Never insert foreign objects into the disc insertion
slot.
•
If the disc is not inserted easily, there may be
another disc in the mechanism or the unit may
require service.
• 8 cm (single play) discs cannot be used.
For your safety, the driver should not insert
or eject a disc while driving.
oEjecting a disc
1. Touch the [~ (Eject)] key to display the Eject
screen.
2. Touch the [Eject] key to eject the disc.
The operation panel will be opened and the
disc will be ejected.
•
If adisc is left in the ejected position for 15
seconds, the disc
is automatically reloaded
(Auto reload).
3. Remove the disc carefully.
4. Touch the [Open/Close] key to close the
operation panel.
•The operation panel will close automatically
when leaving it open for awhile.
5. Touch the [Back] key.
Note:
• If you force adiscinto the insertion slot beforeauto
reloading, this can damage the disc.
18 NX509
ConnecungfDisconnecung
an USB Media Device
This unit has one USB (Universal Serial Bus)
connector which
is compatible with USB 1.1 and
USB 2.0.
oPlayable USB media devices
This system can control the following USB media
devices connected to the USB connector.
•Apple iPod
•USB memory
About the Apple iPod
iPods can be connected by using the connector
cable supplied with the iPod you use, but
in this
case, you can enjoy its audio sound only. To
enjoy video movies stored
in the iPod with video
displaying them on this unit, it
is required to use
the special connector cable separately sold.
Note:
•This system will not operate or may operate
improperly with unsupported versions.
•
For detailed information on the playable iPod
models, see our home page: www.clarion.com
•
For the other limitations, see "iPod Operations"
(page 39).
About the USB memory
This system can play audio files (MP3IWMAI
AAC) stored
in an USB memory which is
recognized as "USB Mass Storage Class
device". You can use your USB memory as an
audio device by simply copying desired audio
files into it.
Note:
•This system will not operate or may operate
improperly with some USB memory.
•Files
protected with any DRM can not be played.
•
For the other limitations, see "USB Memory
Operations" (page 42).
