2.4 GHz Cordless Telephone
Featuring Clarity® Power™ Technology
C4105™ User Guide

TABLE OF CONTENTS
Important Safety Instructions ............................................4
Features ..................................................................................7
Choosing a Location ............................................................9
Telephone Installation ........................................................10
Handset Battery .................................................................12
Telephone Handset Features ...........................................13
Telephone Base Features ..................................................14
Using Your Telephone .........................................................17
Memory Storage .................................................................19
Maintenance and Care ......................................................20
Troubleshooting ..................................................................20
Regulatory Compliance ....................................................22
Warranty and Service ........................................................26

45
IMPORTANT SAFETY INSTRUCTIONS IMPORTANT SAFETY INSTRUCTIONS
SAVE THESE INSTRUCTIONS
SAVE THESE INSTRUCTIONS
When using your telephone equipment, basic safety precautions should always
be followed to reduce the risk of fire, electric shock and injury to persons
including the following:
1. Read and understand all instructions.
2. Follow all warnings and instructions marked on the telephone.
3. Do not use this telephone near a bath tub, wash basin, kitchen sink or
laundry tub, in a wet basement, near a swimming pool or any
where else there is water.
4. Avoid using a telephone (other than a cordless type) during a storm.
There may be a remote risk of electrical shock from lightning.
5. Do not use the telephone to report a gas leak in the vicinity of the leak.
6. Unplug this telephone from the wall outlets before cleaning. Do not use
liquid cleaners or aerosol cleaners on the telephone. Use a damp cloth
for cleaning.
7. Place this telephone on a stable surface. Serious damage and/or
injury may result if the telephone falls.
8. Do not cover the slots and openings on this telephone. This telephone
should never be placed near or over a radiator or heat register. This
telephone should not be placed in a built-in installation unless proper
ventilation is provided.
9. Operate this telephone using the electrical voltage as stated on the base
unit or in the owner’s manual. If you are not sure of the voltage in your
home, consult your dealer or local power company.
10. Do not place anything on the power cord. Install the telephone where
no one will step or trip on the cord.
11. Do not overload wall outlets or extension cords as this can increase the
risk of fire or electrical shock.
12. Never push any objects through the slots in the telephone. They can touch
dangerous voltage points or short out parts that could result in a risk of
fire or electrical shock. Never spill liquid of any kind on the telephone.
13. To reduce the risk of electrical shock, do not take this phone apart. Open-
ing or removing covers may expose you to dangerous voltages or other
risks. Incorrect reassembly can cause electric shock when the appliance is
subsequently used.
14. Unplug this product from the wall outlet and refer servicing to the manu-
facturer under the following conditions:
A. When the power supply cord or plug is frayed or damaged.
B. If liquid has been spilled into the product.
C. If the telephone has been exposed to rain or water.
D. If the telephone does not operate normally by following the operating
instructions. Adjust only those controls that are covered by the operating
instructions. Improper adjustment may require extensive work by a quali-
fied technician to restore the telephone to normal operation.
E. If the telephone has been dropped or the case has been damaged.
F. If the telephone exhibits a distinct change in performance.
15. Never install telephone wiring during a lightning storm.
16. Never install telephone jacks in wet locations unless the jack is specifically
designed for wet locations.
17. Never touch uninsulated telephone wires or terminals unless the tele-
phone line has been disconnected at the network interface.
18. Use caution when installing or modifying telephone lines.
19. Use only the power cord and batteries indicated in the manual. Do not
dispose of batteries in a fire. They may explode. Check with local codes for
possible special disposal instructions.
20. Plug the AC adaptor into the outlet that is nearest and most accessible to
the telephone.

67
IMPORTANT SAFETY INSTRUCTIONS
SAVE THESE INSTRUCTIONS
SAFETY INSTRUCTIONS FOR BATTERIES
Caution: Risk of explosion if battery is replaced by an incorrect type. Dispose
of used batteries according to the instructions.
1. Use only the approved battery pack in the handset of your cordless phone.
For Handset Unit: 3.6V 600mAHr NiMH Rechargeable Battery
Sanik Battery Co. Ltd.: 3SNAAA60HSJ1
GPI International Ltd.: GP60AAAH3BMJZ
For Base Unit:
Four (4) AA alkaline batteries
2. Do not dispose of the battery in a fire as it may explode. Check with local
codes for possible special disposal instructions.
3. Do not open or mutilate the battery. Released electrolyte is corrosive and
may cause damage to the eyes and skin. It may be toxic if swallowed.
4. Exercise care in handling batteries in order not to short the battery with
conducting materials such as rings, bracelets and keys. The battery or con-
duction material may overheat and cause burns.
5. Charge the battery (ies) provided with or identified for use with this
product only in accordance with the instructions and limittions specified in
this manual.
6. Observe proper polarity orientation between the battery pack and the
battery charger.
SAVE THESE INSTRUCTIONS
2
34
1
5
FEATURES
7
6

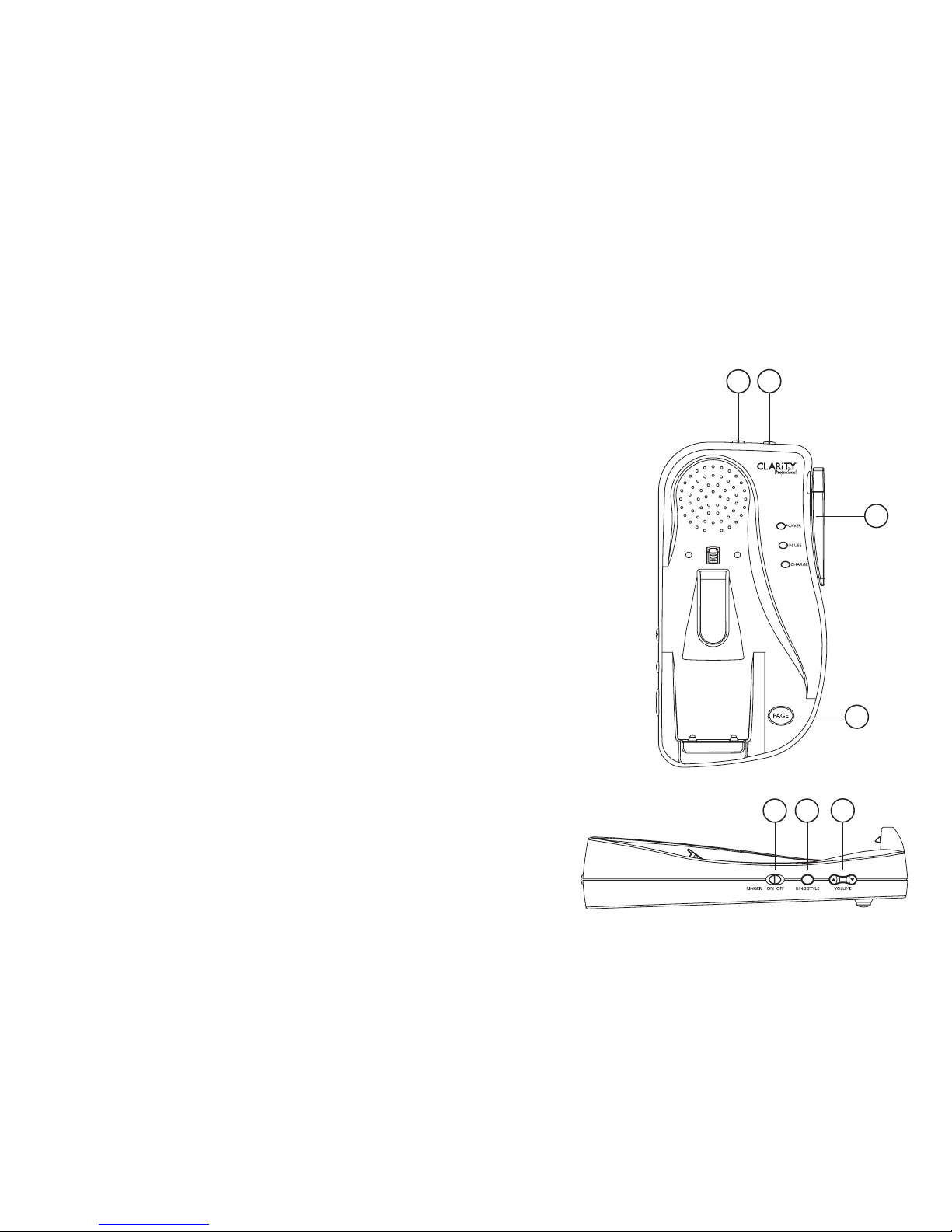

Telephone Base
1. Handset Page
2. Ringer Volume
3. Ringer Style
4. Ringer On/Off
5. Antenna/Visual Ringer
6. Boost On/Off
7. Pulse/Tone

89
CHOOSING A LOCATION
1. This phone requires a modular phone jack (RJ11C) and a standard 120V
AC wall outlet.
2. Plug the AC Adapter directly into outlet.
3. Do not plug other appliances into the same outlet or have outlet con-
trolled by a wall switch.
4. Choose a location that is out of the way of normal activities.
CAUTION: USE ONLY WITH CLASS 2 POWER SOURCE
9V DC, 400MA.
Always connect the AC Adapter to the phone before you connect it to the AC
power. When you finish, disconnect the AC power before you disconnect it
from the phone.
CONNECTING YOUR TELEPHONE
Carefully remove your cordless telephone from its box. If there is any visible
damage, do not attempt to operate this equipment. Return it to the place
of purchase. Check to be sure that you have all items that come with your
telephone. You should have a HANDSET, BASE UNIT, BATTERY, AC ADAPTER,
TELEPHONE LINE CORD, BELT CLIP and OWNERS MANUAL.
If at any time you have questions about your telephone please contact our
Customer Service Department at: 1-800-552-3368 or 423-622-7793.
FEATURES
10
1
2
3
5
6
7
8
9
11
12
13
14
4
15
16

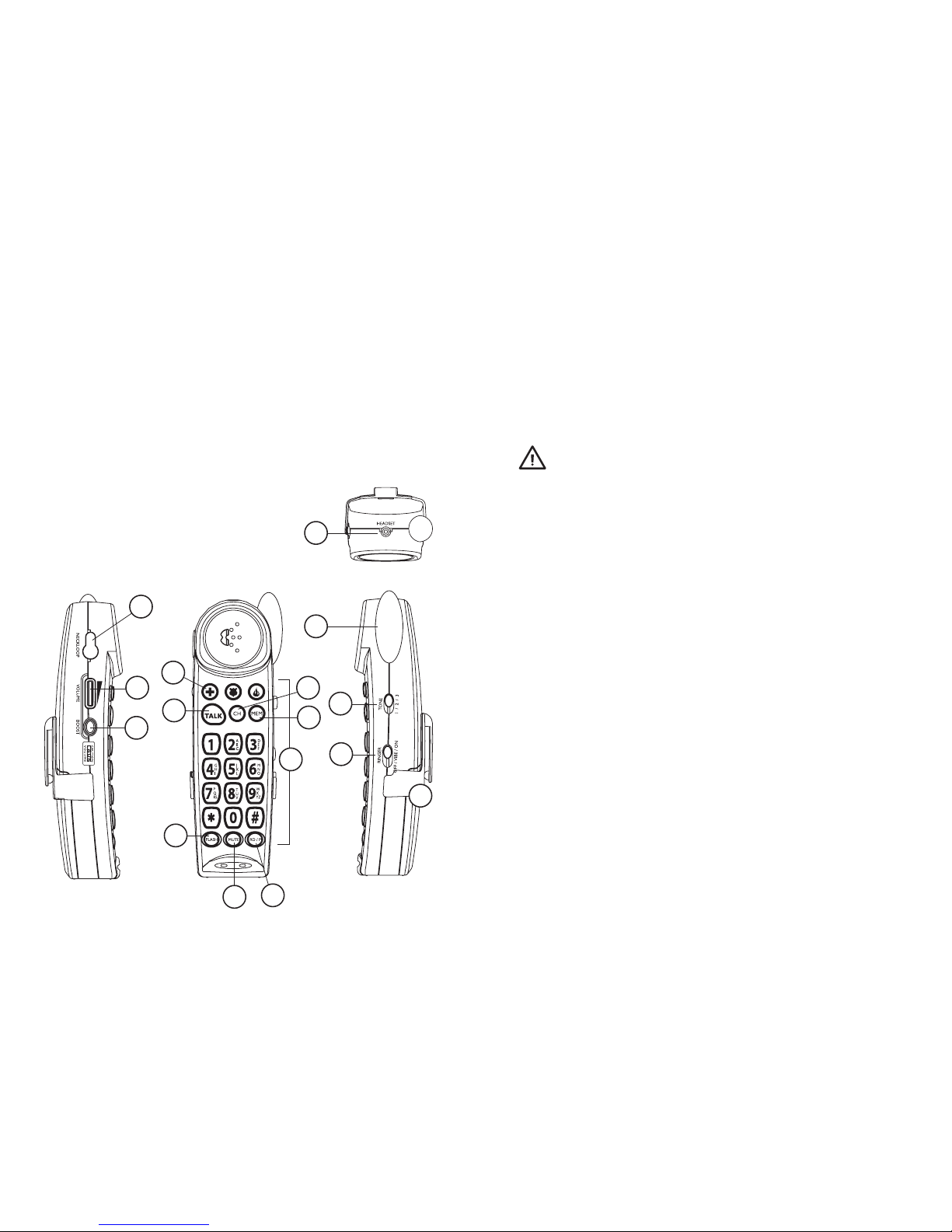

Handset
1. Neckloop Jack
2. Handset Volume
3. Boost
4. Dial Pad
5. Emergency Buttons
6. Talk
7. Channel
8. Memory
9. Flash
10. Mute
11. Redial/Pause
12. Handset Ringer Off/Vibe/On
13. Handset Tone
14. Belt Clip
15. Headset Jack
16. Antenna/Visual Ringer

10 11
TABLE/DESK TOP INSTALLATION
CAUTION: Disconnect the telephone line cord
before connecting or disconnecting the battery
backup in the wall mount bracket.
1. Plug one end of the supplied modular telephone
line cord into the jack marked TEL located on
the back of the telephone base as shown in
the diagram.
2. Plug the modular telephone line cord’s other
end into a modular phone jack.
3. Insert the supplied AC Adapter’s plug into the
jack marked 9V DC 400mA located on the
back of the telephone base.
4. Plug the adapter into a standard 120V AC
power (electrical) outlet.
5. Align the mounting bracket on the back of the
base so that the black rubber feet are towards
the bottom of the phone. Insert the bracket’s
tabs into the slots and secure the bracket by
sliding it upward.
6. Lift the base’s antenna to a vertical position.
7. Set the TONE/PULSE switch located on the
back of the base to correct dialing mode.
Please check with your local Phone Company
if uncertain of the type of service.
8. Place handset in the cradle to begin
initial charging.

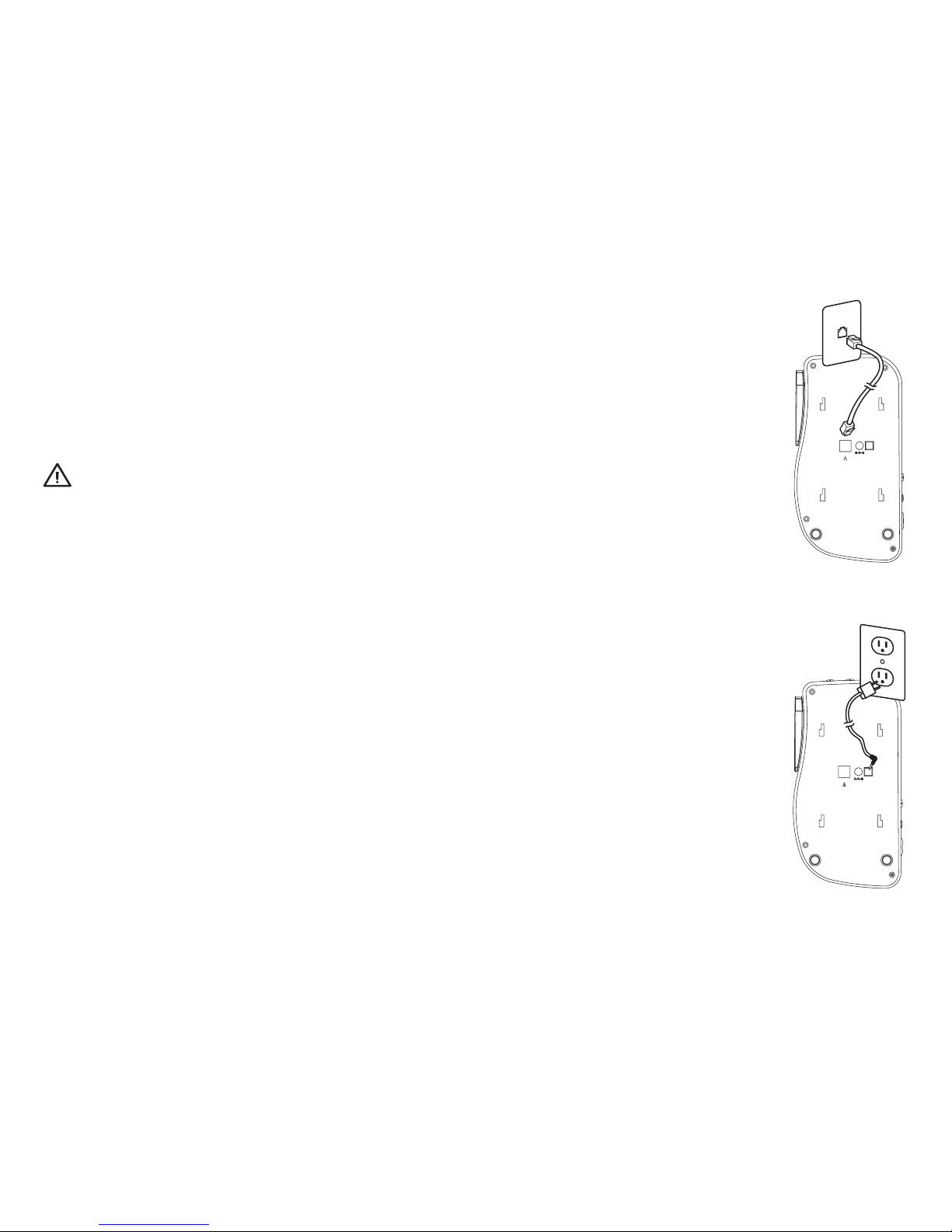

WALL MOUNTING INSTALLATION
CAUTION: Disconnect the telephone line cord
before connecting or disconnecting the battery
backup in the wall mount bracket.
The base unit may be mounted on a standard
wall plate.
1. Plug one end of the supplied short modular
telephone line cord into the TEL jack located
on the back of the base of the phone.
9V DC
400 mA
TEL
USE ONLY WITH CLASS
(CLASSE) 2 POWER SOURCE
Connecting telephone
line cord
9V DC
400 mA
TEL
USE ONLY WITH CLASS
(CLASSE) 2 POWER SOURCE
Connecting AC
Adapter
2. Insert the plug of the AC adapter into the jack marked DC 9V 400mA
located on the back of the telephone base.
3. Align the mounting bracket on the back of the base so that the black rub-
ber feet are towards the bottom of the phone. Insert the bracket’s tabs
into the slots and secure the bracket by sliding it upward.
4. Plug the short modular telephone line cord into the wall plate jack, then
align the mounting bracket’s keyhole slots with the wall plate studs and
slide the base of the phone downward to secure it on the wall.
5. Plug the adapter into a standard AC power (electrical) outlet.
6. Press and lift out the handset holder tab, turn it around so the narrow tab
end extends out and slide back into its slot. This will hold the handset in
the cradle when the phone is wall mounted.
7. Lift the base’s antenna to a vertical position.
8. Set the Tone/Pulse switch located on the end of the base to correct dialing
mode. Please check with your local Phone Company if uncertain of the
type of service.
9. Place handset in the cradle to begin initial charging.
Note: Remember, you must charge the phone for at least 12 hours before you
use the phone for the first time.

12 13
HANDSET BATTERY INSTALLATION
The C4105 uses a 3.6Volt 600mAh NiMH recharge-
able 3 cell (AAA Type) battery that is included with
your unit.
Handset Battery must be connected before begin-
ning initial charging

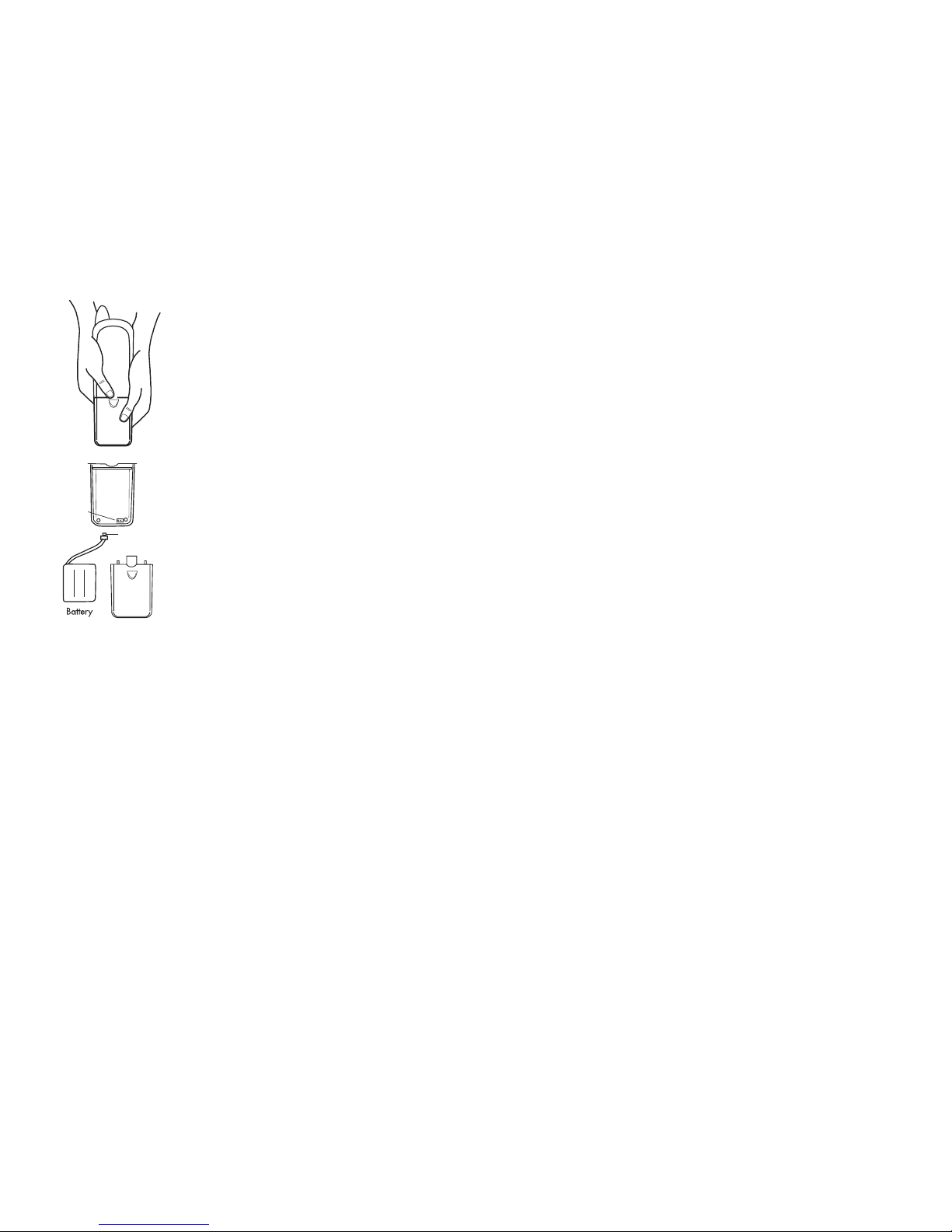

To Install a New Battery
1. Remove battery cover
2. Install new battery
3. Connect battery pack
4. Replace battery cover
5. Charge for 12 hours before first use
Handset Battery Charging
1. Place the handset in the base. The CHARGE
LED on the base will light RED.
2. After the batteries are fully charged, check for
dial tone by pressing TALK on the handset.
Low Battery
When the handset battery gets low, there will be
two (2) beeps every thirty (30) seconds. If the bat-
tery becomes low while you are on a call, you will be
disconnected after about two (2) minutes. Terminate
the call and recharge the battery. To recharge the
battery pack, place the handset in the base.
1. Make sure the contact points are touching and
the CHARGE LED is lit.
2. Be careful not to short battery with Conducting
materials such as rings, bracelets and keys.
Battery Life
A fully charged battery provides an average talk time
of about four (4) hours, or standby time of about (8)
days. Talk time and standby time may vary depending
on operating conditions.
Installing and
connecting battery
Note: The battery
in the handset must
be fully charged for
twelve (12) hours
before using the
telephone for the
first time.
Talk Time: about
four (4) hours
Standby Time: about
eight (8) days
Battery
Connector
Battery
Pack Plug
Battery
Compartment
Cover
TELEPHONE HANDSET
Clarity® Power™ Technology
With Clarity Power, the high frequency sounds are amplified more than the low
frequency sounds so words are not just louder, but clearer and easier
to understand.
BOOST – Clarity Power On/Off
The C4105 has a button that controls the loudness
of the receiver. Once the BOOST button is pressed,
an extra level of amplification is added over the en-
tire range of the volume control.
The TALK button will light ORANGE to indicate the
CLARITY POWER feature is activated.
WARNING: When the TALK button is lit ORANGE volume may be at a high
level. To protect hearing, lower the volume control to minimum before using.
Volume Control
The dial controls the level of volume the handset and headset receive. The
volume dial provides up to 15 decibels of volume before the CLARITY POWER
button is activated. Once the CLARITY POWER button is pressed, the C4105
will provide up to 40 decibels of amplification.
Tone Switch
Adjusting the TONE switch allows you to customize your hearing experience.
Since we all have different hearing preferences we suggest exploring each set-
ting to find the one most comfortable for you.
Handset Ringer
Set the switch marked Ringer OFF/VIBE/ON located on the side of the hand-
set. When VIBE is selected the handset will ring and vibrate when receiving an
incoming call. The ringer switch must be set to ON or VIBE for the handset
to ring.
NOTE: If both handset and base ringers are set to OFF, the visual ringer will
flash to indicate there is an incoming call.
Boost On: Talk
button is ORANGE
Boost Off: Talk
button is GREEN

14 15
Headset Jack
You can use this telephone hands-free when you install a 2.5mm headset (pur-
chased separately). To install, plug the headset into the HEADSET JACK at the
top of the handset. While in headset mode, the volume of headset is controlled
by the telephone and the handset’s earpiece and microphone are disconnected.
Ordering a Headset
In the event you wish to purchase a headset for your C4105, please contact
Plantronics at 1-800-544-4660 for location near you. We recommend using the
Plantronics M110 or M130 headset.
Belt Clip
You may choose to use the optional belt clip with your handset.
1. To attach slide belt clip down onto groves. Press the tabs on the belt clip
into the slots to attach.
2. To remove, lift one side of the belt clip with your thumbnail and push back.
Hearing Aid Compatibility
The handset has a special coil inside of it to transmit the sound to hearing aids
equipped with T-Switches/T-Coils.
TELEPHONE BASE
Ringer Volume
The base ringer volume adjustments are located on the side of the phone base.
Pressing the UP ( ) key on the base increases the ringer sound by one level
while pressing the DOWN ( ) key reduces the sound by one level. There are
a total of six levels from maximum to minimum. The ringer will sound for two
(2) seconds while choosing a ringer volume, to allow the user to make a choice.
Ringer Style
The base ringer style adjustments are located on the side of the telephone base.
The style of ring can be adjusted by pressing the RING STYLE button. Six (6)
styles are available allowing you to customize your ring. The ringer will sound
for two (2) seconds while choosing a ringer style, to allow the user to make
a choice.
Visual Ringers
Visual ringers are located in both the handset antenna and the base of the
telephone. When an incoming call is received, these lights will flash. The handset
visual ringer will also stay lit while the phone is in use.
BOOST ON/OFF Switch
This switch will disable the reset feature of the BOOST Clarity Power button
as follows:
ON – When the BOOST ON/OFF switch is set to ON, the Boost function will
be ON every time a call starts, and will default to ON every time the phone
hangs up. During a call, the BOOST Clarity Power button can toggle the Clarity
Power ON or OFF according to the user’s needs.
OFF – When the BOOST ON/OFF switch is set to OFF, the Boost function will
be OFF every time a call starts, and the user will need to press the BOOST
Clarity Power button in order to gain the extra level of amplification. If the
phone hangs up, the Clarity Power will reset to OFF. During a call, the BOOST
Clarity Power button can toggle the Clarity Power function ON or OFF ac-
cording to the user’s needs.
CAUTION: VOLUME WILL BE LOUD WHEN BOOST
SWITCH IS SET TO “ON”.
Pulse/Tone
Slide the switch to the type of telephone service you have; TONE for touchtone
service or PULSE for rotary dialing. Please check with your local telephone
company if uncertain of the type of service.
Flash
The FLASH button is activated to use custom calling services such as Call
Waiting or Three-Way Calling. Please contact your local telephone company for
information on these services.
Mute
The MUTE button allows the user to conduct a private conversation that you
do not want the person on the other end to hear. While in the mute mode,
the MUTE button will illuminate RED and the microphone in the handset is
disabled. Pressing the MUTE button again will disengage the MUTE feature.

16 17
Redial/Pause
Press the RD/P button to redial the last number dialed. Pressing the RD/P but-
ton while storing a telephone number will insert a four (4) second pause. This is
commonly used when storing both the telephone number and an extension or
PIN number.
Battery Back-up
Installing four (4) AA Alkaline batteries into the desk/wall mount bracket
attached to the telephone base will offer you a limited amount of time to con-
tinue operating your telephone in the event of a power failure.
To Install Battery Back-up Batteries
1. Disconnect telephone line cord and remove desk/wall mount bracket from
telephone base.
2. Disconnect battery back-up connector from the telephone base.
3. Install four (4) AA Alkaline batteries with negative (-) end of battery touch-
ing the spring.
4. Connect battery back-up connector to terminal on bottom of phone base.
5. Install desk/wall mount bracket to telephone base.
To Replace Battery Backup Batteries
1. Disconnect telephone line cord and remove desk/wall mount bracket from
telephone base.
2. Disconnect battery back-up connector from the telephone base.
3. Remove batteries from desk/wall mount bracket.
4. Install four (4) AA Alkaline batteries with negative (-) end of battery touch-
ing the spring.
5. Connect battery back-up connector to terminal on bottom of phone base.
6. Install desk/wall mount bracket to telephone base.
After installing the four (4) AA Alkaline batteries please
refer to the chart below:
Power Supply Power LED Status
AC adapter and Steady Green
good batteries
AC adapter and Steady Red
no batteries
Power failure and Slow flashing red
good batteries
Power failure and Fast flashing red
bad batteries
USING YOUR TELEPHONE
Placing a Call
1. Press the TALK button (TALK button will illuminate GREEN) and dial the
number you wish to call.
2. To end the call press the TALK button or place the handset in the base.
Answering a Call
If the handset is out of the cradle, press the TALK button.
If the handset is in the cradle, simply lift the handset to answer.
Note: Refer to BOOST Clarity Power and Volume Control for information on
adjusting volume controls on Page 15.
Last Number Redial
The last number dialed (up to 32 digits) is stored in the redial memory until
another number is dialed.
To use this feature:
1. Press the TALK button.
2. When you hear the dial tone, press the RD/P button.
3. The phone will automatically dial for you.

18 19
Pause Feature
Programming in a pause will cause the phone to wait four (4) seconds before
dialing additional numbers. This feature may be used when it is necessary to dial
an access code (9, for example) and wait for a second dial tone before you can
dial an outside number. Press the RD/P button at the required point during the
memory storage process to program a pause.
Temporary Tone
If you have rotary (pulse) dial service, you can change from pulse to touch tone
(tone) during a call.
1. Make phone call and wait until it is connected.
2. Press the * key. Keys pressed after this are sent as tone signals.
3. The phone will automatically reset to pulse service after the call ends.
Lighted Key Pad
The key pad will light for fifteen (15) seconds after removing the handset from
the base. To reactivate the feature while in standby, press the TALK or the MEM
button. To activate while the phone is in use, press any key.
Page/Handset Locator
To send a page signal from the base to the handset, press the PAGE button
located on the base of the telephone. A series of rings will sound from the
handset.
To locate the handset if it is away from the base, press and hold the PAGE but-
ton for approximately five (5) seconds. A series of rings will sound. Return the
handset to the base or press any button to cancel the page.
Channel Operation
The C4105 cordless telephone automatically searches and selects the clearest
of 40 channels when it is being used. If interference develops on the line, press-
ing this button will move to another channel.
Security Code
The security code prevents your cordless phone conversations from being ac-
cessed by a phone on a different line. Once the handset battery is fully charged,
the handset will automatically select the code from over 65,000 different com-
binations. The code is changed every time the handset is placed in the cradle. If
you have trouble with placing or receiving calls, a lost security code may be the
cause of the problem. When this occurs, the handset can no longer communi-
cate with the base.
MEMORY STORAGE
The C4105 has ten (10) indirect, or two touch, memory storage locations on
the telephone handset (0-9) that can be programmed to dial frequently called
numbers of up to 16 digits.
Adding a Memory Location
1. Unit must be in standby mode only.
2. Press the MEM button.
3. Enter the telephone number you wish to store.
4. Press the MEM button.
5. Press the number on the dial pad that you wish to store the number to.
6. A long beep will indicate the programming process is complete.
During the memory storage process the TALK button will flash GREEN.
Use the RD/P button while entering the telephone number to insert a pause.
Refer to the Pause Feature section on page 21.
Dialing a Memory Location
1. Press the TALK button.
2. Press the MEM button.
3. Press the number on the dial pad for the stored number you wish to call.
4. The call will automatically dial.
Adding an EMERGENCY Number
1. Unit must be in standby mode only.
2. Press the MEM button.
3. Enter the telephone number you wish to store.
4. Press the MEM button.
5. Press the emergency button on the dial pad that you wish to store the
number to.
6. A long beep will indicate the programming process is complete.

20 21
Dialing an EMERGENCY Number
1. Press the TALK button.
2. Press the EMERGENCY key you wish to call.
MAINTENANCE AND CARE
The C4105 has been designed to give you years of dependable service with a
minimum of care. To ensure the utmost in performance, follow these guidelines
in caring for the unit:
1. Avoid dropping or knocking the unit.
2. Dust the unit regularly. Wipe the unit with a soft damp cloth.
3. Do not use detergents and avoid excess moisture.
4. The C4105 is an electrical device. Avoid electric shock by keeping the
phone away from water (i.e. bathroom, kitchen sink, etc.)
TROUBLESHOOTING
The unit will not operate/no dial tone:
• Verify the TALK Button is lit.
• Verify the AC Adapter is securely plugged into AC outlet and the base.
• Verify the telephone line cord is securely plugged into the wall jack and
the telephone.
• Make sure the base antenna is in an upright position.
• Make sure the handset battery is fully charged.
• Verify the telephone is in the correct dialing mode, tone (touch) or
pulse (rotary).
• Make sure you are in the usable range of the base station.
• Reset the security code by placing the handset in the base for 5-10 seconds.
The phone does not ring when you receive a call:
• Make sure the RINGER switch on the handset and base are set to ON.
• Verify the AC Adapter is securely plugged into AC outlet and the base.
• Verify the telephone line cord is securely plugged into the wall jack and
the telephone.
• Make sure you are in the usable range of the base station.
• You may have too many phones on your line. Try unplugging a few devices.
Noise, Static, Interference or Other Calls Heard While Using
the Handset:
• Try changing channels.
• Make sure the base antenna is in an upright position.
• Make sure you are in the usable range of the base station.
• Make sure the handset battery is fully charged.
• Try relocating the base unit to another location.
• Make sure the AC Adapter is not plugged into the wall outlet with
other appliances.
Phone Will Not Hold Charge:
• Make sure the charging contacts on the handset and base are free of dust and
dirt. Clean the contacts with a soft cloth.
• Make sure CHARGE LED on the base is lit when handset is in the cradle.
• If necessary, replace the handset battery. (See Handset Battery Charging)
Difficulty in Placing or Receiving Calls:
• Move closer to the base and try again.
• If moving closer does not work, you may have lost the security code.
• Reset code by placing the handset back on the base for 5-10 seconds. (See
Security Code Section)
• Make sure you have selected the correct dialing mode, tone or pulse.
• Make sure the AC Adapter is not plugged into a wall outlet with other appli-
ances. Disconnect for 5-10 seconds then reconnect. Place the handset back
on the base and reinsert the AC Adapter.
• Make sure the handset battery is fully charged.

22 23
Part 68 of FCC Rules Information
a) This equipment complies with Part 68 of the FCC rules and the require-
ments adopted by the ACTA. On the bottom of this equipment is a label that
contains, among other information, a product identifier in the format US:
AAAEQ##TXXXX. If requested, this number must be provided to the tele-
phone company.
b) A plug and jack used to connect this equipment to the premises wiring and
telephone network must comply with the applicable FCC Part 68 rules and
requirements adopted by the ACTA. A compliant telephone cord and modular
plug, RJ11C USOC, is provided with this product. It is designed to be connected
to a compatible modular jack that is also compliant. See installation instructions
for details.
c) The REN is used to determine the number of devices that may be con-
nected to a telephone line. Excessive RENs on a telephone line may result in
the devices not ringing in response to an incoming call. In most but not all areas,
the sum of RENs should not exceed five (5.0). To be certain of the number
of devices that may be connected to a line, as determined by the total RENs,
contact the local telephone company. For products approved after July 23, 2001,
the REN for this product is part of the product identifier that has the format
US:AAAEQ##TXXXX.
The digits represented by ## are the REN without a decimal point (e.g., 03 is a
REN of 0.3). For earlier products, the REN is separately shown on the label.
d) If this telephone equipment causes harm to the telephone network, the
telephone company will notify you in advance that temporary discontinuance
of service may be required. But if advance notice isn’t practical, the telephone
company will notify the customer as soon as possible. Also, you will be advised
of your right to file a complaint with the FCC if you believe it is necessary.
e) The telephone company may make changes in its facilities, equipment, opera-
tions or procedures that could affect the operation of the equipment. If this
happens the telephone company will provide advance notice in order for you to
make necessary modifications to maintain uninterrupted service.
f) If trouble is experienced with this telephone equipment, for repair or war-
ranty information, please contact Clarity, 1-800-552-3368. If the equipment is
causing harm to the telephone network, the telephone company may request
that you disconnect the equipment until the problem is resolved.
REGULATORY COMPLIANCE REGULATORY COMPLIANCE
g) This telephone equipment is not intended to be repaired and it contains no
repairable parts. Opening the equipment or any attempt to perform repairs will
void the warranty. For service or repairs, call 1-800-552-3368.
h) Connection to party line service is subject to state tariffs. Contact the state
public utility commission, public service commission or corporation commission
for information.
i) If your home has specially wired alarm equipment connected to the tele-
phone line, ensure the installation of this telephone equipment does
not disable your alarm equipment. If you have questions about what will disable
alarm equipment, consult your telephone company or a qualified installer.
j) This telephone equipment is hearing aid compatible.
Customer-Owned Coin/Credit Card Phones:
To comply with state tariffs, the telephone company must be given notification
prior to connection. In some states, the state public utility commission, public
service commission or corporation commission must give prior approval of
connection.
Part 15 of FCC Rules Information
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference,
and (2) this device must accept any interference received, including interference
that may cause undesired operation.
Your equipment has been tested and found to comply with the limits of a Class
B digital device, pursuant to Part 15 of FCC rules. These limits are designed to
provide reasonable protection against harmful interference in
residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if
not installed and used in accordance with the instructions, may cause harm-
ful interference to radio communications. However, there is no guarantee
that interference will not occur in a particular installation; if this equipment
does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, you are encouraged to try to
correct the interference by one of the following measures:

24 25
1. Where it can be done safely, reorient the receiving television or
radio antenna.
2. To the extent possible, relocate the television, radio or other receiver
with respect to the telephone equipment. (This increases the separation
between the telephone equipment and the receiver.)
3. Connect the telephone equipment into an outlet on a circuit different from
that to which the television, radio, or other receiver is connected.
4. Consult the dealer or an experienced Radio/TV Technician for help.
CAUTION: Changes or modifications not expressly approved by the manu-
facturer responsible for compliance could void the user’s authority to operate
the equipment.
Industry Canada Technical Specifications
This product meets the applicable Industry Canada technical specifications.
Before installing this equipment, users should ensure that it is permissible to be
connected to the facilities of the local telecommunications company. The equip-
ment must also be installed using an acceptable method of connection. In some
cases, the company’s inside wiring associated with a single line individual service
may be extended by means of a certified connector assembly (telephone ex-
tension cord). The customer should be aware that compliance with the above
conditions may not prevent degradation of service in some situations. Repairs
to certified equipment should be made by an authorized Canadian maintenance
facility designated by the supplier.
Any repairs or alterations made by the user to this equipment, or equipment
malfunctions, may give the telecommunications company cause to request the
user to disconnect the equipment.
Users should ensure for their own protection that the electrical ground con-
nections of the power utility, telephone lines and internal metallic water pipe
system, if present, are connected together. This precaution may be particularly
important in rural areas.
CAUTION: Users should not attempt to make such connections themselves,
but should contact the appropriate electrical inspection authority, or electrician,
as appropriate.
The Ringer Equivalence Number is an indication of the maximum number of
terminals allowed to be connected to a telephone interface. The termination
on an interface may consist of any combination of devices subject only to the
requirement that the sum of the Ringer Equivalence Numbers of all the devices
does not exceed five.
(The term “IC:” before the certification/registration number only signifies that
the Industry Canada technical specifications were met.)
The party responsible for regulatory compliance:
Clarity, A Division of Plantronics, Inc.
4289 Bonny Oaks Drive, Suite 106
Chattanooga, TN 37406
Phone: [phone]
REGULATORY COMPLIANCE REGULATORY COMPLIANCE

26 27
The following warranty and service information applies only to products
purchased and used in the U.S. and Canada. For warranty information in other
countries, please contact your local retailer or distributor.
Limited Warranty
Clarity, a division of Plantronics, Inc. (“Clarity”) warrants to the original con-
sumer purchaser that, except for limitations and exclusions set forth below, this
product shall be free from defects in materials and workmanship for a period of
one (1) year from the date of original purchase (“Warranty Period”). The obliga-
tion of Clarity under this warranty shall be at Clarity‘s option, without charge,
of any part or unit that proves to be defective in material or workmanship dur-
ing the Warranty Period.
Exclusions from Warranty
This warranty applies only to defects in factory materials and
factory workmanship.
Any condition caused by accident, abuse, misuse or improper operation, viola-
tion of instructions furnished by Clarity, destruction or alteration, improper
electrical voltages or currents, or repair or maintenance attempted by anyone
other than Clarity or an authorized service center, is not a defect covered by
this warranty. Telephone companies manufacture different types of equipment
and Clarity does not warrant that its equipment is compatible with the equip-
ment of a particular phone company.
Implied Warranties
Under state law, you may be entitled to the bene-fit of certain implied warran-
ties. These implied warranties will continue in force only during the warranty
period. Some states do allow limitations on how long an implied warranty lasts,
so the above limitation may not apply to you.
Incidental or Consequential Damages
Neither Clarity nor your retail dealer or selling distributors has any responsi-
bility for any incidental or consequential damages including without limitation,
commercial loss or profit, or for any incidental expenses, expenses, loss of time,
or inconvenience. Some states do not allow exclusion or limitation of incidental
or consequential damage, so the above limitation or exclusion may not apply
to you.
Other Legal Rights
This warranty gives you specific legal rights and you may also have other rights
which vary from state to state.
How to Obtain Warranty Service
To obtain warranty service, please prepay shipment and return the unit to the
appropriate facility listed below.
In the United States
Clarity Service Center
4289 Bonny Oaks Drive, Suite 106
Chattanooga, Tennessee 37406
Tel: [phone] or [phone]
Fax: [phone] or [phone]
In Canada
Plantronics Service Center
8112 Trans-Canada Hwy.
Ville St. Laurent. Que.
Canada H4S 1M5
Tel: [phone] or [phone]
Fax: [phone]
Please use the original container, or pack the unit(s) in a sturdy carton with suf-
ficient packing material to prevent damage.
Include the following information:
1. A proof-of-purchase indicating model number and date of purchase.
2. Bill-to address.
3. Ship-to address.
4. Number and description of units shipped.
5. Name and telephone number of person to call, should contact
be necessary.
6. Reason for return and description of the problem.
Damage occurring during shipment is deemed the responsibility of the carrier,
and claims should be made directly with the carrier.
WARRANTY & SERVICE WARRANTY & SERVICE

E
S
P
A
~
N
O
L
Teléfono Inalámbrico de 2.4 GHz
Presentando Tecnología Clarity® Power™
Guía del Usario C4105™

31
TABLA DE CONTENIDO INSTRUCCIONES IMPORTANTES DE SEGURIDAD
GUARDE ESTAS INSTRUCCIONES
Cuando utilice su equipo de teléfono, se deben seguir siempre las siguientes
precauciones de seguridad básicas para reducir el riesgo de incendio, choque
eléctrico y lesiones a personas incluyendo lo siguiente:
1. Leer y comprender todas las instrucciones.
2. Seguir todas las advertencias e instrucciones marcadas sobre el teléfono.
3. No use este teléfono cerca de una tina de baño, lavabo, lava trastes de
cocina o tina de lavado, en un sótano húmedo, cerca de una alberca o en
cualquier otro lugar en el que haya agua.
4. Evite usar un teléfono (que no sea del tipo inalámbrico) durante una tor-
menta. Puede haber un riesgo remoto de choque eléctrico por
los relámpagos.
5. No use el teléfono para reportar una fuga de gas cerca de la fuga.
6. Desconecte este teléfono de los enchufes de la pared antes de limpiarlo.
No use limpiadores líquidos o limpiadores en aerosol sobre el teléfono.
Utilice un trapo húmedo para limpiarlo.
7. Coloque este teléfono sobre una superficie estable. Un daño serio y/o
lesión pueden ocurrir si el teléfono se cae.
8. No cubra las ranuras y aberturas sobre este teléfono. Este teléfono nunca
debe ser colocado cerca o sobre un radiador o registro de calor. Este telé-
fono nunca debe colocarse en una instalación ínterconstruida a menos que
se provea ventilación apropiada.
9. Opere este teléfono usando el voltaje eléctrico como se establece en la
unidad de base o en el manual del usuario. Si no está seguro del voltaje de
su hogar, consulte al distribuidor del producto o a su compañía
eléctrica local.
10. No coloque nada sobre el cable de corriente. Instale el teléfono donde
nadie pise o se tropiece con el cable.
11. No sobrecargue los enchufes de pared o extensiones eléctricas ya que esto
puede aumentar el riesgo de incendio o choque eléctrico.
12. Nunca empuje ningún objeto a través de las ranuras en el teléfono. Pueden
tocar puntos de voltaje peligrosos o cortocircuitar partes que pudieran re-
sultar en un riesgo de incendio o choque eléctrico. Nunca derrame líquidos
de ningún tipo sobre el teléfono.
13. Para reducir el riesgo de choque eléctrico, no desbarate el teléfono. El abrir
o quitar las cubiertas puede exponerle a voltajes peligrosos u otros riesgos.
Instrucciones Importantes de Seguridad .....................31
Características ....................................................................34
Elegir una localización .......................................................36
Instalación Del Teléfono ....................................................36
Batería Del Microteléfono ................................................38
Características Del Microteléfono
Del Teléfono ........................................................................40
Características Bajas Del Teléfono .................................41
Usar Su Teléfono .................................................................44
Almacenaje De la Memoria ..............................................46
Mantenimiento y cuidado .................................................47
Localización de averías ......................................................48
Conformidad Reguladora .................................................50
Garantía y servicio .............................................................54

32 33
GUARDE ESTAS INSTRUCCIONES GUARDE ESTAS INSTRUCCIONES
El reensamblado erróneo puede causar choque eléctrico cuando el aparato
es usado después.
14. Desconecte este producto del enchufe de la pared y remita el servicio al
fabricante bajo las siguientes condiciones:
A. Cuando el cable eléctrico o el enchufe estén raídos o dañados.
B. Si se ha derramado líquido en el producto.
C. Si el teléfono ha estado expuesto a lluvia o agua.
D. Si el teléfono no funciona normalmente siguiendo las instrucciones
de operación. Ajuste solo aquellos controles que están cubiertos en las
instrucciones de operación: El ajuste inapropiado puede requerir trabajo
extensivo por un técnico calificado para restaurar el teléfono a su
operación normal.
E. Si el teléfono se ha caído o la caja ha sido dañada.
F. Si el teléfono muestra un cambio notable en el desempeño.
15. Nunca instale el alambrado del teléfono durante una tormenta eléctrica.
16. Nunca instale los conectores del teléfono en ubicaciones húmedas a menos
que el conector esté diseñado específicamente para ubicaciones húmedas.
17. Nunca toque los alambres o terminales del teléfono sin aislar a menos de
que la línea del teléfono haya sido desconectada en la interfaz de la red
de trabajo.
18. Sea cuidadoso cuando instale o modifique las líneas telefónicas.
19. Use solamente el cable de corriente y las baterías indicadas en el manual.
No deseche las baterías en el fuego. Podrían explotar. Verifique los códigos
locales para posibles instrucciones especiales de desecho.
20. Conecte el adaptador AC en el enchufe que esté más cercano y más ac-
cesible al teléfono.
Instrucciones de seguridad para las baterías
Precaución: Existe riesgo de explosión si la batería es reemplazada con el
tipo incorrecto. Deshágase de las baterías usadas de acuerdo a las instrucciones.
1. Use solamente el paquete de baterías aprobado en el auricular de su telé-
fono inalámbrico.
Para la Unidad de Auricular: 3.6V 600mAHr Batería Recargable NiMH
Sanik Battery Co. Ltd.: 3SNAAA60HSJ1
GPI International Ltd.: GP60AAAH3BMJZ
Para la Unidad de Base: Cuatro (4) AA baterías alcalinas.
2. No se deshaga de la batería en el fuego ya que podría explotar. Verifique
con los códigos locales para posibles instrucciones especiales de para de-
shacerse de ellas.
3. No abra o mutile la batería. Los electrolitos liberados son corrosivos y
pudieran causar daño a los ojos y piel. Puede ser tóxico si se traga.
4. Tenga cuidado al manejar las baterías para no cortocircuitarlas con ma-
teriales conductivos como anillos, pulseras y llaves. La batería o material
conducente podría sobrecalentarse y causar quemaduras.
5. Cargue la/s batería/s que se proporciona/no que se identifica/n para su uso
con este producto solamente de acuerdo con las instrucciones y limitacio-
nes especificadas en este manual.
6. Cuide la orientación de polaridad apropiada entre el paquete de baterías y
el cargador de baterías.
INSTRUCCIONES IMPORTANTES DE SEGURIDAD INSTRUCCIONES IMPORTANTES DE SEGURIDAD

34 35
Base del Teléfono
1. Página del Microteléfono
2. Volumen del Campanero
3. Estilo del Campanero
4. Activar/Desactivar el Timbre
5. Antena/Timbre Visual
6. Activar/Desactivar el Boost
7. Tono/Pulso
CARACTERÍSTICAS
2
34
1
5
Auricular del Teléfono
1. Conector para el Collar de
Mano Libres
2. Volumen del Microteléfono
3. Botón de Boost
4. Cojín del Dial
5. Botones de la Emergencia
6. Botón de Hablar
7. Botón de Canal
8. Botón de Memoria
9. Botón de Flash
10. Botón de Silencio
11. Botón para volver a marcar
12. Campanero del Microteléfono
13. Tono del Microteléfono
14. Clip de la Correa
15. Conector para el Equipo de
Manos Libres
16. Antena/Timbre Visual
10
1
2
3
5
6
7
8
9
11
12
13
14
4
15
16
CARACTERÍSTICAS
7
6

36 37
4. Enchufe el adaptador en una toma de
corriente estándar (eléctrica) de 120V CA.
5. Alinee el soporte de montaje sobre la parte
de atrás de la base para que las patas de
hule negro estén hacia el fondo del teléfono.
Inserte las lengüetas del soporte en las
ranuras y asegure el soporte deslizándolo
hacia arriba.
6. Suba la base de la antena a una
posición vertical.
7. Coloque el interruptor TONO/PULSO
ubicado sobre la parte de atrás de la base
al modo correcto de marcado. Por favor
verifique con su Compañía de Teléfonos
local si no está seguro del tipo de servicio.
8. Coloque el auricular sobre la horquilla para
empezar la carga inicial.
INSTALACIÓN MONTADA SOBRE LA
PARED
PRECAUCIÓN: Desconecte el cable de línea tele-
fónica antes de conectar o desconectar el respaldo
de batería en el soporte de montaje de pared.
1. La unidad base puede ser montada sobre una
placa de pared estándar.
2. Conecte una punta del cable de línea telefónica
modular provisto en el enchufe marcado TEL
ubicado en la parte de atrás de la base
del teléfono.
3. Inserte el enchufe del Adaptador CA provisto
en el enchufe marcado 9V DC 400mA ubicado
en la parte de atrás de la base del teléfono.
4. Alinee el soporte de montaje sobre la parte de
atrás de la base para que las patas de hule negro
estén hacia el fondo del teléfono. Inserte las
lengüetas del soporte en las ranuras y asegure el
soporte deslizándolo hacia arriba.
9V DC
400 mA
TEL
USE ONLY WITH CLASS
(CLASSE) 2 POWER SOURCE
Línea telefónica que
conecta cuerda
9V DC
400 mA
TEL
USE ONLY WITH CLASS
(CLASSE) 2 POWER SOURCE
Adaptador de la AC
Que conecta
PARA EMPEZAR
Para Elegir una Ubicación
1. Este teléfono requiere un enchufe de teléfono modular (RJ11C) y un en-
chufe estándar de pared de 120V CA
2. Conecte el adaptador de CA directamente en el enchufe.
3. No conecte otros dispositivos en el mismo enchufe o haga que el enchufe
esté controlado por un interruptor de pared.
4. Elija una ubicación que esté fuera del camino de las actividades normales.
PRECAUCIÓN: ÚSELO SOLAMENTE CON UNA FUENTE
DE PODER CLASE 2 DE 9V DE CD 400MA.
Siempre conecte el adaptador de CA al teléfono antes de conectarlo a la
energía de CA. Cuando termine, desconecte de la energía CA antes de desco-
nectarlo del teléfono.
PARA CONECTAR SU TELÉFONO
Saque con cuidado su teléfono inalámbrico de la caja. Si hay algún daño visible,
no intente operar este equipo. Regréselo al lugar de compra. Revise para que
esté seguro de que tiene todos los artículos que vienen con su teléfono. Debe
tener un AURICULAR, UNA UNIDAD BASE, UNA BATERÍA, UN ADAPTA-
DOR DE CORRIENTE AC, UN CABLE PARA TELÉFONO, UN CLIP PARA
CINTURÓN y UN MANUAL DEL PROPIETARIO.
Si en cualquier momento tiene preguntas sobre su teléfono por favor co-
muníquese con el Departamento de Servicio al Cliente al: 1-800-552-3368 o al
423-622-7793.
INSTALACIÓN SOBRE UNA MESA/ESCRITORIO
PRECAUCIÓN: Desconecte el cable de línea telefónica antes de conectar o
desconectar el respaldo de batería en el soporte de montaje de pared.
1. Conecte una punta del cable de línea telefónica modular provisto en el
enchufe marcado TEL ubicado en la parte de atrás de la base del teléfono
como se muestra en el diagrama.
2. Conecte la otra punta del cable de línea telefónica modular en un enchufe
modular de teléfono.
3. Inserte el enchufe del Adaptador CA provisto en el enchufe marcado 9V
DC 400mA ubicado en la parte de atrás de la base del teléfono.

38 39
2. Después de que las baterías estén com pleta-
mente cargadas, verifique el tono de marcado
presionando TALK (HABLAR) en el auricular.
Batería Baja
Cuando la batería del auricular esté baja, emitirá dos
(2) pitidos cada treinta (30) segundos. Si la batería
se baja cuando esté en una llamada, le desconectará
después de aproximadamente dos (2) minutos. Com-
plete la llamada y recargue la batería. Para recargar el
paquete de baterías, coloque el auricular en la base.
1. Asegúrese de que los puntos de contacto
se toquen y que la luz LED de CARGA
esté encendida.
2. Tenga cuidado de no cortocircuitar la batería
con materiales conductivos como anillos,
pulseras y llaves.
Vida de la Batería
Una batería completamente cargada proporciona un
tiempo promedio para hablar de aproximadamente
cuatro (4) horas, o un tiempo de espera de aproxima-
damente (8) días. El tiempo para hablar y el tiempo
de espera pueden variar dependiendo de las condi-
ciones de operación.
Enchufe de los Audífonos
Usted puede usar este teléfono con manos libres
cuando instala unos audífonos de 2.5 mm (que se
compran por separado). Para instalarlos, conecte
los audífonos en el ENCHUFE DE AUDÍFONOS
(HEADSET JACK) en la parte superior del auricular.
Cuando está en modo de audífonos, el volumen del
auricular es controlado por el teléfono y el audífono
y el micrófono del auricular se desconectan.
Para Ordenar unos Audífonos
En caso de que quiera comprar unos audífonos para
su C4105, por favor comuníquese con Plantronics al
5. Conecte el cable corto telefónico modular en el enchufe de la placa de
pared, luego alinee las ranuras tipo ojo de cerradura del soporte de mon-
taje con los tornillos y deslice la base del teléfono hacia abajo para asegura-
rla en la pared.
6. Enchufe el adaptador en una toma de corriente estándar (eléctrica) de
120V CA.
7. Presione y levante la lengüeta sujetadora del auricular, déle vuelta de
manera que la parte angosta se extienda hacia afuera y deslícela de nuevo
en la ranura. Esto sujetará el auricular en la horquilla cuando el teléfono
esté montado en la pared.
8. Levante la antena a una posición vertical.
9. Coloque el interruptor de Tono/Pulso ubicado al final de la base en el
modo correcto de marcado. Por favor verifique con su Compañía de Teléfo-
nos local si no está seguro del tipo de servicio.
Nota: Recuerde, debe cargar el teléfono por al menos 12 horas antes de
usarlo por primera vez.
INSTALACIÓN DE LA BATERÍA
DEL MICROTELÉFONO
El C4105 usa una batería de célula recargable de 3.6Volt 600mAh NiMH (Tipo
AAA) que está incluida con su unidad.
La Batería del Auricular Debe Estar Conectada Antes de Comenzar la
Carga Inicial
Para conectar la batería, quite la cubierta del compartimiento de baterías y
conecte el enchufe del paquete de baterías en el conector de
baterías y reemplace la cubierta del compartimiento de baterías.
Para Instalar una Batería Nueva
1. Quite la cubierta de las baterías
2. Instale la nueva batería
3. Conecte el paquete de baterías
4. Reemplace la cubierta de las baterías
5 Cargue por 12 horas antes del primer uso
Carga de la Batería del Auricular
1. Coloque el auricular en la base. La luz LED de CARGA se iluminará ROJA.
Instalación y conex-
ión de la batería
Nota: La batería
en el auricular debe
cargarse completa-
mente por 12 horas
completas antes de
usar el teléfono por
primera vez.
Tiempo De la Charla:
Cerca de 4 horas
Tiempo Espera:
Cerca de 8 días
