Clarke ZX-R Pro Series Manual

OPERATION & MAINTENANCE
INSTRUCTIONS
LS0113
20V 1.5Ah LITHIUM-ION BATTERY
MODEL NO: B1500Li
PART NO: 6487050

2
Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]
INTRODUCTION
Thank you for purchasing this CLARKE 20V 1.5Ah Lithium-Ion Battery.
Before attempting to use this product, please read this manual thoroughly and
follow the instructions carefully. In doing so you will ensure the safety of yourself
and that of others around you, and you can look forward to your purchase
giving you long and satisfactory service.
GUARANTEE
This product is guaranteed against faulty manufacture for a period of 12
months from the date of purchase. Please keep your receipt which will be
required as proof of purchase.
This guarantee is invalid if the product is found to have been abused or
tampered with in any way, or not used for the purpose for which it was
intended.
Faulty goods should be returned to their place of purchase, no product can
be returned to us without prior permission.
This guarantee does not effect your statutory rights.
SAFETY SYMBOLS
Weee Symbol Maximum Temperature
CE Mark Do not Incinerate
Do not immerse in water

3
Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]
IMPORTANT SAFETY INSTRUCTIONS FOR ALL
BATTERY PACKS
When ordering replacement battery packs, be sure to include catalog
number and voltage.
The battery pack is charged out of the box, before using the battery pack
read the safety instructions below. Then follow charging procedures outlined.
READ ALL INSTRUCTIONS
• Do not charge or use battery in explosive atmospheres, such as in
the presence of flammable liquids, gases or dust. Inserting or
removing the battery from the charger may ignite the dust or fumes.
• Never force battery pack into charger. Do not modify battery pack
in any way to fit into a non-compatible charger as battery pack
may rupture causing serious personal injury.
• Only use Clarke chargers to charge this battery pack.
• DO NOT splash or immerse in water or other liquids.
• Do not store or use the tool and battery pack in locations where the
temperature may reach or exceed 40˚ C (105° F) (such as outside
sheds or metal buildings in summer).Burn hazard. Battery liquid may
be flammable if exposed to spark or flame.
WARNING: NEVER ATTEMPT TO OPEN THE BATTERY PACK FOR ANY
REASON. IF BATTERY PACK CASE IS CRACKED OR DAMAGED, DO NOT
INSERT INTO CHARGER. DO NOT CRUSH, DROP OR DAMAGE BATTERY
PACK. DO NOT USE A BATTERY PACK OR CHARGER THAT HAS RECEIVED A
SHARP BLOW, BEEN DROPPED, RUN OVER OR DAMAGED IN ANY WAY
(I.E., PIERCED WITH A NAIL, HIT WITH A HAMMER, STEPPED ON). ELECTRIC
SHOCK OR ELECTROCUTION MAY RESULT.DAMAGED BATTERY PACKS
SHOULD BE RETURNED TO SERVICE CENTRE FOR RECYCLING.
CAUTION: WHEN NOT IN USE, PLACE TOOL ON ITS SIDE ON A STABLE
SURFACE WHERE IT WILL NOT CAUSE A TRIPPING OR FALLING HAZARD.
SOME TOOLS WITH LARGE BATTERY PACKS WILL STAND UPRIGHT ON THE
BATTERY PACK BUT MAY BE EASILY KNOCKED OVER.

4
Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]
SPECIFIC SAFETY INSTRUCTIONS FOR LITHIUM ION
(LI-ION) BATTERIES
•Do not incinerate the battery pack even if it is severely damaged or
is completely worn out. The battery pack can explode in a fire. Toxic
fumes and materials are created when lithium ion battery packs are
burned.
•If battery contents come into contact with the skin, immediately
wash area with mild soap and water. If battery liquid gets into the
eye, rinse water over the open eye for 15 minutes or until irritation
ceases. If medical attention is needed, the battery electrolyte is
composed of a mixture of liquid organic carbonates and lithium
salts.
•Contents of opened battery cells may cause respiratory irritation.
Provide fresh air. If symptoms persists, seek medical attention.
ENVIRONMENTAL PROTECTION
Recycle unwanted materials instead of disposing of them as
waste. All tools, accessories and packaging should be sorted,
taken to a recycling centre and disposed of in a manner which is
compatible with the environment.
WARNING: BURN HAZARD. BATTERY LIQUID MAY BE FLAMMABLE IF
EXPOSED TO SPARK OR FLAME.

5
Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]
HOW TO CHARGE A BATTERY
This lithium-ion battery requires a 1 hour charger (6487050) to operate,
available separately from your local Clarke dealer.
NOTE: New batteries are not fully charged and must be charged before
use.
1. Only use the recommended charger (Clarke BCH20) for charging this
battery, using any other charger may damage the battery and invalidate
your warranty
TIPS FOR EXTENDING BATTERY LIFE
• Do not store fully discharged batteries. Charge fully before storing.
• Store in a cool dry place away from direct sunlight and extremes or
hot or cold
SPECIFICATIONS
WARNING: THE BATTERY CAN BE HOT TO THE TOUCH WHEN REMOVED
FROM THE TOOL. ALWAYS LET THE BATTERY COOL DOWN BEFORE
RECHARGING. DO NOT RECHARGE A HOT BATTERY.
Output Voltage 20 V
Amp Hour Rating 1500 mAh
Battery Type Li-Ion
Recharge time 60 mins
Dimensions (L x W x H) 102 x 73 x 65 mm
Weight 0.38 kg

6
Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]

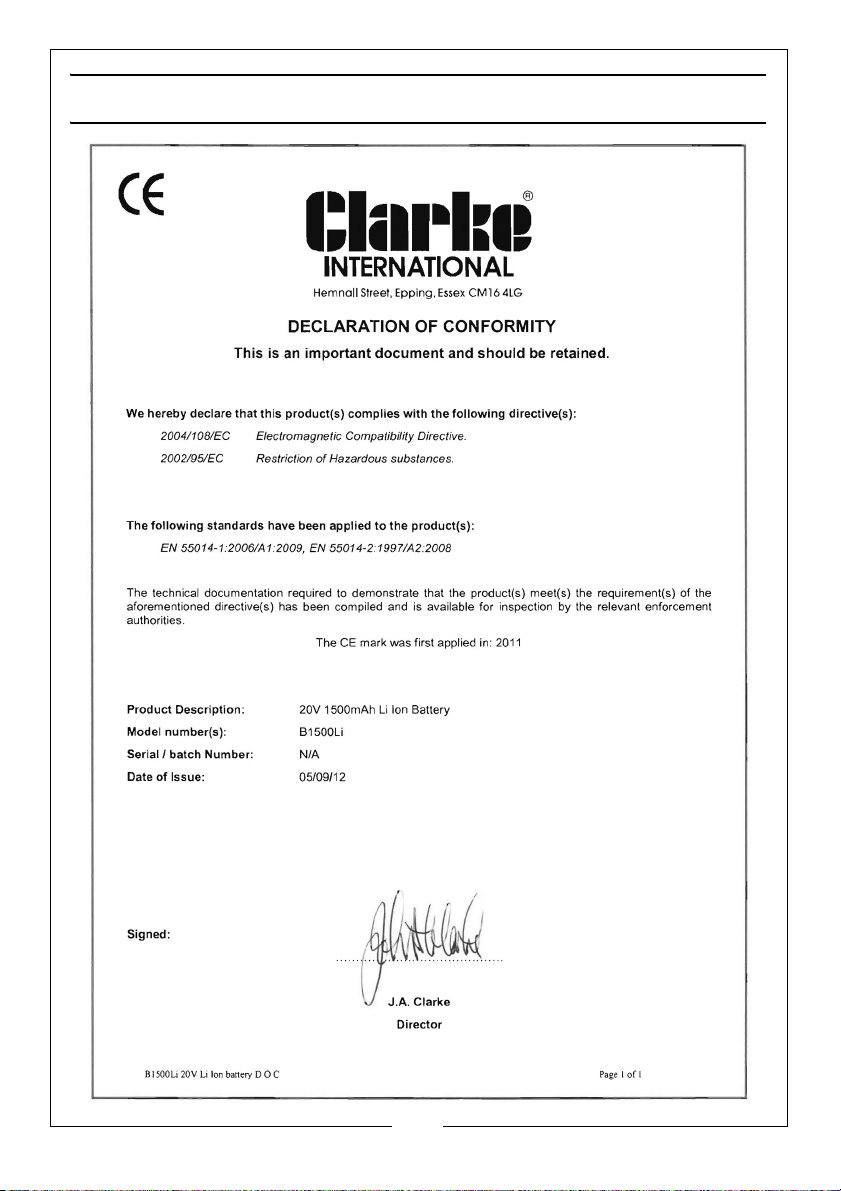

DECLARATION OF CONFORMITY

7
Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]
CLARKE ZX-R RANGE
The Clarke ZX-R 20V cordless power tools are designed as a high power and
quality solution for the tradesman that requires a number of different tool
types.
20v
Hammer Drill.
20v
Jig Saw
Model:
CDD20Li
Part Number:
6487010
Model:
CJS20Li
Part Number:
6487025
20v
Circular Saw
20v
Multifunction
Tool.
Model:
CCS20Li
Part Number:
6487015
Model:
CMFT20Li
Part Number:
6487030
20v
Led Lamp
20v
Reciprocating
Saw
Model:
CFL20Li
Part Number:
6487035
Model:
CRS20Li
Part Number:
6487020
20v
Impact Driver
Also Available
Model:
CID20Li
Part Number:
6487000
20V Battery
Model
BL1500Li
Part Number
6487050
20V Battery Charger
Part Number
6487050
