Clarke PLS360 Instruction Manual

OPERATION & MAINTENANCE
INSTRUCTIONS
ORIGINAL INSTRUCTIONS DL 0121 REV 1
PETROL POWER WASHER
MODEL NO: PLS360
PART NO: 7330375

2
Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]
INTRODUCTION
Thank you for purchasing this CLARKE Petrol Power Washer.
Before attempting to use this product, please read this manual thoroughly and
follow the instructions carefully. In doing so you will ensure the safety of yourself
and that of others around you, and you can look forward to your purchase
giving you long and satisfactory service.
GUARANTEE
This product is guaranteed against faulty manufacture for a period of 12
months from the date of purchase. Please keep your receipt which will be
required as proof of purchase.
This guarantee is invalid if the product is found to have been abused or
tampered with in any way, or not used for the purpose for which it was
intended.
Faulty goods should be returned to their place of purchase, no product can
be returned to us without prior permission.
This guarantee does not effect your statutory rights.
UNPACKING
Unpack your power washer and check to ensure the following items are
present. Contact your CLARKE dealer immediately if any parts are missing or
damaged.
1 x Petrol Power Washer 1 x Hose/Lance Storage Bracket
1 x Delivery Hose c/w Fittings 1 x Spark Plug Box Spanner
1 x Suction Hose c/w Pump Fittings 1 x Tommy Bar
1 x Detergent Hose c/w Fittings 1 x Engine Manual
1 x Lance/Nozzle Assembly 1 x Gun Assembly
4 x Wheel Axles 1 x Pressure Washer Hose
4 x Wheel/Pneumatic Tyres

3
Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]
GENERAL SAFETY RULES
1. DO NOT point the spray at other people, animals, electrical equipment or
the machine itself.
2. DO NOT hold your finger over the high pressure nozzle.
3. DO NOT let children or untrained personnel use this machine.
4. DO NOT operate the machine with any of the covers removed.
5. DO NOT try to repair this machine. Always refer to your CLARKE service
department for all repairs.
6. DO NOT supply any liquid other than water to the water inlet.
7. DO NOT use the detergent pickup facility to introduce flammable liquids/
solvents, e.g. paint thinners, petrol, oil as there is a risk of explosion.
8. ALWAYS release the remaining pressure in the system; turn off the water
supply and operate the trigger before you remove hoses or accessories.
9. ALWAYS keep the machine dry and away from the water spray.
10. ALWAYS use protective clothing and safety glasses. Loose particles and
other items can be propelled at high speed by the water spray.
11. ALWAYS hold the gun securely & expect it to ‘kick’ when you pull the trigger.
12. ALWAYS respect the requirements of the local water company. Pressure
washers may only be connected to the mains water supply if a system
separator (also known as a backflow preventer) is installed in the supply
hose.
13. ALWAYS disconnect from the water supply, and make sure that you drain
the system when not in use. Keep in a cool dry location.
14. ONLY use detergents that are suitable for pressure washers, we recommend
that you use CLARKE Traffic Film Remover or CLARKE Wash and Wax
(available from your dealer).
15. WARNING High pressure water jets can be dangerous, the jet must not be
directed at a person or anything that they are wearing.
16. WARNING High pressure hoses, fittings and couplings are important for the
safety of the machine. Use only hoses, fittings and couplings recommended
by the manufacturer.
17. WARNING Water that passes through a system separator (also known as a
backflow preventer) is not safe to drink.
18. DO NOT use the pressure washer if there is damage to the inlet/outlet hose
or the machine.
WARNING: WATER AT HIGH PRESSURE CAN BE DANGEROUS AND CAN
CAUSE DAMAGE TO PERSONS OR PROPERTY IF THE OPERATOR IS
CARELESS. NEVER ALLOW ANYONE TO OPERATE THIS EQUIPMENT UNLESS
THEY ARE THOROUGHLY RELIABLE, AND FAMILIAR WITH THE SAFETY
PRECAUTIONS.

4
Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]

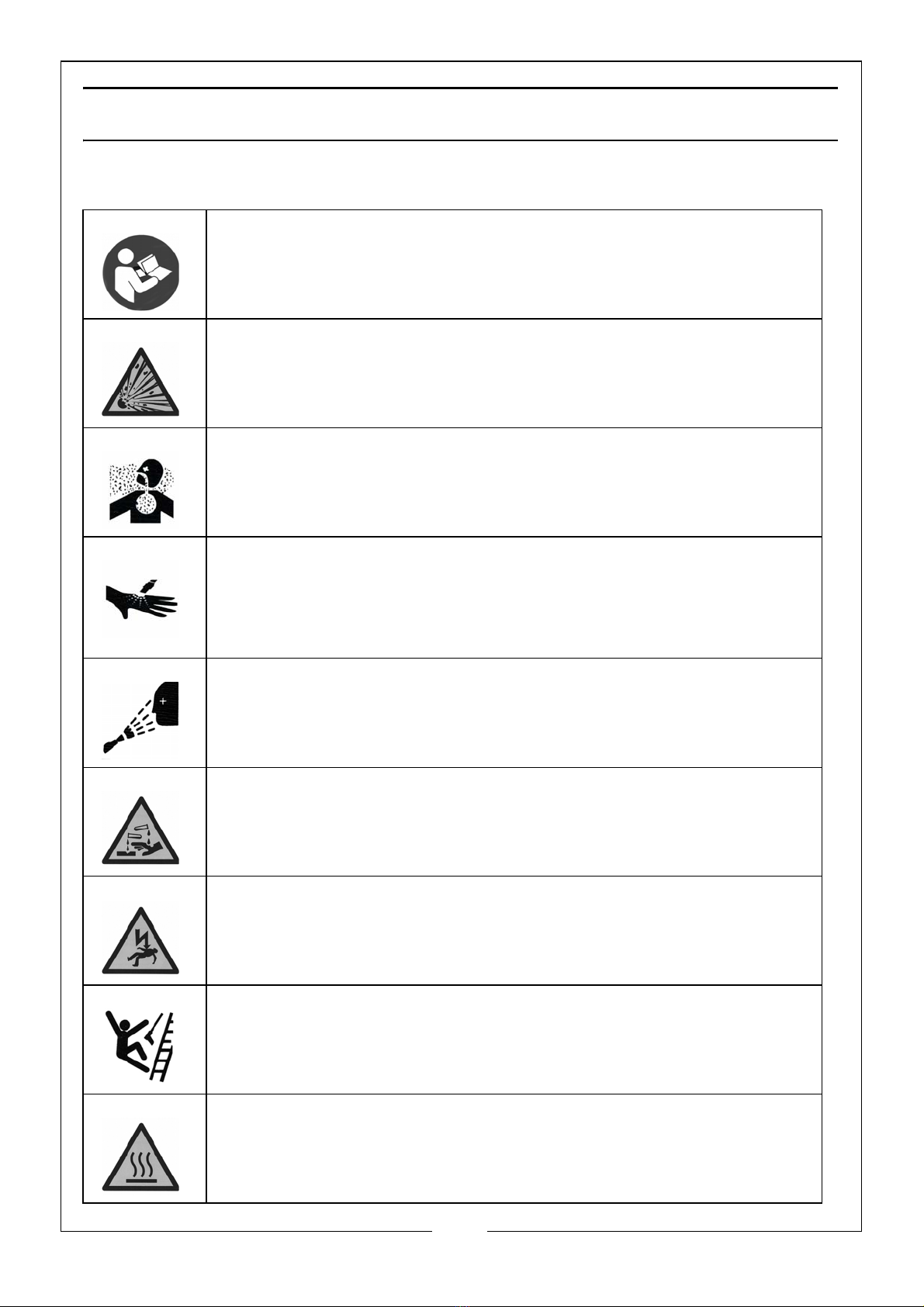

SAFETY SYMBOLS
ALWAYS: Read this manual and make sure that all warnings and
instructions are clear before you use this pressure washer.
DANGER: Risk of fire or explosion. Stop the engine before you
refuel the pressure washer. Keep flammable materials away
from the work area. Do not spray flammable liquids.
DANGER: Risk to breathing. Engine exhaust fumes can
kill. For outdoor use only. Work in a well ventilated area.
WARNING: Risk of injection or severe injury. DO NOT directly
discharge stream at persons or animals. Keep clear of
nozzle. This machine should only be used by qualified
operators.
WARNING: Risk of spray injury. Spray can propel objects.
Always wear ANSI approved Z87.1 Safety Glasses.
WARNING: Risk of chemical burn. NEVER spray acids,
corrosive or toxic chemicals. Use only cleaners formulated for
power washers.
WARNING: Risk of electrocution. NEVER direct the spray
toward any electrical device or electrical outlet.
WARNING: Risk of unsafe operation. Keep children
away from this equipment. Gun kicks back. Hold with both
hands.
WARNING: Risk of hot surfaces. Avoid contact with hot
engine exhaust components. Don't allow hoses to contact
the engine muffler during or after use.

5
Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]
SPECIFICATIONS
Model PLS360
Engine
Engine Model G390FD
Power (HP) 13hp/8.2kW/3600rpm
Engine type Petrol (unleaded)
Starting system Key
Battery 12V, 20AH
Fuel Tank Capacity (L) 6.5
Water supply
Max. feed temperature 30oC
Min. feed volume (l/min.) 17
Water Inlet Pressure 3-6 Bar
Water Pump
Maximum pressure 248 Bar/3600 Psi
Working pressure 228 Bar/3300 Psi
Max. water flow (l/min.) 17 (Mains supply)
15.3 (Barrel supply)
Measured sound power level LWA dB 99.25
Guaranteed sound power level LWA dB 100
Vibration - Main Handle 2.073m/s2
Dimensions
Length/Width/Height - Handle Raised (mm) 920/1095/695
Weight (kg) 66.6

6
Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]
OVERVIEW

7
Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]
OVERVIEW
NO DESCRIPTION NO DESCRIPTION
1 Foldable Handle 10 Pressure Regulator
2 Gun 11 Chemical Detergent Inlet
3 Wand/Lance & Hose Bracket 12 Water Outlet
4Wheels 13WaterInlet
5 Engine 14 Suction Valve
6 Pump 15 Thermal Relief Valve
7 Adjustable Nozzle 16 10m High Pressure Hose
8 Spray Wand/Lance 17 Water Inlet Hose with Filter
9 Petrol Tank 18 Detergent Hose

8
Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]
ASSEMBLY
FITTING THE WHEELS
1. Insert the axle as shown.
• Rotate the axle so that the
spring loaded pin pops through
the hole on the frame.
2. Fit the wheels to the axles and
secure with the locking nuts
supplied.
NOTE: DO NOT overtighten the
nuts, the wheels must be
able to rotate freely.
ASSEMBLE THE LANCE
1. Connect the spray wand to the
lance and tighten securely.
FOLDING HANDLE
1. Lift the handle into the raised
open position.
2. Secure in place using the handle
locking knobs shown.

9
Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]

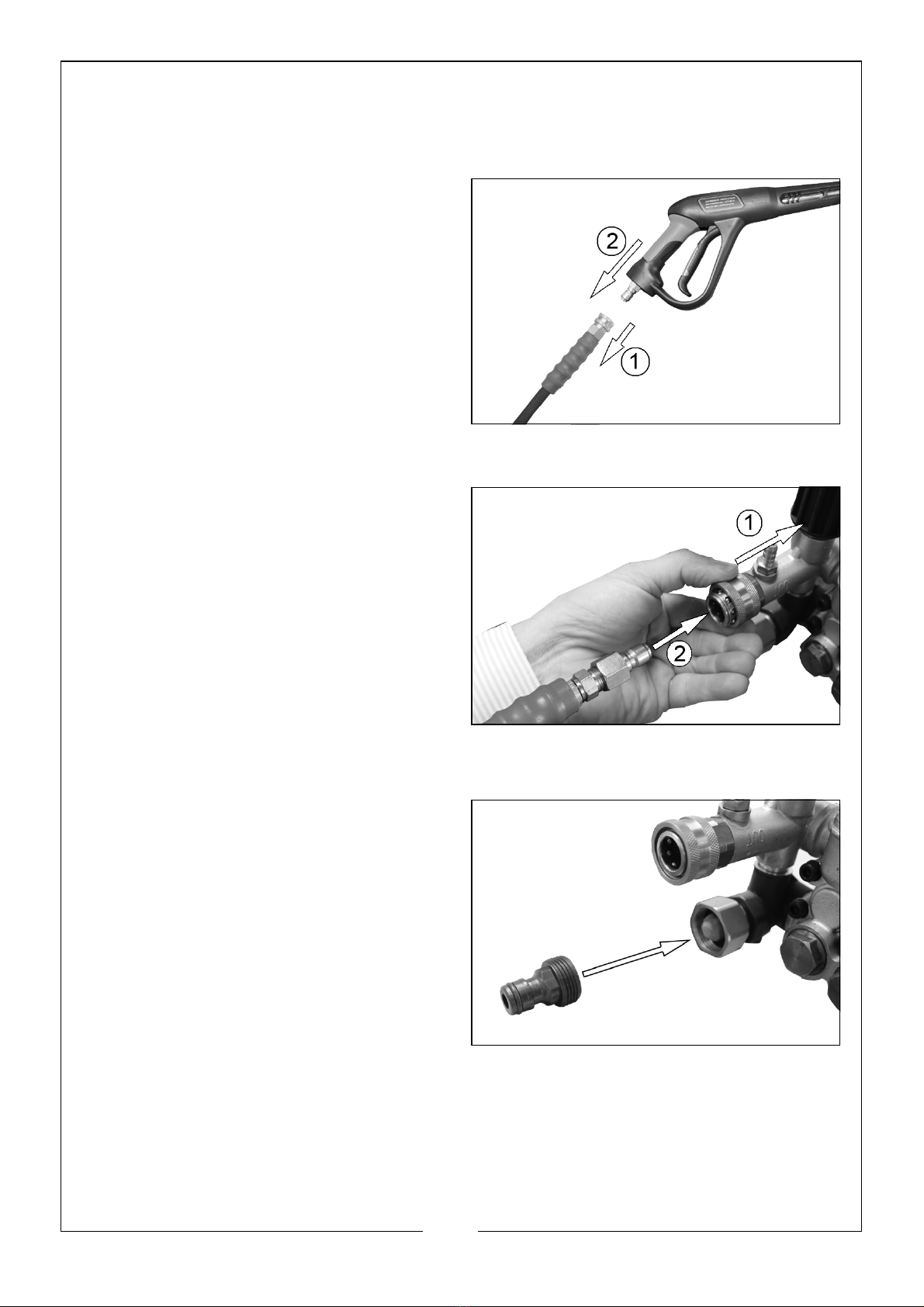

THE HIGH PRESSURE HOSE
CONNECT THE HOSE TO THE GUN
1. Slide the connector on the hose
backwards.
2. Push the gun into the connector.
3. Release the connector.
NOTE: Make sure the connection is
secure.
CONNECT THE HOSE TO THE POWER WASHER
1. Slide the connector on the power
washer towards the machine.
2. Push the hose into the connector.
3. Release the connector.
NOTE: Make sure the connection is
secure.
CONNECT WATER INLET HOSE
1. Remove the travel cap if fitted.
2. Fit the hose adaptor as shown.
3. Connect the water supply hose to
the hose adaptor.
NOTE: The water source must
provide a minimum of 17
litres per minute @ 20 PSI.
NOTE: Make sure the water inlet
hose is screwed on tightly.

10
Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]
LANCE & HOSE STORAGE BRACKET
1. Fit the bracket into the position
shown and secure using the
washers and nuts supplied.
REMOVE THE TRAVEL PLUGS BEFORE USE.
1. Use a 17mm spanner to remove
the red travel plugs.
2. Inside the small bag attached are
oil breather plugs which need to
be fitted in its place.
• The oil breather plug must only
be inserted finger tight.
CONNECTING THE BATTERY
NOTE: The power washer comes with
the battery disconnected. The
battery is mounted on the rear
of the frame in its own chassis
1. Unscrew the blue negative ‘-’
terminal and attach the blue
negative cable, reconnect and
tighten the terminal.
2. Unscrew the red positive ‘+’
terminal and attach the red
positive cable, reconnect and tighten the terminal.

11
Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]
BEFORE USE
IMPORTANT: The engine is supplied without any oil in it and must be filled to
the correct level before use, see below.
NOTE: All oil levels should be checked when the engine is cold, as you may
get a false reading with a hot engine.

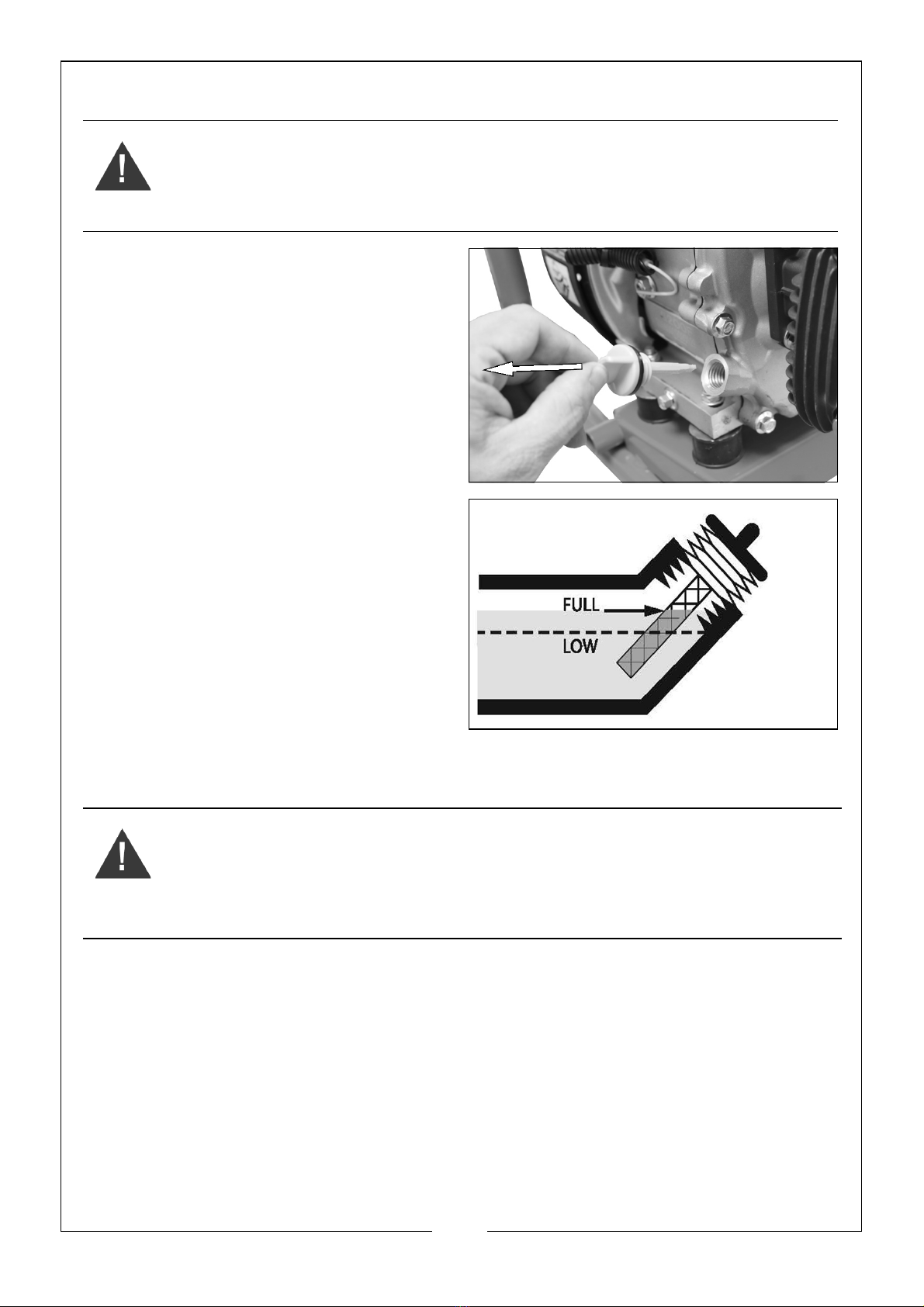

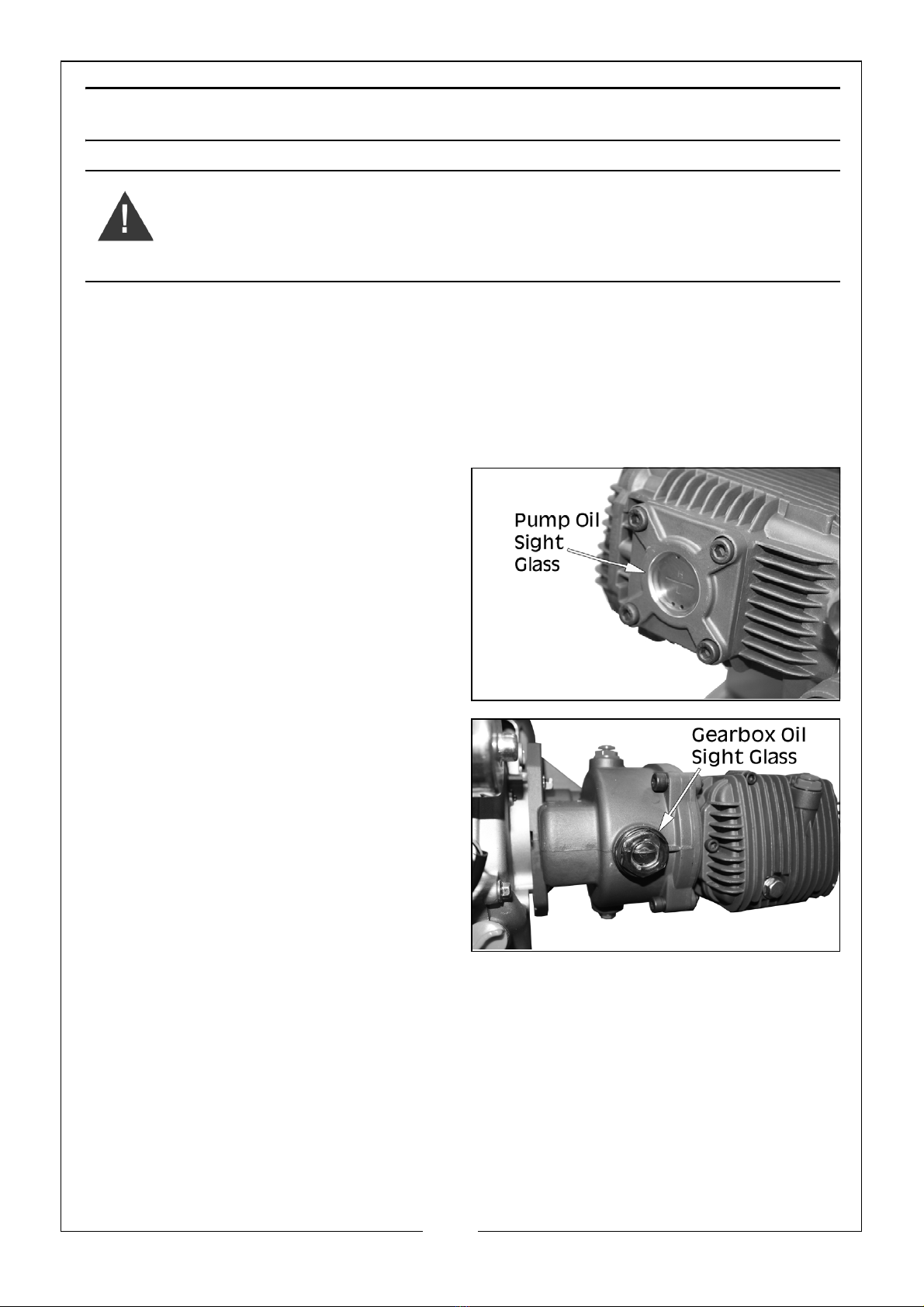

CHECKING THE PUMP & GEARBOX OIL LEVEL
1. Look at the sight glass on the
pump and gearbox to check the
oil levels inside.
• The oil should be half way up
the sight glass.
2. If required, top up with oil.
• We recommend the use of
SAE10W/30 oil.
WARNING: TO CARRY OUT THIS CHECK, PLACE THE POWER WASHER ON
LEVEL GROUND WITH THE ENGINE SWITCHED OFF.

12
Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]
CHECKING THE ENGINE OIL LEVEL
1. Turn the oil filler cap/dipstick anti-
clockwise and remove it from the
oil filler tube.
2. Wipe the oil filler cap/dipstick with
a clean cloth.
3. Insert the oil filler cap/dipstick
back into the oil filler tube and
then remove it again. Do not
screw it in when doing this.
4. If the oil is low, fill the oil reservoir to
the edge of the oil filler hole.
• We recommend the use of
SAE10W/30 oil in the engine.
5. Replace the oil filler cap.
CHECKING THE FUEL LEVEL
1. To check the fuel level, remove the fuel tank cap.
2. Just inside the fuel tank is a fuel strainer. Check this filter periodically and
remove any contaminants which may have accumulated.
WARNING: RUNNING THE ENGINE WITH INSUFFICIENT OIL WILL CAUSE
ENGINE DAMAGE.
WARNING: ALWAYS REFUEL IN A WELL VENTILATED AREA AWAY FROM
ANY SOURCES OF IGNITION AND HEAT.
WARNING: ALLOW THE UNIT TO COOL DOWN BEFORE REFUELLING.
WARNING: DO NOT LEAVE FUEL WITHIN THE REACH OF CHILDREN.

13
Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]
3. Refuel in a well-ventilated area
before starting the engine. If the
engine has been running, allow it
to cool. Refuel carefully to avoid
spilling fuel. Do not fill above the
fuel strainer shoulder.
4. After refueling, replace the fuel
filler cap securely.
RECOMMENDED FUEL
Use unleaded petrol with an octane
rating of 86 or higher. Do not overfill.

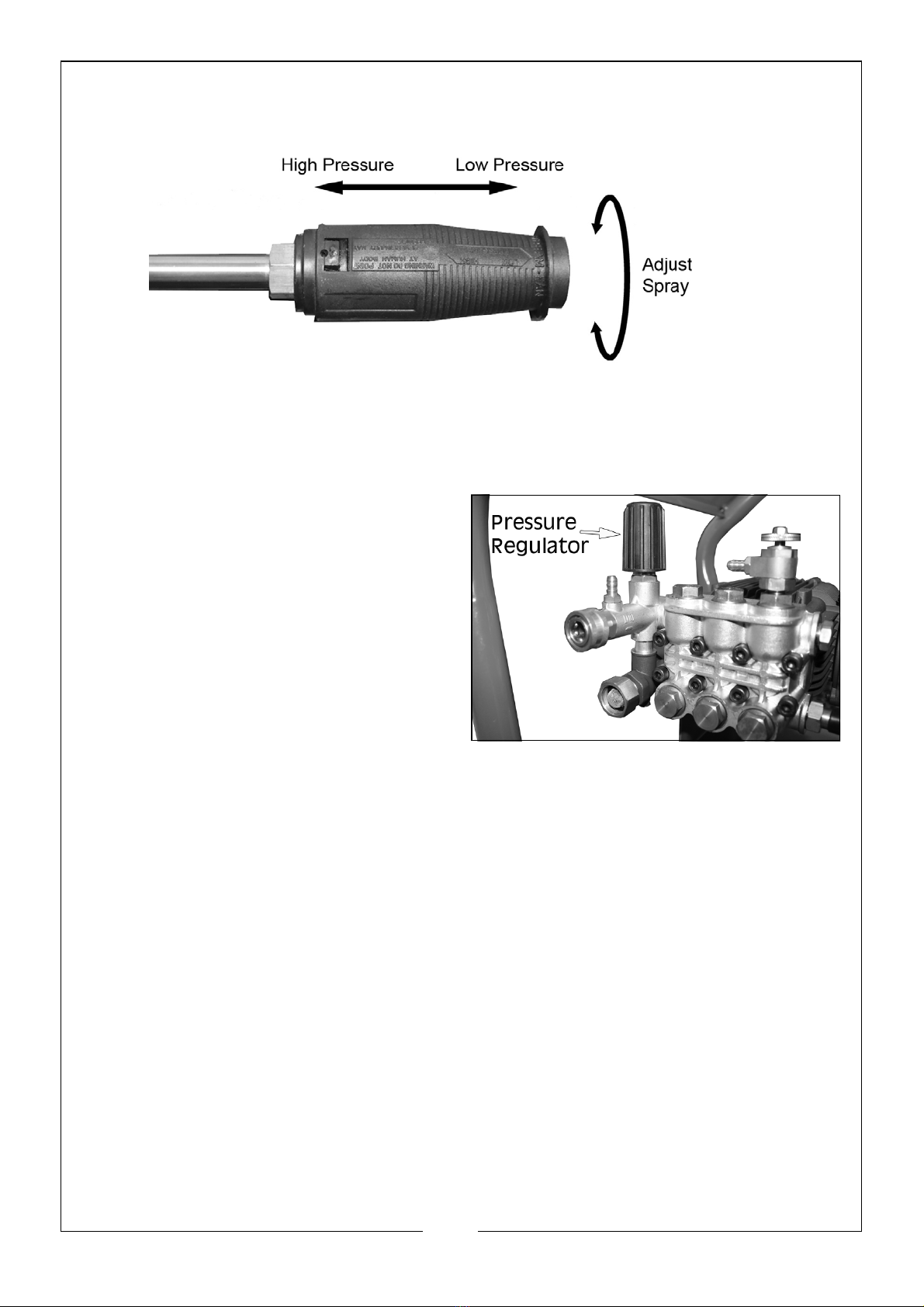

PRESSURE REGULATOR
When purchased, the pressure
regulator may be set to minimum.
Turn the pressure regulator on the
pump fully clockwise to allow water
pressure to increase when the
pressure washer is running.
If you find the pressure is too high, you
can adjust this later by turning the
regulator anti-clockwise.
SAFETY FEATURES
Bypass mode: In bypass mode, the pump recirculates the water because the
trigger of the spray gun is not being pulled. If the unit is left in bypass mode for
more than two minutes, the water temperature will rise to a dangerous level
and could damage internal components of the pump.
NOTE: Any damage to the pump due to these causes will not be
covered under warranty.
Thermal Relief Valve: In an effort to
prevent damage, pumps are
equipped with a thermal relief valve.
This valve will open when the
temperature inside the pump
becomes too high. The valve will then
release a gush of water in an effort to
lower the temperature inside the
pump. Immediately after this occurs,
the valve will close.

14
Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]
STARTING YOUR POWER WASHER
Prior to starting, refer to your engine manual for proper starting procedures for
your engine type.
1. Make sure the engine has sufficient fuel. See page 12.
2. Check the engine oil level. See page 11-12.
3. Connect the high pressure hose and water inlet hoses. See page 9
4. Turn water supply on.
5. Set the fuel valve lever to the ‘ON’
position.
6. Set the throttle to the 1/3rd of the
way towards the fast setting.
WARNING: FAILURE TO TURN ON THE WATER COULD CAUSE DAMAGE TO
THE PUMP.

15
Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]

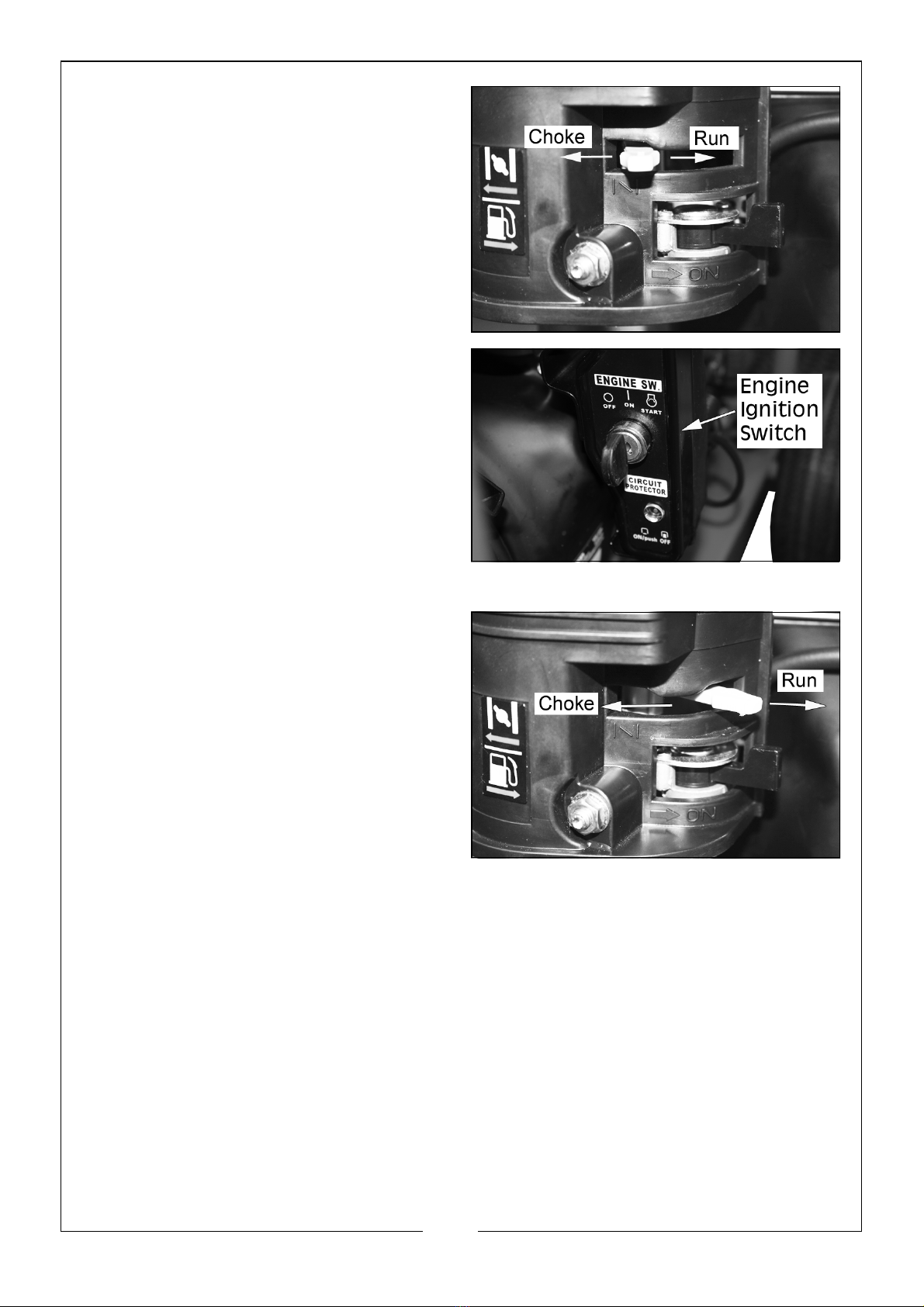

7. If you are starting the power
washer ‘cold’ set the choke lever
to the CHOKE position (left). If the
power washer is warm then set
the lever to the ‘RUN’ position.
8. Turn the ignition key to the ‘ON’
position, then turn the key to the
‘START’ position and hold it there
until the engine starts. If the
engine fails to start within 5
seconds, then release the key and
wait at least 10 seconds before
operating the starter again.
9. When the engine starts, slowly
move the choke lever to ‘RUN’
position, as engine warms.
NOTE: If the engine starts to falter,
move choke lever to ‘CHOKE’
position, then slowly back to
‘RUN’ position.
NOTE: Using the electric starter for more than 5 seconds at a time will
overheat the starter motor and can damage it.
NOTE: Allow the engine to run at no load, low pressure for 5 minutes after
each start-up so the engine can stabilize.

16
Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]
USING THE POWER WASHER
1. Pull the trigger on the gun to start water flow.
• Stand on a stable surface and grip the gun/spray wand firmly with
both hands.
• Expect the gun to kick when the trigger is pulled.
2. Release the trigger to stop water flow.
NOTE: The power washer will automatically go into bypass mode. In
bypass mode, the pump recirculates the water because the
trigger of the spray gun is not being pulled. If the unit is left in
bypass mode for more than two minutes, the water temperature
will rise to a dangerous level and could damage internal
components of the pump.
ADJUSTING THE SPRAY
The nozzle is adjustable to allow you to change the spray from a narrow jet of
water to a wide spray.
To adjust the nozzle, proceed as follows.
1. Hold the shaft of the spray wand in one hand.
2. Twist the nozzle with the other hand.
3. To vary the spray between narrow and wide, turn the nozzle counter-
clockwise through a half-of-a-turn.
WARNING: DO NOT ALLOW THE UNIT TO OPERATE IN BYPASS MODE FOR
MORE THAN TWO MINUTES AT ANY TIME.

17
Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]
• Slide the nozzle forward for low pressure and backwards for high
pressure.
ADJUSTING THE PRESSURE
There are 4 ways to adjust the pressure.
1. Adjust the pressure regulator on
the pump. Turn the pressure
regulator knob counter clockwise
to lower pressure. Once you have
finished using your power washer,
return the pressure regulator to its
original position.
2. Back away from the surface to be
cleaned. The further away you
are, the less the pressure will be on
the surface being cleaned.
3. Reduce the speed of the engine (RPM). Slow the engine down and the
water pressure will also go down.
4. Adjust the spray to a wider angle.
• Slide the nozzle forward for low pressure and backwards for high
pressure.

18
Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]
APPLYING DETERGENTS AND CLEANING SOLVENTS
1. Push the detergent hose onto the
ribbed fitting as shown.
2. Place the other end of the
detergent hose with the filter on it,
into a container holding the
chemical/cleaning solution.
3. Slide the nozzle forward for low
pressure operation.
NOTE: See page 30 for detergent
and cleaning products available from your CLARKE dealer.
SHUTTING DOWN
1. After each use, if you have applied detergents, place the detergent hose
into a container of clean water and run clean water through the detergent
injection system to flush the system thoroughly.
NOTE: Failure to do so could cause damage to the pump.
2. Method 1: Turn the ignition switch
to ‘OFF’, then close the fuel valve.
3. Method 2: Close the fuel valve
and wait for the engine to stop.
4. Turn the water supply off.
5. Pull the trigger on the spray gun to
release any water pressure.
6. See storage section in this manual
for proper storage procedures.
NOTE: NEVER turn the water off with the engine running.

19
Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]

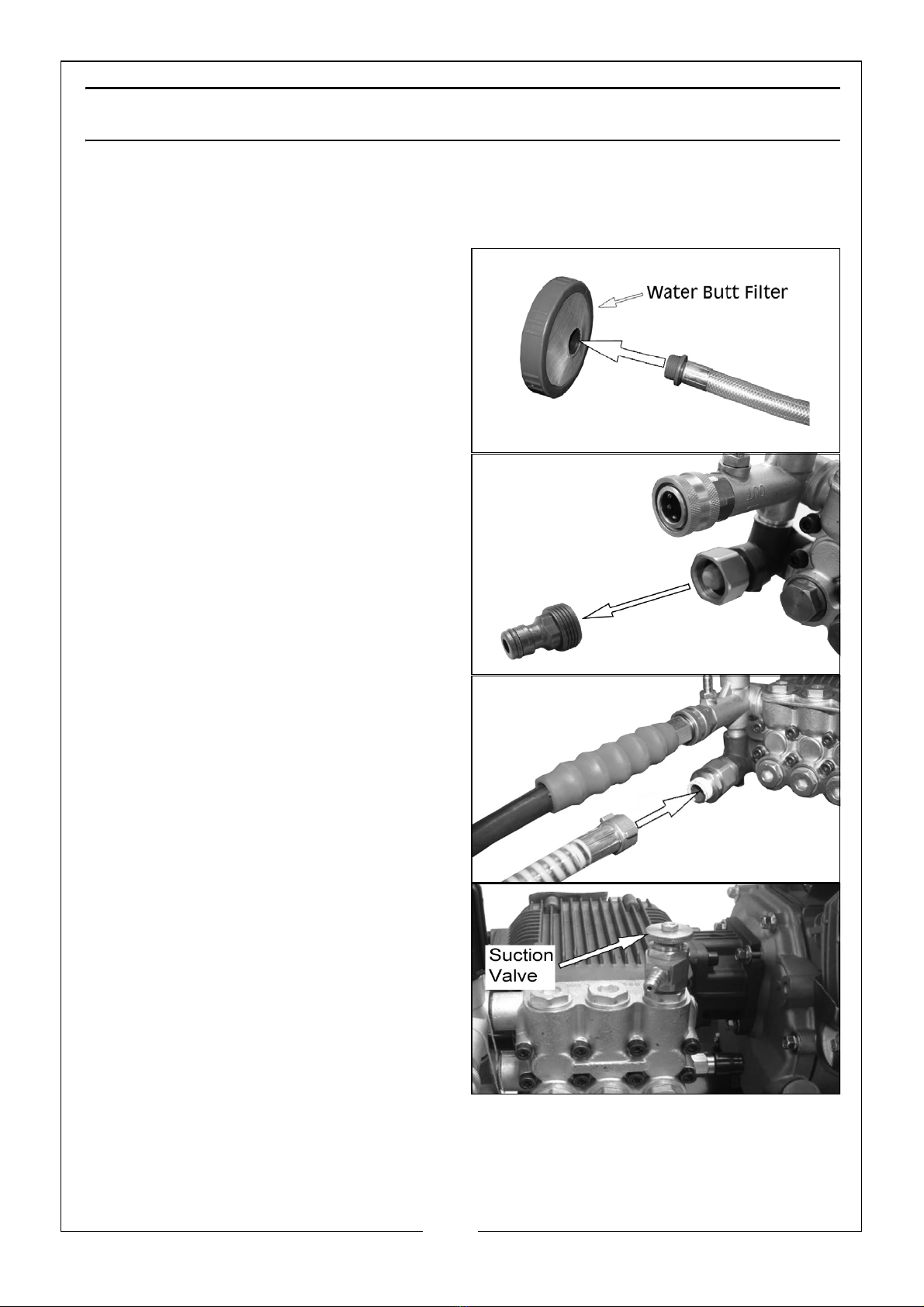

WATER BUTT CONNECTION
This machine has the ability to draw its own water, meaning you can use water
not under pressure, such as rainwater collected in a water butt. To do this you
must carry out the following procedure.
1. Attach the filter to the end of the
pipe supplied.
2. Place the filter into the water butt.
3. Remove the hose adaptor and
replace it with the inlet connector
supplied.
4. Connect the pick-up pipe to the
pressure washer as shown.
• Tighten securely
5. Twist open the suction valve
shown.
6. Start the power washer. See
Starting your Power Washer on
page 13.
• Water is ejected from the
nozzle.
7. When the water spray being
ejected is consistent and at high pressure, close the suction valve.
8. Use the pressure washer as normal.

20
Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]
NOTE: DO NOT let the pressure washer run dry.
MAINTENANCE
CHANGING THE PUMP OIL
1. Unscrew and remove the oil filler
cap.
2. Place an oil collection tray (not
supplied) under the drain plug.
3. Unscrew the drain plug, and allow
the used oil to drain from the
crankcase into the oil collection
tray.
NOTE: Drain the oil when the engine
is warm, this will ensure the oil
flows out quicker.
4. Replace the drain plug and its ring
seal.
5. With the power washer in a
level position, fill to the centre
of the sight-glass with the
recommended oil.
6. Replace the oil filler cap.
ENVIRONMENTAL PROTECTION
One of the most damaging sources of pollution is oil. DO NOT throw away used
oil with your domestic rubbish or down drains and sinks. Place it in a leak proof
container and take it to you local waste disposal site.
CAUTION: PROLONGED EXPOSURE TO USED OIL IS DANGEROUS,
ALWAYS WASH YOUR HANDS THOROUGHLY AFTER HANDLING USED OIL.
