Classe Audio C-303 User manual

CLASSÉ AUDIO
C-303
REMOTE CONTROL
BALANCED LINE PREAMPLIFIER
C-303
OWNER'S MANUAL

C-303 Issue 1 July ‘98
2
CLASSÉ DESIGN PHILOSOPHY
1. REPEATED LISTENING DESIGN SESSIONS:
Fine tuning of sound by exchanging and mixing of parts (transistors, capacitors, wiring, PCB boards
etc.), and adjusting many specific operating voltages within proper engineering ranges, producing an
overall sonic recipe giving the most natural harmonic realism of music typical of instruments in a
live performance.
2. UPGRADABLE SINGLE CIRCUIT DESIGNS:
All Classé products (all preamps and all amps) share exactly the same circuit design philosophy
(excluding moving coil and moving magnet phono circuits). This means all amplifiers and all high
level circuits of the preamps benefit from the same design goals. Similar circuits are then tailored to
different power levels etc. Differences between less expensive models and more expensive models
are parts quality and compliment, power supply extravagance and the amount of filtering etc., as
well as features and packaging.
This means that for years Classé has been constantly sonically fine tuning and technically upgrading
this circuit design and its application, thus reaching a very high level of natural musical enjoyment,
as well as excellent reliability which benefits all models - least expensive, most expensive, preamps
and amplifiers alike.
3. EXTREME LONG LIFE IN REAL WORLD CONDITIONS:
Choosing the best attainable quality parts and materials combined with the advantages of the two
above-mentioned areas provides Classé owners with years of proven trouble free reliability and
musical enjoyment.

C-303 Issue 1 July ‘98
3
C-303
OWNER'S MANUAL
TABLE OF CONTENTS
UNPACKING & SET-UP..…............................................. 4
A.C. LINE POWER.............................................................. 5
INPUTS................................................................................. 6
OUTPUTS ............................................................................ 9
FRONT PANEL CONTROLS…………………………... 10
REMOTE HANDSET ………………………………….. 12
FEATURES AND SPECIFICATIONS ……...................... 20

C-303 Issue 1 July ‘98
4
UNPACKING & SET-UP
Your CLASSÉ C-303 preamplifier has been carefully wrapped in heavy gauge plastic, packed in
semi-rigid foam and contained in a special box. To remove the unit, open and spread the top flaps of the
box. By its sides, lift out the entire unit with foam pieces intact. Remove each foam side by pulling
straight out. Remove the plastic wrap and inspect the unit for any concealed damage. Apart from this
owner's manual, please ensure the following has also been included:
1) DETACHABLE LINECORD.
2) ALLEN KEY FOR TOP COVER.
3) REMOTE CONTROL UNIT (Allen key and Batteries: AAA x 2 included).
Please report any damage or missing parts to your dealer promptly.
This preamplifier, being capable of very high gain, must be located in a position free of any
hum-inducing magnetic fields. (This also applies to turntables and interconnect cables.) Positions
adjacent to power amplifiers, A.C line filters, or regulation devices should be avoided. Ideally, a few feet
should separate the preamplifier from the power amplifier. As well, keep low-level interconnect cables
away from the power amp and separate from A.C. linecords.
Heat generated by the preamplifier is negligible. Air space around the unit need not be a
concern.
Check the Serial Number sticker on the back of the unit for the correct operating voltage.
Regardless of voltage, the internal fuse rating should be 2 AMP SLO-BLO.

C-303 Issue 1 July ‘98
5
A.C. LINE POWER
The Classé C-303 preamplifier has a POWER SWITCH located at the back of the unit directly
to the right of the AC cord receptacle, this permits you to turn on (see SAFETY FEATURE below) or
shut down the unit completely. The Classé C-303 also has a STANDBY BUTTON located on the left
side of the front panel which permits you to partially shut down the unit while keeping warmed up parts
of the circuitry .In fact, while thoroughly musical shortly after turn-on, the preamplifier will exhibit
"sonic growth" during its first 300 hours of use.
For optimum sonic performance, you should consider the use of the optional CLASSÉ REFERENCE
A.C. LINECORD. Consult your dealer regarding this accessory.
SAFETY FEATURE:
The C-303 preamplifier is designed with an auto-muting circuit which engages during the initial
7 seconds count down and is indicated by the flashing GREEN STANDBY LED when the unit is first
powered up, or after an AC power failure if the power switch was on. After the 7 seconds countdown,
the STANDBY LED to the left of the front panel will be GREEN thus showing that the unit is in
STANDBY mode. This feature will prevent any turn-on surges or unstable output from reaching the
power amplifier and possibly the loudspeakers. Similarly, make sure the STANDBY is ON (SHOWING
GREEN) and then turn the POWER SWITCH OFF when removing A.C. line power.
CAUTION:
DISCONNECT AC LINE CABLE WHILE MAKING ALL CONNECTIONS. "FLOATING THE GROUND” OR DEFEATING THE GROUND ON A
3-PRONG LINECORD MAY CREATE A SHOCK HAZARD. CONNECT ALL INTERCONNECT CABLES BETWEEN THE ELECTRONICS
BEFORE CONNECTING THE A.C LINECORDS TO THE WALL OUTLETS. THIS WILL REDUCE THE POTENTIAL SHOCK HAZARD. SEE
ALSO THE WARRANTY SECTION OF THIS OWNER'S MANUAL.

C-303 Issue 1 July ‘98
6
INPUTS:
The input jacks are clearly marked on the back of the C-303. The following inputs are provided:
REG 1, REG 2, REG 3, REG 4, BAL 1, BAL 2 and TAPE (see fig. 3, page 14).
REGULAR INPUTS REG 1, REG 2, REG 3, and REG4:
These are all high level inputs sharing exactly the same characteristics, and may be interchanged if
so desired. A tape machine should only be connected to the TAPE input. See TAPE IN and TAPE
OUT below. The REG 1 input could also be fitted with an OPTIONAL PHONO BOARD plug in
module installed in the unit, when this is the case, REG 1 input will show LP on the front panel
display. A ground screw is provided adjacent to the REG 1 input jack.
INSTALLATION OF THE PHONO BOARD
1) Disconnect the A.C. line cord from the wall outlet.
2) Remove the top cover with the supplied Allen key.
3) Locate and replace the two mounting screws (see Fig.5, page 17) with the supplied stand-offs.
4) Remove jumpers J5, J6, J13 and J14 (see fig. 5, page 17). Check if extension sockets are in
place on the reverse side of the phono board.
5) Install and secure the phono board using the screws removed previously in step 3 (see fig. 6, page
18), make sure all the connectors are properly aligned.
6) Set MM/MC jumpers J104, 105, 106, 204, 205, 206, to the desired position. All six of these
jumpers are located at the far right of the phono board (see fig. 6, page 18). Please note that for
ALL HIGH OUTPUT MC Cartridges, the jumpers have to be SET AT MM.
7) Replace the top cover.

C-303 Issue 1 July ‘98
7
REMOVAL OF THE PHONO BOARD
1) Disconnect the line cord from the wall outlet.
2) Remove the top cover with the supplied Allen key.
3) Remove the screws securing the phono board, remove the phono board and the stand-offs,
replace the screws where the stand-offs were removed (see fig. 5, page 17) to secure the main
board.
4) Replace jumpers J5, J6, J13 and J14 (see fig. 5, page 17) on the main board. Jumpers from the
phono board can be used for that purpose.
5) Replace the top cover.
BALANCED INPUT BAL 1 and BAL 2:
The BALANCED INPUT is a true differential high level input, wired as follows:
PIN 1: GROUND
PIN 2: POSITIVE (NON-INVERTED) SIGNAL
PIN 3: NEGATIVE (INVERTED) SIGNAL
It may be used with CD players that have a balanced output, or any other high level
balanced sources.
TAPE IN
The TAPE IN of the C-303 preamplifier should be connected to the LINE OUT or TAPE
OUT of the tape deck. The TAPE input does not appear on the selector switch. It is activated by the
TAPE switch. (See FRONT PANEL CONTROLS: TAPE BUTTON.)

C-303 Issue 1 July ‘98
8
IR IN (and OUT)
This will permit you to install an outboard infra-red sensor and therefore be able to control
the C-303 remotely from another room where the outboard IR sensor has been installed. These
connections will be found to the left beside the AC power inlet at the back of the unit (see fig.3, page
15).

C-303 Issue 1 July ‘98
9
OUTPUTS
The Classé C-303 preamplifier has two (2) regular (single-ended) and one (1) balanced
outputs (see fig. 3, page 15). Both single ended and balanced outputs are working at all times, and
may be used separately, or simultaneously.
TAPE OUTPUT
Whatever input is selected by the INPUT SELECTOR will be fed to the TAPE OUTPUT
jacks. This should be connected to the TAPE IN or LINE IN of the tape deck.
REGULAR OUTPUTS
Simply connect your regular interconnects to the RCA output jacks marks REG OUT 1or
REG OUT 2 on the back of the C-303.
BALANCED OUTPUTS
A balanced power amplifier and balanced interconnects are also required. For use with a
balanced power amplifier other than Classé, the wiring of the 3-pin XLR connectors must be wired
as follows:
PIN 1: GROUND
PIN 2: POSITIVE (NON-INVERTED) SIGNAL
PIN 3: NEGATIVE (INVERTED) SIGNAL
If the pin configuration of the power amplifier differs from above, the balanced interconnects
must be modified to accommodate the different power amp.
Having confirmed the correct connections, plug the XLR connectors of the balanced
interconnects into the locking XLR connector on the rear of the C-303 marked BALANCED
OUTPUT. (To remove the connectors, press the tab above the connector.)

C-303 Issue 1 July ‘98
10
FRONT PANEL CONTROLS
STANDBY
The Classé C-303 also has a STANDBY BUTTON located on the left side of the front panel which
permits you to partially shut down the unit while keeping warmed up parts of the circuitry .
INPUT SELECTOR:
The input selector (see fig.4, page 16) has two buttons for selecting the inputs; (<) and (>).
Pressing the < button.
selects the input to the left of the currently selected input, and pressing the > button selects the input
to the right of the currently selected input. If the > button is pressed when BAL1 is the current input
then the REG1 input will be selected, and if the < button when REG1 is the current input then the
BAL1 input will be selected. The < and > buttons will select from five input connections on the
preamplifier, but not the TAPE, (see TAPE below).
TAPE
In the SOURCE position (TAPE LED OFF), the preamp will process the signal as chosen by
the INPUT SELECTOR. In the TAPE position (TAPE LED ON (RED)), the preamp will process the
TAPE INPUT signal, overriding the INPUT SELECTOR.
VOLUME CONTROL
The VOLUME CONTROL varies the output level of both channels simultaneously. It can be
operated by remote using the hand held control unit (see fig.4, Page 16) or manually
VOLUME CONTROL (CONTINUED)

C-303 Issue 1 July ‘98
11
turning the control knob at the preamp. The volume control has a total of 120 steps of level
adjustments form 0 to 60 in 0.5 stepped increments. When the unit is put out of standby mode, the
volume will be automatically at zero (0) and the preamp will be muted (GREEN MUTE LED).
When you un-mute, the volume will stay to the same level it was at before you turned on the
mute mode.
PLEASE NOTE: It is normal for the volume to stay at the same level if you turn the
VOLUME knob extremely slowly.
MUTE
Press the MUTE button (see fig. 4, page 16) to temporarily set the VOLUME to 0. When
activating the MUTE function, the MUTE LED will light up GREEN at the top of the
MUTE BUTTON. Switching can be done by either pushing the MUTE button momentarily on
the C-303 faceplate or on the remote handset. The volume setting will remain the same when
the unit is in mute mode; thus Volume will be at the same level it was playing at prior to muting
when you turned off MUTE mode.
PLEASE NOTE: The display will change to Display Full Off mode after the unit has been in
MUTE mode for an hour.
NOTE: When the C-303 is in the mute position, and the volume control is turned up using
the volume control on the remote or the unit, the play mode will be automatically selected.
CAUTION: Make sure the preamp is in MUTE (showing GREEN LED) when making or
changing any connections. This includes all inputs and outputs, as well as A.C. linecord.

C-303 Issue 1 July ‘98
12
REMOTE HANDSET
The remote handset will permit you to access remotely all the functions found on the front
panel of the unit: VOLUME UP or DOWN, MUTE ON or OFF, DIRECT ACCESS for all the
INPUTS and TAPE monitor. In addition to all these functions, the button marked DISPLAY will
permit you to select through the four Display modes on the unit.
PLEASE NOTE that the DISPLAY function can only be activated through the remote handset.
To access the batteries, unscrew the back plate of the remote handset (see fig. 2, page 14)
BALANCE CONTROL (ON REMOTE HANDSET ONLY):
The balance control found on the remote handset only permits equal output of each channel
in the center (00.0) position without additional loading to the signal. When shifted to the left or
right, it merely attenuates the opposite channel. When operating the balance control, the display will
show < - -. - if the balance control is shifted to the left or - -.- > if the balance control is shifted to the
right. The amount of attenuation will be show on the DIGIT display in increments of 0.5 up to20.0.
The opposite channel now gives out no signal since the balance is completely shifted to one side.
DISPLAY (ON REMOTE HANDSET ONLY)

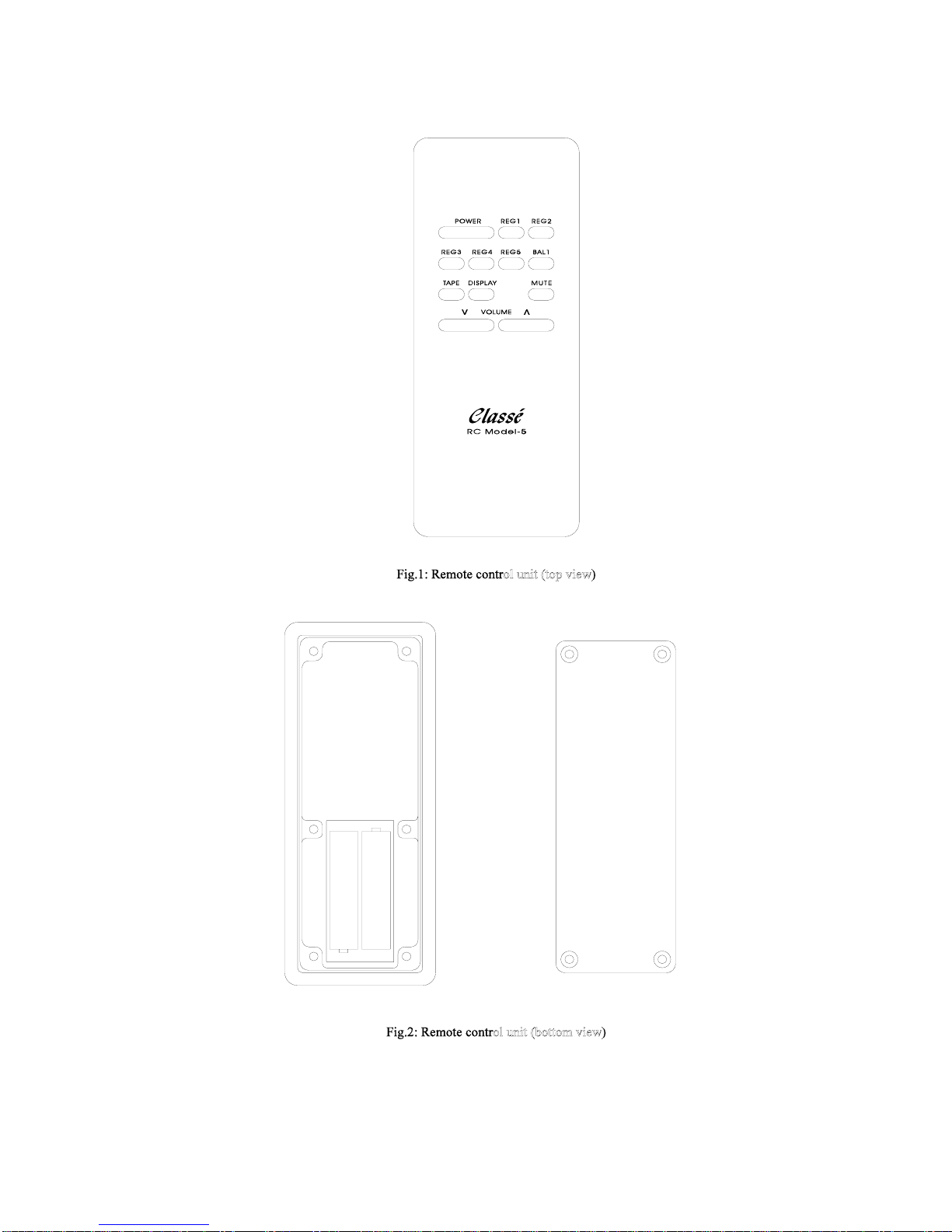

Pressing the DISPLAY button on the remote handset (see fig. 1, page 14) allows you to
control the brightness of the display. There are 3 levels of brightness; Display On, Display Medium
On, Display Low On or Display Full Off. Repeated pressing of the DISPLAY button will cycle
through the four modes, from Display Full On to Display Full Off. Pressing DISPLAY when the
display is at Full Off will cause the display to go back to Display Full On.

C-303 Issue 1 July ‘98
13
DISPLAY (CONTINUED)
NOTE: Four (4) LEDs will continue to be lit on the display when it is in Display Full Off mode to
let you know that the C-303 is still on and operating. When in Display Full Off mode mode and any
other functions are used, such as changing volume or selecting a new source, the display will light at
Display Full On mode for five seconds and then go back to Display Full Off mode. The display will
automatically go to Display Full Off mode after the MUTE mode has been activated for an hour.

-303 Issue 1 July ‘98
14
C

C-303 Issue 1 July ‘98
15
Fig 3: C-303 back view

C-303 Issue 1 July ‘98
16
Fig 4: C-303 faceplate

C-303 Issue 1 July ‘98
17
Fig 5: C-303 top view

C-303 Issue 1 July ‘98
18
Fig: 6, phono board & jumpers

C-303 Issue 1 July ‘98
19
CLASSÉ AUDIO
5070 Francois-Cusson
Lachine, Quebec
Canada H8T 1B3
Telephone: [phone]
Fax: [phone]

C-303 Issue 1 July ‘98
20
REMOTE CONTROL
BALANCED LINE PREAMPLIFIER
FEATURES
AND
SPECIFICATIONS SHEET
C-303 FEATURES:
Remote control featuring adjustments for volume, direct access input selection, tape, display and
mute. Contoured slimline chassis. Inputs featuring REG1, REG2, REG3, REG4, BAL1 and BAL 2.
Two regular and one balanced outputs. Front panel adjustments include volume, mute, input
selection, tape and standby. Special Classé front panel in Soft Shadow Silver with Satin Black
display panel plate.
C-303 SPECIFICATIONS:
Frequency response: 20 Hz to 20 kHz, + 0.06 dB
Maximum Output: 27 Volts Peak to Peak
Sensitivity: 120 mV
S/N Ratio ("A" Weighted): 95 dB
THD+N: 0.0006%
Input Impedance: 33 Kohms
Output Impedance: 50 ohms
Gain: 12dB
Power Consumption: 25 Watts
Dimensions: Gross: 22 1/2" x 14 1/2" x 7 1/2"
Net: 19" x 10 1/4" x 2 1/2"
Weight: Gross: 22 lbs.
Net: 13lbs.
