Classe Audio CA-400 User manual

PRO-SVR_LEGACY Page 1 of 14
Date: August 8, 2007
Model Number: CA-400
Classé Audio Inc. Subject: Service manual
Classé Audio, Inc. 5070 François Cusson Lachine, Québec Canada H8T1B3, www.classeaudio.com

PRO-SVR_LEGACY Page 2 of 14
Table of Contents
Introduction 3
Important Notes on Servicing 3
Ordering Replacement Parts 3
Block Diagrams 4
Start up Procedure 5
Protection Modes and Indicators 6
Troubleshooting Guide 7
Output Transistors Testing and Replacement 8
Calibrations and Adjustments 9
Parts List 10
Updates 11
Fuses 13
Voltage Change 13

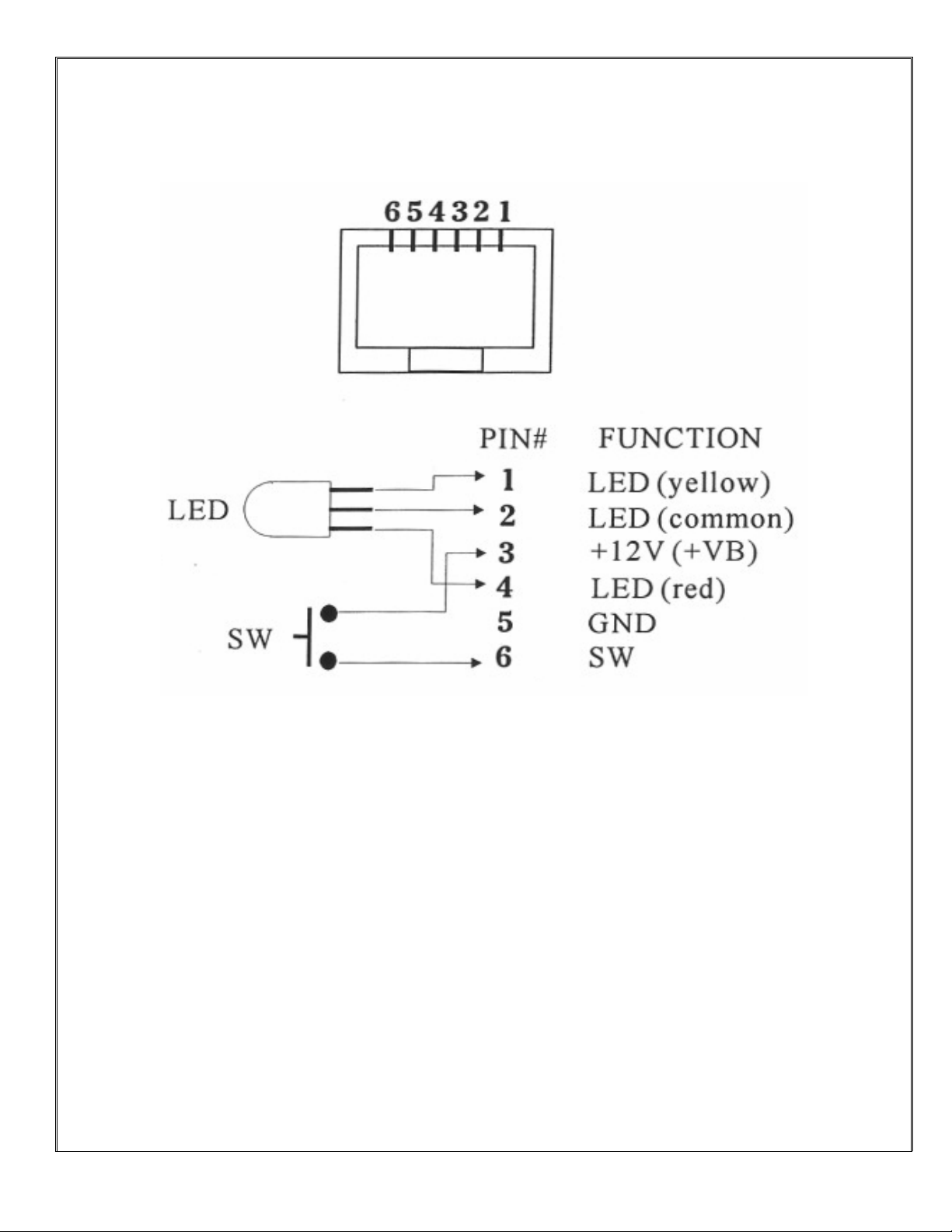

Remote Interface Information 14

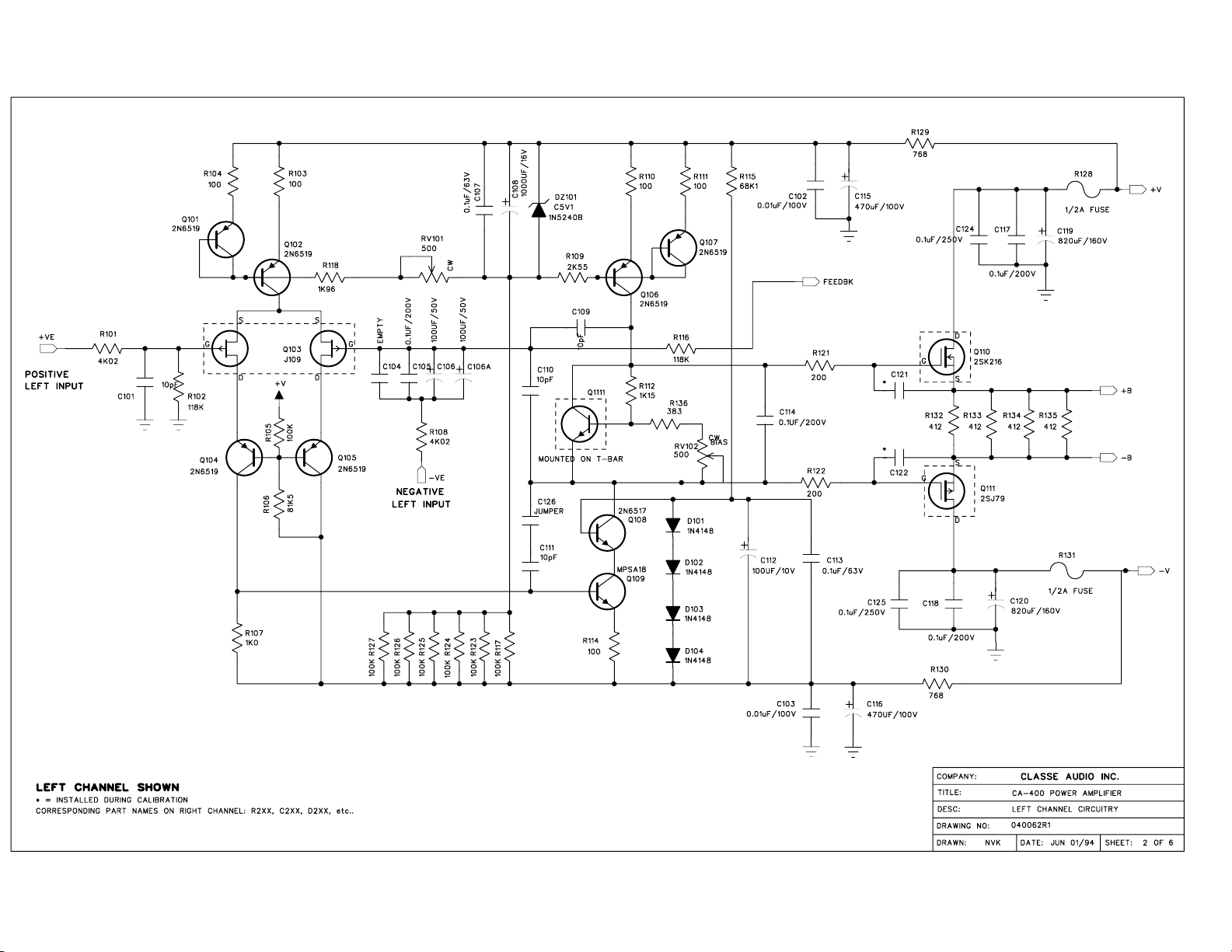

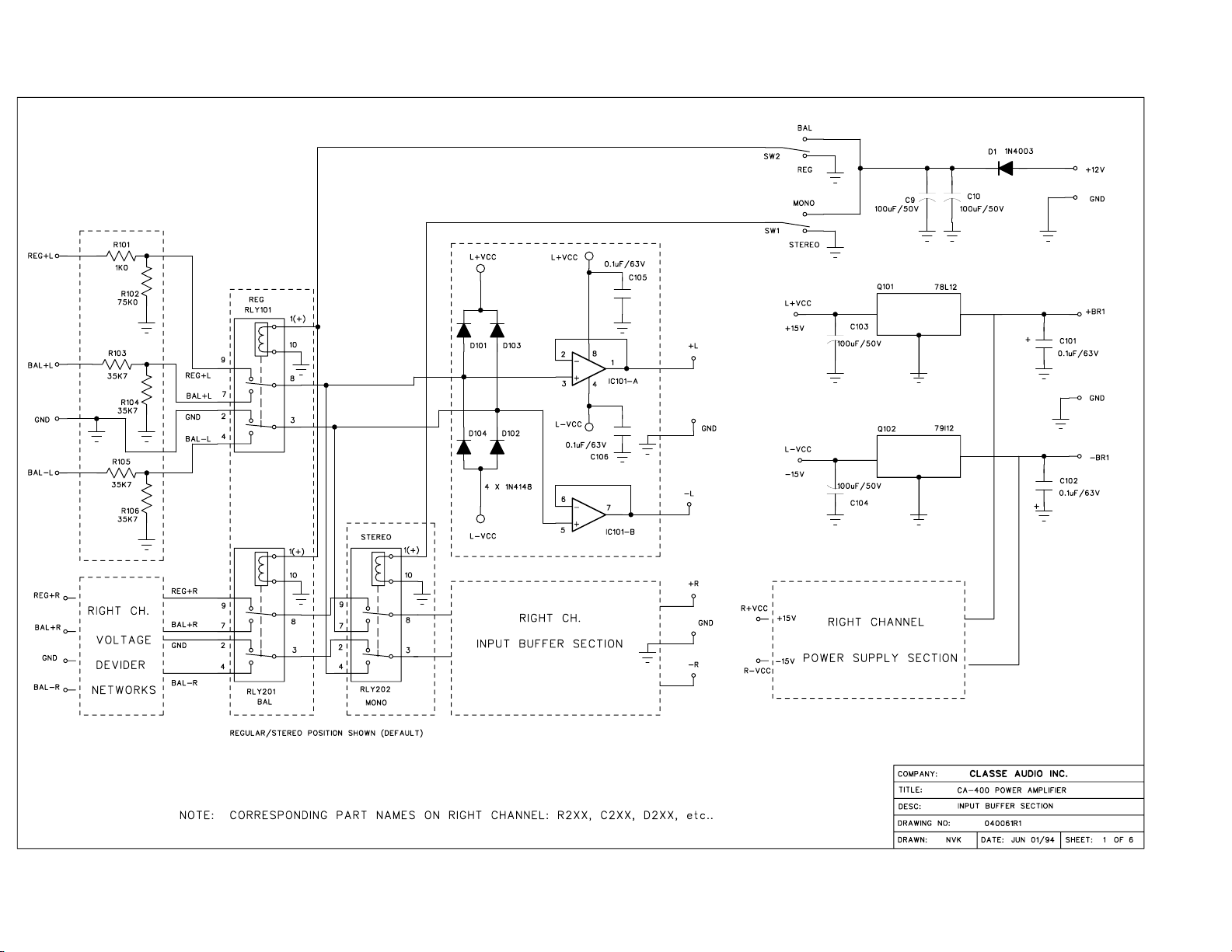

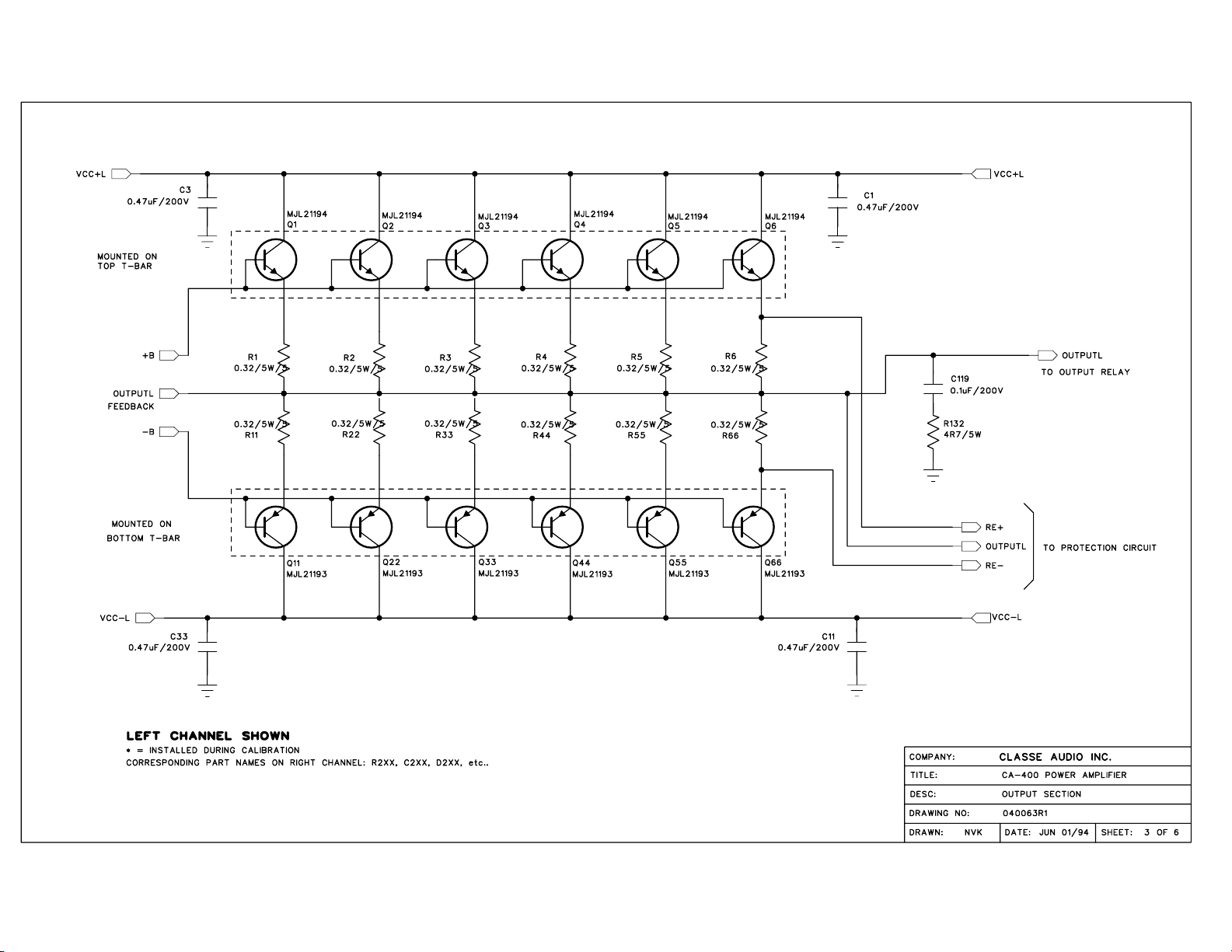

Schematics 15
The contents of this document as well as the files associated with it contain confidential information that is proprietary to Classé Audio
Incorporated and are intended solely for the purpose of servicing product. No part of its contents may be used, copied, disclosed, or conveyed to
any party in any manner whatsoever without prior written permission from Classé Audio Incorporated.

PRO-SVR_LEGACY Page 3 of 14
Introduction
Please read this manual carefully before commencing servicing!
Only qualified and authorized personnel should attempt to service this product.
The lightning flash with arrowhead symbol, within an equilateral triangle, is intended
to alert the user to the presence of uninsulated dangerous voltage within the
product’s enclosure that may be of sufficient magnitude to constitute a risk of electric
shock to persons.
The exclamation point within an equilateral triangle is intended to alert the user to
the presence of important operating and maintenance (servicing) instructions.
Classé has a global product support network. For product assistance or to order replacement parts please
contact your nearest service center always quoting the unit serial number.
North America
Phone: [phone] E-mail: [email protected]
Europe
Phone: [phone] E-mail: [email protected]
Asia
Phone: [phone] E-mail: [email protected]
Rest of the World
Phone: [phone] E-mail: [email protected]
Important Notes on Servicing
1. ALWAYS observe ESD precautions when handling electronic modules or PCBAs.
2. NEVER exchange boards with a different revision number, unless authorized by Classé.
3. ALWAYS use Classé original replacement parts. The use of generic parts may void the warranty of
the unit.
Ordering Replacement Parts
There may be a delay in processing incomplete requests. Please be sure to include all required information.
Remember to quote the serial number of the unit on all replacement part orders and the Classé order number
when returning defective parts for credit.

PRO-SVR_LEGACY Page 4 of 14
Block diagrams

PRO-SVR_LEGACY Page 5 of 14
Start Up Procedure
When receiving a unit, an assiduous visual inspection must be performed. Do not connect the unit without
analysing the symptoms reported by the customer and the results of the inspection.
Using the troubleshooting guide, find the problem and proceed to the repair. Once this step is done, follow
these steps, known as the start-up procedure, to ensure that everything in the unit is in working condition.
1. Proceed with a post repair visual inspection. Take the time to check if every wire is reconnected
properly, every screw is bolted on, no soldering and/or metal residues lying in the unit, every fuse has
been replaced, etc.
2. Connect the unit to a variable transformer, setted to 0Vac.
3. Turn the bias trimpot (RV102) counter clockwise until a click is heard.
4. Connect the bypass wire to the variable transformer. This bypass is a power cord, modified on the
female side in order to bypass the soft start sequence. It is connected to the line ring on voltage
selector PCB.
5. Slowly raise the voltage to 10Vac, and check positive and negative rails and pre-driver supply. Check
fuses.
6. If one or more supply are not within specifications, return to the troubleshooting guide.
7. Slowly raise voltage until you hear relays click, this point is around 55Vac. Recheck every supply.
8. If one or more supply are not within specifications, return to the troubleshooting guide.
9. Raise voltage to 120Vac. Recheck every supply
10. If every supply is within specifications, unplug the unit and bypass from the variable transformer.
Reconnect only the unit.
11. Report to Calibration and adjusments (section 9) to adjust bias and DC offset. Note that bias can be
adjusted to 14mV, and the following tests can be performed before the unit is send to the burn-in
bench for a 24 hours warm-up.
12. Connect the unit to a load, and to a source using balanced inputs and single ended inputs,
independently.
13. Perform a test with a 200Hz, a 2kHz and a 20kHz tone, both sinus wave and square wave. Check the
output with a oscilloscope, on 4 ohms and 8 ohms loads. Take special cares about oscillation and phase
correlation between channels.
14. Connect the unit to a small speaker, and short the input. Check for any noise. Perform this step with
single ended inputs and balanced inputs, independently.
15. Put the unit on a burn-in bench, and let it sit for 24 hours, then readjust bias. Let the unit on the burn-
in bench for another 72 hours.
16. Redo steps 11 to 14 before shipping to the customer.

PRO-SVR_LEGACY Page 6 of 14
Protection Modes and Indicators
The front LED shows the status of the amplifier. When starting up normally, the CA400 will show a FLASHING
RED LED for about 15 seconds and if all is normal, the LED will go SOLID RED. If there is a fault, the LED will
go to a FLASHING GREEN LED. The CA400 is equipped, except for some early production models, with four
rails protection fuses. In the event that one or more of these fuses would blow, the technician will first need to
identify and cure the cause of failure (please report to troubleshooting guide). When the cause has been
identified, disconnect the unit from the system including the AC power. Remove the top cover and look for
damaged or burned components. If no other components than the fuses appear to be damaged, the
technician can then replace the broken fuses with the same value and rating (please report to fuses section).
The rail fuses are located on each device board. When replacing fuses, please make sure that the fuse holder
are holding the fuses very tightly. A loose fuse holder can translate into distortion on top of the signal.

PRO-SVR_LEGACY Page 7 of 14
Troubleshooting Guide
Symptom Possible cause
Unit won’t turn on Check connections;
Check fuses;
Check soft-start circuit;
Check relays;
Check power supply circuits (positive rail, negative rail, Mosfet
supply).
Smoked and/or burned
components
Check for short between components and ground;
Check output transistors;
Check output relays;
Check power supply circuits (positive rail, negative rail, Mosfet
supply).
Blown fuses Check for short between fuse and ground;
Check power supply circuits (positive rail, negative rail, Mosfet
supply).
No output Check connexions;
Check output relays;
Check power supply circuits (positive rail, negative rail, Mosfet
supply);
Check output transistors.
Unit turn into protection Check for smoked and/or burned components;
Check power supply circuits (positive rail, negative rail, Mosfet
supply);
Check source and load;
Check protection circuit;
Check sensor wires between sensor PCB and control PCB;
Check outputs transistors and Mosfet drivers.
Excessive buzz and/or hum Check electrical lines;
Check for a ground loop in the system.
Oscillation Check source;
Check capacitors on main board;
Check 4.7ƻresistor.
Intermittent signal Check connections;
Replace shield wires.

PRO-SVR_LEGACY Page 8 of 14
Output Transistors Testing and Replacement
PLEASE NOTE THAT THESE TESTS ARE ONLY EFFECTIVE ON BIPOLAR TRANSISTORS.
DO NOT PERFORM THESE TESTS ON MOSFET DEVICES, AS THEY ARE LIKELY TO
BECOME SHORT DURING THE TEST.
You should check all pin combinaisons, as there is a chance that only one side of the transistor is short. When
replacing outputs transistors, the technician should first disconnect both outputs and main board to check if
the blown outputs were caused by a faulty component on the amplifier’s base. Blown output transistors should
be replaced by kits, not individually. These kits contains matched transistors for both rails of one channel.
When replacing blown output transistors, you must also replace positive and negative Mosfet drivers and bias
transistor. Carefully inspect 4.7ƻresistor and 10ƻsoft start resistor, and replace if necessary. Replace any
burnt component or board.

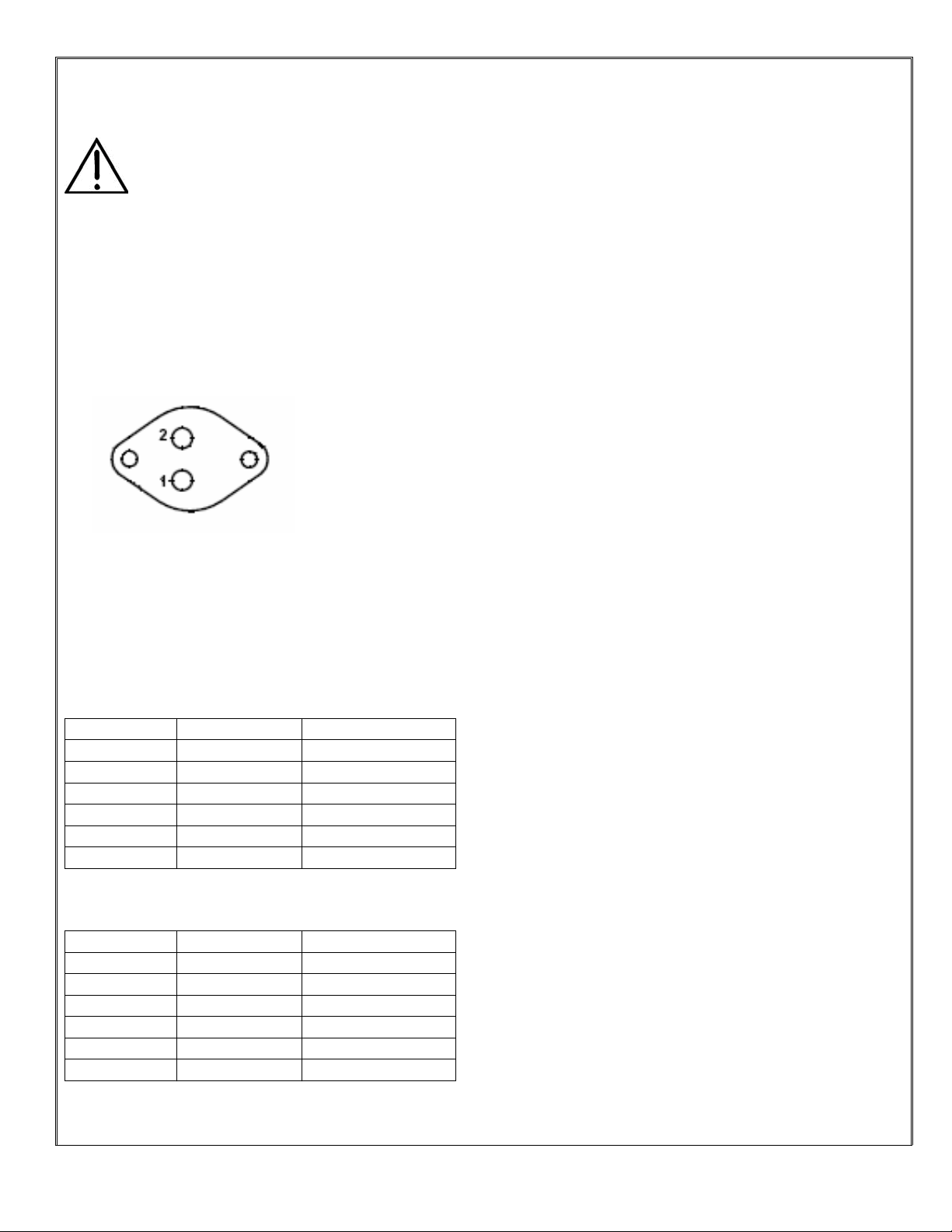

Pins : 1 Base
2 Emitter
Case Collector
You should have these results, if the transistor is good.
MJ21194 (NPN)
Positive lead Negative lead Result
B C Conductive
B E Conductive
C B Infinite
C E Infinite
E B Infinite
E C Infinite
MJ21193 (PNP)
Positive lead Negative lead Result
B C Infinite
B E Infinite
C B Conductive
C E Infinite
E B Conductive
E C Infinite

PRO-SVR_LEGACY Page 9 of 14
Calibrations and Adjustments
Bias adjustment:
Note: Bias adjustment should be made without any load connected to the amplifier’s output, and no signal
connected to the amplifier’s input.
1. Connect a multimeter to R1 leads and set the multimeter to mV scale.
2. Turn trimpot RV102 counterclockwise until it reaches 0ƻ. A click should be heard.
3. Turn on amplifier, and let it warm up for 15 minutes on idle.
4. Adjust trimpot RV102 to get a 14mV reading.
5. Let the amplifier warm up for a 24 hours period with signal and load.
6. Remove signal and load, and reconnect the multimeter, setted to mV scale, to R8 leads. Note the
reading.
7. Connect the multimeter to R2, R3, R4, R5 and R6 leads. Note the readings.
8. Input the results into this formula:
((144 – mVR1 – mVR2 – mVR3 – mVR4 – mVR5 – mVR6) ÷ 6) + mVR1
9. Connect the multimeter to R8 leads, and adjust RV1 to match the reading to the formula result.
10. Results should be around 24mV.
DC offset:
Note: DC offset adjustment should be made without any load connected to the amplifier’s output, and no
signal connected to the amplifier’s input.
1. Connect a multimeter to the output binding posts and set the multimeter to mV scale.
2. Adjust trimpot RV101 in order to reach 0mV. It is easier to turn the trimpot ½ turn at a time, and let
DC offset stabilize in order to get an accurate reading.
3. A tolerance of ± 1mV is acceptable.

PRO-SVR_LEGACY Page 10 of 14
Parts List
This is not a detailed part list. It is a list of major chassis parts and PCBs. If you need to order a specific part,
please contact Classe Audio with the part location, PCB number, and model and serial number of the unit.
If you need a complete PCB, please replace the (x) in the Classe part number with the revision number printed
on the board.
Parts Description Classe part number
B01AX Complete PCB, relay B01AXR(x)
B01CX Complete PCB, power switch B01CXR(x)
B01DX Complete PCB, remote B01DXR(x)
B01GX Complete PCB, filter B01GXR(x)
B011X Complete PCB, amplifier B011XR(x)
B012X Complete PCB, capacitor B012XR(x)
B013X Complete PCB, protection B013XR(x)
B014X Complete PCB, supply B014XR(x)
B015X Complete PCB, input B015XR(x)
B016X Complete PCB, AC inlet B016XR(x)
B017X Complete PCB, output, top / bottom B017XR(x)
B018X Complete PCB, output, middle B018XR(x)

PRO-SVR_LEGACY Page 11 of 14
Updates
1. On board B018X (both PCBs), replace R132 with Classe part number A211-1004.
2. On chassis, install PCB filter (noise elimination module) B01GX, using the following instructions.
Noise elimination module:
EXTRA PRECAUTIONS SHOULD BE TAKEN WHEN REPAIRING, MODIFYING, O
R
TROUBLESHOOTING IN THE POWER SUPPLY AREA. UNIT MUST BE DISCONNEC
T
FROM MAIN SOURCE AND CAPACITORS MUST BE DISCHARGED USING A 100W
INCANDESCENT BULB.
1. Remove top cover, handles and faceplate (for more information about mechanical disassembly and
reassembly, report to section 2, mechanical assembly)
2. Turn the unit upside down, front of the unit facing you
3. Using a pencil, make a mark at 3½” from the back of the unit, 5½” from the ride side. Use a punch to
guide the drill bit.
4. Using a 1/8” drill bit, drill a hole at this intersection.Clean the area for any metal residue.
5. Remove two black screws holding the voltage selector PCB
6. Disconnect the wire from N (neutral). The wire should be yellow or clear. Take time to identify each
wire in order to reconnect them properly.
7. Disconnect wire from L (live). The wire should be blue or black. Identify this wire.
8. Gently strip off the black shrink tubing covering both wires.
9. Cut N wire about 4 inches (10.2cm) from the edge of the lower portion of the supply PCB
10. Connect N wire to one end of the noise filter board, Classe part number B01GXR01. (Fig. 1)
11. Using the wire supplied with the kit, connect the other end of the noise filter board. (Fig. 1)
12. Fix the board to the chassis, using the screws supplied with the kit.
13. Install the heat shrink tubing supplied on N (new wire) and L wires
14. Reconnect both wires to the voltage selector PCB
15. Clean and spotcheck connections
16. Reassemble and test unit carefully for proper operation.

PRO-SVR_LEGACY Page 12 of 14
Updates

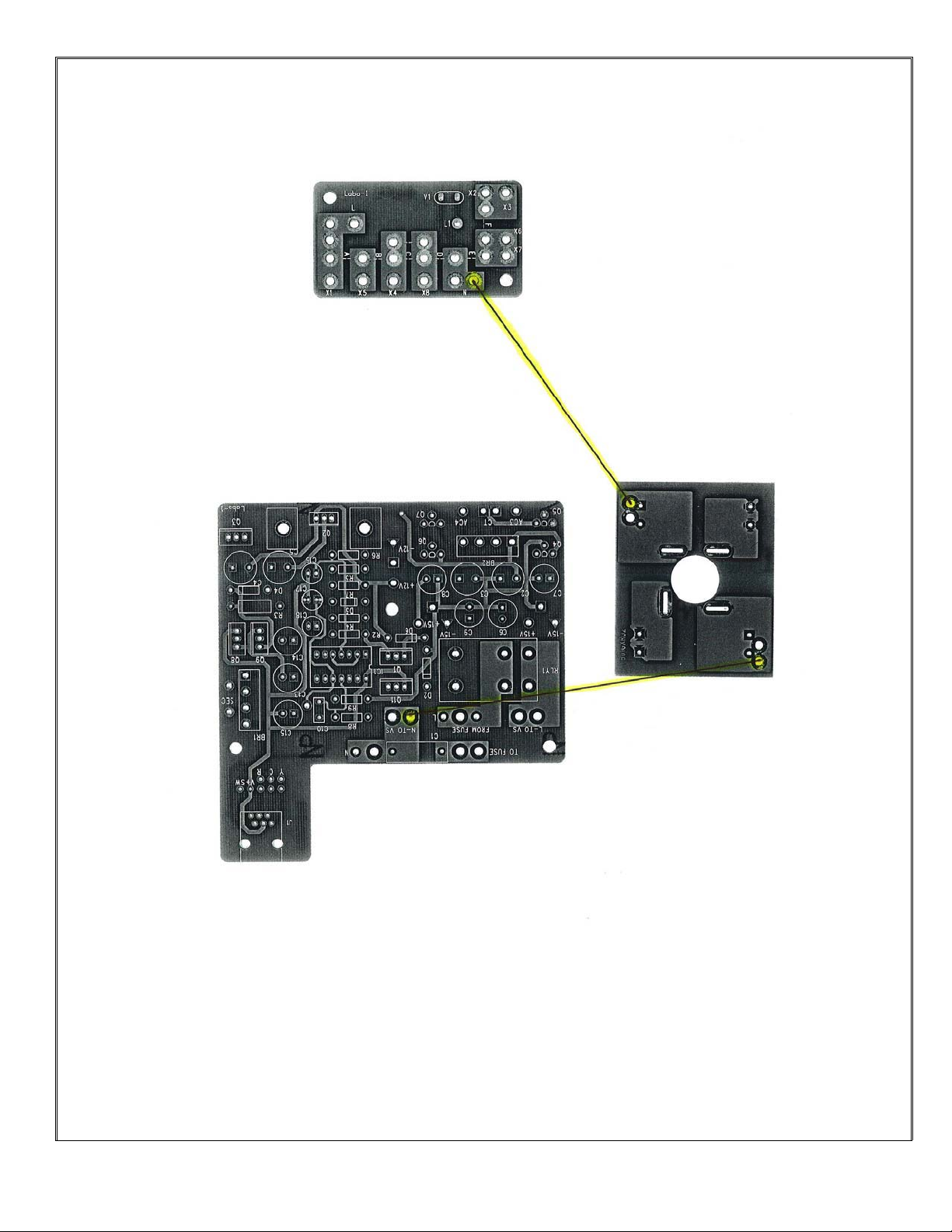

fig. 1

PRO-SVR_LEGACY Page 13 of 14
Fuses
EXTRA PRECAUTIONS SHOULD BE TAKEN WHEN REPAIRING, MODIFYING, O
R
TROUBLESHOOTING IN THE POWER SUPPLY AREA. UNIT MUST BE DISCONNEC
T
FROM MAIN SOURCE AND CAPACITORS MUST BE DISCHARGED USING A 100W
INCANDESCENT BULB.
WHEN REPLACING FUSES, PLEASE MAKE SURE THAT THE FUSE HOLDERS ARE
HOLDING THE FUSES VERY TIGHTLY. A LOOSE FUSE HOLDER CAN TRANSLATE INTO
DISTORTION ON TOP OF THE SIGNAL.
Main fuses:
For 100 – 120v units: 15A slo-blo, Classe part number MDA-15A
For 220 – 240v units: 12A slo-blo, Classe part number MDA-12A
The main fuse is located at the back of the unit, on the rear panel.
Rail fuses: 15A, Classe part number GDB-15A
The rail fuses are located on the device boards.
Mosfet fuses: 0.75A, Classe part number 225.750
The Mosfet fuses are located on top of the main board.
Voltage Change
EXTRA PRECAUTIONS SHOULD BE TAKEN WHEN REPAIRING, MODIFYING, O
R
TROUBLESHOOTING IN THE POWER SUPPLY AREA. UNIT MUST BE DISCONNEC
T
FROM MAIN SOURCE AND CAPACITORS MUST BE DISCHARGED USING A 100W
INCANDESCENT BULB.
1. Set the jumper position according to the table below.
2. Replace the varistor, according to new line voltage, following Classe’s recommendations. If varistor is
not available, remove old varistor and leave it empty.
Jumper positions, main transformer
Mains Jumper 1 Jumper 2 Jumper 3 Varistor
100VAC A E F 221
120VAC A C D 221
220VAC B E - 391 / 441
240VAC B D - 391 / 441

PRO-SVR_LEGACY Page 14 of 14
Remote Interface Information
The CA400 can be turned on or off using an simple interface connected to the Remote jack, located at the
back of the unit.

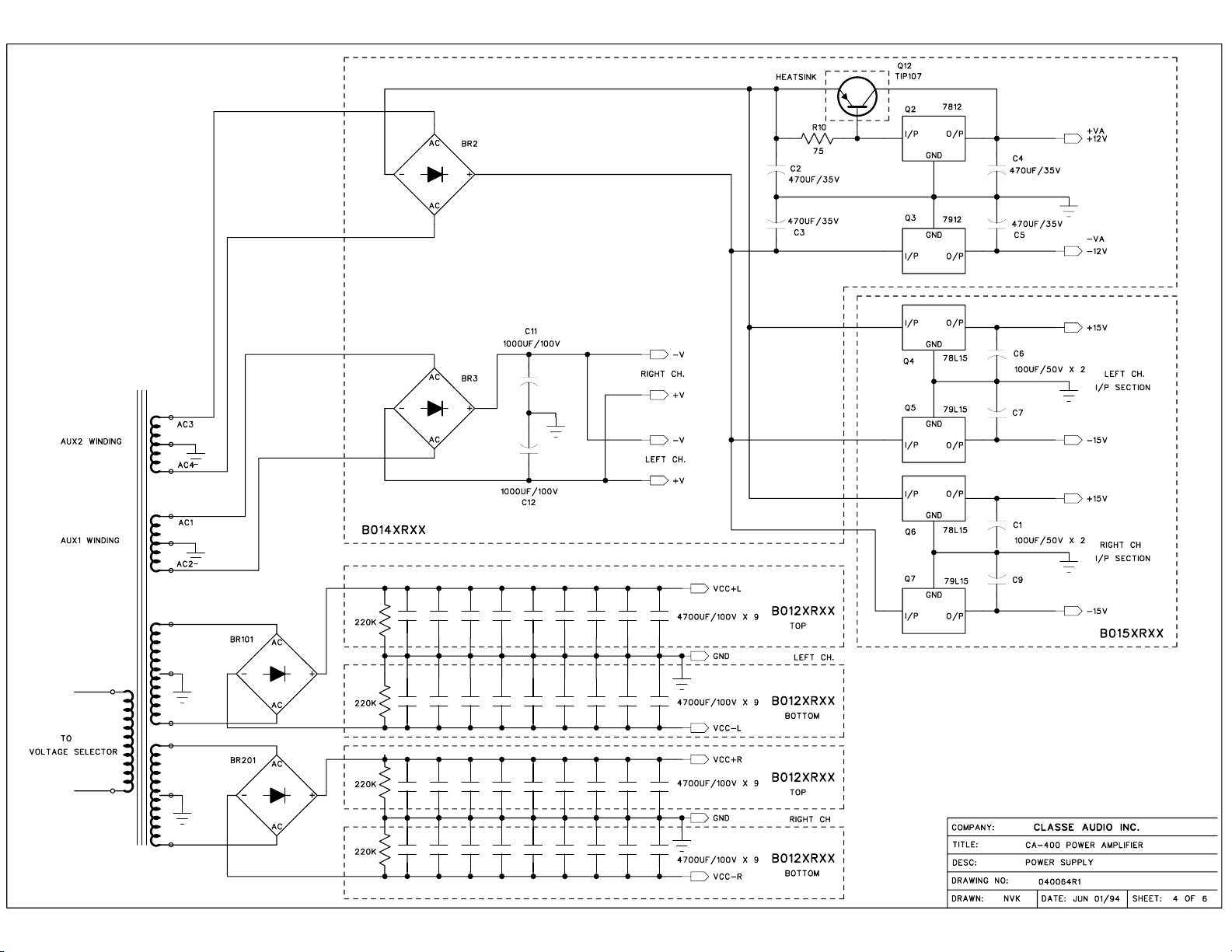

040061r1.sch-1 - Thu Jul 26 15:57:04 2007

040062r1.sch-1 - Thu Jul 26 15:57:23 2007

040063r1.sch-1 - Thu Jul 26 15:57:47 2007

040065r1.sch-1 - Thu Jul 26 15:58:58 2007
