Classe Audio CA-5200 User manual

Owner’s Manual
CA-5200
Power Amplifier
Manuel d’utilisation
CA-5200
Amplificateur de Puissance
FRANÇAISENGLISH

2
ENGLISH
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION: TO REDUCE THE RISK OF ELECTRICAL SHOCK, DO
NOT REMOVE COVER. NO USER-SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED PERSONNEL.
WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO
NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.
NOTICE
All of us at Classé take extreme care to ensure that your purchase will remain a prized investment. We are proud to inform you that all
Classé components have been officially approved for the European Community (CE) mark.
This means that your Classé product was subjected to the most rigorous manufacturing and safety tests in the world. The CE mark certifies
that your purchase meets or exceeds all European Community requirements for unit-to-unit consistency and consumer safety.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment gener-
ates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this
equipment does cause interference to radio or television reception, which can be determined by turning the equipment on and off, the user
is encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna;
• Increase the separation between the equipment and the receiver;
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected;
• Consult the dealer or an experienced radio/TV technician for help.
CAUTION: Changes or modifications to this equipment not expressly approved by the manufacturer could void the user’s authority to
operate the equipment.
The information contained in the manual is subject to change without notice. The most current version of this manual will be posted on
our web site at http://www.classeaudio.com.
The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the
user to the presence of uninsulated dangerous voltage within the product’s enclosure that may be of
sufficient magnitude to constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is intended to alert the user to the presence of
important operating and maintenance (servicing) instructions in the literature accompanying the
appliance.
Marking by the “CE” symbol (shown left) indicates compliance of this device with the EMC
(Electromagnetic Compatibility) and LVD (Low Voltage Directive) standards of the European
Community.
Classe products are designed to comply with international directives on the Restriction of Hazardous
Substances (RoHS) in electrical and electronic equipment and the disposal of Waste Electrical and
Electronic Equipment (WEEE). The crossed wheelie bin symbol indicates compliance and that the
products must be appropriately recycled or processed in accordance with these directives.

3
Important Safety Instructions
Caution:
Please read and observe all warnings and instructions in this owner’s manual and all those
marked on the unit. Retain this owner’s manual for future reference.
1. Do not attempt to service this product yourself. Do not open the cover for any reason. There are no
user-serviceable parts inside. An open unit, particularly if it is still connected to an AC source, presents
a potentially lethal shock hazard. Refer all questions to authorized service personnel only.
2. To prevent fire or shock hazard, do not expose the unit to water or moisture. If a liquid does enter
your component, immediately disconnect it from the AC mains and take it to your Classé dealer for a
thorough check-up.
3. Do not place your component near any heat-producing device such as a radiator, stove, etc., Keep
it away from direct sunlight.
4. Connect your component only to an AC source of the proper voltage. The shipping container and
the rear panel serial number tag will indicate the proper voltage. Use of any other voltage may damage
the unit and void the warranty.
5. AC cords should be routed so that they are not likely to be walked on or pinched by items
placed upon or against them. Do not stress the AC cord by stretching it to reach a plug. If damage
does occur to the AC cord, take it to your Classé dealer for a thorough check-up and proper repair or
replacement.
6. If your component will be out of use for an extended period of time (vacation, etc. ), you may wish
to unplug the power cord from the AC source to prevent any chance of problems from a voltage surge
or lightning strike.
7. NEVER wet the inside of this product with any liquid.
8. NEVER pour or spill liquids directly onto this unit.
9. NEVER block air flow through ventilation slots or heatsinks.
10. NEVER bypass any fuse.
11. NEVER replace any fuse with a value or type other than that specified.
12. NEVER attempt to repair this product. If a problem occurs, contact your Classé dealer.
13. NEVER expose this product to extremely high or low temperatures.
14. NEVER operate this product in an explosive atmosphere.
15. ALWAYS unplug sensitive electronic equipment during lightning storms.
Please record the serial number of your new Classé component here for future reference.
Serial #: __________________
ENGLISH

4
ENGLISH
Contents
Welcome to the Classé family ..........................................................................5
a word about installation .......................................................................... 5
Unpacking and Placement ...............................................................................6
unpacking your amplifier ......................................................................... 6
placement ................................................................................................ 6
ventilation ................................................................................................ 6
custom installations .................................................................................. 7
serial number ........................................................................................... 7
register your purchase! ............................................................................. 7
operating voltage ...................................................................................... 7
warm up/break-in period .......................................................................... 8
please read this manual… ........................................................................ 8
Special Design Features ...................................................................................9
highly refined circuit design ..................................................................... 9
extensive listening tests ............................................................................ 9
extraordinary longevity .......................................................................... 10
robust protection .................................................................................... 10
Front Panel .....................................................................................................11
Rear Panel .....................................................................................................13
Initial Setup ...................................................................................................18
configuring balanced/single-ended operation .................................. 18
configuring amplifier turn-on delay/amp no. .................................... 19
Care and Maintenance ...................................................................................20
Troubleshooting .............................................................................................21
Specifications ................................................................................................23
Dimensions ...................................................................................................46

5
ENGLISH
Welcome to the Classé family
Congratulations on your purchase of a Classé product. It is the result of many
years of continuous refinement, and we are sure that you will enjoy it for many
years to come.
We value our relationship with our customers. Please allow us to stay in touch
with you by returning your warranty card now, before you pack up the shipping
carton of your new product and forget all about it. Doing so will enable us to
let you know about any possible future upgrades or updates that might become
available for your Classé component.
Sending in your warranty card also registers your product with us so that
warranty service can be obtained easily and quickly, even if you have mislaid
your original sales slip.
Please, take a few minutes to fill out the warranty registration
card, and drop it in the mail.
You will find the warranty registration card at the end of the separate warranty
policy booklet, enclosed.
a word about installation Every effort has been made to make the Classé CA-5200 simple and
straightforward to install and use.
Still, we have no way to evaluate many other variables such as the size and shape
of your room, its acoustics, and the associated equipment you have chosen to use
with your amplifier. All of these factors influence the ultimate performance of
your system.
For this reason, we strongly encourage you to have your system
installed and calibrated by your dealer, whose experience,
training, and specialized equipment can make a profound
difference in the final performance of the system.

6
ENGLISH
Unpacking and Placement
unpacking your amplifier Carefully unpack your power amplifier according to the supplied instructions,
and remove all accessories from the carton. Please take care when lifting the
amplifier, as it is quite heavy.
Important! Keep all packing materials for future transport of your Classé
product. Shipping your new component in anything other than
its purpose-designed packing material may result in damage
that is not covered by the warranty.
placement There are two options when placing your power amplifier: you may place it close
to the speakers, requiring longer interconnecting cables from the preamplifier; or
place it close to the preamplifier, requiring longer speaker cables.
Although either approach will yield excellent performance, you might consider
the first option for two reasons. First, signal quality degrades more easily when
transmitted as a combination of both high voltage and high current, suggesting
that speaker cables should be kept as short as practical. Second, high quality
amplifiers use massive power supplies which inevitably radiate some degree of
magnetic fields. Ideally, one would separate these fields from sensitive source
components by a reasonable distance.
If it is more convenient for you to place the amplifier in an equipment rack,
along with your other components, we suggest placing it at the bottom of the
rack, well away from your source components and preamplifier. This location
will also be more stable than placing such a heavy component near the top of a
rack, which might make it top-heavy.
Note that adequate clearance for the AC cord and connecting cables
must be left behind the CA-5200. We suggest leaving eight inches
(20 cm) of free space behind your power amplifier to allow all cables
sufficient room to bend without crimping or undue strain.
ventilation Your Classé power amplifier generates a certain amount of heat in the course
of normal operation. Be sure to allow six inches of clearance above it and
three inches to each side to allow heat dissipation through air circulation. The
vents on both the bottom and the top of the CA-5200 must be kept free from
any obstruction which would reduce the flow of air through the unit. Avoid
placement on soft surfaces that would restrict airflow (such as plush carpeting).

7
ENGLISH
custom installations Drawings are included in this manual to facilitate special installations and
custom cabinetry (see the section Dimensions). An optional, purpose-designed
rack mount kit is available for this product. Contact your Classé dealer for more
information.
serial number The serial number for your power amplifier is found on the rear of the unit.
Please note and record this number on the page entitled Important Safety
Instructions for your future reference.
register your purchase! Having found the serial number, now would be a good time to fill out the
registration card. Please register your purchase so we can advise you of updates
and other items of interest.
It will take only a minute or so. Please complete the card now, before you forget.
operating voltage The CA-5200 power amplifier is set at the factory (internally) for 100V, 120V,
230V, or 240V AC mains operation, as appropriate for the country in which
it is to be sold (230V only in European Union countries, in compliance with CE
regulations). The voltage setting may not be changed by the user or dealer.
Make sure that the label on the rear panel of your power amplifier indicates
the correct AC operating voltage for your location. Attempting to operate your
power amplifier at an incorrect voltage may damage the unit.
Warning: The voltage setting of your power amplifier may not be changed
by the user. There are no user-serviceable parts within the
unit. Please refer any problems to an authorized Classé service
center.
If the AC mains voltage indicated on your power amplifier is incorrect, please
contact your local, authorized Classé dealer or distributor.
The CA-5200 can easily be powered by a normal 15-ampere AC mains line. If
other devices are also powered from the same AC line, their additional power
consumption should be taken into account.

8
ENGLISH
The CA-5200 includes protection circuitry that will prevent the amplifier from
operating at dangerously high or low voltages.
• At startup: the AC mains voltage must be within a range of
approximately -15% to +10% of its nominal value at startup, or
the amplifier will not turn on. For example, a 120V unit requires
the AC mains to be between approximately 95V–135V in order to
turn on.
• Over-voltage during operation: if the AC mains voltage surges
by roughly 10% or more during operation, the amplifier will enter
protection mode and shut down. The Standby LED will flash to
indicate the protection mode has been engaged.
• Under-voltage during operation: if the AC mains voltage sags by
15% or more, the amplifier will continue to play (since this does
not present a particular danger to the amplifier), but note that
it may not be able to achieve its usual standard of performance
under these compromised conditions. The Standby LED will
flash to indicate the condition.
warm up/break-in period Your new Classé power amplifier will deliver outstanding performance
immediately. However, you should expect to hear it improve somewhat as
it reaches its normal operating temperatures and its various components
“break-in.” It has been our experience that the greatest changes occur within the
first 300 hours, as the amplifier reaches thermal equilibrium and the capacitors
fully form. After this initial break-in period, the performance of your new
product should remain quite consistent for years to come.
The only exception to this rule is if the unit is placed in standby or unplugged
for an extended period of time, allowing it to cool down. Depending on the
degree of cooling involved, you should expect a brief warm-up period before the
power amplifier’s sound quality is at its best. Unless your amplifier was allowed
to become quite chilled, subsequent thermal re-stabilization should not take
long. Fortunately, you should never have to repeat the initial 300 hour break-in
period.
please read this manual… Please take a few minutes to review this manual, and to familiarize yourself with
your new amplifier. We understand that you are anxious to plug everything in
and get started. However, reading this manual and following the advice it gives
will ensure that you get all the benefits you deserve from having purchased such
a fine piece of equipment.

9
ENGLISH
Special Design Features
highly refined
circuit design All Classé analog amplification stages are based on circuits that have been extensively optimized over many years of continuous development.
By starting with excellent circuit designs and working with them over the years,
we are able to discover the many small refinements that add up to superlative
performance, in a variety of applications. Altering a voltage here, or using a
slightly different part there, may make all the difference between solid and
absolutely outstanding performance.
This level of refinement only comes with a great deal of experience, and is
not available to those who flit from one trendy notion to the next. It accounts
in no small measure for both the consistency of sonic performance among
Classé products (as they are all based on similar analog gain stages), and for the
consistently excellent reviews those products receive by owners and reviewers
alike.
extensive listening tests Excellent measured performance is to be expected in world-class products, and
Classé products deliver that performance. However, experience has shown that
technical excellence alone is insufficient to guarantee subjectively musical results.
For this reason, all Classé products are laboriously fine-tuned during the
development process by carefully controlled listening tests. Our ears are still
some of the finest laboratory test instruments available, and nicely complement
more traditional engineering test equipment. In the course of optimizing the
circuitry for a product, hundreds of decisions are made based on the subjective
impression given by substituting one high quality part for another.
As an example, we may listen to half a dozen 0.1% film resistors of the same
value, from several different companies. Standard tests may show them all to
provide identical results in terms of noise, distortion, and so forth. Yet, almost
invariably, one selection yields some small improvement in the subjective
reaction to the performance of the product under development. Less often, even
a single such change can result in a surprisingly large improvement.
Multiply those various improvements by the dozens or even hundreds of such
decisions that must be made before the product can be finalized for production,
and you have a remarkable improvement, indeed—all based on careful listening
tests, which we view as a necessary complement to the solid engineering you
might rightly expect from Classé.

10
ENGLISH
extraordinary longevity Another benefit of having worked with highly refined circuit designs so
extensively over many years is that we have vast experience in what works well
over the long term.
By using only the highest quality parts to begin with, and then using them in an
informed way as a result of both accelerated aging experiments and actual long-
term experience, we are able to design and manufacture products which we are
confident will stand the test of time.
We are confident that your new Classé product will give you many years of
trouble-free reliability and musical enjoyment, just as previous Classé products
have given their owners.
robust protection Finally, your new Classé amplifier incorporates a variety of protection circuits, all
designed to protect both the amplifier and your loudspeakers against dangerous
fault conditions. Significantly, these protection circuits do not intrude upon
or limit the normal performance of the amplifier; rather, they simply put the
amplifier into protection mode when confronted with abnormal conditions.
These conditions include:
• output overload
• DC offset
• AC mains voltage (outside of normal tolerances)
• excessive operating temperatures
If any of the first three conditions occurs on either channel (any of which
might harm either your amplifier or possibly your loudspeakers), the amplifier will
immediately go into protection mode. In such a case, a Channel LED indicator
will blink red, indicating the channel with the fault, and the sound will be
muted until the fault can be righted.
If the fault is not channel-related, e.g. AC mains voltage out of range, the
Standby LED will blink. In all cases, the unit will need to be re-started once the
cause of the fault condition has been rectified.

11
ENGLISH
Front Panel
1 Standby button & LED indicator
The front panel Standby button will toggle the amplifier between operate,
its fully operational state, and a standby mode that leaves the amplifier off,
yet ready to respond to system commands via any of the supported control
options (e.g. IR input, DC trigger, CAN Bus, or RS-232).
The current state of the amplifier is indicated by the LED indicator in
the center of the Standby button. The state of this LED indicates the
following:
• on = standby
• flashing (on power-up) = initialization
• off + Channel LED on = operate
• flashing (after power-up) = AC mains voltage out of range
When in standby, the amplifier’s gain stages are powered down. Only a
small power supply and control circuit remain on, consuming relatively
little power. Fortunately, since the output stages by their nature conduct a
great deal of current, they warm up and sound their best very quickly.
If you are not going to use the amplifier for an extended period of time,
perhaps while traveling for a vacation, we suggest you disconnect it from
the AC mains. Please be certain that the amplifier is in standby prior to
disconnecting it from the AC mains.

12
ENGLISH
Also, it is a good practice to physically disconnect any and all valuable
electronics from the AC mains during electrical storms, as a lightning
strike anywhere near your home can put a tremendous surge on the AC
mains that can easily damage any piece of electronics, no matter how well
designed and protected. The best protection in the case of severe electrical
storms is to simply remove the electronics from any connection with the
power grid.
2 Select button
The Select button is used (along with the Mode button) when configuring
the amplifier for either balanced or single-ended operation. It is also used
when configuring the turn-on delay or amplifier number for an amplifier
connected to a Classé preamplifier by the DC Trigger or CAN Bus control
systems.
3 Channel status LED indicators
Each amplifier channel has two Channel LED indicators. They are used to
indicate the use of either balanced (XLR) or single-ended (RCA) inputs for
that channel.
These indicators are also used to indicate fault conditions in your amplifier,
should any ever arise. If a channel’s LED indicators blink red, there is a
problem in that particular channel. If all the Channel LEDs are blinking
red, there may be a systemic problem that is not specific to a particular
channel.
Caution! If you see any Channel LED Indicator blinking red, please
disconnect the amplifier from the AC mains immediately and
check that all external connections are cleanly made and
secure. If the AC mains are not easily accessible, you can press
and hold the Standby button for three seconds to reset the
amplifier. If no fault is immediately obvious, please call your
authorized Classé dealer for assistance.
4 Mode button
The Mode button is used (along with the Select button) when configuring
the amplifier for either balanced or single-ended operation. It is also
used when configuring the turn-on delay and amplifier number of the
amplifier when it is connected to a Classé preamplifier by the CAN Bus
communications or Trigger systems.

13
ENGLISH

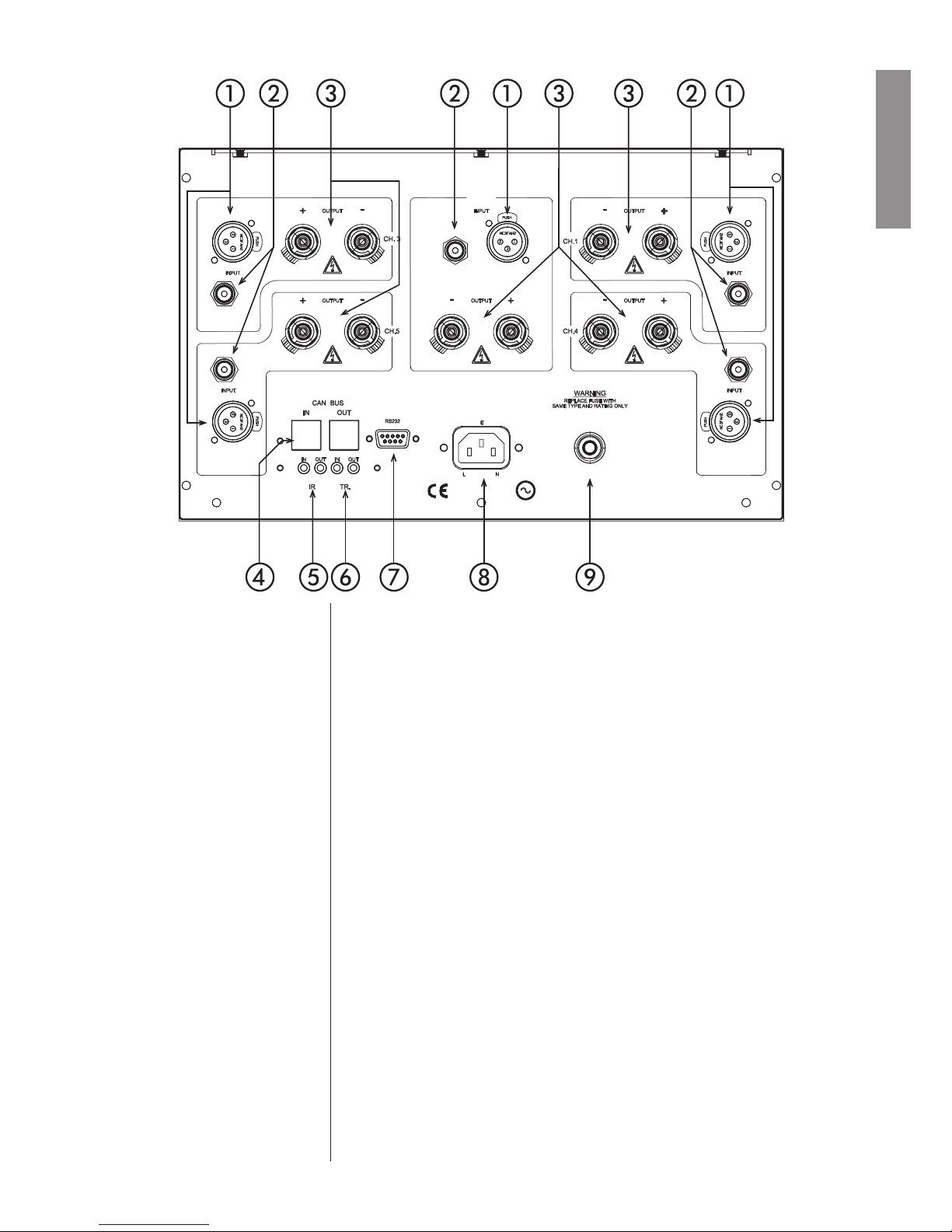

Rear Panel
The following descriptions are intended as a quick reference, should you have
any questions about your new product. Please see the next section (entitled
Initial Setup) for specific advice on incorporating your new amplifier into your
system.
1 Balanced (XLR) Input
Balanced audio interconnections were originally developed in the
professional audio world, for preserving the delicate nuances of extremely
small microphone-level signals. For many years now, they have also been
used by performance-oriented consumer companies like Classé to preserve
every nuance of the finest audio performances in your collection.
Technically, balanced audio interconnections provide two distinct benefits:
they double the signal’s strength as it travels from one component to the
next, increasing the potential signal to noise ratio by 6 dB; they also do an
excellent job of rejecting noise and interference that might otherwise be
picked up between the components, due to either EMI (electromagnetic
interference) or RFI (radio frequency interference). In the world of wireless
telecommunications, there is more potential interference around than ever
before—it makes sense to keep it out of music and movie soundtracks.

14
ENGLISH
For this reason, we strongly recommend using the balanced analog
interconnections between your Classé components wherever possible.
The pin assignments of these XLR input connectors are:
Pin 1: Signal ground
Pin 2: Signal + (non-inverting)
Pin 3: Signal – (inverting)
Connector ground lug: chassis ground
These pin assignments are consistent with the standard adopted by the
Audio Engineering Society (AES14-1992).
If you are using your Classé power amplifier with a Classé preamplifier,
you’re all set – just take standard balanced interconnect cables and plug
them in.Then engage that input on the power amplifier by configuring it
as described in Initial Setup.
If you are using another brand of preamplifier, please refer to the operating
manual of your balanced-output preamplifier to verify that the pin
assignments of its output connectors correspond to your amplifier. If
not, have your dealer wire the cables so that the appropriate output pin
connects to the equivalent input pin.
2 Single-Ended (RCA) Input
Single-ended cables using RCA connectors are the most common form
of analog connection used in consumer electronics. When implemented
carefully and with use of high quality interconnecting cables, this standard
can provide excellent performance. Classé has gone to extraordinary effort
to ensure that the single-ended (RCA) inputs of your power amplifier are
as good as possible. However, this connection standard cannot offer the
immunity from interference that balanced interconnection does—hence
our recommendation to use the balanced inputs when possible.
If you elect to use the single-ended inputs of your Classé power amplifier,
you need to engage them by configuring the amplifier as described in
Initial Setup.
3 Speaker Outputs
A pair of high quality five-way binding posts is provided for each channel
of the amplifier.
Although the binding posts on your Classé amplifier will accept bare wire
connections, we strongly recommend the use of high quality spade or hook
lugs, crimped and soldered onto the ends of your speaker wires. Using
high quality connectors will ensure that your speaker connections do not
gradually deteriorate from fraying and oxidizing bare wires. It also helps
prevent accidental short-circuits from poorly-terminated connections.

15
ENGLISH
4 Classé CAN Bus Control Ports
These RJ-45 connectors are reserved for future control and communication
applications using Classé Audio’s implementation of the Controller Area
Network (CAN) Bus specification.
5 IR Input and Output
Your Classé amplifier includes two 1/8th-inch mini mono-jacks in order to
support the IR remote controls that are ubiquitous today. IR commands
exist for toggling the amplifier between operate and standby, as well as
discrete command codes for either operate or standby. These codes may be
used in “macros” for sophisticated remote control systems, facilitating the
control of the amplifier in the larger context of a complete system.
Actually, this IR Input and Output description is a bit of a misnomer: the
input supplied to these plugs is electrical in nature, not IR. It is obtained by
using standard IR receivers, distribution amplifiers, and emitters (available
from your dealer) to translate the remote’s flashes of infrared light into
corresponding pulses of electricity. The big advantages here include being
able to easily route the signals anywhere they might need to go, and the
reliability of a solid electrical connection.
Since an IR distribution system such as your dealer may design for you
usually must control many products, your amplifier includes both an IR
input (for the control of this product) and an IR output (so as to pass
along the same signal to the next product). This allows you to “daisy chain”
your control wires from one product to the next.
The amplifier is designed to respond to IR commands of 5 Volts DC,
with the tip of the mini mono-plugs defined to be “positive” relative to the
shank of the plug.

16
ENGLISH
6 DC Trigger Input and Output
Many audio/video preamplifiers can supply a DC control voltage to
associated equipment in order to induce desired behavior. Your Classé
amplifier can take advantage of these capabilities in order to be switched
between operate and standby automatically, perhaps in concert with the A/
V preamp itself.
Two 1/8th-inch mini mono-jacks provide this remote-controlled turn-on
(that is, toggling between operate and standby) of the amplifier. These jacks
provide a simple pass-through of the control voltage from one to the other,
allowing you to “daisy-chain” a series of amplifiers quite easily.
The remote trigger will be operated by the presence of 5–12 Volts DC,
with tip polarity as shown below:
7 RS-232 Control Port
This DB-9 connector has two purposes:
• downloading new operating software into your amplifier (should
new features ever be added, for example)
• for external control of your amplifier by systems such as
i-Command™, AMX® and Crestron™
For more information, please contact your dealer and ask about home
automation systems.
8 AC Mains Input
An IEC standard power cord is used with the CA-5200. Plug the cord into
the IEC receptacle on the rear panel, and the other end into a suitable wall
outlet.
9 AC Mains Fuse
Your Classé power amplifier has an AC mains fuse, accessible on the
rear panel. If you suspect that your AC fuse has blown, disconnect your
amplifier from the AC mains, as well as from its input connections and
speaker connections, and refer to the appropriate item of the section
enitled Troubleshooting.
Do not open your amplifier. There are no user-serviceable parts within
this product.

17
ENGLISH
Danger! Potentially dangerous voltages and current capabilities exist
within your power amplifier, even when disconnected from AC
mains. Do not attempt to open any portion of the amplifier’s
cabinet. There are no user-serviceable parts inside your power
amplifier. All service of this product must be referred to a
qualified Classé dealer or distributor.

18
ENGLISH
Initial Setup
Your new Classé amplifier is quite simple to set up and enjoy. Please follow the
steps outlined below in order to safely set up and use your new amplifier.
Important: The AC mains connection should be the last connection you
make on your new power amplifier. In addition, it is always
a good idea to power up your power amplifier(s) last, after
everything else has been powered up and has stabilized. .
Conversely, it is good practice to power the amplifier(s) down
first when shutting down the system, as this prevents any
transients from other components from getting through to
your loudspeakers.
1. Unpack everything according to the included instructions.
Be careful when doing so, as this amplifier is quite heavy.
2. Place your amplifier (be sure to read “Unpacking and Placement”)
and connect it to the AC mains.
This includes deciding on the location, making sure you have adequate
ventilation, and adequate clearance for all the wires behind the amplifier.
Once accomplished, connect the amplifier directly to the AC mains. Do
not use extension cords, as most are not suitable for the current sometimes
required by your amplifier.
3. Configure your amplifier.
The Select and Mode buttons are used when configuring your amplifier
for how you would like it to operate.
configuring balanced/
single-ended operation
While in standby, pressing the Select button will cause the Channel LEDs
to light up, indicating how the amplifier is currently configured (either
balanced or single-ended) for each channel.
One of the Channel LED indicators will be blinking, indicating that you
may select either balanced or single-ended operation for that channel. Press
the Mode button to toggle between either the balanced mode or the single-
ended mode of operation, as indicated by which of the two channel LEDs
for that channel is blinking.
Press the Select button again to select the next channel, and repeat the pro-
cess until the amplifier is configured as you desire. To finish, continue to
press and release the Select button until all the Channel LEDs are off.
Make sure you configure the amplifier to use the type of input connection
you will be using for each channel. You may safely use any combination of
single-ended and balanced input connections your system requires.

19
ENGLISH
configuring amplifier
turn-on delay/amp no.
In a system that contains multiple Classé amplifiers, you may set the
number of seconds of turn-on delay for each amplifier, allowing each
to turn on in the order you have specified, rather than all at once. This
number also acts as an ID when using the CAN Bus. (Having several powerful
amplifiers all turning on at the same time can sometimes stress the AC mains in
your home, potentially leading to nuisance tripping of circuit breakers).
For example, to set the delay for two seconds (and to designate a particular
amplifier as #2):
• Place the amplifier in standby (Standby LED on)
• Press and hold the Mode button until both Channel LEDs are
lit. When released, both LEDs will blink to indicate the turn-on
delay and current number of the amplifier (e.g. once to indicate a
one second delay and amplifier #1).
• If you want to change the current amplifier number setting, press
and hold the Mode button again until both Channel LEDs are
on.
• While continuing to hold the Mode button, press the Select
button two times (the same number as the desired delay in
seconds and the amplifier number);
• Release the Mode button. The amplifier will confirm your choice
by blinking the Channel LEDs twice.
4. Make your preamp connections.
With the amplifier in standby (or disconnected from the AC mains),
and using high quality interconnecting cables, make the appropriate
connections with the balanced or single-ended connectors (as configured in
Step 3).
Make sure all the connections are snug, even if it means gently squeezing
the outer shell of the RCA with pliers and reinserting it to tighten the
connection.
5. Make your speaker connections.
Make the connection between the output terminals of the amplifier and
your loudspeakers, using high quality speaker wires.
Connect the black (–) terminals on the amplifier to the black (–) terminals
on your speaker, and the red (+) terminals on the amplifier to the red (+)
terminals on your speaker.
If bi-wiring, run a total of four conductors between each amplifier channel
and its corresponding loudspeaker: two separate +/– leads, one for the
bass and the other for the mids and treble. Make sure that no wires cross
between the red (+) and black (–) terminals, at either end.
Make sure all the connections are snug and cannot be easily wiggled free,
but do not overtighten them. If you can give the speaker wires a reasonable
tug without movement, they are snug. Further tightening will not make a
better connection, and (taken to the extreme) may damage the connectors.

20
ENGLISH
6. Double-check all your connections.
We understand that this step sounds redundant, but it is worth the extra
minute or two it might take just to ensure that all connections are correct
and secure before plugging the power cables to the AC outlets..
7. Turn on all the other components in your system, and then turn
on your amplifier.
It is always good practice to turn any power amplifier on last, and to turn
it off first. Doing so prevents any turn-on/turn-off transients that might
originate in other components from damaging your loudspeakers.
Care and Maintenance
To remove dust from the cabinet of your amplifier, use a feather duster or a lint-
free soft cloth. To remove dirt and fingerprints, we recommend isopropyl alcohol
and a soft cloth. Dampen the cloth with alcohol first and then lightly clean the
surface of the amplifier with the cloth. Do not use excessive amounts of alcohol
that might drip off the cloth and into the amplifier.
Caution! At no time should liquid cleaners be applied directly to
the amplifier, as direct application of liquids may result in
damage to electronic components within the unit.
