Clear-Com FreeSpeak II User manual

FreeSpeak II™
Quick Start Guide for the battery charger
A FreeSpeak II (FS II) battery charger (AC60) allows you to charge up to five FS II beltpacks simultaneously.
You can use it either as a drop-in charger for the whole beltpack, or you can charge separate beltpack Li-Ion
batteries (BAT60) in the charging slots provided. You can use the charger either as a desktop unit, or you can
mount it to a wall using an optional wall bracket.
For more information about the system see the FreeSpeak II User Guide.
1. Installing the battery charger
1) Either mount the charger to a wall using the
optional wall bracket or leave on a desktop.
2) Connect the power supply to the power
connector.
2. Charging the beltpack
The beltpack can use a rechargeable Li-Ion battery or
non-rechargeable AA batteries. The charger can charge
up to five Li-Ion batteries simultaneously.
Warning: Only use the battery charger with the
supplied rechargeable batteries. If you use the
charger with any other batteries, serious damage or
injury could result.
Note: You can also recharge batteries by using a USB
cable.
Power
connector
Mounting
bracket
Mounting
bracket
Support for optional
mounting bracket
Optional wall-mounting bracket
1 399G108 Rev: B09/04/14

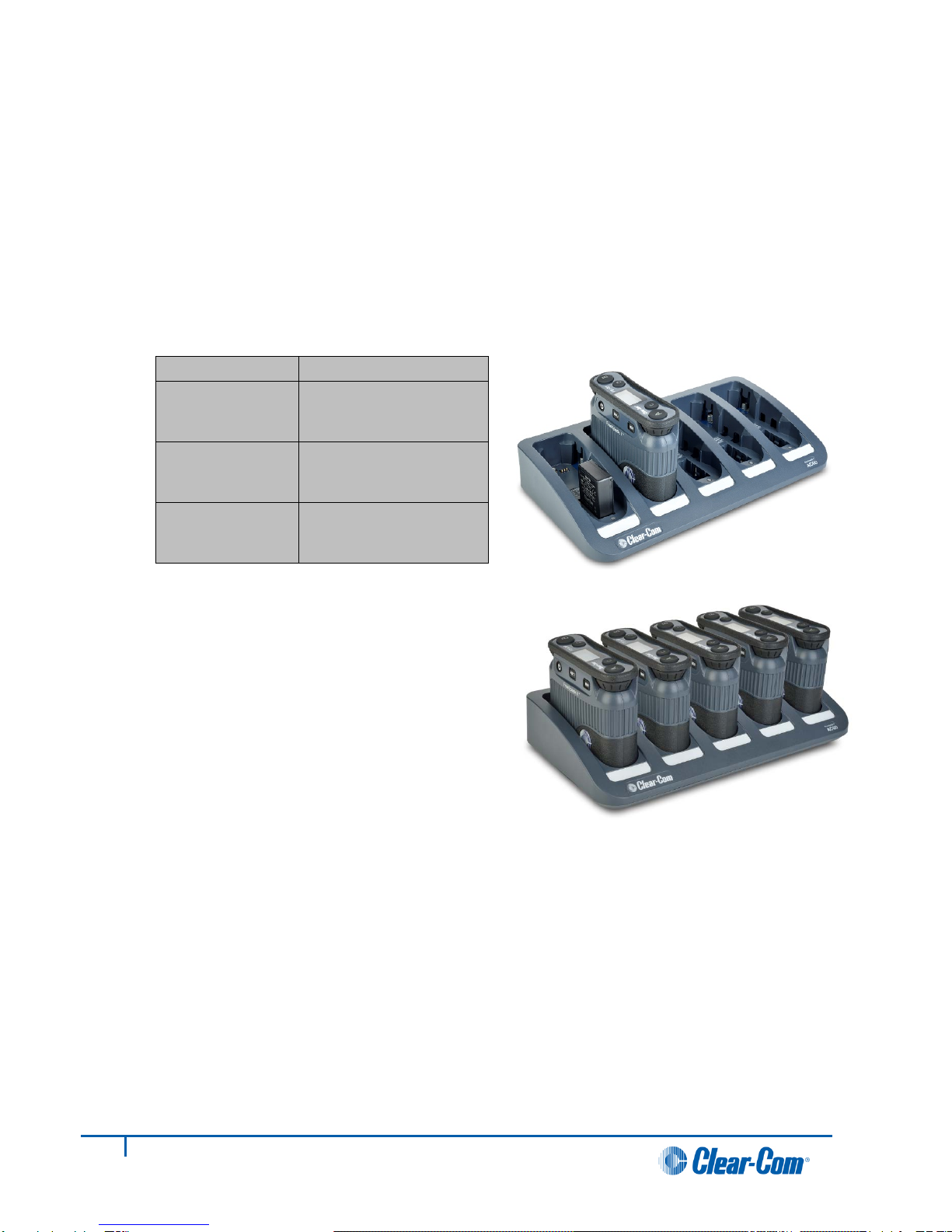

1) Insert either the beltpack containing the battery,
or the battery itself into one of the recharging
bays on the battery charger. A red LED
indicates that the battery is recharging.
2) If you are recharging the battery while it is still in
the beltpack battery compartment, an
illuminated beltpack key (Talk key A) indicates
the charging status. The table below shows the
charging status conditions.
Status indicator Status
Talk key A or
charger status
LED red
Charging
Talk key A or
charger status
LED green
Fully charged
Beltpack screen Displays current
percentage charge and
software version.
3) Wait until the recharging LED turns from red to
green (up to 2 hours). The battery is now fully
recharged.
Note: If a beltpack is on when placed in the
charger, on removal the RF is re-
enabled and the beltpack attempts to
reconnect to its previous system.
If a beltpack is off when placed in the
charger, on removal it will power off.
