Clear Comfort CCW50 Instruction manual

Installation, Operations & Maintenance
Manual
For further assistance contact us:
303.872.4477
[e-mail]
clearcomfort.com
IMPORTANT SAFETY INSTRUCTIONS
Clear Comfort’s CCW50
Sanitation System
V.1.0.20
Swim Happy.
™

For the latest version, please visit:
clearcomfort.com/spa-manual
MADE IN USA © 2019 Clear Comfort. All Rights Reserved.

Clear Comfort Residential Spa Sanitation System
Installation, Operations and Maintenance
TABLE OF CONTENTS
Warranty ................................................................................. 2
General Information ................................................................ 3
Important Safety Instructions ................................................ 3
Electrical Safety ..................................................................... 4
Grounding ............................................................................. 4
General Safety ....................................................................... 4

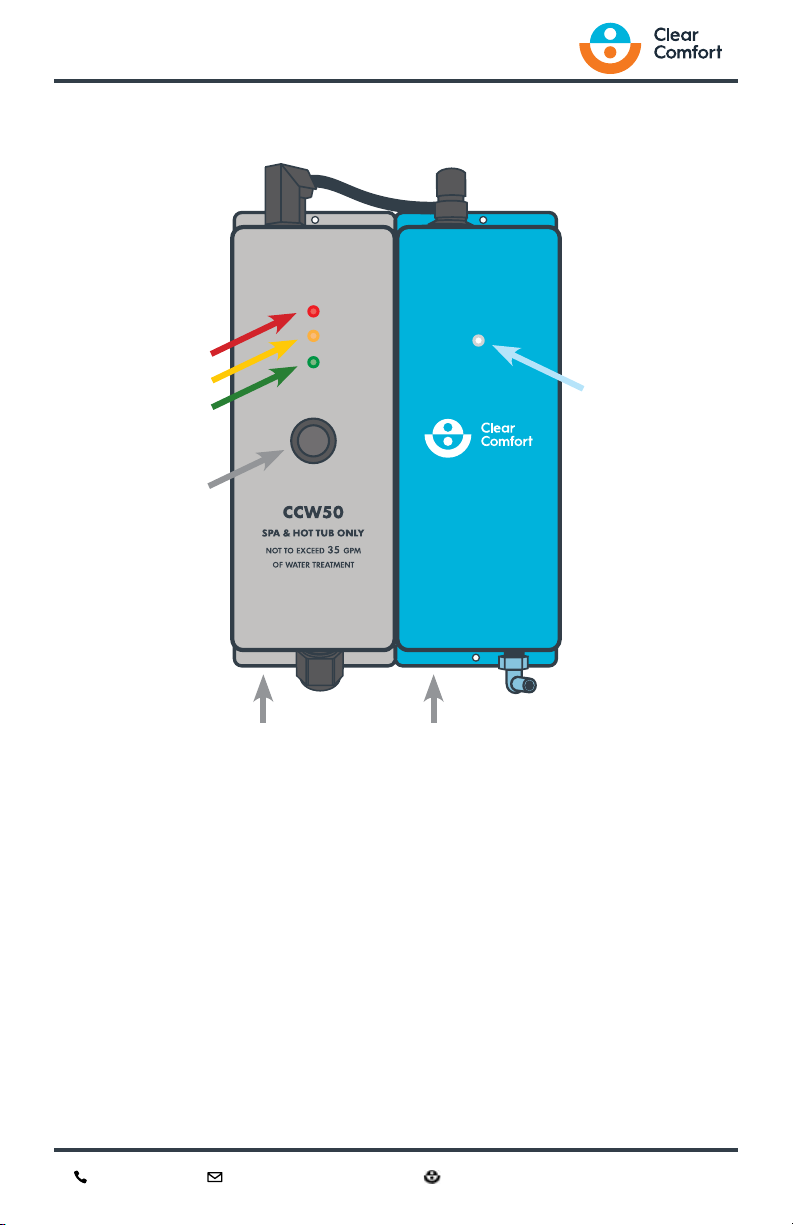

System Description for Standard Clear Comfort Systems ....... 5
Key Features .......................................................................... 5
Operating Ranges and Technical Specications .................... 5
Light Functionality .................................................................. 6
Installing the Clear Comfort System ........................................ 7
Clear Comfort CCW50 Equipment List ................................. 7
Recommended Materials & Tools .......................................... 7
System Installation ...........................................................8
Electrical Installation - General .............................................. 8
Electrical Installation - Directly to Pump Circuit .....................9
Electrical Installation - Wall Outlet ......................................... 9

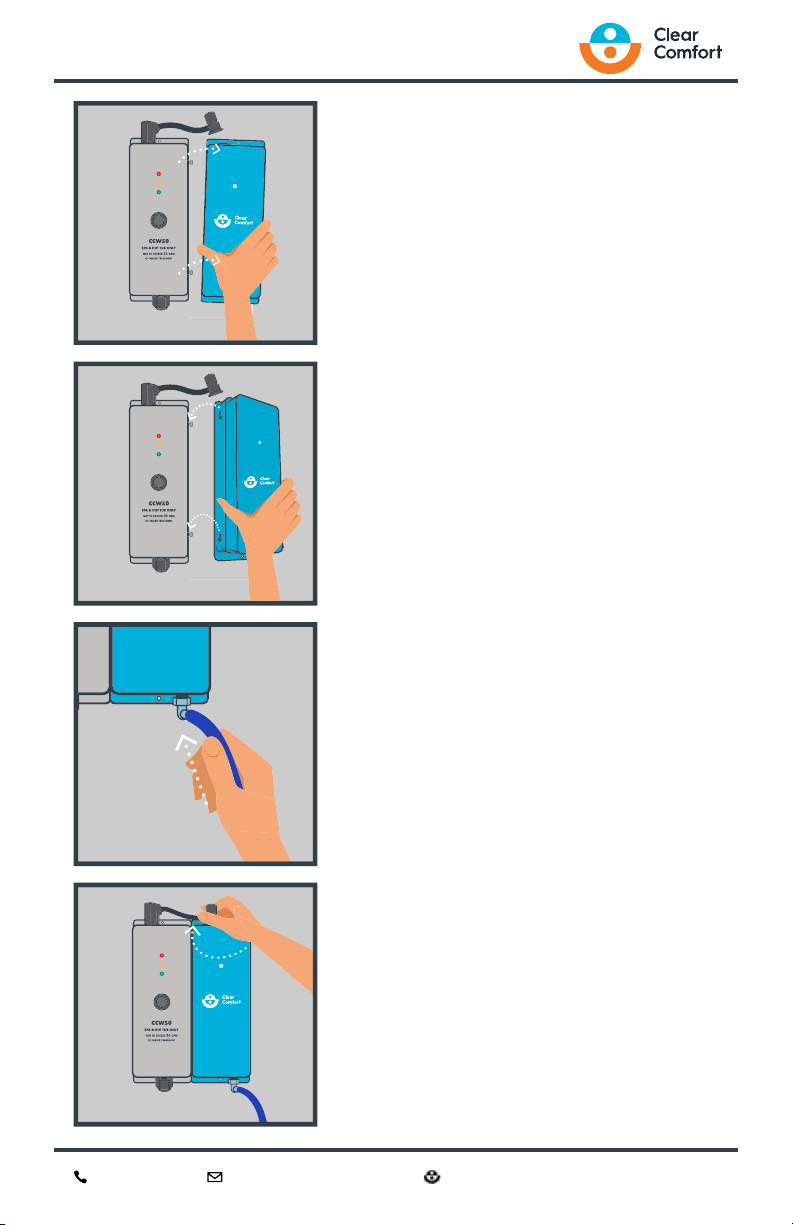

Cartridge Connection ...........................................................10
Installing the Clear Comfort Injection Assembly ..................... 11
Full System Diagram ........................................................... 11

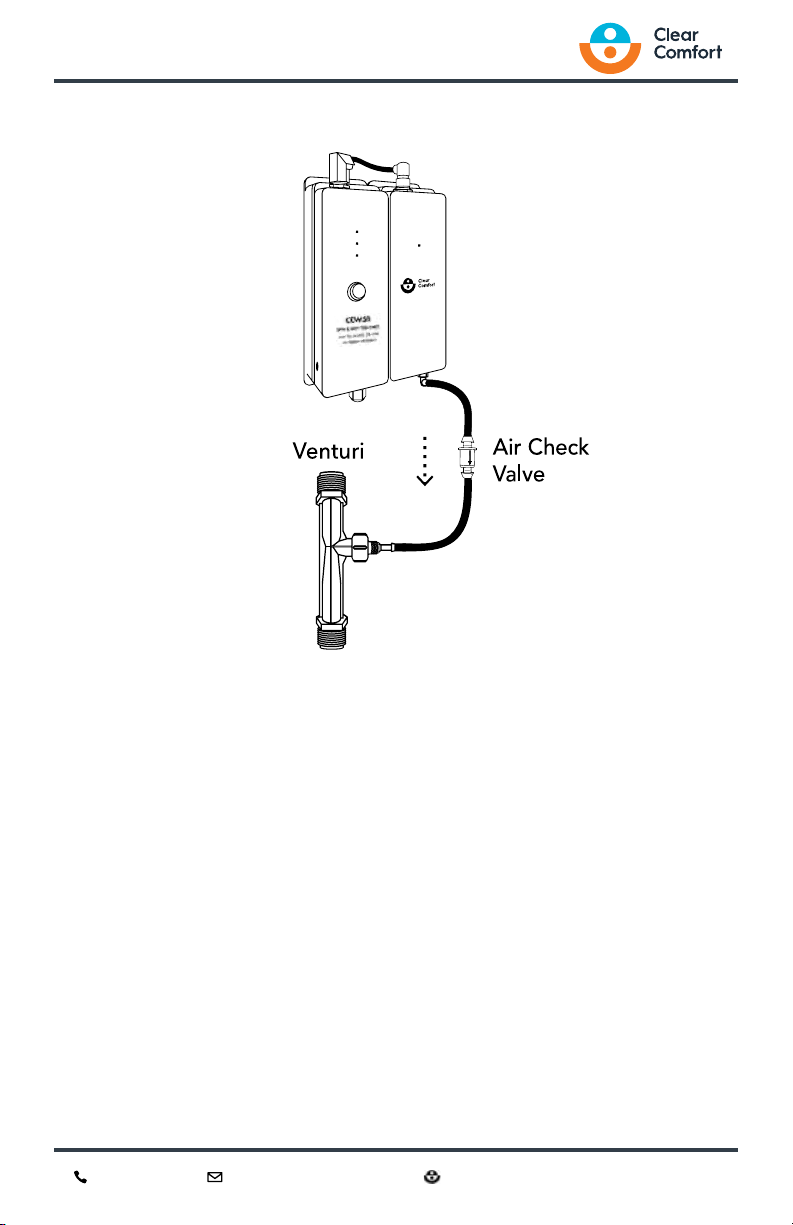

Connecting Clear Comfort System To Venturi Injection ...... 12
Installing the Clear Comfort Injection Assembly ..................13
Airow Meter ....................................................................... 14
Operating Instructions ......................................................... 14
System Maintenance .............................................................. 15
Cartridge Replacement ........................................................ 15
Frequently Asked Questions ...................................................17
Wiring .....................................................................................18
Appendix ............................................................................... 19
Head Loss ............................................................................. 19
303.872.4477 [e-mail] clearcomfort.com

303.872.4477 [e-mail] clearcomfort.com
WARRANTY
2
Clear Comfort warrants all Equipment
to be free from defects in material or
workmanship under normal use and service.
Clear Comfort, LLC at its discretion may
repair or replace the Equipment or parts
thereof. The Company’s warranty does not
cover any Equipment that has been altered
or changed in any way by any person not
authorized by Clear Comfort, LLC.
THIS CONSTITUTES THE SOLE WARRANTY
MADE BY CLEAR COMFORT, LLC EITHER
EXPRESSED OR IMPLIED. THERE ARE NO
OTHER WARRANTIES EXPRESSED OR
IMPLIED WHICH EXTEND BEYOND THE
FACE HEREOF, INCLUDING THE IMPLIED
WARRANTIES OF MERCHANTABILITY AND
FITNESS FOR A PARTICULAR PURPOSE.
IN NO EVENT WILL CLEAR COMFORT,
LLC BE LIABLE FOR ANY INCIDENTAL
OR CONSEQUENTIAL DAMAGES AND
CUSTOMER’S REMEDIES ARE LIMITED
TO REPAIR OR REPLACEMENT OF
NONCONFORMING CLEAR COMFORT
SystemS OR PARTS.
This equipment was inspected before
shipment from our plant. To original
purchasers of this equipment, Clear Comfort
Water LLC(“Clear Comfort”), warrants its
Clear Comfort Systems to be free from
defects in materials and workmanship for
a period of THREE (3) years from the date
of purchase. Replacement Cartridges and
cylinders are warranted for a period of ONE
(1) year from the date of purchase.
Parts which fail or become defective during
the warranty period, except as a result of
freezing, negligence, improper installation,
use, or care, shall be repaired or replaced, at
our option, without charge, within 30 days
of the receipt of defective product, barring
unforeseen delays.
To obtain warranty replacements or repair,
defective components or parts should be
returned, transportation paid, to the place
of purchase, or to the nearest authorized
Clear Comfort service center. For further
Clear Comfort dealer or service center
information, contact Clear Comfort
customer service department.
Clear Comfort shall not be responsible for
cartridge, removal and/or re-installation
labor or any other such costs incurred in
obtaining warranty replacements.
The Clear Comfort Products warranty does
not apply to components manufactured
by others. For such products, the warranty
established by the respective manufacturer
will apply.
This warranty shall be voided if at any
time: (i) Customer attempts to make any
internal changes to any of the components
of the Equipment; (ii) the power supplied
to any part of the Equipment exceeds
the Equipment’s operating parameters;
(iii) any external device attached by
Customer creates conditions exceeding the
Equipment’s operating parameters; (iv) the
Equipment is tampered with; or (v) the serial
number is covered, removed or defaced.
Clear Comfort, LLC reserves the right to
seek damages if its system is tampered with,
reverse engineered, or if Customer takes any
other actions to interfere with the operation
or integrity of the Clear Comfort system.
No Other Warranties
To the maximum extent permitted by
applicable law, Clear Comfort disclaims
all other warranties, either expressed or
implied, including, but not limited to,
implied warranties of merchantability
and tness for a particular purpose, with
regard to the product(s), part(s) and/or any
accompanying written materials.
Procedure for Obtaining Performance
In order to obtain the benets of this
warranty, the customer who made the
original retail purchase must contact the
Clear Comfort Technical Service Department
as soon as possible after discovery of the
product-related issue, but in no event later
than the expiration date of the respective
warranty periods provided herein. Upon
receipt of this communication, Clear
Comfort will promptly notify the customer
of the address to which the product may
be shipped. The customer shall then
ship the product, freight prepaid, to
the address indicated, together with a
“RETURN GOODS AUTHORIZATION” form
obtained from Technical Service and a brief
description of the problems encountered.
Unauthorized returns will not be accepted.
Freight must be prepaid by customer.
Warranties or Representations by Others
No third party has any authority to make
any warranties or representation concerning
Clear Comfort or its products. Accordingly,
Clear Comfort is not responsible for any
such warranties or representations.
To activate & validate your warranty, you
must submit your warranty card or ll out
our warranty form on clearcomfort.com/
warranty within 1 year of your ship date
from Clear Comfort.

303.872.4477 [e-mail] clearcomfort.com
GENERAL INFORMATION
3
IMPORTANT SAFETY INSTRUCTIONS
1. READ AND FOLLOW ALL
INSTRUCTIONS.
2. For cord connected/convertible
units: DANGER – Risk of injury.
A. Replace damaged cord
immediately.
B. Do not bury cord.
C. Connect to a grounding
type receptacle only.
3. For all permanently connected
units intended for use on 15 or 20
ampere, 125V or 230V, single phase
branch circuits: WARNING – Risk
of Electric Shock. Connect only to a
branch
circuit protected by a ground-fault
circuit-interrupter (GFCI). Contact
a qualied electrician if you cannot
verify that the circuit is protected by
a GFCI.
4. For all cord connected units
other than storable spa pumps:
WARNING – Risk of Electric Shock.
Connect only to a grounding type
receptacle protected by a ground-
fault circuit interrupter
(GFCI). Contact a qualied electrician
if you cannot verify that the
receptacle is protected by a GFCI.
5. For all permanently connected
units: WARNING – Risk of Electric
Shock. Connect only to a branch
circuit protected by a ground-fault
circuit-interrupter (GFCI). Contact
a qualied electrician if you cannot
verify that the receptacle is protected
by a GFCI.
6. For units intended for above-
ground storable swimming
spas: Do not bury cord. Locate
cord to minimize abuse from lawn
mowers, hedge trimmers, and other
equipment.
7. For all cord and plug connected
units: WARNING – To reduce the risk
of electric shock, replace damaged
cord immediately.
8. For units intended for above
ground storable swimming spas:
WARNING – To reduce the risk of
electric shock, do not use extension
cord to connect unit to electric
supply; provide a properly located
outlet.
9. CAUTION: At low or no ow
conditions, gas may accumulate
– ensure system is off when
backwashing or when water is not
being treated to prevent an unsafe
gas buildup. Pressure switches, ow
switches and other safety equipment
to prevent unsafe gas buildup is
recommended.
10. When the modied air is
introduced into the spa water via
the existing plumbing, the biocide
is produced. Some of the remaining
activated atoms either keep minerals
dissolved in the water or remove
minerals that were previously
deposited.
11. This unit is to be installed in
accordance with the installation
instructions, the applicable plumbing
and building codes, the applicable
state and local laws and regulations,
and the requirements of the Authority
Having Jurisdiction.
12. When installing and using this
equipment, basic safety precautions
should always be followed including
the following.
13. WARNING - To reduce the risk of
injury, do not permit children to use
this product unless they are closely
supervised at all times.
14. WARNING - Do not sit or stand
on unit.
15. SAVE THESE INSTRUCTIONS.

303.872.4477 [e-mail] clearcomfort.com
GENERAL INFORMATION
ELECTRICAL SAFETY
• Do not service the machine
when the power is ON.
• The power supply wire gauge
and insulation must meet
the temperature and power
requirements.
• To avoid personal injury never
touch exposed electrical
connections or components
while the power is ON.
• Do not install/service the Clear
Comfort system if you or the
machine is standing in water
with the power ON.
• Protect the power cord from
being walked on or pinched,
particularly at plugs and the
point where they exit from the
system.
• The device must be properly
connected to the correct power
source (either 60Hz 120V or
230V) using the supplied power
cord in accordance with the
local electrical code. If possible
the unit should be hardwired to
the pump circuit and controlled
by the pump circuit (rather than
hardwiring, an appropriate 120V
or 230V receptacle outlet and
plug may be used to connect to
the pump controlled circuit).If
the unit is being wired to
standalone AC power (i.e., not
through the pump circuit on
either 120V or 230V) it should
be installed with its own timer
circuit and plugged in through
a Ground Fault Circuit Interrupt
(GFCI) and the timer should be
set to reect the spa or tub’s
hours of operation. Regardless
if hardwired or standalone
connected, the electrical
connection must be made
in accordance with the local
electrical code.
GROUNDING
The Clear Comfort, LLC system
must be properly grounded. An
electrical ground connection to a
reliable earth ground is essential for
safe operation. Without an electrical
ground, all accessible conductive
components (including knobs and
controls that appear insulated) can
render an electrical shock.
GENERAL SAFETY
Use personal protective equipment
(steel toe shoes, hearing protection,
eye protection) when installing the
Clear Comfort system. Follow ladder
safety requirements.
4

303.872.4477 [e-mail] clearcomfort.com
KEY FEATURES
This manual describes how to install, operate and maintain the standard
Clear Comfort system. The installation takes only a few hours and can
be installed with little or no disruption to a facility’s recirculation or
electrical systems. The Clear Comfort system immediately starts to work
on a facility of any size, replaces the need to add toxic chemicals in most
operating situations and replaces the need for a day-to-day residual
sanitizer. The spa water still needs to be tested, as would be done with a
traditional chemical system.
OPERATING RANGES
Power: 120V or 230V receptacle with approximately 10 watts.
Ballast: 120V or 230V
Electrical Requirements: 120V, 60Hz
Electrical Rating: 120V, 60Hz, 1.0Amp or 230V, 60Hz, 0.5Amp
NOTE: CLEAR COMFORT SHOULD ONLY RUN WHEN THE PUMP IS
OPERATING
5
SYSTEM DESCRIPTION FOR STANDARD
CLEAR COMFORT SYSTEMS

303.872.4477 [e-mail] clearcomfort.com
SYSTEM DESCRIPTION FOR STANDARD
CLEAR COMFORT SYSTEMS
6
LIGHT FUNCTIONALITY
Green Light: System is on and operating properly.
Yellow Light: Cartridge has reached 80 percent of its life expectancy
(8,000 hours) and it’s time to purchase a replacement cartridge.
Red Light: Cartridge has reached its life expectancy and needs to be
replaced.
Blue Light: Operation light that should always be illuminated.
FRONT VIEW
Red LED
Yellow LED
Green LED
System Power
Switch
Control Unit Cartridge Unit
Figure 1: System Functions
Blue LED

303.872.4477 [e-mail] clearcomfort.com
Prior to installation, a site survey should be performed to validate that
the correct system parameters are in place and ready for installation. We
recommend that you maintain compliance within the following operating
ranges for well constructed and circulated spas.
PLEASE NOTE: Installation must be performed by your professional
service provider.
• Spa volume: All volumes with less than 35 GPM (gallons per
minute).
• Type of spa lter: Any ANSI 50 approved ltration.
• Pump: Sufcient to provide venturi air suction. If not possible,
contact Clear Comfort to order a Booster Air Pump Kit.
• Voltage of power supply: 120V or 230V AC.
• Maximum distance from injection point: Air tubing length should
be as short as possible with no more than 10 feet from the system
to the venturi injector.
• Indoors or outdoors: Either is suitable. Install away from upward
facing sprinklers is recommended.
• Water quality at installation: The water quality should be
balanced prior to installing the Clear Comfort system.
CLEAR COMFORT CCW50 EQUIPMENT LIST
1. Air Check Valve
2. 10’ Tubing
3. Flow Meter & Barbed Connector
4. Outlet Box & Lid
5. Conduit Connector
RECOMMENDED MATERIALS AND TOOLS
1. If needed, Clear Comfort’s Booster Air Pump Kit.
2. A power drill and proper hardware for mounting the Clear
Comfort system.
3. Proper plumbing materials and tools for venturi injector
installation. See page 12 for detailed parts list.
7
INSTALLING THE CLEAR COMFORT
SYSTEM

303.872.4477 [e-mail] clearcomfort.com 8
INSTALLING THE CLEAR COMFORT
SYSTEM
SYSTEM INSTALLATION
1. Determine the best location to mount the Clear Comfort system.
Screw in the top mounting bracket rst, and then the bottom
mounting bracket of the Control Unit (orange unit). Mount the
Cartridge Unit (blue unit) by securely fastening the Cartridge Unit
to the Control Unit using side keyed brackets, and screw in the top
mounting bracket rst, and then the bottom mounting bracket.
2. System must be installed no more than 10 feet from injection
location.
3. Install a Hartford loop using the blue exelene tubing between the
CCW50 system and the venturi connection. See Figure 4 on page 11.
ELECTRICAL INSTALLATION - GENERAL
1. Follow all local and national electric codes.
2. Determine if the Clear Comfort system will be powered by 120V or
230V. NOTE: All units are factory set to 230V.
3. Set the switch on the ballast on the orange Control Unit: Remove
plug in the left side of the
Control Unit. With a small
screwdriver, slide the switch
in the appropriate direction
according to the label on the
Control Unit. Re-install the plug.
See Figure 2.
4. The Clear Comfort system
comes with a 12 inch section
of 1/2 inch exible conduit, a
water-tight conduit tting, and a
conduit body that may be easily
converted into the shape preferred for the particular installation.
5. If 12 inches is too long, cut to the desired length. Slide the wires from
the Clear Comfort system through the conduit, insert the conduit into
the water tight connector on the Clear Comfort system, and tighten
down.
6. Congure the conduit body as needed for the installation into the
desired shape (LL, LB, LR, or C), and attach the water-tight conduit
tting to the body.
7. Slide the conduit and wire into the conduit body and tighten down
the water-tight connection.
8. Run wire (and conduit, if required by local code) from the pump
Figure 2: Ballast Electrical Switch

303.872.4477 [e-mail] clearcomfort.com
INSTALLING THE CLEAR COMFORT
SYSTEM
circuit to the conduit body using water-tight ttings.
9. Using appropriately sized wire nuts inside the conduit body, connect
the switched power to the Clear Comfort system.
NOTE: CLEAR COMFORT SHOULD ONLY RUN WHEN THE PUMP IS
OPERATING
ELECTRICAL INSTALLATION - DIRECTLY TO PUMP CIRCUIT
(RECOMMENDED)
1. Unit must be hardwired to the spa control board at the ozone
connector location.
2. The device must be properly connected to the correct power source
(either 60Hz, 120V or 230V) using the supplied power cord, in
accordance with the local electrical code.
3. Toggle ballast switch between 120V and 230V to match required
voltage. See Figure 2. Ensure white marked saddle switch matches
correct voltage.
4. If hard wired, cord supplied must be hard wired in accordance to the
National Electrical Code and in accordance with local regulations.
5. Test for proper grounding and secure connections.
NOTE: WIRE THE SYSTEM TO RUN ONLY WHEN THE PUMP IS
RUNNING
PLEASE NOTE: If there are any questions or discrepancies, please contact
Clear Comfort at 303.872.4477 or [email protected].
ELECTRICAL INSTALLATION - WALL OUTLET
1. If the unit is being wired to standalone 120V AC power (i.e., not
through the spa control board), connect Clear Comfort system to the
spa timing clock so that the system operates simultaneously with spa
pump through a Ground Fault Circuit Interrupt (GFCI). In either case,
the electrical connection must be made in accordance with the local
electrical code.
2. Remove protective ballast switch cover. Toggle the ballast switch
between 120V and 230V to match required voltage. See Figure 2.
3. Test for proper grounding and secure connections.
9

303.872.4477 [e-mail] clearcomfort.com
CARTRIDGE CONNECTION
Gently align the notched outdent on the front of the Cable Connector
with the keyed indent of the front of Cartridge Connector, as shown with
the arrow in Figure 3. Seat the Cable Connector down onto the Cartridge
Connector and turn the Cable Connector’s Collar a quarter-turn clockwise
to lock the Cable and Cartridge Connector together. If a strange light
pattern occurs, disconnect cable assembly and reconnect.
INSTALLING THE CLEAR COMFORT
SYSTEM
9-Hole
Cable Connector
9-Pin
Cartridge Connector
Cartridge Unit
Figure 3: Cartridge Connection
Collar
10

303.872.4477 [e-mail] clearcomfort.com
INSTALLING THE CLEAR COMFORT
INJECTION ASSEMBLY
Figure 4: Full System Diagram
IMPORTANT NOTE: This is Clear Comfort’s general reccommended
installation diagram. If you are not getting enough air ow, we
reccommend ordering Clear Comfort’s Booster Air Pump Kit.
To order a Booster Air Pump Kit or for specic installation instructions
for your spa, please call 303. 872.4477 or email
[email protected].
11
Pump
Heater
Venturi
FLOW
Air
Tubing
Air
Check
Valve
Spa
Hartford
Loop
Water Level
CCW50
Spa
Shell

303.872.4477 [e-mail] clearcomfort.com
INSTALLING THE CLEAR COMFORT
INJECTION ASSEMBLY
CONNECTING CLEAR COMFORT SYSTEM TO VENTURI INJECTION
Figure 5: Venturi Connection
NOTE: Air Check Valve should be installed to ow in a vertical,
downward direction below the exit from the system.
See Figure 6 on next page.
F
L
O
W
12

303.872.4477 [e-mail] clearcomfort.com
INSTALLING THE CLEAR COMFORT
INJECTION ASSEMBLY
13
1. Run provided 1⁄4-inch tubing from the venturi injection port to the
straight barb tting. Length of tube should be less than 10 feet.
Shorten and cut tubing as possible. See Figure 5.
2. If the unit is installed below the water line, install a loop in the 1⁄4-
inch line known as a Hartford loop. Loop the hose so that at some
point, tubing is above water level.
3. Install 1⁄4-inch one-way air check valve (supplied) to eliminate any
potential water back ow. See Figure 5.
4. Gas exiting the Clear Comfort system to the venturi connector port
should ow easily.
5. Measure air suction using an air ow meter and set venturi air
suction to draw between 3 - 5 LPM. See Figure 8 for details.
NOTE: If 3 -5 LPM cannot be achieve, please call Clear Comfort support
at 303.872.4477.
INSTALLING THE CLEAR COMFORT INJECTION ASSEMBLY
Figure 6: Air Check Valve Position
DON’T:
DO:
FLOW
FL
O
W
90 Elbow
Tubing
90 Elbow
Air Air

303.872.4477 [e-mail] clearcomfort.com 14
INSTALLING THE CLEAR COMFORT
INJECTION ASSEMBLY
AIR FLOW METER
1. Measure the air ow rate from the venturi in circulation mode.
2. If 3 LPM is not achieved, contact Clear Comfort for options for your
particular spa.
3. If 3 LPM is achieved, disconnect ow meter and reconnect tubing to
check valve.
OPERATING INSTRUCTIONS
1. Install plumbing according to Figure 4.
2. Ensure bypass 3-way port valve is OPEN before turning pumps ON.
3. Turn spa pump and ltration systems on.
4. Set venturi air suction to draw between 3 - 5 LPM.
5. To increase the draw of air from venturi system, adjust or slowly close
bypass 3-way port valve.
6. Toggle Clear Comfort system switch to the ON position.
7. Water entering the spa should have bubbles exiting from at least one
of the returns on to the body of water.
FLOW
Figure 7: 1/4” One-Way Air Check Valve
From CCW50 System
Figure 8: Air Flow Meter
To Venturi
From CCW50 System To Venturi
FLOW
From CCW50 System To Venturi
3 - 5
LPM

303.872.4477 [e-mail] clearcomfort.com
SYSTEM MAINTENANCE
15
CARTRIDGE REPLACEMENT
The Cartridge Unit must be replaced annually. No other maintenance is
required. If the yellow OR red LED light is illuminated, the cartridge must
be replaced.
2. To remove the cartridge, disconnect
Cartridge Unit from Control Unit by
rotating the able Connector’s Collar
base quarter turn and gently pulling up.
1. Turn off and disconnect power to Clear
Comfort system. Never attempt to
service unit while it is wet. Ensure all
LEDs on system front are off.
3. Remove the air tubing from bottom of
Cartridge Unit.

303.872.4477 [e-mail] clearcomfort.com
SYSTEM MAINTENANCE
16
4. Remove Cartridge Unit from Control
Unit.
Note: Please return old cartridge to
Clear Comfort for proper recycling. For
sustainability purposes, Clear Comfort
provides a return-shipping label so the
cartridge can be properly recycled.
5. To install the replacement cartridge,
securely fasten the Cartridge Unit to
the Control Unit using the side keyed
brackets.
6. Reconnect the air tubing to bottom of
the Cartridge Unit.
7. Reconnect top connection wire by
inserting the Cable Connector into
Cartridge Connector and turning a
quarter turn, see Figure 3 for detailed
instructions. If cable is properly
connected, the system can be safely
turned ON.
See Figure 1 for proper LED function. If
strange light pattern occurs, disconnect
cable assembly and reconnect.

303.872.4477 [e-mail] clearcomfort.com
• How is the Clear Comfort system different from traditional non-
chlorine water treatment systems?
The Clear Comfort system is the rst product to provide complete
protection for spas (biocide, scale control and corrosion control)
without adding toxic chemicals. Traditional water treatment systems
require the purchase, transport, storage and application of toxic
chemicals.
• Is the Clear Comfort system a non-chlorine device?
The Clear Comfort system creates hydroxyls and hydrogen peroxide
when the system’s treated air is injected into the water.
• How does the Clear Comfort system work?
Using a proprietary and patented technology, the Clear Comfort
system creates a gas that, when added to water, forms hydroxyl
radicals and safe amounts of hydrogen peroxide, which destroys
aquatic microorganisms and controls organic material. The Clear
Comfort system produces an excellent biocide, which kills bacteria,
protozoa and viruses.
• How long does installation take?
Typically, installation should take a few hours. As soon as it is
installed, it starts treating the water immediately.
• Where does the Clear Comfort system get installed?
The Clear Comfort system needs to be within 10 feet of the spa
venturi injection site. It can be installed either indoors (as long as
there is access for the air handling) or outdoors on the ]spa. The
system’s venturi is installed directly into the spa plumbing.
• Is the Clear Comfort system affected by temperature? Hot or
cold?
No, the Clear Comfort system is weatherproof for outdoor
conditions.
• Does the Clear Comfort system treat the water even when the
system isn’t in operation?
When the system is turned off, it stops producing the hydroxyls.
However, a residual hydrogen peroxide will remain in the water for
some time.
FREQUENTLY ASKED QUESTIONS
17
