ClearView IPPTZ-EL2MPIR250L30X-E User manual

IPPTZ-EL2MPIR250L30X-E Installation Manual
Version 1.0

i
Table of Contents
1IPPTZ-EL2MPIR250L30X-E INSTALLATION ............................................. 1
1.1 Installation Preparation .........................................................................................................................1
1.2 Initial Setup.............................................................................................................................................1
1.3 Dial Switch Setup (For Analog Speed Dome Only)..........................................................................1
1.3.1 Dial Switch ......................................................................................................................................... 1
1.3.2 Parity Setup ....................................................................................................................................... 2
1.3.3 Baud Rate .......................................................................................................................................... 2
1.4 Reset and SD card Installation (For IP Speed dome only) .............................................................3
1.5 Installation (For Analog and IP Speed Dome Both) .........................................................................3
1.5.1 Overview ............................................................................................................................................ 3
1.5.2 Installation Conditions ...................................................................................................................... 3
1.5.3 Dig holes ............................................................................................................................................ 3
1.5.4 Speed Dome Installation.................................................................................................................. 4
2HANG MOUNT INSTALLATION .........................................................................6
2.1 Installation Components .......................................................................................................................6
2.2 Installation...............................................................................................................................................6
2.2.1 Installation Requirements ................................................................................................................ 6
2.2.2 Installation Steps............................................................................................................................... 6
3CORNER MOUNT BRACKET ..........................................................................10
3.1 Component Installation .......................................................................................................................10
3.2 Installation.............................................................................................................................................10

ii
3.2.1 Installation Requirements .............................................................................................................. 10
3.2.2 Installation Steps............................................................................................................................. 10
4POLE MOUNT BRACKET ................................................................................12
4.1 Installation.............................................................................................................................................12
4.1.1 Installation Requirements .............................................................................................................. 12
4.1.2 Installation Steps............................................................................................................................. 12
5BRACKET DIMENSIONS .................................................................................14
5.1 Wall Mount Bracket .............................................................................................................................14
5.2 Hanging Mount Bracket (Multiple Lengths) .....................................................................................14
5.3 Corner Mount Bracket.........................................................................................................................15
5.4 Pole mount bracket .............................................................................................................................15
6APPENDIX Ⅰ THUNDER PROOF AND SURGE PROTECTION .......................16
7APPENDIX Ⅱ ABOUT RS485 BUS ...................................................................17
7.1 RS485 Bus Main Feature ...................................................................................................................17
7.2 RS485 Bus Transmission Distance ..................................................................................................17
7.3 The Problem in Practical Use ............................................................................................................17
7.4 RS485 Bus FAQ ..................................................................................................................................18

iii
8APPENDIX Ⅲ THE RELATIONSHIP BETWEEN THE 24V AC CABLE
DIAMETER AND THE TRANSMISSION DISTANCE...............................................19
9APPENDIX IV WIRE GAUGE REFERENCE SHEET .......................................20
10 APPENDIX V SAFETY ROPE INSTALLATION ................................................21

iv
Welcome
Thank you for purchasing our speed dome!
Please read the following safeguards and warnings carefully before you install or use the
product!

v
Important Safeguards and Warnings
Safety Measures
Qualified Engineer Needed
zThe installation engineer or maintenance engineer shall have corresponding CCTV system
installation certificate or maintenance qualification certificate.
zThe installation engineer or maintenance engineer shall have qualification certificate for work
at height.
zThe installation engineer or maintenance engineer shall have the basic knowledge and
operation technique for low-voltage cable layout and low-voltage electronic cable connection.
zPlease read the installation manual carefully and keep it well for future reference,
zWe are not liable for any problems caused by unauthorized modifications or attempted repair.
Lifting Appliance Requirement
zPlease select the proper speed dome installation mode and use the lifting appliances at the
safety environment.
zThe lifting appliances shall have the enough capacity to reach the installation height.
zThe lifting appliances shall have safe performance.
Precautions
Safety Transportation
zHeavy stress, violent vibration or water splash are not allowed during transportation, storage
and installation.
zThis series product must use split type package during the transportation.
zWe are not liable for any damage or problem resulting from the integrated package during
the transportation.
About cable
Please select the cable according to your transmission distance.
The minimum video coaxial-cable requirement is:
z75 ohm.
zFull cable with copper conductor

vi
z95% knitted copper shield
International Model Max Distance
(Ft\M)
RG59/U 750ft (229m)
RG6/U 1,000ft (305m)
RG11/U 1,500ft (457m)
Please keep all package material well for future use
Please keep speed dome package material well in case you need to send it back to your local
retailer or manufacturer for maintenance work.
Non-original package material may result in device damage during the transportation.
When device is malfunction
Shut down the device and disconnect the power cable immediately if there is smoke, abnormal
smell or abnormal function. Please contact your local retailer ASAP.
Do not try to dismantle or modify the device
zThere is risk of personal injury or device damage resulting from opening the shell.
zPlease contact your local retailer if there is internal setup or maintenance requirement.
zWe are not liable for any problems caused by unauthorized modifications or attempted repair.
Do not allow other object falling into the device
zPlease make sure there is no metal or inflammable, explosive substance in the speed dome.
zThe above mentioned objects in the device may result in fire, short-circuit or damage.
zPlease shut down the device and disconnect the power cable if there is water or liquid falling
into the camera. Please contact your local retailer ASAP.
zPlease pay attention to the camera. Avoid the sea water or rain to erode the camera.
Handle carefully
Do not allow this series product fall down to the ground.
Avoid heavy vibration.
Installation Environment Requirement
zThis series speed dome should be installed in a cool, dry place away from direct sunlight,
inflammable, explosive substances and etc.
zThis series product shall be away from the strong electromagnetism radiant, please keep it
away from wireless power, TV transmitter, transformer and etc.
Daily Maintenance
zPlease use the soft cloth to clean dust on the shell, or you can use soft cloth with cleaning
liquid to clean the shell and then use soft cloth to make it dry.
zDo not use gasoline, dope thinner or other chemical material to clean the shell. It may result
in shell transfiguration or paint flake.

vii
zDo not allow the plastic or rubber material to touch the shell for a long time. It may result in
paint flake.

1
1IR INTELLIGENT SPEED DOME INSTALLATION
1.1 Installation Preparation
Basic Requirement
zAll installation and operation here should conform to your local electrical safety codes.
zBefore installation, please open the package and check all the components are included.
Please make sure the speed dome installation environment and installation mode can meet
your requirement. If there is special requirement, please contact your local retailer for more
information.
zWe assume no liability or responsibility for all the fires or electrical shock caused by
improper handling or installation.
Check installation space and installation location intension
Please make sure the installation environment has enough space to install the speed dome and
its corresponding bracket.
Please make sure the ceiling, wall and the bracket can support the speed dome and its
corresponding installation component. It shall sustain the 4X weight of the speed dome.
1.2 Initial Setup
The default setup is:
zAddress: 1
zBaud rate: 9600
zParity: None.
1.3 Dial Switch Setup (For Analog Speed Dome Only)
1.3.1 Dial Switch
There are two dial switch buttons on the PCB of one side of the speed dome (There are labels.).
You can use them to set speed dome protocol, baud rate, address and etc. See Figure 1-1 . It is
1 when you set the button as ON.
For the protocol dial switch, you can refer to the following sheet. 1 is the lowest bit and the 8 is
the highest bit.
1 2 3 4 5 6 7 8 ON
NC 120ΩParity Baud rate Connect to the 120Ω
Please note the IR speed dome can automatically recognize the DH-SD, PELCO-D. PELCO-
P. Usually you do not need to set the protocol.

2
Figure 1-1
1.3.2 Parity Setup
Please refer to the parity setup sheet for detailed information.
6 7 Parity
OFF OFF NONE
ON OFF EVEN
OFF ON ODD
ON ON NONE
1.3.3 Baud Rate
Please refer to the baud rate sheet for detailed information.
4 5 Baud Rate
OFF OFF 9600bps
ON OFF 4800bps
OFF ON 2400bps
ON ON
1200bps
The encode mode adopts binary system. 1 to 8 is valid bit. The highest address bit is 255. You
can refer to the following sheet for more information.
Address 1 2 3 4 5 6 7 8
1 OFF OFF OFF OFF OFF OFF OFF OFF
1 ON OFF OFF OFF OFF OFF OFF OFF
2 OFF ON OFF OFF OFF OFF OFF OFF
3 ON ON OFF OFF OFF OFF OFF OFF
4 OFF OFF ON OFF OFF OFF OFF OFF
5 ON OFF ON OFF OFF OFF OFF OFF
1. Address and dial switch button label
2. Protocol dial switch button.
3. Address dial switch button.
1
2
3
ON
OFF

3
6 OFF ON ON OFF OFF OFF OFF OFF
7 ON ON ON OFF OFF OFF OFF OFF
8 OFF OFF OFF ON OFF OFF OFF OFF
…… …………………………………………………………………
254 OFF ON ON ON ON ON ON ON
255 ON ON ON ON ON ON ON ON
1.4 Reset and SD Card Installation (For IP Speed dome only)
You can see there are a RESET button, dial switch button and Micro-SD card on one side of the
PCB of the speed dome. See Figure 1-1 . It is 1 when you set the button as ON.RESET button is
to restore factory default setup. Micro-SD card is to save the data.
You can refer to the sheet for dial switch information.
1 2 ON OFF
120ΩNC Connect to 120Ω
Figure 1-2
1.5 Installation (For Analog and IP Speed Dome Both)
1.5.1 Overview
The speed dome has various brackets suitable for different environments. For detailed
information, please refer to chapter 2 and chapter 4. Here we are going to install the analog
speed dome with the wall mount bracket.
1.5.2 Installation Conditions
Wall mount bracket is for the indoor and outdoor hard wall construction environments.
Before the installation, please make sure the wall thickness can sustain the expansion bolt. The
wall can support at least the 4X of the speed dome weight.
1.5.3 Dig holes
Draw the installation holes in the wall according to the holes at the bottom of the wall mount
bracket. Dig the installation holes. Insert the expansion bolts into the holes. (Please note the
expansion bolts are not included in the accessories bag.). See Figure 1-3.
1
2
3
4
ON
OFF
1. RESET button and dial switch label
2. RESET button.
3. Dial switch on-off button
4. Micro-SD card

4
Figure 1-3
1.5.4 Speed Dome Installation
Step1: Connect the speed dome to the bracket.
Use the quick installation screw of the speed dome and the quick instillation block to fix the
speed dome on the bracket. Use the M6 inner hex screw to secure firmly. See Figure 1-4.
Figure 1-4
Step 2: Cable connection
Connect the video, RS485, power (Network, alarm, audio are optional) to the corresponding
ports. See Figure 1-5.
Please note the cables listed in the Figure 1-5 is for reference only.
Installation Holes
Cable
Speed
Dome
Bracket
Quick Installation Port
Quick Installation Screw
M6 Inner Hex Screw

5
Figure 1-5

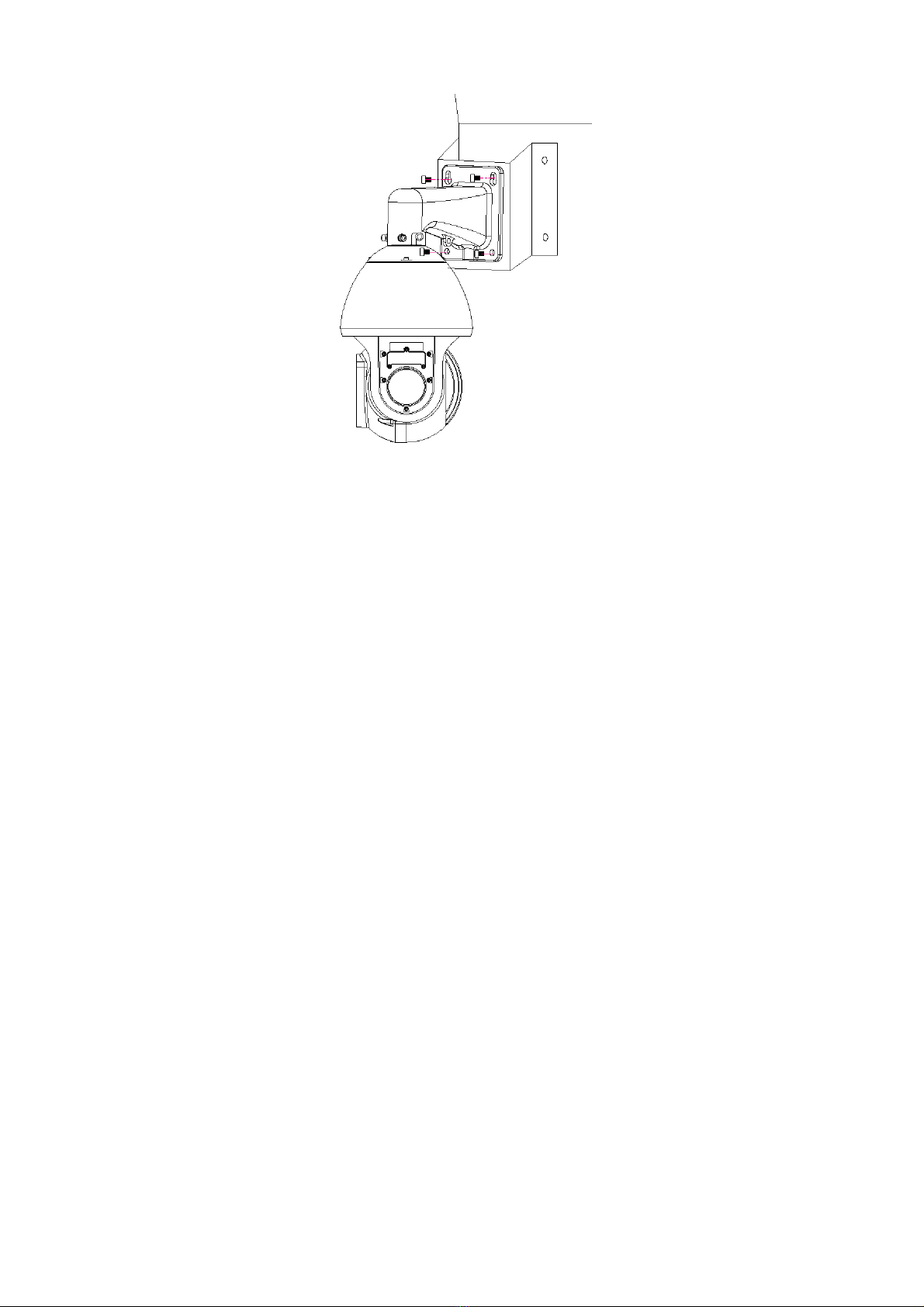

Step3: Secure the bracket
Secure the speed dome and the bracket to the wall firmly. See Figure 1-6.
Figure 1-6
Label 1
Purple: ALARM_COM
Brown: ALARM_OUT
Red: ALARM_IN1
Orange: ALARM_IN2
Yellow: AUDIO OUT
Black: GND
Green: AUDIO GND
White: AUDIO IN
Label 2
RS485
Yellow=A+
Orange=B-
Label 3
POWER
Red=AC24V
Black=AC24V
Yellow&green
=
GND
Label 4
Video Out

6
2Hang Mount Installation

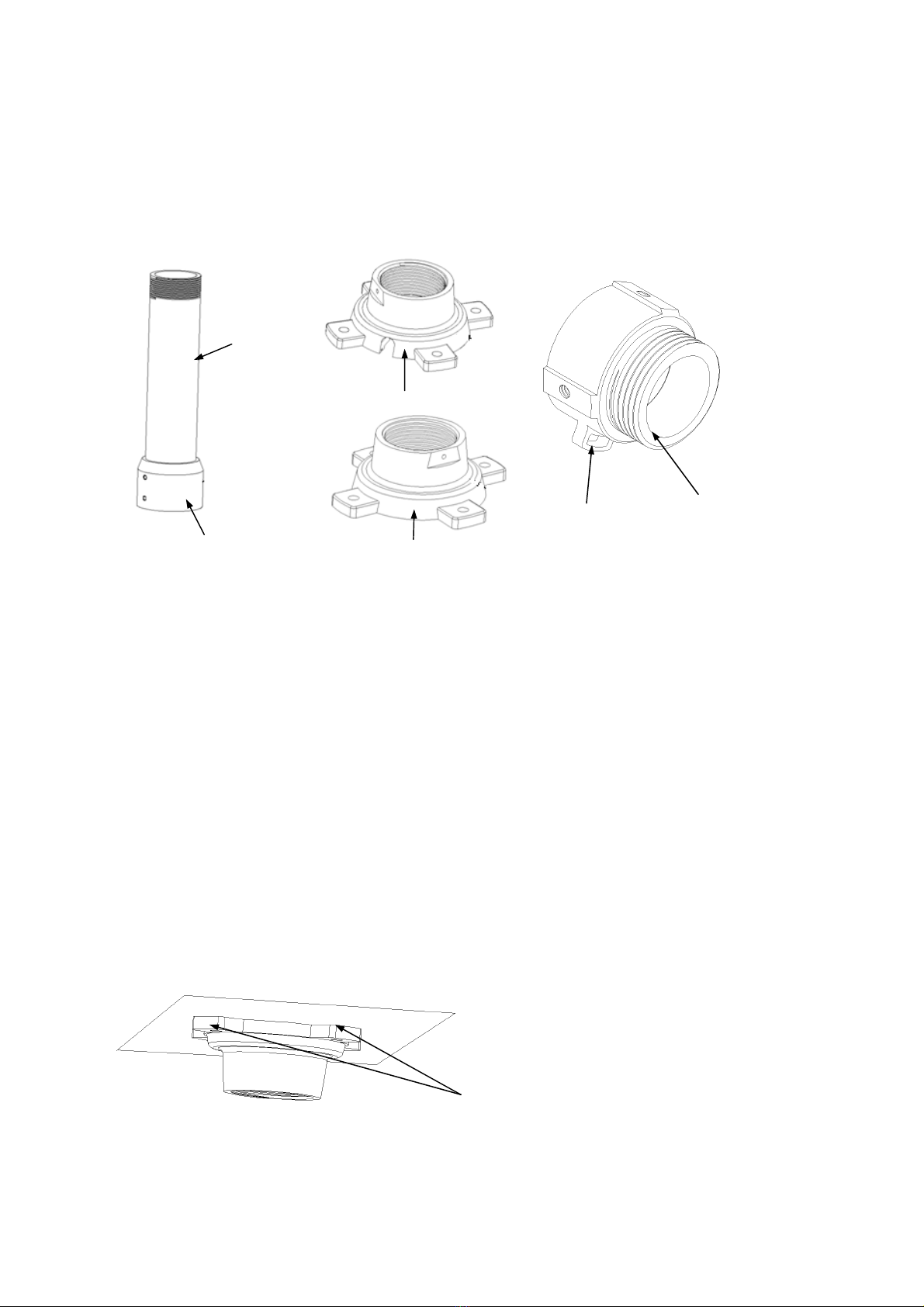

2.1 Installation Components
Please refer to the following sheet for bracket and components information. See Figure 2-1.
Figure 2-1
2.2 Installation
2.2.1 Installation Requirements
The hang mount speed dome can be installed in the hard construction wall in the indoor or
outdoor environments. Before the installation, please make sure:
zThe wall is thick enough to install the expansion bolt.
zThe wall can at least sustain the 4x weight of the speed dome.
2.2.2 Installation Steps
For the speed dome without the straight pole, please refer to the contents below.
Step 1: Dig Holes
Draw the installation holes in the wall according to the holes at the bottom of the connection plate.
Dig the installation holes. Insert the expansion bolts into the holes. (Please note the expansion
bolts are not included in the accessories bag.). See Figure 2-2.
Figure 2-2
Step 2 Installation bracket components.
Straight Pole
Screw thread
Connection
Hang Mount Bracket Connection Plate
（With Cable Exit Slot ）
Hang Mount Bracket Connection Plate
（Without Cable Exit Slot ）
Adapter BlockSafety Rope Hole
Installation Holes

7
Fix the connection plate to the ceiling and then turn the connection block to the bracket
connection plate. See Figure 2-3.
Figure 2-3
Step 3 Connect cable and the speed dome.
Connect the safety rope of the speed dome to the safety rope hole of the adapter block. Now you
can connect the cable: video, RS485, power (network, alarm, audio are optional). Please refer to
Figure 1-5 for cable connection information. Please note the cables listed in the Figure 1-5 is for
reference only.
Use the quick installation screw of the speed dome and the quick instillation port of the adapter
block to fix the speed dome on the adapter block. Use the M6 inner hex screw to secure firmly.
See Figure 2-4.
Figure 2-4
Please note, if the speed dome is installed in the outdoor environments, you need to paste
the silica gel on the surface of the flange and the surface and the cable exit.
For the speed dome with the straight pole, please refer to the contents below.
Hang Mount Bracket
Connection Plate
Adapter Block
Safety Rope
Quick Installation
Screw
Quick Installation
Port

8
Step 1: Dig holes
Draw the installation holes in the wall according to the holes at the bottom of the connection plate.
Dig the installation holes. Insert the expansion bolts into the holes. (Please note the expansion
bolts are not included in the accessories bag.). See Figure 2-2.
Step 2 Components installation
Fix the bracket connection plate to the ceiling and then turn the straight pole to the connection
plate. Turn the adapter block into the straight pole of the bracket. See Figure 2-5.
Figure 2-5
Step 3: Connect cable and the speed dome.
Connect the safety rope of the speed dome to the safety rope hole of the adapter block. Now you
can connect the cable: video, RS485, power (network, alarm, audio are optional). Please refer to
Figure 1-5 for cable connection information. Please note the cables listed in the Figure 1-5 is for
reference only.
Use the quick installation screws of the speed dome and the quick installation port of the adapter
block to fix the speed dome on the adapter block. Finally, you can use the M6 inner hex screws
to secure the speed dome firmly. See Figure 2-6.

9
Figure 2-6
Please note, if the speed dome is installed in the outdoor environments, you need to paste
enough Teflon tape at the top screw thread of the steeve and then turn the steeve to the
flange firmly. Please paste the silica gel on the steeve connection surface to do the
waterproof work.
Safety Rope
Quick Installation
Screw
Quick Installation
Port

10
3Corner Mount Bracket
3.1 Component Installation

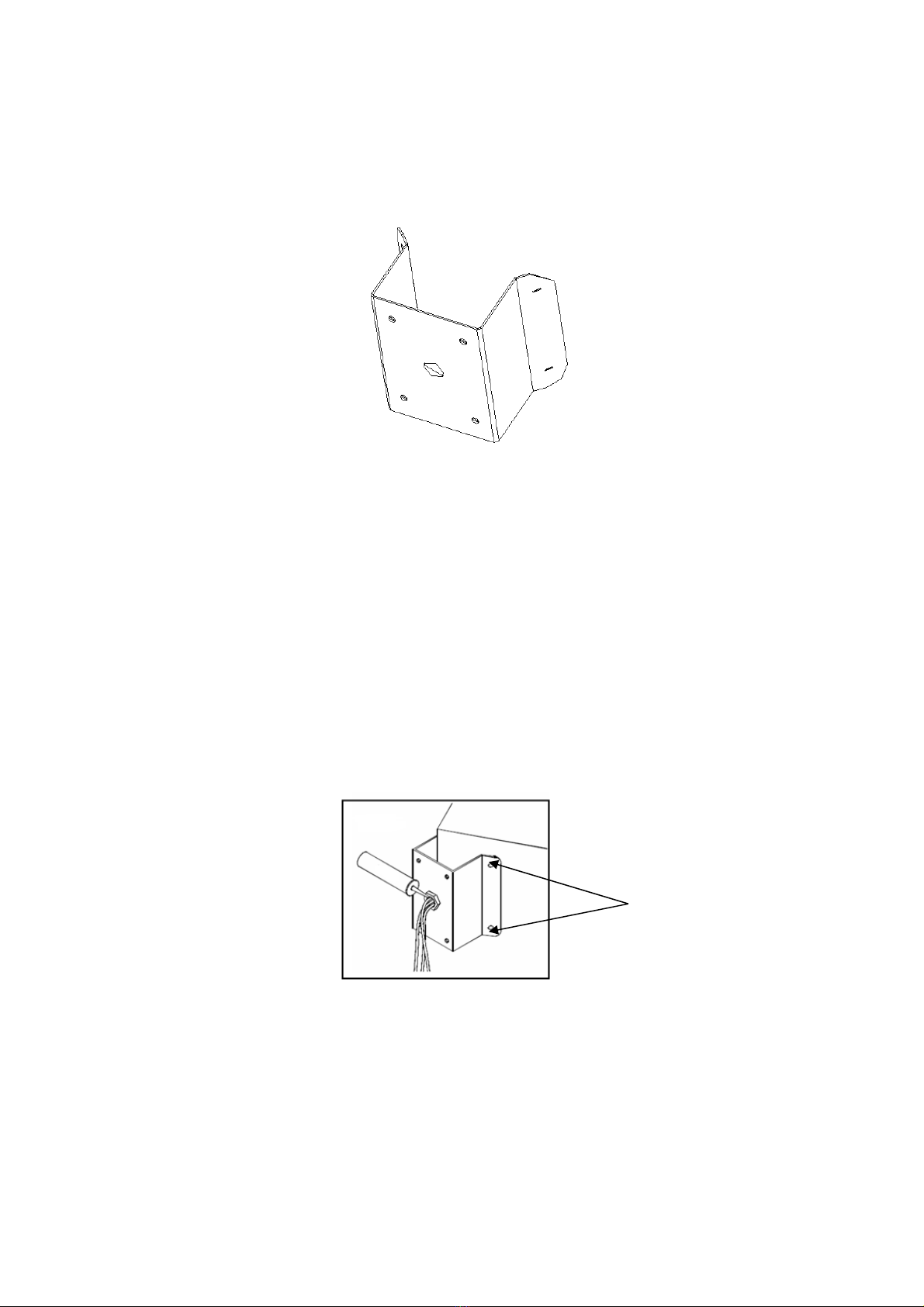

Corner mount bracket and its components are shown as below. See Figure 3-1.
Figure 3-1
3.2 Installation
3.2.1 Installation Requirements
The corner mount speed dome can be installed in the hard construction wall in the indoor or
outdoor environments where there is a 90 degrees angle. Before the installation, please make
sure:
zThe wall is thick enough to install the expansion bolt.
zThe wall can at least sustain the 4x weight of the speed dome.
3.2.2 Installation Steps
Step1: Install corner mount bracket.
Please draw four holes position in the wall according to the holes of the corner installation
accessories. See Figure 3-2.
Figure 3-2
Step 2: Speed dome installation
For detailed information, Please refer to chapter 1.5.4.
After the installation, it is shown as in Figure 3-3.
Installation holes

11
Figure 3-3

12
4Pole mount bracket
Pole mount bracket and its components are shown as below. See Figure 4-1.
Figure 4-1
4.1 Installation
4.1.1 Installation Requirements
The corner mount speed dome can be installed in the hard construction wall in the indoor or
outdoor environments.
Before the installation, please make sure:
zThe pole bracket can sustain the 4X weight of the speed dome.
zThe diameter of the pole structure shall comply with the installation dimension of the clamp.
4.1.2 Installation Steps
Step 1: Fix bracket and the pole.
Install clamp and then pole mount bracket. Pull the cable out of the pole accessories and then
use clamp to fix the pole accessories to the pole. See Figure 4-2.
Finally, you can use glass cement to the output hole to secure waterproof.
Figure 4-2
Step 2: Install speed dome.
For detailed information, Please refer to chapter 1.5.4.
After the installation, the interface is shown as in Figure 4-3.
Clamp and pole bracket connection Pole bracket and the pole connection
