Clever Home GC46D Planning guide

INSTRUCTION & USER MANUAL
GRAND CRU
BUILT-UNDER SERIES WINE COOLERS
GC46D
BUILT-UNDER SERIES BEVERAGE COOLERS
GC46BC
This manual contains important information including safety and installation instructions of
the appliances. Please read it carefully before use and follow al safety information &
instructions. It is recommended to keep this manual for easy reference so that you can be
familiar with the operation of the appliance.

--CONTENTS--
IMPORTANT SAFETY INFORMATION..............................................................................1
STRUCTURE AND INSTALLATION...................................................................................2
ACCESSORY INSTALLATION BEFORE OPERATING.....................................................3
UNPACKING AND CLEANING THE WINE COOLER .......................................................................................3
OPERATING THE WINE COOLER.....................................................................................3
WORKING CLIMATE..........................................................................................................................................3
WINE STORAGE................................................................................................................................................3
CONTROL PANEL ............................................................................................................................................4
POWER ON/OFF CONTROL.............................................................................................................................5
UNLOCKING THE CONTROL PANEL...............................................................................................................5
INTERIOR LIGHTING ON/OFF CONTROL.......................................................................................................5
TEMPERATURE DISPLAY WINDOW ...............................................................................................................5
TEMPERATURE SETTING................................................................................................................................5
SELECTING FAHRENHEIT (ºF) & CELSIUS (ºC) DISPLAY.............................................................................6
CARE AND MAINTENANCE ..............................................................................................6
CLEANING THE WINE COOLER ......................................................................................................................6
POWER FAILURE..............................................................................................................................................6
MOVING THE WINE COOLER ..........................................................................................................................6
ENERGY SAVING TIPS.....................................................................................................................................7
TROUBLESHOOTING ........................................................................................................7

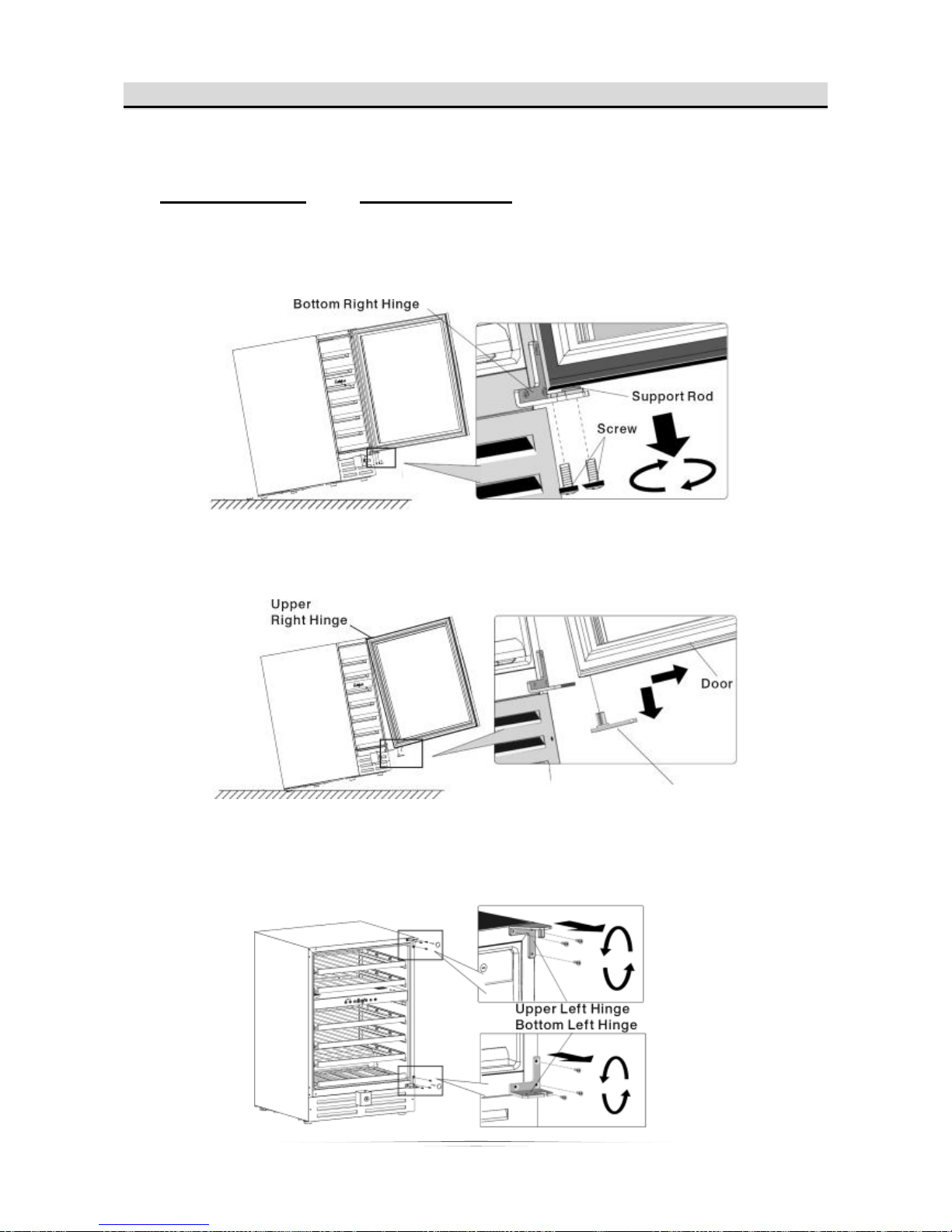

REVERSE THE DOOR SWING...........................................................................................8

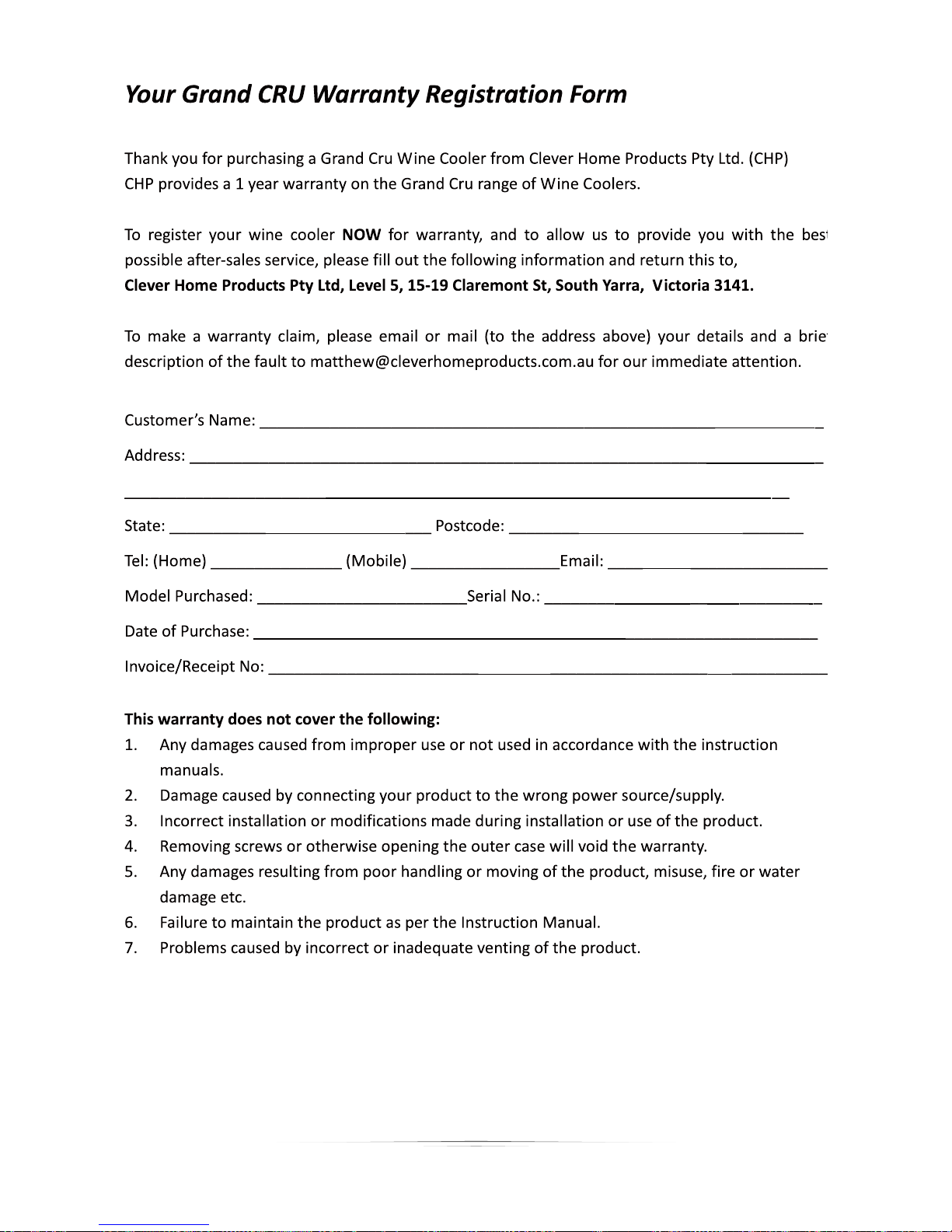

WARRANTY REGISTRATION FORM………………………………………………………………………………………………10

1
IMPORTANT SAFETY INFORMATION
Before using the appliance, please properly position and install it as described in this manual. To avoid the
risk of fire, electrical shock or injury when using the appliance, please follow these basic precautions:
• The appliance is intended to be used exclusively for the storage of wine.
• Make sure the voltage/current marked on the rating label corresponds with your supply voltage. Plug into a
standard 10amp 3-pin outlet.
• It is recommended that a separate circuit, serving only your appliance be provided.
• Never clean the appliance parts with flammable fluids which may create a fire hazard or explosion. And do
not store or use gasoline or other flammable vapours and liquids in the vicinity of the appliance.
• Do not connect or disconnect the electric plug when your hands are wet.
• Unplug the appliance or disconnect power before cleaning, maintenance or servicing. Failure to do so can
result in electrical shock or death.
• Do not attempt to repair or replace any part of the appliance unless it is specifically recommended in this
material. All other servicing should be referred to a qualified service technician.
• To ensure proper ventilation for the appliance, the front of the unit must be completely unobstructed. Locate
the unit away from direct sunlight and sources of heat (stove, heater, radiator, etc.).
• The fuse (or circuit breaker) size should be 10 amp or higher.
• It is important for the appliance to be leveled in order to work properly. You may adjust the appliance’s feet
to level it.
• This appliance is intended for use by persons with sufficient experience and knowledge of electrical
appliances. Any other persons (including children) should be supervised or given instruction concerning
use of the appliance by a person responsible for their safety.
• Children should be supervised to ensure that they do not play with the appliance.
• Do not use solvent-based cleaning agents of abrasives on the interior. These cleaners may damage or
discolor the interior.
• Do not use this appliance for other than its intended purpose.
• The use of attachments not recommended by the manufacturer may be hazardous.
• When you dispose the appliance, take off the door and leave the shelves in place so that children may not
easily climb inside. And make sure the coolant circuit, particularly the heat exchanger at the back/bottom of
the unit not be damaged. The symbol on the product or its packaging indicates that this product is not
to be handled as normal household waste and it is to be taken to a recycling collection point for electrical
and electronic goods.

2
STRUCTURE AND INSTALLATION

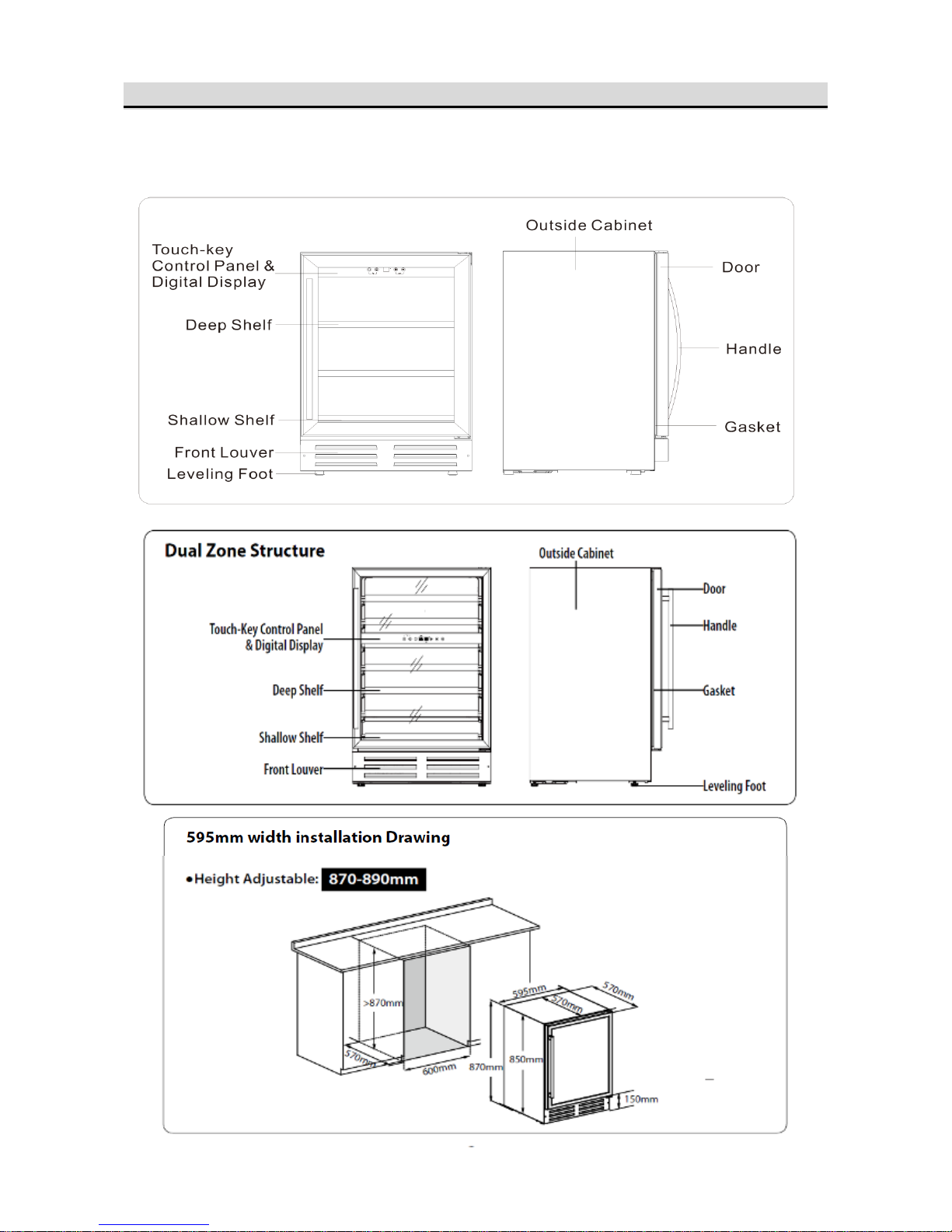

The following pictures only show the structure of the appliance. The dimension and shelf quantity may differ
among the models of the same series.
BUILT-UNDER SERIES (Built under a kitchen table top)

3
ACCESSORY INSTALLATION BEFORE OPERATING
UNPACKING AND CLEANING THE WINE COOLER
• Remove the exterior and interior packing materials.
•
Let the appliance stand upright for approximately 24 hours before connecting it to the power source,
which helps to reduce the possibility of a cooling-system malfunction from handling during
transportation.
• Use a soft cloth to clean the interior surface with lukewarm water.

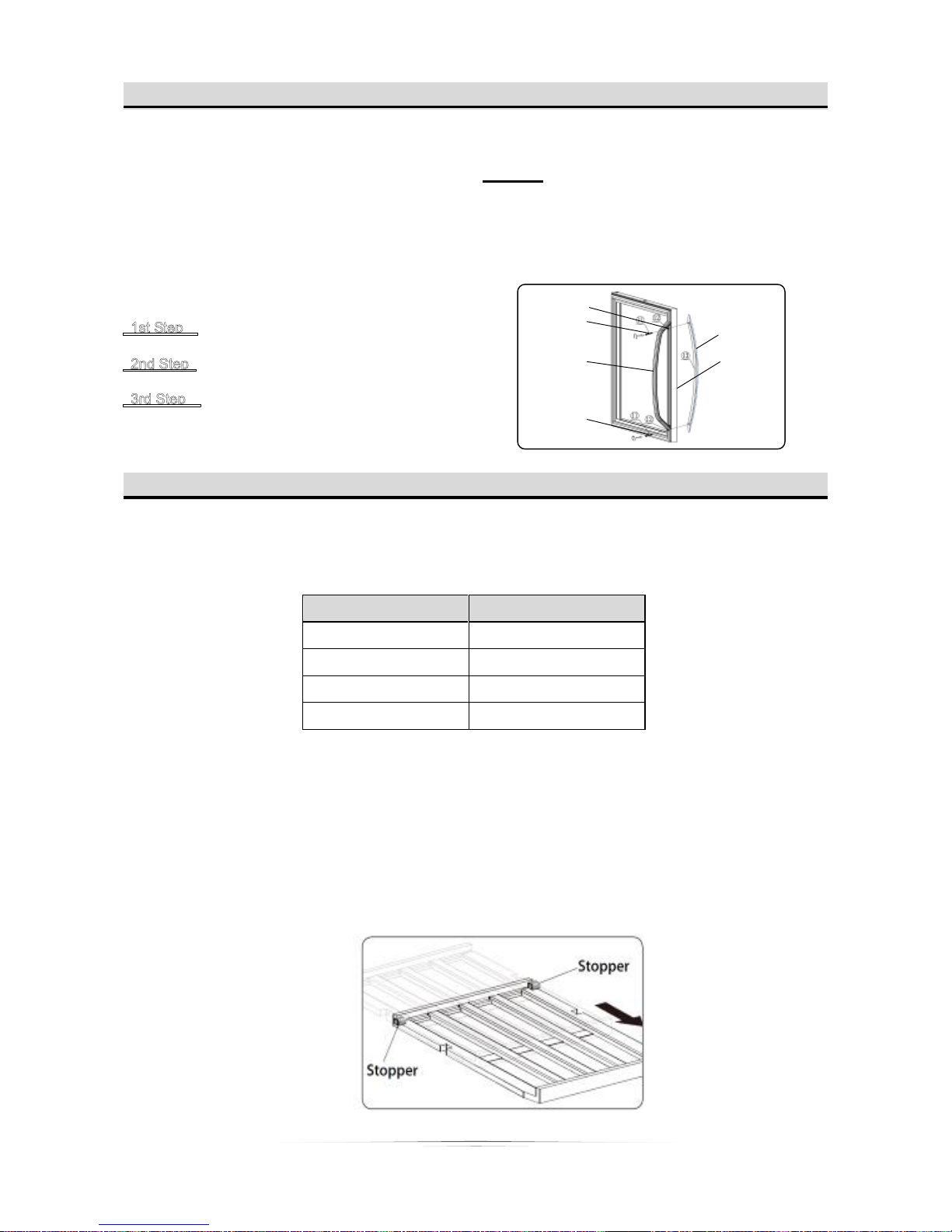

• Install the door handle provided with the appliance by following these steps:
-Remove the gasket on the internal
door to expose the two screw holes.
-Install the handle with the
screws and washers provided.
-Restore the gasket.
OPERATING THE WINE COOLER
WORKING CLIMATE
• The appliance is designed for operating from SN to N climate (see below climate class chart). It is
recommended to maintain the ambient around 22-25°C which helps the appliance working with low power
consumption.
Climate Class
Ambient Temperature
SN
10 - 32 °C (50ºF -90ºF)
N
16 - 32 °C (61ºF -90ºF)
ST
18-38 °C (64ºF -100ºF)
T
18-43 °C (64ºF -109ºF)
• If the ambient temperature is above or below the designed climate range, the performance of the unit may
be affected. For example, the appliance operating in extreme cold or hot conditions may cause interior
temperatures to fluctuate, and the temperature set 5-22°C may not be reached sometimes.
WINE STORAGE
• The standard shelves are designed perfectly for Bordeaux style bottle storage. The maximum bottle loading
may vary subject to the different size or dimension of wine bottles you store.
• The shelves can be pulled out by approximately 1/3 for easy access to the wine storage.
• The shelves are fitted with a plastic Stopper on each side of the shelf track to prevent the shelf from sliding
out completely.
F lat washer t
Washerwash
err
Screw
Screw
Gasket
Handle
Door Frame

4
• To prevent damaging the door gasket, make sure to have the door opened fully all the way before pulling
the shelves out.
• Please store wine in sealed bottles.
• Do not cover the shelves with aluminum foil or any other shelf material which may prevent air circulation.
• Should the wine cooler be left empty for long periods it is suggested that the appliance is unplugged, and
after careful cleaning, leave the door ajar to allow air to circulate inside the cabinet in order to avoid possible
condensation, mould or odours forming.
Recommended temperatures for chilling/storing your wines.
Wine Type
Recommended Temp.
Red Wines
15 - 18ºC (59ºF-64ºF)
White Wines
9 - 14ºC (48ºF-57ºF)
Rose Wines
10 - 11ºC (50ºF-52ºF)
Sparkling Wines
5 - 8ºC (41ºF-46ºF)
CONTROL PANEL
•
For Single Zone
•
For Dual Zone

5
POWER ON/OFF CONTROL
• When the appliance is plugged in to a power outlet, it powers on automatically.
• Touch the power mark and hold for 10 seconds to turn off (or turn on) the appliance.
• No matter whether the appliance is under a locked or unlocked situation, you can turn off the appliance by
touching the power mark and holding for 10 seconds.
Warning: To avoid breaking the compressor, please do not turn on the appliance again within
5 minutes after you turn it off.
UNLOCKING THE CONTROL PANEL
• To unlock the control panel, touch the power mark and lighting mark with 2 fingers at the same
time and hold for 3 seconds . When unlocked a buzz sound will be heard.
• The control panel will be automatically locked with a buzz sound heard after 10 seconds without being
touched.
• Under the locked situation, the control panel will not react to any touch operation other than for lighting
on/off and temperature setting.
INTERIOR LIGHTING ON/OFF CONTROL
• Under the unlocked situation, touch the lighting mark to turn on (or turn off) the interior LED lighting.
• The lighting will be continuously on if it is not turned off.
TEMPERATURE DISPLAY WINDOW
• The temperature is displayed in digital display form. The digital display is shown as the set temperature
when you are setting the temperature, and it will change to be the actual temperature inside cabinet after 10
seconds without being touched.
• When the temperature probe is out of order, the display window will show with “HH” or “LL” instead of a
digital figure while a continuous buzz sound will be heard. In case of this happens, this appliance is
designed to keep the compressor and fan running periodically which helps to keep the desired temperature
of the inside cabinet to protect your stored wines.
Warning:To avoid destroying your stored wines, it is strongly recommended to have the
appliance repaired immediately, as the periodical running cannot ensure the appliance will achieve the
temperature you have set.
TEMPERATURE SETTING
For Single Zone beverage coolers:
•The temperature setting range is 2-20 ºC (36-68 ºF).
•Directly touch the or mark to set the wine cooler temperature as you want.
•The first touch on or mark will recall the previous set temperature displayed in the digital window.
•Touch the mark to increase the set temperature by 1ºC(or by 1ºF). On the contrary, touch the mark
to decrease the set temperature by 1ºC (or by 1ºF).
•The digital will change to display the real temperature of the inside cabinet after 10 seconds without being
touched.
For Dual Zone wine coolers:
•The temperature setting ranges are 5-12 ºC (41-54 ºF) for the upper zone and 12-22 ºC (54-72 ºF) for the

6
bottom zone.
•You need to select the set zone by touching the mark before touching the mark or to set the
desired temperature. The display window with digital flashing indicates the zone ready for temperature
setting.
•The first touch on mark or will recall the previous set temperature displayed in the digital window
•Touch the mark to increase the set temperature by 1ºC (or by 1ºF). On the contrary, touch the mark
to decrease the set temperature by 1ºC (or by 1ºF).
•The digital will change to display the real temperature of the inside cabinet after 10 seconds without being
touched.
Note: For the first time to use the appliance or to restart the appliance after having been shut off for a long
time, you may find a few degrees variance between the set temperature and the displayed temperature. It is
normal and everything of the appliance will be in the order after a few hours running.
SELECTING FAHRENHEIT (ºF) or CELSIUS (ºC) DISPLAY
For Single Zone
Touch the marks with 2 fingers at the same time and hold for 5 seconds, you can interchange the
Fahrenheit and Celsius display.
For Dual Zone
Directly touch the mark , you can interchange the Fahrenheit and Celsius display for both zones at the
same time.
CARE AND MAINTENANCE
CLEANING THE WINE COOLER
• Turn off the power, unplug the appliance, and remove all items including shelves.
• Wipe the inside surfaces with a sponge and baking soda solution. The solution should be about 2
tablespoons of baking soda to 1 litre of warm water.
• Wash the shelves with a mild detergent solution. Allow the wooden shelves to dry before placing them back
into the wine cooler.
• Remove excess water from the sponge or cloth when cleaning the controls, or any other electrical display
areas.
• Wipe the outside cabinet with warm water and a mild liquid detergent. Wipe dry with a clean soft cloth.
• Do not use steel wool or steel brush on the stainless steel. These will contaminate the stainless steel with
steel particles and rusting may occur.
POWER FAILURE
Most power failures are corrected within a few hours and should not affect the temperature of your appliance
if you minimize the number of times the door is opened. If the power is going to be off for a longer period of
time, you need to take the proper steps to protect your contents.
MOVING THE WINE COOLER
• Remove all items.
• Securely tape down all loose items (shelves) inside your appliance.
• Turn the adjustable legs up to the base to avoid damage.
• Tape the door shut.
• Ensure the appliance stays secure in the upright position during transportation. Also protect the outside of
appliance with a blanket, or similar item.

7
ENERGY SAVING TIPS
• The appliance should be located away from heat producing appliances, and away from direct sunlight.
• Ensure that the unit is adequately ventilated. Never cover the air vents.
• Only open the door when necessary. Avoid leaving the door open for long periods or opening/closing the
door frequently.
TROUBLESHOOTING
If you feel the appliance is out of order, follow these instructions to try to see if you can solve the problem
simply by yourself before calling for service.
No.
PROBLEM
PROBLEM POSSIBLE CAUSE / MEASURE
1
The wine cooler does not operate
Not plugged in.
The appliance is turned off.
The circuit breaker tripped or a blown fuse.
2
The wine cooler is not cold enough
Check the temperature control setting.
External environment may require a higher setting.
The door is opened too frequently.
The door is not closed completely.
The door gasket does not seal properly.
3
Automatically turn-on and
turn-off frequently
The room temperature is hotter than normal.
A large amount of contents has been added to the wine cooler.
The door is opened too frequently.
The door is not closed completely.
The temperature control is not set correctly.
The door gasket does not seal properly.
4
The lighting does not work
Not plugged in.
The circuit breaker tripped or a blown fuse.
The lighting is turned off.
5
Too much vibration
Check to assure that the appliance is level.
Check to assure no parts inside the cabinet or in the compressor
chamber are loose.
6
The wine cooler seems to make
too much noise
The rattling noise may come from the flow of the refrigerant, which
is normal.
As each cycle ends, you may hear gurgling sounds caused by the
flow of refrigerant.
Contraction and expansion of the inside walls may cause popping
and crackling noises.
The appliance is not level.
7
The door will not close properly.
The wine cooler is not level.
The door was reversed and not properly installed.
The gasket is dirty.
The shelves are out of position.
8
The display window is shown with “HH”
or “LL” instead of a digital figure,
and/or with a continuous buzz sound.
The temperature probe is out of order.

8
REVERSE THE DOOR SWING
Remarks:
•The instruction is based on a unit with right door hinge installed already.
•To reserve the door from right hinge to left hinge, you need to get ready 2 new spare parts:
an Upper Left Hinge, and a Bottom Left Hinge.
* All removed parts is suggested t be saved in case of door re-reversal.
1．Open the door, and loosen the screws from the support rod of the bottom hinge.
2．Remove the door off the upper hinge and take out the support rod.
3. For a door with lock, use a small flat head screwdriver to pry up the lock hole cap on the
top of the door and remove to the bottom.
4. Unscrew the upper hinge and bottom hinge.

9
5. Pry out the plastic caps at the left side of the cabinet, and remove them to the right side.
6. Install the hinge set which are packed as accessories with the instruction manual to the
opposite side.
7. Rotate the door 180oso that the top is now the bottom, and install it by attaching the
support rod with screws.

10
