1 - 8 Mainboard Overview - Top (Key Parts)
1.Introduction
Mainboard Overview - Top (Key Parts)
Figure 7
Mainboard Top
Key Parts
1. KBC-ITE IT8587
2
3
1

1
2
3
6
4
5
7
Figure 8
Mainboard Bottom
Key Parts
1. Mini-Card
Connector (M.2
3G/SATA Module)
2. Mini-Card
Connector (M.2
PCIE/SATA SSD
Module)
3. Mini-Card
Connector (WLAN
Module)
4. PCH
5. GPU-GTX1060M
6. Memory Slots
DDR4 SO-DIMM
7. CPU
Introduction
Mainboard Overview - Bottom (Key Parts) 1 - 9
1.Introduction
Mainboard Overview - Bottom (Key Parts)

Introduction
1 - 10 Mainboard Overview - Top (Connectors)
1.Introduction
Mainboard Overview - Top (Connectors)
Figure 9
Mainboard Top
Connectors
1. DC-In Jack
2. HDMI Port
3. Mini Display Ports
4. USB 3.1 Gen 2
Type-C Ports
5. TP Connector
6. Keyboard Cable
Connector
7. Microphone-In
Jack
8. Headphone & S/
PDIF Combo
Jack
9. USB3.0(USB3.1
Gen 1) Port
10.Multi-in-1 Card
Reader
11. RJ-45 LAN Jack
11
10
9
7
8
6
5
1
3
4
2

Introduction
Mainboard Overview - Bottom (Connectors) 1 - 11
1.Introduction
Mainboard Overview - Bottom (Connectors)
Figure 10
Mainboard Bottom
Connectors
1. USIM Card Reader
(for 3G/4G USIM
Cards)
2. Battery Connector
3. HDD Connector
4. Fan Connector
5. LCD Cable
Connector
6. CCD Connector
11
12
12
4
3
5
6

Schematic Diagrams
B - 1
B.Schematic Diagrams
Appendix B: Schematic Diagrams
Table B - 1
SCHEMATIC
DIAGRAMS
This appendix has circuit diagrams of the P955HQ3 notebook’s PCB’s. The following table indicates where to find the
appropriate schematic diagram.
Diagram - Page Diagram - Page Diagram - Page Diagram - Page
System Block Diagram - Page B - 2 Frame Buffer Partition C_D - Page B - 23 3D AMP Headphone - Page B - 44 NVVDD 1 - Page B - 65
Processor 1/7 - Page B - 3 GPU Decoupling 1 - Page B - 24 ASM2142 1/3 - Page B - 45 NVVDD 2 - Page B - 66
Processor 2/7 - Page B - 4 GPU Decoupling 2 - Page B - 25 ASM2142 2/3 - Page B - 46 FBVDDQ - Page B - 67
Processor 3/7 - Page B - 5 Straps and XTAL - Page B - 26 ASM2142 3/3 - Page B - 47 LAN Board - Page B - 68
Processor 4/7 - Page B - 6 IFP I/O Interface - Page B - 27 M.2 3G/LTE - Page B - 48 USB Board, Receiver - Page B - 69
Processor 5/7 - Page B - 7 Misc - GPIO, I2C and ROM - Page B - 28 M.2 WLAN+BT, PCIE4X SSD - Page B - 49 USB Board - Page B - 70
Processor 6/7 - Page B - 8 GPU NVVDD, FBVDDQ - Page B - 29 TPM, TP - Page B - 50 LED Board - Page B - 71
Processor 7/7 - Page B - 9 GPU GND & Sequence - Page B - 30 Connector - Page B - 51 Click Board - Page B - 72
DDR4 CHA SO-DIMM_0 - Page B - 10 PCH 1/9 - Page B - 31 Fan, LID, KB LED - Page B - 52 Reader Board - Page B - 73
DDR4 CHB SO-DIMM_0 - Page B - 11 PCH 2/9 - Page B - 32 5V, 5VS, 3.3V, 3.3VS, 3.3VA - Page B - 53 Power Board - Page B - 74
Panel, Inverter - Page B - 12 PCH 3/9 - Page B - 33 1.0DX_VCCSTG/VCCSFR_OC/2.5V - Page B - 54 Power Sequence - Page B - 75
Mini DP Port - Page B - 13 PCH 4/9 - Page B - 34 1V8_RUN/AON, NV3V3 - Page B - 55
HDMI Connector - Page B - 14 PCH 5/9 - Page B - 35 PEX_VDD - Page B - 56
VGA PCI Express - Page B - 15 PCH 6/9 - Page B - 36 VDD3, VDD5 - Page B - 57
GPU Frame Buffer Partition - Page B - 16 PCH 7/9 - Page B - 37 DDR 1.2V / 0.6VS - Page B - 58
Frame Buffer Partition A - Page B - 17 PCH 8/9 - Page B - 38 Power 1.0V, VCCIO - Page B - 59
Frame Buffer Partition B - Page B - 18 PCH 9/9 - Page B - 39 VCore & VCCGT Output 1 - Page B - 60
Frame Buffer Partition A_B - Page B - 19 KBC IT8587 - Page B - 40 VCore & VCCGT Output 2 - Page B - 61
GPU Frame Buffer Partition - Page B - 20 Backlight KB - Page B - 41 VCCSA - Page B - 62
Frame Buffer Partition C - Page B - 21 Realtek ALC1220 - Page B - 42 AC_In, Charger - Page B - 63
Frame Buffer Partition D - Page B - 22 Smart AMP ALC1306 - Page B - 43 NVVDDS - Page B - 64

Version Note
The schematic dia-
grams in this chapter
are based upon version
6-7P-P9508-001. If your
mainboard (or other
boards) are a later ver-
sion, please check with
the Service Center for
updated diagrams (if re-
quired).

Schematic Diagrams
B - 2 System Block Diagram
B.Schematic Diagrams
System Block Diagram
Sheet 1 of 74
System Block
Diagram
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
P955HQ1/HQ3 Kabylake System Block Diagram
SHEET 58
SHEET 41
USB3.0
PORT1
SHEET 46
USB3.1
TYPE C
SHEET 56
TOUCH PAD
LPC
(USB1)
SMART
BATTERY
SHEET 62
Front R
HP OUT
SHEET 41
<=7"
PCIE
23x23mm FCBGA
480 Mbps
H-processor
24 MHz
MIC
IN
SO-DIMM*2
AZALIA LINK
LAN
BIOS
SPI
SHEET 30
SPDIF
OUT
EC
SHEET 67
5V,3.3V,5VS,3VS,
N17E-Q1 MAX-P
N17E-Q3 MAX-Q
SHEET 14~29
RT5 SHEET 30~38
SHEET 2
SHEET 54
1V8_RUN,1V8_AON,NV3V3
REALTEK
ALC1220
PROCESSOR
100 MHz
THERMAL
SENSOR
33 MHz
SHEET 39
SMART
FANx3
SHEET 51
SHEET 45
eDP
SHEET 40
K/B Backlight
SHEET 2~8
1"~12"
INT MIC
DDR4
SHEET 9,10
SHEET 39
32.768KHz
EC SMBUS
SYSTEM SMBUS
ITE 8587A
(512KB ROM)
HM175 Platform
Controller
Hub (PCH-H)
INT. K/B
Azalia Codec
SHEET 52
USB 2.0
DMI*4
VDD3,VDD5
BGA1440
Realtek
VDD1.0,VCCIO
SATA III 6.0Gb/s
SHEET 67
DDR4/1.2V/1866, 2133MHz
SHEET 71
CLICK PAD
PCIE*16
(Optional)
P950HP
USB 3.0
5 Gbps
SOCKET
NGFF PCIE
SHEET 48
WLAN+BT
RTL8111G
(Charging)
SHEET 68
AUDIO JACK
A KEY SHEET 67
SHEET 68
SOCKET
2IN1
RJ-45
<=4.5"
<=6"
<=6"
<=4.5"
3"~9"
NVVDD
SHEET 64~65
B KEY
SMART AMP
ALC1305
USB3.1
TYPE C
3D surround
SATA HDD
7mm
Front L
(USB6)
SHEET 11
PANEL
TPM2.0
SHEET 49
(Option)
1.0DX_VCCSTG/VCCSFR_OC
SHEET 58
NGFF PCIE
SOCKET
SHEET 47
3G
AC-IN
(USB9)
SHEET 67
CCD
SHEET 42
SHEET49
SHEET 32
M KEY
NGFF PCIE
SOCKET
SHEET 48
SSD PCIE4X
<8"
PORT 0
SHEET 57
1.25V(VDDQ),0.6VS
AC_IN,CHARGER
SHEET 62
FBVDDQ
SHEET 66
VCC_CORE & VCCGT
SHEET 59~60
VCCSA
SHEET 61
USB3.0
PORT6
CARD READER
2"~7"
27 MHz
24MHz
VPP 2.5V
ASM 2142
SHEET 44~46
NVVDDS
SHEET 63
PEX_VDD
SHEET 55
SHEET 42
USB3.0
PORT2
(USB2)
Realtek
RTS5250
SHEET 68
SV3H612
SHEET 43
HDMI2.0
SHEET 13
SHEET 12
Mini DP
2 Port
SHEET 68
SIM Card
Lan Board
CARD READER Board
PCB:6-71-P9500-D03
SHEET 2~66
P950HR M/B BOARD
3D HeadPhone AMP
SHEET 68
(USB3)
USB3.0
PORT3
PCBA:6-7P-P9508-002
USB Board CLICK Board
BOM: 6-77-P955HQ10-D03-1A
BOM: 6-77-P955HQ30-D03-A
BOM: 6-77-P955HQ10-D03-A
SHEET 67
P950HP LAN BOARD
SHEET 68
P950HP CARD READER BOARD
SHEET 69
P950HP USB3.0 BOARD
BOM: 6-77-P9502-D02
PCB:6-71-P9504-D02 SHEET 70
BOM: 6-77-P9504-D02
PCB:6-71-P950Z-D02
BOM: 6-77-P950Z-D02
PCB:6-71-P950V-D03
BOM: 6-77-P950V-D03 (W SIM)
PCB: 6-71-P9503-D02
BOM: 6-77-P9503-D01C
P950HP FRONT LED BOARD
BOM: 6-77-P9503-D02 SHEET 74
BOM: 6-77-P950V-D03-1 (W/O SIM)
SHEET 72
PCB: 6-71-P955C-D01
BOM: 6-77-P955C-D01
P955HP Power BOARD
PCB: 6-71-P9503-D01C
PCB:6-71-P9502-D02
P950HP CLICK BOARD
SHEET 71
BOM: 6-77-P955HQ30-D03-1A
Title
Size Document Number Rev
Date: Sheet of
6-7P-P9508-002
D03
[01]BLOCK DIAGRAM
A3
174Friday, June 23, 2017
ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/
P955HQx
Title
Size Document Number Rev
Date: Sheet of
6-7P-P9508-002
D03
[01]BLOCK DIAGRAM
A3
174Friday, June 23, 2017
ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/
P955HQx
Title
Size Document Number Rev
Date: Sheet of
6-7P-P9508-002
D03
[01]BLOCK DIAGRAM
A3
174Friday, June 23, 2017
ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/
P955HQx

Schematic Diagrams
Processor 1/7 B - 3
B.Schematic Diagrams

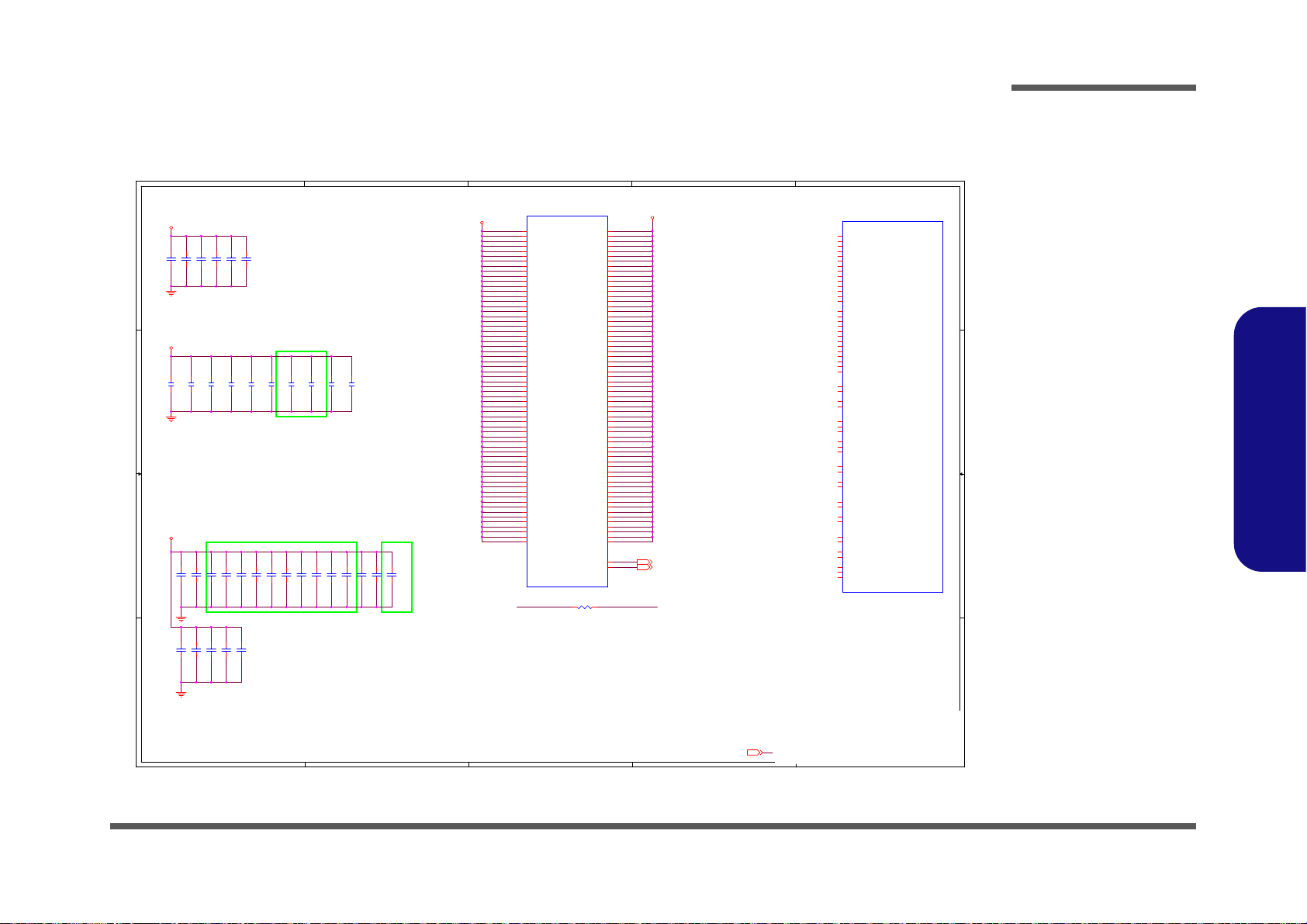

Processor 1/7
Sheet 2 of 74
Processor 1/7
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
PLACE NEAR CPU
P/N 6-17-10320-731
PEG_COMP
PEG_TX_0
PEG_TX#_0
PEG_TX_1
PEG_TX#_1
PEG_TX_2
PEG_TX#_2
PEG_TX_3
PEG_TX#_3
PEG_TX_4
PEG_TX#_4
PEG_TX_5
PEG_TX#_5
PEG_TX_6
PEG_TX#_6
PEG_TX_7
PEG_TX#_7
PEG_TX_8
PEG_TX#_8
PEG_TX_9
PEG_TX#_9
PEG_TX_10
PEG_TX#_10
PEG_TX_11
PEG_TX#_11
PEG_TX_12
PEG_TX#_12
PEG_TX_13
PEG_TX#_13
PEG_TX_14
PEG_TX#_14
PEG_TX_15
PEG_TX#_15
VCCIO
3.3V
DMI_MT_IR_0_DP 31
DMI_MT_IR_0_DN 31
DMI_MT_IR_1_DP 31
DMI_MT_IR_1_DN 31
DMI_MT_IR_2_DP 31
DMI_MT_IR_2_DN 31
DMI_MT_IR_3_DP 31
DMI_MT_IR_3_DN 31
DMI_IT_MR_0_DP31
DMI_IT_MR_0_DN31
DMI_IT_MR_1_DP31
DMI_IT_MR_1_DN31
DMI_IT_MR_2_DP31
DMI_IT_MR_2_DN31
DMI_IT_MR_3_DP31
DMI_IT_MR_3_DN31
THERM_VOLT 39
PEG_RX#414
PEG_RX#314
PEG_RX#714
PEG_RX#614
PEG_RX#514
PEG_RX514
PEG_RX714
PEG_RX414
PEG_RX314
PEG_RX214
PEG_RX614
PEG_RX014
PEG_RX114
PEG_RX#1214
PEG_RX#1014
PEG_RX#914
PEG_RX#1114
PEG_RX#1514
PEG_RX#1414
PEG_RX#814
PEG_RX1214
PEG_RX1014
PEG_RX914
PEG_RX1114
PEG_RX1414
PEG_RX814
PEG_RX1314
PEG_RX#214
PEG_RX#114
PEG_RX1514
PEG_RX#014
PEG_RX#1314
PEG_TX#2 14
PEG_TX#3 14
PEG_TX#5 14
PEG_TX#0 14
PEG_TX#7 14
PEG_TX#6 14
PEG_TX#1 14
PEG_TX#4 14
PEG_TX3 14
PEG_TX6 14
PEG_TX0 14
PEG_TX7 14
PEG_TX4 14
PEG_TX5 14
PEG_TX1 14
PEG_TX2 14
PEG_TX#10 14
PEG_TX#11 14
PEG_TX#13 14
PEG_TX#8 14
PEG_TX#15 14
PEG_TX#14 14
PEG_TX#9 14
PEG_TX#12 14
PEG_TX11 14
PEG_TX14 14
PEG_TX8 14
PEG_TX15 14
PEG_TX12 14
PEG_TX13 14
PEG_TX9 14
PEG_TX10 14
3.3V11,27,29,42,43,44,45,46,47,49,50,52,53,54,55,57,58
VCCIO3,7,53,58
Title
Size Document Number Rev
Date: Sheet of
6-71-P9500-D03
D03
[02] Processor 1/7-DMI/PEG
A3
274Friday, June 23, 2017
ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/
P955HQx
Title
Size Document Number Rev
Date: Sheet of
6-71-P9500-D03
D03
[02] Processor 1/7-DMI/PEG
A3
274Friday, June 23, 2017
ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/
P955HQx
Title
Size Document Number Rev
Date: Sheet of
6-71-P9500-D03
D03
[02] Processor 1/7-DMI/PEG
A3
274Friday, June 23, 2017
ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/
P955HQx
R527
20K_1%_04
C659 0.22u_10V_X5R_04
C651 0.22u_10V_X5R_04
C654 0.22u_10V_X5R_04
R220
24.9_1%_04
C662 0.22u_10V_X5R_04
C657 0.22u_10V_X5R_04
C644 0.22u_10V_X5R_04
C647 0.22u_10V_X5R_04
C664 0.22u_10V_X5R_04
C652 0.22u_10V_X5R_04
C648 0.22u_10V_X5R_04
C666 0.22u_10V_X5R_04
C646 0.22u_10V_X5R_04
C642 0.22u_10V_X5R_04
C640 0.22u_10V_X5R_04
C660 0.22u_10V_X5R_04
C641 0.22u_10V_X5R_04
C650 0.22u_10V_X5R_04
C665 0.22u_10V_X5R_04
C638 0.22u_10V_X5R_04
C656 0.22u_10V_X5R_04
C639 0.22u_10V_X5R_04
C655 0.22u_10V_X5R_04
C658 0.22u_10V_X5R_04
C653 0.22u_10V_X5R_04
RT1
100k_1%_04_NTC
12
C637 0.22u_10V_X5R_04
KABYLAKE_HALO
BGA1440
3 OF 14
?
?
REV = 1
U113C
QLM5
PEG_RXN[0]
D25
PEG_RXN[2]
D23 PEG_RXP[2]
E23
PEG_RXN[1]
F24
PEG_RXP[13]
F12
DMI_TXN[3] B4
DMI_TXP[3] D4
DMI_TXN[2] A5
DMI_TXP[2] B5
DMI_TXP[1] C6
DMI_TXN[1] B6
DMI_TXN[0] A8
DMI_TXP[0] B8
DMI_RXP[3]
J8
DMI_RXN[3]
J9
DMI_RXN[2]
E5 DMI_RXP[2]
D5
DMI_RXP[1]
E6
DMI_RXN[1]
F6
DMI_RXP[0]
D8
DMI_RXN[0]
E8
PEG_RCOMP
G2
PEG_RXP[15]
F10
PEG_RXP[14]
D11
PEG_RXN[15]
E10
PEG_RXP[8]
D17
PEG_RXN[7]
F18 PEG_RXP[7]
E18
PEG_RXN[3]
F22
PEG_RXP[1]
E24
PEG_RXP[3]
E22
PEG_RXP[4]
E21
PEG_RXN[4]
D21
PEG_RXP[5]
E20
PEG_RXP[6]
E19
PEG_RXP[10]
D15
PEG_RXN[10]
E15
PEG_RXP[11]
F14
PEG_RXN[11]
E14
PEG_RXP[12]
D13
PEG_RXN[13]
E12
PEG_RXN[14]
E11
PEG_TXP[0] B25
PEG_TXN[0] A25
PEG_TXP[1] B24
PEG_TXN[1] C24
PEG_TXN[2] A23
PEG_TXP[2] B23
PEG_TXN[3] C22
PEG_TXP[3] B22
PEG_TXP[4] B21
PEG_TXN[5] C20
PEG_TXN[4] A21
PEG_TXP[5] B20
PEG_TXN[6] A19
PEG_TXP[6] B19
PEG_TXP[7] B18
PEG_TXP[8] A17
PEG_TXN[10] B15
PEG_TXP[10] A15
PEG_TXN[9] B16
PEG_TXP[11] C14
PEG_TXN[11] B14
PEG_TXN[12] B13
PEG_TXP[12] A13
PEG_TXN[13] B12
PEG_TXP[13] C12
PEG_TXN[14] B11
PEG_TXP[14] A11
PEG_TXP[15] C10
PEG_TXN[15] B10
PEG_RXN[12]
E13
PEG_RXN[9]
E16
PEG_RXN[8]
E17
PEG_TXP[9] C16
PEG_TXN[8] B17
PEG_RXP[9]
F16
PEG_TXN[7] C18
PEG_RXN[5]
F20
PEG_RXN[6]
D19
PEG_RXP[0]
E25
C663 0.22u_10V_X5R_04
C636 0.22u_10V_X5R_04
C643 0.22u_10V_X5R_04
C635 0.22u_10V_X5R_04
C645 0.22u_10V_X5R_04
C649 0.22u_10V_X5R_04
C661 0.22u_10V_X5R_04

Schematic Diagrams
B - 4 Processor 2/7
B.Schematic Diagrams
Processor 2/7
Sheet 3 of 74
Processor 2/7
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
Width = 20mil
Space = 25mil
lengh = 100mil(max)
CLOSE TO CPU
CLOSE TO CPU
EDP
Zdiff=85ȍ
EDP_RCOMP
EDP_DISP_UTIL
AUD_AZACPU_SDI_R
VCCIO
3.3VS
AUD_AZACPU_SCLK 33
AUD_AZACPU_SDO_R 33
AUD_AZACPU_SDI 33
VCCIO2,7,53,58
3.3VS9,10,11,12,13,30,32,33,34,35,36,38,39,40,41,42,44,48,49,50,51,52,59
EDP_TXN0 11
EDP_TXP0 11
EDP_TXP1 11
EDP_TXN1 11
EDP_TXN2 11
EDP_TXP2 11
EDP_TXN3 11
EDP_TXP3 11
EDP_AUX 11
EDP_AUX# 11
Title
Size Document Number Rev
Date: Sheet of
6-71-P9500-D03
D03
[03] Processor 2/7-DISPLAY
A4
374Friday, June 23, 2017
ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/
P955HQx
Title
Size Document Number Rev
Date: Sheet of
6-71-P9500-D03
D03
[03] Processor 2/7-DISPLAY
A4
374Friday, June 23, 2017
ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/
P955HQx
Title
Size Document Number Rev
Date: Sheet of
6-71-P9500-D03
D03
[03] Processor 2/7-DISPLAY
A4
374Friday, June 23, 2017
ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/
P955HQx
R514100K_04
R215 24.9_1%_04
R512 20_1%_04
KABYLAKE_HALO
BGA1440
4 OF 14
?
?REV = 1
U113D
QLM5
DDI1_TXN[3]
J38
EDP_TXN[1] E28
EDP_TXN[2] B29
EDP_TXP[2] A29 DDI1_TXN[2]
H36
DDI1_TXP[3]
J37
EDP_TXP[0] D29
EDP_TXN[0] E29
EDP_TXP[1] F28
EDP_TXN[3] B28
EDP_TXP[3] C28
EDP_AUXP C26
EDP_AUXN B26
EDP_DISP_UTIL A33
EDP_RCOMP D37
PROC_AUDIO_CLK G27
PROC_AUDIO_SDI G25
PROC_AUDIO_SDO G29
DDI1_AUXP
D27
DDI2_TXN[2]
F35
DDI2_TXP[3]
E37
DDI2_TXP[2]
F34 DDI2_TXN[1]
G38 DDI2_TXP[1]
F37 DDI2_TXN[0]
H33 DDI2_TXP[0]
H34
DDI1_AUXN
E27
DDI2_TXN[3]
E36
DDI2_AUXN
E26 DDI2_AUXP
F26
DDI3_TXP[0]
C34
DDI3_TXN[0]
D34
DDI3_TXP[1]
B36
DDI3_TXN[1]
B34
DDI3_TXP[2]
F33
DDI3_TXN[2]
E33
DDI3_TXP[3]
C33
DDI3_TXN[3]
B33
DDI3_AUXN
B27 DDI3_AUXP
A27
DDI1_TXP[0]
K36
DDI1_TXN[0]
K37
DDI1_TXP[1]
J35
DDI1_TXN[1]
J34
DDI1_TXP[2]
H37
R513100K_04

5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
CLOSE TO CPU
DDR_RCOMP0
DDR_RCOMP1
DDR_RCOMP2
M_B_DQ0
M_B_DQ33
M_B_DQ18
M_B_DQ48
M_B_DQ34
M_B_DQ19
M_B_DQ49
M_B_DQ57
M_B_DQ35
M_B_DQ20
M_B_DQ50
M_B_DQ36
M_B_DQ58
M_B_DQ21
M_B_DQ2
M_B_DQ51
M_B_DQ37
M_B_DQ3
M_B_DQ22
M_B_DQ59
M_B_DQ52
M_B_DQ11
M_B_DQ4
M_B_DQ38
M_B_DQ23
M_B_DQ60
M_B_DQ53
M_B_DQ12
M_B_DQ5
M_B_DQ24
M_B_DQ39
M_B_DQ61
M_B_DQ54
M_B_DQ6
M_B_DQ25
M_B_DQ40
M_B_DQ62
M_B_DQ55
M_B_DQ26
M_B_DQ41
M_B_DQ63
M_B_DQ27
M_B_DQ42
M_B_DQ28
M_B_DQ43
M_B_DQ13
M_B_DQ29
M_B_DQ44
M_B_DQ14
M_B_DQ7
M_B_DQ30
M_B_DQ45
M_B_DQ15
M_B_DQ56
M_B_DQ1
M_B_DQ8
M_B_DQ31
M_B_DQ46
M_B_DQ16
M_B_DQ9
M_B_DQ32
M_B_DQ17
M_B_DQ47
M_B_DQ10
DIMM_DQ_CPU_VREF_A
M_B_DQS#3
M_B_DQS#2
M_B_DQS#1
M_B_DQS#0
M_B_DQS3
M_B_DQS2
M_B_DQS1
M_B_DQS0
M_B_DQS#5
M_B_DQS#6
M_B_DQS#4
M_B_DQS#7
M_B_DQS5
M_B_DQS6
M_B_DQS4
M_B_DQS7
M_A_DQ9
M_A_DQ36
M_A_DQ25
M_A_DQ51
M_A_DQ10
M_A_DQ37
M_A_DQ26
M_A_DQ52
M_A_DQ11
M_A_DQ38
M_A_DQ27
M_A_DQ53
M_A_DQ12
M_A_DQ39
M_A_DQ28
M_A_DQ54
M_A_DQ13
M_A_DQ40
M_A_DQ29
M_A_DQ55
M_A_DQ14
M_A_DQ41
M_A_DQ30
M_A_DQ15
M_A_DQ56
M_A_DQ1
M_A_DQ42
M_A_DQ31
M_A_DQ16
M_A_DQ57
M_A_DQ43
M_A_DQ32
M_A_DQ17
M_A_DQ58
M_A_DQ0
M_A_DQ2
M_A_DQ44
M_A_DQ18
M_A_DQ59
M_A_DQ3
M_A_DQ45
M_A_DQ19
M_A_DQ60
M_A_DQ4
M_A_DQ46
M_A_DQ20
M_A_DQ61
M_A_DQ5
M_A_DQ47
M_A_DQ21
M_A_DQ6
M_A_DQ62
M_A_DQ33
M_A_DQ48
M_A_DQ22
M_A_DQ7
M_A_DQ63
M_A_DQ34
M_A_DQ49
M_A_DQ23
M_A_DQ8
M_A_DQ35
M_A_DQ50
M_A_DQ24
M_A_CB0
M_A_CB1
M_A_CB2
M_A_CB3
M_A_CB4
M_A_CB5
M_A_CB6
M_A_CB7
M_A_DQS7
M_A_DQS3
M_A_DQS#7
M_A_DQS#6
M_A_DQS#4
M_A_DQS#5
M_A_DQS2
M_A_DQS1
M_A_DQS0
M_A_DQS6
M_A_DQS5
M_A_DQS4
M_A_DQS#3
M_A_DQS#2
M_A_DQS#1
M_A_DQS#0
M_B_CB0
M_B_CB1
M_B_CB2
M_B_CB3
M_B_CB4
M_B_CB5
M_B_CB6
M_B_CB7
M_B_DQ[63:0]10
M_B_CKE0 10
M_B_CKE1 10
M_B_CS#0 10
M_B_CS#1 10
M_B_ODT0 10
M_B_ODT1 10
M_B_RAS# 10
M_B_WE# 10
M_B_CAS# 10
DIMM_CA_CPU_VREF_A 9
DIMM_DQ_CPU_VREF_B 10
M_B_CLK_DDR0 10
M_B_CLK_DDR#0 10
M_B_CLK_DDR#1 10
M_B_CLK_DDR1 10
M_B_DQS#[3:0] 10
M_B_DQS[3:0] 10
M_B_DQS#[7:4] 10
M_B_DQS[7:4] 10
M_B_BA0 10
M_B_BA1 10
M_B_BG0 10
M_B_A0 10
M_B_A1 10
M_B_A2 10
M_B_A3 10
M_B_A4 10
M_B_A5 10
M_B_A6 10
M_B_A7 10
M_B_A8 10
M_B_A9 10
M_B_A10 10
M_B_A11 10
M_B_A12 10
M_B_A13 10
M_B_BG1 10
M_B_ACT# 10
DDR1_B_PARITY 10
DDR1_B_ALERT# 10
M_A_DQ[63:0] 9
M_A_CLK_DDR0 9
M_A_CLK_DDR#0 9
M_A_CLK_DDR#1 9
M_A_CLK_DDR1 9
M_A_CKE0 9
M_A_CKE1 9
M_A_CS#0 9
M_A_CS#1 9
M_A_ODT0 9
M_A_ODT1 9
M_A_RAS# 9
M_A_WE# 9
M_A_CAS# 9
M_A_BA0 9
M_A_BA1 9
M_A_BG0 9
M_A_A0 9
M_A_A1 9
M_A_A2 9
M_A_A3 9
M_A_A4 9
M_A_A5 9
M_A_A6 9
M_A_A7 9
M_A_A8 9
M_A_A9 9
M_A_A10 9
M_A_A11 9
M_A_A12 9
M_A_A13 9
M_A_BG1 9
M_A_ACT# 9
DDR0_A_PARITY 9
DDR0_A_ALERT# 9
M_A_DQS#[3:0] 9
M_A_DQS[7:4] 9
M_A_DQS[3:0] 9
M_A_DQS#[7:4] 9
Title
Size Document Number Rev
Date: Sheet of
6-71-P9500-D03
D03
[04] Processor 3/7-DDR4
Custom
474Friday, June 23, 2017
ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/
P955HQx
Title
Size Document Number Rev
Date: Sheet of
6-71-P9500-D03
D03
[04] Processor 3/7-DDR4
Custom
474Friday, June 23, 2017
ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/
P955HQx
Title
Size Document Number Rev
Date: Sheet of
6-71-P9500-D03
D03
[04] Processor 3/7-DDR4
Custom
474Friday, June 23, 2017
ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/
P955HQx
R546 100_1%_04
DDR CHANNEL A
KABYLAKE_HALO
BGA1440
1 OF 14
?
?REV = 1
U113A
QLM5
DDR0_DQ[36]/DDR1_DQ[4]
AB5 DDR0_DQ[35]/DDR1_DQ[3]
AA5 DDR0_DQ[34]/DDR1_DQ[2]
AA4
DDR0_DQ[32]/DDR1_DQ[0]
AB1 DDR0_DQ[31]/DDR0_DQ[47]
BC2 DDR0_DQ[30]/DDR0_DQ[46]
BC1
DDR0_DQ[45]/DDR1_DQ[13]
V4
DDR0_ECC[6]
AY1
DDR0_DQ[63]/DDR1_DQ[47]
L1
DDR0_DQ[54]/DDR1_DQ[38]
R1
DDR0_DQ[55]/DDR1_DQ[39]
P1
DDR0_DQ[43]/DDR1_DQ[11]
U2
DDR0_DQ[28]/DDR0_DQ[44]
BD5
DDR0_DQ[20]/DDR0_DQ[36]
BG2 DDR0_DQ[19]/DDR0_DQ[35]
BF5
DDR0_DQ[16]/DDR0_DQ[32]
BG4
DDR0_ECC[4]
BA5
DDR0_DQ[60]/DDR1_DQ[44]
M5
DDR0_DQ[4]
BN5
DDR0_DQ[2]
BP3
DDR0_DQ[3]
BR3
DDR0_DQ[5]
BP6
DDR0_DQ[6]
BP2
DDR0_DQ[7]
BN3
DDR0_DQ[8]
BL4
DDR0_DQ[9]
BL5
DDR0_DQ[10]
BL2
DDR0_DQ[11]
BM1
DDR0_DQ[13]
BK5
DDR0_DQ[14]
BK1
DDR0_DQ[18]/DDR0_DQ[34]
BF4
DDR0_DQ[21]/DDR0_DQ[37]
BG1
DDR0_DQ[23]/DDR0_DQ[39]
BF2
DDR0_DQ[25]/DDR0_DQ[41]
BD1
DDR0_DQ[27]/DDR0_DQ[43]
BC5
DDR0_DQ[29]/DDR0_DQ[45]
BD4
DDR0_DQ[12]
BK4
DDR0_DQ[17]/DDR0_DQ[33]
BG5
DDR0_DQ[15]
BK2
DDR0_CKP[0] AG1
DDR0_DQ[42]/DDR1_DQ[10]
U1 DDR0_DQ[41]/DDR1_DQ[9]
V2 DDR0_DQ[40]/DDR1_DQ[8]
V5
DDR0_DQ[37]/DDR1_DQ[5]
AB4
DDR0_DQ[33]/DDR1_DQ[1]
AB2
DDR0_DQ[26]/DDR0_DQ[42]
BC4
DDR0_DQ[22]/DDR0_DQ[38]
BF1
DDR0_ECC[3]
AY5
DDR0_DQ[58]/DDR1_DQ[42]
L4
DDR0_DQ[52]/DDR1_DQ[36]
R5
DDR0_DQ[47]/DDR1_DQ[15]
U4
DDR0_DQ[44]/DDR1_DQ[12]
V1
DDR0_DQ[39]/DDR1_DQ[7]
AA1
DDR0_DQSP[8] AY3
DDR0_DQSN[8] BA3
DDR0_DQSN[7]/DDR1_DQSN[5] L3
DDR0_DQSN[6]/DDR1_DQSN[4] P3
DDR0_DQSN[5]/DDR1_DQSN[1] U3
DDR0_DQSN[4]/DDR1_DQSN[0] AA3
DDR0_DQSP[3]/DDR0_DQSP[5] BC3
DDR0_DQSP[2]/DDR0_DQSP[4] BF3
DDR0_DQSP[1] BK3
DDR0_DQSP[0] BP5
DDR0_DQSP[7]/DDR1_DQSP[5] M3
DDR0_DQSP[5]/DDR1_DQSP[1] V3
DDR0_DQSP[6]/DDR1_DQSP[4] R3
DDR0_DQSN[3]/DDR0_DQSN[5] BD3
DDR0_DQSP[4]/DDR1_DQSP[0] AB3
DDR0_DQSN[1] BL3
DDR0_DQSN[2]/DDR0_DQSN[4] BG3
DDR0_DQSN[0] BR5
DDR0_PAR AG3
DDR0_MA[14]/DDR0_CAA[9]/DDR0_BG[1] AU2
DDR0_MA[15]/DDR0_CAA[8]/DDR0_ACT# AU3
DDR0_MA[13]/DDR0_CAB[0]/DDR0_MA[13] AE3
DDR0_MA[12]/DDR0_CAA[6]/DDR0_MA[12] AU4
DDR0_MA[11]/DDR0_CAA[7]/DDR0_MA[11] AN2
DDR0_MA[8]/DDR0_CAA[3]/DDR0_MA[8] AN3
DDR0_MA[9]/DDR0_CAA[1]/DDR0_MA[9] AT4
DDR0_MA[10]/DDR0_CAB[7]/DDR0_MA[10] AH2
DDR0_MA[6]/DDR0_CAA[2]/DDR0_MA[6] AP3
DDR0_MA[7]/DDR0_CAA[4]/DDR0_MA[7] AN1
DDR0_MA[5]/DDR0_CAA[0]/DDR0_MA[5] AP1
DDR0_MA[4] AP2
DDR0_MA[3] AP5
DDR0_MA[2]/DDR0_CAB[5]/DDR0_MA[2] AN4
DDR0_MA[1]/DDR0_CAB[8]/DDR0_MA[1] AP4
DDR0_MA[0]/DDR0_CAB[9]/DDR0_MA[0] AH3
DDR0_CAS#/DDR0_CAB[1]/DDR0_MA[15] AD1
DDR0_WE#/DDR0_CAB[2]/DDR0_MA[14] AG4
DDR0_RAS#/DDR0_CAB[3]/DDR0_MA[16] AH4
DDR0_BA[2]/DDR0_CAA[5]/DDR0_BG[0] AU1
DDR0_BA[1]/DDR0_CAB[6]/DDR0_BA[1] AH1
DDR0_BA[0]/DDR0_CAB[4]/DDR0_BA[0] AH5
DDR0_ODT[3] AD4
DDR0_ODT[2] AE1
DDR0_ODT[1] AE4
DDR0_CS#[3] AE5
DDR0_ODT[0] AD3
DDR0_CS#[2] AD2
DDR0_CS#[1] AE2
DDR0_CKE[3] AT5
DDR0_CS#[0] AD5
DDR0_CKE[1] AT2
DDR0_CKE[2] AT3
DDR0_CKE[0] AT1
DDR0_CLKN[3] AL1
DDR0_CLKN[2] AK3
DDR0_CLKP[3] AL2
DDR0_CLKP[2] AL3
DDR0_CKP[1] AK2
DDR0_CKN[1] AK1
DDR0_CKN[0] AG2
DDR0_ECC[7]
AY2
DDR0_ECC[5]
BA4
DDR0_ECC[2]
AY4 DDR0_ECC[1]
BA1 DDR0_ECC[0]
BA2
DDR0_DQ[62]/DDR1_DQ[46]
L5 DDR0_DQ[61]/DDR1_DQ[45]
M2
DDR0_DQ[59]/DDR1_DQ[43]
L2
DDR0_DQ[56]/DDR1_DQ[40]
M4
DDR0_DQ[57]/DDR1_DQ[41]
M1
DDR0_DQ[53]/DDR1_DQ[37]
P2
DDR0_DQ[51]/DDR1_DQ[35]
P4 DDR0_DQ[50]/DDR1_DQ[34]
R4 DDR0_DQ[49]/DDR1_DQ[33]
P5 DDR0_DQ[48]/DDR1_DQ[32]
R2
DDR0_DQ[46]/DDR1_DQ[14]
U5
DDR0_DQ[38]/DDR1_DQ[6]
AA2
DDR0_DQ[24]/DDR0_DQ[40]
BD2
DDR0_ALERT# AU5
DDR0_DQ[1]
BT6 DDR0_DQ[0]
BR6
R534 121_1%_04
DDR CHANNEL B
BGA1440
BABYLAKE_HALO
2 OF 14
REV = 1
?
?
U113B
QLM5
DDR1_DQ[0]/DDR0_DQ[16]
BT11
DDR1_DQ[3]/DDR0_DQ[19]
BR8
DDR1_DQ[4]/DDR0_DQ[20]
BP11
DDR1_DQ[5]/DDR0_DQ[21]
BN11
DDR1_DQ[6]/DDR0_DQ[22]
BP8
DDR1_DQ[7]/DDR0_DQ[23]
BN8
DDR1_DQ[8]/DDR0_DQ[24]
BL12
DDR1_DQ[9]/DDR0_DQ[25]
BL11
DDR1_DQ[11]/DDR0_DQ[27]
BJ8
DDR1_DQ[12]/DDR0_DQ[28]
BJ11
DDR1_DQ[14]/DDR0_DQ[30]
BL7
DDR1_DQ[15]/DDR0_DQ[31]
BJ7
DDR1_DQ[2]/DDR0_DQ[18]
BT8 DDR1_DQ[1]/DDR0_DQ[17]
BR11
DDR1_ECC[3]
AW8
DDR1_ECC[4]
AY10
DDR1_ECC[5]
AW10
DDR1_ECC[6]
AY7
DDR1_ECC[7]
AW7
DDR1_DQ[61]
M10 DDR1_DQ[60]
L10 DDR1_DQ[59]
M8 DDR1_DQ[58]
L7 DDR1_DQ[57]
M11 DDR1_DQ[56]
L11 DDR1_DQ[55]
P8 DDR1_DQ[54]
R7 DDR1_DQ[53]
P10
DDR1_ODT[0] AF7
DDR1_CS#[3] AE10
DDR1_CS#[2] AF10
DDR1_ODT[1] AE8
DDR1_ODT[2] AE9
DDR1_RAS#/DDR1_CAB[3]/DDR1_MA[16] AH10
DDR1_BA[1]/DDR1_CAB[6]/DDR1_BA[1] AH9
DDR1_MA[0]/DDR1_CAB[9]/DDR1_MA[0] AJ9
DDR1_DQSN[6] R9
DDR0_VREF_DQ BP13
DDR_VREF_CA BN13
DDR1_DQSN[5]/DDR1_DQSN[3] W9
DDR1_PAR AJ7
DDR1_MA[15]/DDR1_CAA[8]/DDR1_ACT# AT9
DDR1_MA[14]/DDR1_CAA[9]/DDR1_BG[1] AR7
DDR1_MA[13]/DDR1_CAB[0]/DDR1_MA[13] AF9
DDR1_MA[11]/DDR1_CAA[7]/DDR1_MA[11] AN11
DDR1_MA[12]/DDR1_CAA[6]/DDR1_MA[12] AR10
DDR1_MA[10]/DDR1_CAB[7]/DDR1_MA[10] AH7
DDR1_MA[8]/DDR1_CAA[3]/DDR1_MA[8] AN8
DDR1_MA[9]/DDR1_CAA[1]/DDR1_MA[9] AR11
DDR1_MA[7]/DDR1_CAA[4]/DDR1_MA[7] AN10
DDR1_MA[6]/DDR1_CAA[2]/DDR1_MA[6] AN7
DDR1_MA[3] AL5
DDR1_MA[4] AL6
DDR1_MA[5]/DDR1_CAA[0]/DDR1_MA[5] AM6
DDR1_MA[2]/DDR1_CAB[5]/DDR1_MA[2] AK5
DDR1_MA[1]/DDR1_CAB[8]/DDR1_MA[1] AK6
DDR1_BA[2]/DDR1_CAA[5]/DDR1_BG[0] AR9
DDR1_BA[0]/DDR1_CAB[4]/DDR1_BA[0] AH8
DDR1_WE#/DDR1_CAB[2]/DDR1_MA[14] AH11
DDR1_CAS#/DDR1_CAB[1]/DDR1_MA[15] AF8
DDR1_ODT[3] AE11
DDR1_CS#[1] AE7
DDR1_CKE[3] AT11
DDR1_CS#[0] AF11
DDR1_CKE[2] AT7
DDR1_CKE[1] AT10
DDR1_CKE[0] AT8
DDR1_CLKN[3] AJ11
DDR1_CLKP[3] AJ10
DDR1_CLKN[2] AM10
DDR1_CLKP[2] AM11
DDR1_CKP[1] AM7
DDR1_CKN[1] AM8
DDR1_CKP[0] AM9
DDR1_CKN[0] AN9
DDR1_ECC[2]
AY8 DDR1_ECC[1]
AY11 DDR1_ECC[0]
AW11
DDR1_DQ[63]
L8 DDR1_DQ[62]
M7
DDR1_DQ[51]
R8
DDR1_DQ[52]
R10
DDR1_DQ[50]
P7 DDR1_DQ[49]
P11 DDR1_DQ[48]
R11
DDR1_DQ[46]/DDR1_DQ[30]
V7
DDR1_DQ[47]/DDR1_DQ[31]
V8
DDR1_DQ[45]/DDR1_DQ[29]
W10
DDR1_DQ[43]/DDR1_DQ[27]
V11
DDR1_DQ[44]/DDR1_DQ[28]
W11
DDR1_DQ[40]/DDR1_DQ[24]
W8
DDR1_DQ[42]/DDR1_DQ[26]
V10 DDR1_DQ[41]/DDR1_DQ[25]
W7
DDR1_DQ[39]/DDR1_DQ[23]
AC7 DDR1_DQ[38]/DDR1_DQ[22]
AC8 DDR1_DQ[37]/DDR1_DQ[21]
AA8
DDR1_DQ[29]/DDR0_DQ[61]
BB10
DDR1_DQ[23]/DDR0_DQ[55]
BF7
DDR1_DQ[20]/DDR0_DQ[52]
BF11
DDR1_DQ[21]/DDR0_DQ[53]
BF10
DDR1_DQ[17]/DDR0_DQ[49]
BG10
DDR1_DQ[18]/DDR0_DQ[50]
BG8
DDR1_DQ[16]/DDR0_DQ[48]
BG11
DDR1_DQ[13]/DDR0_DQ[29]
BJ10
DDR1_DQ[10]/DDR0_DQ[26]
BL8
DDR1_DQ[19]/DDR0_DQ[51]
BF8
DDR1_DQ[26]/DDR0_DQ[58]
BB8
DDR1_VREF_DQ BR13
DDR1_DQSN[8] AY9
DDR1_DQSP[8] AW9
DDR1_DQSP[7] L9
DDR1_DQSP[6] P9
DDR1_DQSP[5]/DDR1_DQSP[3] V9
DDR1_DQSP[4]/DDR1_DQSP[2] AA9
DDR1_DQSP[3]/DDR0_DQSP[7] BB9
DDR1_DQSP[2]/DDR0_DQSP[6] BF9
DDR1_DQSP[1]/DDR0_DQSP[3] BJ9
DDR1_DQSP[0]/DDR0_DQSP[2] BR9
DDR1_DQSN[7] M9
DDR1_DQSN[4]/DDR1_DQSN[2] AC9
DDR1_DQSN[3]/DDR0_DQSN[7] BC9
DDR1_DQSN[2]/DDR0_DQSN[6] BG9
DDR1_DQSN[1]/DDR0_DQSN[3] BL9
DDR1_DQSN[0]/DDR0_DQSN[2] BP9
DDR1_ALERT# AR8
DDR1_DQ[36]/DDR1_DQ[20]
AA7 DDR1_DQ[35]/DDR1_DQ[19]
AC10 DDR1_DQ[34]/DDR1_DQ[18]
AC11 DDR1_DQ[33]/DDR1_DQ[17]
AA10 DDR1_DQ[32]/DDR1_DQ[16]
AA11 DDR1_DQ[31]/DDR0_DQ[63]
BB7 DDR1_DQ[30]/DDR0_DQ[62]
BC7
DDR1_DQ[28]/DDR0_DQ[60]
BC10 DDR1_DQ[27]/DDR0_DQ[59]
BC8
DDR1_DQ[25]/DDR0_DQ[57]
BC11 DDR1_DQ[24]/DDR0_DQ[56]
BB11
DDR1_DQ[22]/DDR0_DQ[54]
BG7
DDR_RCOMP[0]
G1
DDR_RCOMP[1]
H1
DDR_RCOMP[2]
J2
R537 75_1%_04
Sheet 4 of 74
Processor 3/7
Schematic Diagrams
Processor 3/7 B - 5
B.Schematic Diagrams
Processor 3/7

Schematic Diagrams
B - 6 Processor 4/7
B.Schematic Diagrams
Processor 4/7
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
FLOAT FOR SKL
GND FOR CNL
NEAR CPU
CAD Note: Capacitor need to be placed
close to buffer output pin
CFG7
DEFENSIVE PULL DOWN SITE
1: (Default) PEG Train immediately following xxRESETB de assertion
0: PEG Wait for BIOS for training
TO EC
VCCST_PWRGD
CFG[0]: Stall reset sequence after PCU Ʉ
ɄɄ
Ʉ
PLL lock until de-asserted:
— 1 = (Default) Normal Operation;
No stall.
— 0 = Stall.
CFG[1]: Reserved configuration lane. Ʉ
ɄɄ
Ʉ
CFG[2]: PCI Express* Static x16 Lane Ʉ
ɄɄ
Ʉ
Numbering Reversal.
— 1 = Normal operation
— 0 = Lane numbers reversed.
CFG[3]: Reserved configuration lane.
Ʉ
ɄɄ
Ʉ
CFG[4]: eDP enable: Ʉ
ɄɄ
Ʉ
— 1 = Disabled.
— 0 = Enabled.
CFG[6:5]: PCI Express* Bifurcation Ʉ
ɄɄ
Ʉ
— 00 = 1 x8, 2 x4 PCI Express*
— 01 = reserved
— 10 = 2 x8 PCI Express*
— 11 = 1 x16 PCI Express*
CFG[7]: PEG Training:
Ʉ
ɄɄ
Ʉ
— 1 = (default) PEG Train
immediately following RESET# de
assertion.
— 0 = PEG Wait for BIOS for
training.
CFG[19:8]: Reserved configuration
Ʉ
ɄɄ
Ʉ
lanes.
CFG[6:5]
11: (Default) x16 - Device 1 functions 1 and 2 disabled
10: x8, x8 - Device 1 function 1 enabled ; function 2 disabled
01: Reserved - (Device 1 function 1 disabled ; function 2 enabled)
00: x8,x4,x4 - Device 1 functions 1 and 2 enabled
PCIE PORT BIFURCATION STRAPS
CFG2
1: (DEFAULT)NORMAL OPERATION;
LANE# DEFINITION MATCHES
SOCKET PIN MAP DEFINITION
0: LANE REVERSAL
PCI EXPRESS STATIC LANE REVERSAL FOR ALL PEG PORTS
CFG4
1: DISABLED;
NO PHYSICAL DISPLAY PORT ATTACHED
TO EMBEDDED DISPLAY PORT
0: ENABLED;
AN EXTERNAL DISPLAY PORT DEVICE
IS CONNECTED TO THE EMBEDDED
DISPLAY PORT
DISPLAY PORT PRESENCE STRAP
H_PROCHOT#_RH_PROCHOT#
H_PM_DOWN_R
H_SKTOCC_N
CFG_RCOMP
CPU_VIDALERT_N
SKL_XDP_MBP_0
SKL_XDP_MBP_1
SKL_MBP_2
SKL_MBP_3
H_TDO
H_TCK
H_TRST#
H_PREQ#
H_PRDY#
CFG1
CFG2
CFG3
CFG4
CFG5
CFG6
CFG7
CFG0
VCCST_PWRGD_CPU
H_TDO
H_TCK
H_PECI_R
H_SKTOCC_N
VCCST_PWRGD
VCCST_PWRGD
H_PROCHOT#
1.0V_VCCST
1.0DX_VCCSTG
1.0V_VCCST
1.0V_VCCST
VDD3
3.3VA
H_PROCHOT#59
PCH_PECI32
PCH_CPU_BCLK_R_DN35
PCH_CPU_BCLK_R_DP35
PCH_CPU_PCIBCLK_R_DN35
PCH_CPU_PCIBCLK_R_DP35
CPU_24MHZ_R_DN35
CPU_24MHZ_R_DP35
H_PWRGD33
PLTRST_CPU_N32
H_PM_SYNC32
H_PM_DOWN32
PCH_THERMTRIP#32
H_SKTOCC_N34
H_CPU_SVIDCLK59
H_CPU_SVIDDAT59
H_CPU_SVIDALRT#59
H_PROCHOT_EC39
H_PECI39
ALL_SYS_PWRGD11,38,39,59
DDR_VTT_PG_CTRL57
1.0DX_VCCSTG7,53
VDD327,30,33,36,38,39,42,44,48,50,51,52,53,54,55,56,58,61,62,63,66
1.0V_VCCST7,32,33,58,59
3.3VA30,31,32,33,34,36,38,52
Title
Size Document Number Rev
Date: Sheet of
6-71-P9500-D03
D03
[05]Processor 4/7-CLK/JTAG/MISC
A3
574Friday, June 23, 2017
ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/
P955HQx
Title
Size Document Number Rev
Date: Sheet of
6-71-P9500-D03
D03
[05]Processor 4/7-CLK/JTAG/MISC
A3
574Friday, June 23, 2017
ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/
P955HQx
Title
Size Document Number Rev
Date: Sheet of
6-71-P9500-D03
D03
[05]Processor 4/7-CLK/JTAG/MISC
A3
574Friday, June 23, 2017
ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/
P955HQx
R622 51_04
R291 *12.1_1%_04
R289 *1K_04
R620 *0_04
R286
56.2_1%_04
R287
220_04
R249 499_1%_04
KABYLAKE_HALO
BGA1440
5 OF 14
REV = 1 ?
?U113E
QLM5
PROC_SELECT#
BN1
CATERR#
BM30
SKTOCC#
BR33
PM_DOWN
BP31 PM_SYNC
BM34 RESET#
BP35 PROCPWRGD
BT31
VCCST_PWRGD
H13
CFG[17] BN23
CFG[15] BT19
CFG[16] BP23
CFG[11] BT22
CFG[12] BM19
CFG[10] BT23
CFG[9] BR22
CLK24N
D31
CFG[1] BN27
CFG[3] BN28
CFG[18] BN22
PROC_TDI BL32
CFG[0] BN25
CFG[2] BN26
CFG[4] BR20
CFG[6] BT20
CFG[5] BM20
CFG[7] BP20
CFG[8] BR23
CFG[13] BR19
CFG[14] BP19
CFG[19] BP22
PROC_PREQ# BL30
PROC_PRDY# BP27
VIDSCK
BH32
PROC_TDO BT28
CLK24P
E31
PCI_BCLKN
C36 PCI_BCLKP
D35
BCLKN
A32
VIDSOUT
BH29
PROCHOT#
BR30
DDR_VTT_CNTL
BT13
CFG_RCOMP BT25
PROC_TRST# BP30
PROC_TCK BR28
PROC_TMS BP28
VIDALERT#
BH31
THERMTRIP#
J31 PECI
BT34
BCLKP
B31
BPM#[0] BR27
BPM#[1] BT27
BPM#[2] BM31
BPM#[3] BT30
R623 51_04
S
D
G
Q24A
MTDK3S6R
2
61
R254
100K_04
R295 *1K_04
R619
49.9_1%_04
S
D
G
Q24B
MTDK3S6R
5
34
C444
*0.01u_16V_X7R_04
R258
1K_04
Q20
2SK3018S3
G
DS
R293 *1K_04
R267
100K_04
R625 1K_04
R268 *0402_short
R297 20_1%_04
R621 *1K_04
R242 1K_04
R255 60.4_1%_04
C416
47p_50V_NPO_04
R292 *0402_short
R285
100_04
R296 *1K_04
R288 *1K_04
R290 100K_04
C462
*0.1u_10V_X7R_04
R624 *1K_04
Sheet 5 of 74
Processor 4/7

Schematic Diagrams
Processor 5/7 B - 7
B.Schematic Diagrams
Processor 5/7
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
PLACE CAPS AT BOARD EDGE
CPU_TOP_VCCCORE
PLACE CAPS AT BACK
CPU_BACK_VCCCORE
68A 68A
VCC_VCORE_SENSE VSS_VCORE_SENSE
VCORE
VCORE
VCORE
VCORE
VCORE
VCC_VCORE_SENSE 59
VSS_VCORE_SENSE 59
VCORE60
Title
Size Document Number Rev
Date: Sheet of
6-71-P9500-D03
D03
[06] Processor 5/7-POWER1
A3
674Friday, June 23, 2017
ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/
P955HQx
Title
Size Document Number Rev
Date: Sheet of
6-71-P9500-D03
D03
[06] Processor 5/7-POWER1
A3
674Friday, June 23, 2017
ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/
P955HQx
Title
Size Document Number Rev
Date: Sheet of
6-71-P9500-D03
D03
[06] Processor 5/7-POWER1
A3
674Friday, June 23, 2017
ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/
P955HQx
C439
1u_6.3V_X6S_04
BGA1440
KABYLAKE_HALO
?
?
10 OF 14
REV = 1
U113J
QLM5
OPC_RCOMP
BT29
VCCOPC
BK20
VCCOPC
BL16
VCCOPC
BL18 VCCOPC
BL17
VCCOPC
BL19
VCCOPC
BM17 VCCOPC
BL21
RSVD
BJ27
RSVD
BK23
RSVD
BK27
RSVD
BL23
RSVD
BL25
RSVD
BL28 RSVD
BL27
VCCEOPIO
BP15
VCCEOPIO
BT15
RSVD
BT16 RSVD
BR16 RSVD
BP16
RSVD
BP17
VSSEOPIO_SENSE
BM15 VCCEOPIO_SENSE
BN15
VCC_OPC_1P8
BM14
VCC_OPC_1P8
BL14
RSVD
BN16
RSVD
BJ36 RSVD
BJ35
ZVM#
AT13
MSM#
AW13
MSM2#
AY13 ZVM2#
AU13
OPCE_RCOMP
BR25
OPCE_RCOMP2
BP25
RSVD
BM22 RSVD
BL22
VSSOPC_SENSE
BM16
RSVD
BM24
VCCOPC
BJ19 VCCOPC
BJ17
VCCOPC
BJ20
VCCOPC
BK17
VCCOPC
BK19
VCCOPC
BL20
VCCOPC
BN17
RSVD
BJ23
RSVD
BJ26
RSVD
BK26
RSVD
BL24
RSVD
BL26
VCCOPC_SENSE
BL15
VCCEOPIO
BR15
C443
*1u_6.3V_X5R_04
C460
1u_6.3V_X6S_04
C790
*1u_6.3V_X5R_04
C780
1u_6.3V_X6S_04
R584
*49.9_1%_04
C426
*1u_6.3V_X6S_04
C441
1u_6.3V_X6S_04
C391
*10u_4V_X6S_06
C461
*22u_6.3V_X5R_06
C786
*1u_6.3V_X5R_04
C452
1u_6.3V_X6S_04
C781
*1u_6.3V_X5R_04
C442
1u_6.3V_X6S_04
C427
22u_6.3V_X5R_06
C779
*1u_6.3V_X5R_04
C459
22u_6.3V_X5R_06
C457
*1u_6.3V_X5R_04
C392
*10u_6.3V_X5R_06
C425
10u_6.3V_X5R_06
C438
1u_6.3V_X5R_04
C414
*10u_4V_X6S_06
C456
*10u_6.3V_X5R_06
C793
1u_6.3V_X6S_04
C406
1u_6.3V_X6S_04
C458
1u_6.3V_X6S_04
C455
*1u_6.3V_X5R_04
C415
1u_6.3V_X6S_04
C417
22u_6.3V_X5R_06
C451
10u_6.3V_X5R_06
C453
1u_6.3V_X5R_04
BGA1440
KABYLAKE_HALO
?
7 OF 14
REV = 1 ?
U113G
QLM5
VCC P14
VCC V31
VCC V13
VCC V14
VCC U36
VCC U32
VCC U31
VCC U33
VCC U34
VCC U35
VCC T37
VCC T36
VCC U30
VCC U29
VCC T29
VCC T35
VCC T32
VCC R38
VCC R35
VCC R36
VCC R34
VCC R37
VCC R33
VCC R31
VCC R13
VCC P36
VCC R32
VCC P31
VCC P30
VCC P29
VCC Y30
VCC Y31
VCC Y29
VCC W36
VCC W35
VCC W32
VCC W38
VCC W29
VCC W31
VCC W30
VCC V35
VCC V36
VCC
P13
VCC
N37
VCC
N38
VCC
N36 VCC
N35 VCC
N32 VCC
N31 VCC
N30 VCC
N14 VCC
N13 VCC
L13
VCC
AF38
VCC
K13
VCC
K14
VCC
AF37 VCC
AF36 VCC
AF35 VCC
AE38 VCC
AE37
VCC
AD32
VSS_SENSE AG38
VCC_SENSE AG37
VCC
AC36
VCC
AD13
VCC
AD14
VCC
AD31
VCC
AD33
VCC
AD34
VCC
AD35
VCC
AD36
VCC
AD37
VCC
AD38
VCC
AE13
VCC
AE14
VCC
AE30
VCC
AE31
VCC
AE32
VCC
AE36 VCC
AE35
VCC T31
VCC T30
VCC L14
VCC Y32
VCC Y33
VCC Y34
VCC Y35
VCC Y36
VCC P32
VCC P33
VCC P34
VCC P35
VCC V34
VCC V32
VCC T38
VCC W37
VCC V33
VCC W14
VCC
AB31
VCC
AB32
VCC
AC30
VCC
AC32
VCC
AC33
VCC
AC34
VCC
AC35
VCC
AB37
VCC
AB38
VCC
AC13
VCC
AC14
VCC
AC29
VCC
AC31
VCC V38
VCC V37
VCC W13
VCC
AB30 VCC
AB29 VCC
AA38 VCC
AA37
VCC
AA35 VCC
AA34 VCC
AA33 VCC
AA32 VCC
AA31 VCC
AA13
VCC
AA36
VCC
AB36 VCC
AB35
C437
*10u_4V_X6S_06
C454
*10u_6.3V_X5R_06
C404
*22u_6.3V_X5R_06
C418
10u_6.3V_X5R_06
C422
22u_6.3V_X5R_06
C424
10u_6.3V_X5R_06
Sheet 6 of 74
Processor 5/7

Schematic Diagrams
B - 8 Processor 6/7
B.Schematic Diagrams
Processor 6/7
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
PLACE CAP BACKSIDE
PLACE CAP BACKSIDE
PLACE CAP IN BOARD EDGE
CPU_TOP_VCCSA
PLACE CAP IN BACK SIDE
CPU_BACK_VCCSA
11.1A
5.5A
2.8A
0.06A
0.15A
PLACE CAP BACKSIDE
VSS_IO_SENSE
CPU_2_PCH_TRIGGER_R
VCCIO_SENSE
VCCSA
VDDQ
VCCIO
VDDQ
VCCSFR_OC
1.0V_VCCST
1.0DX_VCCSTG
1.0DX_VCCSTG
VCCSFR_OC
1.0V_VCCST
VDDQ VDDQ VCCIO
VCCSA
VCCSA VCCSA
VCCIO
1.0V_VCCST
CPU_2_PCH_TRIGGER38
PCH_2_CPU_TRIGGER38
VCCSA_SENSE 61
VSS_SA_SENSE 61
VDDQ9,10,33,53,57
VCCSA61
VCCIO2,3,53,58
1.0DX_VCCSTG5,53
1.0V_VCCST5,32,33,58,59
VCCSFR_OC53
Title
Size Document Number Rev
Date: Sheet of
6-71-P9500-D03
D03
[07] Processor 6/7-POWER2
A3
774Friday, June 23, 2017
ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/
P955HQx
Title
Size Document Number Rev
Date: Sheet of
6-71-P9500-D03
D03
[07] Processor 6/7-POWER2
A3
774Friday, June 23, 2017
ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/
P955HQx
Title
Size Document Number Rev
Date: Sheet of
6-71-P9500-D03
D03
[07] Processor 6/7-POWER2
A3
774Friday, June 23, 2017
ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/
P955HQx
C387
10u_6.3V_X5R_06
C852
*10u_4V_X6S_06
C385
10u_4V_X6S_06
BGA1440
KABYLAKE_HALO
9 OF 14
?
?REV = 1
U113I
QLM5
VCCSTG G30
VCCIO
J21
VCCIO
J26
VCCIO
J27
VCCIO
J20
VCCIO
J17
VCCIO
J19
VCCIO
J15
VCCIO
J16
VCCIO
H27 VCCIO
H26 VCCIO
H21
VCCIO
H19
VCCIO
H20
VCCIO
H17 VCCIO
H16 VCCIO
H15
VCCIO
G19
VCCIO
G21
VCCIO
G17 VCCIO
G15 VCCIO
AG12
VCCSA
M34 VCCSA
M33 VCCSA
M32 VCCSA
M31 VCCSA
M30
VCCSA
L38
VCCSA
M29
VCCSA
L37 VCCSA
L36
VCCSA
L32
VCCSA
L35
VCCSA
L31 VCCSA
K35 VCCSA
K34
VCCSA
K29 VCCSA
J30
VCCIO_SENSE H14
VSSIO_SENSE J14
VSSSA_SENSE M37
VCCSA_SENSE M38
VCCPLL J28
VCCPLL H28
VDDQ AJ12
VDDQ AG9
VDDQ AG5
VDDQ AF6
VDDQ AF5
VDDQ AE12
VDDQ AA6
VDDQ AL11
VDDQ AP6
VDDQ AP7
VDDQ AR6
VDDQ AR12
VCCSA
K33 VCCSA
K32 VCCSA
K31 VCCSA
K30
VDDQ AT12
VDDQ AY6
VDDQ AW6
VDDQ J5
VDDQ J6
VDDQ K12
VDDQ K6
VDDQ L12
VDDQ L6
VDDQ R6
VDDQ T6
VDDQ W6
VDDQC Y12
VCCPLL_OC BH13
VCCST H30
VCCSTG H29
VCCPLL_OC G11
VCCSA
M36 VCCSA
M35
C386
10u_6.3V_X5R_06
C399
1u_6.3V_X6S_04
C840
10u_4V_X6S_06
C379
1u_6.3V_X6S_04
C380
1u_6.3V_X6S_04
C725
*10u_6.3V_X5R_06
C766
1u_6.3V_X5R_04
C724
10u_6.3V_X5R_06
C381
1u_6.3V_X6S_04
C842
*22u_4V_X6S_06
C767
*1u_6.3V_X5R_04
C841
10u_4V_X6S_06
C378
1u_6.3V_X6S_04
C853
10u_4V_X6S_06
C838
10u_4V_X6S_06
C388
*22u_6.3V_X5R_06
R221 30.1_1%_04
R219
100_1%_04
R216
100_1%_04
C768
1u_6.3V_X5R_04
C851
10u_4V_X6S_06
BGA1440
KABYLAKE_HALO
11 OF 14
?
?
REV = 1
U113K
QLM5
RSVD BT17
RSVD BR17
RSVD BJ28
RSVD BK28
RSVD_TP BK16
RSVD_TP BJ16
VSS BJ18
RSVD
BL34 RSVD
BN33
RSVD_TP BJ13
RSVD
AA14 RSVD
AE29
RSVD_TP
BT2
RSVD
BN35
RSVD
J24
RSVD_TP
E3
RSVD_TP
E2
RSVD_TP
BR1
RSVD
A36
NCTF C38
NCTF C1
NCTF BR2
NCTF BP1
NCTF B2
NCTF B38
PROC_TRIGOUT
J23 PROC_TRIGIN
H23
RSVD
A37
RSVD
R14 RSVD
N29
RSVD
H24
RSVD_TP BJ14
RSVD AJ8
RSVD_TP
D1
RSVD_TP
E1 RSVD_TP BM33
RSVD_TP BL33
RSVD_TP BK24
RSVD_TP BJ24
RSVD BK21
RSVD BJ21
VSS BK18
RSVD_TP BJ34
RSVD_TP BJ33
RSVD G13
RSVD BL31
RSVD
F30
RSVD
E30
RSVD
B30
RSVD
C30
RSVD
G3
RSVD
J3
RSVD
BR35
RSVD
BR31
RSVD
BH30
C839
22u_4V_X6S_06
C726
22u_6.3V_X5R_06
C384
10u_4V_X6S_06
Sheet 7 of 74
Processor 6/

Schematic Diagrams
Processor 7/7 B - 9
B.Schematic Diagrams
Processor 7/7
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
PLACE CAP IN BOARD EDGE
CPU_TOP_VCCGT
PLACE CAP IN BACK SIDE
CPU_BACK_VCCGT
55A55A55A
VSSGTX_SENSE
VCCGTX_SENSE
VCCGTVCCGT
+VCCGTU
VCCGT
VCCGT
VCCGT
VCCGT VSSGT_SENSE 59
VCCGT_SENSE 59
VCCGT60
Title
Size Document Number Rev
Date: Sheet of
6-71-P9500-D03
D03
[08] Processor 7/7-POWER/GND
A3
874Friday, June 23, 2017
ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/
P955HQx
Title
Size Document Number Rev
Date: Sheet of
6-71-P9500-D03
D03
[08] Processor 7/7-POWER/GND
A3
874Friday, June 23, 2017
ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/
P955HQx
Title
Size Document Number Rev
Date: Sheet of
6-71-P9500-D03
D03
[08] Processor 7/7-POWER/GND
A3
874Friday, June 23, 2017
ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/
P955HQx
C514
1u_6.3V_X6S_04
C497
1u_6.3V_X5R_04
BGA1440
KABYLAKE_HALO
REV = 1
?
?
8 OF 14
U113H
QLM5
VCCGT BB37
VCCGT BB35
VCCGT BB34
VCCGT BB32
VCCGT BA31
VCCGT BA30
VCCGT BA29
VCCGT BA14
VCCGT AV30
VCCGT AV29
VCCGT AV31
VCCGT AV32
VCCGT AV33
VCCGT AV35
VCCGT AV34
VCCGT AV36
VCCGT AW14
VCCGT AW31
VCCGT AW33
VCCGT AW32
VCCGT AW34
VCCGT AW35
VCCGT AW36
VCCGT AW37
VCCGT AW38
VCCGT AY38
VCCGT BA13
VCCGT BA33
VCCGT BA35
VCCGT BA36
VCCGT BB13
VCCGT BB31
VCCGT BB14
VCCGT BB33
VCCGT BB36
VCCGT BC29
VCCGT BB38
VCCGT BC30
VCCGT BC31
VCCGT BC32
VCCGT BC35
VCCGT
BC36
VCCGT
BC37
VCCGT
BC38
VCCGT
BD13
VCCGT
BD29 VCCGT
BD14
VCCGT
BD30
VCCGT
BD31
VCCGT
BD32
VCCGT
BD33
VCCGT
BD34
VCCGT
BD35
VCCGT
BE31 VCCGT
BD36
VCCGT
BE32
VCCGT BE33
VCCGT BE34
VCCGT BE36
VCCGT BE35
VCCGT AY29
VCCGT AY30
VCCGT AY31
VCCGT AY35
VCCGT BA34
VCCGT
BG35 VCCGT
BG34
VCCGT
BG36
VCCGT
BH33
VCCGT
BH34
VCCGT
BH36 VCCGT
BH35
VCCGT
BH38 VCCGT
BH37
VCCGT
BJ37
VCCGT
BL36 VCCGT
BJ38
VCCGT
BM36 VCCGT
BL37
VCCGT
BM37
VCCGT
BN37 VCCGT
BN36
VCCGT
BP37
VCCGT
BT37
VCCGT
BE38
VCCGT
BF14 VCCGT
BF13
VCCGT
BF29
VCCGT
BF30
VCCGT
BF31
VCCGT
BF35 VCCGT
BF32
VCCGT
BF36
VCCGT
BG32 VCCGT
BG31
VCCGT
BG33
VCCGT
BG29
VCCGT
BG30
VCCGT BA32
VCCGT
BN38
VCCGT
BP38
VCCGT
BR37 VCCGT AY32
VCCGT AY36
VCCGT AY37
VCCGT
BF38 VCCGT
BF37
VCCGT
BE37
C505
1u_6.3V_X6S_04
C493
10u_6.3V_X5R_06
C527
10u_6.3V_X5R_06
KABYLAKE_HALO
BGA1440
?
?
12 OF 14
REV = 1
U113L
QLM5
VSS C25
VSS C23
VSS C21
VSS C19
VSS
C17
VSS C15
VSS
C13
VSS C11
VSS
C9
VSS C8
VSS C5
NCTFVSS C2
NCTFVSS BT36
NCTFVSS BT35
VSS
BT32
VSS
BT26
VSS
BT24
VSS
BT21
VSS
BT18
VSS
BT14
VSS
BT12
VSS
BT9
VSS
BT5
NCTFVSS BT4
NCTFVSS BT3
NCTFVSS BR38
VSS
BR36
VSS
BR34
VSS
BR29
VSS
BR26
VSS
BR24
VSS
BR21
VSS
BR18
VSS
BR14
VSS
BR12
VSS
BR7
VSS
BP34
VSS
BP33
VSS
BP29
VSS
BP26
VSS
BP24
VSS
BP21
VSS
BP18
VSS
BP14
VSS
BP12
VSS
BP7
VSS
BN34
VSS
BN31
VSS
BN30
VSS
BN29
VSS
BN24
VSS
BN21
VSS
BN20
VSS
BN19
VSS
BN18
VSS
BN14
VSS
BN12
VSS
BN9
VSS
BN7
VSS
BN4
VSS
BN2
VSS
BM38
VSS
BM35
VSS BM29
VSS
BM28
VSS
BM27
VSS
BM26
VSS BM25
VSS
BM23
VSS
BM21
VSS BM18
VSS
BM13
VSS
BM12
VSS BM11
VSS
BM9
VSS BM8
VSS BM7
VSS
BM6
VSS BM5
VSS BM3
VSS
BM2
VSS BL38
VSS BL35
VSS
BL29
VSS BL13
VSS BL6
VSS
BK29
VSS BK25
VSS BK22
VSS
BK15
VSS
BK14
VSS BK13
VSS BK6
VSS
BJ32
VSS
BJ31
VSS BJ30
VSS BJ29
VSS
BJ25
VSS
BJ22
VSS BJ15
VSS BJ12
VSS
BH14
VSS
BH12
VSS BH11
VSS BH10
VSS
BH9
VSS
BH8
VSS BH7
VSS BH6
VSS
BH5
VSS
BH4
VSS BH3
VSS BH2
VSS
BH1
VSS
BG38
VSS BG37
VSS BG14
VSS
BG13
VSS
BG12
VSS BG6
VSS BF34
VSS
BF33
VSS
BF12
VSS BF6
VSS BE30
VSS
BE29
VSS
BE6
VSS BE5
VSS BE4
VSS BE3
VSS BE2
VSS BE1
VSS BD38
VSS BD37
VSS BD12
VSS BD11
VSS BD10
VSS
BD9
VSS BD8
VSS BD7
VSS BD6
VSS
BC34
VSS BC33
VSS BC14
VSS BC13
VSS
BC12
VSS BC6
VSS BB30
VSS BB29
VSS
BB12
VSS BB6
VSS BB5
C473
22u_4V_X6S_06
C479
1u_6.3V_X6S_04
C525
1u_6.3V_X6S_04
C498
10u_6.3V_X5R_06
C523
*1u_6.3V_X6S_04
C515
1u_6.3V_X5R_04
C492
1u_6.3V_X6S_04
C520
10u_6.3V_X5R_06
C513
1u_6.3V_X5R_04
C499
1u_6.3V_X6S_04
C516
10u_6.3V_X5R_06
C474
22u_4V_X6S_06
C496
10u_6.3V_X5R_06
C483
1u_6.3V_X6S_04
C526
10u_6.3V_X5R_06
C495
10u_6.3V_X5R_06
C504
1u_6.3V_X6S_04
C517
10u_6.3V_X5R_06
C521
10u_6.3V_X5R_06
C522
1u_6.3V_X6S_04
KABYLAKE_HALO
BGA1440
?
?
13 OF 14
REV = 1
U113M
QLM5
VSS
BB4
VSS
BB3
VSS
BB2
VSS
BB1
VSS
BA38
VSS
BA37
VSS
BA12
VSS
BA11
VSS
BA10
VSS
BA9
VSS
BA8
VSS
BA7
VSS
BA6
NCTFVSS B37
VSS
B9
NCTFVSS B3
VSS
AY34
VSS
AY33
VSS
AY14
VSS
AY12
VSS
AW30
VSS
AW29
VSS
AW12
VSS
AW5
VSS
AW4
VSS
AW3
VSS
AW2
VSS
AW1
VSS
AV38
VSS
AV37
VSS
AU34
VSS
AU33
VSS
AU12
VSS
AU11
VSS
AU10
VSS
AU9
VSS
AU8
VSS
AU7
VSS
AU6
VSS
AT30
VSS
AT29
VSS
AT6
VSS
AR38
VSS
AR37
VSS
AR14
VSS
AR13
VSS
AR5
VSS
AR4
VSS
AR3
VSS
AR2
VSS
AR1
VSS
AP34
VSS
AP33
VSS
AP12
VSS
AP11
VSS
AP10
VSS
AP9
VSS
AP8
VSS
AN30
VSS
AN29
VSS
AN12
VSS
AN6
VSS
AN5
VSS
AM38
VSS
AM37
VSS
AM12
VSS
AM5
VSS
AM4
VSS
AM3
VSS
AM2
VSS
AM1
VSS
AL34
VSS
AL33
VSS
AL14
VSS
AL12
VSS
AL10
VSS
AL9
VSS
AL8
VSS
AL7
VSS
AL4
VSS AK30
VSS AK29
VSS AK4
VSS AJ38
VSS AJ37
VSS AJ6
VSS AJ5
VSS AJ4
VSS AJ3
VSS AJ2
VSS AJ1
VSS AH34
VSS AH33
VSS AH12
VSS AH6
VSS AG30
VSS AG29
VSS AG11
VSS AG10
VSS AG8
VSS AG7
VSS AG6
VSS AF14
VSS AF13
VSS AF12
VSS AF4
VSS AF3
VSS AF2
VSS AF1
VSS AE34
VSS AE33
VSS AE6
VSS AD30
VSS AD29
VSS AD12
VSS AD11
VSS AD10
VSS AD9
VSS AD8
VSS AD7
VSS AD6
VSS AC38
VSS AC37
VSS AC12
VSS AC6
VSS AC5
VSS AC4
VSS AC3
VSS AC2
VSS AC1
VSS AB34
VSS AB33
VSS AB6
VSS AA30
VSS AA29
VSS AA12
NCTFVSS A34
VSS A30
VSS A28
VSS A26
VSS A24
VSS A22
VSS A20
VSS A18
VSS A16
VSS A14
VSS A12
VSS A10
VSS A9
VSS A6
NCTFVSS A4
NCTFVSS A3
C494
10u_6.3V_X5R_06
C478
22u_4V_X6S_06
C475
22u_4V_X6S_06
KABYLAKE_HALO
BGA1440
?
?
14 OF 14
REV = 1
U113N
QLM5
VCCGT
AU38 VCCGT
AU37 VCCGT
AU36 VCCGT
AU35 VCCGT
AU32 VCCGT
AU31 VCCGT
AU30 VCCGT
AU29 VCCGT
AU14 VCCGT
AT38 VCCGT
AT37 VCCGT
AT36 VCCGT
AT35 VCCGT
AT34 VCCGT
AT33 VCCGT
AT32 VCCGT
AT31 VCCGT
AT14 VCCGT
AR36 VCCGT
AR35 VCCGT
AR34 VCCGT
AR33 VCCGT
AR32 VCCGT
AR31 VCCGT
AR30 VCCGT
AR29 VCCGT
AP38 VCCGT
AP37 VCCGT
AP36 VCCGT
AP35 VCCGT
AP32 VCCGT
AP31 VCCGT
AP30 VCCGT
AP29 VCCGT
AP14 VCCGT
AP13 VCCGT
AN38 VCCGT
AN37 VCCGT
AN36 VCCGT
AN35 VCCGT
AN34 VCCGT
AN33 VCCGT
AN32 VCCGT
AN31 VCCGT
AN14 VCCGT
AN13 VCCGT
AM36 VCCGT
AM35 VCCGT
AM34 VCCGT
AM33 VCCGT
AM32 VCCGT
AM31 VCCGT
AM30 VCCGT
AM29 VCCGT
AM14 VCCGT
AM13 VCCGT
AL38 VCCGT
AL37 VCCGT
AL36 VCCGT
AL35 VCCGT
AL32 VCCGT
AL31 VCCGT
AL30 VCCGT
AL29 VCCGT
AL13 VCCGT
AK38 VCCGT
AK37 VCCGT
AK36 VCCGT
AK35 VCCGT
AK34 VCCGT
AK33 VCCGT
AK32 VCCGT
AK31 VCCGT
AJ36 VCCGT
AJ35 VCCGT
AJ34 VCCGT
AJ33 VCCGT
AJ32 VCCGT
AJ31 VCCGT
AJ30 VCCGT
AJ29
VCCGTX AJ14
VCCGTX AJ13
VCCGT_SENSE AH38
VSSGT_SENSE AH37
VCCGTX_SENSE AH36
VSSGTX_SENSE AH35
VCCGTX AH32
VCCGTX AH31
VCCGTX AH30
VCCGTX AH29
VCCGTX AH14
VCCGTX AH13
VCCGTX AG36
VCCGTX AG35
VCCGTX AG34
VCCGTX AG33
VCCGTX AG32
VCCGTX AG31
VCCGTX AG14
VCCGTX AG13
VCCGTX AF34
VCCGTX AF33
VCCGTX AF32
VCCGTX AF31
VCCGTX AF30
VCCGTX AF29
C476
10u_6.3V_X5R_06
C530
1u_6.3V_X6S_04
KABYLAKE_HALO
BGA1440
?
?REV = 1
6 OF 14
U113F
QLM5
VSS G9
VSS F36
VSS F23
VSS F11
VSS
Y11
VSS
W34
VSS
V12
VSS
W3
VSS
T34
VSS
T5
VSS
T11
VSS
P12
VSS
R30
VSS
N11
VSS
N1
VSS
N6
VSS
L33
VSS
K10
VSS
K2
VSS J25
VSS J4
VSS H18
VSS G8
VSS F21
VSS F9
VSS F2
VSS D16
VSS E4
VSS D6
VSS C31
VSS D22
VSS D12
VSS E35
VSS F5
VSS F15
VSS J36
VSS
K8
VSS
L29
VSS
M13
VSS
N9
VSS
N4
VSS
N34
VSS
R12
VSS
T3
VSS
T14
VSS
W1
VSS
U38
VSS
W12
VSS
Y37
VSS
Y9
VSS D9
VSS C27
VSS H22
VSS G26
VSS G18
VSS
Y10
VSS
W33
VSS
Y38
VSS
W2
VSS
T4
VSS
T10
VSS
R29
VSS
P6
VSS
N10
VSS
M14
VSS
N5
VSS K1
VSS J22
VSS H35
VSS H12
VSS G23
VSS G14
VSS G6
VSS E38
VSS D33
VSS D14
VSS D3
VSS J7
VSS
L34
VSS
K3
VSS J32
VSS
K11
VSS
N2
VSS
N7
VSS
N12
VSS
T1
VSS
P37
VSS
T7
VSS
U6
VSS
Y7
VSS
W4
VSS
Y13
VSS D20
VSS E34
VSS C29
VSS D10
VSS F4
VSS G4
VSS G10
VSS F13
VSS F25
VSS G20
VSS J10
VSS J33
VSS G28
VSS H25
VSS
K5
VSS
N33
VSS
N8
VSS
M6
VSS
K38
VSS
N3
VSS
U37
VSS
T13
VSS
T2
VSS
P38
VSS
T8
VSS
Y8
VSS
W5
VSS
V30
VSS
Y14
NCTFVSS D38
VSS F17
VSS
K4
VSS
M12
VSS
K7
VSS C37
VSS D24
VSS D26
VSS D30
VSS D28
VSS
V29
VSS
T12
VSS
T33
VSS
V6
VSS F8
VSS F19
VSS F29
VSS
L30
VSS
K9
VSS G24
VSS G16
VSS F31
VSS F27
VSS G5
VSS G12
VSS G22
VSS H11
VSS H32
VSS J18
VSS
T9
VSS F3
VSS E9
VSS D18
C477
22u_4V_X6S_06
C529
*22u_6.3V_X5R_06
C482
1u_6.3V_X6S_04
C519
1u_6.3V_X6S_04
C472
1u_6.3V_X6S_04
C528
10u_6.3V_X5R_06
C518
10u_6.3V_X5R_06
Sheet 8 of 74
Processor 7/7

Schematic Diagrams
B - 10 DDR4 CHA SO-DIMM_0
B.Schematic Diagrams
DDR4 CHA SO-DIMM_0
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
Channel A SO-DIMM 0[RAM1]
6-86-24260-002
H=4mm
STD TYPE
CHA_DIMM0=000
CHA_DIMM1=001
CHB_DIMM0=010
CHB_DIMM1=011
PLACE THE CAP WITHIN 200 MILS FROM THE SODIMM
PLACE THE CAP CLOSE TO SODIMM
PLACE NEAR TO PIN
月
月月
月 DIMM 䪗
䪗䪗
䪗㒢
㒢㒢
㒢㓦
㓦㓦
㓦
000
13A 2A
DDR4_DRAMRST#
DDR_VREFCA_CHA_DIMM
DDR4_DRAMRST#
M_A_DQS#3
M_A_DQS#2
M_A_DQS#1
M_A_DQS#0
M_A_DQS#7
M_A_DQS#6
M_A_DQS#4
M_A_DQS#5
M_A_DQS7
M_A_DQS6
M_A_DQS5
M_A_DQS4
M_A_DQS3
M_A_DQS2
M_A_DQS1
M_A_DQS0
M_A_DQ12
M_A_DQ36
M_A_DQ28
M_A_DQ51
M_A_DQ14
M_A_DQ33
M_A_DQ30
M_A_DQ50
M_A_DQ11
M_A_DQ38
M_A_DQ31
M_A_DQ48
M_A_DQ9
M_A_DQ35
M_A_DQ24
M_A_DQ53
M_A_DQ13
M_A_DQ41
M_A_DQ29
M_A_DQ54
M_A_DQ10
M_A_DQ45
M_A_DQ27
M_A_DQ15
M_A_DQ61
M_A_DQ0
M_A_DQ46
M_A_DQ26
M_A_DQ17
M_A_DQ60
M_A_DQ42
M_A_DQ32
M_A_DQ20
M_A_DQ58
M_A_DQ5
M_A_DQ2
M_A_DQ44
M_A_DQ23
M_A_DQ63
M_A_DQ3
M_A_DQ40
M_A_DQ18
M_A_DQ56
M_A_DQ1
M_A_DQ43
M_A_DQ16
M_A_DQ57
M_A_DQ4
M_A_DQ47
M_A_DQ21
M_A_DQ6
M_A_DQ62
M_A_DQ37
M_A_DQ49
M_A_DQ19
M_A_DQ7
M_A_DQ59
M_A_DQ39
M_A_DQ52
M_A_DQ22
M_A_DQ8
M_A_DQ34
M_A_DQ55
M_A_DQ25
DDR_VREFCA_CHA_DIMM
DDR_VREFCA_CHA_DIMM
2.5V
VTT_MEM
VDDQ
VDDQ
VTT_MEM
2.5V
3.3VS
VDDQ
VDDQ
VDDQ
VDDQ
M_A_ODT14
M_A_ODT04
3.3VS3,10,11,12,13,30,32,33,34,35,36,38,39,40,41,42,44,48,49,50,51,52,59
VDDQ7,10,33,53,57
VTT_MEM10,57
M_A_A14
M_A_A04
M_A_A24
M_A_A34
M_A_A54
M_A_A44
M_A_A64
M_A_A74
M_A_A94
M_A_A84
M_A_A104
M_A_A114
M_A_A134
M_A_A124
M_A_RAS#4
M_A_CAS#4
M_A_WE#4
M_A_CKE04
M_A_CKE14
M_A_BG14
M_A_BG04
M_A_BA04
M_A_BA14
M_A_CLK_DDR14
M_A_CLK_DDR#14
M_A_CLK_DDR04
M_A_CLK_DDR#04
DDR0_A_PARITY4
SMB_DATA_R10,33
DDR0_A_ALERT#4
M_A_ACT#4
SMB_CLK_R10,33
DDR4_DRAMRST#10,33
DIMM_CA_CPU_VREF_A4
2.5V10,53
M_A_CS#14
M_A_CS#04
M_A_DQS#[3:0] 4
M_A_DQS#[7:4] 4
M_A_DQS[7:4] 4
M_A_DQS[3:0] 4
M_A_DQ[63:0] 4
DIMM0_CHA_EVENT#32
Title
Size Document Number Rev
Date: Sheet of
6-71-P9500-D03
D03
[09] DDR4 CHA SO-DIMM_0
A3
974Friday, June 23, 2017
ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/
P955HQx
Title
Size Document Number Rev
Date: Sheet of
6-71-P9500-D03
D03
[09] DDR4 CHA SO-DIMM_0
A3
974Friday, June 23, 2017
ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/
P955HQx
Title
Size Document Number Rev
Date: Sheet of
6-71-P9500-D03
D03
[09] DDR4 CHA SO-DIMM_0
A3
974Friday, June 23, 2017
ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/
P955HQx
C312
1u_6.3V_X5R_04
2DIMM
C465
0.1u_10V_X7R_04
2DIMM
C305
2.2u_6.3V_X5R_04
2DIMM
R261
24.9_1%_04
2DIMM
C310
10u_6.3V_X5R_06
2DIMM
C464
0.022u_16V_X7R_04
2DIMM
C299
1u_6.3V_X5R_04
2DIMM
C436
10u_6.3V_X5R_06
2DIMM
C368
10u_6.3V_X5R_04
2DIMM
R252
240_1%_04
C376
10u_6.3V_X5R_06
2DIMM
J_DIMMA_1B
D4AS0-26001-1P40
2DIMM
VDD19
163
VDD18
160
VDD17
159
VDD16
154
VDD15
153
VDD14
148
VDD13
147
VDD12
142
VDD11
141
VDD10
136
VDD9
135
VDD8
130
VDD7
129
VDD6
124
VDD5
123
VDD4
118
VDD3
117
VDD2
112
VDD1
111
VSS
251
VSS
247
VSS
243
VSS
239
VSS
235
VSS
231
VSS
227
VSS
223
VSS
217
VSS
213
VSS
209
VSS
205
VSS
201
VSS
197
VSS
193
VSS
189
VSS
185
VSS
181
VSS
175
VSS
171
VSS
167
VSS
107
VSS
103
VSS
99
VSS
93
VSS
89
VSS
85
VSS
81
VSS
77
VSS
73
VSS
69
VSS
65
VSS
61
VSS
57
VSS
51
VSS
47
VSS
43
VSS
39
VSS
35
VSS
31
VSS
27
VSS
23
VSS
19
VSS
15
VSS
9
VSS
5
VSS
1
VTT 258
VPP2 259
VPP1 257
VDDSPD 255
MT1 GND1
MT2 GND2
VSS 252
VSS 248
VSS 244
VSS 238
VSS 234
VSS 230
VSS 226
VSS 222
VSS 218
VSS 214
VSS 210
VSS 206
VSS 202
VSS 196
VSS 192
VSS 188
VSS 184
VSS 180
VSS 176
VSS 172
VSS 168
VSS 106
VSS 102
VSS 98
VSS 94
VSS 90
VSS 86
VSS 82
VSS 78
VSS 72
VSS 68
VSS 64
VSS 60
VSS 56
VSS 52
VSS 48
VSS 44
VSS 40
VSS 36
VSS 30
VSS 26
VSS 22
VSS 18
VSS 14
VSS 10
VSS 6
VSS 2
C372
10u_6.3V_X5R_06
2DIMM
R262
1K_1%_04
2DIMM
C320
10u_6.3V_X5R_06
2DIMM
C360
10u_6.3V_X5R_06
2DIMM
C361
1u_6.3V_X5R_04
2DIMM
C339
10u_6.3V_X5R_06
2DIMM
R263
1K_1%_04
2DIMM
C466
*2.2u_6.3V_X5R_04
J_DIMMA_1A
D4AS0-26001-1P40
2DIMM
CK0_T
137
CK0_C
139
CK1_T
138
CK1_C
140
CKE0
109
CKE1
110
S0*
149
S1*
157
ODT0
155
ODT1
161
BG0
115
BG1
113
BA0
150
BA1
145
A0
144
A1
133
A2
132
A3
131
A4
128
A5
126
A6
127
A7
122
A8
125
A9
121
A10_AP
146
A11
120
A12
119
A13
158
A14_WE*
151
A15_CAS*
156
A16_RAS*
152
ACT*
114
PARITY
143
ALERT*
116
EVENT*
134
RESET*
108
VREFCA
164
SDA
254
SCL
253
SA2
166
SA1
260
SA0
256
CB0_NC
92
CB1_NC
91
CB2_NC
101
CB3_NC
105
CB4_NC
88
CB5_NC
87
CB6_NC
100
CB7_NC
104
DM0*/DBI0*
12
DM1*/DBI1*
33
DM2*/DBI2*
54
DM3*/DBI3*
75
DM4*/DBI4*
178
DM5*/DBI5*
199
DM6*/DBI6*
220
DM7*/DBI7*
241
DM8*/DBI8*
96
S2*/C0
162
S3*/C1
165
DQ0 8
DQ1 7
DQ2 20
DQ3 21
DQ4 4
DQ5 3
DQ6 16
DQ7 17
DQ8 28
DQ9 29
DQ10 41
DQ11 42
DQ12 24
DQ13 25
DQ14 38
DQ15 37
DQ16 50
DQ17 49
DQ18 62
DQ19 63
DQ20 46
DQ21 45
DQ22 58
DQ23 59
DQ24 70
DQ25 71
DQ26 83
DQ27 84
DQ28 66
DQ29 67
DQ30 79
DQ31 80
DQ32 174
DQ33 173
DQ34 187
DQ35 186
DQ36 170
DQ37 169
DQ38 183
DQ39 182
DQ40 195
DQ41 194
DQ42 207
DQ43 208
DQ44 191
DQ45 190
DQ46 203
DQ47 204
DQ48 216
DQ49 215
DQ50 228
DQ51 229
DQ52 211
DQ53 212
DQ54 224
DQ55 225
DQ56 237
DQ57 236
DQ58 249
DQ59 250
DQ60 232
DQ61 233
DQ62 245
DQ63 246
DQS0_T 13
DQS1_T 34
DQS2_T 55
DQS3_T 76
DQS4_T 179
DQS5_T 200
DQS6_T 221
DQS7_T 242
DQS8_T 97
DQS0_C 11
DQS1_C 32
DQS2_C 53
DQS3_C 74
DQS4_C 177
DQS5_C 198
DQS6_C 219
DQS7_C 240
DQS8_C 95
C450
0.1u_10V_X7R_04
2DIMM
C347
10u_6.3V_X5R_06
2DIMM
C306
0.1u_10V_X7R_04
2DIMM
C419
10u_6.3V_X5R_06
2DIMM
C334
10u_6.3V_X5R_06
2DIMM
R272 1.8_1%_04
2DIMM
Sheet 9 of 74
DDR4 CHA SO-
DIMM_0

5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
Channel B SO-DIMM 0[RAM2]
6-86-24260-000
月
月月
月 DIMM 䪗
䪗䪗
䪗㒢
㒢㒢
㒢㓦
㓦㓦
㓦
H=4mm
RSV TYPE
PLACE THE CAP WITHIN 200 MILS FROM THE SODIMM
PLACE THE CAP CLOSE TO SODIMM
PLACE NEAR TO PIN
CHA_DIMM0=000
CHA_DIMM1=001
CHB_DIMM0=010
CHB_DIMM1=011
010
2A13A
DDR_VREFCA_CHB_DIMM
M_B_DQ5
M_B_DQ7
M_B_DQ3
M_B_DQ4
M_B_DQ27
M_B_DQ30
M_B_DQ26
M_B_DQ39
M_B_DQ35
M_B_DQ32
M_B_DQ37
M_B_DQ34
M_B_DQ38
M_B_DQ36
M_B_DQ41
M_B_DQ45
M_B_DQ46
M_B_DQ43
M_B_DQ40
M_B_DQ44
M_B_DQ42
M_B_DQ47
M_B_DQ33
M_B_DQ48
M_B_DQ49
M_B_DQ28
M_B_DQ51
M_B_DQ52
M_B_DQ54
M_B_DQ53
M_B_DQ50
M_B_DQ55
M_B_DQ2
M_B_DQ1
M_B_DQ61
M_B_DQ62
M_B_DQ60
M_B_DQ59
M_B_DQ57
M_B_DQ56
M_B_DQ63
M_B_DQ58
M_B_DQ6
M_B_DQ9
M_B_DQ14
M_B_DQ15
M_B_DQ8
M_B_DQ10
M_B_DQ11
M_B_DQ12
M_B_DQ16
M_B_DQ18
M_B_DQ21
M_B_DQ19
M_B_DQ13
M_B_DQ22
M_B_DQ23
M_B_DQ0
M_B_DQ20
M_B_DQ25
M_B_DQ31
M_B_DQ24
M_B_DQ29
M_B_DQ17
DDR4_DRAMRST#
DDR4_DRAMRST#
DDR_VREFCA_CHB_DIMM
M_B_DQS#3
M_B_DQS#2
M_B_DQS#1
M_B_DQS#0
M_B_DQS#7
M_B_DQS#6
M_B_DQS#4
M_B_DQS#5
M_B_DQS7
M_B_DQS6
M_B_DQS5
M_B_DQS4
M_B_DQS3
M_B_DQS2
M_B_DQS1
M_B_DQS0
DDR_VREFCA_CHB_DIMM
VTT_MEM
VDDQ
VDDQ
VDDQ
VDDQ VTT_MEM
2.5V
3.3VS
3.3VS
2.5V
VDDQ
VDDQ
DIMM_DQ_CPU_VREF_B4
M_B_ODT04
M_B_ODT14
M_B_CS#04
M_B_CS#14
M_B_CKE04
M_B_CKE14
M_B_CLK_DDR14
M_B_CLK_DDR#14
M_B_CLK_DDR04
M_B_CLK_DDR#04
M_B_RAS#4
M_B_CAS#4
M_B_WE#4
M_B_BG14
M_B_BG04
M_B_BA04
M_B_BA14
M_B_A14
M_B_A04
M_B_A24
M_B_A34
M_B_A54
M_B_A44
M_B_A64
M_B_A74
M_B_A94
M_B_A84
M_B_A104
M_B_A114
M_B_A134
M_B_A124
DDR1_B_PARITY4
M_B_ACT#4
DDR1_B_ALERT#4
DDR4_DRAMRST#9,33
SMB_DATA_R9,33
SMB_CLK_R9,33
M_B_DQ[63:0] 4
M_B_DQS#[3:0] 4
M_B_DQS#[7:4] 4
M_B_DQS[7:4] 4
M_B_DQS[3:0] 4
3.3VS3,9,11,12,13,30,32,33,34,35,36,38,39,40,41,42,44,48,49,50,51,52,59
VDDQ7,9,33,53,57
VTT_MEM9,57
2.5V9,53
DIMM1_CHA_EVENT#32
Title
Size Document Number Rev
Date: Sheet of
6-71-P9500-D03
D03
[10] DDR4 CHB SO-DIMM_0
A3
10 74Friday, June 23, 2017
ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/
P955HQx
Title
Size Document Number Rev
Date: Sheet of
6-71-P9500-D03
D03
[10] DDR4 CHB SO-DIMM_0
A3
10 74Friday, June 23, 2017
ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/
P955HQx
Title
Size Document Number Rev
Date: Sheet of
6-71-P9500-D03
D03
[10] DDR4 CHB SO-DIMM_0
A3
10 74Friday, June 23, 2017
ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/
P955HQx
C432
0.022u_16V_X7R_04
2DIMM
C382
1u_6.3V_X5R_04
2DIMM
C408
*2.2u_6.3V_X5R_04
C319
10u_6.3V_X5R_06
2DIMM
R251 1.8_1%_04
2DIMM
J_DIMMB_1B
D4AR0-26001-1P40
2DIMM
VDD19
163
VDD18
160
VDD17
159
VDD16
154
VDD15
153
VDD14
148
VDD13
147
VDD12
142
VDD11
141
VDD10
136
VDD9
135
VDD8
130
VDD7
129
VDD6
124
VDD5
123
VDD4
118
VDD3
117
VDD2
112
VDD1
111
VSS
251
VSS
247
VSS
243
VSS
239
VSS
235
VSS
231
VSS
227
VSS
223
VSS
217
VSS
213
VSS
209
VSS
205
VSS
201
VSS
197
VSS
193
VSS
189
VSS
185
VSS
181
VSS
175
VSS
171
VSS
167
VSS
107
VSS
103
VSS
99
VSS
93
VSS
89
VSS
85
VSS
81
VSS
77
VSS
73
VSS
69
VSS
65
VSS
61
VSS
57
VSS
51
VSS
47
VSS
43
VSS
39
VSS
35
VSS
31
VSS
27
VSS
23
VSS
19
VSS
15
VSS
9
VSS
5
VSS
1
VTT 258
VPP2 259
VPP1 257
VDDSPD 255
MT1 GND1
MT2 GND2
VSS 252
VSS 248
VSS 244
VSS 238
VSS 234
VSS 230
VSS 226
VSS 222
VSS 218
VSS 214
VSS 210
VSS 206
VSS 202
VSS 196
VSS 192
VSS 188
VSS 184
VSS 180
VSS 176
VSS 172
VSS 168
VSS 106
VSS 102
VSS 98
VSS 94
VSS 90
VSS 86
VSS 82
VSS 78
VSS 72
VSS 68
VSS 64
VSS 60
VSS 56
VSS 52
VSS 48
VSS 44
VSS 40
VSS 36
VSS 30
VSS 26
VSS 22
VSS 18
VSS 14
VSS 10
VSS 6
VSS 2
C325
1u_6.3V_X5R_04
2DIMM
C332
1u_6.3V_X5R_04
2DIMM
C370
1u_6.3V_X5R_04
2DIMM
C377
10u_6.3V_X5R_06
2DIMM
C349
10u_6.3V_X5R_06
2DIMM
R243
240_1%_04
2DIMM
C435
*0.1u_10V_X7R_04
2DIMM
C335
10u_6.3V_X5R_06
2DIMM
C375
1u_6.3V_X5R_04
2DIMM
C367
10u_6.3V_X5R_06
2DIMM
R235
24.9_1%_04
2DIMM
C398
10u_6.3V_X5R_06
2DIMM
C324
1u_6.3V_X5R_04
2DIMM
C298
1u_6.3V_X5R_04
2DIMM
J_DIMMB_1A
D4AR0-26001-1P40
2DIMM
CK0_T
137
CK0_C
139
CK1_T
138
CK1_C
140
CKE0
109
CKE1
110
S0*
149
S1*
157
ODT0
155
ODT1
161
BG0
115
BG1
113
BA0
150
BA1
145
A0
144
A1
133
A2
132
A3
131
A4
128
A5
126
A6
127
A7
122
A8
125
A9
121
A10_AP
146
A11
120
A12
119
A13
158
A14_WE*
151
A15_CAS*
156
A16_RAS*
152
ACT*
114
PARITY
143
ALERT*
116
EVENT*
134
RESET*
108
VREFCA
164
SDA
254
SCL
253
SA2
166
SA1
260
SA0
256
CB0_NC
92
CB1_NC
91
CB2_NC
101
CB3_NC
105
CB4_NC
88
CB5_NC
87
CB6_NC
100
CB7_NC
104
DM0*/DBI0*
12
DM1*/DBI1*
33
DM2*/DBI2*
54
DM3*/DBI3*
75
DM4*/DBI4*
178
DM5*/DBI5*
199
DM6*/DBI6*
220
DM7*/DBI7*
241
DM8*/DBI8*
96
S2*/C0
162
S3*/C1
165
DQ0 8
DQ1 7
DQ2 20
DQ3 21
DQ4 4
DQ5 3
DQ6 16
DQ7 17
DQ8 28
DQ9 29
DQ10 41
DQ11 42
DQ12 24
DQ13 25
DQ14 38
DQ15 37
DQ16 50
DQ17 49
DQ18 62
DQ19 63
DQ20 46
DQ21 45
DQ22 58
DQ23 59
DQ24 70
DQ25 71
DQ26 83
DQ27 84
DQ28 66
DQ29 67
DQ30 79
DQ31 80
DQ32 174
DQ33 173
DQ34 187
DQ35 186
DQ36 170
DQ37 169
DQ38 183
DQ39 182
DQ40 195
DQ41 194
DQ42 207
DQ43 208
DQ44 191
DQ45 190
DQ46 203
DQ47 204
DQ48 216
DQ49 215
DQ50 228
DQ51 229
DQ52 211
DQ53 212
DQ54 224
DQ55 225
DQ56 237
DQ57 236
DQ58 249
DQ59 250
DQ60 232
DQ61 233
DQ62 245
DQ63 246
DQS0_T 13
DQS1_T 34
DQS2_T 55
DQS3_T 76
DQS4_T 179
DQS5_T 200
DQS6_T 221
DQS7_T 242
DQS8_T 97
DQS0_C 11
DQS1_C 32
DQS2_C 53
DQS3_C 74
DQS4_C 177
DQS5_C 198
DQS6_C 219
DQS7_C 240
DQS8_C 95
C393
10u_6.3V_X5R_06
2DIMM
C409
0.1u_10V_X7R_04
2DIMM
C346
10u_6.3V_X5R_06
2DIMM
C307
2.2u_6.3V_X5R_04
2DIMM
C351
10u_6.3V_X5R_06
2DIMM
C333
10u_6.3V_X5R_06
2DIMM
C326
1u_6.3V_X5R_04
2DIMM
C433
0.1u_10V_X7R_04
2DIMM
C365
1u_6.3V_X5R_04
2DIMM
R237
1K_1%_04
2DIMM
C308
0.1u_10V_X7R_04
2DIMM
R236
1K_1%_04
2DIMM
C355
1u_6.3V_X5R_04
2DIMM
Sheet 10 of 74
DDR4 CHB SO-
DIMM_0
Schematic Diagrams
DDR4 CHB SO-DIMM_0 B - 11
B.Schematic Diagrams
DDR4 CHB SO-DIMM_0

5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
>80 mil
2A
PANEL POWER
PANEL CONNECTOR (For coaxial cable) PANEL POWER
DEFAULT SHORT
DEL LVDS SIGNAL
2A
2A
2A
1A
2A
EDP_HPD
PANEL_VCC_EN_R
BRIGHTNESS_R
SB_BLON
LID_SW#1
HPD_L
BLON1
BLON2
INV_BLON
LVDD_EN#NB_ENAVDD
GSYNC_ID_R
BRIGHTNESS_R
INV_BLON
HPD_L
DRX0#
DRX0
DRX1#
DRX1
DRX2#
DRX2
DRX3#
DRX3
PLVDD
3.3VS
3.3VS
PLVDD
3.3V
VIN
VLED
3.3V
3.3V
3.3V
3.3V
PLVDD
3.3VS
VLED
3.3VS
3.3V2,27,29,42,43,44,45,46,47,49,50,52,53,54,55,57,58
5VS12,13,32,40,41,49,50,51,52,63,64,66
VIN39,42,43,44,52,55,56,57,58,59,60,61,62
3.3VS3,9,10,12,13,30,32,33,34,35,36,38,39,40,41,42,44,48,49,50,51,52,59
EDP_HPD 34
ALL_SYS_PWRGD5,38,39,59
SB_BLON38
LID_SW#39,51
BKL_EN39
SUSB#32,33,38,42,44,48,52,58
EDP_BRIGHTNESS 32
BLON32
NB_ENAVDD32
EDP_AUX3
EDP_AUX#3
PLVDD27
EDP_TXP23
EDP_TXN23
EDP_TXN33
EDP_TXP33
EDP_TXP03
EDP_TXN03
EDP_TXP13
EDP_TXN13
Title
Size Document Number Rev
Date: Sheet of
6-71-P9500-D03
D03
[11]PANEL,INVERTER,CRT
A3
11 74Friday, June 23, 2017
ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/
P955HQx
Title
Size Document Number Rev
Date: Sheet of
6-71-P9500-D03
D03
[11]PANEL,INVERTER,CRT
A3
11 74Friday, June 23, 2017
ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/
P955HQx
Title
Size Document Number Rev
Date: Sheet of
6-71-P9500-D03
D03
[11]PANEL,INVERTER,CRT
A3
11 74Friday, June 23, 2017
ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/
P955HQx
R416 1K_04
J_LCD1
lvdfh-03008-tp00+
1
1
2
2
3
3
4
4
5
5
6
6
7
7
8
8
9
9
10
10
11
11
12
12
13
13
14
14
15
15
16
16
17
17
18
18
19
19
20
20
21
21
22
22
23
23
24
24
25
25
26
26
27
27
28
28
29
29
30
30
GND1 GND1
GND2 GND2
GND3 GND3
GND4 GND4
GND5 GND5
Q1B
*MTS3572G6
S1
2D1 6
G1
1
C204
0.1u_50V_Y5V_06
C272
10u_6.3V_X5R_06
R415 *0402_short
U24C
74LVC08APW
9
10
8
147
D33
BAV99 RECTIFIER
A C
AC
C257 0.1u_10V_X7R_04
C633
0.1u_10V_X7R_04
S
D
G
Q2A
*MTDK5S6R
2
61
R417 *10K_04
C263
*1u_6.3V_X5R_04
C256 0.1u_10V_X7R_04
C267
1u_6.3V_X5R_04
R61
*100K_04
C215
0.01u_50V_X7R_04
C249 0.1u_10V_X7R_04
R409 *100K_04
C253 0.1u_10V_X7R_04
C246 0.1u_10V_X7R_04
C254 0.1u_10V_X7R_04
R443
100K_04
C668
1u_6.3V_X5R_04
R408 100K_04
PJ2
*2mm
1 2
R414 *100K_04
C220
*0.1u_50V_Y5V_06
U24A
74LVC08APW
1
2
3
147
C219
0.1u_16V_Y5V_04
R45
*4.7K_06
R44
*150K_1%_04
U25
UP7553PMA5-25
EN
3
VIN
5
VIN/SS
4
VOUT 1
GND 2
R49
*10K_04
C250 0.1u_10V_X7R_04
R38 *0_04
R42 *0_04
U24B
74LVC08APW
4
5
6
147
C258 0.1u_10V_X7R_04
S
D
G
Q2B
*MTDK5S6R
5
34
C190
*0.22u_50V_Y5V_06
R55 *100K_04
R41
*100K_04
C260 0.1u_10V_X7R_04
U24D
74LVC08APW
12
13
11
147
R413
100K_04
C244
*0.1u_50V_Y5V_06
C259 0.1u_10V_X7R_04
R48
*100K_04
R51 *100K_04
Q1A
*MTS3572G6
S2
4D2 3
G2
5
Sheet 11 of 74
Panel, Inverter
Schematic Diagrams
B - 12 Panel, Inverter
B.Schematic Diagrams
Panel, Inverter

5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
Close to Display PORT
⛐ dGPU 㗪 DDC /
AUX
㗗 Multiplax
PIN
mini-Display Port F (back)
TO DP_E
ᶵ⎗ⷞ
SY6288DAAC
㚫㺷暣
DP ESD W/O LEVELSHIFT 暨ᶲ , NET ⎗ SWAP
Close to Display PORT
inductor for EMI
⛐ dGPU 㗪 DDC /
AUX
㗗 Multiplax
PIN
mini-Display Port E (back)
EMI 㒢
㒢㒢
㒢㓦
㓦㓦
㓦
TO DP_E
ᶵ⎗ⷞ
SY6288DAAC
㚫㺷暣
Zdiff=90ȍ
Zdiff=90ȍ
D_MDP_F1
D_MDP_F#1
D_MDP_F0
D_MDP_F#0
D_MDP_F2
D_MDP_F#2
D_MDP_F3
D_MDP_F#3
DP_TDB_AUX_F
DP_TDB_AUX#_F
G_MDPF_MODE
G_DP_F_MODE_R
G_MDPF_MODE
D_MDP_F2J
D_MDP_F#2J
D_MDP_F3J
D_MDP_F#3J
D_MDP_F1J
MDP_F_HPD_R
D_MDP_F#0J
DP_TDB_AUX#_F
DP_TDB_AUX_F
D_MDP_F#1J
D_MDP_F0J
G_MDPF_CEC
MDP_F_HPD_R
D_MDP_F#1J
D_MDP_F1J
D_MDP_F#1
D_MDP_F1
D_MDP_F#3J
D_MDP_F3J
D_MDP_F#3
D_MDP_F3
D_MDP_E#2
D_MDP_E2
D_MDP_E#0
D_MDP_E0
D_MDP_E#1
D_MDP_E1
D_MDP_E#3
D_MDP_E3
DP_TDB_AUX#_E
G_MDPE_MODE
DP_TDB_AUX_E
G_MDPE_MODE
D_MDP_E#2J
D_MDP_E2J
D_MDP_E1J
D_MDP_E#3J
D_MDP_E3J
DP_TDB_AUX#_E
D_MDP_E#0J
MDP_E_HPD_R
G_MDPE_CEC
D_MDP_E0J
D_MDP_E#1J
DP_TDB_AUX_E
MDP_E_HPD_R
D_MDP_E3
D_MDP_E#3
D_MDP_E3J
D_MDP_E#3JD_MDP_F#2J
D_MDP_F2J
D_MDP_F#2
D_MDP_F2
D_MDP_E2J
D_MDP_E#2JD_MDP_E#2
D_MDP_E2
D_MDP_F#0J
D_MDP_F0J
D_MDP_F#0
D_MDP_F0
G_DP_E_MODE_R
D_MDP_E0
D_MDP_E#0
D_MDP_E#1
D_MDP_E1
D_MDP_E#1J
D_MDP_E1J
D_MDP_E0J
D_MDP_E#0J
5VS
5VS
MDP_F_PWR
MDP_F_PWR
3.3VS
NV3V3 MDP_F_PWR
5VS
5VS
MDP_E_PWR
MDP_E_PWR
3.3VS
MDP_E_PWR
NV3V3
NV3V3MDP_F_PWR
NV3V3MDP_E_PWR
MDP_F026
MDP_F#026
MDP_F#226
MDP_F226
MDP_F126
MDP_F#326
MDP_F326
MDP_F#126
MDP_F_AUX#_SDA26
MDP_F_AUX_SCL26
G_DP_DHPD_F27,34
5VS13,32,40,41,49,50,51,52,63,64,66
3.3VS3,9,10,11,13,30,32,33,34,35,36,38,39,40,41,42,44,48,49,50,51,52,59
NV3V313,14,27,54,55,63,64
SUSB12,13,52,57
MDP_E026
MDP_E#026
MDP_E#226
MDP_E#326
MDP_E126
MDP_E226
MDP_E#126
MDP_E326
MDP_E_AUX#_SDA26
MDP_E_AUX_SCL26
G_DP_DHPD_E27,34
SUSB12,13,52,57
Title
Size Document Number Rev
Date: Sheet of
D03
[12] MINI DP PORT
A3
12 74Friday, June 23, 2017
ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/
P955HQx
6-71-P9500-D03
Title
Size Document Number Rev
Date: Sheet of
D03
[12] MINI DP PORT
A3
12 74Friday, June 23, 2017
ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/
P955HQx
6-71-P9500-D03
Title
Size Document Number Rev
Date: Sheet of
D03
[12] MINI DP PORT
A3
12 74Friday, June 23, 2017
ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/
P955HQx
6-71-P9500-D03
S D
G
Q56B
MTDK3S6R
5
34
R616
100K_1%_04
R2207
0_04
C503 0.1u_10V_X7R_04
C502 0.1u_10V_X7R_04
D48
DT1140-04LP-7
5
1
2
3
4
10
9
8
7
6
S D
G
Q57A
MTDK3S6R
2
6 1
C500 0.1u_10V_X7R_04
R615
100K_1%_04
C872 0.1u_10V_X7R_04
C869
*10u_6.3V_X5R_06
C876 0.1u_10V_X7R_04
12
20
13
15
10
8
4
3
16
2
6
14
18
1
5
7
9
11
19
17
COMMON
C17737-120A9-L
J_MDP2
PCB Footprint = c-909jd20fstc6-1
P/N = 6-21-11Y20-020
1
GND
2
HPD
3
LANE_0P
4
CONFIG1
5
LANE_0N
6
CONFIG2
7
GND
8
GND
9
LANE_1P
10
LANE_3P
11
LANE_1N
12
LANE_3N
13
GND
14
GND
15
LANE_2P
16
AUX_CHP
17
LANE_2N
18
AUX_CHN
19
GND
20
PWR
GND4
SHIELD6
GND3
SHIELD5
GND2
SHIELD2
GND1
SHIELD1
C541 0.1u_10V_X7R_04
S D
G
Q57B
MTDK3S6R
5
34
C549 0.1u_10V_X7R_04
L36
FCM1005KF-121T03
C877 0.1u_10V_X7R_04
C906 0.1u_10V_X7R_04
C875 0.1u_10V_X7R_04
S D
G
Q56A
MTDK3S6R
2
6 1
S
D
G
Q58A
MTDK3S6R
2
61
R607
10K_04
R2208
*0_04
C887
220p_50V_NPO_04
C899 0.1u_10V_X7R_04
D16
DT1140-04LP-7
5
1
2
3
4
10
9
8
7
6
R608
10K_04
R336 0_04
R613 *0_04
D49
BAV99 RECTIFIER
A
C
AC
C873 0.1u_10V_X7R_04
C533 0.1u_10V_X7R_04
R636 *0_04
C878 0.1u_10V_X7R_04
S
D
G
Q51B
MTDK3S6R
5
34
D20
BAV99 RECTIFIER
A
C
AC
D50
DT1140-04LP-7
5
1
2
3
4
10
9
8
7
6
R2211
0_04
C912 0.1u_10V_X7R_04
C871 0.1u_10V_X7R_04
A A
C
D47
BAT54CS3
1 2
3
R631
10K_04
S
D
G
Q51A
MTDK3S6R
2
61
R627
1M_04
C904 0.1u_10V_X7R_04
S
D
G
Q58B
MTDK3S6R
5
34
A A
C
D46
BAT54CS3
1 2
3
R618
100K_1%_04
C571
0.01u_16V_X7R_04
S D
G
Q53A
MTDK3S6R
2
6 1
R2212
*0_04
C874 0.1u_10V_X7R_04
R337
1M_04
C870
10u_6.3V_X5R_06
C501 0.1u_10V_X7R_04
S D
G
Q53B
MTDK3S6R
5
34
R630
10K_04
R614 0_04
U42
uP7549UMA5-20
PCB Footprint = M-SOT23-5
VOUT 1 VIN
5
GND 2
EN#
4OC# 3
R629 0_04
C544 0.1u_10V_X7R_04
L20
FCM1005KF-121T03
R637 0_04
C570
220p_50V_NPO_04
C955
0.01u_16V_X7R_04
S D
G
Q54A
MTDK3S6R
2
6 1
C895
10u_6.3V_X5R_06
12
20
13
15
10
8
4
3
16
2
6
14
18
1
5
7
9
11
19
17
COMMON
C17737-120A9-L
J_MDP1
PCB Footprint = c-909jd20fstc6-1
P/N = 6-21-11Y20-020
1
GND
2
HPD
3
LANE_0P
4
CONFIG1
5
LANE_0N
6
CONFIG2
7
GND
8
GND
9
LANE_1P
10
LANE_3P
11
LANE_1N
12
LANE_3N
13
GND
14
GND
15
LANE_2P
16
AUX_CHP
17
LANE_2N
18
AUX_CHN
19
GND
20
PWR
GND4
SHIELD6
GND3
SHIELD5
GND2
SHIELD2
GND1
SHIELD1
C894
*10u_6.3V_X5R_06
D14
DT1140-04LP-7
5
1
2
3
4
10
9
8
7
6
C885
0.01u_16V_X7R_04
S D
G
Q54B
MTDK3S6R
5
34
R617
100K_1%_04
C956
0.01u_16V_X7R_04
U40
uP7549UMA5-20
PCB Footprint = M-SOT23-5
VOUT 1 VIN
5
GND 2
EN#
4OC# 3
Sheet 12 of 74
Mini DP Port
Schematic Diagrams
Mini DP Port B - 13
B.Schematic Diagrams
Mini DP Port

Sheet 13 of 74
HDMI Connector
Schematic Diagrams
B - 14 HDMI Connector
B.Schematic Diagrams
HDMI Connector
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
For ESD
3/23 lay swap
HDMI Logo
4/1 del common choke L35/L6 (
℔䓐䶂嶗 0325)
4/1 del common choke L34/L5 (
℔䓐䶂嶗 0325)
HDMI ESD W/O LEVELSHIFT
暨ᶲ , NET
⎗ SWAP
EMI 㒢
㒢㒢
㒢㓦
㓦㓦
㓦
5/30 EMI
ᶵ⎗ⷞ
SY6288DAAC
㚫㺷暣
HDMI CONNECTOR
3/21 㨇㥳嬲㚜䁢 SMT 䓐㕁
3/22 lay swap3/22 lay swap
Zdiff=100ȍ
HDMI_HPD-C
HDMI_SDA-C
HDMI_SCL-C
HDMI_SDA-C
HDMI_SCL-C
HDMI_HPD-C
TMDS_CLOCK#-R
TMDS_DATA0#-R
TMDS_CLOCK-R
TMDS_DATA1-R
TMDS_DATA1#-R
TMDS_DATA2-R
TMDS_DATA2#-R
TMDS_DATA0-R
TMDS_DATA1-R
TMDS_DATA1#-R
TMDS_DATA1
TMDS_DATA1#
TMDS_DATA0#-R
TMDS_DATA0-R
TMDS_DATA0
TMDS_DATA2-R
TMDS_DATA2#-R
HDMI_CEC
HDMI_SCL-C
HDMI_SDA-C
HDMI_HPD-C
TMDS_CLOCK-R
TMDS_CLOCK#-R TMDS_CLOCK#
TMDS_CLOCK TMDS_CLOCK#J
TMDS_CLOCKJ
TMDS_DATA1#J
TMDS_DATA1J
TMDS_DATA1#J
TMDS_DATA1J
TMDS_DATA1#
TMDS_DATA1
TMDS_DATA0#-R
TMDS_DATA0-R
TMDS_DATA2#-R
TMDS_DATA2-R
TMDS_CLOCK#-R
TMDS_CLOCK-R
TMDS_DATA1#-R
TMDS_DATA1-R
TMDS_DATA2#
TMDS_DATA2
TMDS_DATA0#
TMDS_DATA0#J
TMDS_DATA0J
TMDS_DATA2#J
TMDS_DATA2J
TMDS_DATA0#J
TMDS_DATA0J
TMDS_CLOCKJ
TMDS_CLOCK#JTMDS_CLOCK#
TMDS_CLOCK
TMDS_DATA0#
TMDS_DATA0
TMDS_DATA2#J
TMDS_DATA2J
TMDS_DATA2#
TMDS_DATA2
5VS
GND_HDMI
HDMI_5VS
1V8_AON
3.3VS
HDMI_5VS
5VS
1V8_AON
NV3V3
HDMI_CTRLCLK26
HDMI_CTRLDATA26
HDMI_HPD27,34
1V8_AON14,24,25,27,28,29,54,55,63,64,66
3.3VS3,9,10,11,12,30,32,33,34,35,36,38,39,40,41,42,44,48,49,50,51,52,59
5VS12,32,40,41,49,50,51,52,63,64,66
HDMI_CLOCKP26
HDMI_CLOCKN26
HDMI_DATA1P26
HDMI_DATA1N26
HDMI_DATA2P26
HDMI_DATA2N26
HDMI_DATA0P26
HDMI_DATA0N26
SUSB12,52,57
NV3V312,14,27,54,55,63,64
Title
Size Document Number Rev
Date: Sheet of
6-71-P9500-D03
D03
[13] HDMI 2.0 PORT
A4
13 74Friday, June 23, 2017
ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/
P955HQx
Title
Size Document Number Rev
Date: Sheet of
6-71-P9500-D03
D03
[13] HDMI 2.0 PORT
A4
13 74Friday, June 23, 2017
ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/
P955HQx
Title
Size Document Number Rev
Date: Sheet of
6-71-P9500-D03
D03
[13] HDMI 2.0 PORT
A4
13 74Friday, June 23, 2017
ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/
P955HQx
D37
BAV99 RECTIFIER
A C
AC
C798
22u_6.3V_X5R_08
R609
180_1%_04
R587 499_1%_04
R606 0_04
R592 0_04
U36
uP7549UMA5-20
PCB Footprint = M-SOT23-5
VOUT 1 VIN
5
GND 2
EN#
4OC# 3
R597
180_1%_04
R275
0_04
R599 499_1%_04
R611 0_04
R588 0_04
C797
22u_6.3V_X5R_08
R593 499_1%_04
D43
DT1140-04LP-7
5
1
2
3
4
10
9
8
7
6
C845 0.1u_10V_X7R_04
D11
RB751V-40(lision)
AC
D44
DT1140-04LP-7
5
1
2
3
4
10
9
8
7
6
R595 499_1%_04
R269
*0_04
C854 0.1u_10V_X7R_04
D12
RB751V-40(lision)
AC
R581
180_1%_04
C856 0.1u_10V_X7R_04
R576 499_1%_04
J_HDMI1
16-A1030-1003-0
SHIELD2
2
TMDS DATA1+
4
TMDS DATA1-
6
SHIELD0
8
TMDS CLOCK+
10
TMDS CLOCK-
12
RESERVED
14
SDA
16
+5V
18
TMDS DATA2+ 1
TMDS DATA2- 3
SHIELD1 5
TMDS DATA0+ 7
TMDS DATA0- 9
CLK SHIELD 11
CEC 13
SCL 15
DDC/CEC GND 17
HOT PLUG DETECT 19
GND
GND1
GND
GND2
GND
GND3
GND
GND4
R598 0_04
S D
G
Q45A
MTDK3S6R
2
61
C817 0.1u_10V_X7R_04
R550
10K_04
R596 0_04
R579 0_04
S D
G
Q45B
MTDK3S6R
5
34
C833 0.1u_10V_X7R_04
C808 0.1u_10V_X7R_04
R213
2K_04
R583 499_1%_04
R582 0_04
Q48
2SK3018S3
G
DS
R591
180_1%_04
C830
*1.5p_50V_04
R209
2K_04
R557
10K_04
C829 0.1u_10V_X7R_04
Q46
UK3018
G
DS
R571
20K_04
R612 499_1%_04
D41
BAV99 RECTIFIER
A C
AC
D39
BAV99 RECTIFIER
A C
AC
C850 0.1u_10V_X7R_04
R605 499_1%_04
C799
*10u_6.3V_X5R_06
R574
1M_04

Schematic Diagrams
VGA PCI Express B - 15
B.Schematic Diagrams
VGA PCI Express
Sheet 14 of 74
VGA PCI Express
1
1
2
2
3
3
4
4
5
5
A A
B B
C C
D D
NV PCI EXPRESS
under GPU PLACE btw GPU & VR
3A
3A
0.21A
Zdiff=85ȍ
PEX_PLL_HVDD_SVDD
PEX_TERMP
PEX_RX3#
PEX_RX2#PEX_RX2#
PEX_RX6#
PEX_RX4#
PEX_RX1#
PEX_RX5#
PEX_RX0#
PEX_RX4
PEX_RX3
PEX_RX7
PEX_RX6
PEX_RX7#
PEX_RX5
PEX_RX1
PEX_RX2
PEX_RX0
PEX_RX11#
PEX_RX10#
PEX_RX14#
PEX_RX12#
PEX_RX9#
PEX_RX13#
PEX_RX8#
PEX_RX12
PEX_RX11
PEX_RX15
PEX_RX14
PEX_RX15#
PEX_RX13
PEX_RX9
PEX_RX10
PEX_RX8
PEX_CLKREQ#
GND
GND
GND
GND
PEX_VDD
1V8_RUN
1V8_RUN
1V8_AONNV3V3
PEG_TX12
PEG_TX22
PEG_TX#72
PEG_RX22
PEG_TX#02
PEG_TX32
PEG_TX#22
PEG_RX12
PEG_RX72
PEG_RX42
PEG_TX#12
PEG_TX#52
PEG_TX#42
PEG_RX#62
PEG_RX#02
PEG_RX62
PEG_RX32
PEG_RX#52
PEG_RX#12
PEG_TX62
PEG_RX#72
PEG_RX52
PEG_RX02
PEG_TX42
PEG_TX72
PEG_RX#22
PEG_RX#32
PEG_TX52
PEG_RX#42
PEG_TX02
PEG_TX#32
PEG_TX#62
PEG_TX92
PEG_TX102
PEG_TX#152
PEG_RX102
PEG_TX#82
PEG_TX112
PEG_TX#102
PEG_RX92
PEG_RX152
PEG_RX122
PEG_TX#92
PEG_TX#132
PEG_TX#122
PEG_RX#142
PEG_RX#82
PEG_RX142
PEG_RX112
PEG_RX#132
PEG_RX#92
PEG_TX142
PEG_RX#152
PEG_RX132
PEG_RX82
PEG_TX122
PEG_TX152
PEG_RX#102
PEG_RX#112
PEG_TX132
PEG_RX#122
PEG_TX82
PEG_TX#112
PEG_TX#142
CLK_SRC9_VGA35
CLK_SRC9_VGA#35
DGPU_PEX_RST#29
PEX_VDD26,55
NV3V312,13,27,54,55,63,64
NVVDD_PWRGD29,64
1V8_AON13,24,25,27,28,29,54,55,63,64,66
1V8_RUN15,24,25,28,54
CLK_REQ9_PEG#35
Title
Size Document Number Rev
Date: Sheet of
6-71-P9500-D03
D03
[14] VGA PCI Express
Custom
14 74Friday, June 23, 2017
ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/
P955HQx
Title
Size Document Number Rev
Date: Sheet of
6-71-P9500-D03
D03
[14] VGA PCI Express
Custom
14 74Friday, June 23, 2017
ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/
P955HQx
Title
Size Document Number Rev
Date: Sheet of
6-71-P9500-D03
D03
[14] VGA PCI Express
Custom
14 74Friday, June 23, 2017
ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/
P955HQx
C187 0.22u_10V_X5R_04
R31 *20mil short-p
C141
0.1u_10V_X7R_04
C78 0.22u_10V_X5R_04
R57
10K_04
C114 0.22u_10V_X5R_04
C148 0.22u_10V_X5R_04
C186 0.22u_10V_X5R_04
C188 0.22u_10V_X5R_04
C200 0.22u_10V_X5R_04
C51 0.22u_10V_X5R_04
C201 0.22u_10V_X5R_04
C106 0.22u_10V_X5R_04
C55 0.22u_10V_X5R_04
C132 0.22u_10V_X5R_04
C218 0.22u_10V_X5R_04
C50 0.22u_10V_X5R_04
C80
1u_6.3V_X6S_04
C265
4.7u_6.3V_X6S_06
C202 0.22u_10V_X5R_04
C159 0.22u_10V_X5R_04
C161
1u_6.3V_X6S_04
C147 0.22u_10V_X5R_04
C113 0.22u_10V_X5R_04
1/23 PCI_EXPRESS
COMMON
BGA2152
INS143952840
G1A
BK42
PEX_RX15
BL42
PEX_RX15
BG41
PEX_TX15
BH41
PEX_TX15
BM42
PEX_RX14
BM41
PEX_RX14
BG39
PEX_TX14
BF39
PEX_TX14
BL41
PEX_RX13
BK41
PEX_RX13
BE38
PEX_TX13
BF38
PEX_TX13
BK39
PEX_RX12
BL39
PEX_RX12
BH38
PEX_TX12
BG38
PEX_TX12
BM39
PEX_RX11
BM38
PEX_RX11
BG36
PEX_TX11
BF36
PEX_TX11
BL38
PEX_RX10
BK38
PEX_RX10
BE35
PEX_TX10
BF35
PEX_TX10
BK36
PEX_RX9
BL36
PEX_RX9
BH35
PEX_TX9
BG35
PEX_TX9
BM36
PEX_RX8
BM35
PEX_RX8
BG33
PEX_TX8
BF33
PEX_TX8
BL35
PEX_RX7
BK35
PEX_RX7
BE32
PEX_TX7
BF32
PEX_TX7
BK33
PEX_RX6
BL33
PEX_RX6
BH32
PEX_TX6
BG32
PEX_TX6
BM33
PEX_RX5
BM32
PEX_RX5
BG30
PEX_TX5
BF30
PEX_TX5
BL32
PEX_RX4
BK32
PEX_RX4
BE29
PEX_TX4
BF29
PEX_TX4
BK30
PEX_RX3
BL30
PEX_RX3
BH29
PEX_TX3
BG29
PEX_TX3
BM30
PEX_RX2
BM29
PEX_RX2
BG27
PEX_TX2
BF27
PEX_TX2
BL29
PEX_RX1
BK29
PEX_RX1
BE26
PEX_TX1
BF26
PEX_TX1
BK27
PEX_RX0
BL27
PEX_RX0
BH26
PEX_TX0
BG26
PEX_TX0
BM27
PEX_REFCLK
BM26
PEX_REFCLK
BL26
PEX_CLKREQ
BK26
PEX_RST
BL44
PEX_TERMP
BB30
PEX_PLL_HVDD
BD30
PEX_HVDD
BD27
PEX_HVDD
BC32
PEX_HVDD
BC30
PEX_HVDD
BC29
PEX_HVDD
BC27
PEX_HVDD
BC26
PEX_HVDD
BB32
PEX_HVDD
BB29
PEX_HVDD
BB27
PEX_HVDD
BB26
PEX_HVDD
BD36
PEX_DVDD
BD33
PEX_DVDD
BC36
PEX_DVDD
BC35
PEX_DVDD
BC33
PEX_DVDD
BB36
PEX_DVDD
BB35
PEX_DVDD
BB33
PEX_DVDD
C79 0.22u_10V_X5R_04
C283
4.7u_6.3V_X6S_06
C152
1u_6.3V_X6S_04
C100
4.7u_6.3V_X6S_06
C157
1u_6.3V_X6S_04
C179
1u_6.3V_X6S_04
C185 0.22u_10V_X5R_04
C108 0.22u_10V_X5R_04
C165
22u_4V_X6S_06
C285
22u_4V_X6S_06
R407 2.49K_1%_04
C59
1u_6.3V_X6S_04
C125
1u_6.3V_X6S_04
C60 0.22u_10V_X5R_04
C269
4.7u_6.3V_X6S_06
Q3
2SK3018S3
G
D S
C239 0.22u_10V_X5R_04
C274
10u_4V_X6S_06
C56 0.22u_10V_X5R_04
R56
*10K_04
C109
1u_6.3V_X6S_04
C124 0.22u_10V_X5R_04
C139 0.22u_10V_X5R_04
C203 0.22u_10V_X5R_04
C52 0.22u_10V_X5R_04
C153 0.22u_10V_X5R_04
R58
*10K_04
C61 0.22u_10V_X5R_04
C99 0.22u_10V_X5R_04
C98 0.22u_10V_X5R_04
