Clevo W370SS User manual

W370SS

Preface
I
Preface
Notebook Computer
W370SS
Service Manual

Preface
II
Preface
Notice
The company reserves the right to revise this publication or to change its contents without notice. Information contained
herein is for reference only and does not constitute a commitment on the part of the manufacturer or any subsequent ven-
dor. They assume no responsibility or liability for any errors or inaccuracies that may appear in this publication nor are
they in anyway responsible for any loss or damage resulting from the use (or misuse) of this publication.
This publication and any accompanying software may not, in whole or in part, be reproduced, translated, transmitted or
reduced to any machine readable form without prior consent from the vendor, manufacturer or creators of this publica-
tion, except for copies kept by the user for backup purposes.
Brand and product names mentioned in this publication may or may not be copyrights and/or registered trademarks of
their respective companies. They are mentioned for identification purposes only and are not intended as an endorsement
of that product or its manufacturer.
Version 1.0
April 2014
Trademarks
Intel and Intel Core are trademarks of Intel Corporation.
Windows®is a registered trademark of Microsoft Corporation.
Other brand and product names are trademarks and/or registered trademarks of their respective companies.

Preface
III
Preface
About this Manual
This manual is intended for service personnel who have completed sufficient training to undertake the maintenance and
inspection of personal computers.
It is organized to allow you to look up basic information for servicing and/or upgrading components of the W370SSseries
notebook PC.
The following information is included:
Chapter 1, Introduction, provides general information about the location of system elements and their specifications.
Chapter 2, Disassembly, provides step-by-step instructions for disassembling parts and subsystems and how to upgrade
elements of the system.
Appendix A, Part Lists
Appendix B, Schematic Diagrams

Preface
IV
Preface
IMPORTANT SAFETY INSTRUCTIONS
Follow basic safety precautions, including those listed below, to reduce the risk of fire, electric shock and injury to per-
sons when using any electrical equipment:
1. Do not use this product near water, for example near a bath tub, wash bowl, kitchen sink or laundry tub, in a wet
basement or near a swimming pool.
2. Avoid using a telephone (other than a cordless type) during an electrical storm. There may be a remote risk of elec-
trical shock from lightning.
3. Do not use the telephone to report a gas leak in the vicinity of the leak.
4. Use only the power cord and batteries indicated in this manual. Do not dispose of batteries in a fire. They may
explode. Check with local codes for possible special disposal instructions.
5. This product is intended to be supplied by a Listed Power Unit:
• Full Range AC/DC Adapter - AC Input 100 - 240V, 50 - 60Hz, DC Output 19.5V, 6.15A (120W) minimum.
This Computer’s Optical Device is a Laser Class 1 Product

Preface
V
Preface

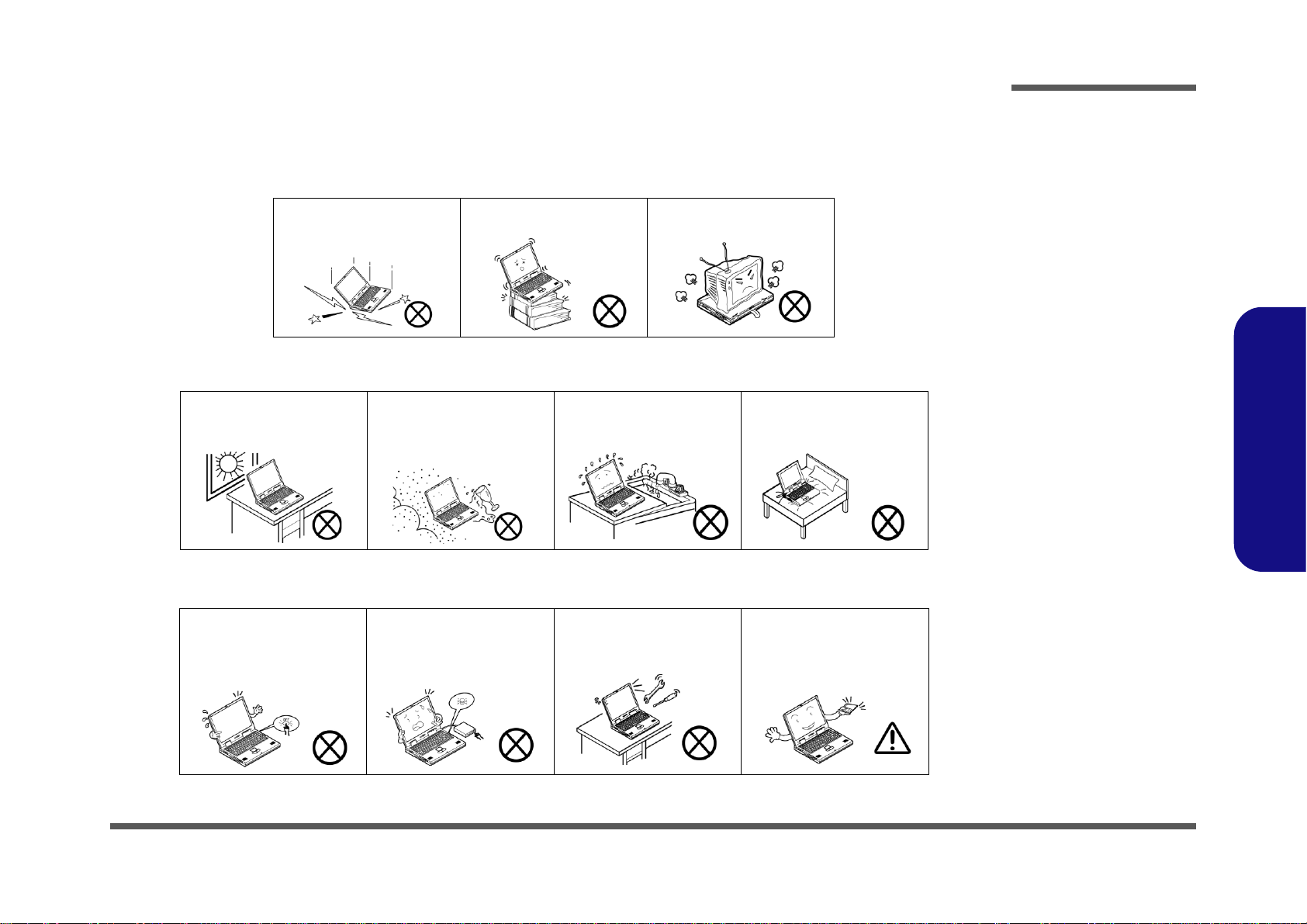

Instructions for Care and Operation
The notebook computer is quite rugged, but it can be damaged. To prevent this, follow these suggestions:
1. Don’t drop it, or expose it to shock. If the computer falls, the case and the components could be damaged.
2. Keep it dry, and don’t overheat it. Keep the computer and power supply away from any kind of heating element. This
is an electrical appliance. If water or any other liquid gets into it, the computer could be badly damaged.
3. Follow the proper working procedures for the computer. Shut the computer down properly and don’t forget to save
your work. Remember to periodically save your data as data may be lost if the battery is depleted.
Do not expose the computer
to any shock or vibration. Do not place it on an unstable surface. Do not place anything heavy on the computer.
Do not expose it to excessive
heat or direct sunlight. Do not leave it in a place where foreign matter or mois-
ture may affect the system.
Don’t use or store the com-
puter in a humid environment. Do not place the computer on any surface which will block
the vents.
Do not turn off the power
until you properly shut down
all programs.
Do not turn off any peripheral
devices when the computer is
on.
Do not disassemble the com-
puter by yourself. Perform routine maintenance on your computer.

Preface
VI
Preface
4. Avoid interference. Keep the computer away from high capacity transformers, electric motors, and other strong mag-
netic fields. These can hinder proper performance and damage your data.
5. Take care when using peripheral devices.
Power Safety
The computer has specific power requirements:
• Only use a power adapter approved for use with this computer.
• Your AC adapter may be designed for international travel but it still requires a steady, uninterrupted power supply. If you are
unsure of your local power specifications, consult your service representative or local power company.
• The power adapter may have either a 2-prong or a 3-prong grounded plug. The third prong is an important safety feature; do
not defeat its purpose. If you do not have access to a compatible outlet, have a qualified electrician install one.
• When you want to unplug the power cord, be sure to disconnect it by the plug head, not by its wire.
• Make sure the socket and any extension cord(s) you use can support the total current load of all the connected devices.
• Before cleaning the computer, make sure it is disconnected from any external power supplies.
Use only approved brands of
peripherals. Unplug the power cord before attaching peripheral devices.
Do not plug in the power
cord if you are wet. Do not use the power cord if it is broken. Do not place heavy objects on the power cord.

Power Safety
Warning
Before you undertake
any upgrade proce-
dures, make sure that
you have turned off the
power, and discon-
nected all peripherals
and cables (including
telephone lines and
power cord). It is advis-
able to also remove
your battery in order to
prevent accidentally
turning the machine
on.

Preface
VII
Preface
Battery Precautions
• Only use batteries designed for this computer. The wrong battery type may explode, leak or damage the computer.
• Do not continue to use a battery that has been dropped, or that appears damaged (e.g. bent or twisted) in any way. Even if the
computer continues to work with a damaged battery in place, it may cause circuit damage, which may possibly result in fire.
• Recharge the batteries using the notebook’s system. Incorrect recharging may make the battery explode.
• Do not try to repair a battery pack. Refer any battery pack repair or replacement to your service representative or qualified service
personnel.
• Keep children away from, and promptly dispose of a damaged battery. Always dispose of batteries carefully. Batteries may explode
or leak if exposed to fire, or improperly handled or discarded.
• Keep the battery away from metal appliances.
• Affix tape to the battery contacts before disposing of the battery.
• Do not touch the battery contacts with your hands or metal objects.
Battery Guidelines
The following can also apply to any backup batteries you may have.
• If you do not use the battery for an extended period, then remove the battery from the computer for storage.
• Before removing the battery for storage charge it to 60% - 70%.
• Check stored batteries at least every 3 months and charge them to 60% - 70%.

Battery Disposal
The product that you have purchased contains a rechargeable battery. The battery is recyclable. At the end of its useful life, under var-
ious state and local laws, it may be illegal to dispose of this battery into the municipal waste stream. Check with your local solid waste
officials for details in your area for recycling options or proper disposal.
Caution
Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type recommended by the manufacturer.
Discard used battery according to the manufacturer’s instructions.
Battery Level
Click the battery icon in the taskbar to see the current battery level and charge status. A battery that drops below a level of 10%
will not allow the computer to boot up. Make sure that any battery that drops below 10% is recharged within one week.

Preface
VIII
Preface
Related Documents
You may also need to consult the following manual for additional information:
User’s Manual on CD
This describes the notebook PC’s features and the procedures for operating the computer and its ROM-based setup pro-
gram. It also describes the installation and operation of the utility programs provided with the notebook PC.

Preface
IX
Preface
Contents
Introduction ..............................................1-1
Overview .........................................................................................1-1
System Specifications .....................................................................1-2
External Locator - Front View with LCD Panel Open ....................1-4
External Locator - Front & Right side Views .................................1-5

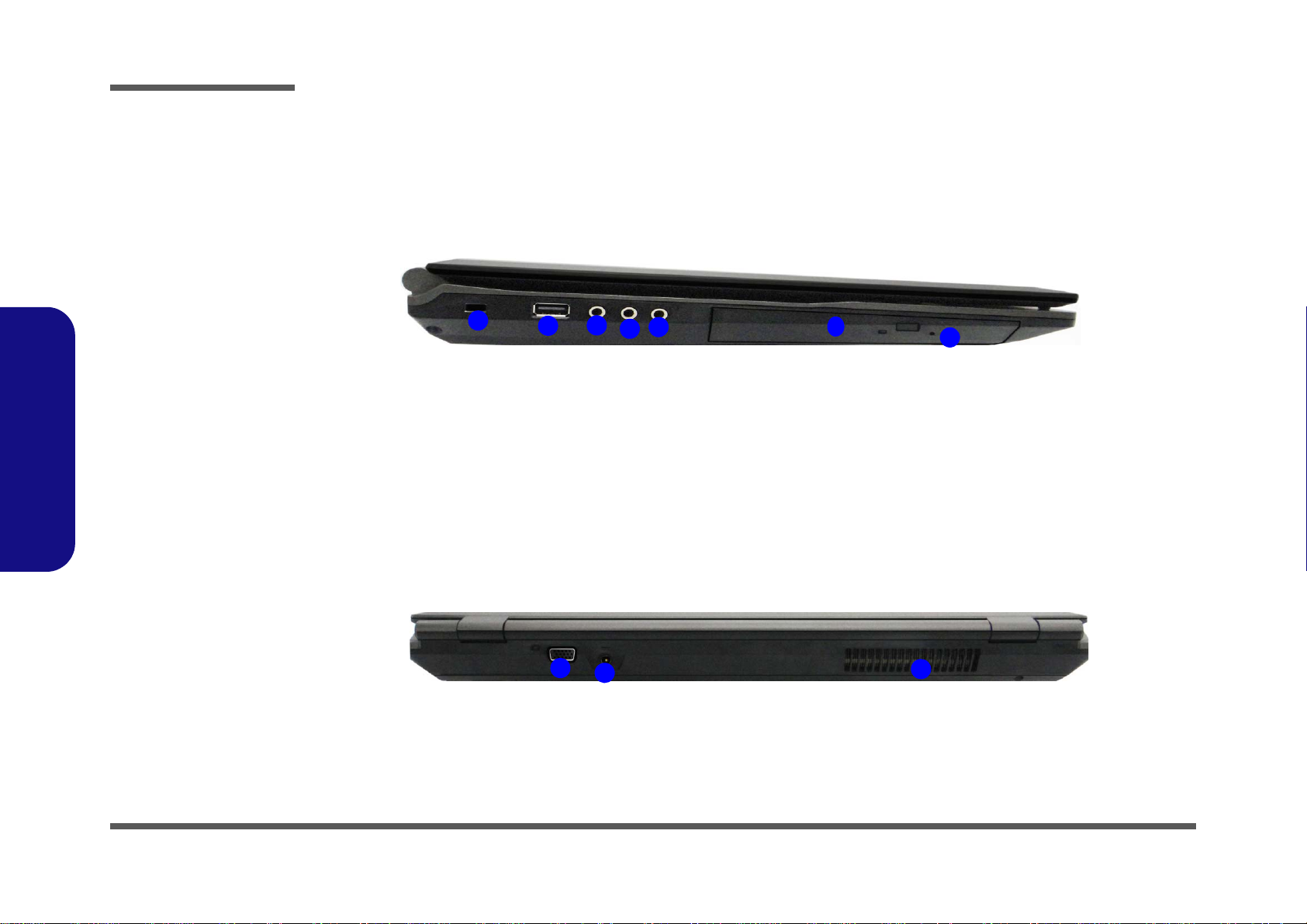

External Locator - Left Side & Rear View .....................................1-6
External Locator - Bottom View .....................................................1-7
Mainboard Overview - Top (Key Parts) .........................................1-8
Mainboard Overview - Bottom (Key Parts) ....................................1-9
Mainboard Overview - Top (Connectors) .....................................1-10
Mainboard Overview - Bottom (Connectors) ...............................1-11
Disassembly ...............................................2-1
Overview .........................................................................................2-1
Maintenance Tools ..........................................................................2-2
Connections .....................................................................................2-2
Maintenance Precautions .................................................................2-3
Disassembly Steps ...........................................................................2-4
Removing the Battery ......................................................................2-5
Removing the Optical (CD/DVD) Device ......................................2-6
Removing the Hard Disk Drive .......................................................2-7
Removing and Installing the Processor .........................................2-11
Removing the Keyboard ................................................................2-14
Removing the Primary System Memory (RAM) ..........................2-15
Part Lists ..................................................A-1
Part List Illustration Location ........................................................A-2
Top .................................................................................................A-3
Bottom ............................................................................................A-4
LCD ................................................................................................A-5
HDD ...............................................................................................A-6
2nd HDD ........................................................................................ A-7
DVD ............................................................................................... A-8
COMBO ......................................................................................... A-9
Schematic Diagrams.................................B-1
System Block Diagram ...................................................................B-2
Haswell 1/7 ....................................................................................B-3
Haswell 2/7 .....................................................................................B-4
Haswell 3/7 .....................................................................................B-5
Haswell 4/7 .....................................................................................B-6
Haswell 5/7 .....................................................................................B-7
Haswell 6/7 .....................................................................................B-8
Haswell 7/7 ....................................................................................B-9
DDR SO-DIMM A_0 ...................................................................B-10
DDR SO-DIMM B_0 ...................................................................B-11
DDR SO-DIMM A_1 ...................................................................B-12
PS8625 ..........................................................................................B-13
Panel, Inverter, CRT .....................................................................B-14
VGA PCI-E Interface ....................................................................B-15
VGA Frame Buffer Interface ........................................................B-16
VGA Frame Buffer A ...................................................................B-17
VGA Frame Buffer A ...................................................................B-18
VGA Frame Buffer B ...................................................................B-19
VGA Frame Buffer B ...................................................................B-20
VGA I/O .......................................................................................B-21
VGA NVVDD Decoupling ...........................................................B-22
Lynx 1/9 ........................................................................................B-23
Lynx 2/9 ........................................................................................B-24
Lynx 3/9 ........................................................................................B-25
Lynx 4/9 ........................................................................................B-26
Lynx 5/9 ........................................................................................B-27

Preface
X
Preface
Lynx 6/9 ....................................................................................... B-28
Lynx 7/9 ....................................................................................... B-29
Lynx 8/9 ....................................................................................... B-30
Lynx 9/9 ....................................................................................... B-31
Mini PCIE, Fan, Audio Con .........................................................B-32
USB Charge, CCD, TPM, Multi-Con ..........................................B-33
ESATA/USB3.0 Connector .........................................................B-34
Card Reader / LAN RTL8411B ...................................................B-35
SATA HDD, VLED CON, LID SW ............................................B-36
HDMI, RJ45 .................................................................................B-37
Audio Codec VT1802S ................................................................B-38
Audio AMP & Con ......................................................................B-39
KBC ITE IT8587 ..........................................................................B-40
5V, 5VS, 3.3V, 3VS, 3.3VM .......................................................B-41
VDD3, VDD5 ...............................................................................B-42
1.5V or 1.35V / 0.75VS, 1.5VS ...................................................B-43
1.05VS, 1.05V_M, 1.05V_LAN_M .............................................B-44
Power V-Core ...............................................................................B-45
VGA NVVDD, PEX_VDD ..........................................................B-46
FBVDDQ .....................................................................................B-47
AC-In, Charger .............................................................................B-48
W370SS/W350SSQ Audio Board ................................................B-49
W370SS/W35XSSQ Power LED Board ......................................B-50
W370SS/W35XSSQ Click Board ................................................ B-51
W370SS Power Switch Board ......................................................B-52
W350SSQ Power Switch Board ...................................................B-53
W370SS LID / VGA LED Board .................................................B-54
W35XSSQ LID / VGA LED Board .............................................B-55
W350SSQ VGA / WLAN SW Board ..........................................B-56
W355SSQ Power Switch Board ...................................................B-57
W355SSQ VGA / WLAN SW Board ..........................................B-58
POWER SEQUENCE ..................................................................B-59
Updating the FLASH ROM BIOS......... C-1

Introduction
Overview 1 - 1
1.Introduction
Chapter 1: Introduction
Overview
This manual covers the information you need to service or upgrade the W370SS series notebook computer. Information
about operating the computer (e.g. getting started, and the Setup utility) is in the User’s Manual. Information about driv-
ers (e.g. VGA & audio) is also found in User’s Manual. That manual is shipped with the computer.
Operating systems (e.g. Windows 8, etc.) have their own manuals as do application software (e.g. word processing and
database programs). If you have questions about those programs, you should consult those manuals.
The W370SS series notebook is designed to be upgradeable. See Disassembly on page 2 - 1 for a detailed description of
the upgrade procedures for each specific component. Please note the warning and safety information indicated by the
“” symbol.
The balance of this chapter reviews the computer’s technical specifications and features.

Introduction
1 - 2 System Specifications
1.Introduction
System Specifications
Processor Options
Intel® Core™ i7 Processor
i7-4910MQ (2.90GHz), i7-4900MQ (2.80GHz)
8MB L3 Cache, 22nm, DDR3L-1600MHz, TDP
47W
i7-4810MQ (2.80GHz), i7-4800MQ (2.70GHz),
i7-4700MQ (2.40GHz)
6MB L3 Cache, 22nm, DDR3L-1600MHz, TDP
47W
i7-4610M (3.00GHz), i7-4600M (2.90GHz)
4MB L3 Cache, 22nm, DDR3L-1600MHz, TDP
37W
Intel® Core™ i5 Processor
i5-4340M (2.90GHz), i5-4330M (2.80GHz), i5-
4310M (2.70GHz), i5-4300M (2.60GHz), i5-
4200M (2.50GHz)
3MB L3 Cache, 22nm, DDR3L-1600MHz, TDP
37W
Intel® Core™ i3 Processor
i3-4100M (2.50GHz), i3-4000M (2.40GHz)
3MB L3 Cache, 22nm, DDR3L-1600MHz, TDP
37W
Core Logic
Intel® HM87 Chipset
BIOS
One 48Mb SPI Flash ROM
AMI BIOS
LCD
17.3" (43.94cm) FHD
Video Adapter
Intel® Integrated GPU and NVIDIA® Discrete
GPU
Supports Microsoft Hybrid Graphics
Intel Integrated GPU
Intel® HD Graphics 4600
Dynamic Frequency (Intel Dynamic Video Mem-
ory Technology for up to 1.7GB)
Microsoft DirectX®11 Compatible
NVIDIA Discrete GPU
NVIDIA® GeForce GTX 860M
2GB GDDR5 Video RAM
Microsoft DirectX®11.1 Compatible
Security
BIOS Password
Security (Kensington® Type) Lock Slot
Audio
High Definition Audio Compliant Interface
Sound Blaster™ Cinema
2 * Built-In Speakers
Built-In Microphone
Memory
Three 204 Pin SO-DIMM Sockets Supporting
DDR3L 1600MHz Memory
Memory Expandable up to 24GB
(The real memory operating frequency depends
on the FSB of the pro
cessor.)
Note: Three SO-DIMMs are only supported by
Quad-Core CPUs; Dual-Core CPUs support two
SO-DIMMs maximum
Storage
(Factory Option) One 12.7mm(h) Optical Device
Type Drive (Super Multi Drive/Blu-Ray Combo
Drive/Blu-Ray Writer Drive)
(Factory Option) Two Changeable 2.5" (6cm)
9.5/7.0mm (h) SATA (Serial) Hard Disk Drives/
Solid State Drives (SSD) supporting RAID level 0/
1
(Factory Option) One mSATA Solid State Drive
(SSD)
Keyboard
Full-size “WinKey” keyboard (with numeric key-
pad)
Pointing Device
Built-in Touchpad (scrolling key functionality inte-
grated
Interface
One USB 2.0 Port
Two USB 3.0 Ports
One eSATA Port (USB 3.0 Port Combined)
One HDMI-Out Port
One Headphone-Out Jack
One Microphone-In Jack
One S/PDIF Out Jack
One RJ-45 LAN Jack
One External Monitor Port
One DC-in Jack

Introduction
System Specifications 1 - 3
1.Introduction
Communication
Built-In Gigabit Ethernet LAN
1.0M HD PC Camera Module
Or
(Factory Option) 2.0M FHD PC Camera Module
WLAN/ Bluetooth Half Mini-Card Modules:
(Factory Option) Intel® Wireless-AC 7260 Wire-
less LAN (802.11a/c) + Bluetooth 4.0
(Factory Option) Intel® Wireless-N 7260 Wire-
less LAN (802.11b/g/n)+ Bluetooth 4.0
(Factory Option) Third-Party Wireless LAN
(802.11b/g/n)
(Factory Option) Third-Party Wireless LAN
(802.11b/g/n) + Bluetooth 4.0
(Factory Option) Third-Party Wireless LAN
(802.11a/b/g/n) + Bluetooth 4.0
Card Reader
Embedded Multi-in-1 Push-Push Card Reader
MMC (MultiMedia Card) / RS MMC
SD (Secure Digital) / Mini SD / SDHC/ SDXC
MS (Memory Stick) / MS Pro / MS Duo
Mini Card Slots
Slot 1 for WLAN Module or WLAN and Blue-
tooth Combo Module
(Factory Option) Slot 2 for mSATA SSD
Environmental Spec
Temperature
Operating: 5°C - 35°C
Non-Operating: -20°C - 60°C
Relative Humidity
Operating: 20% - 80%
Non-Operating: 10% - 90%
Power
Full Range AC/DC Adapter
AC Input: 100 - 240V, 50 - 60Hz
DC Output: 19.5V, 6.15A (120W)
8 Cell Smart Lithium-Ion Battery Pack, 76.96WH
Dimensions & Weight
413mm (w) * 277.5mm (d) * 17.5 - 44mm (h)
3.2kg with ODD & 76.96WH Battery

Introduction
1 - 4 External Locator - Front View with LCD Panel Open
1.Introduction
External Locator - Front View with LCD Panel Open
Figure 1
Top View
1. Built-In PC Camera
(Optional)
2. *PC Camera LED
*When the PC
camera is in use, the
LED will be
illuminated in red.
3. LCD
4. Power Button
5. Control Center
Button
6. Speakers
7. LED Indicators
8. Hot Key Buttons
9. Keyboard
10. Built-In Microphone
11. Touchpad & Buttons
21
9
8
6
7
45
3
11
6
10

Introduction
External Locator - Front & Right side Views 1 - 5
1.Introduction
External Locator - Front & Right side Views
Figure 2
Front Views
1. LED Indicators
Figure 3
Right Side Views
1. Multi-in-1 Card
Reader
2. USB 3.0 Ports
3. Combined eSATA/
USB 3.0 Port
4. HDMI-Out Port
5. RJ-45 LAN Jack
1
3
245
12

Introduction
1 - 6 External Locator - Left Side & Rear View
1.Introduction
External Locator - Left Side & Rear View
Figure 4
Left Side View
1. Security Lock Slot
2. USB 2.0 Port
3. S/PDIF-Out Jack
4. Microphone-In Jack
5. Headphone-Out Jack
6. Optical Device Drive
Bay
7. Emergency Eject
Hole
1234567
Figure 5
Rear View
1. External Monitor Port
2. DC-In Jack
3. Vent
123

Introduction
External Locator - Bottom View 1 - 7
1.Introduction
External Locator - Bottom View
Figure 6
Bottom View
1. Component Bay
Cover
2. Vent
3. Battery
4. HDD Bay

Overheating
To prevent your com-
puter from overheating
make sure nothing
blocks the vent/fan in-
takes while the com-
puter is in use.
1
2
4
3
2

Introduction
1 - 8 Mainboard Overview - Top (Key Parts)
1.Introduction

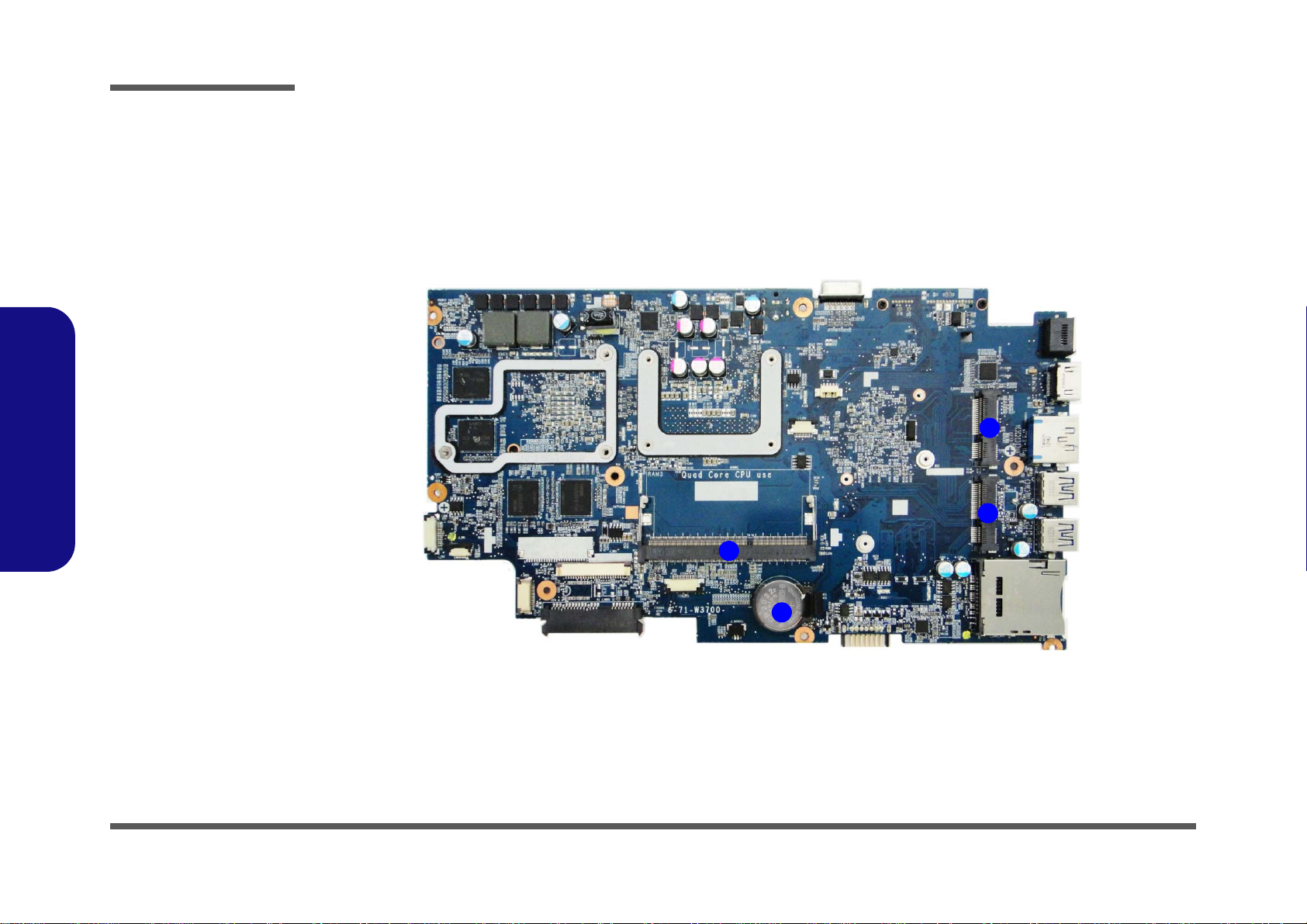

Mainboard Overview - Top (Key Parts)
1
2
3
4
Figure 7
Mainboard Top
Key Parts
1. MemorySlotsDDR3L
So-DIMM
2. CMOS Battery
3. Mini-Card Connector
(3G Module)
4. Mini-Card Connector
(WLAN Module)
