Preface
I
Preface
Notebook Computer
D470W/D480W
Service Manual

Preface
II
Preface
Notice
The company reserves the right to revise this publication or to change its contents without notice. Information contained
herein is for reference only and does not constitute a commitment on the part of the manufacturer or any subsequent ven-
dor. They assume no responsibility or liability for any errors or inaccuracies that may appear in this publication nor are
they in anyway responsible for any loss or damage resulting from the use (or misuse) of this publication.
This publication and any accompanying software may not, in whole or in part, be reproduced, translated, transmitted or
reduced to any machine readable form without prior consent from the vendor, manufacturer or creators of this publica-
tion, except for copies kept by the user for backup purposes.
Brand and product names mentioned in this publication may or may not be copyrights and/or registered trademarks of
their respective companies. They are mentioned for identification purposes only and are not intended as an endorsement
of that product or its manufacturer.
Version 1.0
August 2003
Trademarks
Intel®and Pentium®are registered trademarks of Intel Corporation.
Windows®is a registered trademark of Microsoft Corporation.
Other brand and product names are trademarks and./or registered trademarks of their respective companies.

Preface
III
Preface
About this Manual
This manual is intended for service personnel who have completed sufficient training to undertake the maintenance and
inspection of personal computers.
It is organized to allow you to look up basic information for servicing and/or upgrading components of the D470W/
D480W series notebook PC.
The following information is included:
Chapter 1, Introduction, provides general information about the location of system elements and their specifications.
Chapter 2, Disassembly, provides step-by-step instructions for disassembling parts and subsystems and how to upgrade
elements of the system.
Appendix A, Part Lists
Appendix B, Schematic Diagrams
Appendix C, Switches and Jumpers

Preface
IV
Preface
IMPORTANT SAFETY INSTRUCTIONS
When using your telephone equipment, basic safety precautions should always be followed to reduce the risk of fire, elec-
tric shock and injury to persons, including the following:
1. Do not use this product near water, for example near a bath tub, wash bowl, kitchen sink or laundry tub, in a wet
basement or near a swimming pool.
2. Avoid using a telephone (other than a cordless type) during an electrical storm. There may be a remote risk of elec-
trical shock from lightning.
3. Do not use the telephone to report a gas leak in the vicinity of the leak.
4. Use only the power cord and batteries indicated in this manual. Do not dispose of batteries in a fire. They may
explode. Check with local codes for possible special disposal instructions.
5. This product is intended to be supplied by a Listed Power Unit (DC Output 20V, 6A).
CAUTION
Always disconnect all telephone lines from the wall outlet before servicing or disassembling this equipment.
TO REDUCE THE RISK OF FIRE, USE ONLY NO. 26 AWG OR LARGER,
TELECOMMUNICATION LINE CORD

Preface
V
Preface
Instructions for Care and Operation
The notebook computer is quite rugged, but it can be damaged. To prevent this, follow these suggestions:
1. Don’t drop it, or expose it to shock. If the computer falls, the case and the components could be damaged.
2. Keep it dry, and don’t overheat it. Keep the computer and power supply away from any kind of heating element. This
is an electrical appliance. If water or any other liquid gets into it, the computer could be badly damaged.
3. Follow the proper working procedures for the computer. Shut the computer down properly and don’t forget to save
your work. Remember to periodically save your data as data may be lost if the battery is depleted.
Do not expose the computer
to any shock or vibration.
Do not place it on an unstable
surface.
Do not place anything heavy
on the computer.
Do not expose it to excessive
heat or direct sunlight.
Do not leave it in a place
where foreign matter or mois-
ture may affect the system.
Don’t use or store the com-
puter in a humid environment.
Do not place the computer on
any surface which will block
the vents.
Do not turn off the power
until you properly shut down
all programs.
Do not turn off any peripheral
devices when the computer is
on.
Do not disassemble the com-
puter by yourself.
Perform routine maintenance
on your computer.

Preface
VI
Preface
4. Avoid interference. Keep the computer away from high capacity transformers, electric motors, and other strong mag-
netic fields. These can hinder proper performance and damage your data.
5. Take care when using peripheral devices.

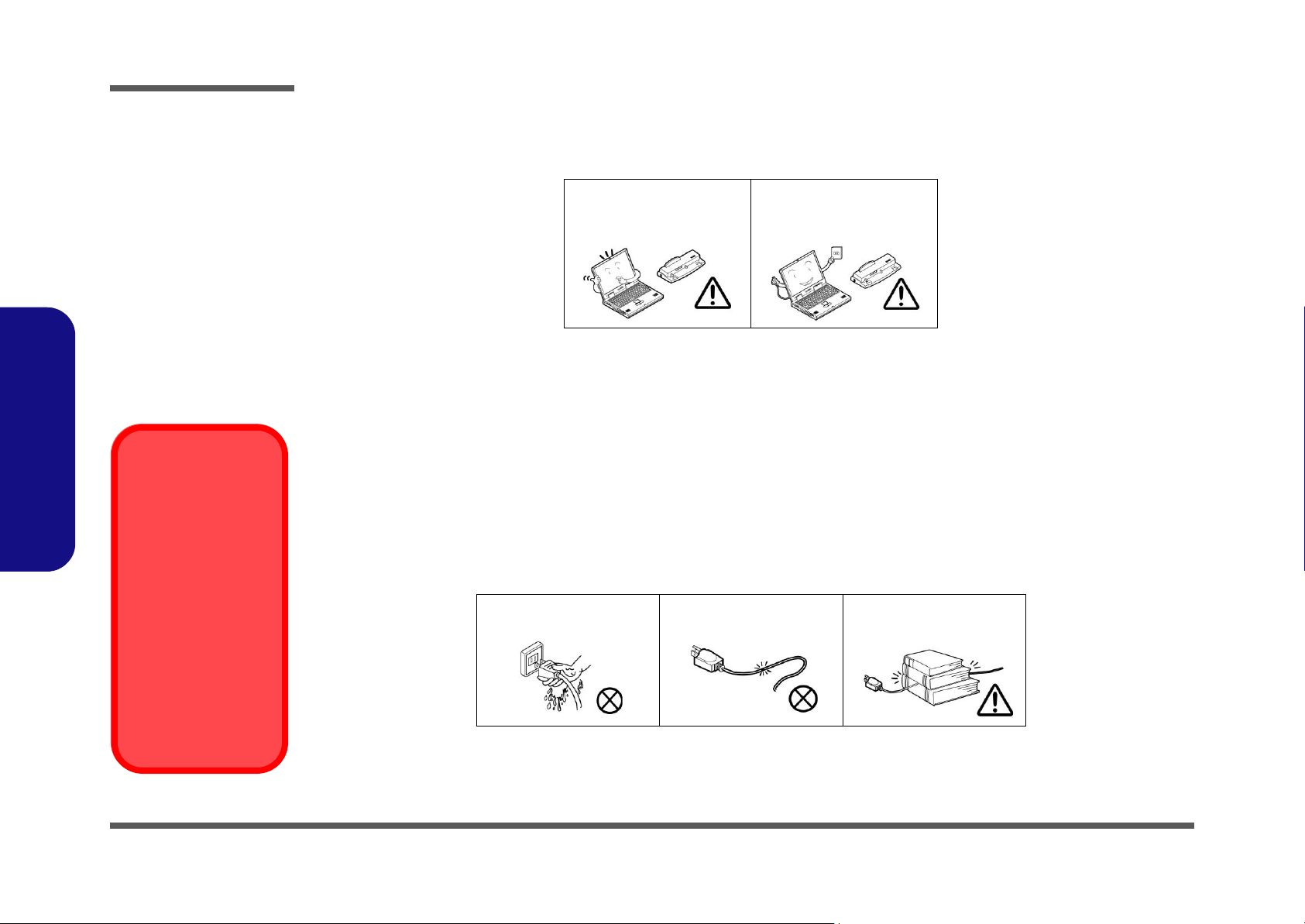

Power Safety
The computer has specific power requirements:
• Only use a power adapter approved for use with this computer.
• Your AC adapter may be designed for international travel but it still requires a steady, uninterrupted power supply. If you are
unsure of your local power specifications, consult your service representative or local power company.
• The power adapter may have either a 2-prong or a 3-prong grounded plug. The third prong is an important safety feature; do
not defeat its purpose. If you do not have access to a compatible outlet, have a qualified electrician install one.
• When you want to unplug the power cord, be sure to disconnect it by the plug head, not by its wire.
• Make sure the socket and any extension cord(s) you use can support the total current load of all the connected devices.
• Before cleaning the computer, make sure it is disconnected from any external power supplies.
Use only approved brands of
peripherals.
Unplug the power cord before
attaching peripheral devices.
Do not plug in the power
cord if you are wet.
Do not use the power cord if
it is broken.
Do not place heavy objects
on the power cord.

Power Safety
Warning
Before you undertake
any upgrade proce-
dures, make sure that
you have turned off the
power, and discon-
nected all peripherals
and cables (including
telephone lines). It is
advisable to also re-
move your battery in
order to prevent acci-
dentally turning the
machine on.

Preface
VII
Preface
Battery Precautions
• Only use batteries designed for this computer. The wrong battery type may explode, leak or damage the computer.
• Recharge the batteries using the notebook’s system. Incorrect recharging may make the battery explode.
• Do not try to repair a battery pack. Refer any battery pack repair or replacement to your service representative or qualified service
personnel.
• Keep children away from, and promptly dispose of a damaged battery. Always dispose of batteries carefully. Batteries may explode
or leak if exposed to fire, or improperly handled or discarded.
• Keep the battery away from metal appliances.
• Affix tape to the battery contacts before disposing of the battery.
• Do not touch the battery contacts with your hands or metal objects.

Battery Disposal
The product that you have purchased contains a rechargeable battery. The battery is recyclable. At the end of
its useful life, under various state and local laws, it may be illegal to dispose of this battery into the municipal
waste stream. Check with your local solid waste officials for details in your area for recycling options or proper
disposal.
Caution
Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type recommend-
ed by the manufacturer. Discard used battery according to the manufacturer’s instructions.

Preface
VIII
Preface
Related Documents
You may also need to consult the following manual for additional information:
User’s Manual on CD
This describes the notebook PC’s features and the procedures for operating the computer and its ROM-based setup pro-
gram. It also describes the installation and operation of the utility programs provided with the notebook PC.

Preface
IX
Preface
Contents
Introduction ..............................................1-1
Overview .........................................................................................1-1
System Specifications .....................................................................1-2
Processor .........................................................................................1-2
Core Logic .......................................................................................1-2
Structure ..........................................................................................1-2
Security ............................................................................................1-2
Memory ...........................................................................................1-2
BIOS ................................................................................................1-2
LCD Options ...................................................................................1-2
Display ............................................................................................1-2
Storage Devices ...............................................................................1-3
Keyboard .........................................................................................1-3
PC Card ...........................................................................................1-3
Audio ...............................................................................................1-3
Interface ...........................................................................................1-3
Communication ...............................................................................1-4
Power Management .........................................................................1-4
Power ...............................................................................................1-4
Indicators .........................................................................................1-4
Environmental Spec ........................................................................1-4
Physical Dimensions .......................................................................1-4
Weight .............................................................................................1-4
Optional ...........................................................................................1-4
External Locator - Top View ..........................................................1-5

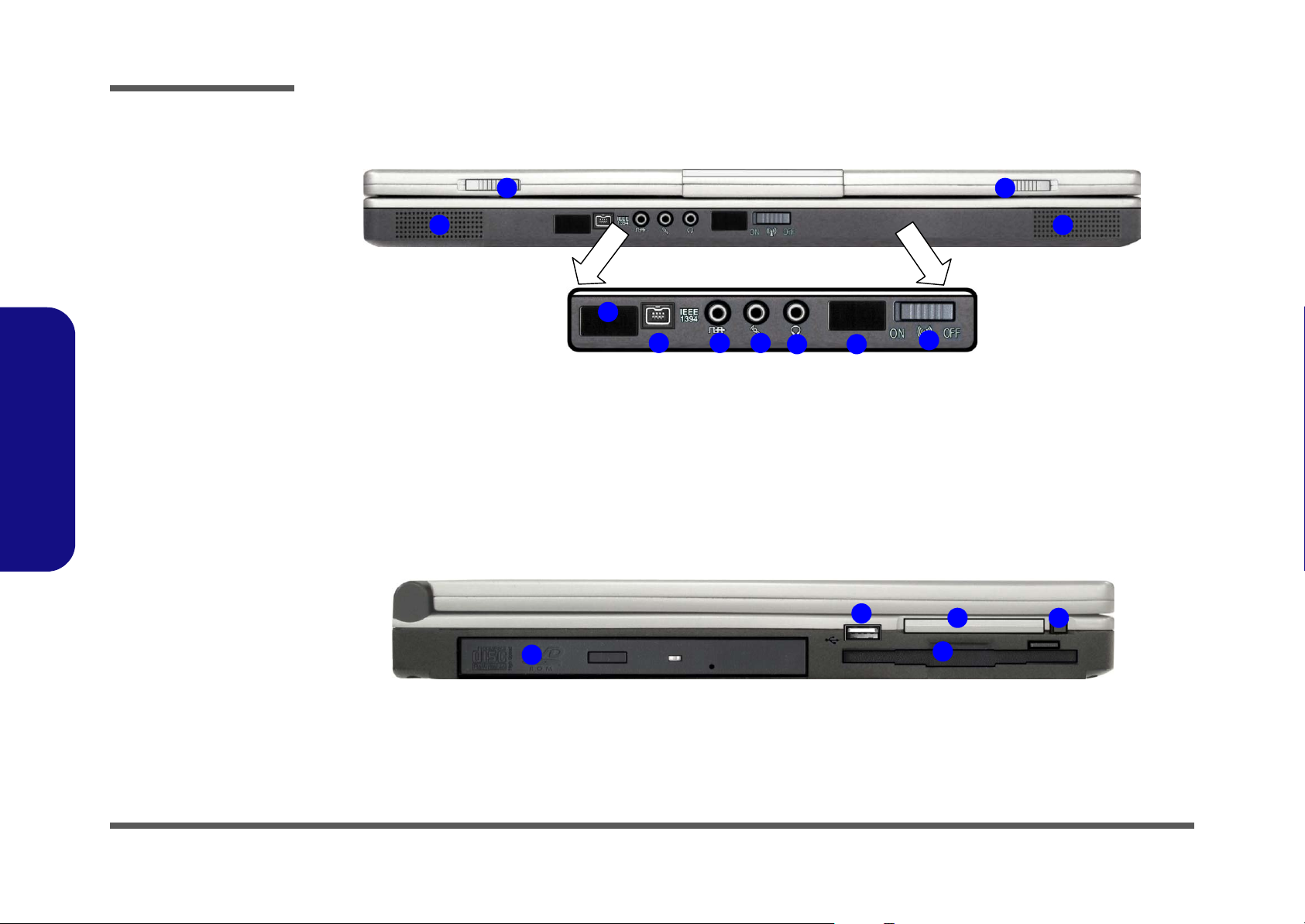

External Locator - Front & Left Side Views ...................................1-6
External Locator - Right Side & Rear Views ..................................1-7

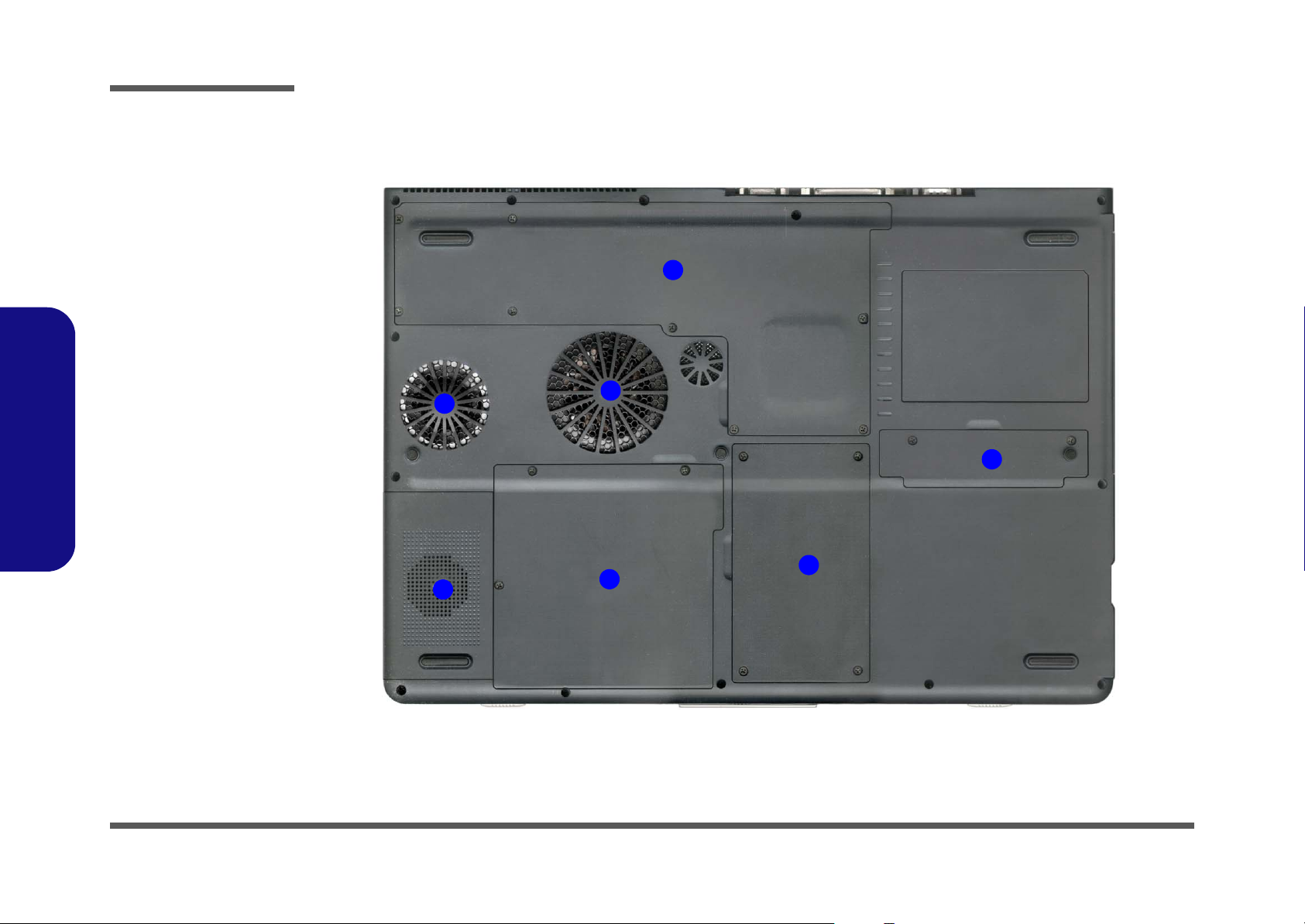

External Locator - Bottom View .....................................................1-8

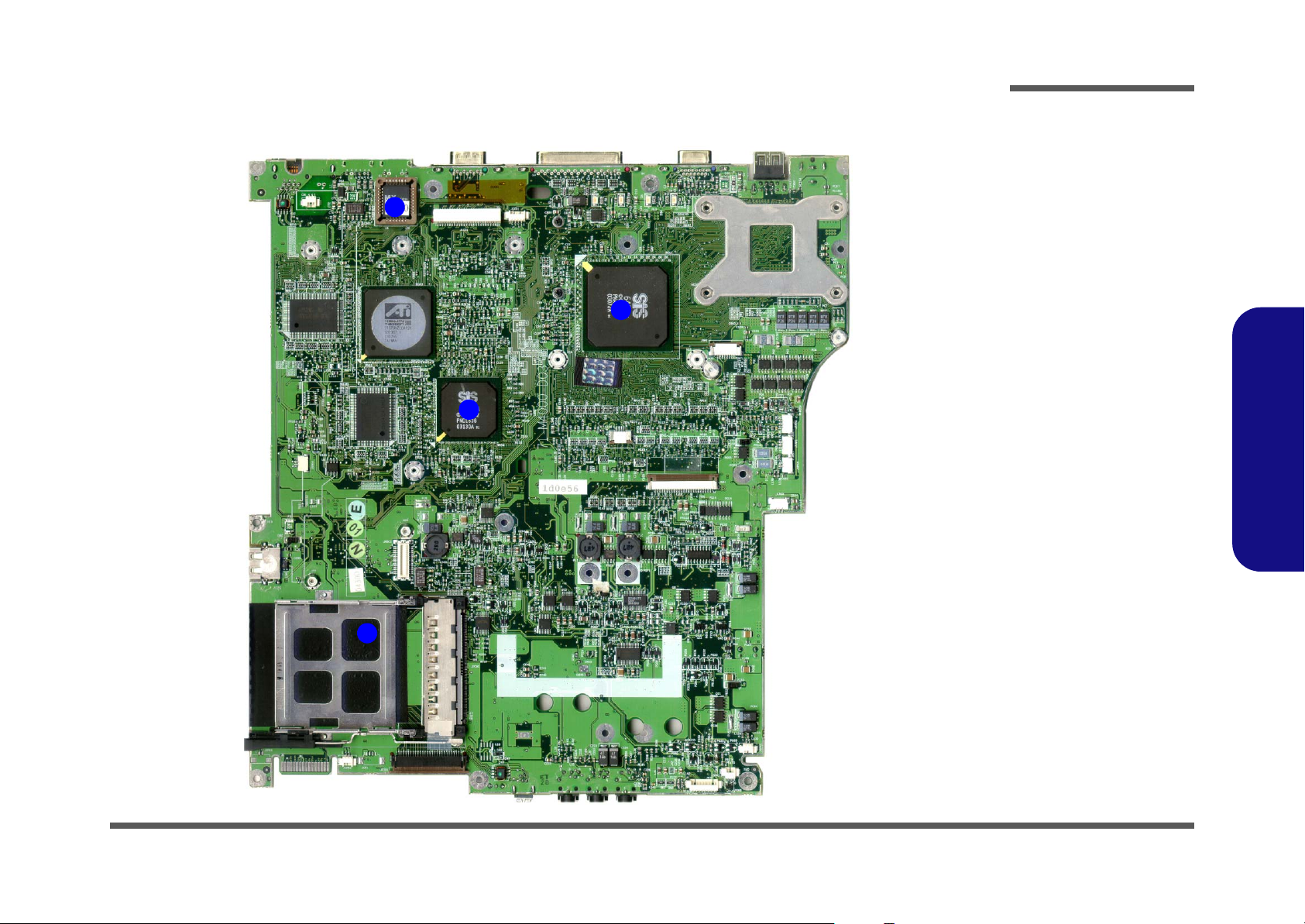

Mainboard Overview - Top (Key Parts) .........................................1-9
Mainboard Overview - Bottom (Key Parts) ..................................1-10
Mainboard Overview - Top (Connectors) .................................... 1-11
Mainboard Overview - Bottom (Connectors) ............................... 1-12
Disassembly ...............................................2-1
Overview ......................................................................................... 2-1
Maintenance Tools .......................................................................... 2-2
Connections .................................................................................... 2-2
Maintenance Precautions ................................................................ 2-3
Cleaning .......................................................................................... 2-3
Disassembly Steps .......................................................................... 2-4
Removing the Battery ..................................................................... 2-5
Removing the Hard Disk Drive ...................................................... 2-6
Hard Disk Upgrade Process ............................................................ 2-6
Removing the System Memory (RAM) ......................................... 2-7
Memory Upgrade Process ............................................................... 2-7
Removing the CD Device ............................................................... 2-9
Removing the Bluetooth Module .................................................. 2-11
Removing the Wireless LAN Module .......................................... 2-12
Removing the Processor ............................................................... 2-13
Part Lists ..................................................A-1
Part List Illustration Location ........................................................ A-2
Top (D470W) ................................................................................. A-3
Bottom (D470W) ........................................................................... A-4
LCD 17" (D470W) ........................................................................ A-5
CD-ROM Drive (D470W) ............................................................. A-6
CD-RW Drive (D470W) ................................................................ A-7
DVD-ROM Drive (D470W) .......................................................... A-8
Combo Drive (D470W) ................................................................. A-9
Card Reader (D470W) ................................................................. A-10
Sub-Woofer Speaker (D470W) ................................................... A-11
TV Tuner (D470W) ..................................................................... A-12
Floppy Disk Drive (D470W) ....................................................... A-13

Preface
X
Preface
Hard Disk Drive (D470W) ...........................................................A-14
Top (D480W) ............................................................................... A-15
Bottom (D480W) .......................................................................... A-16
LCD 17" (D480W) ....................................................................... A-17
CD-ROM Drive (D480W) ...........................................................A-18
CD-RW Drive (D480W) .............................................................. A-19
DVD-ROM Drive (D480W) ........................................................A-20
Combo Drive (D480W) ................................................................ A-21
Card Reader (D480W) .................................................................A-22
Sub-Woofer Speaker (D480W) ....................................................A-23
TV Tuner (D480W) ......................................................................A-24
Floppy Disk Drive (D480W) ........................................................ A-25
Hard Disk Drive (D480W) ...........................................................A-26
Schematic Diagrams................................. B-1
System Block Diagram ................................................................... B-2
Socket 478 1 of 2 ............................................................................ B-3
Socket 478 & ITP 2 of 2 ................................................................. B-4
Clock Generator ............................................................................. B-5
M650 (Host/AGP) 1 of 4 ................................................................ B-6
M650 (Memory for DDR) 2 of 4 ................................................... B-7
M650 (& CRT Out) 3 of 4 ............................................................. B-8
M650 (Power) 4 of 4 ...................................................................... B-9
DDR Memory DIMM .................................................................. B-10
DDR SSTL-2 Termination ........................................................... B-11
LVDS Interface (SiS302LV) ........................................................ B-12
Panel Con & LED Indicator ......................................................... B-13
962 (PCI/IDE/HyperZip) 1 of 4 ................................................... B-14
962 (Misc Signals) 2 of 4 ............................................................. B-15
962 (USB I/F) 3 of 4 .................................................................... B-16
962 (Power & RTC) 4 of 4 ........................................................... B-17
HDD/Combo Connector ............................................................... B-18
USB Port .......................................................................................B-19
PCMCIA ENE1410 ......................................................................B-20
PCMCIA Power & Bluetooth Interface ........................................B-21
1394 PHY TSB41LV01 ................................................................B-22
LPC Super I/O ..............................................................................B-23
LPT/COM Port .............................................................................B-24
LPC H8 .........................................................................................B-25
LAN RTL8100BL ........................................................................B-26
Audio Codec ALC201A ...............................................................B-27
Audio Out & Off Board Connectors .............................................B-28
System Power Control ..................................................................B-29
Fan Control and SpeedStep ..........................................................B-30
Mobility M9-P ..............................................................................B-31
Mobility M9-P MEM A/B ............................................................B-32
VGA DRAM 1 of 2 ......................................................................B-33
VGA DRAM 1 of 2 - Termination ...............................................B-34
VGA DRAM 2 of 2 ......................................................................B-35
Mobility M9-P POW ....................................................................B-36
VCORE .........................................................................................B-37
DDR Power ...................................................................................B-38
System Power ...............................................................................B-39
Charger .........................................................................................B-40
SW Board and HotKey .................................................................B-41
TouchPad and Switch Board ........................................................B-42
Switches and Jumpers............................. C-1

Introduction
Overview 1 - 1
1.Introduction
1: Introduction
Overview
This manual covers the information you need to service or upgrade the D470W/D480W series notebook computer. In-
formation about operating the computer (e.g. getting started, and the Setup utility) is in the User’s Manual. Information
about drivers (e.g. VGA & audio) is also found in User’s Manual. That manual is shipped with the computer.
Operating systems (e.g. DOS, Windows 9x, Windows NT 4.0, Windows 2000, Windows XP, OS/2 Warp, UNIX, etc.) have
their own manuals as do application software (e.g. word processing and database programs). If you have questions about
those programs, you should consult those manuals.
The D470W/D480W series notebook is designed to be upgradeable. See “Disassembly” on page 2 - 1 for a detailed de-
scription of the upgrade procedures for each specific component. Please note the warning and safety information indi-
cated by the “” symbol.
The balance of this chapter reviews the computer’s technical specifications and features.

Introduction
1 - 2 System Specifications
1.Introduction
System Specifications
Processor
• Intel Pentium 4 Processor - (478-pin) FC-PGA2 package
(µ0.13) 0.13 Micron Process Technology, 512KB L2
Cache & 400MHz FSB - 2.0/ 2.2/ 2.4/ 2.5 /2.6 GHz
(µ0.13) 0.13 Micron Process Technology, 512KB L2
Cache & 533MHz FSB - 2.26/ 2.4/ 2.53/ 2.66/ 2.8/ 3.06
GHz
* Only notebooks with Pentium 4 processors of 3.06GHz
support Hyper-Threading
Core Logic
• SIS M645DX + 962 Chipset + M9-P
Structure
• PC99 compliant
Security
• Security (Kensington® Type) Lock
• BIOS Password
Memory
• Two 200-pin DDR SODIMM sockets, supporting DDR
SDRAM SODIMM (2.5V) - DDR 200/ DDR 266/ DDR
333 compliant
• Memory expandable up to 1024MB (128/256/512MB
SODIMM Modules)
BIOS
• One 512KB Flash ROM
•PhoenixBIOS
LCD Options
• 17.0" WXGA+ TFT (1440*900)
Display
• ATI Mobility Radeon 9000 high performance chip
• Support AGP™ 4X
• Integrated 128-bit 2D/3D Graphics Accelerator
Advanced HW accelerator for DVD playback
Fully Direct X 8.0 compliant graphics engine
• External memory up to 64MB DDR SGRAM on-board
• Dual-View display monitor

Video Memory
The system allocates or "shares" a portion of system
memory for video use. "Shared" memory is user-con-
figurable via the SCU. The default setting is set to
32MB.

Introduction
System Specifications 1 - 3
1.Introduction
Storage Devices
•3.5"3-modeFloppy Disk Drive
• Easy changeable 2.5" 9.5 mm (h) Hard Disk Drive
Supporting Master mode IDE
Supports PIO mode 4
ATA-33/66/100/133
Ultra DMA
• 12.7mm(h) Device Bay for ONE of the following drive
configuration options:
CD-ROM
DVD-ROM
CD-RW
DVD-RW
Combo CD-RW + DVD-ROM
• Optional 6-in-1 card reader for the following formats:
MMC (MultiMedia Card)
SD (Secure Digital)
MS (Memory Stick)
SM (SmartMedia Card)
CF (Compact Flash)
IBM Microdrive
Keyboard
• “Win Key” keyboard
PC Card
• One type II PCMCIA 3.3V/5V socket supporting CardBus
Audio
• AC'97 2.1 compliant interface
• 3D stereo enhanced sound system
• Compatible with Sound-Blaster PRO™
• S/P DIF Digital output (5.1 CH) for DVD content and
stereo audio
• Microphone-in jack
• Headphone-out jack
• Built-in microphone
• 4 built-in speakers
•Optional sub woofer
Interface
• Built-in TouchPad (scrolling key functionality integrated)
• Three USB 2.0 ports
• One Mini-IEEE 1394 port
• One S-Video jack for TV output
• One serial port
• One parallel port (LPT1), supporting ECP / EPP
• One infrared transceiver supporting IrDA 1.1 FIR/SIR/
ASKIR
• One consumer Infrared transceiver which functions with
the optional TV Tuner
• One external CRT monitor port
• One external keyboard/mouse (through Y cable) PS/2 port
• One speaker-out/headphone-out jack
• One microphone-in jack
• One RJ-11 jack for modem
• One RJ-45 jack for 100M/10M LAN
• One S/P DIF out port
• One DC-in jack
• Wireless Device On/Off switch
• One-S-Video-In port with optional TV Tuner
• One Line-In jack for audio input with optional TV Tuner

Introduction
1 - 4 System Specifications
1.Introduction
Communication
• Wireless Infrared transfer IrDA 1.1 compliant, 1cm - 1M
operating distance, 115.2K bps SIR/ 4Mbps FIR
• Built-in 10/100Mb Ethernet LAN
• 56K MDC modem V.90 & V.92 compliant
• 802.11b wireless LAN module (available as a factory
option)
• Bluetooth module (available as a factory option)
• PC Video Camera module (available as a factory option)
Power Management
• Supports ACPI v1.0b
• Supports Hibernate mode
• Supports Standby mode
• Supports battery low sleep
• Supports resume from modem ring
Power
• Full range AC adapter
• AC-Input 100~240V, 50~60Hz
•DC20V,6A(120W)
• Supports one removable Smart Li-Ion battery 220mAh/8
cell
Indicators
• LED indicators (Power On/ AC-In/ Suspend, Battery
Charging/Battery Full, E-Mail, HDD, Num Lock, Caps
Lock, Scroll Lock)
Environmental Spec
• Temperature
Operating: 5°C ~ 35°C (w/o packing)
Non-Operating: -20°C ~ 60°C (packing)
• Relative Humidity
Operating: 20% ~ 80%
Non-Operating: 10% ~ 90%
Physical Dimensions
• 393 (w) x 275 (d) x 37.5 (h) mm
Weight
• 3.85 Kg (-50/+250g) with battery
Optional
• DVD-ROM Drive
•CD-RWDrive
• Combination Drive
•DVD-RWDrive
• Software DVD player
• Wireless LAN module
• Bluetooth module
• PC Camera module
• 6-in-1 Flash Card Reader module
•TV-Tunermodule
• Sub Woofer module

Introduction
External Locator - Top View 1 - 5
1.Introduction
External Locator - Top View
Figure 1
Top View
1. Optional PC
Camera
2. LCD
3. Built-In Microphone
4. LED Power &
Communication
Indicators
5. LED Status
Indicators
6. Hot-Key buttons
7. Close Cover/Lid
Switch
8. Power Button
9. Keyboard
10. TouchPad and
Buttons
11. Built-In Speakers
2
6
4
5
7
1
8
3
9
10
11 11

Introduction
1 - 6 External Locator - Front & Left Side Views
1.Introduction
External Locator - Front & Left Side Views
Figure 2
Front View
1. LCD Latches
2. Consumer Infrared
Transceiver
(functions with
optional TV Tuner)
3. Mini IEEE 1394 Port
4. S/P DIF Out Port
5. Microphone-In Jack
6. Headphone-Out
Jack
7. Infrared Transceiver
8. Wireless Device
ON/OFF Switch
9. Built-In Speakers
4 5 68
1
2
1
3
9 9
7
Figure 3
Left Side View
1. CD Device Bay
2. USB 2.0/1.1 Port
3. Floppy Disk Drive
4. PC Card/ PCMCIA
Slot
5. PC Card/PCMCIA
Slot Eject Buttons
3
4
1
5
2

Introduction
External Locator - Right Side & Rear Views 1 - 7
1.Introduction
External Locator - Right Side & Rear Views
1
Figure 4
Right Side View
1. Security Lock Slot
Figure 5
Rear View
1. Vent
2. DC-In Jack
3. 2 * USB 2.0/1.1
Ports
4. External Monitor
(CRT) Port
5. Parallel Port
6. Serial Port
7. S-Video-Out Port
8. PS/2 Type Port
9. RJ-11 Phone Jack
10. RJ-45 LAN Jack
34 5 6 7 8 9 10
1
2
1

Introduction
1 - 8 External Locator - Bottom View
1.Introduction
External Locator - Bottom View
Figure 6
Bottom View
1. Vent/Fan Intake
2. Battery Cover
3. Hard Disk Cover
4. Bluetooth Module
Cover
5. CPU & Memory
Socket Cover
6. Optional Module
Cover (Sub Woofer
or TV Tuner or 6-
in-1 Flash Card
Reader)
Note: The RAM and
optional Wireless
LAN module are lo-
cated under the CPU
Heatsink Cover.
11
2
4
5
3
6

Introduction
Mainboard Overview - Top (Key Parts) 1 - 9
1.Introduction
Mainboard Overview - Top (Key Parts) Figure 7
Mainboard Top
Key Parts
1. PC Card
Assembly
2. Northbridge - SiS
M645DX
3. Southbridge - SiS
962
4. Flash BIOS ROM
1
2
3
4
