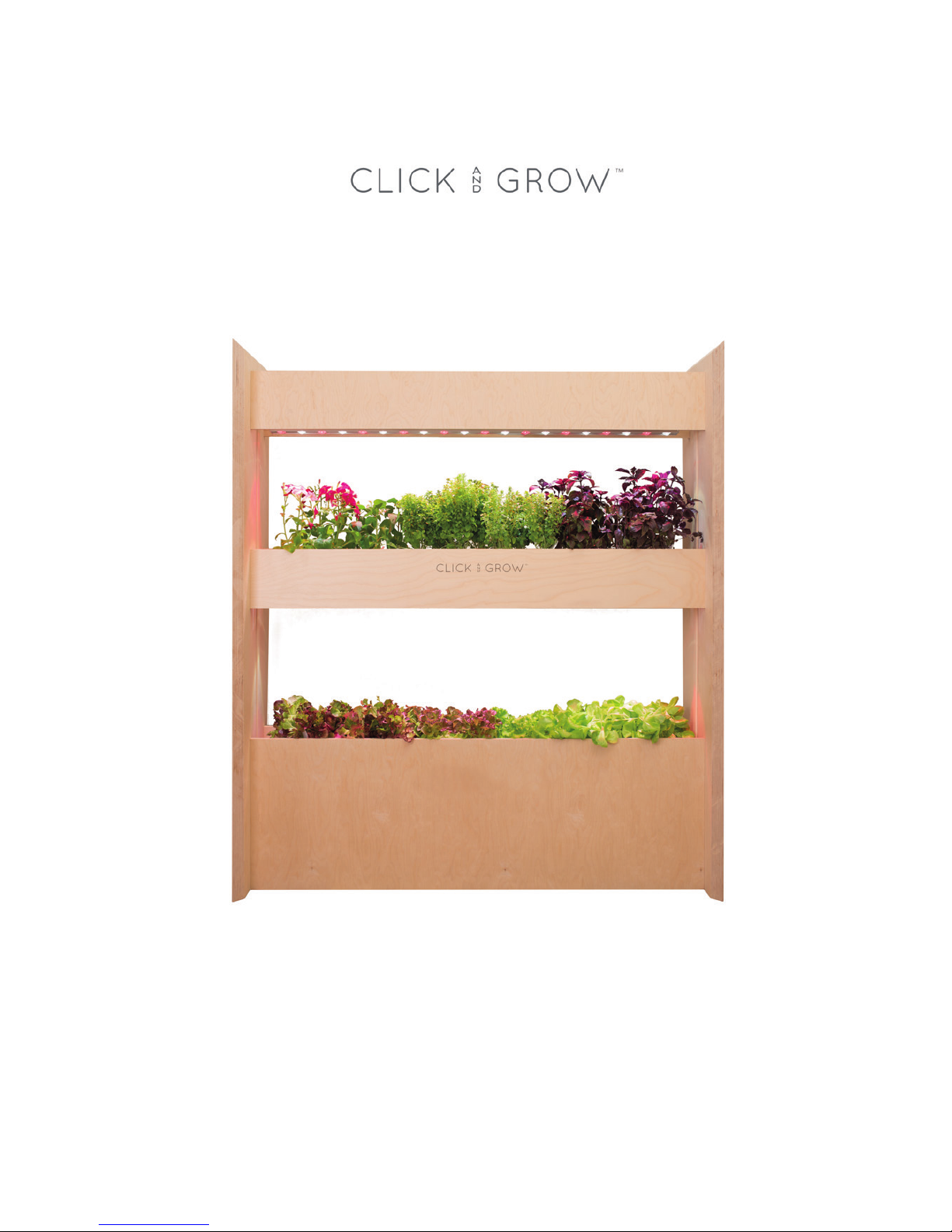

Click & Grow Wall Farm User manual

Wall Farm assembly manual

WFM WFL
List of items:
Button head 3.5x12 mm
Countersunk 3.5x12 mm
Countersunk 3.5x20 mm
Cord clamps (1,3,4-way)
Cross Head Bolt M6x8
Hinges
Lamps
Magnet sets
Plant trays
Plywood frame
Power box
Rafix 20 bolt
Rafix 20 connectors
Refills
Stopper
Thermal plate
Tool: Screwdriver PH2
Tool: Torx 15
Tray holders
Water level sensor
Wire fastener
Number of people required to assemble:
Tools required to assemble:
Wear protective gloves
20x
18x
5x
3x
4x
2x
2x
2x
2x
1x
1x
27x
27x
36x
1x
1x
1x
1x
4x
2x
1x
2x
1x
Unit
M6x8 Rafix 20 Bolt CS 3.5x12 CS 3.5x20 Button head 3.5x12
A B C D E
28x
17x
6x
4x
6x
2x
3x
2x
3x
1x
1x
36x
36x
54x
1x
2x
1x
1x
6x
3x
1x
Quantity

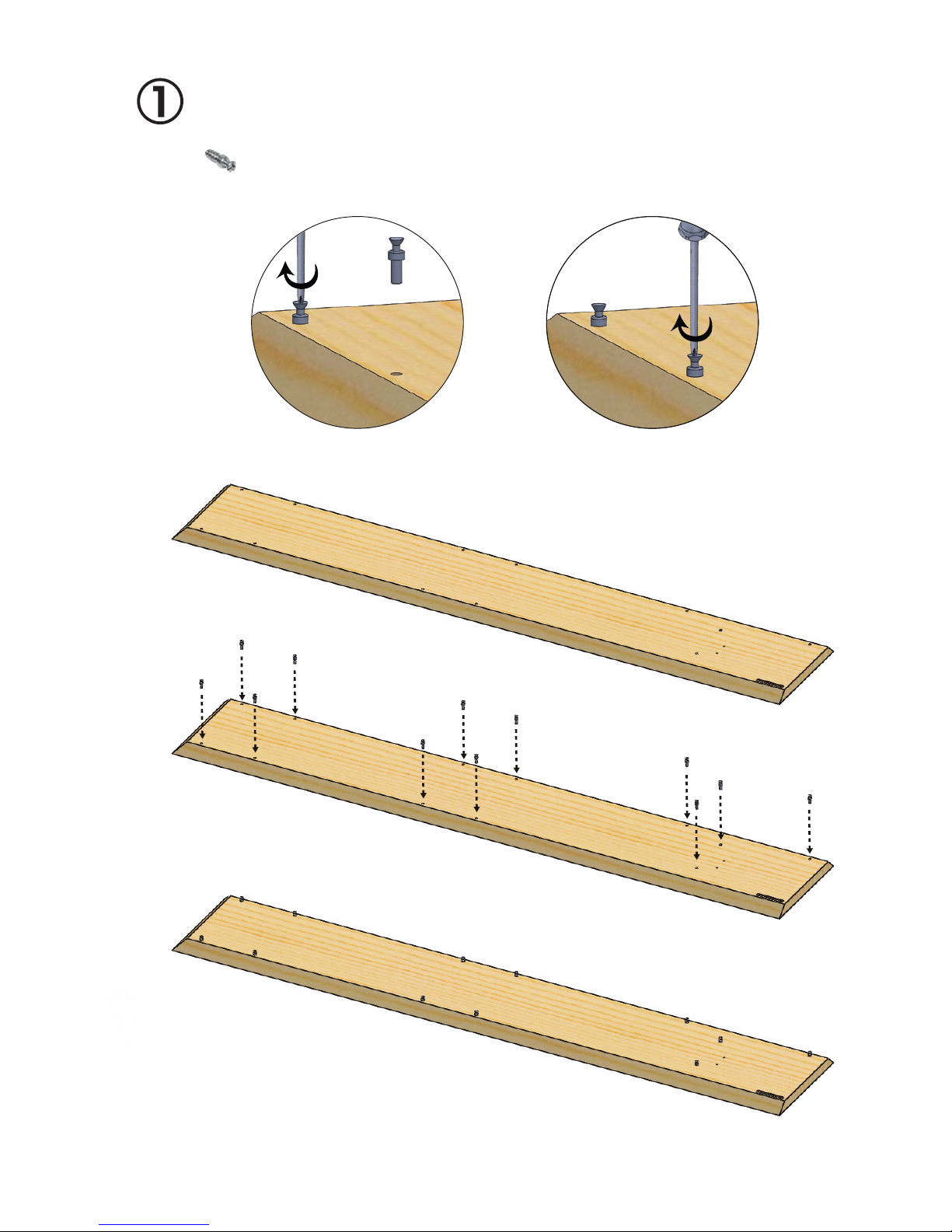

Attach the (B) bolts (anchors) to both of the side panels.
x 12 (B) per 1 side panel

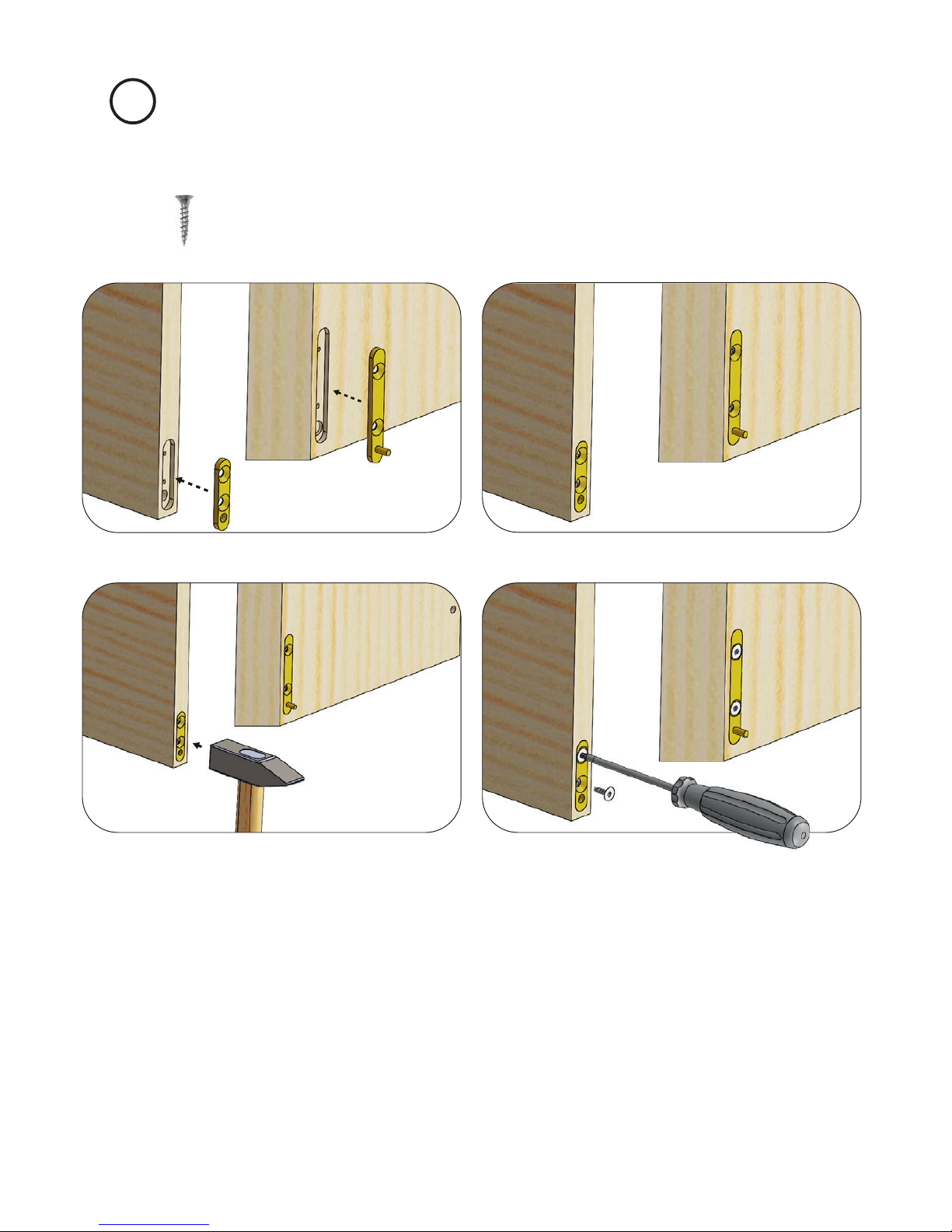

2Attach the hinges to the corresponding cavities on the side
panels and on the lower front panel. Hammer them to a tight fit
and then use the (C) screws.
x 8 (C)

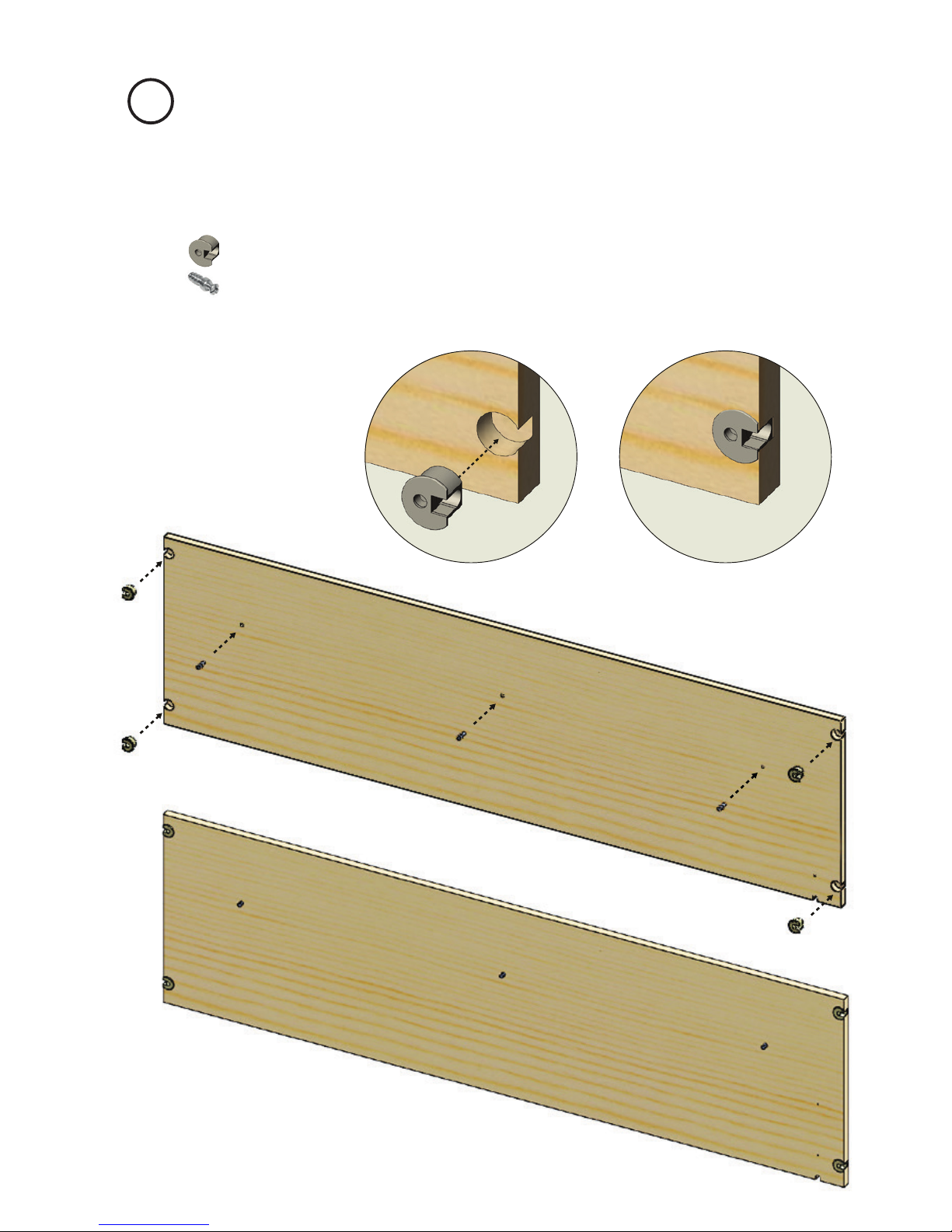

3Attach the Rafix 20 connectors and anchors to the lower panel.
Note:the connectors opening has to be perfectly aligned with
the edge of the panel, or it might not fit properly with the
anchors. Attach the Rafix connectors to the rest of the panels.
x 3 (B) per lower panel
x 4 per panel

4
5

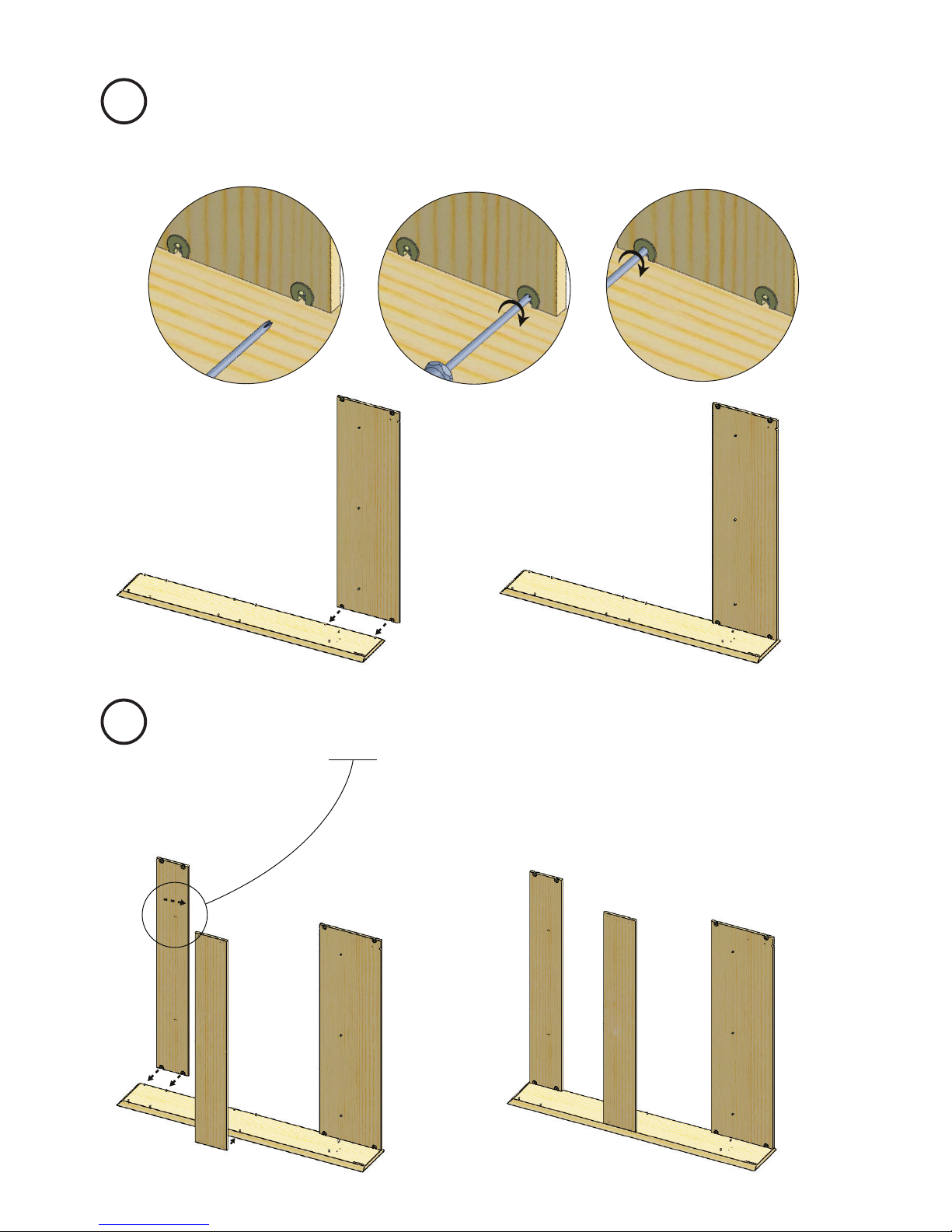

Attach the lower rear panel to the le side panel with connec-
tors. Attach the connectors with the screwdriver to the anchors
by tightening the screws (fix all connectors like this).
Attach two edge panels to the le side panel, as shown below.
Make sure that these screw holes are at the bottom side of the
edge panels.

6

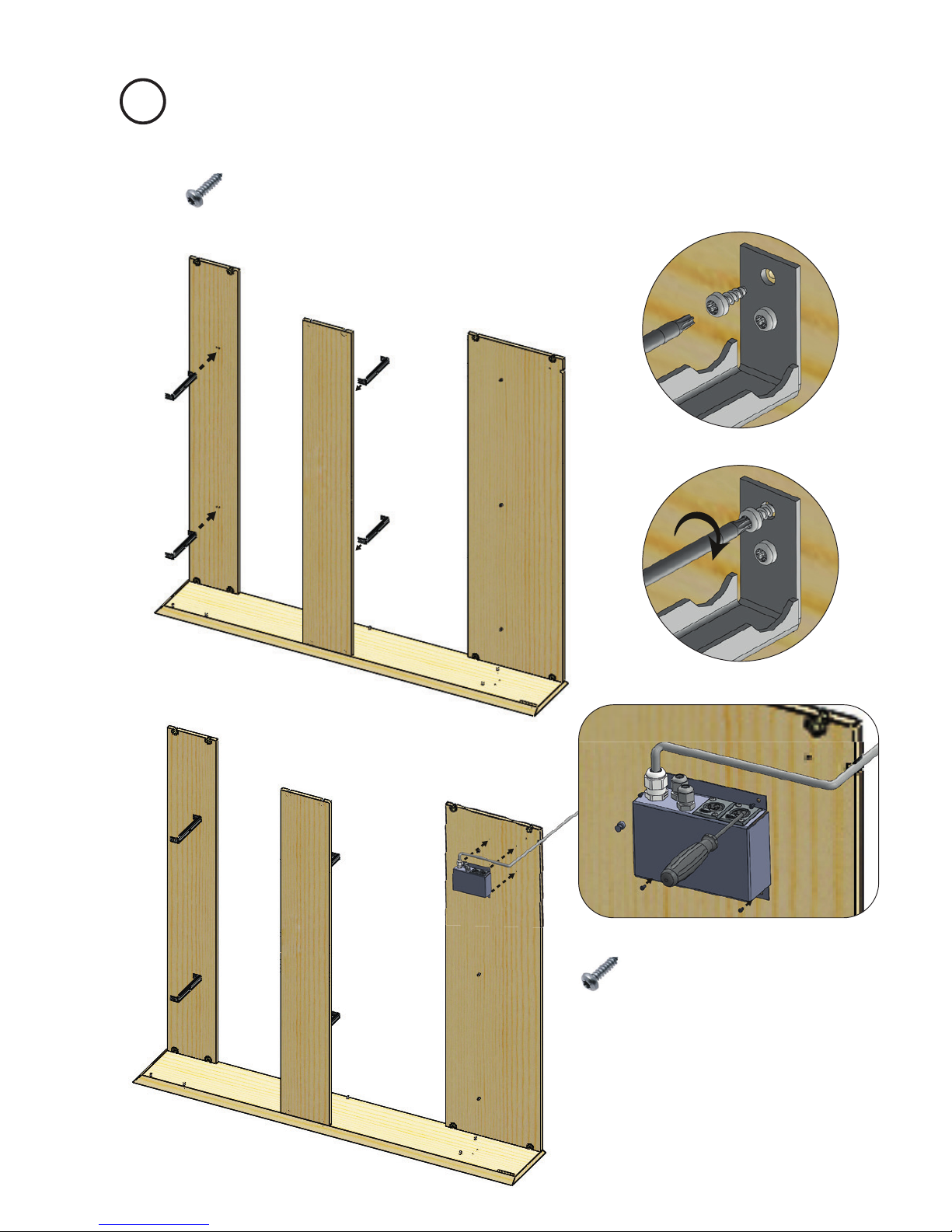

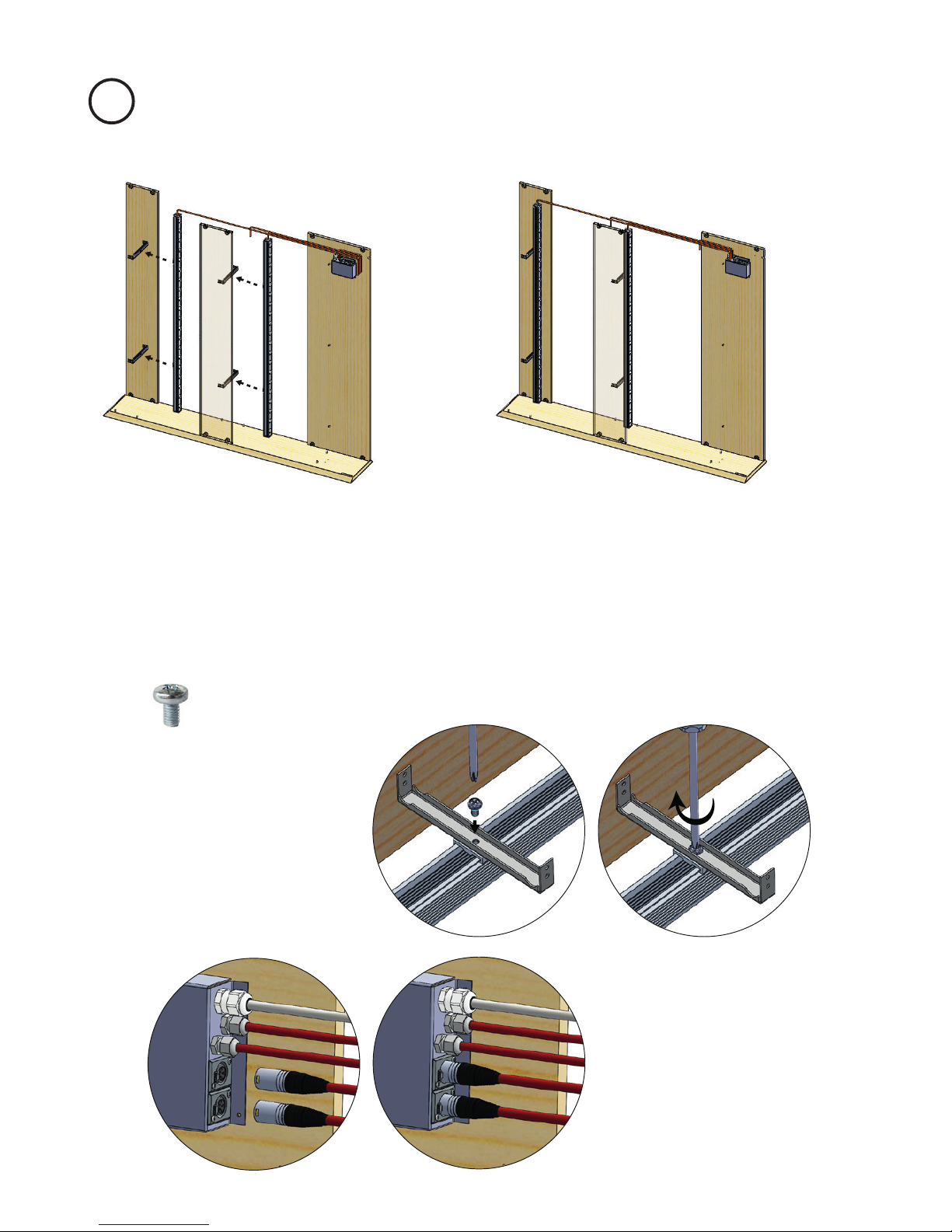

Attach the tray brackets to the edge panels. Install the power
supply box.
x 4 (E) per bracket
x 4

7
Connect the lamps and wires. Attach the lamp with the longest
cord to the top part of the Wall Farm Mini.
Connect the lamps using the (A) bolts. Connect the wires to the
powerbox. Note: Connect the wires before you completely fix the
lamps in their final position. You might want to move them a bit
to get the best result. Make sure the wires are not tautened too
tight as this might damage them aer a while.
x 2 (A) per lamp

8

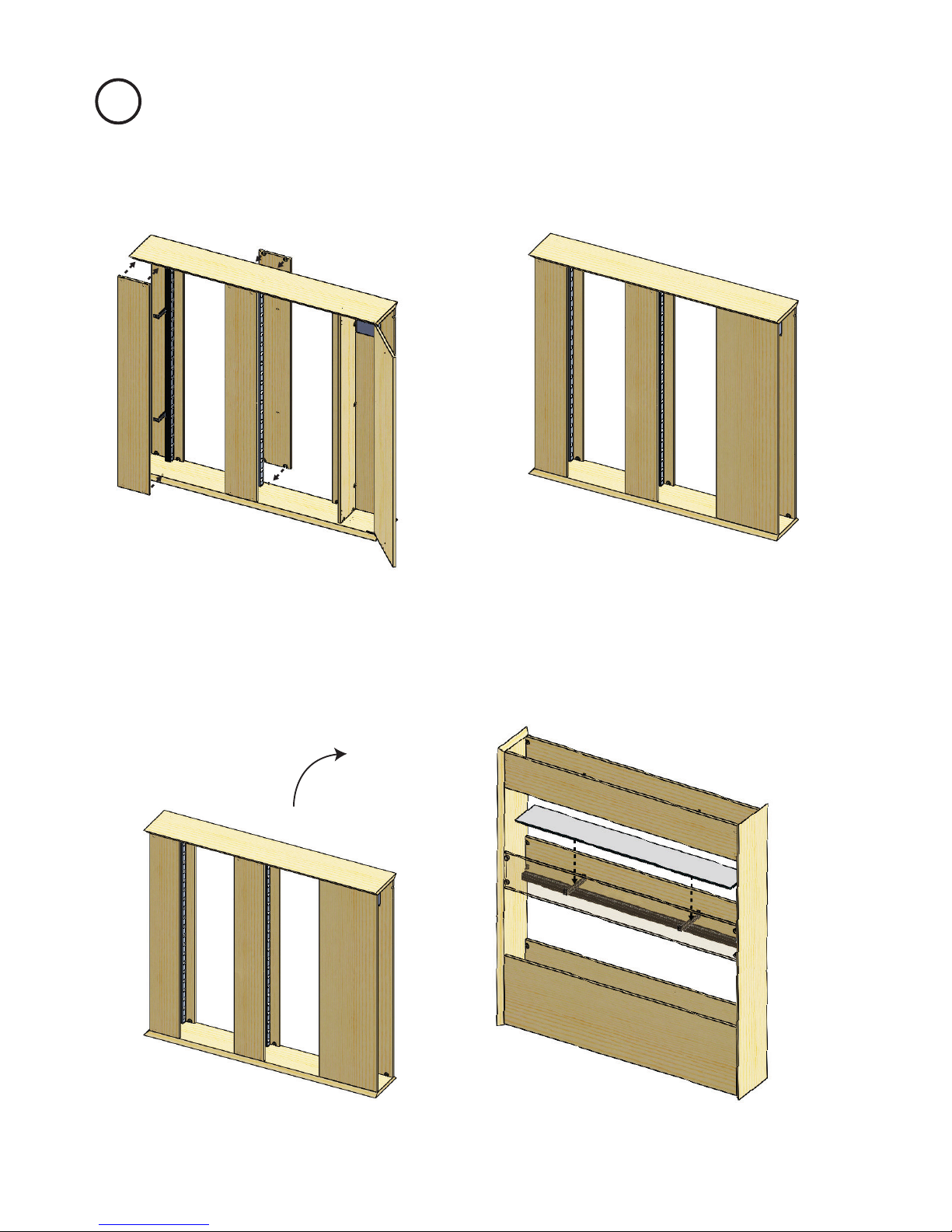

Attach the front-, second side panel and the first tray holder.

10

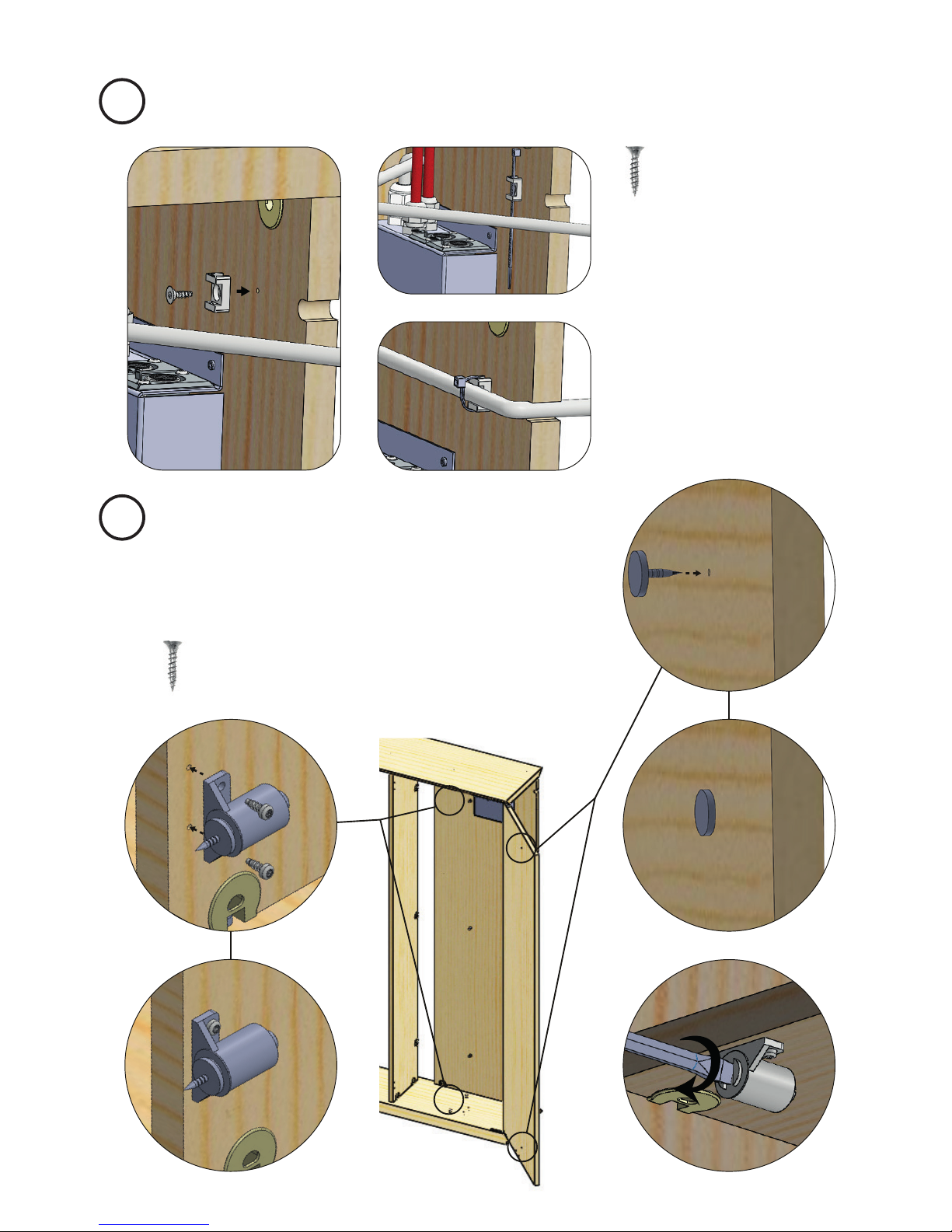

Attach the magnets to the first tray holder.
Attach the magnet knobs to the lower front
panel with a hammer. You can regulate the
magnet with a regular screwdriver.
x 2 (C) per magnet
x 1 (C)
Attach the power cord fastener.
9

Attach the other end of the stopper to the side panel.
x 2 (C)
x 2 (C)
11
Attach one end of the stopper to the lower front panel.

Li the Wall Farm Mini to its upright position and place the
thermal panel on top of the lower lights.
Attach the rest of the edge panels. Also finish attaching the
tray brackets.
12

Assemble the trays and add them to the Wall Farm Mini.
Connect the water level sensor connectors. If the Wall Farm
Mini is plugged in then the lights will flash if there is no water
in the trays or if the water level is too low.
Attach the water level sensors to the trays. You can tighten it by
hand.
13

14
15
Add water, refills and plug it in. You are now ready to start
growing your own fresh food.
Add water to the water tank until the float
reaches the top of the lid. It’s time to refill
the tank once the lights start to flash.
Install the wooden clamps to hold the wires in place.
x 1 (D) per clamp

Pro Tips for
A Perfect Garden
Replacing the capsules: Never leave an empty slot in your
farm! Whenever you harvest a capsule, replace it with a new
seed capsule immediately. This way you’ll always have fresh
flowers, herb, salads and fruits. In case you don’t have new
capsules to plant, just leave the empty cavity in the farm and
plant new capsules as soon as you receive them.
General tips:
Temperature: The best average temperature to grow your
plants is 18 to 24 C (64 to 75F).
Cleaning: It is recommended to clean the trays thoroughly
at least three times a year.
Sprouting: Different plants grow at different paces, so
some of them will sprout within a week, while for others it
may take up to 3 weeks. Be patient! Keep domes on until
plants start to touch them.
Lamp cycle: The lamp has an automatic cycle:16 hours on,
8 hours off (dim). The cycle starts the minute you plug your
lamp in. To reset the lamp’s schedule, unplug the Wall Farm
and then plug it in at the time of day when you want the cycle
to start. Easy as that!
Smart Soil: In case of irregularities in the Smart Soil, please
contact our support and we’ll send you replacements. If your
home environment is naturally humid, we recommend you to
keep the water level minimal. Use only as much water as you
need to stop the lamps from blinking.

Edible plants:
Salad greens: Edible greens are mature and ready to
harvest in about 30 days after planting as they will have
reached the highest nutritional value, texture and colour at
that point. You may harvest your plant capsule at once or
gradually by picking off the larger outer leaves - the plant
will produce more from its basal growing point.
Herbs: Herbs with strong stems like to be cut. Leave at least
two pairs of leaves to grow, and you’ll soon have a stronger
and a bushier plant. Usually, herb plants are ready for first
trimming in 20 days after planting. Do not wait until the
plants reach the lamp. Herb plant capsules usually last up
to 60 days, depending on the density of harvesting.

Fruiting plants:
Flowers and ornamentals: Expect to see first flowers in
about 50 days after planting. Decorative plants require very
little care, just constantly remove withered flowers and
leaves for maximum appearance.
Keep one plant per capsule: Sometimes fruiting plants
grow multiple stems from one capsule. Decrease the number
of chilli and tomato stems to one plant per refill to ensure
enough space for the plant to grow.
Pollination: Pollination is necessary for the plant to produce
fruits. Once your plant is flowering, the blossoms need to be
pollinated with fingertips or little brush to move pollen from
one blossom to the next one. Generally a gentle daily
shaking will also do the job for you.
While the plant is busy with growing fruits it will loose some
leaves. This is a normal process, just remove withered leaves.
You can expect the capsules of fruiting plants last and bear
fruits up to 120 days.

For additional information, visit:
http://support.clickandgrow.com/

Find out more:
www.clickandgrow.com
