adeptus 56114 User manual

ASSEMBLY INSTRUCTIONS
B 00000000000
FOR FASTER SERVICE ON PARTS, PLEASE GO TO OUR WEBSITE AT
OR CALL TOLL FREE 1.888.ADEPTUS (1.888.233.7887) FOR ASSEMBLY QUESTIONS.
MON- FRI 10 A.M. TO 4 P.M. E.S.T., CLOSED HOLIDAYS.
PRODUCT NAME AND STOCK NUMBER
WHEN AND WHERE THE UNIT WAS PURCHASED
P.O. NUMBER FROM THE BOTTOM OF THIS PAGE
IF WE ARE BUSY HELPING OTHER CUSTOMERS, PLEASE LEAVE YOUR NAME AND NUMBER
TO RECEIVE A RETURN CALL.
YOUR RETAILER MAY ALSO PROVIDE SERVICE OR PARTS.
SAVE THESE INSTRUCTION SHEETS AND THE BOX UNTIL YOU ARE SATISFIED WITH THE ASSEMBLY.
DO NOT GLUE THE PARTS OF THE UNIT TOGETHER UNLESS YOU HAVE TESTED THE ASSEMBLY FIRST.
PERFORM THE ASSEMBLY ON A CLEAN HARD SURFACE USING THE FLATTENED CARTON OR A TOWEL
TO PROTECT THE SURFACE AND THE FINISH OF THE UNIT. DO NOT ASSEMBLE ON CARPET.
NOTICE: THE WRITTEN INSTRUCTIONS CONTAINED HEREIN ARE COPYRIGHTED.
1-15
#56114 WHITE FINISH
#53314 PECAN FINISH
NOTICE:THE WRITTEN INSTRUCTIONS CONTAINED HERE IN ARE COPYRIGHTED.NOTICE:THE WRITTEN INSTRUCTIONS CONTAINED HERE IN ARE COPYRIGHTED.

NOTICE:THE WRITTEN INSTRUCTIONS CONTAINED HEREIN ARE COPYRIGHTED.
This is a product:
We inspect all wood and follow quality assurance guidelines that pass third-party inspections.
Note: Real wood has knots, small cracks, and what may look like blemishes. These characteristics
are expected when producing furniture from natural material.
We take extra care with our drawer parts:
1. We use real wood drawer sides and drawer backs.
2. Drawer sides and backs are not nished to protect fabrics from any residual paint odor.
3. Drawer parts are nely sanded to prevent snags.
NOTICE:THE WRITTEN INSTRUCTIONS CONTAINED HEREIN ARE COPYRIGHTED. 2-15
NOTICE:THE WRITTEN INSTRUCTIONS CONTAINED HERE IN ARE COPYRIGHTED.
NOTICE:THE WRITTEN INSTRUCTIONS CONTAINED HERE IN ARE COPYRIGHTED.

These tools are not supplied by the manufacturer.

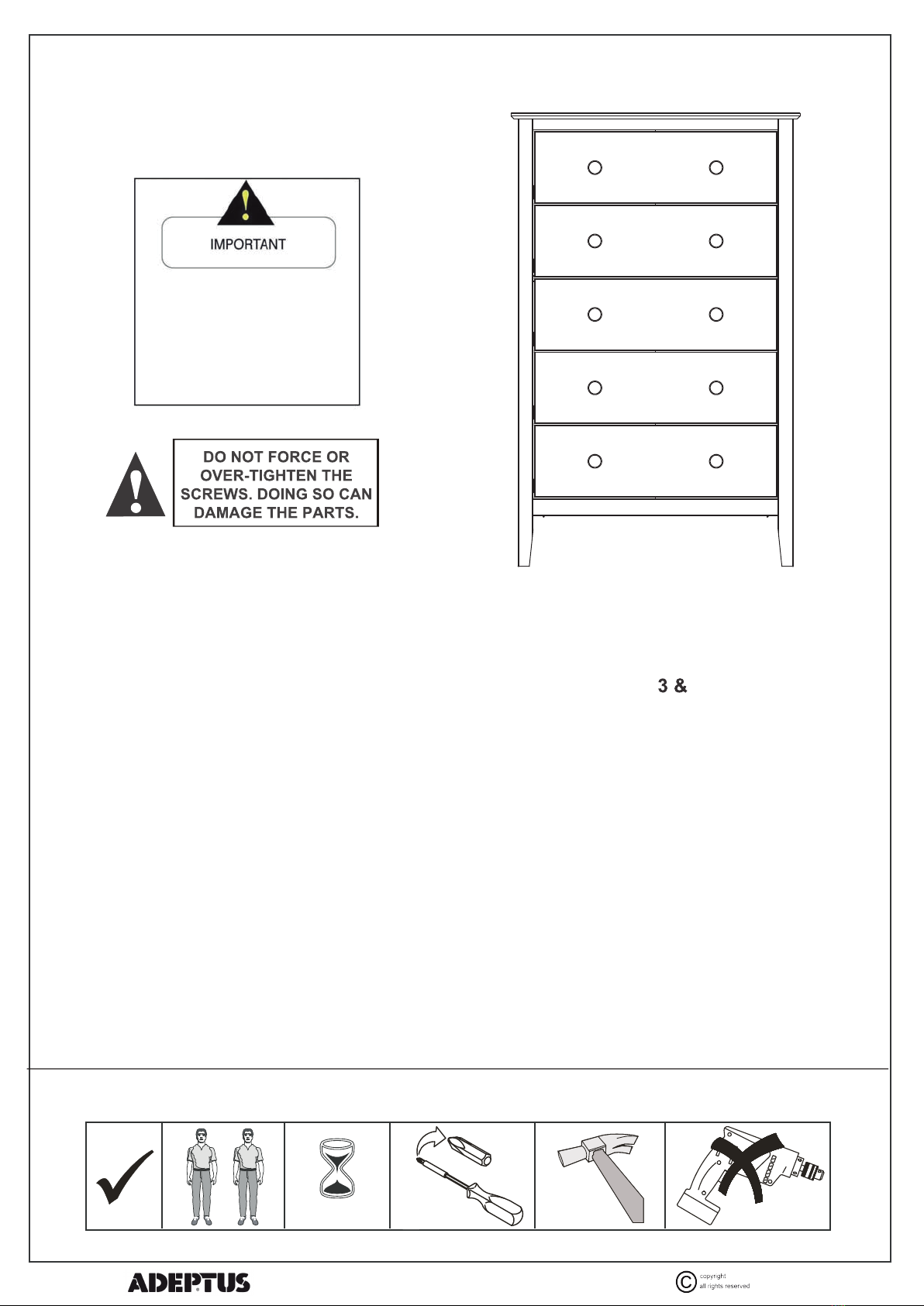

Safety and Care Advice
60 min
Manual
Phillps-head
Screwdriver
Hammer
No Power Tools!!
Perform assembly on a clean, hard
surface using the attened box or a
towel to protect the surface & the unit's
nish. DO NOT assemble on carpet.
Carpet creates too much bounce
making assembly dicult and could
lead to damage of the parts.
·Check that you have all the components and tools listed on pages 4.
·Remove all fittings from the plastic bags and separate them into their groups.
·Keep children and animals away from the work area, small parts could choke if swallowed.
·Make sure you have enough space to layout the parts before starting.
·Do not stand or put weight on the product, this could cause damage.
·Assemble the item as close to its final position (in the same room) as possible.
·Opened box can be used to protect your floor or counter during assembly.
·Assembly is easier for drawer parts on a counter.
·Parts of the assembly will be easier with 2 people.
·We do not recommend the use of power drill/drivers for inserting screws, as over-
tightening could damage the unit.
·Only use hand screwdrivers.
·Dispose of all packaging carefully and responsibly. Please recycle the box. Go green
·Never sit, stand or allow children to climb on the assembled unit.
NOTICE:THE WRITTEN INSTRUCTIONS CONTAINED HEREIN ARE COPYRIGHTED. 3-15
NOTICE:THE WRITTEN INSTRUCTIONS CONTAINED HERE IN ARE COPYRIGHTED.
Manual
Phillips-head
Screwdriver

5X
Top01
Right Side Panel02
Left Side Panel03
Back Foot07
Top Crossbar08
Back Crossbar09
Back Panel04
Right Front Foot05
Left Front Foot06
Front Crossbar10
Drawer Back11
Drawer Bottom12
Drawer Front13
Right Drawer Side14
Left Drawer Side15
NOTICE:THE WRITTEN INSTRUCTIONS CONTAINED HEREIN ARE COPYRIGHTED. 4-15
NOTICE:THE WRITTEN INSTRUCTIONS CONTAINED HERE IN ARE COPYRIGHTED.
01
08
04
04
03
02
05
07
07
09
09
06
10
11 14
15
12
13
A = 43
Dowel
8x30mm
B = 53
Screw
3.5x30mm
C = 12
Screw
4.0x40mm
D = 06
Screw
4.0x30mm
F = 06
Screw
4.0x12mm
E = 31
Screw (Drawer Runner
to Drawer side & anti-tip)
3.0x16mm
G = 06
Cam lock
I = 06
ZirFix
H = 06
Minix Screw
OR
J = 26
Back Panel Nail
K = 02
Anti-Tip Bracket
L = 20
Screw (Drawer Runner
to Side Panel)
6.0x10mm
M = 01
Wall Anchor
N = 10
Knob
O = 05 (Right Side)
Drawer Runner Set
CR
DR
P = 05 (Left Side)
Drawer Runner Set
CL
DL
Q = 01
Anti-Tip Strap

2X
2X
5X
5X
NOTICE:THE WRITTEN INSTRUCTIONS CONTAINED HEREIN ARE COPYRIGHTED. 5-15
NOTICE:THE WRITTEN INSTRUCTIONS CONTAINED HERE IN ARE COPYRIGHTED.
1
A = 43
Dowel
8x30mm

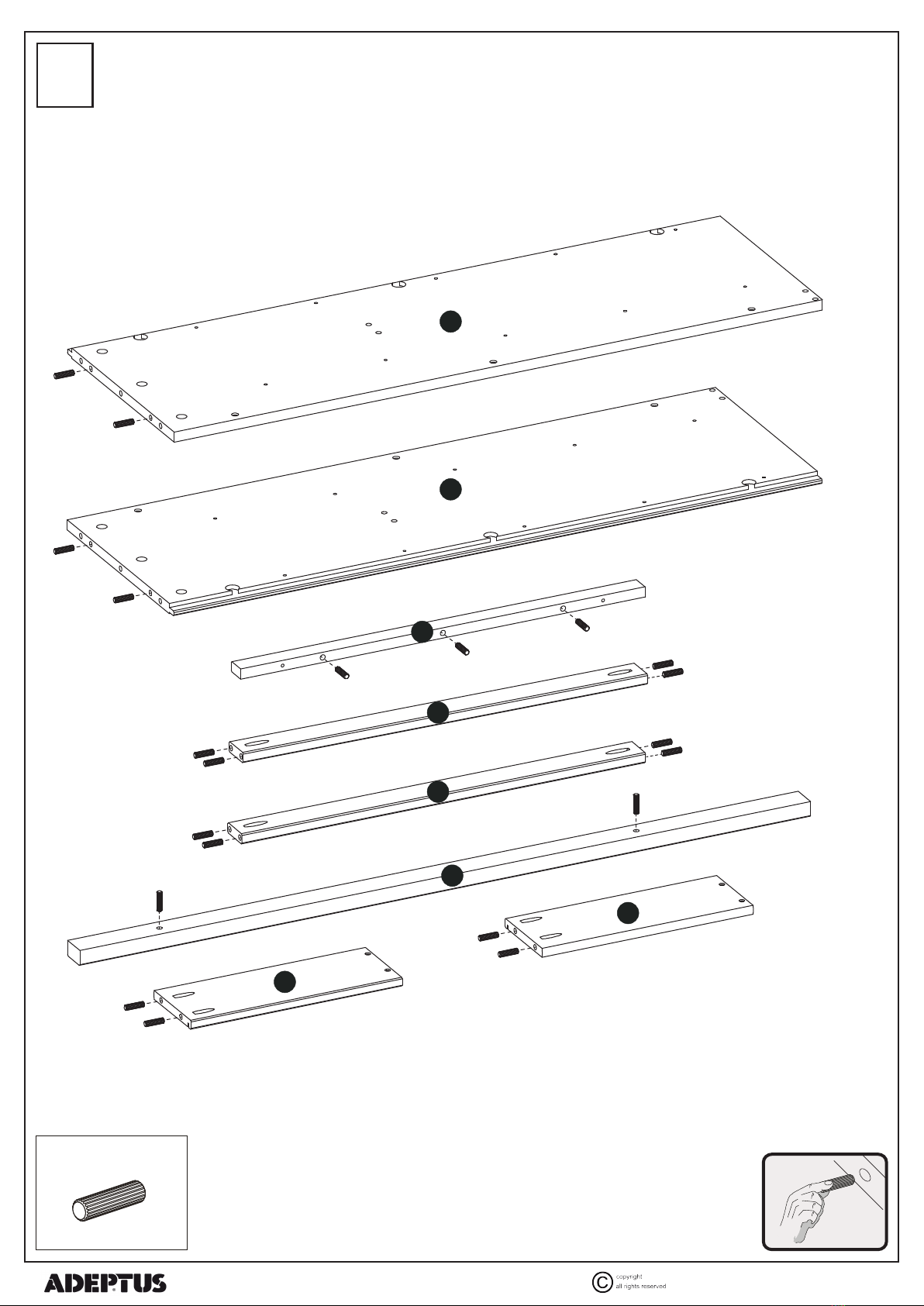

PREPARE PARTS FOR ASSEMBLY
INSERT DOWELS INTO THE PARTS, AS SHOWN.
A
A
A
A
A
A
A
A
AA
AA
AAA
A
A
A
A
A
A
02
03
08
10
09
07
14
15

2
NOTICE:THE WRITTEN INSTRUCTIONS CONTAINED HEREIN ARE COPYRIGHTED. 6-15
NOTICE:THE WRITTEN INSTRUCTIONS CONTAINED HERE IN ARE COPYRIGHTED.
B = 06
Screw
3.5x30mm
ATTACH SIDES PANELS AND BACK FEET
PLACE THE DOWELS FITTED IN THE HOLES ON THE SIDE, TAKE CARE OF THE FOOT DIRECTION AND
FIX IT WITH PART B.
BACK OF
UNIT
BACK OF
UNIT
02
07
03
07
B
B
B
B
B
B

3
NOTICE:THE WRITTEN INSTRUCTIONS CONTAINED HEREIN ARE COPYRIGHTED. 7-15
NOTICE:THE WRITTEN INSTRUCTIONS CONTAINED HERE IN ARE COPYRIGHTED.
F = 06
Screw
4.0x12mm
I = 06
ZirFix
1° 3°
6X
2°
6X 6X
II
F D
ATTACH SIDE PANELS AND FRONT FEET
FIT FOOT SIDE THROUGH CHANNEL, TAKE CARE OF FOOT DIRECTION, INSERT PART I AND FIX WITH
PARTS D AND F AS SHOWN.
BACK OF
UNIT
BACK OF
UNIT
D = 06
Screw
4.0x30mm
02
05
03
06
DF
I
DF
I
DF
I
D
F
I
D
F
I
D
F
I

4
5
NOTICE:THE WRITTEN INSTRUCTIONS CONTAINED HEREIN ARE COPYRIGHTED. 8-15
NOTICE:THE WRITTEN INSTRUCTIONS CONTAINED HERE IN ARE COPYRIGHTED.
L = 10
Screw (Drawer Runner
to Side Panel)
6.0x10mm
L = 10
Screw (Drawer Runner
to Side Panel)
6.0x10mm
O = 05 (Right Side)
Cabinet Right
CR
P = 05 (Left Side)
Cabinet Left
CL L L
P
LL
O

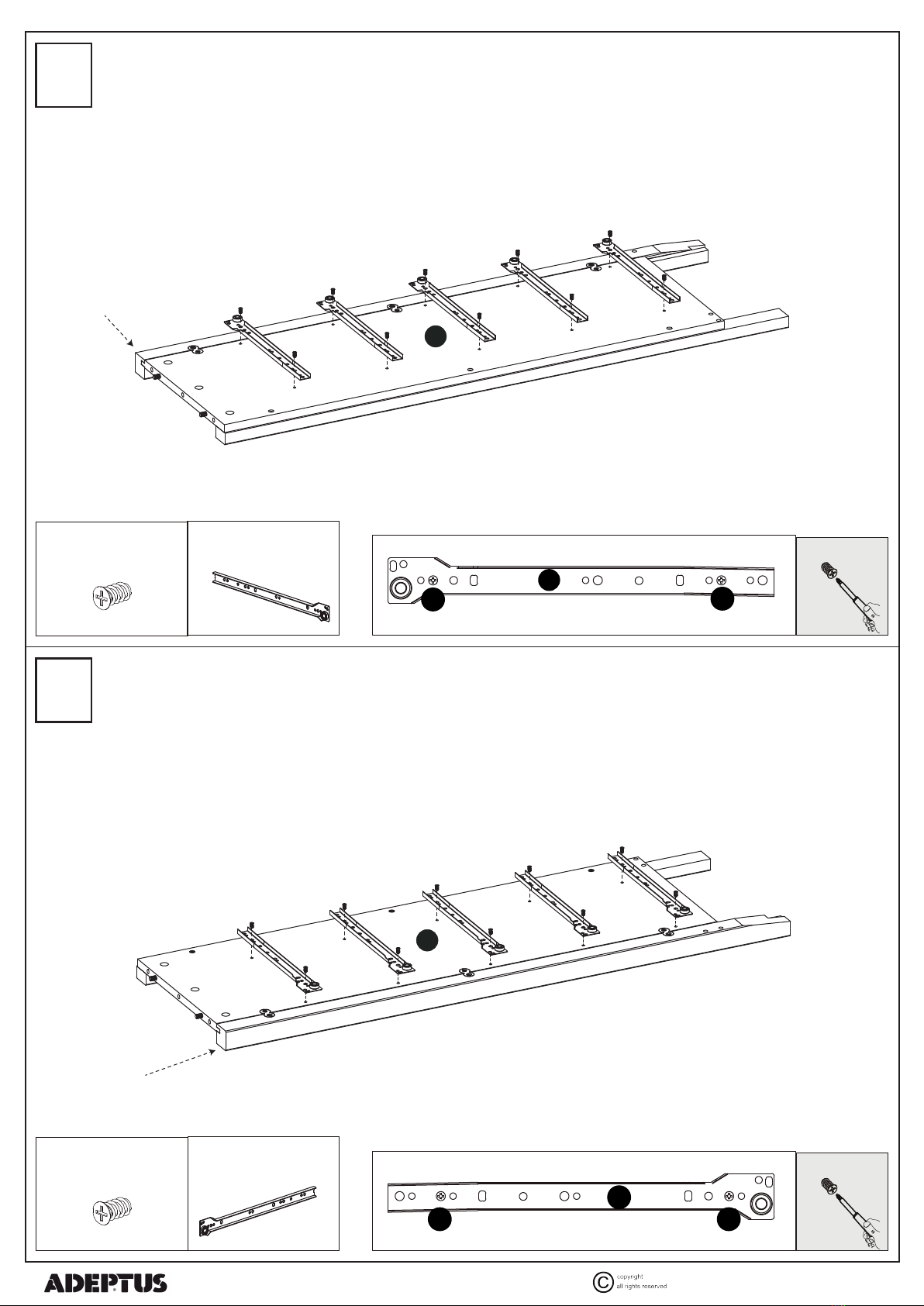

ATTACH DRAWER RUNNERS ON THE CABINET RIGHT SIDE PANEL
WITH THE WHEEL END OF THE RUNNER TOWARD THE FRONT (FINISHED) EDGE OF THE PANEL,
ALIGN THE PRE-DRILLED HOLE ACOORDING TO THE DIAGRAM AND TIGHTEEN WITH PART L.
ATTACH DRAWER RUNNERS ON THE CABINET LEFT SIDE PANEL
WITH THE WHEEL END OF THE RUNNER TOWARD THE FRONT (FINISHED) EDGE OF THE PANEL,
ALIGN THE PRE-DRILLED HOLE ACOORDING TO THE DIAGRAM AND TIGHTEEN WITH PART L.
FRONT OF
UNIT
FRONT OF
UNIT
L
OL
L
OL
L
OL
L
OL
L
OL
02
03
PL
L
PL
L
PL
L
PL
L
PL
L

6
7
NOTICE:THE WRITTEN INSTRUCTIONS CONTAINED HEREIN ARE COPYRIGHTED. 9-15
NOTICE:THE WRITTEN INSTRUCTIONS CONTAINED HERE IN ARE COPYRIGHTED.
B = 06
Screw
3.5x30mm
C = 02
Screw
4.0x40mm
C
C

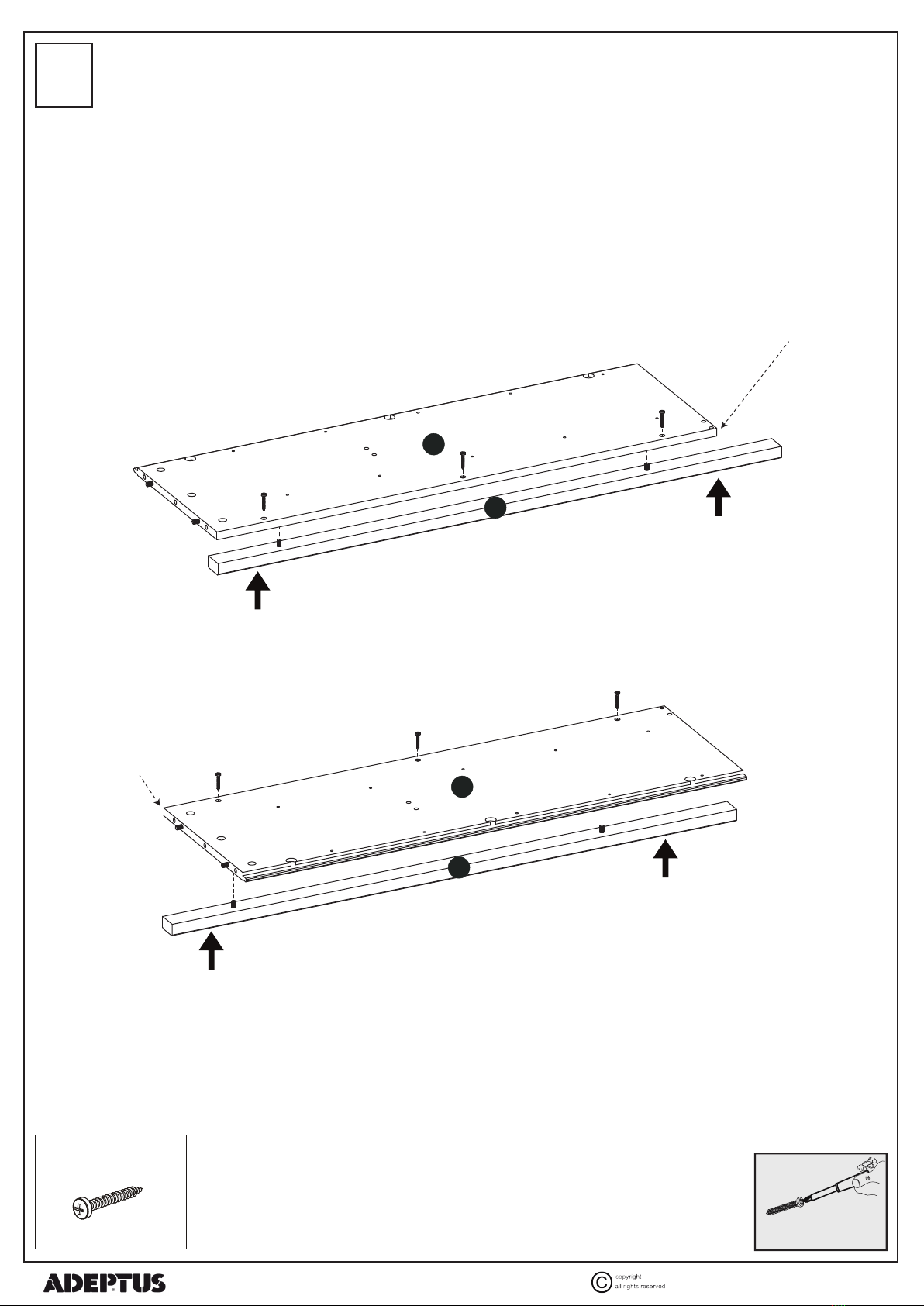

ATTACH CROSSBARS TO THE SIDE PANELS
1. ALIGN THE DOWELS IN THE CROSSBARS WITH THE DOWEL HOLES IN THE RIGHT SIDE PANEL. THEN
PUSH PARTS TOGETHER UNTIL FLUSH.
2. SECURE EACH CROSSBAR WITH ONE PART B.
3. REPEAT THE PROCESS ON THE LEFT SIDE.
ATTACH RAIL TO THE TOP PANEL
ATTACH FRONT CROSSBAR IN THE TOP PANEL USING THE PART C.
FRONT OF
UNIT
FRONT OF
UNIT
02
09
10
09
08
01
03
BB
BB
BB

ATTACH THE TOP PANEL WITH SIDE PANELS
ALIGN THE DOWELS AND MINIFIX IN THE SIDE PANELS WITH THE PRE-DRILLED HOLES IN THE TOP
PANEL, THEN THEY SHOW THE TOP OF MINIFIX IN THE HOLES ON THE SIDE, INSERT PART G AND
PRESS AS SHOWN IN THE DIAGRAM.
8
9
NOTICE:THE WRITTEN INSTRUCTIONS CONTAINED HEREIN ARE COPYRIGHTED. 10-15
NOTICE:THE WRITTEN INSTRUCTIONS CONTAINED HERE IN ARE COPYRIGHTED.
G = 06
Cam lock
H = 06
Minix Screw
OR
H
H
H
G
G
GG
G
G
H
H
H
ATTACH MINIFIX TO THE TOP PANEL
CAREFULLY CHECK THE HOLES INDICATED AND FIX PART H AS SHOWN.
TIP: Turning the
unit upside
down provides a
better angle to
tighten the
screws.
02
01
01
03
DO NOT FORCE OR
OVER-TIGHTEN THE
SCREWS. DOING SO
CAN DIFICULT THE
ASSEMBLE

10
NOTICE:THE WRITTEN INSTRUCTIONS CONTAINED HEREIN ARE COPYRIGHTED. 11-15
NOTICE:THE WRITTEN INSTRUCTIONS CONTAINED HERE IN ARE COPYRIGHTED.
J = 26
Back Panel Nail
JJJJJJJJ
J
J
J
J
J
J
J
J
J
J
J
JJJJJJJ
J
J
J

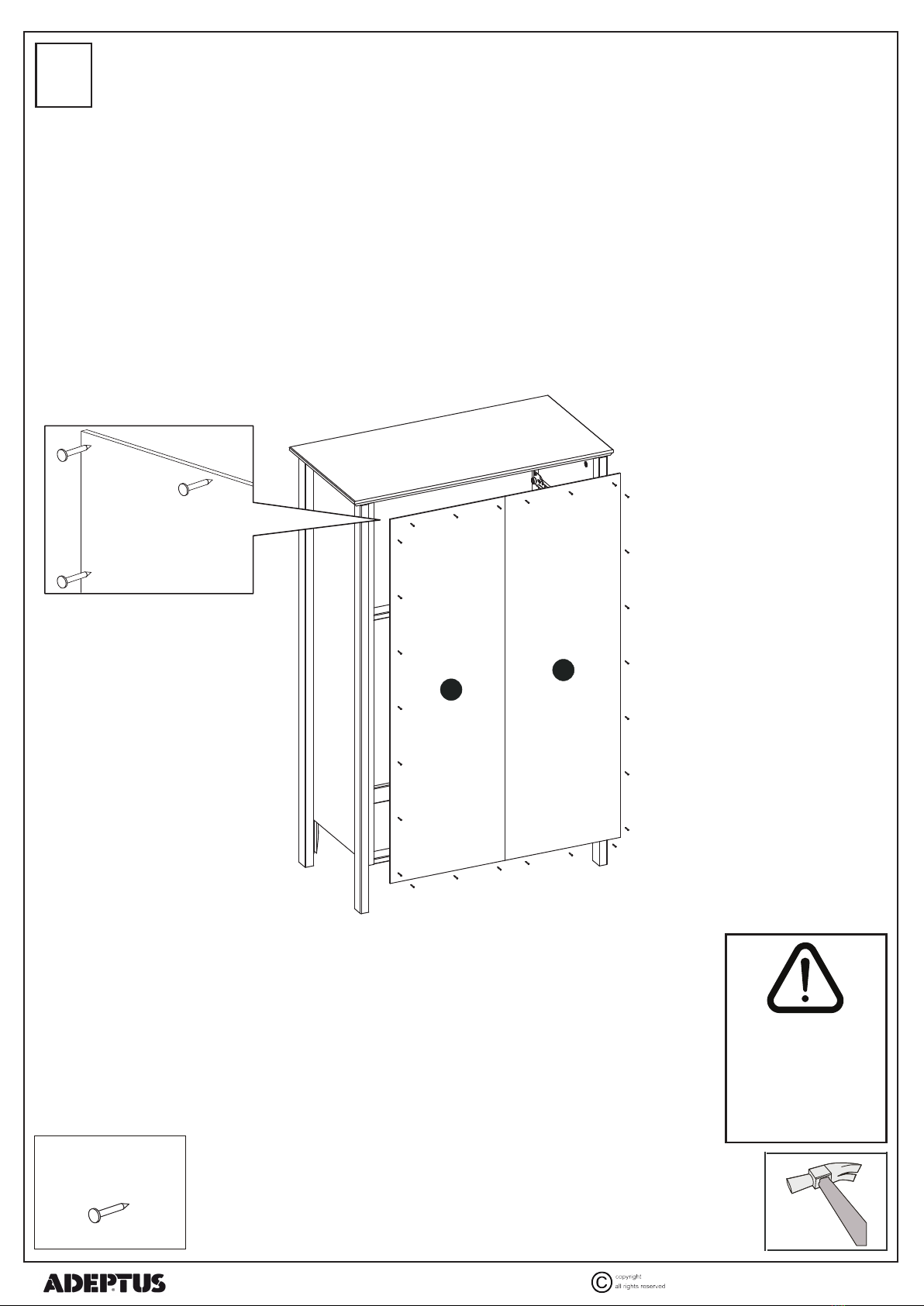

ATTACH THE BACK PANEL
1. UNFOLD THE BACK PANEL AND POSITION IT ON THE UNIT.
2. MAKE SURE THE BACK PANEL FITS INTO THE GROOVE ON THE BACK OF THE TOP PANEL.
3. SECURE THE BACK PANEL WITH THE BACK PANEL NAILS OBSERVING THE SQUARE.
Use all back
panels nails.
Evenly spaced,
they help make
the unit strong.
04
04

11
NOTICE:THE WRITTEN INSTRUCTIONS CONTAINED HEREIN ARE COPYRIGHTED. 12-15
NOTICE:THE WRITTEN INSTRUCTIONS CONTAINED HERE IN ARE COPYRIGHTED.
B = 01
Screw
3.5x30mm
E = 01
Screw (Drawer Runner
to Drawer side & anti-tip)
3.0x16mm
K = 02
Anti-Tip Bracket
M = 01
Wall Anchor
Q = 01
Anti-Tip Strap
Q
M
K
B
E
K

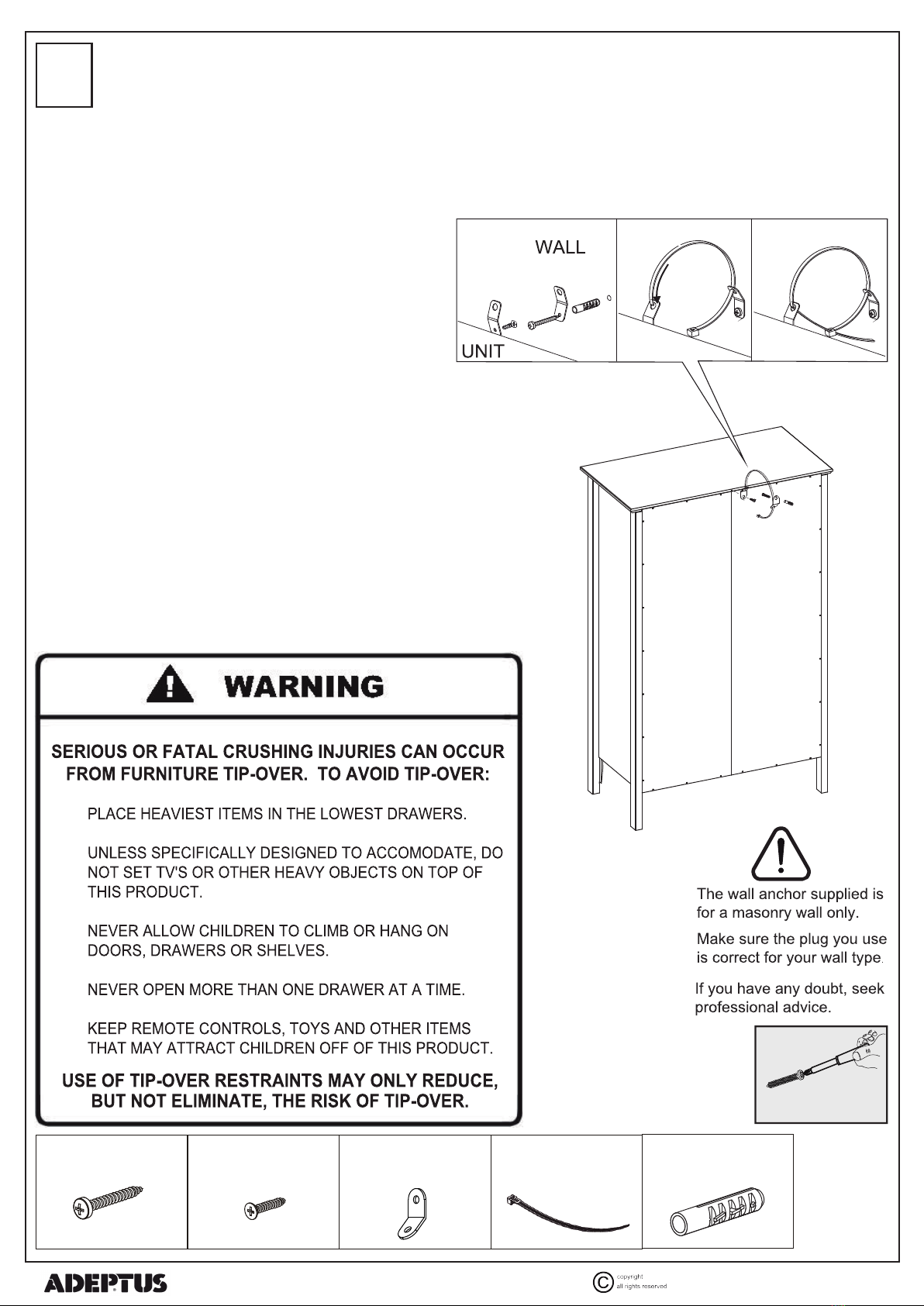

SECURE THE UNIT TO THE WALL WITH THE ANTI-TIP KIT
1. INSERT THE ANCHOR INTO THE WALL
APPROXIMATELY 1189MM (46,8IN) FROM THE
FLOOR (ADJUST FOR CARPET OR RUG
THICKNESS IF APLICABLE).
2. FEED PART B THROUGH THE SMALLER
HOLE IN THE BRACKET AND SECURE INTO
THE WALL ANCHOR. THE OTHER END OF
THE BRACKET SHOULD BE UPWARD.
3. FEED PART E THROUGH THE SMALLER
HOLE IN THE OTHER BRACKET AND SECURE
THROUGH THE BACK PANEL AND INTO THE
CENTER OF THE TOP PANEL. THE OTHER
END OF THE BRACKET SHOULD BE UPWARD.
4. FEED THE STRAP THROUGH THE LARGER
HOLE IN THE WALL BRACKET FROM
UNDERNEATH. BRING THE STRAP OVER TO
THE UNIT BRACKET AND THROUGH THE
HOLE FROM ABOVE.
5. INSERT THE POINTED END OF THE STRAP
INTO THE CLASP END OF THE STRAP AND
TIGHTEN DOWN.
SEE THE ENLARGED DIAGRAMS TO ENSURE
PROPER INSTALLATION.
•
•
•
•
•
•
•
•

12
NOTICE:THE WRITTEN INSTRUCTIONS CONTAINED HEREIN ARE COPYRIGHTED. 13-15
NOTICE:THE WRITTEN INSTRUCTIONS CONTAINED HERE IN ARE COPYRIGHTED.
B = 40
Screw
3.5x30mm
C = 10
Screw
4.0x40mm
N = 10
Knob
B
B
B
B
B
B
B
C
NN
C
B
ASSEMBLE 5X DRAWER BOX
IMPORTANT: MAKE SURE THE GROOVES IN THE DRAWER FRONT AND BOTH SIDES ALL ALIGN BEFORE
TIGHTEENING THE SCREWS.
1. ALIGN THE DOWELS
IN THE DRAWER SIDES
WITH THE PRE-DRILLED
HOLES IN THE DRAWER
FRONT AND PUSH UNTIL
THE PARTS ARE FLUSH.
2. USE THE DRAWER BACK
TO SUPPORT THE DRAWER
SIDES. THEN SECURE THEM
TO THE DRAWER FRONT.
3. REMOVE THE DRAWER
BACK.
4. SLIDE IN THE DRAWER
BOTTOM. MAKE SURE IT
IS ALL THE WAY FORWARD
& IN THE GROOVE ON THE
DRAWER FRONT.
5. MAKE SURE THE DRAWER
BOTTOM IS IN THE GROOVE
IN THE DRAWER BACK AND
THE DRAWER BACK IS FLUSH
WITH THE DRAWER SIDES.
SECURE WITH 2 PART C ON
EACH SIDE.
6. ATTACH THE KNOBS TO
THE DRAWER FRONT.
13
12
11
15
14
11
11

INSERT THE DRAWERS IN THE UNIT
1. START AT THE BOTTOM AND WORK UP.
2. HOLDING THE FRONT END OF THE DRAWER SIDES, TILT THE BACK OF THE DRAWER UPWARDS TO
GET THE WHEELS ON THE DRAWER PAST THE WHEELS ON THE UNIT. ONCE THE WHEELS ARE CLEAR,
LEVEL OUT THE DRAWER AND SLIDE IT IN.
13
14
NOTICE:THE WRITTEN INSTRUCTIONS CONTAINED HEREIN ARE COPYRIGHTED. 14-15
NOTICE:THE WRITTEN INSTRUCTIONS CONTAINED HERE IN ARE COPYRIGHTED.
E = 30
Screw (Drawer Runner
to Drawer side & anti-tip)
3.0x16mm
O = 05 (Right Side)
Drawer Right Runner
DR
P = 05 (Left Side)
Drawer Left Runner
DL
EE
E
DL
DR
EE
E
ATTACH 5X DRAWER RUNNERS
1. POSITION THE RIGHT DRAWER RUNNER “DR” WITH THE WHEEL TOWARD THE BACK OF THE DRAWER
AND THE FRONT END ALL THE WAY FORWARD TOUCHING THE DRAWER FRONT.
2. FIRST SCREW GOES IN THE THIRD HOLE BACK FROM THE DRAWER FRONT.
3. SECOND SCREW GOES IN THE FIFTH BACK HOLE FROM THE DRAWER FRONT.
4. THIRD SCREW GOES IN FROM THE SIDE THROUGH THE FIRST HOLE IN FRONT OF THE WHELL.
5. REPEAT THE PROCESS ON THE LEFT SIDE AND FOR EACH DRAWER.
DO NOT STORE HEAVY
ITEMS IN THE TOP
DRAWERS. HEAVIER ITEMS
SHOULD BE STORED IN THE
LOWER DRAWERS TO
REDUCE THE POSSIBILITY
OF TIP-OVER.

NOTICE:THE WRITTEN INSTRUCTIONS CONTAINED HEREIN ARE COPYRIGHTED. 15-15
NOTICE:THE WRITTEN INSTRUCTIONS CONTAINED HERE IN ARE COPYRIGHTED.
01.07.2022 - Rev. 0
COMPLETED ASSEMBLY:
THANK YOU FOR YOUR PURCHASE, AND WELCOME TO ADEPTUS!
CARE INSTRUCTIONS:
NORMAL USE: WIPE WITH A CLEAN CLOTH.
WHEN NEEDED TO CLEAN SCUFFS: WIPE CLEAN WITH A SLIGHTLY DAMP CLOTH AND A MILD
CLEANSER. THEN WIPE DRY WITH A CLEAN CLOTH. DO NOT USE HARSH CHEMICALS.
OCCASIONALLY CHECK THAT THE SCREWS IN THE UNIT REMAIN TIGHT.
USE:
CHEST OF DRAWERS FOR HOME STORAGE OF LINENS, CLOTHING AND ACCESSORIES.
