1. INTRODUCTION
The Owner’s manual, which you received together with a boat, will help you to operate your
motor boat COA TER 600 BOW RIDER safely and appropriately so you may use it with a
pleasure. Manual contains the description of the boat, its equipment and installation systems
as well as practical information about their use and maintenance.
Read the information carefully before using the boat.
This Owner's Manual is not a detailed guide boat maintenance or troubleshooting. In case of
difficulties, contact to your manufacturer or his dealer.
Always employ trained and competent people for maintenance or repairs.
Repairs which may impact on safety characteristics of the boat should be evaluated, carried
out and as documented by competent people.
Boat manufacturer not responsible for the modifications made after with his consent,
therefore, any modification of boat shall be repeal entitled to guarantees.
Always keep your boat in good condition and Take into account the deterioration of that will
followed over time and as a result intensive use or improper handling of the boat.
Each boat, regardless of how it is strong, can be severely damaged if is not properly used.
Always adjusting the speed and direction of the boat to the conditions on the waters.
This manual is for the owner is not a course for safe yachting or sailing skills.
If this is your first boat or if you change the type, you do not know, for your own comfort and
safety, make sure that you got experience in leading the boat and its operation. Your dealer,
national sailing federation or boats club is pleased to provide you with information on local
marine schools or competent instructors.
With wishes of successful cruises
Corsiva Yachting
*) We are an intensively developing company and our boats are constantly improved, therefore, some of the solutions and
information included in this Manual might not apply to your boat.
PLEA E KEEP THI OWNER' MANUAL
IN THE AFE PLACE
AND HAND IT OVER TO A NEW OWNER WHEN
YOU ELL THE BOAT

3
2. TAGE OF DANGER
The manual contains three kinds of sign, which are supposed to turn your attention to the
actions and situations which may cause danger for health or life if not realized.
Following:
DANGER
The sign warns before appearing the highest danger, which can cause the
durable damage of body or death unless the appropriate safety actions are
taken.
WARNING
The sign warns before appearing
the danger, which can cause the durable
damage of body or death unless the appropriate safety actions are taken.
CAUTION
The sign reminds about applying the safety behavior or turns attention to
inappropriate behavior, which may result in the injuries
of body, the damage to
the boat as well as its elements or damages to the natural environment.
A warning sign used in accordance with PN-EN ISO 1119 Graphical symbols

4
3. GENERAL AFTY RULE
3.1. afety
Even if it all planned the safety of the sailing remains heavily dependent on the weather, sea
conditions and the experience and knowledge of the crew.
Always check to-date weather forecast before leaving and see that the circumstances should
be expected to the category of construction of the boat.
Before you prepare your boat for sailing, check local legislations under which the waters what
restrictions apply.
Check the restrictions for swimming; speed limit, restrict the use of outboard noise reduction,
etc..
timulants
Never swim under the influence of alcohol or drugs.
The combination of noise, vibration, sun, wind and water movement causes fatigue. The
effects of alcohol on the water are worse than on land.
3.2. Passengers on board
During the boarding of passengers, stop the engine.
By moving the lever of engine to the neutral position is not sufficient.
The helmsman of the is responsible for passengers and cargo.
Do not overload the boat.
The boat are evaluated relative to the maximum load and capacity.
If in doubt, contact your dealer or the yacht manufacturer.
WARNING
timulants and shipping not go hand in hand. Operate a boat
while under the
influence of
drunkenness or other means is illegal and dangerous. Weakening
eyesight or assessment of the situation could lead to disaster
WARNING
Do not allow anyone to sit on the parts of the boat in places not intended for.
In particular, seatbacks, colon, transom, bow, or anywhere that an unexpected
acceleration or sudden stop will cause a person falls overboard or into the
interior of the boat.
WARNING
Always turn off the engine when the boat is located near people in the water.
Even at low engine power screw can cause serious injury.

5
3.3. Life-saving equipment
On the boat should be appropriate safety equipment (life jackets, safety harnesses, etc.) as
appropriate to the type of boat, weather conditions, etc. In some countries it is Required
equipment.
Carefully read the manual of a life raft.
The crew should be familiar with the use of all equipment safety and emergency maneuvering
(man overboard, towing, etc.). sailing schools and clubs regularly organize training sessions.
All persons should wear appropriate rescue measures (lifejackets / buoyancy aids), while they
are on board. Please note that in some countries there is a legal requirement to wear a
permanent rescue means that meets the requirements of their national legislation.
3.4. Reboarding
Every boat its designed to minimize the risk of falling
overboard and facilitate reboarding.

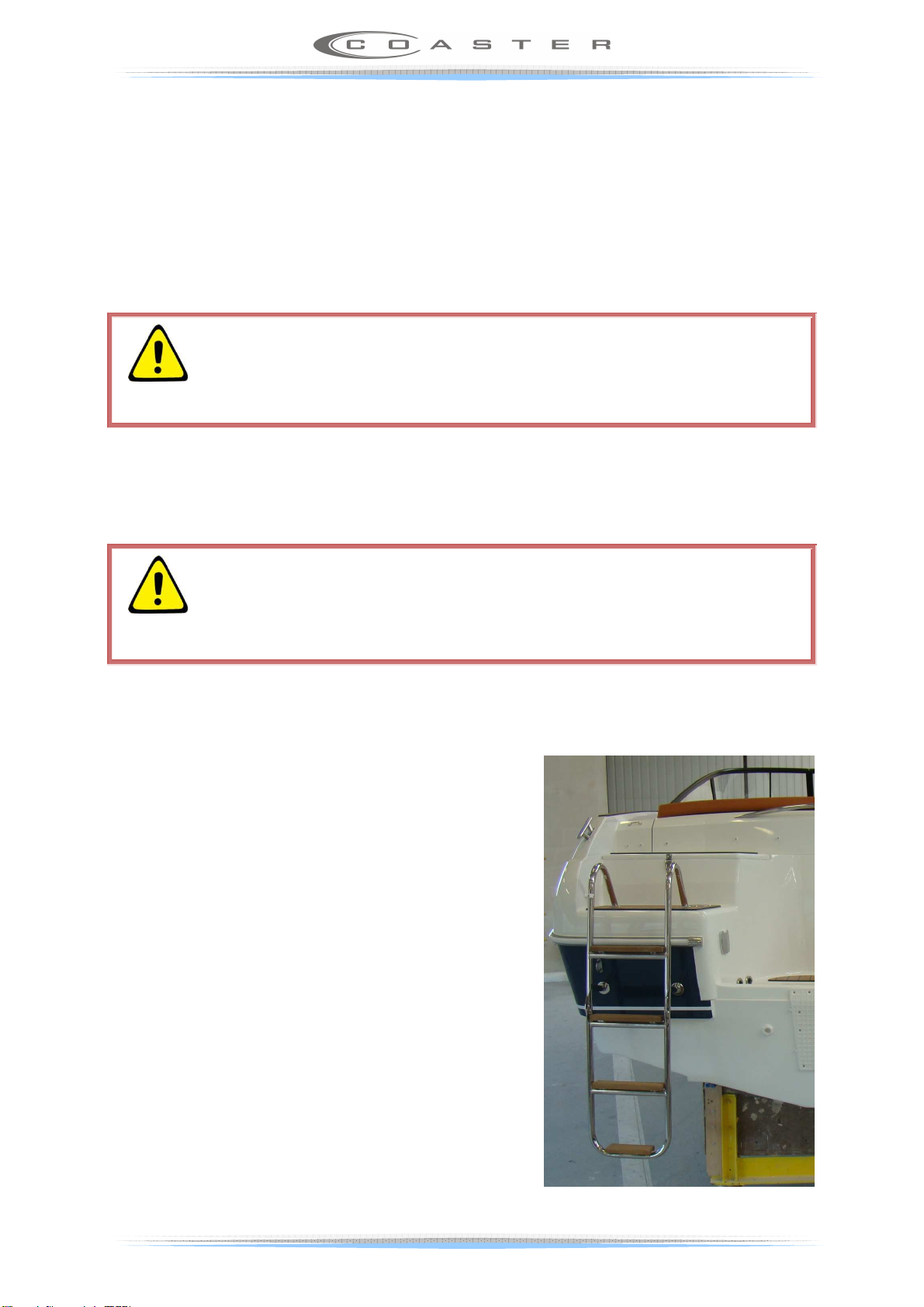

Depending on the customer wish manufacturer
provides two solutions for ease of return man on board:
WARNING
Read instructions carefully contained on the life jackets label and follow it.
Checking the condition of life jackets, make sure it fits in the body.
Try vest before you fall into the water.
WARNING
It is important that children and unwary people who can
not swim were wearing
life jackets. Children who can
not swim and require special instruction on how to
use life jackets

6
4. IDENTIFICATION OF BOAT
The boat COA TER 600 BOW RIDER was manufactured by COR IVA according to applicable
requirements of Annex I to Directive 2013/53/UE of European Parliament and of the Council,
Recreational craft and personal watercraft.
The boat COA TER 600 BOW RIDER was put to the test by Polish Register of hipping
according with applicable requirements of Annex I to Recreational Craft Directive 2013/53/UE
for design category C.
The design category C - IN HORE defines the craft has been designed for sailing in coastal
waters, bays, lakes and the rivers, where conditions up to and including be a typical wind
force Beaufort Force 6
o
and significant wave heights up to and including to 2 meters.
uch conditions may be encountered on open inland waters, estuaries and coastal waters in
moderate weather conditions.
4.1. Craft identification number (CIN)
The boat COA TER 600 BOW RIDER has two places with the same identification number. First
one is placed on the right side of a transom, second one is hidden inside the construction of
boat in a place only known to his manufacturer. CIN is needed to identify a boat in case it was
stolen.
P L - C O R 5 7 D 4 5 C 6 1 6
The craft identifications number includes:
PL – Country code
COR – Manufacturer’s identification
57D45 – erial number
C – Production month (A–January, B–February, C–March, etc.)
6 – Production year (e.g. 2015 – 5, 2016 – 6)
16 – Model of year (e.g. 2015 – 15, 2016 – 16)

7
4.2. Builder's plate

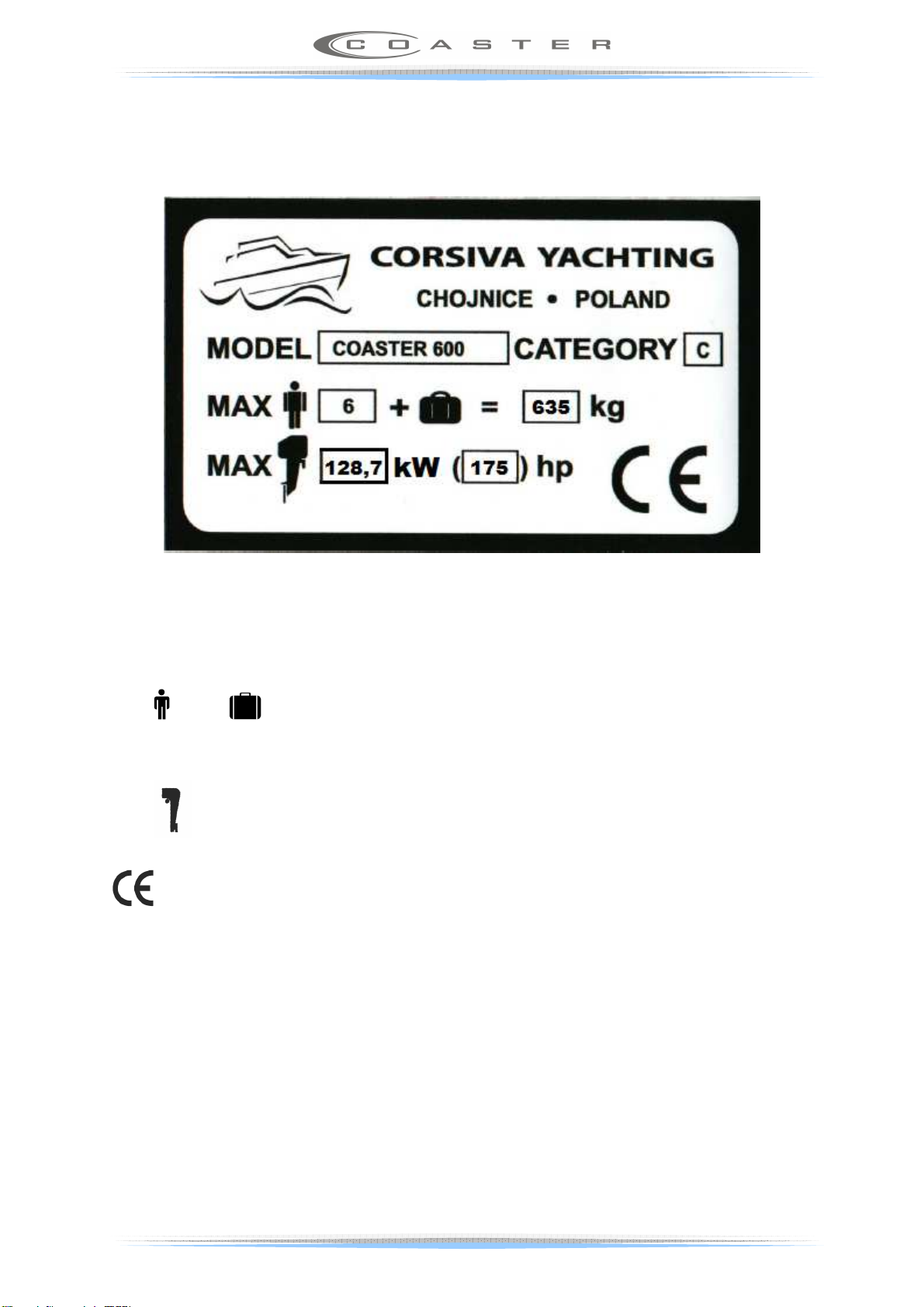

In the cockpit of COA TER 600 BOW RIDER there is placed the builder’s plate.
The builder’s plate includes:
C Yacht design category – „IN HORE”.
max. x 6 +
Max. number of people and personal equipment which cannot
cross the boat capacity definite by the manufacturer, which
includes: 6 people + personal equipment
max.
Max. power of outboard engine (kW).
The CE sign is the confirmation that the boat complies applicable
requirements Recreational Craft Directive 2013/53/UE
Recreational craft and personal watercraft.
4.3. Declaration of Conformity of Recreational Craft
Conformity assessment includes all information which are established for market controlling
institutes.
In Declaration of Conformity the manufacturer is issued under the sole responsibility that the
boat complies with all applicable requirements of the Directive.

8
5. TABILITY AND BUOYANCY

9
Remember:
any change in arrangement of the masses on the side (eg. The addition of a fishing tower,
a change in the engine etc.) can significantly affect the stability, trim and behavior of the
boat,
amount of bilge water should be as small as possible,
stability is decreased by adding any high-mounted weight
gaps in bad weather, lockers, doorways should be closed to minimize the risk of flooding,
stability may be reduced when towing.
air chambers can’t be pierced,
breaking waves are a serious threat to stability.
DANGER
Information about stability and freeboard, floatation and buoyancy is fulfilled
only when:
The weight of empty boat with equipment (with engine) does
not exceed
1365 kg,
The maximum power of engine does not exceed 128,7 kW
CAUTION
The fulfillment of the requirement of stability and freeboard as well as buoyancy
and flotation does not guarantee the boat will not overturn or sink if all
criteria
of exploiting the boat are not kept.
The helmsman of boa
t is responsible for complying to proper sea practice in
reference to safety of crew and boat.

10
5.1. Weight of boat and maximum capacity
Weight of an empty boat + engine (for transport on a trailer) 1365 kg
Total weight of boat including crew and equipment 2047 kg
Weight yacht in operating condition
(outboard engine + fuel + water + instrumentation)
1537 kg
Maximum exploitation load
(6 persons + personal + equipment + inventories)
510 kg
The maximum recommended load takes into account the weight of all persons on the boat,
all stocks and personal items, all the equipment is not included in the weight of the empty
boat, cargo (if any) and all of consumable liquids (water, fuel, etc.).
The total mass of liquid when all permanently installed tanks are full, is :
• fuel tank 116 L,
• water tank 56 L,
CAUTION
Never cross the safety limit definite by constructor in refer
ence to the maximum
load of boat.
COA TER 600 BOW RIDER can accommodate maximum 6 people + fuel,
+ water
+ equipment + gear + outboard engine
maximum 1050 kg.
WARNING
By loading the boat, never exceed the maximum recommended load.
Always carefully loads the boat
and properly placed weights to maintain design
trim (approximately equal to the keel).
Avoid placing heavy weights high.

11
6. DE CRIPTION OF BOAT
The yacht is made of durable glass-reinforced laminate as a monolithic construction and of
high class materials, guaranteeing trouble-free use of boat for years.
COA TER products are applied with such technical solutions which allow to get the optimal
stability, reliability and control at the swerves as well as safety at overcoming waves.
5.1. Technical data
The boat is full deck design outboard.
Length of the hull 5,60 m
Beam of the hull 2,50 m
Draft 0,40 m
Displacement with maximum loaded 2047 kg
Displacement light craft condition 1000 kg
Maximum load 1050 kg
Fuel tank 116 L
Water tank 56 L
Maximum engine power 128,7 kW / 175 HP
Crew 6 people

12
7. ENGINE
If a customer wishes, the boat is sold
with outboard engine placed in the well
in cockpit.
In other cases, the manufacturer leaves
routed wiring in the engine sump to the
dealer or customer in the future he
could connect the motor (photo).
To drive the boat, you should apply the
motor with the maximum power
recommended by manufacturer of the boat – max. 128,7 kW. The engine might be with a
long column.
Cavitation of screw reduces the engine efficiencyand and in consecuence the towing power.
The excessive diving of engine introduces the additional resistance of hull, which reduction
the sailing speed.
CAUTION
Always follow the rules of maintenance and service included in the owner’s book
by the engine manufacturer, in particular:

apply the suitable fuel or the mixture with the proper proportion of oil and
the fuel,
check the level of fuel tank before starting the engine,

after starting the engine check if the cooling water is carried away through
the exhaust,
after turning the engine off, close the vent valve of fuel tank,
do not make any noise or waves in the harbor, do not exceed the speed limit,
follow the manufacturer’s instructions while usage, maintenance and wi
nter
storage of the yacht,

do not use the engine with power exceeding the acceptable power of the
boat.
CAUTION
Carry out the inspection of driving screw after its intensive exploitation. It will
prevent the damage, let to keep the screw in good state and lengthen the
vitality of engine.
wim to the shallow shore, especially stern can lead to damage or loss of the
lower part of the engine.

13
8. TEERING Y TEM
8.1. ystem of steering the boat
ystem of steering the boat’s rudder by
the steering-wheel.
teering with an engine is regulated with
the engine throttle, which is placed on the
right side in cockpit.
The throttle changes the speed and the
direction of driving screw.
The control handle has a neutral button,
which allows you to run and heat the
engine before switching gears.
At the same time they have a standard
safety switch that prevents starting the engine when switching the gearbox.
The throttle changes the speed and the direction of driving screw.
The single throttle installed on the helmsman's right
hand is used to:
change the direction of driving screw rotation,
increase or decrease the engine rotations,
emergency stop of engine.
N – neutral position – the position of throttle lever to
starting of engine.
F – Forward gear – be indicated to move lever from
position N to F very slowly.
R – Reverse gear
– shouldn’t suddenly remove lever
from position N to R – it can damage the gear.
You should lose speed of yacht before move the lever
to position R.

14

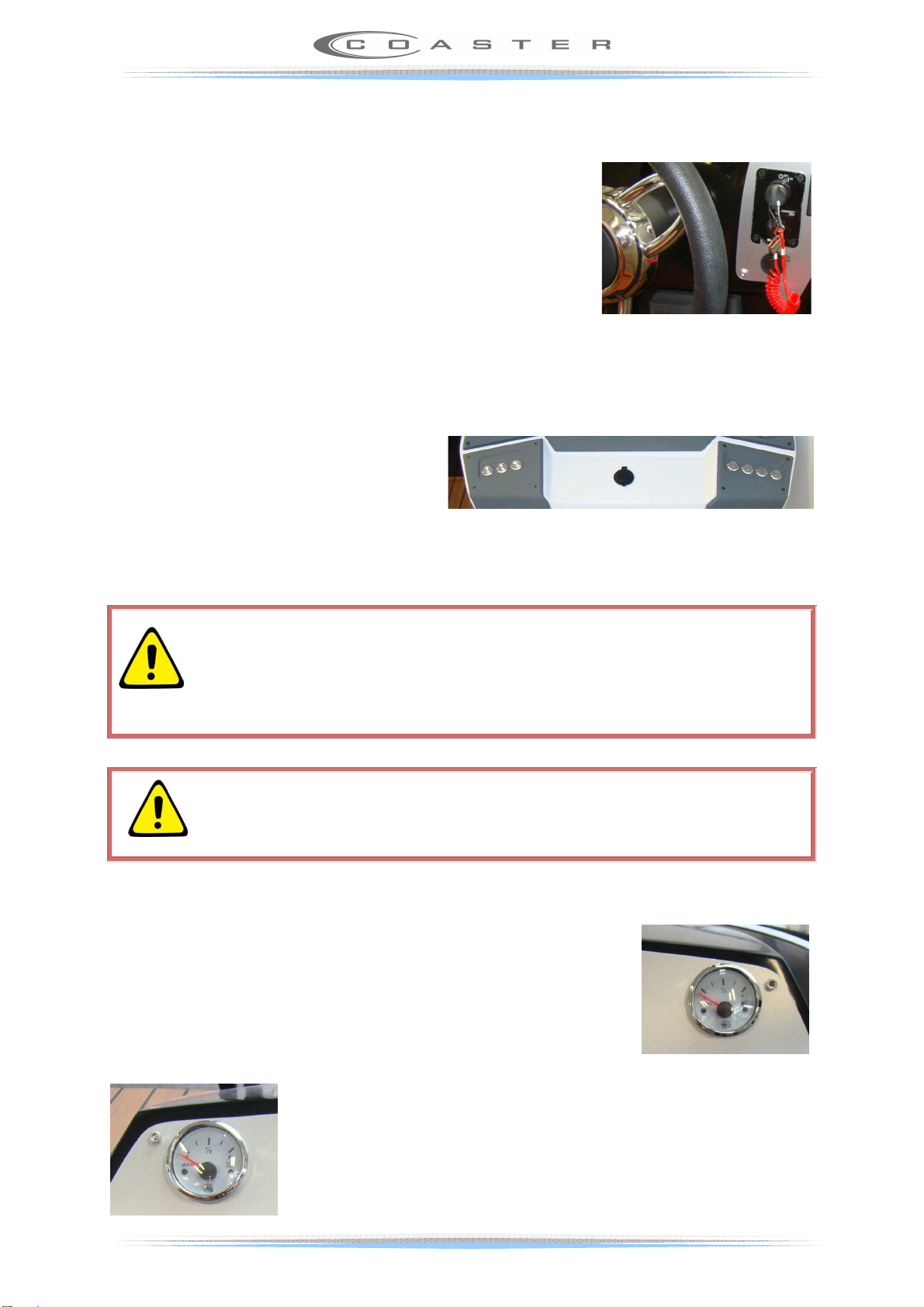

Navigational aids. Current receiver.
Engine switch of
The emergency switch which stop the engine in moment of
danger, for example: in moment of overboard the helmsman.
You can’t it use in normal stop of the engine.
Navigation lights.
Navigation lighting is the same as positional lamps, which is: side lights, stern light, top light
and anchor light. They have to be switched on (in accordance with the right of road) at night
when the boat moves or when it stands on anchor.
Navigation lights control is done with the
dashboard / control panel.
Bilge pump switch
Operates the work of bilge pump - through temporary switching on.
Fuel gauge
It indicates the amount of fuel in the tank in liters. The indication
depends on the position of the boat.
Water gauge
It indicates the amount of ester in the tank in liters. The indication
depends on the position of the boat.
DANGER
Never use the anchor light and engine light at the same time.
Never operate the boat
at night or in poor visibility without the proper lighting.
Turned on proper navigation lights in accordance with
COLREG protect you and
the boat.
CAUTION
Check proper working of navigation lights before sailing and make sure that the
boat has always a spare bulb of the same power.

15
8.2. ystem of steering
Boat COA TER 600 BOW RIDER is equipped with a mechanical or hydraulic control boat,
depending on the customer's order.
Mechanical control system
for
the boat consists of
:
Hydraulic
control system
for
the boat consists of
:
steering wheel,
gear,
steering links.
steering wheel on the control station,
hydraulic pump,
flexible pressure hoses and fittings,
 hydraulic cylinder.
8.3. Field of visio from helm position
Helmsman of boat should be assured with the wide angle of sight from the main steering
position.
CAUTION
The control system requires periodic inspection, especially pay attention to:
proper conduct of steering links,
safe connection to the steering wheel.
In the event of any failure of the control system immediately contact the
manufacturer of the boat.
Lack of maintenance or improper maintenance will trigger
the loss of control of
the boa
t when sailingand consequently can lead to personal injury or death of
crew members.
CAUTION
For safety reasons, a helmsman of a boat should pay particular attention to:
weight of load and its location,
speed,
sudden acceleration,
state of water area,
weather conditions, such as: rain, drizzle, fog,
lighting of a boat at dusk and night,
people and moveable elements around the steering area.

16
9. FUEL Y TEM
The boat is equipped with a
stationary fuel tank made of
plastic with capacity of 116L,
which is placed under the
deck. Inspection of the tank
can be made through the aft
compartment.
The fuel tank has a fuel gauge
on pulpit.
Every fuel of tank is made
according to PN EN I O 10088
and have sign CE.
DANGER
Explosion and fire hazard
Never:
smoke, or use open fire while fueling or when you work over the system fuel.
use the open fire to check the tightness of fuel tank,
keep the fuel or flammable substances in tightly closed compartment,
cover the ventilating checks of compartment in which is the fuel tank.
They
should be still open, that vapours of fuel could not gather.
WARNING
Check regularly the fuel installation – minimum twice a year.
When you notice, that the state of fuel installation get worse or damage you
should immediately change affected elements.
WARNING
When you detect the leakage of fuel close the fuel valve and repairs system
before starting operation.
The fuel system should be repaired by the competent person system.
CAUTION
Always
Follow to engine manufacturer instruction of service of engine
You guard against by errors and retain full rights to the guarantee.

17
10. ELECTRIC IN TALLATION
The boat is equipped with electric installation of direct current = 12V.
The main source of the boat is the battery with a capacity of 30 Ah to 72 Ah.
As an option, is on board the second battery when on boat is mounted a anchor winch.
The batteries are located in the back locker, on the right and left.
Before cruise, check the battery charge status.
Battery starboard Battery left side (optional)
Distributed voltage from battery is protected by fuses, whose function is to interrupt the
continuity of the electrical circuit in case of a sudden impact of current, by melting of one of
its elements.
The panel with more fuse is located inside console (inspection door to the right) - this is
opposite the steering wheel.
Panel with less of fuse is located under the rear hatch of compartment in the cockpit.
CAUTON
Always:
check the battery and level of charging before sailing,
take battery off from a boat before winter season or bef
ore long time when
boat will not be exploited.

18
Main switch of batteries
It includes electric circuits or it switches off it in emergency situations. His place is on the near
battery in compartments.
cheme of electric installation*
*) cheme of electric installation depends on the equipment ordered by customer.
CAUTION
Never:
work on the live electric installation,
modify the craft’s electric system or
relevant schemes; any modifications and
maintenance should be performed by a qualified marine electric technician,
leave the boat unattended with the working electric system.
CAUTION
Remember, before starting work, turn off the main power switch!

19
