Product Manual
9415DA-OM (V1.0)
Cobalt Digital Inc.

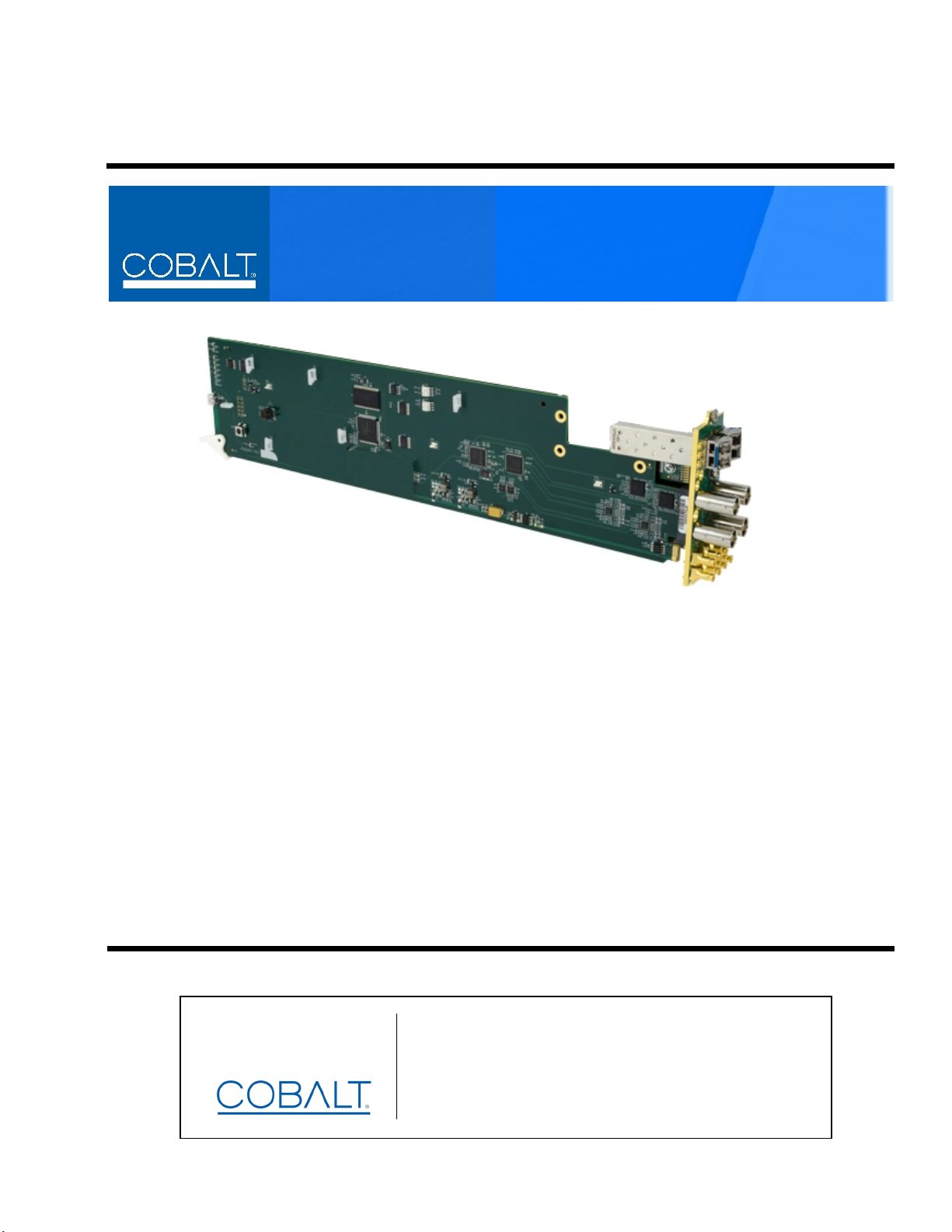

3G/HD/SD-SDI / ASI / MADI Reconfigurable Video SFP
Transceiver/Distribution Amplifier
with Full-Flexibility Crosspoint and Externally-Accessible SFP Module
9415DA-SFP
9415DA-SFP

Copyright
©Copyright 2016, Cobalt Digital Inc. All Rights Reserved.
Duplication or distribution of this manual and any information contained within is strictly prohibited without the express written
permission of Cobalt Digital Inc. This manual and any information contained within, may not be reproduced, distributed, or
transmitted in any form, or by any means, for any purpose, without the express written permission of Cobalt Digital Inc.
Reproduction or reverse engineering of software used in this device is prohibited.
Disclaimer
The information in this document has been carefully examined and is believed to be entirely reliable. However, no responsibility
is assumed for inaccuracies. Furthermore, Cobalt Digital Inc. reserves the right to make changes to any products herein to improve
readability, function, or design. Cobalt Digital Inc. does not assume any liability arising out of the application or use of any
product or circuit described herein.
Trademark Information
Cobalt®is a registered trademark of Cobalt Digital Inc.
openGear®is a registered trademark of Ross Video Limited. DashBoard™ is a trademark of Ross Video Limited.
Dolby®is a registered trademark of Dolby Laboratories, Inc. Other product names or trademarks appearing in this manual are the
property of their respective owners.
Congratulations on choosing Cobalt®9415DA-SFP 3G/HD/SD-SDI / ASI / MADI Reconfigurable Video SFP
Transceiver/Distribution Amplifier with Full-Flexibility Crosspoint and Externally-Accessible SFP Module.
The 9415DA-SFP is part of a full line of modular processing and conversion gear for broadcast TV
environments. The Cobalt Digital Inc. line includes video decoders and encoders, audio embedders and de-
embedders, distribution amplifiers, format converters, remote control systems and much more. Should you
have questions pertaining to the installation or operation of your 9415DA-SFP card, please contact us at the
contact information on the front cover.
Manual No.: 9415DA-OM
Document Version: V1.0
Release Date: November 21, 2016
Applicable for
Firmware Version
(or greater): v1.0.11
Description of
product/manual
changes: - Initial releease
9415DA-OM (V1.0)

9415DA-OM (V1.0) 9415DA-SFPPRODUCT MANUAL i
Table of Contents
Chapter 1 Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1
Overview ................................................................................................................ 1-1
9415DA-SFP Card Software Versions and this Manual ........................................ 1-2
Cobalt Reference Guides........................................................................................ 1-2
Manual Conventions............................................................................................... 1-3
Warnings, Cautions, and Notes .................................................................. 1-4
Labeling Symbol Definitions...................................................................... 1-4
Safety and Regulatory Summary............................................................................ 1-5
Warnings..................................................................................................... 1-5
Cautions...................................................................................................... 1-5
EMC Compliance Per Market .................................................................... 1-5
9415DA-SFP Functional Description..................................................................... 1-6
9415DA-SFP Input/Output Formats........................................................... 1-6
User Control Interface ................................................................................ 1-7
9415DA-SFP Rear I/O Modules................................................................. 1-9
Technical Specifications......................................................................................... 1-9
Warranty and Service Information ....................................................................... 1-11
Cobalt Digital Inc. Limited Warranty....................................................... 1-11
Contact Cobalt Digital Inc.................................................................................... 1-12
Chapter 2 Installation and Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-1
Overview ................................................................................................................ 2-1
Installing the 9415DA-SFP Into a Frame Slot........................................................ 2-1
Installing a Rear I/O Module.................................................................................. 2-3
9415DA-SFP Rear I/O Modules................................................................. 2-4
SFP Installation and Cabling Connections............................................................. 2-5
Setting Up 9415DA-SFP Network Remote Control............................................... 2-6

ii 9415DA-SFP PRODUCT MANUAL 9415DA-OM (V1.0)
Chapter 3 Operating Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-1
Overview................................................................................................................. 3-1
Control and Display Descriptions........................................................................... 3-1
Function Menu/Parameter Overview.......................................................... 3-2
DashBoard™User Interface....................................................................... 3-3
Accessing the 9415DA-SFP Card via Remote Control .......................................... 3-4
Accessing the 9415DA-SFP Card Using DashBoard™............................. 3-4
Checking 9415DA-SFP Card Information.............................................................. 3-6
9415DA-SFP Function Menu List and Descriptions.............................................. 3-7
Routing Crosspoint Controls ...................................................................... 3-8
SFP Status Display ..................................................................................... 3-9
Troubleshooting .................................................................................................... 3-10
Error and Failure Indicator Overview....................................................... 3-10
Basic Troubleshooting Checks.................................................................. 3-11
9415DA-SFP Processing Error Troubleshooting...................................... 3-11
Troubleshooting Network/Remote Control Errors.................................... 3-12
In Case of Problems .................................................................................. 3-12

9415DA-OM (V1.0) 9415DA-SFP PRODUCT MANUAL 1-1
Chapter 1
Chapter 1 Introduction
Overview
This manual provides installation and operating instructions for the
9415DA-SFP 3G/HD/SD-SDI / ASI / MADI Reconfigurable Video SFP
Transceiver/Distribution Amplifier with Full-Flexibility Crosspoint and
Externally-Accessible SFP Module card (referred to herein as 9415DA-SFP).
This manual consists of the following chapters:
•Chapter 1, “Introduction”–Provides information about this manual
and what is covered. Also provides general information regarding the
9415DA-SFP.
•Chapter 2, “Installation and Setup”–Provides instructions for
installing the 9415DA-SFP in a frame, and optionally installing a
Rear I/O Module(s).
•Chapter 3, “Operating Instructions”–Provides overviews of
operating controls and instructions for using the 9415DA-SFP.
This chapter contains the following information:
•9415DA-SFP Card Software Versions and this Manual (p. 1-2)
•Manual Conventions (p. 1-3)
•Safety and Regulatory Summary (p. 1-5)
•9415DA-SFP Functional Description (p. 1-6)
•Technical Specifications (p. 1-9)
•Warranty and Service Information (p. 1-11)
•Contact Cobalt Digital Inc. (p. 1-12)

19415DA-SFP Card Software Versions and this Manual
1-2 9415DA-SFP PRODUCT MANUAL 9415DA-OM (V1.0)
9415DA-SFP Card Software Versions and this Manual
When applicable, Cobalt Digital Inc. provides for continual product
enhancements through software updates. As such, functions described in this
manual may pertain specifically to cards loaded with a particular software
build.
The Software Version of your card can be checked by viewing the Card Info
menu in DashBoard™. See Checking 9415DA-SFP Card Information (p. 3-6)
in Chapter 3, “Operating Instructions”for more information. You can then
check our website for the latest software version currently released for the
card as described below.
Note: Not all functionality described in this manual may appear on cards with initial
software versions.
Check our website and proceed as follows if your card’s software does not
match the latest version:
Cobalt Reference Guides
From the Cobalt®web home page, go to Support>Reference Documents for
easy to use guides covering network remote control, card firmware updates,
example card processing UI setups and other topics.
Card Software earlier than
latest version Card is not loaded with the latest software. Not all
functions and/or specified performance described in
this manual may be available.
You can update your card with new Update software by
going to the Support>Firmware Downloads link at
www.cobaltdigital.com. Download “Firmware Update
Guide”, which provides simple instructions for
downloading the latest firmware for your card onto your
computer, and then uploading it to your card through
DashBoard™.
Software updates are field-installed without any
need to remove the card from its frame.
Card Software newer than
version in manual A new manual is expediently released whenever a
card’s software is updated and specifications
and/or functionality have changed as compared to
an earlier version (a new manual is not necessarily
released if specifications and/or functionality have not
changed). A manual earlier than a card’s software
version may not completely or accurately describe all
functions available for your card.
If your card shows features not described in this
manual, you can check for the latest manual (if
applicable) and download it by going to the card’s web
page on www.cobaltdigital.com.

9415DA-OM (V1.0) 9415DA-SFP PRODUCT MANUAL 1-3
Introduction Manual Conventions
Manual Conventions
In this manual, display messages and connectors are shown using the exact
name shown on the 9415DA-SFP itself. Examples are provided below.
•Connector names are shown like this: COAX A I/O
In this manual, the terms below are applicable as follows:
•9415DA-SFP refers to the 9415DA-SFP 3G/HD/SD-SDI / ASI /
MADI Reconfigurable Video SFP Transceiver/Distribution Amplifier
with Full-Flexibility Crosspoint and Externally-Accessible SFP
Module card.
•Frame refers to the HPF-9000, OG3-FR, 8321, or similar 20-slot
frame that houses Cobalt®or other cards.
•Device and/or Card refers to a Cobalt®or other card.
•System and/or Video System refers to the mix of interconnected
production and terminal equipment in which the 9415DA-SFP and
other cards operate.
•Functions and/or features that are available only as an option are
denoted in this manual like this:

1Manual Conventions
1-4 9415DA-SFP PRODUCT MANUAL 9415DA-OM (V1.0)
Warnings, Cautions, and Notes
Certain items in this manual are highlighted by special messages. The
definitions are provided below.
Warnings
Warning messages indicate a possible hazard which, if not avoided, could
result in personal injury or death.
Cautions
Caution messages indicate a problem or incorrect practice which, if not
avoided, could result in improper operation or damage to the product.
Notes
Notes provide supplemental information to the accompanying text. Notes
typically precede the text to which they apply.
Labeling Symbol Definitions
Important note regarding product usage. Failure to observe may result in
unexpected or incorrect operation.
Electronic device or assembly is susceptible to damage from an ESD event.
Handle only using appropriate ESD prevention practices.
If ESD wrist strap is not available, handle card only by edges and avoid contact
with any connectors or components.
CLASS 1 LASER PRODUCT
IEC 60825-1:2007
Caution - INVISIBLE LASER RADIATION WHEN OPEN. AVOID EXPOSURE TO
THE BEAM.
Symbol (WEEE 2002/96/EC)
For product disposal, ensure the following:
•Do not dispose of this product as unsorted municipal waste.
•Collect this product separately.
•Use collection and return systems available to you.

9415DA-OM (V1.0) 9415DA-SFP PRODUCT MANUAL 1-5
Introduction Safety and Regulatory Summary
Safety and Regulatory Summary
Warnings
Cautions
EMC Compliance Per Market
! WARNING ! • Do not stare at, or into, broken, or damaged, fibers.
• Do not stare at, or into, optical connectors.
• Only properly trained and authorized personnel should be permitted to perform laser/
fiber optic operations.
• Ensure that appropriate labels are displayed in plain view and in close proximity to the
optical port on the protective housing/access panel of the terminal equipment.
! WARNING ! To reduce risk of electric shock do not remove line voltage service barrier cover on frame
equipment containing an AC power supply. NO USER SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
CAUTION This device is intended for environmentally controlled use only in appropriate video
terminal equipment operating environments.
CAUTION This product is intended to be a component product of an openGear® frame. Refer to the
openGear® frame Owner's Manual for important safety instructions regarding the proper
installation and safe operation of the frame as well as its component products.
CAUTION Heat and power distribution requirements within a frame may dictate specific slot
placement of cards. Cards with many heat-producing components should be arranged to
avoid areas of excess heat build-up, particularly in frames using only convection cooling.
The card has a low power dissipation (<10 W).
CAUTION If required, make certain Rear I/O Module(s) is installed before installing the card into the
frame slot. Damage to card and/or Rear I/O Module can occur if module installation is
attempted with card already installed in slot.
CAUTION If card resists fully engaging in rear I/O module mating connector, check for alignment and
proper insertion in slot tracks. Damage to card and/or rear I/O module may occur if
improper card insertion is attempted.
Market Regulatory Standard or Code
United States of America FCC "Code of Federal Regulations" Title 47 Part 15, Subpart B, Class A
Canada ICES-003
International/CE CISPR 24:2010
IEC 61000-4-2:2008
IEC 61000-4-3:2006 with A1:2007 and A2:2010
IEC 61000-4-4:2004
IEC 61000-4-6:2008
CISPR 22:2008

19415DA-SFP Functional Description
1-6 9415DA-SFP PRODUCT MANUAL 9415DA-OM (V1.0)
9415DA-SFP Functional Description
Figure 1-1 shows a functional block diagram of the 9415DA-SFP. The card is
multi-rate, and supports SDI and ASI/DVB on all inputs and outputs with
non-inverting outputs. The card provides automatic format detect and reclock
at 2.970, 1.485, and 0.270 Gb/s, with reclocking for unrecognized formats
automatically set to disabled. The card uses rear modules equipped with SFP
cages, allowing SFP modules to be hot-swapped for maintenance or card
re-purposing. Because all connections are direct to the card rear module and
external SFPs, all cabling remains undisturbed for card removal/installation.
The card accepts non-MSA video SFP modules, with single and dual-channel
Tx and Rx modules available, supporting an extensive range of electrical/
coax and fiber conversions.
A crosspoint (which is user-configurable via DashBoard™) allows the card to
apply any of the card inputs to various coax DA outputs as well as up to two
independent fiber output channels (where available when fitted with
corresponding fiber SFP). The flexibly-sourced coaxial DA outputs are
available for any input on the card. Where applicable, up to two independent
fiber inputs can serve as input sources for any of the coax or fiber card outputs
(where available when fitted with corresponding fiber SFP). HDMI-to-SDI
receivers and SDI-to-HDMI transmitters can also be fitted as SFP module
choices.
9415DA-SFP Input/Output Formats
The 9415DA-SFP provides the following inputs and outputs:
•Coax-A I/O –3G/HD/SD-SDI / ASI / MADI coaxial bidirectional
input (user set as input or output)
•Coax-B I/O –3G/HD/SD-SDI / ASI / MADI coaxial bidirectional
input (user set as input or output)
•DA Coax Outputs 1A/B thru 4A/B–eight 3G/HD/SD-SDI / ASI /
MADI coax outputs; non-inverting. Each output pair can be
sourced from any card input
•SFP Tx (input to SFP) –two 3G/HD/SD-SDI / ASI / MADI transmit
(input) paths to rear module SFP cage. These paths provide up to
two SDI / ASI / MADI paths for use with single or dual-path SFPs
(such as a 2EO fiber transmitter).
•SFP Rx (output from SFP) –two 3G/HD/SD-SDI / ASI / MADI
receive (output) paths from rear module SFP cage. These paths
provide up to two SDI / ASI / MADI paths for use with single or
dual-path SFPs (such as a 2OE fiber receiver).
The card DashBoard UI has an SFP tab which shows the installed SFP type as
well as dynamic parameters such as receive and transmit power (as
applicable).

9415DA-OM (V1.0) 9415DA-SFP PRODUCT MANUAL 1-7
Introduction 9415DA-SFP Functional Description

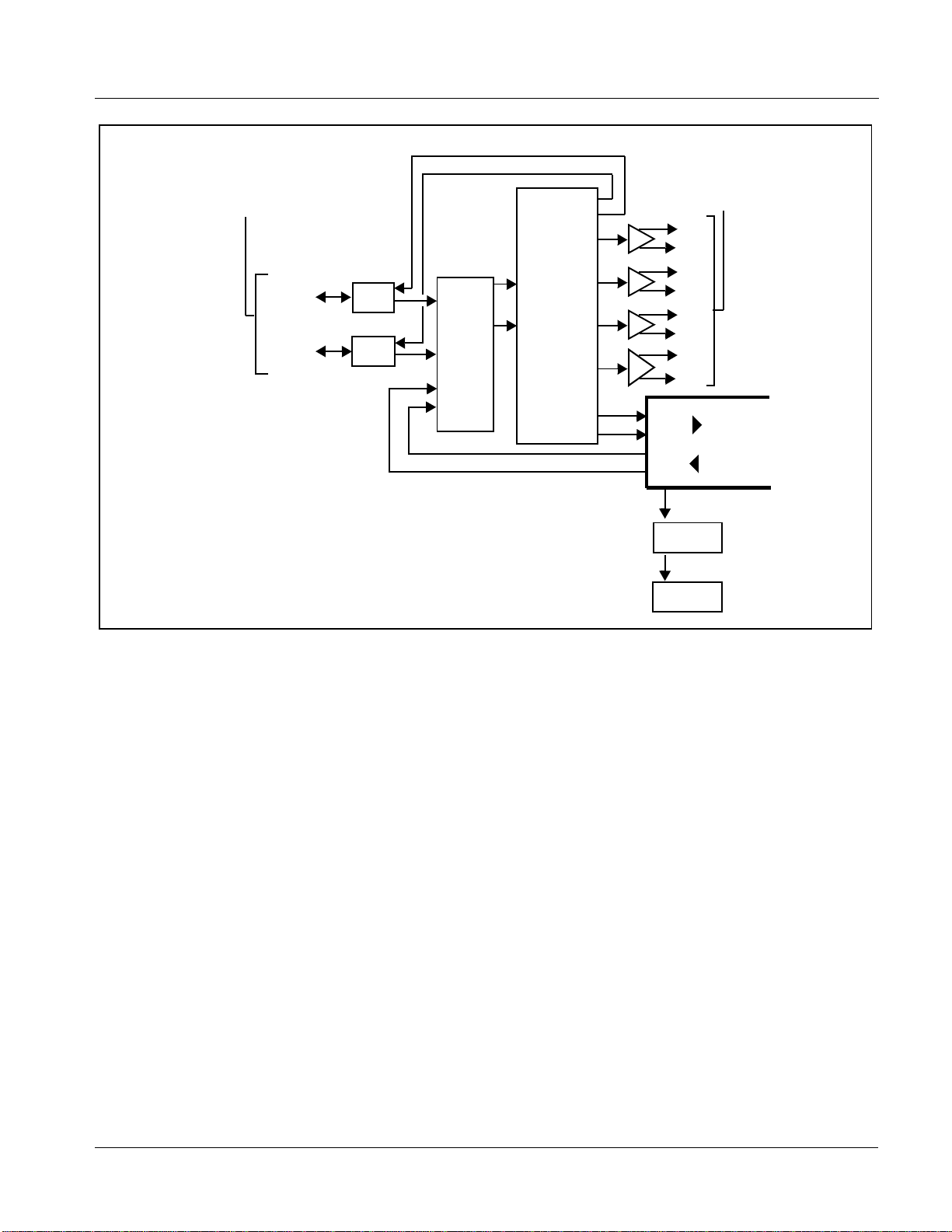

Figure 1-1 9415DA-SFP Functional Block Diagram
User Control Interface
Note: All user control interfaces described here are cross-compatible and can
operate together as desired. Where applicable, any control setting change
made using a particular user interface is reflected on any other connected
interface.
•DashBoard™User Interface –Using DashBoard™, the
9415DA-SFP and other cards installed in openGear®1frames can be
controlled from a computer and monitor.
DashBoard™allows users to view all frames on a network with
control and monitoring for all populated slots inside a frame. This
simplifies the setup and use of numerous modules in a large
installation and offers the ability to centralize monitoring. Cards
define their controllable parameters to DashBoard™, so the control
interface is always up to date.
Tx/Rx
Reclock
Coax-B
I/O
Output
Crosspoint
1A
1B
SDI/ASI/MADI
DA Out
Rear Module
SFP Cage
SDI/ASI/MADI
Primary I/O
Tx/Rx
Coax-A
I/O
4A
4B
3A
3B
2A
2B
Optical Tx
Pwr Meter
Rx (2)
Optical Rx
Pwr Meter
9415DA BD V1.0LB131
Tx (2)
1. openGear®is a registered trademark of Ross Video Limited. DashBoard™is a trademark of Ross
Video Limited.

19415DA-SFP Functional Description
1-8 9415DA-SFP PRODUCT MANUAL 9415DA-OM (V1.0)
The DashBoard™software can be downloaded from the Cobalt
Digital Inc. website: www.cobaltdigital.com (enter “DashBoard”in
the search window). The DashBoard™user interface is described in
Chapter 3,“Operating Instructions”.
•Cobalt®OGCP-9000 and OGCP-9000/CC Remote Control
Panels –The OGCP-9000 and OGCP-9000/CC Remote Control
Panels conveniently and intuitively provide parameter monitor and
control of the 9415DA-SFP and other video and audio processing
terminal equipment meeting the open-architecture Cobalt®cards for
openGear™standard. In addition to circumventing the need for a
computer to monitor and control signal processing cards, the Control
Panels allow quick and intuitive access to hundreds of cards in a
facility, and can monitor and allow adjustment of multiple parameters
at one time.
The Remote Control Panels are totally compatible with the
openGear™control software DashBoard™; any changes made with
either system are reflected on the other. The Remote Control Panel
user interface is described in Chapter 3,“Operating Instructions”.

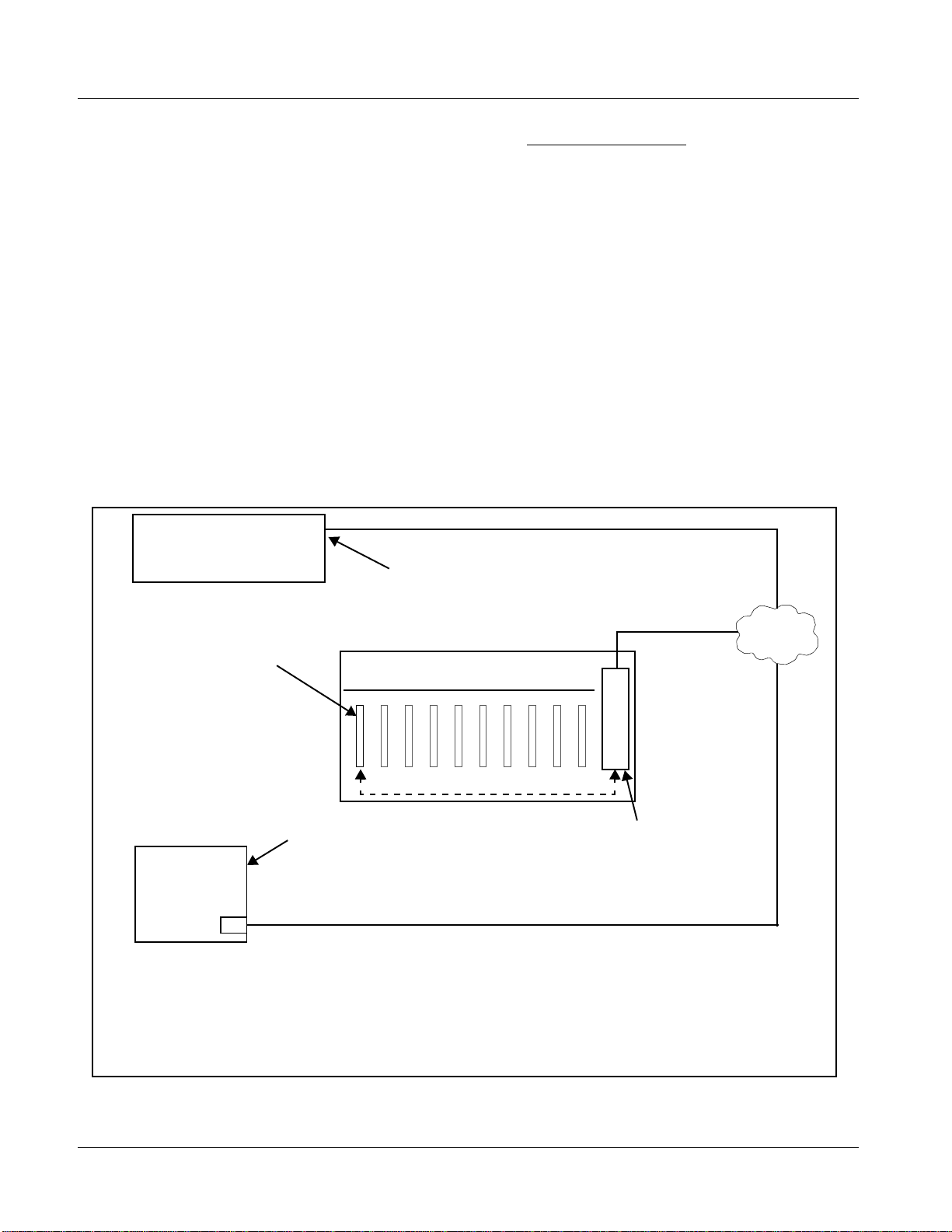

Figure 1-2 9415DA-SFP User Control Interface
Computer
with NIC
OGCP-9000 Control Panel
or
OGCP-9000/CC Control Panel
20-Slot Frame with Network Controller Card
LAN
9415DA-SFP Card
In conjunction with a frame equipped
with a Network Controller Card,
9415DA-SFP card can be remotely
controlled over a LAN
Remote Control Panel
Using the Control Panel, 9415DA-SFP card can
be remotely controlled over a LAN
DashBoard™Remote Control
Using a computer with DashBoard™
installed, 9415DA-SFP card can be
remotely controlled over a LAN
Note: •To communicate with DashBoard™or a Remote Control Panel, the frame must have a Network Controller Card installed in
the frame.
•DashBoard™and the Remote Control Panels provide network control of the 9415DA-SFP as shown. The value displayed
at any time on the card, or via DashBoard™or a Control Panel is the actual value as set on the card, with the current value
displayed being the actual value as effected by the card. Parameter changes made by any of these means are universally
accepted by the card (for example, a change made using the DashBoard™controls will change the setting displayed on a
Control Panel).

9415DA-OM (V1.0) 9415DA-SFP PRODUCT MANUAL 1-9
Introduction Technical Specifications
Note: If network remote control is to be used for the frame and the frame has not yet
been set up for remote control, Cobalt®reference guide Remote Control
User Guide (PN 9000RCS-RM) provides thorough information and
step-by-step instructions for setting up network remote control of Cobalt®
cards using DashBoard™. (Cobalt®OGCP-9000 and OGCP-9000/CC
Remote Control Panel product manuals have complete instructions for setting
up remote control using a Remote Control Panel.)
Download a copy of this guide by clicking on the Support>Reference
Documents link at www.cobaltdigital.com and then select DashBoard
Remote Control Setup Guide as a download, or contact Cobalt®as listed in
Contact Cobalt Digital Inc. (p. 1-12).
9415DA-SFP Rear I/O Modules
The 9415DA-SFP physically interfaces to system video connections at the
rear of its frame using a Rear I/O Module.
All inputs and outputs shown in the 9415DA-SFP Functional Block Diagram
(Figure 1-1) enter and exit the card via the card edge backplane connector.
The Rear I/O Module breaks out the 9415DA-SFP card edge connections to
BNC and other connectors that interface with other components and systems
in the signal chain.
The full assortment of 9415DA-SFP Rear I/O Modules is shown and
described in 9415DA-SFP Rear I/O Modules (p. 2-4) in Chapter 2,
“Installation and Setup”.
Technical Specifications
Table 1-1 lists the technical specifications for the 9415DA-SFP 3G/HD/
SD-SDI / ASI / MADI Reconfigurable Video SFP Transceiver/Distribution
Amplifier with Full-Flexibility Crosspoint and Externally-Accessible SFP
Module card.
Table 1-1 Technical Specifications
Item Characteristic
Part number, nomenclature 9415DA-SFP 3G/HD/SD-SDI / ASI / MADI Reconfigurable Video
SFP Transceiver/Distribution Amplifier with Full-Flexibility
Crosspoint and Externally-Accessible SFP Module
Installation/usage environment Intended for installation and usage in frame meeting openGear™
modular system definition
Power consumption < 10 Watts maximum
Installation Density Up to 20 cards per 20-slot frame
Environmental:
Operating temperature:
Relative humidity (operating or storage): 32°–104°F (0°–40°C) < 95%, non-condensing

1Technical Specifications
1-10 9415DA-SFP PRODUCT MANUAL 9415DA-OM (V1.0)
Frame communication 10/100 Mbps Ethernet with Auto-MDIX
Indicators Card edge indicators as follows:
•Frame COMM LED indicator
•Status/Error LED indicator
•Input Presence LED indicators
3G/HD/SD-SDI / ASI / MADI Inputs/
Outputs
Note: Fiber Tx and Rx specifications are
typical as applicable with Embrionix™
fiber SFP installed in rear module SFP
cage)
(2) 75Ωcoaxial input/outputs (I/O A and I/O B)
SDI Receive Cable Length (1694A): 110m/180m/360m (3G/HD/
SD)
SDI Return Loss: >15 dB up to 1.485 GHz; >10 dB up to 2.970
GHz
Note: SDI Return loss and receive cable length are affected by
rear I/O module used. Specifications represent typical
performance.
Alignment Jitter: 3G/HD/SD: < 0.3/0.2/0.2 UI
Timing Jitter: 3G/HD/SD: < 2.0/1.0/0.2 UI
Fiber input; LC connector
Fiber output; LC connector
Fiber Wavelength, Tx: 1310 nm
Fiber Rx Sensitivity: -23 dBm; 1260 to 1620 nm
Fiber Tx Power: -5.0 dBm (min)
SDI Formats Supported: SMPTE 259M, SMPTE 292M, SMPTE
424M
3G/HD/SD-SDI / ASI / MADI Outputs
(DA Outputs) (4) 1x2 75Ωcoaxial outputs (8 total, max).
Signal Level: 800 mV nominal
Alignment Jitter: 3G/HD/SD: < 0.3/0.2/0.2 UI
Timing Jitter: 3G/HD/SD: < 2.0/1.0/0.2 UI
SFP Modules (available from Cobalt
Digital) •SFP-EO Single-Channel Video Optical Transmitter (EO);
Embrionix™GO2918 or equivalent
•SFP-OE Single-Channel Video Optical Receiver (OE);
Embrionix™GO2917 or equivalent
•SFP-EOOE Single-Channel Video Optical Transceiver (EOOE);
Embrionix™GO2929 or equivalent
•SFP-2EO Dual-Channel Video Optical Transmitter (2EO);
Embrionix™GO2928 or equivalent
•SFP-2OE Dual-Channel Video Optical Receiver (2OE);
Embrionix™GO2927 or equivalent
•SFP-H-TO-S HDMI-to-SDI Video Optical Receiver (H-TO-S);
Embrionix™EB34TD1R-SX or equivalent
•SFP-S-TO-H SDI-to-HDMI Video Optical Transmitter (S-TO-H);
Embrionix™EB34TD1T-SM/N or equivalent. Compatible with
SMPTE 259M, 292M, 425A (Mapping 1), 425B (372M Mapping)
Table 1-1 Technical Specifications — continued
Item Characteristic

9415DA-OM (V1.0) 9415DA-SFP PRODUCT MANUAL 1-11
Introduction Warranty and Service Information
Warranty and Service Information
Cobalt Digital Inc. Limited Warranty
This product is warranted to be free from defects in material and workmanship for a period of five (5)
years from the date of shipment to the original purchaser, except that 4000, 5000, 6000, 8000 series
power supplies, and Dolby®modules (where applicable) are warranted to be free from defects in
material and workmanship for a period of one (1) year.
Cobalt Digital Inc.'s (“Cobalt”) sole obligation under this warranty shall be limited to, at its option, (i)
the repair or (ii) replacement of the product, and the determination of whether a defect is covered under
this limited warranty shall be made at the sole discretion of Cobalt.
This limited warranty applies only to the original end-purchaser of the product, and is not assignable or
transferrable therefrom. This warranty is limited to defects in material and workmanship, and shall not
apply to acts of God, accidents, or negligence on behalf of the purchaser, and shall be voided upon the
misuse, abuse, alteration, or modification of the product. Only Cobalt authorized factory
representatives are authorized to make repairs to the product, and any unauthorized attempt to repair
this product shall immediately void the warranty. Please contact Cobalt Technical Support for more
information.
To facilitate the resolution of warranty related issues, Cobalt recommends registering the product by
completing and returning a product registration form. In the event of a warrantable defect, the
purchaser shall notify Cobalt with a description of the problem, and Cobalt shall provide the purchaser
with a Return MaterialAuthorization (“RMA”). For return, defective products should be double boxed,
and sufficiently protected, in the original packaging, or equivalent, and shipped to the Cobalt Factory
Service Center, postage prepaid and insured for the purchase price. The purchaser should include the
RMA number, description of the problem encountered, date purchased, name of dealer purchased
from, and serial number with the shipment.
Cobalt Digital Inc. Factory Service Center
2506 Galen Drive Office: [phone]
