Cobra Systems VNM 4 Pro SignMaker User manual

Copyright © 2020 Cobra Systems, Inc. All rights reserved
User Manual
Version 1.0 (5/2020)
Instantly Print Safety Signs & Labels
VnM®4 Pro SignMaker

Copyright © 2020 Cobra Systems, Inc. All rights reserved
TABLE OF CONTENTS
Introducion
Quick-start
Overview
Loading Ink Rolls
Loading Media
Setup
Print and Font Seings
Navigaion
VnM®4 Pro Templates
a) 1 - 5 Lines Horizontal
b) 1 Line Horz. with Header
c) 1 Line Verical
d) Custom 1 Line
e) OSHA/ANSI Templates
f) GHS Templates
g) RTK Labels
h) Pipe Marking
i) Barcode/QR Code Labels
j) Formated Signs
Font and Symbols
OSHA and ANSI Safety Ideniicaion
Pipe Marker Color Chart
Connecing to a PC
Maintenance/Troubleshooing
Accessories
Frequently Asked Quesions
Technical Support/Service and Repair
2
3
4
5
6
7
8
9-10
11
12
13
14
15
16
17
18
19
20
21-22
22
23
24
25
26
27
28
1

Copyright © 2020 Cobra Systems, Inc. All rights reserved

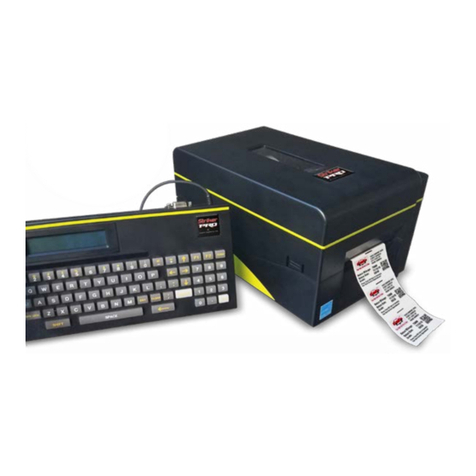

The VnM®4 Pro SignMaker System includes:
1. VnM®4 Pro SignMaker Printer (1)
2. VnM®4 Pro SignMaker Keypad
with USB Cable (1)
3. Printer Power Supply (1)
4. Printer Power Cord (1)
5. Printer USB Cable for
PC Connecion (1)
6. Take-Up Core for
VnM®Ink (1)
7. VnM®Ink Take-Up
Spindles (2)
Thank you for purchasing the VnM®4 Pro SignMaker by Cobra Systems, Inc.
The compact, high-performance VnM®4 Pro SignMaker System has been developed to provide a
fast, easy, and hassle-free soluion to all your industrial applicaions. Print directly from the smart
printer, or have the ability to print via USB connecion (not supported unless used with purchased VnM
LabelDirect or BarTender sotware).
1
2
3
7
4
5
6
Introducion
Dimensions: 13.07” (L) x 8.90” (W) x 7.80” (H)
Operaing Condiions: 41° ~ 104° F (5° ~ 40° C )
Storage Condiions: -40° ~ 120° F (-40° ~ 60° C )
Resoluion: 203 DPI
AC Input: 100 - 240V, 2.5A, 50-60Hz Power Supply
DC Output: 24V, 3.75A, 90W (external adapter)
Print Speed: Variable, from 2” to 8” per second
Connecions: VnM®4 Pro USB Keyboard, USB 2.0, LPT
Speciicaions
Warranty
VnM®4 Pro SignMaker comes with a Limited Lifeime Warranty, 1-Year Print-head Warranty, 6-Month
Cuter Warranty, and 1-Year Keypad Warranty.
Out of the Box
2

Copyright © 2020 Cobra Systems, Inc. All rights reserved
3
PRINTER MUST BE TURNED OFF!
1. Open printer lid by rolling down the green tabs on
each side located toward the front of the printer.
2. Slide ink roll onto spindle and set in rear hub. Insert
second spindle into empty cardboard core and set in
front hub. Pass ink ribbon under the ink roll carriage
and print head. Atach ink ribbon to the empty core
and take up any slack before closing cover.
3. Slide new media into the printer’s spindle mount. 4.
Feed media, face up through the cuter slot. Adjust
the green media guides to it the width of the vinyl,
centered in the printer.
5. With the printer powered of, plug the keyboard and
power cord into the rear of the printer.
6. Plug the power cord into a properly grounded AC
outlet.
VnM®4 SignMaker Quickstart
NOTE: Always have the VnM printer cover closed when powering on.

Copyright © 2020 Cobra Systems, Inc. All rights reserved
4
VnM4 Pro SignMaker Top View
1. Ribbon access cover
2. LCD display
3. Feed buton
4. Printer top cover
5. Top cover latch
6. Cuter
7. Power switch
VnM4 Pro SignMaker Rear View
7. Power receptacle
8. RS-232 DB-9 port
9. LAN connecion
10. SD card port
11. USB port for PC
12. USB port for Keyboard
VnM4 Pro SignMaker Interior View
12. Top cover
13. Ink ribbon access cover
14. Adjustable centering guides
15. Print head
16. Spindle slot
17. Top cover support
1
2
3
4
5
6
12
13
14
15
16
17
7 8 9 10 11
VnM®4 SignMaker Overview
12
7

Copyright © 2020 Cobra Systems, Inc. All rights reserved
8 Close cover,
you’re ready
to load Label
Media.
7 Wind the
front ink
spindle to
take up the
slack,
making
sure there
are no
wrinkles in
the ink.
4 Pull ink from
rear to front
going under
the print
head and up
to the empty
take-up core.
3 Load rear ink
spindle with
the new ink
roll.
2 Load front
ink spindle
with an
empty take-
up core.
5
NOTE: Always have the VnM printer cover closed when powering on.
Loading VnM®4 Ink Roll
1 Always
turn of
printer when
changing Ink
Rolls! Open
the ribbon
access cover.
6 Make sure
ink spindles
are as
shown.
NOTE :
Larger
circular end
on the let
side.
5 Tape the
ink to empty
take-up
core.

Copyright © 2020 Cobra Systems, Inc. All rights reserved
6
Loading VnM®4 Media
NOTE: Handle media on the sides to prevent ingerprints on Vinyl.
8 Turn on
the printer
by lipping
the power
switch
located on
the right of
the printer.
You’re ready
to start
prining!
7 Slowly push
down on the
printer lid
to fully close
the cover.
NOTE: You
should hear
a clicking
sound.
4 Feed and
pull the
media
through
cuter.
3 Pull slack
of media
towards the
front of the
printer.
2 Insert the
VnM®4
media roll
into the
printer’s
spindle
mount.
1 Always
turn of
printer when
changing
Media Rolls!
Use only
VnM®4
Media.
6 Pull a bit
more slack
of the media
through and
past the
cuter as you
close the
printer.
5 Adjust
guides to it
the media
by pressing
down on the
buton.

Copyright © 2020 Cobra Systems, Inc. All rights reserved
7
Connecing VnM®4 Pro Keyboard and Powering Up
1. Place printer on a lat, secure surface.
2. Make sure power switch is OFF.
3. Connect VnM®4 Pro Keyboard or PC to the VnM®4 Pro SignMaker via USB port.
4. Plug the printer into your power source, preferably using a surge protector.
5. Turn on the VnM®4 Pro SignMaker.
VnM®4 Pro SignMaker Setup

Copyright © 2020 Cobra Systems, Inc. All rights reserved
8
VnM Templates 4”
Back Select
1-5 Lines Horizontal
1 Line Horz. with Header
1 Line Vertical
Custom 1 Line
VnM Templates 4”
Back Select
Custom 1 Line
DIE CUT
OSHA/ANSI Templates
GHS Templates
DIE CUTRTK Labels
VnM Templates 4”
Back Select
DIE CUTRTK Labels
Pipe Marking Templates
Barcode Templates
Formatted Signs
Main Menu
Back Select
VnM Templates
Printer Settings
Tech Support Card
Menu Feed
TX200 A2.11CBR6 EZD
50m 03:30 AM10.0.10.125
Use the UP and DOWN arrow keys on the
VnM®4 Pro Keyboard to navigate through
the templates.
The VnM®4 Pro navigaion tree on the let
displays the low and order of all the avail-
able opions/templates.
To begin prining, let’s irst power up your
printer. Once on, Select VnM Templates
and select the size of media that is loaded
in the printer.
Detailed informaion about each template
starts on page 10.
If you would like to return to the
previous screen or an entry error has
been made, press the ESC key and
re-enter the informaion.
VnM®4 Pro Display Screen Navigaion
Choose Label Size
Back Select
4”
3”
2”
1”
VnM®4 Pro SignMaker Templates
Press the ENTER key to select your template
or to coninue to the next prompt.
Enter
Esc

Copyright © 2020 Cobra Systems, Inc. All rights reserved
1. Select the recommended density based
on the ink being used and press Enter.
Black: 3-5 White: 10-13
Blue / Green / Red: 1-3
1. Select 2 for the recommended speed
and press Enter.
VnM®4 Pro Printer Seings
NOTE: See pages 21 - 22 for
fonts and symbols.
1. Select Font Seings by pressing
Enter on the keyboard.
2. Select your Font opion and press Enter.
(Reference Fonts on Pg.21)
3. Press ESC to exit to the Main Menu and
proceed with making your sign or label.
9
Printer Settings
Back Select
Label Settings
Print Settings
Font Settings
Symbols Settings
Printer Settings
Back Select
Label Settings
Print Settings
Font Settings
Symbols Settings
Main Menu
Back Select
VnM Templates
Printer Settings
Tech Support Card
To make changes to your printers display,
print seings or font seings, press ESC
on printers keyboard unil you reach the
Main Menu. Select Printer Seings and
press Enter.
Once in the Printer Seings, you will be
able to make changes to the following...
Label Seings, Printers Speed, Printers
Density and any Font or Symbol Seings.
1. Select Print Seings by pressing
Enter on the keyboard.
2. Select one of the following opions...
Speed - To change the printers speed.
Density - To change the printers density.
Cuter - To change the cuter seings.
3. Press ESC to exit to the Main Menu and
proceed with making your sign or label.
Select Font
Back Select
Bold
Normal
Italic
Utility
Select Font
Back Select
Pipe Marker
Symbols 1
Symbols 2
Symbols 3
To Change the Print Seings of your Printer To Change the Font Seings of your Printer
SETTINGS
Back Select
Speed
Density
Cutter
SETTINGS
Back Select
Speed
Density
Cutter
SETTINGS
Back Select
Speed
Density
Cutter
1. Select ON or OFF ur printer cuter
opion and press Enter.
