Introduction
Staying in touch with your family and friends is
convenient and easy when using your microTALK®
radio. Some of the many uses you will discover include:
Communicating with others while hiking, biking and working;
keeping track of family and friends at a crowded public event;
checking with travel companions in another car; talking with
neighbors; arranging meeting spots with others while
shopping at the mall.

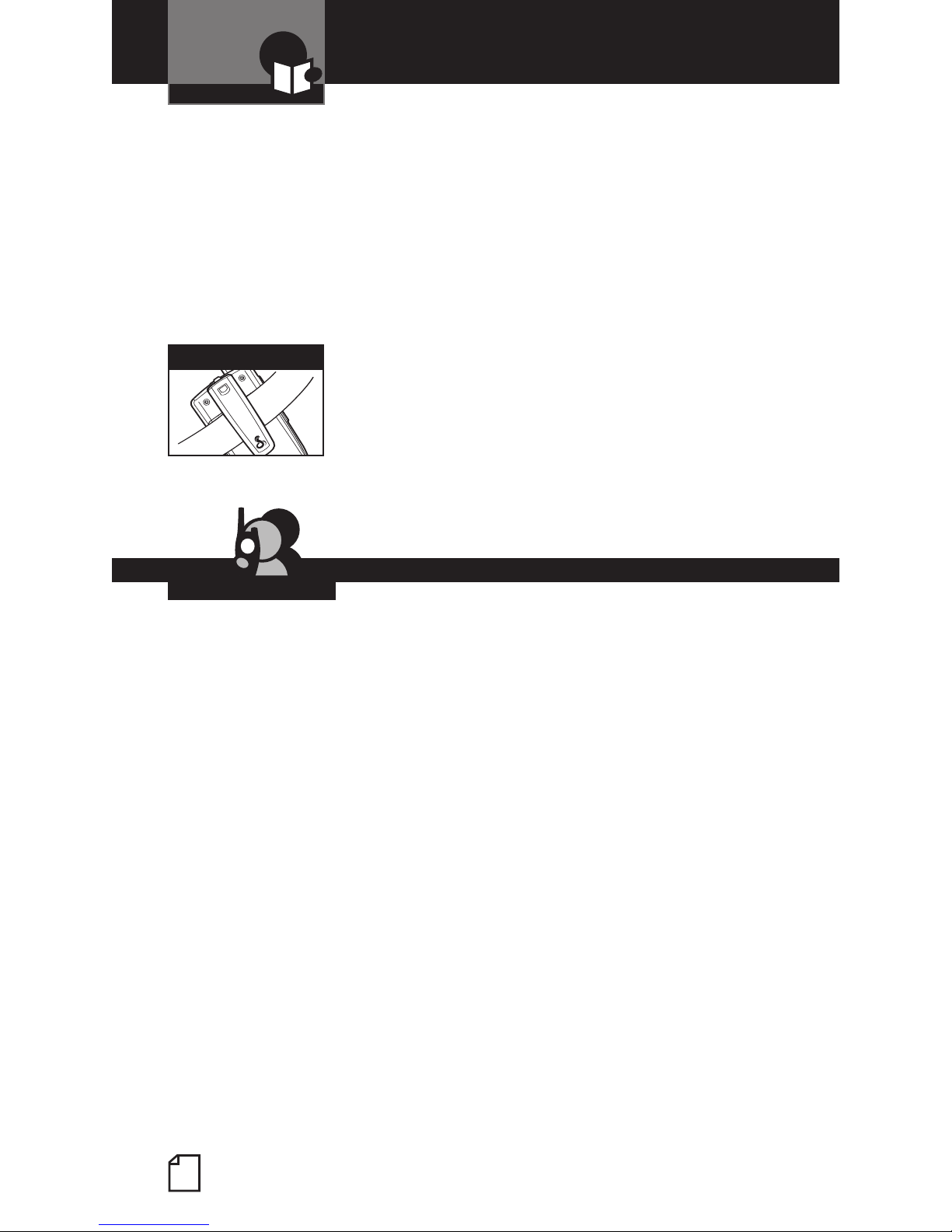

Secure your microTALK
radio while on the go.
Carrying your microTALK radio with
you is easy when using the belt clip.
The belt clip easily attaches to your belt,
purse or backpack. Simply squeeze the
clip and place it where you prefer.
For Assistance in Canada or the U.S.A.
In this user’s manual, you should find all the information you need
to operate your microTALK® radio. If you require further assistance
after reading this manual, Cobra Electronics offers the following
customer assistance services:
Automated Help Desk
English. 24 hours a day, 7 days a week [phone] (phone).
Customer Assistance Operators
9:00 a.m. to 5:00 p.m. Eastern Time, Monday to Friday
(except holidays) [phone], ext. 2-264 (phone).
Questions
Faxes can be received at [phone] (fax).
Technical Assistance
English and French. www.cobra.ca (on-line: Frequently Asked
Questions).
English and Spanish. [email protected] (e-mail).
For Assistance Outside Canada, the U.S.A. or in French
Contact Your Local Dealer
Intro Operation Customer
Assistance
Warranty
Notice
Main Icons
Secondary Icons
©2007 Cobra Electronics Corporation™
6500 West Cortland Street
Chicago, Illinois 60707 USA
www.cobra.com
Customer Assistance
Belt Clip

A2
Product Features
Intro Operation Customer
Assistance
Warranty
Notice
Main Icons
Secondary Icons
Introduction
1122
33
44
55
77
66
1100
1122
1133
99
1. Antenna
2. External Speaker/
Microphone/Charge Jack
3. Backlit LCD Display
4. Mode Button
5. Channel Up/Down Buttons
6. Hi-Low Power Button
7. Speaker/Microphone
8. On/Off Power Button
9. Lock/Enter Button
10. Volume Up/Down Buttons
11. Light/Max Range Button
12. Talk Button
13. Call Button
14. Wrist Strap Connector
15. Belt Clip
16. Battery Compartment
17. Battery Door Latch
1144
1155
1166
1177
88
1111

A3
Product Features
Intro Operation Customer
Assistance
Warranty
Notice
Main Icons
Secondary Icons
Introduction
Backlit LCD Display
Intro Operation Customer
Assistance
Warranty
Notice
Main Icons
Secondary Icons
Industry Canada Notice:
Operation is subject to the following two conditions:
1) this device may not cause interference, and
2) this device must accept any interference, including
interference that may cause undesired operation of the
device.
«IC» before the equipment certification number signifies
that the Industry Canada technical specifications were
met. It does not guarantee that the certified product will
operate to the user’s satisfaction.
Important FCC Licensing Information
This radio operates on General Mobile Radio Service
(GMRS) frequencies which require a Federal
Communications Commission (FCC) license in the U.S.A.
See page 15 for licensing and other related information.
Intro Operation Customer
Assistance
Warranty
Notice
Main Icons
Secondary Icons
Maximum range may vary and is based on unobstructed
line-of-sight communication under ideal conditions.
Features
• 22 Channels
Seven shared with
FRS/GMRS, seven
FRS only, eight
GMRS only
• 10 Channel NOAA
ALL Hazards Radio
•121 Privacy Codes
(38 CTCSS codes/
83 DCS codes)
• Hands-Free
Operation (VOX)
• VibrAlert®
Silent Paging
• 10 Channel
Memory
• Signal
Strength Meter
• Scan
Channel, privacy
codes, memory
• Selectable
Hi•Med•Low Power
In GMRS
• Backlit
LCD Display
• Button Lock
• Call Alert
10 selectable
tones
• Speaker/
Microphone/
Charge Jack
• Roger Beep
Selectable on/off
• Battery/
Power Saver
• Keystroke Tones
Selectable on/off
• Auto Squelch
• Maximum Range
Extender
•Belt Clip
11
22334466
99
1100
1133
11551166
11881111
1144

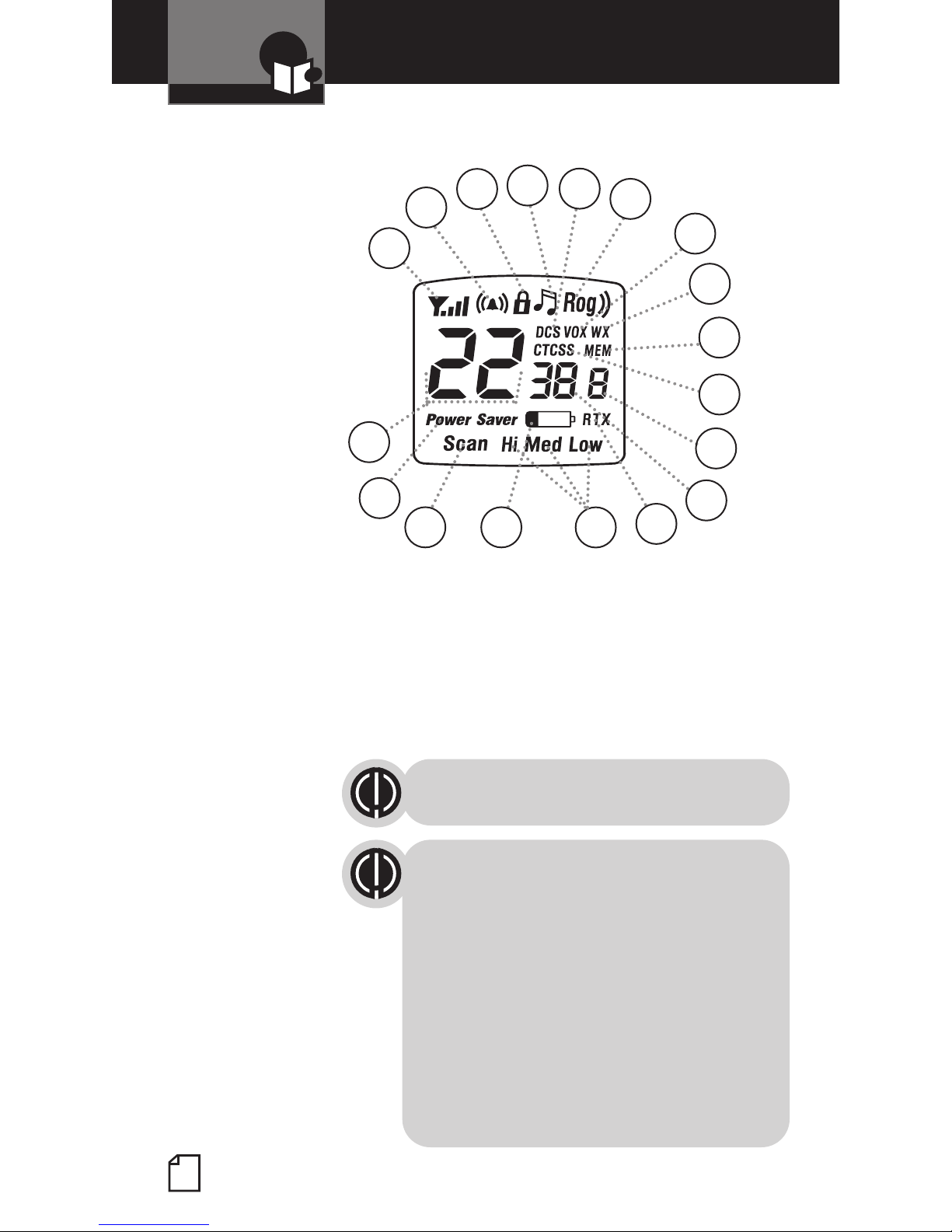

1. Signal Strength Meter Icon
2. Call Alert and
VibrAlert Icon
3. Lock Icon
4. Keystroke Tones Icon
5. DCS Icon
6. Roger Beep Icon
7. VOX Icon
8. NOAA All Hazards
Radio Icon
9. Memory Icon
10. CTCSS Icon
11. Memory Location Number
12. Privacy Code Numbers
13. Receive/Transmit Icon
14. Hi-Med-Low Power Icons
15. Battery Low Indicator
16. Scan Icon
17. Power Saver Icon
18. Channel Numbers
55
88
1122
1177
77

Intro Operation Customer
Assistance
Warranty
Notice
Main Icons
Secondary Icons
Operation Customer Assistance Warranty
1
Intro Operation Customer
Assistance
Warranty
Notice
Main Icons
Secondary Icons
Introduction
Caring for Your microTALK Radio •
Your microTALK radio will give you years of trouble-free service
if cared for properly. Handle the radio gently. Keep the radio away
from dust. Never put the radio in water or in a damp place.
Avoid exposure to extreme temperatures.
Rechargeable Battery Pack and
Desktop Charger •

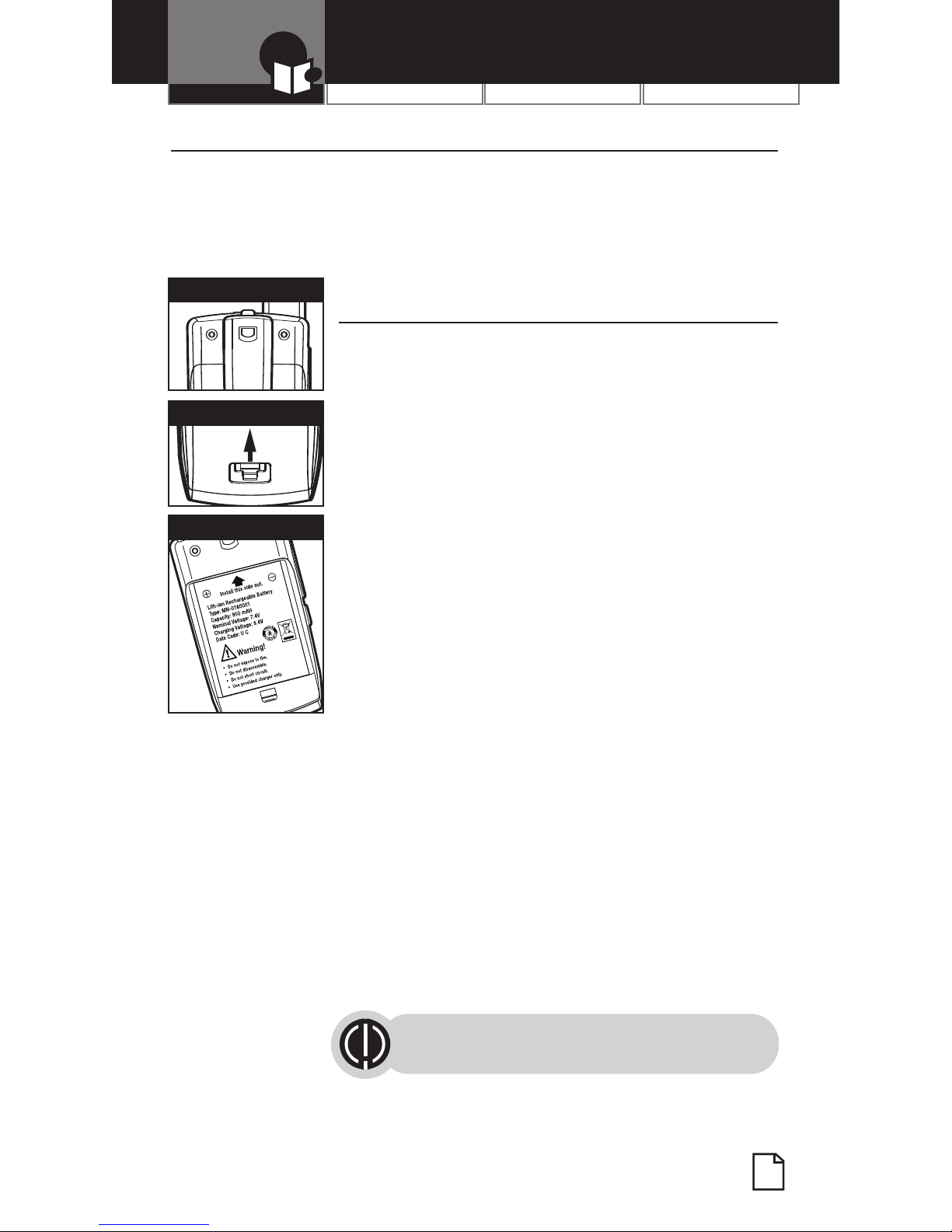

To install or replace battery pack:
1. Remove belt clip by releasing belt clip
latch and sliding clip up.
2. Pull up on the battery door latch to remove
the battery compartment cover.
3. Insert lithium ion battery pack. Position
battery pack as shown in radio.
4. Replace battery compartment cover
and belt clip.
Estimated operation time on full charge:
12 hours.
Rechargeable battery packs must be recycled
or disposed of properly in compliance with all
applicable laws. They may not be thrown in
the trash.
Certain states or municipalities require recycling
and have established collection programs. Please
contact your local waste removal authority for
instructions, or return to Cobra for recycling.
Wrap battery packs carefully and mail postage
prepaid to: Cobra Electronics Corporation, 6500
West Cortland Street, Chicago, IL 60707 USA,
Attn: Battery Recycling.
Do not put battery packs into fire or
expose to high heat. They may explode.
Pull Up Latch
Remove Belt Clip
Insert Battery Pack

2
For charging microTALK radio(s) in desktop
charger:
1. Insert radio(s) into desktop charger as shown.
2. Insert round connector of 120-volt adapter
into jack on back of charger.
3. Plug 120-volt adapter into electrical outlet.
If charging light is not on, check position of radio. Radio should be
upright. The charge indicator light will stay on as long as the radio
is in the charging well.
It normally takes about 15 hours to fully recharge battery pack.
Battery pack will not be damaged if it stays in the charging well
longer than that.
Note: To charge a single radio, you can bypass the desktop charger
and simply insert the wall adapter’s round connector directly into
the speaker/microphone/charge jack located on the top of the radio.
Use only the supplied rechargeable batteries and charger for
recharging your Cobra microTALK radio.
Cobra recommends your radio is turned o
of ff fwhile being charged.
Intro Operation Customer
Assistance
Warranty
Notice
Main Icons
Secondary Icons
Introduction Using Your Radio
Insert Radio(s)
Intro Operation Customer
Assistance
Warranty
Notice
Main Icons
Secondary Icons
Quick Start
1. Press and hold the Power button to turn on
your radio.
2. Press the Channel Up or Channel Down
button to select a channel.
Both radios must be tuned to the
same channel/privacy code to
communicate.
3. Press and hold the Talk button while
speaking into the microphone.
4. When finished talking, release the Talk
button and listen for a response.
Intro Operation Customer
Assistance
Warranty
Notice
Main Icons
Secondary Icons

3
Intro Operation Customer
Assistance
Warranty
Notice
Main Icons
Secondary Icons

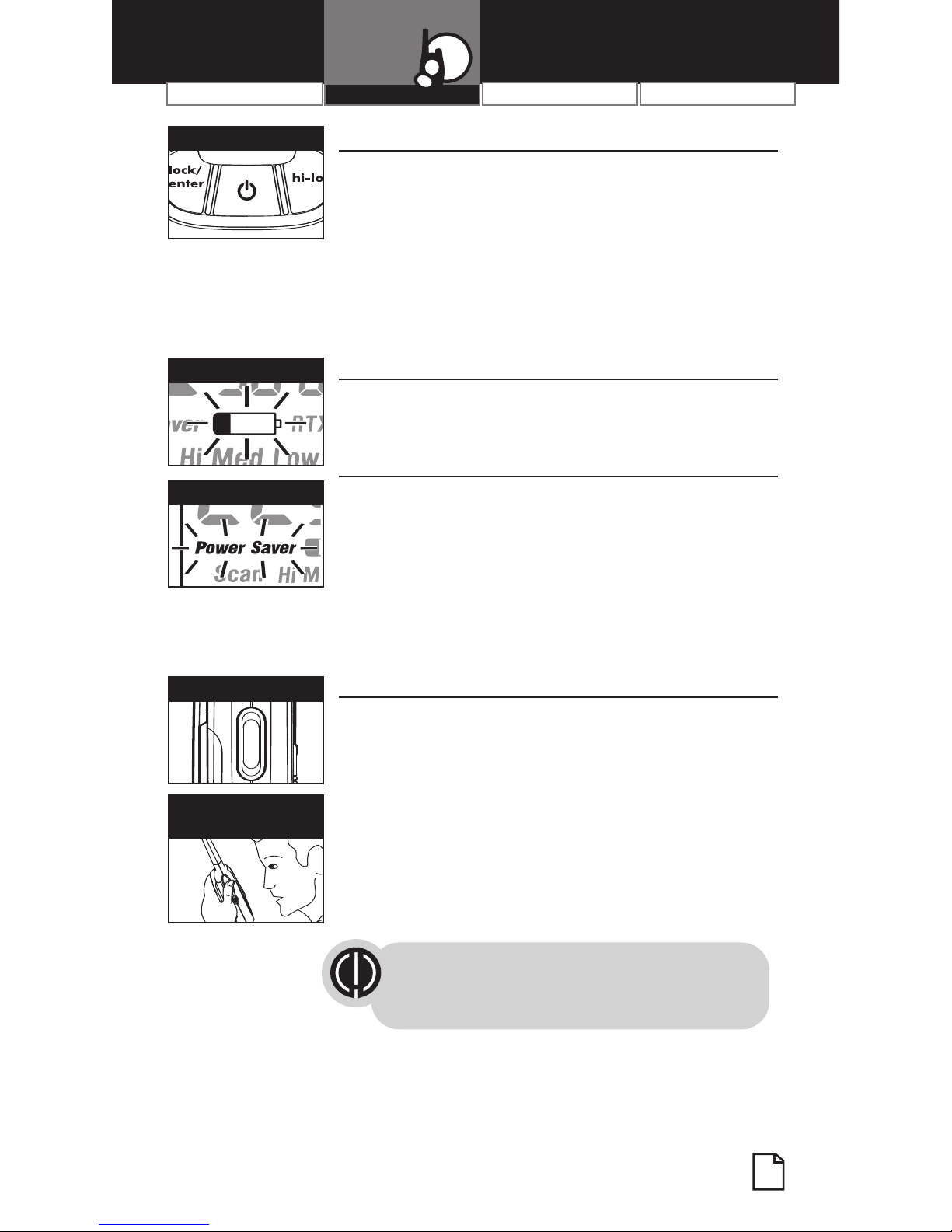

Turning on Your microTALK Radio •
Press and hold the Power button until you
hear a series of audible tones indicating the radio
is on.
Your microTALK radio is now in Standby
mode, ready to receive transmissions. The radio
is always in Standby mode, except when the
Talk, Call,Mode or Power buttons are pressed.
Battery Low •
When battery power is low, the Battery Low icon
will blink. Your batteries should be recharged.
Auto Battery Save •
Your microTALK radio has a unique circuit
designed to extend battery life. If there are
no transmissions for 10 seconds, the radio will
automatically switch to Battery Save mode and
the Power Saver icon will flash in the display.
This will not affect the radio’s ability to receive
incoming transmissions.
Communicating with Another Person •
1. Press and hold the Talk button.
2. With the microphone about 2 inches
(5 cm) from your mouth, speak in a
normal voice.
3. Release the Talk button when you are
finished talking and listen for a response.
You cannot receive incoming calls while
pressing the Talk button.
Both radios must be tuned to
the same channel/privacy code
to communicate.
Customer Assistance WarrantyIntroduction Operation
Intro Operation Customer
Assistance
Warranty
Notice
Main Icons
Secondary Icons
O
On n/ /O Of ff fP Po ow we er r
B
Ba at tt te er ry yL Lo ow w
B
Ba at tt te er ry yS Sa av ve eM Mo od de e
T
Ta al lk kB Bu ut tt to on n
2 Inches (5 cm)
from Mouth

Intro Operation Customer
Assistance
Warranty
Notice
Main Icons
Secondary Icons
Intro Operation Customer
Assistance
Warranty
Notice
Main Icons
Secondary Icons
Intro Operation Customer
Assistance
Warranty
Notice
Main Icons
Secondary Icons
4
Using Your Radio
Channels •
With the radio on, select any of the
22 channels by pressing the Channel Up
or Channel Down button.
Both radios must be tuned to the
same channel to communicate.
Channels 1 through 7 are shared by FRS and
GMRS. Channels 8 through 14 are FRS only.
Channels 15 through 22 are GMRS only.
See page 26 for FRS/GMRS frequency
allocations and compatibility charts.
Listening for a Response •
Release the Talk button to receive incoming
transmissions. Your microTALK radio is always
in Standby mode while the Talk or
Call buttons are not pressed.
Call Button •
To alert another person that you are calling:
–Press and release the Call button.
The other person will hear a two second
call tone. This tone is used only to establish
voice communications.
See page 24 on how to select from
10 available call tone settings.
Operation
Intro Operation Customer
Assistance
Warranty
Notice
Main Icons
Secondary Icons
C
Ch ha an nn ne el lB Bu ut tt to on ns s
C
Ch ha an nn ne el lN Nu um mb be er r
L
Li is st te en ni in ng g
C
Ca al ll lB Bu ut tt to on n

Intro Operation Customer
Assistance
Warranty
Notice
Main Icons
Secondary Icons
Customer Assistance WarrantyIntroduction
5
Operation
Intro Operation Customer
Assistance
Warranty
Notice
Main Icons
Secondary Icons
Selectable High•Medium•Low
Power Output •
When in close proximity to another party or during
favorable conditions, you can switch from High to
Medium to Low Power to extend battery life.
This feature applies to GMRS Channels
1 through 7 and 15 through 22 only.
Channels 8 through 14 operate
exclusively on low power.
To switch from high to medium to low power:
–Press and release the Hi•Low button.
When in High Power and using Channels 1
through 7 and 15 through 22, the Hi icon will be
visible in the LCD display.
When in Medium Power and using Channels 1
through 7 and 15 through 22, the Med icon will
be visible in the LCD.
When in Low Power or while using channels 8
through 14, the Low icon will be visible in the
display.
To Illuminate Display •

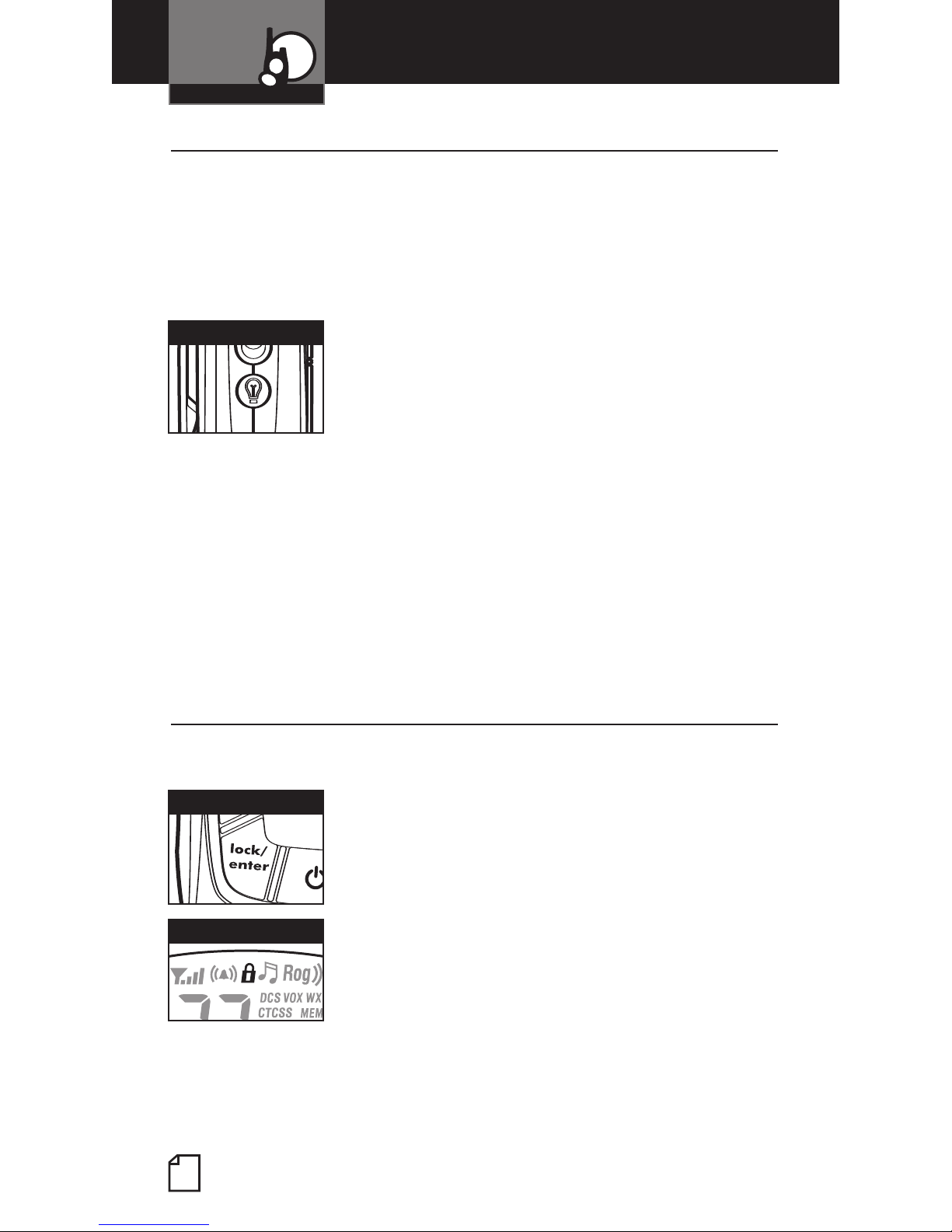

Press and release the Light/Max Range
button to illuminate the display for
10 seconds.
H
Hi i- -L Lo ow wB Bu ut tt to on n
H
Hi iP Po ow we er rI Ic co on n
L
Lo ow wP Po ow we er rI Ic co on n
L
Li ig gh ht t/ /M Ma ax xR Ra an ng ge e
M
Me ed di iu um mP Po ow we er rI Ic co on n

6
Using Your Radio
Auto Squelch/Maximum Range •
Your microTALK radio is equipped with Auto Squelch, which
automatically shuts off weak transmissions and unwanted noise
due to terrain and conditions. This slightly reduces the Maximum
Range at which signals can be heard.
You can turn off auto squelch to allow all signals to be
received and extend the maximum range of your radio.
To briefly turn off auto squelch:
–Press the Light/Max Range button
for less than five seconds.
If you hear two beeps, you have turned
the maximum range extender on (see below).
To turn maximum range extender on:
–Press and hold the Light/Max Range button
for at least five seconds until you hear
two beeps which indicates the maximum
range extender is on.
To turn maximum range extender off:
–Press and release the Light/Max Range
button or change channels.
Lock Feature •
The Lock feature locks the Channel, Mode, Hi•Low and Power
buttons to prevent accidental operation.
To turn the lock feature on or off:
–Press and hold the Lock/Enter button for
two seconds.
A double beep sound is used to confirm your
lock on or off request. When in Lock mode,
the Lock icon will be displayed.
Operation
Intro Operation Customer
Assistance
Warranty
Notice
Main Icons
Secondary Icons
L
Li ig gh ht t/ /M Ma ax xR Ra an ng ge e
L
Lo oc ck k/ /E En nt te er rB Bu ut tt to on n
L
Lo oc ck kM Mo od de e
