Cocraft JS-FB14BD User manual

ENGLISHSVENSKANORSKSUOMIDEUTSCH
Important!
Read the entire instruction manual
carefully and make sure that you fully
understand it before you use the
equipment. Keep the manual for future
reference.
Viktig information:
Läs hela bruksanvisningen noggrant och
försäkra dig om att du har förstått den
innan du använder utrustningen. Spara
bruksanvisningen för framtida bruk.
Viktig informasjon:
Les disse anvisningene nøye og forsikre
deg om at du forstår dem, før du tar
produktet i bruk. Ta vare på anvisningene
for seinere bruk.
Tärkeää tietoa:
Lue nämä ohjeet huolellisesti ja varmista
että olet ymmärtänyt ne, ennen kuin
alat käyttää laitetta. Säilytä ohjeet
myöhempää tarvetta varten.
Wichtiger Hinweis:
Vor Inbetriebnahme die komplette
Bedienungsanleitung sorgfältig
durchlesen und aufbewahren.
HS 950-H
HIGH VOLUME LOW PRESSURE
950 W
18-3608 ∙41-1011
HVLP SPRAY GUN
FÄRGSPRUTA HVLP HVLP MALERSPRØYTE
MAALIRUISKU HVLP HVLP-SPRITZPISTOLE
Ver. 20160513
Original instructions
Bruksanvisning i original
Originalbruksanvisning
Alkuperäinen käyttöohje
Original Bedienungsanleitung
Art.no Model
18-3608 JS-FB14BD
41-1011 JS-FB14BD

ENGLISH
2
HVLP Spray Gun
Art.no 18-3608 Model JS-FB14BD
41-1011 JS-FB14BD
Please read theentire instruction manual before using theproduct and then save it for
future reference. We reserve theright for any errors in text or images and any necessary
changes made to technical data. In theevent of technical problems or other queries,
please contact our Customer Services (see address details on theback).
Safety
General safety instructions for power tools
Warning: Read all theinstructions.
Failure to adhere to thefollowing instructions may lead to electric shock, fires or
serious injuries.
SAVE THESE INSTRUCTIONS.
Theterm “power tool” in thefollowing text refers to your handheld mains operated or
battery operated tool.
1) Work area safety
a) Keep thework area clean and well illuminated. Cluttered and poorly lit areas
invite accidents.
b) Do not use power tools in explosive environments, such as in thepresence
of flammable liquids, gases or dust. Power tools create sparks which may ignite
dust or fumes.
c) Keep children and other bystanders away from thearea where you are using
thepower tool. Distractions can cause you to lose concentration and control of
thetool.
2) Electrical safety
a) Theplug of thepower tool must fit correctly into thewall socket. Never modify
theplug in any way. Never use anadaptor plug together with earthed power
tools. Unmodified plugs and matching outlets will reduce therisk of electric shocks.
b) Avoid physical contact with earthed objects such as pipes, radiators, ovens
and refrigerators. There is anincreased risk of electric shock if your body is earthed.

ENGLISH
3
c) Do not expose thepower tool to rain or other wet conditions. Water entering
apower tool will increase therisk of electric shock.
d) Do not abuse themains lead. Never use thelead for carrying, pulling or
unplugging thepower tool. Keep thelead away from heat, oil, sharp edges
and moving parts. Damaged or tangled leads increase therisk of electric shock.
e) When using power tools outdoors, use anextension lead that is suitable for
this purpose. Theuse of anextension lead designed for outdoor use decreases
therisk of electric shocks.
f) If theuse of thepower tool in awet environment is unavoidable, awall
socket equipped with aresidual current device (RCD) should be used.
Use of anRCD significantly reduces therisk of electric shock.
3) Personal safety
a) Pay attention to what you are doing and use common sense when using
power tools. Never use power tools if you are tired or under theinfluence of
drugs, alcohol or medication. One moment of inattention while using apower
tool may result in aserious injury.
b) Wear protective clothing. Always wear safety glasses. Using protective
clothing such as dust masks, non-slip safety shoes, helmets and ear defenders
reduces therisk of injury.
c) Avoid accidental starts. Make sure that thepower switch is set to OFF before
plugging thepower tool into awall socket, fitting thebattery or picking up/
carrying thepower tool. Never carry apower tool with your finger on thetrigger
and never connect thepower tool to awall socket when theswitch is set to ON,
since it may result in injury.
d) Remove all service tools/keys before switching on thepower tool. Aservice
tool left on arotating part of thepower tool may result in personal injury.
e) Do not overreach. Keep proper footing and balance at all times. This enables
better control of thepower tool in unexpected situations.
f) Wear suitable clothing. Do not wear loose-fitting clothing or jewellery.
Keep hair, clothes and gloves away from moving parts. Loose-fitting clothes,
jewellery or long hair could become caught in moving parts.
g) If equipment for theextraction and collection of dust is available, make sure
it is connected and used properly. Use of dust collection equipment can reduce
dust related hazards.

ENGLISH
4
4) Use and maintenance of the power tool
a) Do not force thepower tool. Use thecorrect power tool for your application.
Thecorrect power tool will do thejob better and safer if used at therate for which
it was designed.
b) Never use thepower tool if thepower switch does not switch thetool on
and off properly. Any power tool that cannot be controlled by thepower switch is
dangerous and must be repaired.
c) Unplug thelead from thewall socket or remove thebattery before making
any adjustments, changing accessories or storing thepower tool. These
precautions reduce therisk of thepower tool starting unexpectedly.
d) Store power tools that are not being used out of children’s reach. Do not
allow people who are unfamiliar with thetool or these instructions to operate
thetool. Power tools are dangerous in thehands of untrained users.
e) Properly maintain your power tools. Check for misalignment, binding of
moving parts, broken parts or anything else which might affect theoperation
of thepower tool. If damaged, have thepower tool repaired before use. Many
accidents are caused by poorly maintained power tools.
f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp
cutting edges are less likely to bind and are easier to control.
g) Use thepower tool, and any accessories in accordance with these
instructions, taking into account theworking conditions and thework to
be performed. Using thepower tool for apurpose other than that for which it is
intended could result in adangerous situation.
5) Service
a) Repairs and service should only be performed by qualified tradesmen, and
only with original spare parts. This guarantees that thesafety of thepower tool
is maintained.
Safety instructions specic to spray guns
• Thespray gun must not be used close to sources of ignition such as open fires,
cigarettes, sparks, electrical appliances and hot objects.
• Only use coating materials and solvents with aflashpoint above 21 °C.
• Be aware of potential hazards caused by thecoating material. Follow
theinstructions on thepackaging of thecoating material. Follow all instructions
regarding personal safety equipment.
• Use thespray gun in awell-ventilated area suited for thepurpose.
• Warning: Never use thespray gun with any flammable liquid.

ENGLISH
5
• If themains lead is damaged it should only be replaced by themanufacturer or
aqualified service technician. This is to avoid hazards.
• Warning: Risk of personal injury! Never point thespray gun at yourself, other
persons or animals.
• ALWAYS use suitable safety goggles, gloves, breathing masks, etc. to prevent
paint, solvents and poisonous fumes from coming into contact with eyes and skin.
• Always follow theinstructions given by themanufacturer of thepaint or coating
material to be used in thespray gun.
• Do not dismantle thespray gun or try to repair it yourself.
• Make sure that no solvent fumes are sucked into thespray gun.
• When using thespray gun outdoors, think about thewind direction. Thecoating
material from thespray gun could land on surfaces where it is not wanted close to
thework area.
• When using thespray gun indoors, make sure that theroom is well ventilated.
• Thespray gun is only intended for normal domestic use and only in themanner
described in this instruction manual.
• Never lay thespray gun on its side during use.
• Never let children play with thespray gun.
Safety symbol guide
Read theentire instruction manual before use and save it for future reference.
Always use ear protection, safety glasses or avisor and wear adust mask.

ENGLISH
6
1
2
3
4
1098 11 12 13 14
16
15
5 76

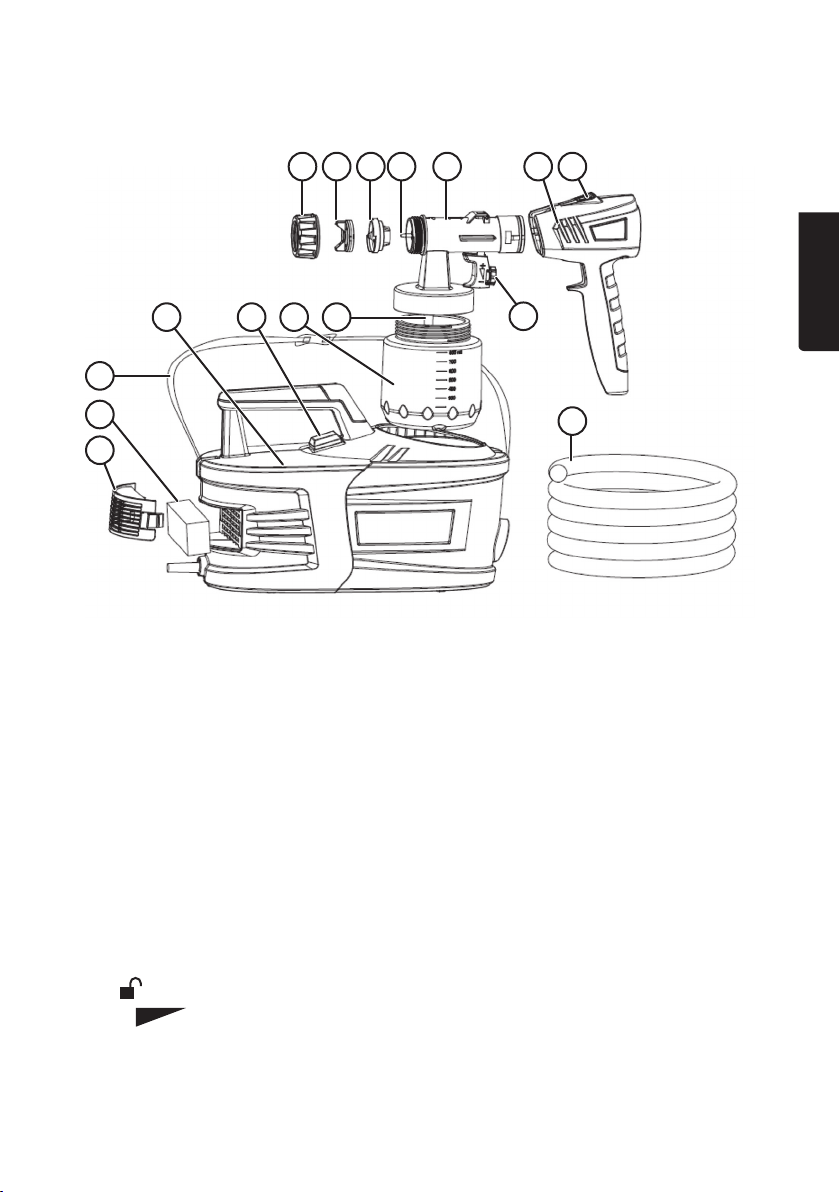

Product description
1. Air filter cover
2. Filter
3. Shoulder strap
4. Air compressor
5. [0/l ] Power switch
6. Container
7. Pickup tube
8. Retaining ring, keeps theair cap and paint nozzle in place
9. Air cap
10. Paint nozzle
11. Paint needle
12. Spray gun body
13. Pistol grip

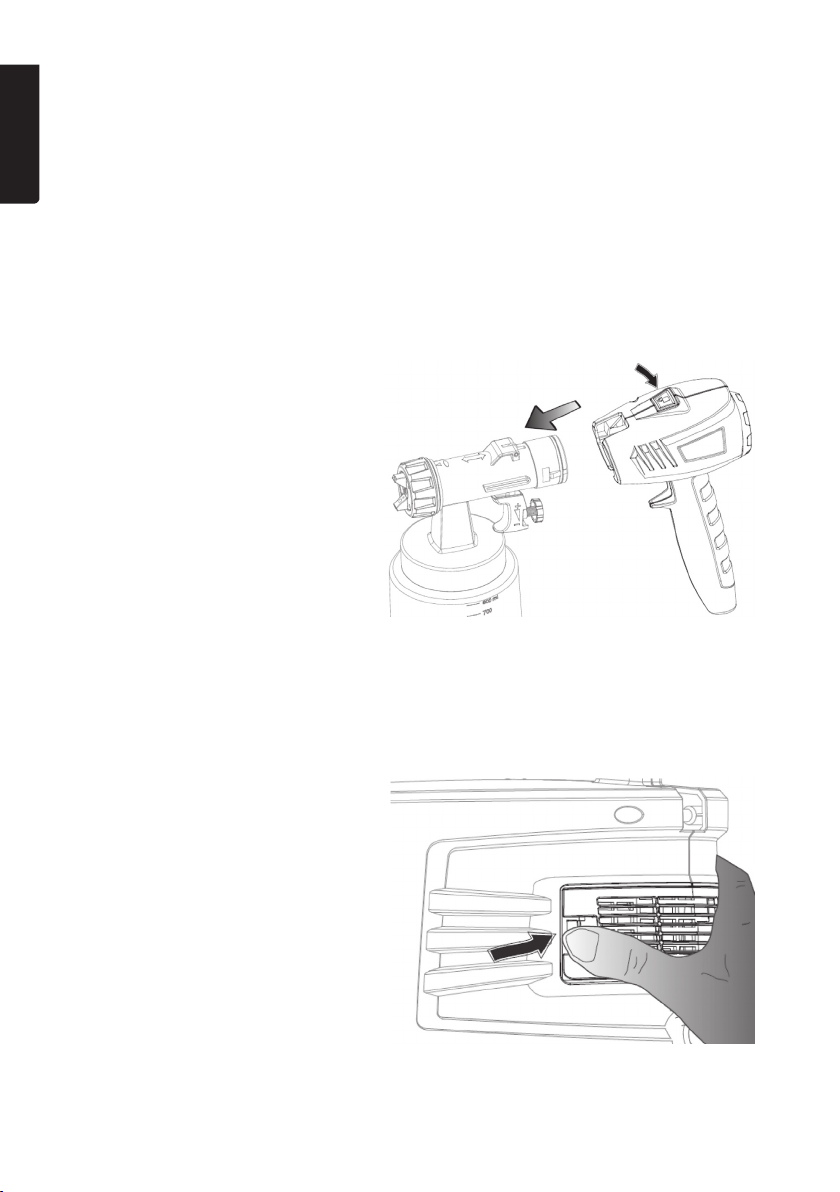

14. [ ] Quick release button to separate thepistol grip from thespray gun body
15. [+ – ] Trigger and paint flow adjuster
16. Air hose

ENGLISH
7
Operating instructions
Preparations
Attaching the shoulder strap
Suitable coating materials
Water- and solvent-based paints, 2-component paints, primers, clear finishes, vehicle
finishes, glazes, wood preservatives (sealants, oils, etc), wood stains, insecticides and
certain flour paints such as Falu Vapen.
Unsuitable coating materials
Emulsion paints, alkaline paints, calcimine paints (whitewash), materials with
aflashpoint below 21 °C.
Preparing the coating material (thinning)
Thoroughly shake thecan of coating material before opening it. Coatings such as paints
normally need to be diluted/thinned before spraying. Test asmall amount of thecoating
before diluting it all. Follow themanufacturer’s advice for thinning thecoating you are
using. Ask your local paint shop for advice if you are unsure, explain that you are using
aHVLP (high volume, low pressure) type spray gun. Thethickness of apaint is denoted
by its viscosity and is measured by letting acertain amount of paint run through ahole
of acertain diameter. Thelonger it takes for thepaint to run through thehole, thehigher
theviscosity. Viscosity is measured in seconds.
Warning: Only use coating materials and solvents with aflashpoint above 21 °C.

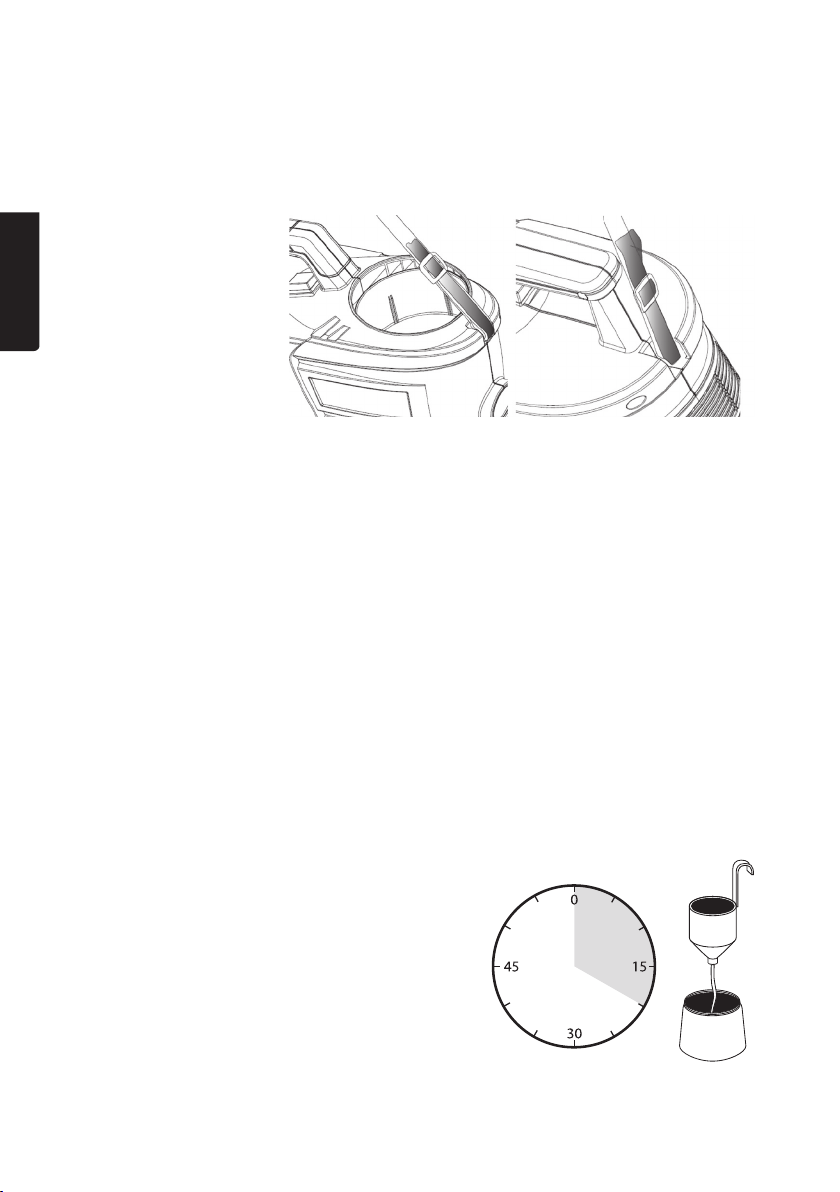

Fasten theshoulder
strap to thehousing of
theair compressor and
adjust thelength.
Measuring theviscosity:
1. Shake thecontainer of paint before
performing aviscosity test.
2. Dip theentire viscosity cup into thecoating
material so that it fills completely.
3. Hold up theviscosity cup and measure how
long it takes for thepaint to run through thehole.
4. Dilute thepaint if it is too thick and measure
it again.

ENGLISH
8
Example viscosities of various coating materials
Spray coating Viscosity in DIN-seconds
Primer containing solvent 25–40
Varnish containing solvent 15–40
Water-soluble primer 25–40
Water-soluble varnish 20–35
Wood preservative, paint remover, oil Undiluted
Disinfectant, insecticide Undiluted
Vehicle paint/lacquer 20–35
Preparation of the workpiece to be coated
• Thequality of thefinish will depend on how clean and smooth thesurface is before
it is sprayed. Sand and fill rough or cracked surfaces if required. Remove all dust
from thework area before starting to spray, vacuum clean if possible.
• Cover all surfaces and objects that should not be sprayed with masking tape and
dust sheets or remove them from thework area.
• Cover all hinges, screw threads, etc.
Spray painting
Operating instructions
Note: Begin by test-spraying on apiece of card to set thecorrect spray pattern and
feed rate before starting to spray theobject to be coated.
Setting the spray pattern
Theair cap can be set to one of three positions for different spray patterns.
Vertical
For large
vertical
surfaces
Horizontal
For large
horizontal
surfaces
Round
For corners and
small surfaces

ENGLISH
9

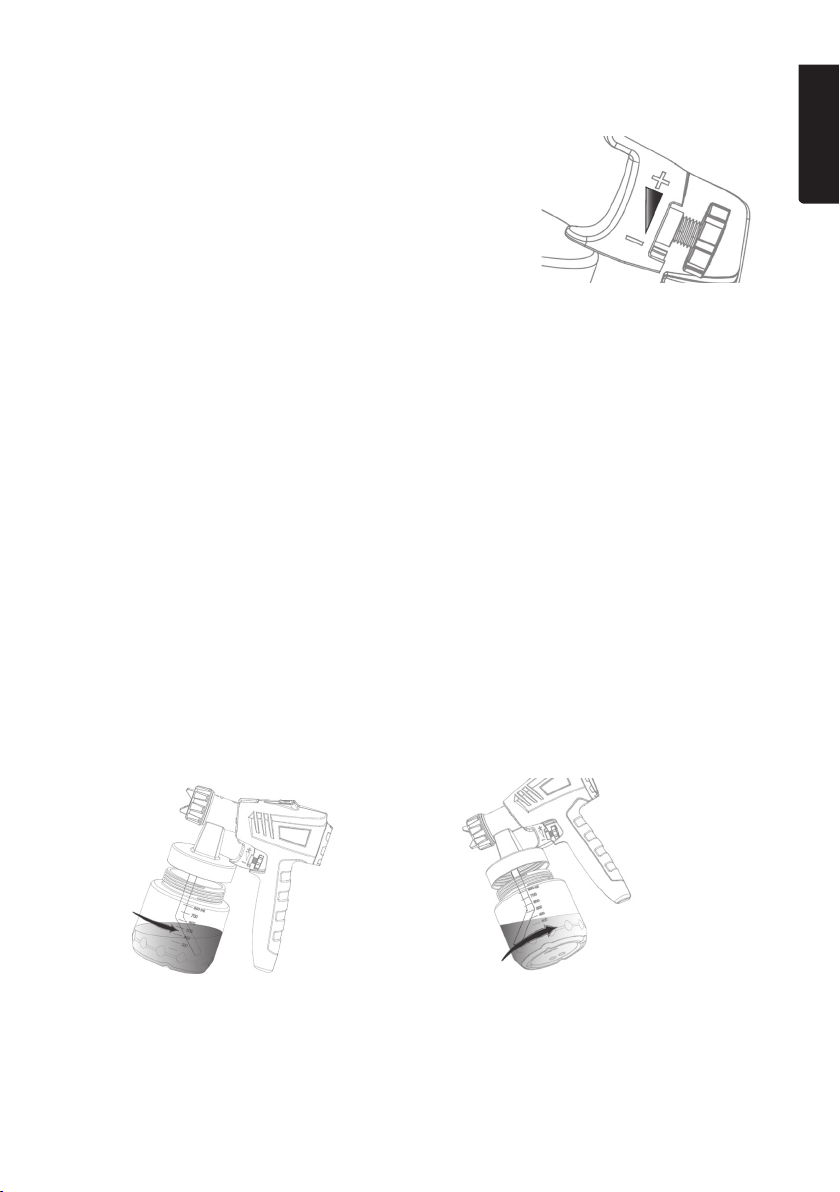

Adjusting the paint volume
Adjust theamount of paint using thescrew on
theback of thetrigger.
• When working outdoors, pay attention to thewind direction.
• Hold thespray gun perpendicular to thesurface to be painted and at adistance of
10–30 cm.
• Begin spraying outside thetarget area and move your arm in asmooth motion
from side to side or up and down.
• Move thespray gun evenly cross-wise or up-and-down, depending on thespray
pattern setting.
• Let each pass of thespray jet overlap by 4–5 cm.
• Do not interrupt thespraying action once inside thetarget area.
• Aneven movement of thespray gun results in aneven surface quality.
• Varying thedistance or spraying angle will lead to theformation of paint mist,
resulting in anuneven coating.
• Finish thespraying motion outside thetarget area.
• Do not operate thespray gun until thefluid container is completely empty. If
thespray gun can no longer feed paint to thenozzle during operation, there will be
aninterruption in thespraying resulting in anuneven finish.
• If either thepaint nozzle or air cap are soiled, they should be cleaned with
theappropriate thinning agent.
1. Fill thecontainer with theready-mixed coating material.
2. Attach thecontainer and adjust thepickup tube as directed below:
If thespray gun needs to be pointed
downwards for painting; turn thetube
so that it points forwards and then
screw thecontainer on.
If thespray gun needs to be pointed
upwards for painting; turn thetube so
that it points backwards and then screw
thecontainer on.

ENGLISH
10
Switching the spray gun on
1. Connect themains lead to a220–240V, 50Hz power socket.
2. Turn on thecompressor using thepower switch (5).
3. Pull thetrigger (15) until paint comes out.
Switching the spray gun off
1. Release thetrigger.
2. Turn off thecompressor using thepower switch (5).
3. Unplug themains lead from thewall socket.
Changing the paint nozzle
Thespray gun comes with 2 paint nozzles, 1.8 mm and 2.6 mm. Thesmaller nozzle is
suitable for most purposes. Thelarger nozzle should be used if ahigh volume of paint
needs to be applied.
1. Remove theretaining ring (8).
2. Remove theair cap and paint nozzle and separate them.
3. Connect theair hose to
both theair compressor
and thespray gun.
3. Change thepaint nozzle and
reassemble it with theair cap. Make
sure that thelugs on theair cap slot
into thenotches on thepaint nozzle.
4. Refit theparts onto thespray gun, making
sure that thelugs on thepaint nozzle fit
into thenotches on thespray gun.
5. Fasten thenozzles in place using
theretaining ring.
