Codent Apollo series Guide

Low Speed Handpiece and Air Motor (APOLLO SERIES)

Operation manual &Maintenance Guide

ENGLISH 繁體

CODENT TECHNICAL INDUSTRY CO., LTD.

QS-B0-012

0197

CAUTION

˙Please consider the safety of the patient when using the handpiece.

˙Please remember when the bur is rotating, pressing the chuck push button that will result in

overheating of the handpiece. When pressing the chuck push button, please keep the handpiece away

from the face of the patient.

˙Please use carefully and do not drop the handpiece.

˙Never try to take the handpiece apart or tamper with mechanism.

˙If the handpiece operate irregular, stop using immediately and give back to your dealer for service.

˙When you want to remove the bur, please wait to the handpiece completely stop rotating.

˙Please use burs no longer than 26mm. Do not use no-dental burs.

˙Please look over the overheating, vibration and noise outside the patient’s mouth. If you nd any unusual

situation, please contact with the dealer for service.

Thank you for purchasing Codent Low Speed Handpiece and Air Motor.

0197

Contents

1. Performance Specications......................................................................................................................04

Low Speed Contra-angle Handpiece

Low Speed Straight Handpiece

Air Motor

2. Insert & Remove the bur for Contra Cngles Handpiece................................................................09

3. Insert & Remove the bur for Straight Handpiece.............................................................................10

4. Connect to Air Motor and Disconnect from Air motor.....................................................................11

5. Lubricate...........................................................................................................................................................12

6. Clean and Sterilize.........................................................................................................................................14

1. Performance Specications

※ Low Speed Contra-angle Handpiece

Model A65 L A65 A55 L A55 A85 L A85 A61 L A61 A51

Colling Systen Quattro Single Quattro Quattro

Chuck Type Push Type

Gear Ratio 1:5 1:4.2 1:1

Allowable Max.

Speed (rpm) 200,000 168,000 40,000

Bur Size Size: ISO1797-1 Type 3

Ø1.59-1.60mm

Ø2.35mm Latch Type Burs,

Surgical Drill / TAP

Fiber Optics ‐‐‐ ‐‐‐ ‐‐‐ ‐‐‐ ‐‐‐

Head type Standard Miniature 45° Standard Miniature

※ Low Speed Contra-angle Handpiece

Model A64 L A64 A54 A10 L A10 A16 L A16 A56 A20 L A20

Colling Systen Single Spray / Internal Cooling External / Internal

Chuck Type Push Type

Gear Ratio 4:1 10:1 16:1 20:1

Allowable Max.

Speed (rpm) 10,000 4,000 2,500 2,000

Speed (rpm) Ø2.35mm Latch Type Burs,Surgical Drill / TAP

Fiber Optics ‐‐‐ ‐‐‐ ‐‐‐ ‐‐‐ ‐‐‐ ‐‐‐

Head type Standard Miniature Standard Standard Miniature Standard

※ Low Speed Contra-angle Handpiece

Model H61 H51 H64 H54 H16 H56 H41 H31

Colling Systen Single Spray / Internal Cooling Single Spray /

External Cooling

Chuck Type Push Type

Gear Ratio 1:1 4:1 16:1 1:1

Allowable Max.

Speed (rpm) 40,000 10,000 2,500 40,000

Bur Size Ø2.35mm Latch Type Burs,Surgical Drill / TAP

Fiber Optics ‐‐‐

Head type Standard Miniature Standard Miniature Standard Miniature Standard Miniature

※ Low Speed Straight Handpiece

Model

A11 L A11 A12 H10 H11 H12

Internal Straight Handpiece External Straight Handpiece

Colling Systen Single Spray / Internal Cooling Single Spray / External Cooling

Chuck Type Switch to disconnect

Gear Ratio 1:1

Allowable Max.

Speed (rpm) 40,000

Bur Size Ø2.35mm Latch Type Burs,Surgical Drill / TAP

Fiber Optics ‐‐‐

※ Air Motor

Model

AI6N W AI6N AI4N W AI4N AE4N AE4F AE2N AE2F

Internal Air Motor External Air Motor

Allowable Max.

Speed (rpm) 25,000

Speed regulation Reverse rotaction

Adjustable Water

Volume ‐‐‐ ‐‐‐ ‐‐‐

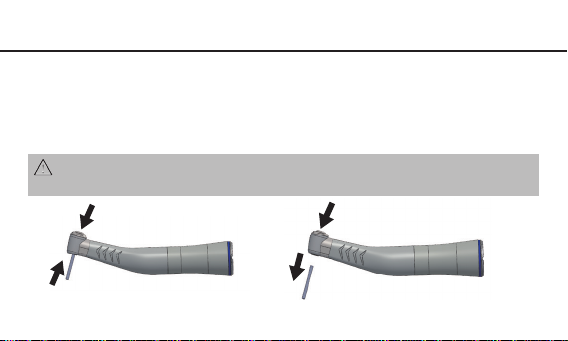

2. Insert & Remove the bur for Contra Cngles Handpiece

To insert the bur (FIG. 1)

Please press the push button and insert the bur into the spindle. Make sure it is secure and then, you

could release the button.

To remove the bur (FIG. 2)

Please make sure the handpiece is completely stopped rotating and then press the push button securely

and remove the bur.

FIG.1 FIG.2

CAUTION

You can pull and push the bur without press the push button for testing the bur is secure.

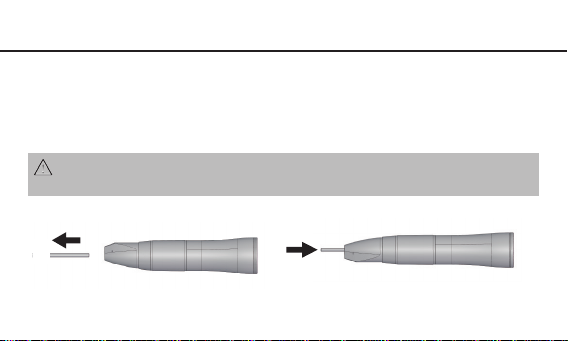

3. Insert & Remove the bur for Straight Handpiece

To insert the bur (FIG. 3)

Please switch the Tension ring to counter clockwise direction till t the sound of “click” and then insert bur

into the spindle. Make sure you hear the sound of “click”.

To remove the bur (FIG. 4)

Please switch the Tension Ring to the counter clockwise direction till the sound of “click” and then pull out

the bur.

FIG.4

FIG.3

CAUTION

You can pull and push the bur for testing the burr is secure.

4. Connect to Air Motor and Disconnect from Air motor

A.Mount the handpiece to the air motor.(FIG.5)

B.Connect the tube of dental unit to the bottom of air motor.

C.Adjust the air pressure under 0.25 Mpa,

D.There is an air controller on the air motor; you can adjust the water volume by air controller.(FIG.6)

FIG.5

FIG.6

CAUTION

˙Please make sure there is no dirt and debris in the tube of dental unit.

˙Please make sure the handpiece and the air motor connect tightly.

5. Lubricate

Lubricate Codent handpiece by using Codent spray nozzle for Internal, External

handpiece and Air Motor.

(1) Put on or screw nozzle and then shake the spray can 3-5 times. (FIG.7)

(2) Insert the spray nozzle into the air tube of the handpiece and then spray for 4-5

seconds until the oil comes out from the handpiece head. (FIG.8)

(3) Connect the tube of dental unit to the bottom of air motor and then rotate the Air

Motor for lubrication the interior Air Motor. (FIG.9)

FIG.7 FIG.8

CAUTION

˙Be sure to grasp the handpiece securely to prevent sliding from doing spray.

˙Please keep the spray can top side up.

Strongly recommend please lubricate and clean Air Motor after every use.

˙Use clean cotton with alcohol to clean the outside of Air Motor

˙Do not immerse Air Motor in disinfectant solution.

FIG.9

CAUTION

˙Press the foot pedal for 20 seconds and check if there is any dirt on the gauze.

˙Do not immerse Air Motor in disinfectant solution or water.

6. Clean and Sterilize

Autoclave sterilization is strongly recommended. First time you use and after each

patient, please sterilize the handpiece.

※Autoclave procedure :

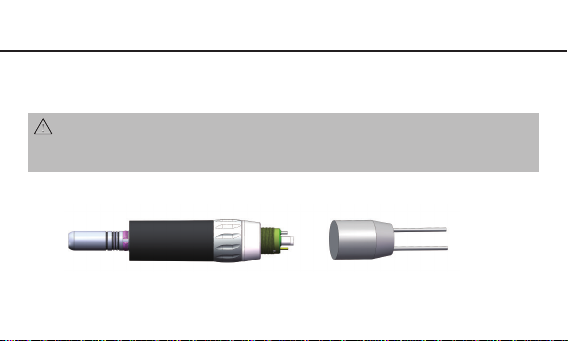

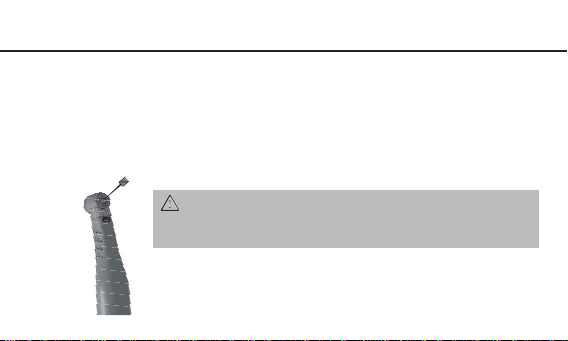

(1) Use cleaning wire to clean the water spray hole of LBIPA1. (FIG.10)

(2) Insert into an autoclave pouch and Close the pouch.

(3) Autoclavable up to max. 135ºC.ex.) Autoclave for 20 min. at 120ºC, or 15 min. at 130ºC.

(4) Put the handpiece in the autoclave pouch to protect the handpiece and keep it clean.

※Sterilization at 121 ºC for more than 15 minutes is recommended.

FIG.10

Lotus Global Co., Ltd

1 Four Seasons Terrace, West Drayton, Middlesex London, UB7 9GG, United Kingdom

CODENT TECHNICAL INDUSTRY CO., LTD.

WWW.CODENT-TECH.COM

5F., No. 90, Luke 5th Road, Lujhu Township, Kaohsiung Taiwan R.O.C.

注意事項

˙ 使用本產品時，請以患者之安全為優先考慮。

˙ 切勿在車針運轉時按壓帽蓋，若按壓帽蓋，會導致手機過熱及車針脫針等情況，造成危險。

˙ 請謹慎使用，並切勿使手機或馬達掉落地面或遭受劇烈撞擊。

˙ 請勿自行拆解或改造本產品。

˙ 如使用時發現異狀，應立即停止使用並送回原供應商做維修。

˙ 使用手機時，無論有無連接，請確認氣壓馬達為停止狀態。

˙ 當您想移除車針時，請等待至手機完全停止運轉時，方可移除更換。

˙ 請使用短於 26mm 的車針，請勿使用非牙科器具專用之車針。

˙ 若發現過熱、鬆動及雜音等異常現象，請立即停止使用並通知相關服務人員及送修。

˙ 生產日期 : 請詳見外包裝標籤。

感謝您購買科頂牙醫用低速手機及氣動馬達

0197

1. 機能規格 ..........................................................................................................................................................18

低速彎手機

低速直手機

氣動馬達

2. 彎機車針之插入與移除 .................................................................................................................................23

3. 直機車針之插入與移除 .................................................................................................................................24

4. 與氣動馬達連接及拆除 .................................................................................................................................25

5. 潤滑保養 ...........................................................................................................................................................26

6. 清潔與消毒 .......................................................................................................................................................28
