CohuHD Costar 8800HD User manual

HeliosTM Products
INSTALLATION MANUAL 8800HD Series
Long-Range Camera Positioner System
Long-Range Standalone Camera System
Technical Manual 6X-1105D
July 15, 2014
www.CohuHD.com
[email protected]

2 6X-1105D
Table of Contents
About this document 3
Additional information and documents related to the camera system 3
FCC compliance 3
Support services 3
Returns 4
Safety instructions 5
Grounding 6
1.0 Introduction 7
1.1 Supplied Accessories 8
1.2 Optional Accessories 8
2.0 Installation 9
2.1 System Cable Requirements 10
2.2 CohuHD-Manufactured System Cables (CA288 and CA289 Series) 11
2.3 Connector Pinouts 12
3.0 Mounting Methods 13
3.1 Standalone Camera System Mounting Methods 15
3.1.1 Pedestal Mount Installation. CohuHD p/n 8186-1 15
3.1.2 Wall Mount Installation. CohuHD p/n 8186-2 16

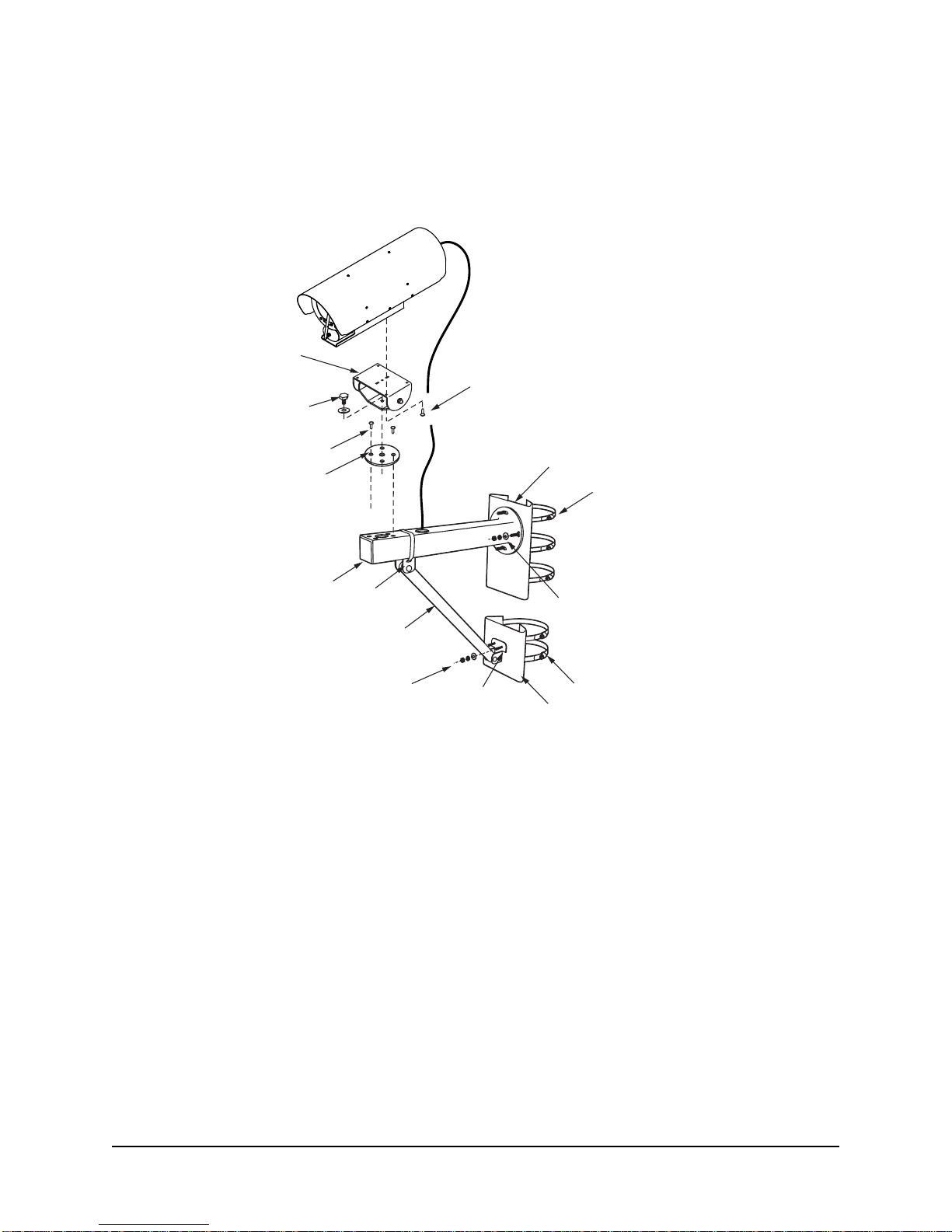

3.1.3 Pole Mount Installation. CohuHD p/n 8186-3 17

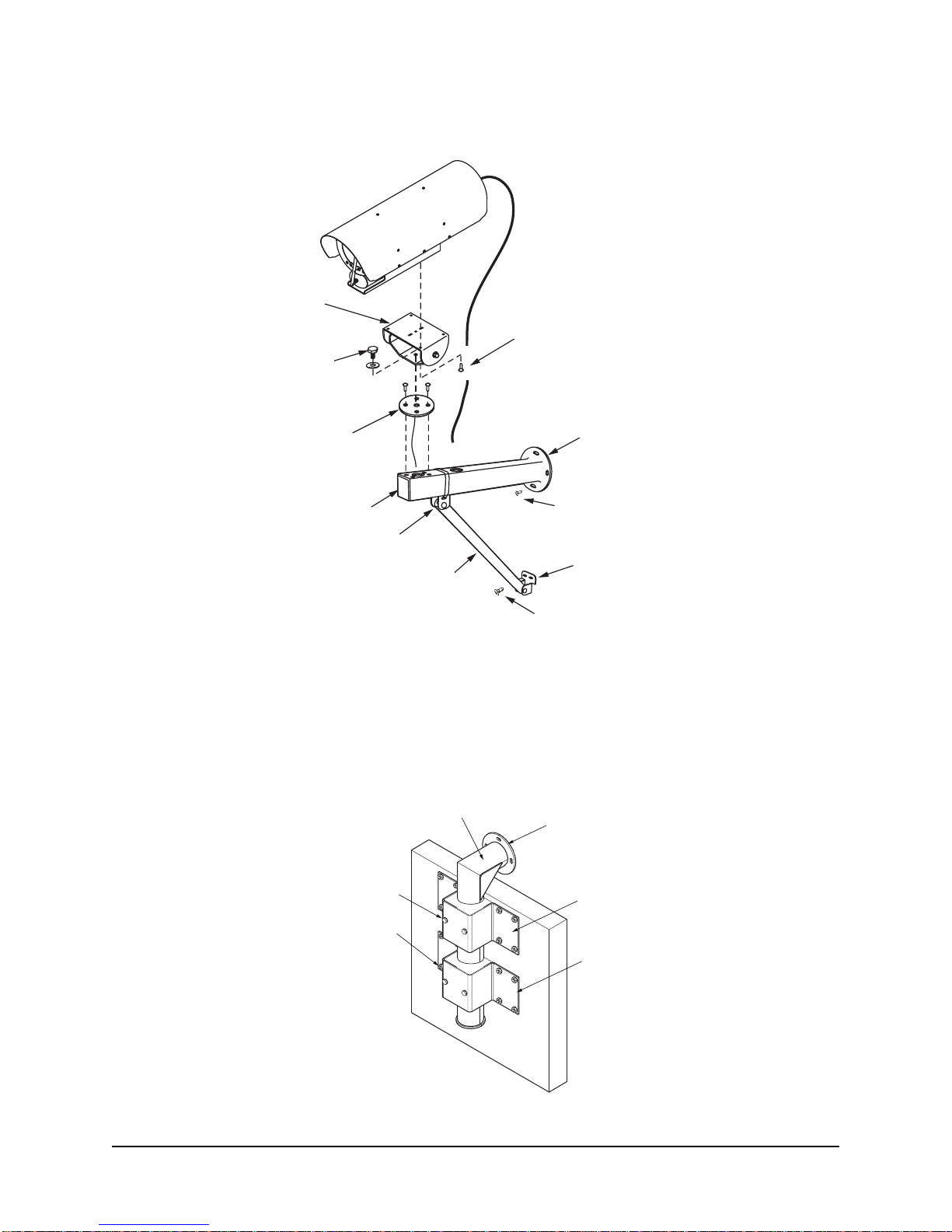

3.1.4 Corner Mount Installation. CohuHD p/n 8186-4 18
3.1.5 Parapet Mount Installation. CohuHD p/n 8186-5 19
3.2 Camera Positioner System Mounting Methods 20

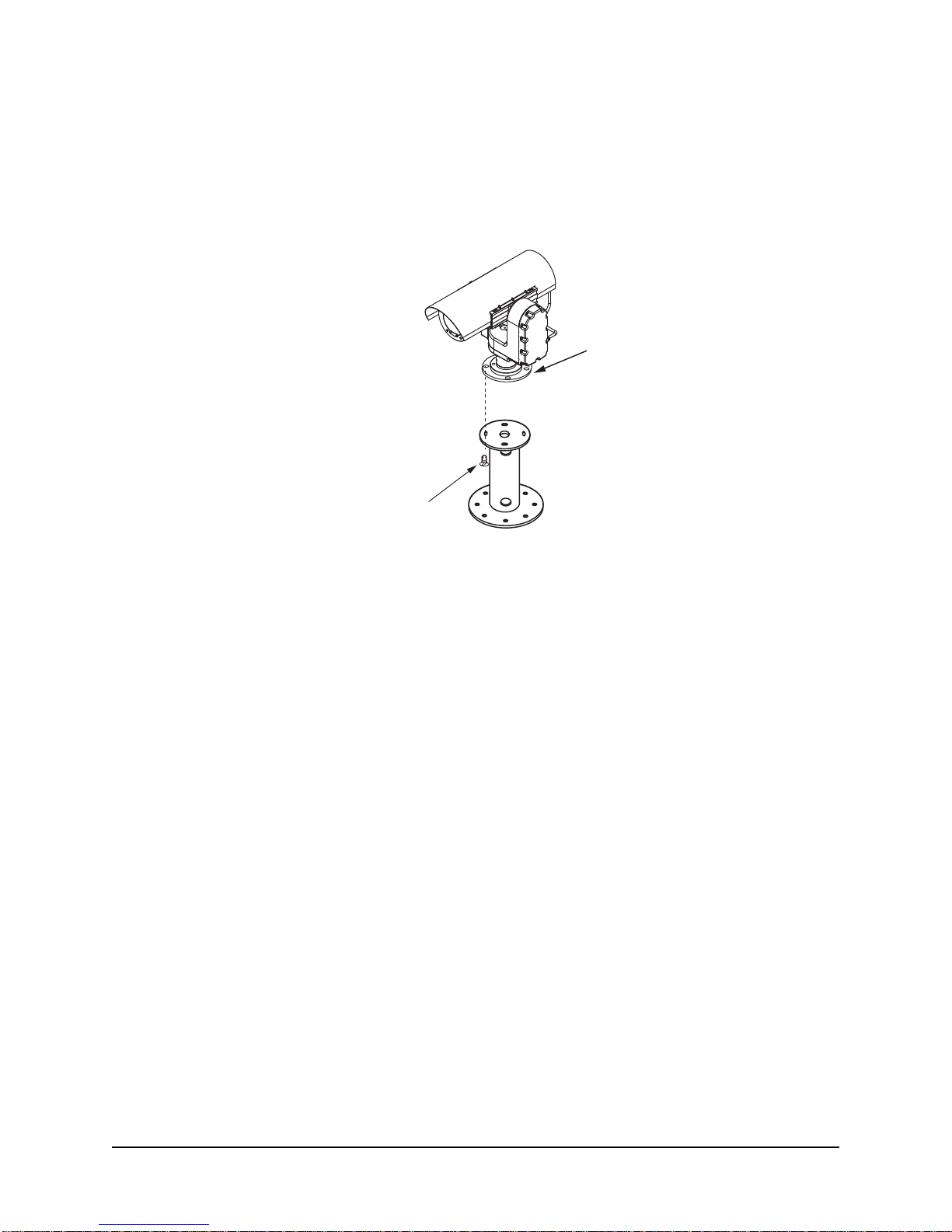

3.2.1 Pedestal Mount Installation. CohuHD p/n 7411542-001 20
3.2.2 Wall Mount Installation. CohuHD p/n 8185-3 21
3.2.3 Pole Mount Installation. CohuHD p/n 8185-4 22
3.2.4 Corner Mount Installation. CohuHD p/n 8185-5 23
3.2.5 Parapet Mount Installation. CohuHD p/n 8185-6 24
3.2.6 Installation Procedure 25
3.3 Overall Dimensions 28
3.4 Mounting Brackets Dimensions 30
4.0 Quick Check 34
4.1 Computer Requirements 34
4.2 IP Control and Viewing of Camera 34
4.3 Factory Default IPAddress and Settings 34
4.4 Factory Default User Names and Passwords 34
4.5 Assigning the New Camera IPAddress 35
4.6 Using the CohuONVIFDiscovery Software to Discover the Camera 36
4.7 Checkout Procedure 37
5.0 Maintenance 38
5.1 Camera Head Housing Pressurization 38
5.1.1 Schrader Valve 39
5.1.2 Pressure Relief Valve 39
5.2 Wiper Unit 40
5.2.1 Wiper Blade Replacement 40
6.0 Warranty 41

6X-1105D 3
About this document
This manual contains information on the installation and maintenance of the CohuHDTM HeliosTM 8800HD
Series Long-Range Standalone Camera System and Camera Positioner System. Please read this manual
carefully prior to installation to prevent any accidental damage or misuse. The manual is available from the
CohuHD website at:
http://www.CohuHD.com/Files/install_manuals/8800HD_IM.pdf
The information in this manual is subject to change without notice. Please refer to the above website for
the latest information.
NOTE: All graphics contained within this document, including screenshots and other displays, are for reference use
only and are subject to change.
Additional information and documents related to the camera system
For information on the camera system operation and conguration, please see Operation manual 6x-1090.
The manual is available from the CohuHD website at:
http://www.CohuHD.com/Files/operation_manual/HeliosOperationManual.pdf
Copyright/Intellectual Property Rights statement
Copyright 2014 by CohuHD Costar, LLC. CohuHD Costar, LLC has intellectual property rights to technology
embodied in the product described in this manual.
CohuHD™ and Helios™ are trademarks of CohuHD Costar, LLC.
FCC compliance
This equipment has been tested and found to comply with the limits for a Class A digital device pursuant
to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference when the equipment is operated in a commercial environment. This equipment generates,
uses, and can radiate radio frequency energy, and, if not installed and used in accordance with the instruc-
tion manual, may cause harmful interference to radio communications. Operation of this equipment in a
residential area is likely to cause harmful interference, in which case the user will be required to correct the
interference at his own expense.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and (2) this device must accept any interference re-
ceived, including interference that may cause undesired operation. Changes or modications to this device
void the warranty.
Support services
Please contact the Customer Service Department for technical assistance.

4 6X-1105D
Returns
This item was thoroughly tested and carefully packed at the factory prior to shipping. Upon acceptance by
the carrier, the carrier assumes responsibility for the item’s safe arrival. If you receive the item in a damaged
condition, apparent or concealed, a claim for damage must be made to the carrier.
If a visual inspection shows damage upon receipt of this shipment, it must be noted on the freight bill or
express receipt and the notation signed by the carrier’s agent. Failure to do this can result in the carrier
refusing to honor the claim.
When the damage is not apparent until the unit is unpacked, a claim for concealed damage must be made.
Make a mail or phone request to the carrier for inspection immediately upon discovery of the concealed
damage. Keep all cartons and packing materials.
To return the product to the factory for service, please contact the Customer Service Department for a Re-
turn Material Authorization (RMA) Number.
Prominently display the RMA number on the outside of the shipping container(s) and on paperwork con-
tained inside. Give a brief description of why the equipment is being returned and list the symptoms of any
problems being experienced with the equipment.
For shipment, send package with enough foam padding or other packing material to prevent damage during
shipping. The original shipping carton is a good container if it has not been damaged.
Shipment
IMPORTANT
If the camera needs to be shipped, please use the original packaging material which was designed to
protect the product during transportation. If the original packaging is lost or damaged, please order a
replacement from Customer Service.

6X-1105D 5
Safety instructions
• Installation must be done by qualied installers, and conform to all local codes.
• It is the user’s responsibility to ensure that the mounting methods are safe and adequate for the
location.
• Use only stainless steel (SS) hardware to fasten the mount to an outdoor surface.
• All servicing must be performed by qualied service personnel. Procedures in this manual do not
require entry into the housing of the camera system. The unit contains potential high voltage. It also
contains sensitive devices that can be damaged by static discharge. To reduce the risk of electric
shock and damage to the unit by static discharge do not perform any servicing other than described
in these instructions. If the unit is defective, please contact the Customer Service Department for
technical assistance.
• It is the sole responsibility of the installer to provide proper installation in compliance with all local
codes and regulations.
CAUTION:
Mount the camera system before the power is applied.
WARNING:
Do not remove covers. There are no user-serviceable parts inside.
CAUTION:
In order to avoid deterioration of the color lter of the sensor and potential discoloration of the image
avoid pointing the camera directly toward the sun or other bright source.
WARNING:
The 8800HD camera positioner system is operated via remote computer control and may move rapidly
and unexpectedly. Remove power from the camera system before servicing and whenever working
near the camera system.
IMPORTANT:
The 8800HD camera system, when provided with a motorized positioner system, is intended for instal-
lation and operation away from human and animal activity. When human or animal activity is possible
in the vicinity of the camera system, appropriate guards or barriers are necessary to prevent contact
with the moving parts of the system.

6 6X-1105D
Grounding
• To provide protection against electrical surges induced by lightning, static charges, or any other
cause, the camera and cabling system must be properly grounded to earth. For installation on a
building, the camera must be bonded (that is, provided with a low impedance connection) to the
building’s structural earth ground system. For installation on a metal pole with a proper ground
system at the base, the camera must be bonded to the pole. For installation on a non-grounded or
insulated support, the camera must be grounded with an adequate ground strap or wire between
the camera and a nearby ground system, or to a ground system installed at the base of the sup-
port. Failure to adequately ground the camera may lead to failure of the camera. This applies to
low voltage (i.e. PoE cameras) as well as to 115 Vac cameras. Failures due to surges are not
covered by the warranty, as they are not due to defects in material or workmanship, and it is
the installer’s responsibility to meet these grounding requirements.
• All system cables must be shielded, and the shield(s) must be bonded to earth ground.
• 8800HD Standalone Camera System: The grounding screw on the camera’s rear panel (see p7)
must be connected to earth ground using minimum 16 AWG wire and bonded to earth ground as
close to the camera as possible.
• 8800HD CameraPositioner System: Except for the cable shield(s), the camera positioner system
does not require grounding. Power return is connected to chassis ground.

6X-1105D 7
1.0 Introduction
The 8800HD series includes a standalone camera system or a fully integrated camera positoner system with
a high performance zoom lens made for long-range applications. With a congurable camera, long-range
lens, positioner, and accessory options, the 8800HD line is designed for the rigorous environments and re-
quirements for border, port, and shipboard security, as well as range safety, intruder detection, and other
targeting or tracking applications.
The xed camera system:
• Can be mounted onto an optional positioner, which provides continuous pan, +/-30° tilt range
(without wiper), 0.056° repeatability, motor brakes, and variable speed movements from 0.056 to
45° per second.
• Is IP (Internet Protocol) based with a full function built-in web server. Operator functions and admin-
istrative features are controlled from the standard Internet browser window.
• Complies with NEMA TS 2 standards for shock and vibration. For ingress protection, the camera
system complies with the IP67 standard.
For more information on specications and datasheets, please refer to specic product pages at CohuHD’s
website.
8800HD Standalone Camera System
8800HD Camera Positioner System
Schrader Valve
Pressure Relief Valve
(shown with plastic tubing)
8-32-3/8”L Pan Head Screw
for earth ground connection
Positioner Adapter Plate
Positioner Connectors
Camera Connector
8800HD Series Connectors
8800HD Camera System Rear Plate

8 6X-1105D
1.1 Supplied Accessories
Cables:
Camera Positioner System:
• Camera to positioner cable: CohuHD p/n 8183-6. Cable connects the camera head and the posi-
toner.
1.2 Optional Accessories
The following optional mounts, cables, eld connectors (or eld connector kits), and wiper are recommend-
ed by CohuHD for camera system installation, and can be purchased with the camera system.
Mounts:
Standalone Camera System:
• Pedestal: CohuHD p/n 8186-1
• Wall: CohuHD p/n 8186-2
• Pole: CohuHD p/n 8186-3
• Corner: CohuHD p/n 8186-4
• Parapet: CohuHD p/n 8186-5
For more information on each type of mount see Chapter 3.1 of this manual.
Camera Positioner System:
• Pedestal: CohuHD p/n 7411542-001
• Wall: CohuHD p/n 8185-3
• Pole: CohuHD p/n 8185-4
• Corner: CohuHD p/n 8185-5
• Parapet: CohuHD p/n 8185-6
For more information on each type of mount see Chapter 3.2 of this manual.
Cables:
Standalone Camera System:
• CA288 series
Camera Positioner System:
• CA289 series
For more information on cables see Sections 2.1 and 2.2 of this manual.
Field Connector or Connector Kit:
Standalone Camera System
• Mating connector: PT06E-20-39S(476) or equivalent, CohuHD p/n:1310230-105 (supplied, if or-
dered).
Camera Positioner System
• Mating connector: MIL Spec Conn: D38999/26FD35SN or equivalent, CohuHD p/n: 1310609-002
(supplied, if ordered).
• Strain relief: M85049/38S15N, CohuHD p/n: 1310610-001 (supplied, if ordered).
For more information on each type of connector see Section 2.3 of this manual.
Wiper:
• CohuHD p/n 8181-1

6X-1105D 9
2.0 Installation
This chapter covers the general installation and cable requirements of the 8800HD series.
NOTE: All graphics contained within this document, including screenshots and other displays, are for reference use
only and are subject to change.
Before starting installation:
• Choose the installation mounting method. See Chapter 3 of this manual.
• Have the system cable available. CohuHD-manufactured cables can be purchased with the cam-
era system. See Section 2.2.
• Verify that the system cable can be routed to the location of the mounting assembly.
See Chapter 3 for details on the installation procedure for recommended mounts.
Figures 1 and 2 show interconnection diagrams for the 8800HD series camera systems. The diagrams rep-
resent typical installations. Each installation site will have its own unique requirements.
Network
Switch
Power
Router/Switch
CAT5e
Cable
Router/Switch
WAN
LAN
System Cable
Earth
Ground
Cable Shield(s)
Grounding Screw
Earth
Ground
16 AWG Wire
Default IPAddress
192.168.2.150
Properly secure the camera
system before the power is
applied.
Figure 1. Interconnection Diagram. Standalone Camera System

10 6X-1105D
Figure 2. Interconnection Diagram. Camera Positioner System
Network
Switch
Power
Router/Switch
CAT5e
Cable Router/Switch
WAN
LAN
System Cable
Be sure to mount the camera system
before the power is applied.
Do not apply power before
installation is complete.
Earth
Ground
Cable Shield(s)
Default IPAddress
192.168.2.150
2.1 System Cable Requirements
To build a camera system cable, CohuHD recommends:
• For Ethernet: CAT5e or better cable. For distances up to 100 meters (328 feet), use CAT5e cable
with four pairs of copper wire, 24 AWG.
NOTE: The maximum recommended cable length for Ethernet is 100 m (328’). However, other
factors may reduce the distance Ethernet can be successfully used, such as EMI from other
sources.
• When wiring to the Ethernet pins, consider if they are to be wired for the NIC (Network Interface
Card) in a PC or for system connections to a hub, switch, router, or similar device. See Tables 1
and 2.
Table 1. Ethernet Cable Wiring to a Hub, Switch, or Router (Straight Wiring)
Ethernet
Function Camera Connector Ethernet Pins Camera Positioner Ethernet Pins Corresponding RJ-45 Ethernet Pins
Tx+ A 4 1
Tx- B 5 2
Rx+ C 22 3
Rx- D 23 6
This Ethernet wiring is intended to connect directly to a hub, switch, or router. For connection
directly to a PC it will be necessary to use either a crossover cable or a crossover adapter.
See Table 2. Note: For clarity, only signal lines are shown.

6X-1105D 11
• All Ethernet wiring must be done in accordance with the TIA/EIA568-C standard.
• All system cables must be shielded, and the shield(s) must be bonded to earth ground.
2.2 CohuHD-Manufactured System Cables (CA288 and CA289 Series)
CohuHD-manufactured cables are available for 8800HD series camera systems operating from 24 Vdc.
Standalone Camera System:
• CA288 series
Camera Positioner System:
• CA289 series
Please refer to the CohuHD website for cable drawings:
• http://www.CohuHD.com/Files/datasheet/CA288.pdf - for standalone camera system
• http://www.CohuHD.com/Files/datasheet/CA289.pdf - for camera positioner system
Cables are made with stripped (prepared) leads and with combinations of connectors. “Stripped” indicates
that the wire leads are stripped and pre-tinned with solder for attachment to a terminal strip or similar device.
The CA288A and CA289A cables are intended for applications where the 24 Vdc power supply is located
within 30 feet of the camera, but the Ethernet part of the cable can be extended up to 328 feet for CA288A
and 200 feet for CA289A. Each of the CA288A and CA289A cables are built using three separate cables.
See cable drawings.
The CA288B and CA289B cables are intended for applications where both power supply and Ethernet net-
work device are at the same location. The length limitation is 90 feet and is due to current drop in the wires.
Each of the CA288B and CA289B cables are built using a single cable. See cable drawings.
Use an Ethernet extender to extend an Ethernet cable beyond its inherent distance limitation. CohuHD
recommends Enable-IT 860 LRE Kit, which can be purchased with the camera system.
Table 2. Ethernet Cable Wiring to a PC (Crossover Wiring)
Ethernet
Function Camera Connector Ethernet Pins Camera Positioner Ethernet Pins Corresponding RJ-45 Ethernet Pins
Tx+ A 4 3
Tx- B 5 6
Rx+ C 22 1
Rx- D 23 2
This Ethernet wiring is intended to connect a Camera to the NIC card in a PC. Note: For clarity,
only signal lines are shown.

12 6X-1105D
2.3 Connector Pinouts
Asingle connector on the rear camera panel and on the positioner provide all electrical connections for the
camera system. Table 3 lists pin functions of the camera connector and positioner connector, which are
identical to the corresponding pin functions of the mating connector.
Camera Connector - Mil Spec Con: APH 58-533727-39P connector, CohuHD p/n: 1310225-120. Mating
connector - PT06E-20-39S(476) or equivalent, CohuHD p/n:1310230-105 (supplied, if ordered). See p7.
Positioner Connector - Mil-Spec Con: D38999 20 FD 35 PN connector. Mating connector - MILSpec Conn:
D38999 26 FD 35 SN, CohuHD p/n: 1310609-002 (supplied, if ordered). See p7.
POSITIONER CONNECTOR CAMERA CONNECTOR
Pin Function Pin Function
4Ethernet TX+ AEthernet TX+
5Ethernet TX- BEthernet TX-
22 Ethernet RX+ CEthernet RX+
23 Ethernet RX- D Ethernet RX-
24 Not Connected E Not Connected
12 +24 Vdc Positioner Power S Not Connected
13 +24 Vdc Positioner Power T Not Connected
14 +24 Vdc Positioner Power P Not Connected
27 24 Vdc Positioner Power R Not Connected
28 +24 Vdc Positioner Power U Not Connected
35 +24 Vdc Positioner Power L Overall Cable Shield
15 Positioner Power Return/Chassis Ground d +24 Vdc Camera Power
16 Positioner Power Return/Chassis Ground e +24 Vdc Camera Power
17 Positioner Power Return/Chassis Ground h Camera Power Return
29 Positioner Power Return/Chassis Ground i Camera Power Return
30 Positioner Power Return/Chassis Ground X +24 Vdc Camera Heater Power
36 Positioner Power Return/Chassis Ground Y +24 Vdc Camera Heater Power
1+24 Vdc Camera Power Z+24 Vdc Camera Heater Power
2+24 Vdc Camera Power a+24 Vdc Heater Power Return
3 Camera Power Return b +24 Vdc Camera Heater Power Return
21 Camera Power Return c +24 Vdc Camera Heater Power Return
18 +24 Vdc Camera Heater Power pAux 1
19 +24 Vdc Camera Heater Power nAux 1 Return
20 +24 Vdc Camera Heater Power J Not Connected
31 Camera Heater Power Return K Not Connected
32 Camera Heater Power Return G Not Connected
33 Camera Heater Power Return F Not Connected
8Aux 1 H Not Connected
9Aux 1 Return M Not Connected
6 Not Connected N Not Connected
7 Not Connected V Not Connected
37 Cable Shield W Not Connected
10 Not Connected f Not Connected
11 Not Connected g Not Connected
25 Not Connected j Not Connected
26 Not Connected k Not Connected
34 Not Connected m Not Connected
q Not Connected
r Not Connected
Table 3. Pinouts of the Camera System Connectors

6X-1105D 13
WARNING:
It is the user’s responsibility to ensure that the mounting methods are safe and adequate for the location.
CAUTION:
Do not allow the full cable weight load to be placed solely at the camera system connector.
3.0 Mounting Methods
The 8800HD seriesis designed for outdoor installation.
For installation:
• Use stainless steel (SS) hardware to fasten the camera system to the mounting bracket and mount-
ing brackets to surfaces.
• Use anti-seize compound in order to prevent galling on the threads. CohuHD recommends Never
Seez® from Bostick.
• Use gasket materials, if needed.
• Use a sealant wrap on the camera system waterproof connectors and their mating system cable
plugs for additional protection against moisture in severe conditions. Coax-Seal® is the recom-
mended product.
• Mounts, poles, and metallic conduits must be bonded to earth ground.
The following mounts are recommended by CohuHD and can be purchased with the camera system:
Standalone Camera System
1. Pedestal mount kit: CohuHD p/n 8186-1
The kit includes:
Pedestal mount: CohuHD p/n 7411542-001
Adjustable head: CohuHD p/n 7411558-005
2. Wall mount kit: CohuHD p/n 8186-2
The kit includes:
Wall mount: CohuHD p/n 7411417-001
Adjustable head: CohuHD p/n 7411558-005
Support strut: CohuHD p/n 7411558-003
3. Pole mount kit: CohuHD p/n 8186-3
The kit includes:
Wall mount: CohuHD p/n 7411417-001
Adjustable head: CohuHD p/n 7411558-005
Large pole mount: CohuHD p/n 7411408-001
Support strut: CohuHD p/n 7411558-003
Small pole mount: CohuHD p/n 7411558-002

14 6X-1105D
4. Corner mount kit: CohuHD p/n 8186-4
The kit includes:
Wall mount: CohuHD p/n 7411417-001
Adjustable head: CohuHD p/n 7411558-005
Large corner mount: CohuHD p/n 7411425-001
Support strut: CohuHD p/n 7411558-003
Small corner mount: CohuHD p/n 7411558-004
5. Parapet mount kit: CohuHD p/n 8186-5
The kit includes:
Parapet mount: CohuHD p/n 7411426-001
Wall mount: CohuHD p/n 7411417-001
Adjustable head: CohuHD p/n 7411558-005
Support strut: CohuHD p/n 7411558-003
Camera Positioner System
1. Pedestal: CohuHD p/n 7411542-001
2. Wall mount kit: CohuHD p/n 8185-3
The kit includes:
Wall mount: CohuHD p/n 7411417-001
Support strut: CohuHD p/n 7411558-003
Mount adapter: CohuHD p/n 7411418-001
3. Pole mount kit: CohuHD p/n 8185-4
The kit includes:
Large pole mount: CohuHD p/n 7411408-001
Wall mount: CohuHD p/n 7411417-001
Support strut: CohuHD p/n 7411558-003
Small pole mount: CohuHD p/n 7411558-002
Mount adapter plate: CohuHD p/n 7411418-001
4. Corner mount kit: CohuHD p/n 8185-5
The kit includes:
Corner mount: CohuHD p/n 7411425-001
Wall mount: CohuHD p/n 7411417-001
Support strut: CohuHD p/n 7411558-003
Small corner mount: CohuHD p/n 7411558-004
Mount adapter: CohuHD p/n 7411418-001
5. Parapet mount kit: CohuHD p/n 8185-6
The kit includes:
Parapet mount: CohuHD p/n 7411426-001
Wall mount: CohuHD p/n 7411417-001
Support strut: CohuHD p/n 7411558-003
Mount adapter: CohuHD p/n 7411418-001

6X-1105D 15
3.1 Standalone Camera System Mounting Methods
3.1.1 Pedestal Mount Installation. CohuHD p/n 8186-1
Use the adjustable head and wall mount for installation on a pedestal. See Figure 3 for a typical installation
diagram and Figures 13 and 14 for mount dimensions.
Figure 3. Installation to a Pedestal
Mounting Bracket
Bolt, 1/4-20 (4)
(supplied)
Bolt, (1)
(supplied)
Bolt, Hex Head 1/4-20x3/4”L, SS (3)
Washer, Spring Lock 1/4”, SS (3)
Washer, Flat 1/4”, SS (3)
(supplied)
Adjustable Head

16 6X-1105D
3.1.2 Wall Mount Installation. CohuHD p/n 8186-2
Use the adjustable head, wall mount, and strut for installation to a wall. See Figure 4 for a typical installation
diagram and Figures 14, 16, and 17 for mount dimensions.
Wall Mount
Mounting Bracket
Bolt, 1/4-20 (4)
(supplied)
Bolt, (1)
(supplied)
Bolt, Hex Head 1/4-20x3/4”L, SS (3)
Washer, Spring Lock 1/4”, SS (3)
Washer, Flat 1/4”, SS (3 )
(supplied)
Adjustable Head
Support Strut
Clamp Swivel
Bolt, Hex Head, 1/4-18x1½”L, SS (3)
Washer, Flat 1/4”, SS (6)
Washer, Spring Lock 1/4”, SS (3)
Nut, Hex, 1/4”, SS (3)
(supplied)
Wall Swivel
Bolt, Hex Head, 5/16-18x1½”L, SS (4)
Washer, Flat 5/16”, SS (8)
Washer, Spring Lock 5/16”, SS (4)
Nut, Hex, 5/16”, SS (4)
(supplied)
Figure 4. Installation to a Wall

6X-1105D 17
3.1.3 Pole Mount Installation. CohuHD p/n 8186-3
Use the adjustable head, wall mount, support strut, large pole mount, and small pole mount for installation
to a pole. See Figure 5 for a typical installation diagram and Figures 14, 16, 17, and 18 for mount dimen-
sions.
Figure 5. Installation to a Pole
Mounting Bracket
Bolt, 1/4-20 (4)
(supplied)
Bolt, (1)
(supplied)
Bolt, Hex Head 1/4-20x3/4”L, SS (3)
Washer, Spring Lock 1/4”, SS (3)
Washer, Flat 1/4”, SS (3 )
(supplied)
Adjustable Head
Wall Mount
Small Pole Mount
Washer, Flat 5/16”, SS (8)
Washer, Spring Lock 5/16”, SS (4)
Nut, Hex, 5/16”, SS (4)
(supplied)
Support Strut
Washer, Flat 1/4”, SS (6)
Washer, Spring Lock 1/4”, SS (3)
Nut, Hex, 1/4”, SS (3)
(supplied)
Stainless Steel Straps
Stainless Steel Straps
Large Pole Mount
Wall Swivel
Clamp Swivel

18 6X-1105D
3.1.4 Corner Mount Installation. CohuHD p/n 8186-4
Use the adjustable head, wall mount, support strut, large corner mount, and small corner mount for instal-
lation to a corner. See Figure 6 for a typical installation diagram and Figures 14, 16, 17, and 19 for mount
dimensions.
Mounting Bracket
Bolt, 1/4-20 (4)
(supplied)
Bolt, (1)
(supplied)
Bolt, Hex Head 1/4-20x3/4”L, SS (3)
Washer, Spring Lock 1/4”, SS (3)
Washer, Flat 1/4”, SS (3)
(supplied)
Adjustable Head
Wall Mount
Large Corner Mount
Small Corner Mount
Washer, Flat 5/16”, SS (8)
Washer, Spring Lock 5/16”, SS (4)
Nut, Hex, 5/16”, SS (4)
(supplied)
Support Strut
Washer, Flat 1/4”, SS (6)
Washer, Spring Lock 1/4”, SS (3)
Nut, Hex, 1/4”, SS (3)
(supplied)
Fasteners, SS (2 x 2 places)
(not supplied)
Fasteners, SS (4 x 2 places)
(not supplied)
Wall Swivel
Clamp Swivel
Figure 6. Installation to a Corner

6X-1105D 19
3.1.5 Parapet Mount Installation. CohuHD p/n 8186-5
Use the adjustable head, wall mount, and parapet mount for installation to a parapet. See Figure 7 for a
typical installation diagram and Figures 14, 16, 17, and 20 for mount dimensions.
The parapet mount:
• Installs on the inside of a parapet that is at least 18 inches (457.2 mm) high.
• Is rotatable 360° so the camera positioner system can be installed from the roof.
Wall Mount
Mounting Bracket
Bolt, 1/4-20 (4)
(supplied)
Bolt, (1)
(supplied)
Bolt, Hex Head 1/4-20x3/4”L, SS (3)
Washer, Spring Lock 1/4”, SS (3)
Washer, Flat 1/4”, SS (3 )
(supplied)
Adjustable Head
Support Strut
Clamp Swivel
Bolt, Hex Head, 1/4-18x1½”L, SS (3)
Washer, Flat 1/4”, SS (6)
Washer, Spring Lock 1/4”, SS (3)
Nut, Hex, 1/4”, SS (3)
(supplied)
Wall Swivel
Bolt, Hex Head, 5/16-18x1½”L, SS (4)
Washer, Flat 5/16”, SS (8)
Washer, Spring Lock 5/16”, SS (4)
Nut, Hex, 5/16”, SS (4)
(supplied)
The Wall Mount Flange connects
to the Parapet Flange (see below)
Figure 7. Installation to a Parapet
Flange
Upper Mounting
Bracket
U-Bolts
Lower Mounting
Bracket
Fasteners
Minimum 1/4” DIA
(not supplied)
Tube assembly
is rotatable 360
°

20 6X-1105D
3.2 Camera Positioner System Mounting Methods
3.2.1 Pedestal Mount Installation. CohuHD p/n 7411542-001
Use the pedestal mount for installation to a pedestal. See Figure 8 for a typical installation diagram and
Figure 13 for mount dimensions.
Bolt, Hex Head 1/4-20x3/4”L, SS (4)
Washer, Spring Lock 1/4”, SS (4)
Washer, Flat 1/4”, SS (4)
(supplied)
Positioner Adapter Plate
Figure 8. Installation to a Pedestal
