Cohuhd costar Rise series User manual

Installation Manual

RISE

™

Series

4220HD

Installation Manual

9994000 Rev A

youtube.com/CohuHD

LinkedIn.com/company/CohuHD

twitter.com/CohuHD

facebook.com/CohuHD

CohuHD.com

(858) 391-1800

Installation Manual

Table of Contents

1.0 General Information 5

1.1 About This Document 5

1.2 Additional Information and Documents Related to the Camera System 5

1.3 Copyright/Intellectual Property Rights Statement 5

1.4 FCC Compliance 5

1.5 Support Services 6

2.0 Returns 7

2.1 Instructions 7

2.2 Shipment 7

3.0 Safety 8

3.1 Instructions 8

3.2 Grounding 9

4.0 Package Contents 10

5.0 Product Overview 11

5.1 Overall Dimensions 12

6.0 Factory Defaults 13

6.1 Factory Default IP Address and Settings 13

6.2 User Names and Passwords 13

7.0 Camera URLs 14

7.1 Camera Default Passwords 14

7.2 Network Video Ports Required for RTSP 14

7.3 Video Stream Connection URL’s 14

7.4 Network Ports 15

7.5 Camera Control Ports 15

8.0 Connections 16

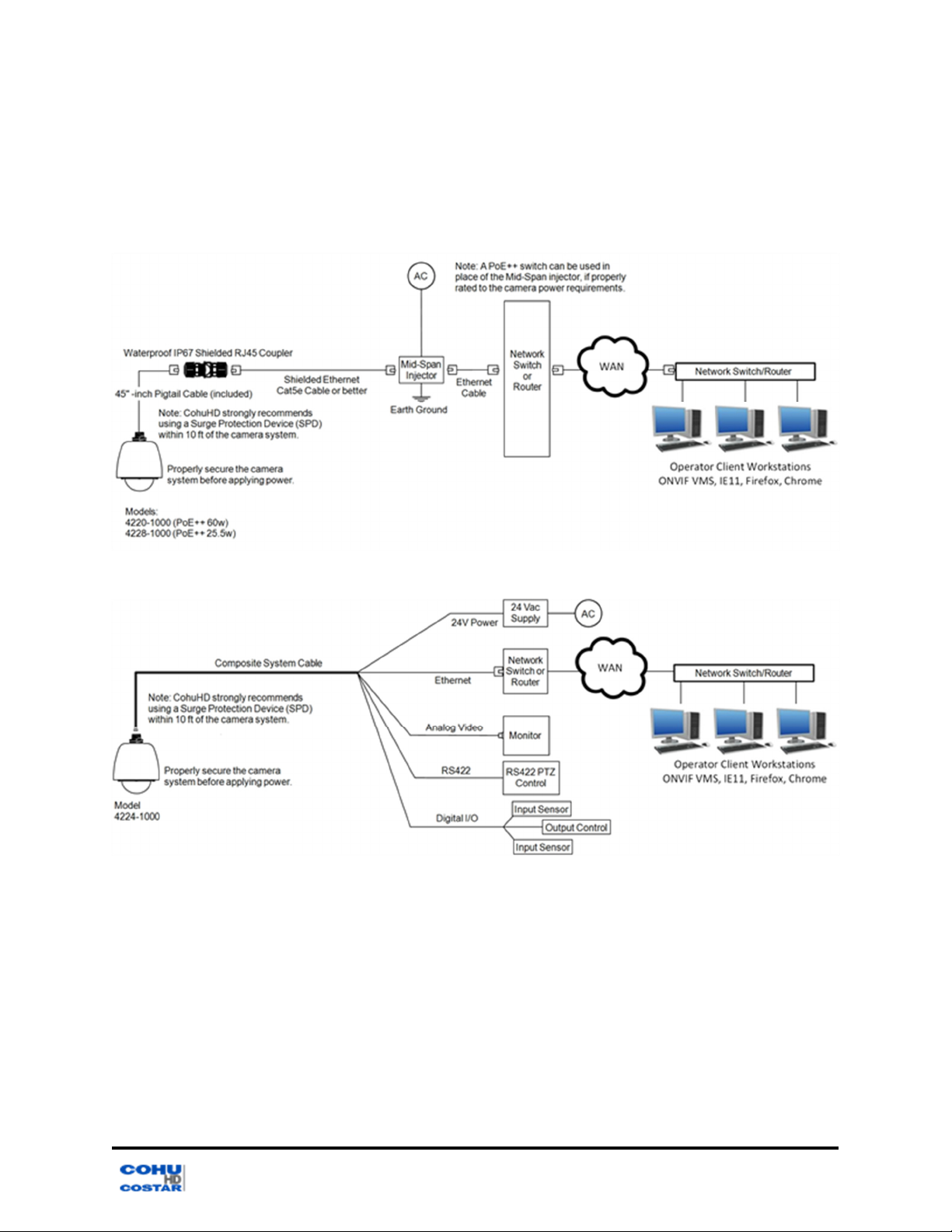

8.1 Interconnections 16

8.1.1 Interconnection Diagram for 4220-1000 and 4228-1000 16

8.1.2 Interconnection Diagram for 4224-1000 16

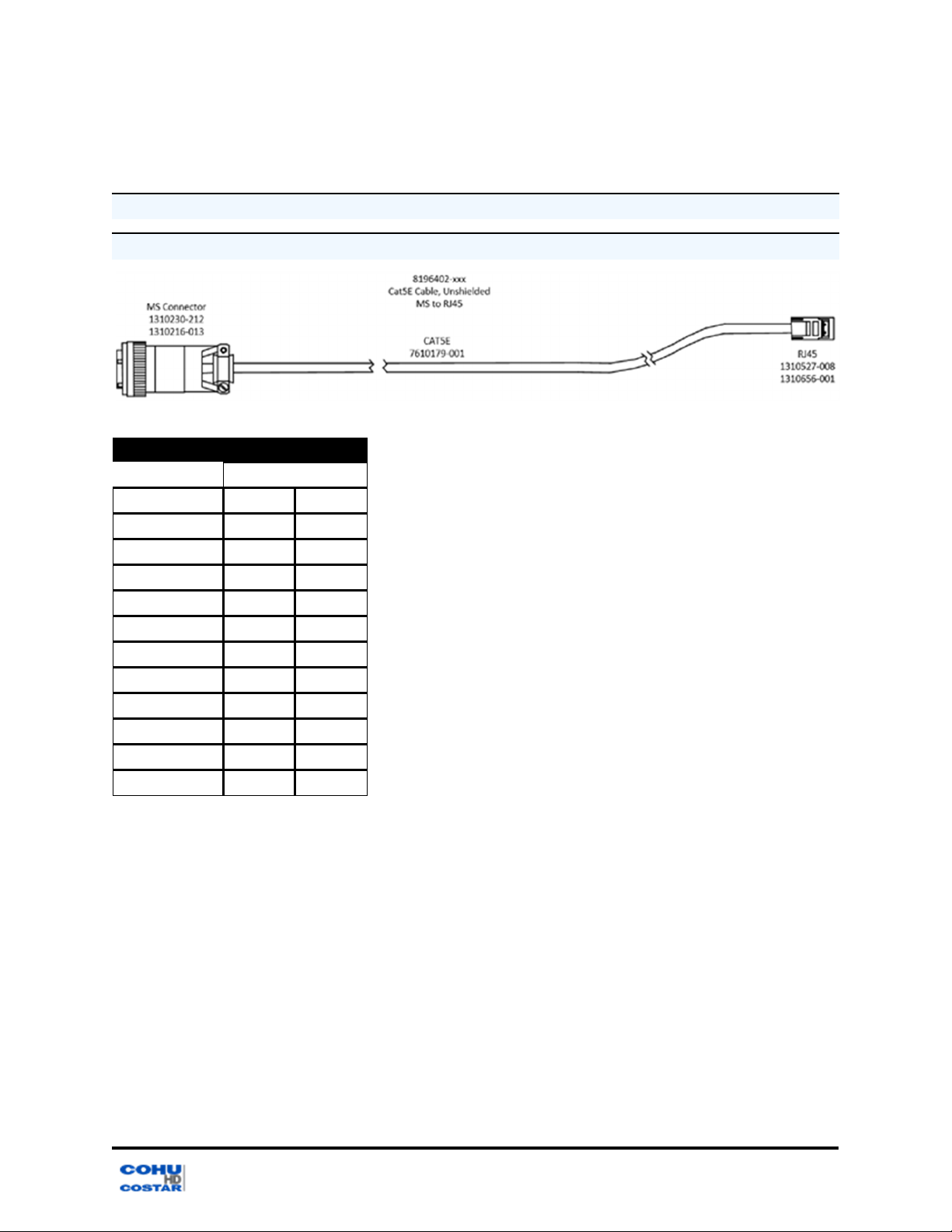

8.2 Manufactured Cables Available 17

8.3 Schematics 18

8.4 18-pin MS Connector and its Mating System Cable Connector 18

8.4.1 MS Connector Pinouts 19

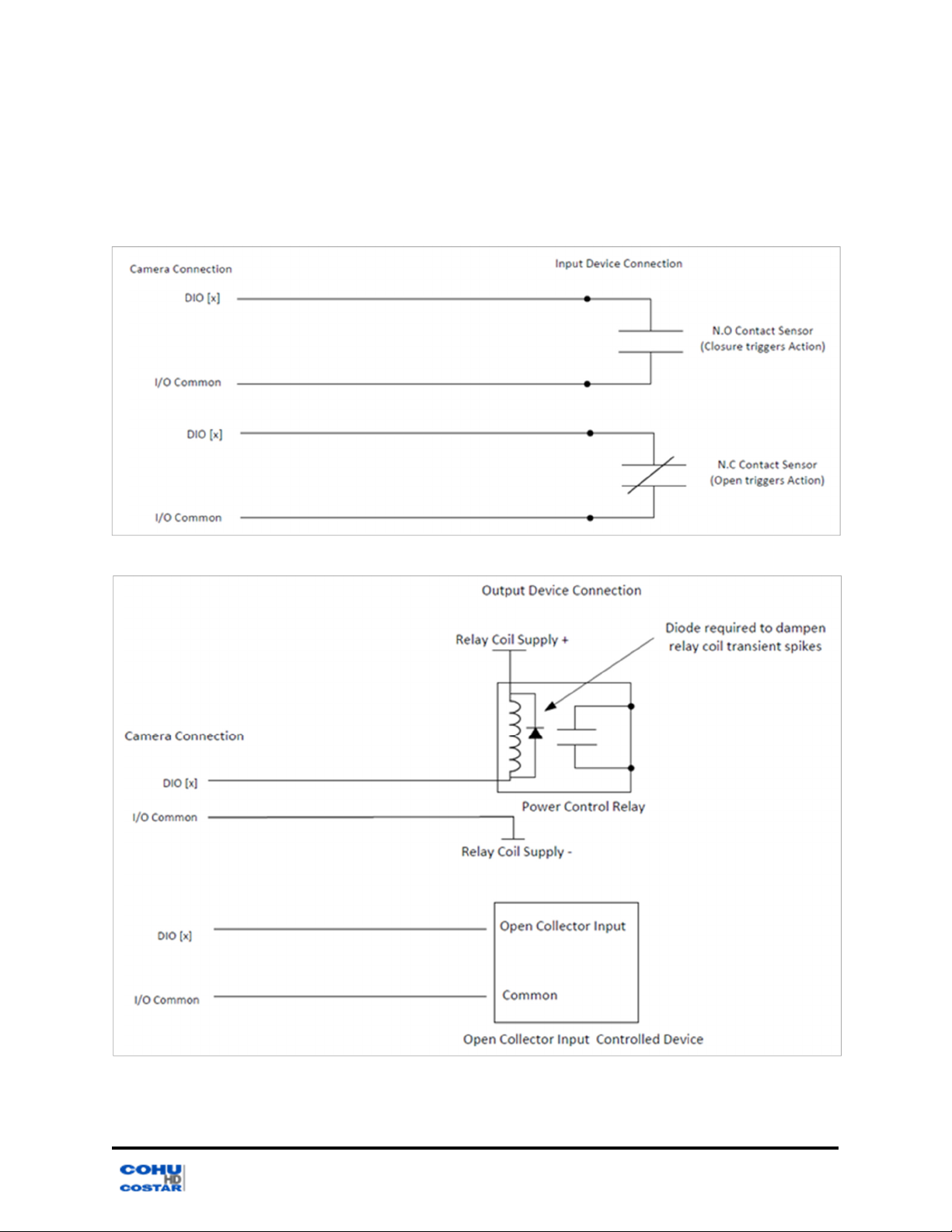

8.5 Digital Inputs/Outputs (DIO) 19

8.5.1 DIO Inputs 19

8.5.2 DIO Outputs 19

8.5.3 Wiring Digital Inputs/Outputs (DIO) 20

8.6 Field Cables 21

8.7 4220HD Series CohuHD-Manufactured System Cables 22

9.0 Waterproof Coupler Assembly 23

9.1 Parts 23

9.2 Assembly 23

10.0 Best Practices 26

Installation Manual

11.0 Installation 27

11.1 Camera System Mounts 27

11.2 Mounts 27

11.2.1 Mounting Brackets Dimensions 27

11.2.1.1 Wall Mount 27

11.2.1.2 Pole Mount Adapter 28

11.2.2 Wall Mount Installation 28

11.2.3 Pole Mount Installation 29

11.3 Installation Procedure 29

12.0 System Requirements 31

12.1 Requirements 31

12.2 Recommended Computer Specifications 31

13.0 Optional Accessories 32

14.0 Service 33

14.1 Maintenance 33

14.2 Troubleshooting 34

15.0 Warranty 35

Installation Manual

1.0 General Information

Congratulations on your purchase of a CohuHD Rugged Outdoor Camera System!

Please be sure to carefully review the Installation and Operation manuals for your product before starting the

installation process.

To help ensure a smooth installation process, CohuHD has included the following items with your shipment:



Nitrile Gloves

Should be worn while working with anti-seize compound or silicon grease to aid in easy cleanup and

prevent these substances from making contact with other parts of the camera assembly.



Anti-Seize Compound

Should be applied to the threads of the mounting hardware of the camera. For dome cameras, apply to

the 1-1/2” threaded nipple. For positioner cameras, apply to the 1/4-20 bolts that thread into the base of

the camera.

1.1 About This Document

This document contains information on how to install and maintain the 4220HD Series. Please read this

manual carefully prior to installation to prevent any accidental damage or misuse. The manual is available

from the CohuHD website at http://www.cohuhd.com/Support/Product-Documentation.

The information in this manual is subject to change without notice. Please refer to the above website for the

latest information

1.2 Additional Information and Documents Related to the Camera System

For information on the camera system operation, see Operation manual. The manual is available from the

CohuHD website at http://www.cohuhd.com/Support/Product-Documentation.

1.3 Copyright/Intellectual Property Rights Statement

embodied in the product described in this manual.

CohuHD Costar™, RISE™, and Command Core +™ are trademarks of CohuHD Costar, LLC.

1.4 FCC Compliance

This equipment has been tested and found to comply with the limits for a Class A digital device pursuant to

Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful

interference when the equipment is operated in a commercial environment.

This equipment generates, uses, and can radiate radio frequency energy, and, if not installed and used in

accordance with the instruction manual, may cause harmful interference to radio communications. Operation

of this equipment in a residential area is likely to cause harmful interference, in which case the user will be

required to correct the interference at his own expense.

Operation is subject to the following two conditions:

(1) this device may not cause harmful interference, and (2) this device must accept any interference received,

including interference that may cause undesired operation. Changes or modifications to this device void the

warranty.

Note: All graphics contained within this document, including images an

d other displays, are for reference

use only and are subject to change.

Installation Manual

1.0 General Information

1.5 Support Services

Please contact CohuHD Customer Service Department for technical assistance at (858) 391-1800 option 2.

Installation Manual

2.0 Returns

2.1 Instructions

This item was thoroughly tested and carefully packed at the factory prior to shipping. Upon acceptance by the

carrier, the carrier assumes responsibility for the item’s safe arrival. If you receive the item in a damaged

condition, apparent or concealed, a claim for damage must be made to the carrier.

If a visual inspection shows damage upon receipt of this shipment, it must be noted on the freight bill or

express receipt and the notation signed by the carrier’s agent. Failure to do this can result in the carrier

refusing to honor the claim.

When the damage is not apparent until the unit is unpacked, a claim for concealed damage must be made.

Make a mail or phone request to the carrier for inspection immediately upon discovery of the concealed

damage. Keep all cartons and packing materials.

To return the product to the factory for service, please contact the Customer Service Department for a Return

Material Authorization (RMA)Number.

Prominently display the RMA number on the outside of the shipping container(s) and on paperwork contained

inside. Give a brief description of why the equipment is being returned and list the symptoms of any problems

being experienced with the equipment.

2.2 Shipment

Important: If the camera needs to be shipped, please use the original packaging material which was designed

to protect the product during transportation. If the original packaging is lost or damaged, please order a

replacement from Customer Service.

Installation Manual

3.0 Safety

3.1 Instructions



Installation must be done by qualified installers, and conform to all local codes and regulations.



All servicing must be performed by qualified service personnel. Procedures in this manual do not

require entry into the housing of the camera system. The unit contains sensitive devices that can be

damaged by static discharge. To reduce the risk of electric shock and damage to the unit by static dis-

charge do not perform any servicing other than described in these instructions. If the unit is defective,

please contact the Customer Service Department for technical assistance.



It is the user’s responsibility to ensure that the mounting methods are safe and adequate for the loc-

ation.



Use only stainless steel (SS) hardware to fasten the mount to an outdoor surface.

Warning: Do not remove the covers or housing. There are no user-serviceable parts inside.

Warning: The Schrader Valves on the camera head's back plate are for factory use only. Do not attempt to

add any gas to the camera head.

Warning: PoE++ (Power over Ethernet) injectors used with this camera system may operate from 100-240

V. These voltages are dangerous. Use extreme care working with equipment connected to these voltages.

Note: NFPA 70 (Articles 800.30 and 830.30), National Electric Code® requires that a listed primary

protector be installed on the conductors of outdoor communication circuits entering a premises, as close as

possible to the point of entrance. The primary protector must be appropriate to the circuit type (PoE, PoE++,

or Ethernet).

Warning: Voltages that present a shock hazard may exist on PoE circuits. Use caution to avoid direct

contact with exposed, bare Ethernet circuit conductors or connector contacts.

Warning: Some models of this camera system operate from 120 Vac or 24 V. Use care working with

equipment connected to 120 Vac or 24 V.

Warning: The camera system is operated via remote computer control and may move rapidly and

unexpectedly. Remove power from the camera system before servicing and whenever working near the

camera system.

Warning: Do not use y-cables or other non-standard wiring schemes.

Caution: In order to prevent damage or deterioration of the optical system avoid pointing the camera system

directly toward thesun.

Installation Manual

3.0 Safety

3.2 Grounding



To provide protection against electrical surges induced by lightning, static charges, or any other cause,

the camera must be properly grounded to earth. For installation on a building, the camera must be bon-

ded (that is, provided with a low impedance connection) to the building’s structural earth ground sys-

tem. For installation on a metal pole with a proper ground system at the base, the camera must be

bonded to the pole. For installation on a non-grounded or insulated support, the camera must be groun-

ded with an adequate ground strap or wire between the camera and a nearby ground system, or to a

ground system installed at the base of the support. Failure to adequately ground the camera may lead

to failure of the camera. This applies to low voltage (24 V and PoE cameras) as well as to 120 Vac cam-

eras. Failures due to surges are not covered by the warranty, as they are not due to defects in

material or workmanship, and it is the installer’s responsibility to meet these grounding

requirements.



The grounding screw on the camera's base must be connected to earth ground using minimum

16 AWG wire and bonded to earth as close to the camera as possible.

Note: Refer to Installation Manual

" Best Practices" on page 26

: Surge Protection Devices for additional

information on grounding and surge protection concepts.

Installation Manual

4.0 Package Contents

Upon opening of the products shipping package, please verify you have received the following items:

1. CohuHD 4220HD Camera System

2. Pigtail Cable, MS to RJ45, 3ft (1) *

3. RISE Accessory Kit:



Nitrile Gloves (2)



Anti-Seize Compound(1)

4. Documents:



Thank You Letter



Quality Control Checklist (QCL)



IP67 RJ45 Coupler Assembly Instructions (Optional)



Quick Start Guide

If you are missing any items, please refer to section 1.5 Support Services for assistance.

Installation Manual

5.0 Product Overview

The 4220HD Series Camera System is an IP camera system inside an environmentally sealed and

pressurized dome enclosure.

The camera system provides IP video streams with H.264 and MJPEG compression. The positioning system

provides continuous 360°pan (azimuth) motion range with 210°of tilt (elevation).

Installation Manual

5.0 Product Overview

5.1 Overall Dimensions

All dimensions in inches (mm).

Models L1 L2 L3 L4

4220HD Series 14.3" (363.2 mm) 11.7" (297.2 mm) 11.4" (289.6 mm) 7.0" (177.8 mm)

Installation Manual

6.0 Factory Defaults

6.1 Factory Default IP Address and Settings

The camera is shipped with the following network settings:



IP Address: 192.168.2.150



Subnet mask: 255.255.255.0



Gateway: 192.168.2.1

6.2 User Names and Passwords

Upon logging in for the first time as admin, you are asked to create a password. Enter and re-enter a desired

password and click Save New User. You are then asked to login using your password.

Note: The camera is no longer shipped with a username and password. The first user is admin who has to

create a password and then login. Admin is responsible to create/distribute the subsequent user accounts.

Note: Usernames and Passwords are both case-sensitive.

The admin changes user passwords after the first login

Installation Manual

7.0 Camera URLs

7.1 Camera Default Passwords



User = admin



Password = admin

7.2 Network Video Ports Required for RTSP



554 - RTSP uses TCP or UDP as its transport protocol.



Unicast Video - Starting at 30000 up to 31000



Multicast Video - User configurable port through web interface

7.3 Video Stream Connection URL’s

RTSP/RTP Unicast and RTSP Interleaved

Connection String: rtsp://<ipaddress>/<Presentation Name>
