ENGLISH
3
Steam Iron
Art.no 18-4707 Model ES-2317
44-1844 ES-2317
Please read theentire instruction manual before using theproduct and then save
it for future reference. We reserve theright for any errors in text or images and any
necessary changes made to technicaldata. In theevent of technical problems or other
queries, please contact our Customer Services (see address details on theback).
Safety
• Theproduct may be used by children of 8 years and above
and by persons with reduced physical, sensory or mental
capability or lack of experience and knowledge provided they
have been given supervision or instruction concerning use
of theproduct in asafe way and understand thehazards
involved.
• Never let children play with theproduct.
• Cleaning and maintenance may be carried out by children but
only under adult supervision.
• Theproduct must never be left unattended when it is
pluggedin.
• Unplug theproduct before filling or emptying thewatertank.
• Unplug theproduct whenever it is not inuse.
• Only use theproduct on astable surface.
• When not in use, theproduct should only be placed on
astable surface.
• Theproduct must not be used if you have dropped it on
thefloor, if it is visibly damaged or if it is leaking.
• If themains lead is damaged it may only be replaced by
themanufacturer, retailer or other qualified person to avoid
any danger.

ENGLISH
4
• Bear in mind that theproduct will become very hot
duringuse. Lettheproduct cool completely before putting it
away for storage.
• Cleaning and user maintenance shall not be made by children
unless they are older than 8 and under adult supervision.
• Theproduct must only be used as described in this
instruction manual.
• Theproduct must not be immersed in water or other liquid,
doing so could result in anelectricshock.
• Always set thetemperature to theMIN setting before
unplugging theproduct. Always pull on theplug, not
themainslead.
• Keep themains lead away from hot or sharp objects.
Lettheproduct cool down completely before putting it away
for storage. Windthemains lead loosely around theproduct
before storingit.
• Theproduct must not be dismantled or modified in anyway.
• Be very careful if there are children close to where you are
ironing, there is arisk of them burning themselves or pulling
theiron down onto themselves.
• Hot water or steam can scald if theproduct is tilted or
turnedover.
• If theproduct emits anunusual odour, smokes or doesn’t
function normally, unplug it and have it checked by aqualified
electrician.
• This product is intended for indoor useonly.

ENGLISH
5
1
2
3
4
5
6 87
9 10 11
Buttons and functions
1. Spray nozzle
2. Water tank refillport
3. Steam controlknob
4. Spray button
5. Steam shot button
6. Temperature setting button
7. Handle
8. Temperature setting display
9. Self-cleaning button
10. Watertank
11. Soleplate

ENGLISH
6
Operating instructions
Before initial use
Thefirst few times theiron is used, aharmless odour and smoke may be givenoff.
Thisis completely normal and is only temporary. Testtheiron for thefirst time on
aspare piece of cloth to check that both thesoleplate and thewater tank areclean.
Refilling
1. Unplug theiron and let thesoleplate cooldown. Standtheiron upright.
2. Turn thesteam control knob (3) to the position.
3. Open thewater tank refill port (2).
4. Use themeasuring cup and fill thetank (10) up to themaxmark.
5. Close thelid.
Note: Onlyuse normal tapwater. Thewater tank contains afilter which softens
thewater and hinders thebuild up ofscale. Usingdistilled water can cause thefilter to
lose its properties. Itis apermanent filter which does not need to be replaced.
Temperature setting button
1. Always check thefabric care label on your clothing.
2. Always use thelowest recommended temperature setting if thefabric consists of
mixed materials.
3. Plugin theiron and stand it upright.
4. Theiron always starts in MINmode. Pressthetemperature setting button to
increase thetemperature setting from MIN – ○– ○○ – ○○○ – MAX.
5. Thetemperature setting will be shown on thedisplay with symbols and different
colours: MIN (white) – ○(blue) – ○○ (yellow) – ○○○ (green) – MAX (red).
• Thetemperature setting indicator will flash until thedesired setting has been reached.
• Therelevant temperature setting indicator will be lit when thesetting has been reached.
Therecommended ironing setting for agarment will usually be printed on its carelabel:

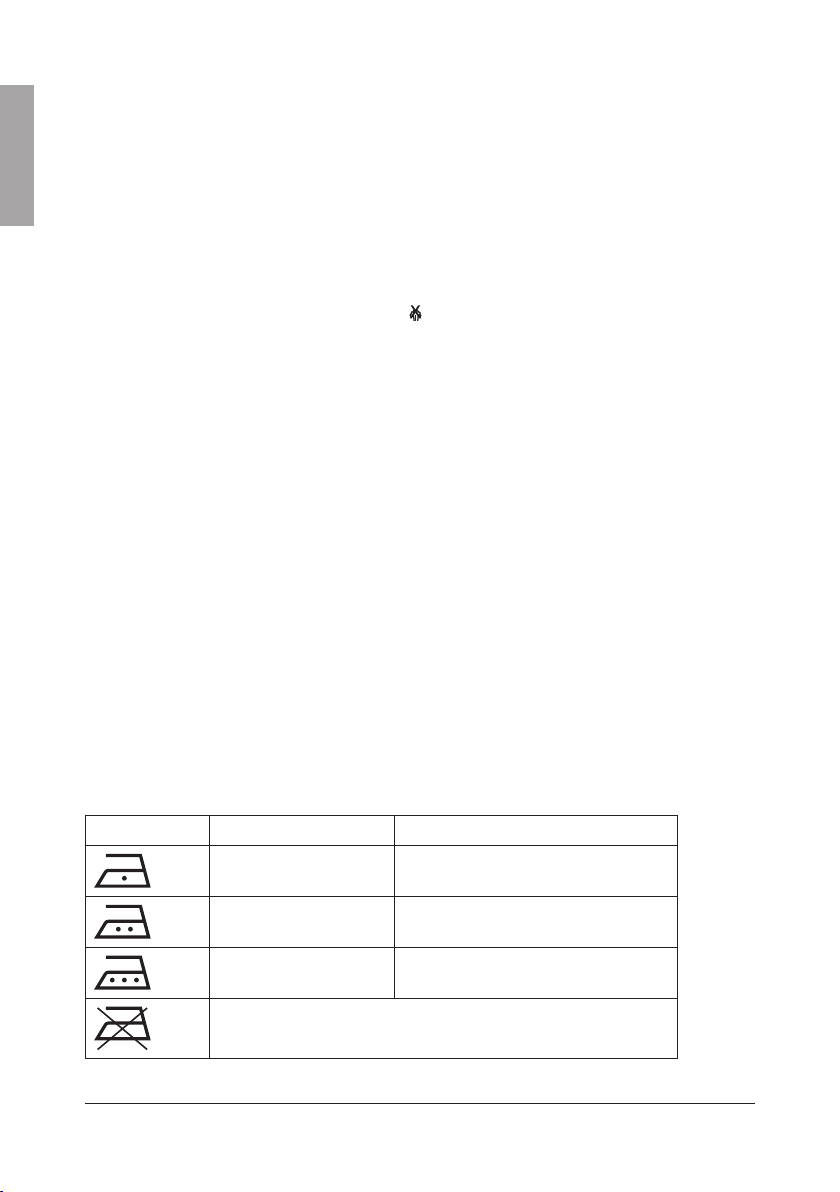

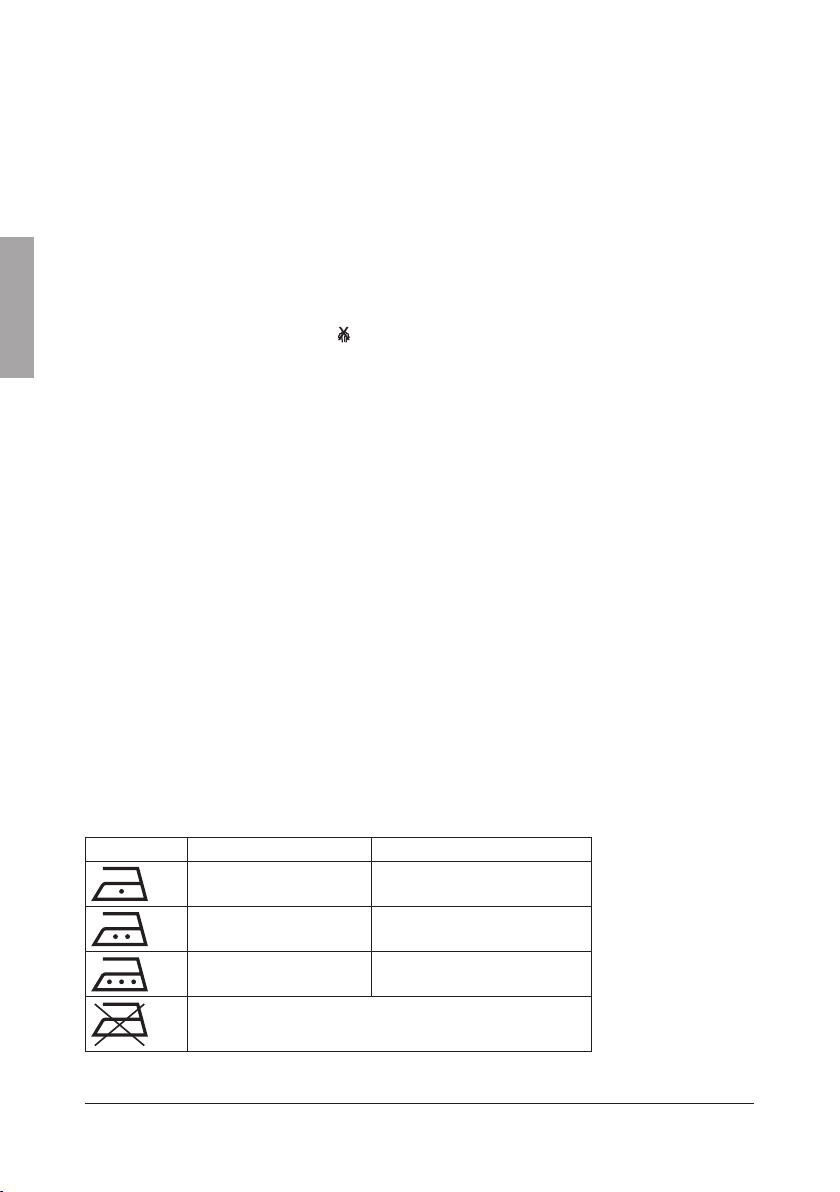

Symbol Material Thermostat setting
Synthetic ○Low temperature
Silk – wool ○○ Medium temperature
Cotton – linen ○○○ High temperature
This material should not be ironed

ENGLISH
7
Spray feature
This function can be used at any time and does not affect thetemperature setting.
Pressthespray button (4) slowly for afull spray; press thebutton quickly to deliver
afine mistspray. Donot use thespray function on silk or synthetic fibres.
Steam ironing
This feature only works on thehigher temperature settings.
-○○ mediumheat
-○○○ maxheat
1. Fillthesteam iron with water if you have not already doneso.
2. Plugthemains lead into awall socket.
3. Setthetemperature to ○○ or ○○○.
4. Theindicator light on thedisplay flashes as theiron heats up and stays lit when
thetemperature has been reached.
5. Turnthesteam control knob (3) to the setting, steam will now come out of
theholes in thesoleplate.
6. Iftheiron is held horizontally, steam will come out of theholes in thesoleplate.
Ifit is held vertically, thesteam will not comeout. Ifyou wish to iron something
vertically, such as garments on hangers thesteam shot function must beused.
Note: Watercan escape from theholes in thesoleplate if thetemperature setting is
toolow. Ifthis happens, set thetemperature to ○○ or ○○○. Thesteam will return when
thecorrect temperature has been reached.
Steam shot feature
Thesteam shot feature can be used for both dry ironing and steam ironing. However,
thetemperature must be set onhigh. Stubborn creases and wrinkles can be
smoothed out easily with thehelp of acouple of presses of thesteam shot button (5).
1. Holdtheiron over thepiece of clothing.
2. Pressthesteam shot button (max 2 seconds) until thesteam begins flowing
through theholes of thesoleplate.
3. Release thesteam shot button.
Dry ironing
1. Turnthesteam control knob (3) to the position.
2. Plugthemains lead into awall socket.
3. Settheiron to thedesired temperature setting.
4. Theindicator lamp will shine when thetemperature has been reached.

ENGLISH
8
Other features
Automatic shut-off
Theiron has anautomatic safety shut-off feature. Theiron shuts off automatically if
it is left standing upright and unused for approximately 8 minutes or if it is set down
horizontally and unused for more than 30 seconds. Whentheiron is switched off,
thewhite light on thedisplay will flash to indicate that theheat has been switchedoff.
Assoon as theiron is moved again, theiron will switch back on and heat up to theset
temperature.
Anti-drip function
Theanti-drip function enables you to iron even themost sensitive fabrics without
leaving unsightly watermarks. Sensitive fabrics should always be ironed at low
temperatures. Thesoleplate must be cool enough that no steam or drops of hot water
come out and leave water marks on thefabric.
Ironing tips
• Garments with embroidery, sequins, lace,etc., should be ironed on thelowest
temperature setting.
• For textiles made of mixed fibres (e.g. 40% cotton/60% synthetic fibre), choose
thetemperature setting appropriate for thefibre with thelowest recommended
ironing temperature.
• If you are not sure what thematerial is made of, start by ironing aninconspicuous
part of thegarment on thelowest temperature setting and increase
thetemperature gradually.
• Never iron agarment which has asweat stain or other discolouration, theheat will
iron thestain into thefabric and it will be very difficult to removeit.
• Silk, wool and synthetic fibres can get shiny stains when ironed; they should
therefore be ironed on thereverseside.
• Velvet can also become shiny when ironed; it should be ironed in thedirection of
thepile/nap. Avoidapplying alot of pressure to theiron.
• Themore clothes washed thesame time in thewashing machine, themore
wrinkles thewashed clothes willhave.
• Thehigher thespeed of thespin cycle, themore wrinkles thewashing willhave.
• Many fabrics are easier to iron when they are not completelydry. Silk, for example
should always be steam-ironed.

ENGLISH
9
Care advice
Cleaning the housing
• Note: Unplug theiron from thewall socket before cleaning.
• Wipe theexterior with amoist, softcloth. Donot use abrasive cleaning agents
orsolvents.
• Note: Donot scratch thesoleplate – do not slide it over metal items such as
buttons orzips.
After use
Warning: Theiron is very hot directly afteruse. Remember to let it cool off completely
before putting it away for storage.
• Unplug themains lead from thewall socket.
• Empty thewater tank by turning theiron upside down and pouring thewater out
whilst moving it back and forth at thesametime. Pressthespray button afew
times to make sure thetank is completelyempty.
• Store theiron in adryplace.
Self-cleaning
We recommend that you use theself-cleaning function at least once amonth, possibly
more depending on thequality of thewater in yourarea.
Theself-cleaning function removes scale and dust particles from thewatertank.
1. Fillthewater tank to halffull.
2. Turnthesteam control knob (3) to the position.
3. Standtheiron upright.
4. Plugthemains lead into awall socket.
5. Setthetemperature to MAX by repeatedly pressing thetemperature setting button (6).
6. Waituntil theiron has reached theset temperature,i.e. thetemperature indicator
light on thedisplay has stopped flashing.
7. Unplug themains lead from thewall socket.
8. Holdtheiron over asink and hold in theself-cleaning button until all thewater
(and any deposits) and steam has come out through theholes in thesoleplate.
Carefully shake theiron back and forth to loosen any scale or dirt deposits inside
thewatertank.
9. Lettheiron cool down and then iron aspare piece of cotton fabric. Thiswill clean
theface of thesoleplate from any remaining scale and dirt deposits.

ENGLISH
10
Responsible disposal
This symbol indicates that this product should not be disposed of
with general householdwaste. Thisapplies throughout theentire EU.
Inorder to prevent any harm to theenvironment or health hazards
caused by incorrect waste disposal, theproduct must be handed in
for recycling so that thematerial can be disposed of in aresponsible
manner. Whenrecycling your product, take it to your local collection
facility or contact theplace of purchase. Theywill ensure that
theproduct is disposed of in anenvironmentally sound manner.
Specifications
Supply voltage 220–240 V AC, 50 Hz
Power 2000–2400W
Tank capacity 400ml
Cable length 3m
