Color Sage CS-A60A User manual

CS-A60A WALL WASH LIGHT
User Manual
KEEP THIS MANUAL FOR FUTURE NEEDS
WW / RGB
Factory: No.186, South Tingshi Road, Shijing Town, Baiyun District, Guangzhou,China.
[phone]
[email protected]
www.color-sage.com YOUTUBE FACEBOOK

*CAUTION!
Becareful with your operations.With a dangerous voltage you cansuffer a
dangerous electric shock when touching wires!
This device has left the factory in perfect condition. In order to maintain this condition and to ensure a
safe operation, it is absolutely necessary for the user to follow the safety instructions and warning
notes written in this user manual.
*IMPORTANT!
Damages caused by the disregard of this user manual are not subject to
warranty. The dealer will not accept liability for any resulting defects or
problems.
If the device has been exposed to temperature changes due to environmental changes, do not switch
it on immediately. The arising condensation could damage the device.
Leave the device switched off until it has reached room temperature.
This device falls under protection-class I. Therefore it is essential that the device be earthed.
The electric connection must carry out by qualified person.
The device shall only be used with rate voltage and frequency.
Make sure that the available voltage is not higher than stated at the end of this manual.
Make sure the power cord is never crimped or damaged by sharp edges.
Always disconnect from the mains, when the device is not in use or before cleaning it.
Only handle the power cord by the plug. Never pull out the plug by tugging the power cord.
During initial start-up some smoke or smell may arise. This is a normal process and does not
necessarily mean that the device is defective, it should decrease gradually.
Please don't project the beam onto combustible substances.
Fixtures cannot be installed on combustible substances, keep more than 50cm distance with wall for
smooth air flow, so there should be no shelter for fans and ventilation for heat radiation.
If the external flexible cable or cord of this luminaire is damaged, it shall be exclusively replaced by
the manufacturer or his service agent or a similar qualified person in order to avoid a hazard.
1. SAFETY INSTRUCTIONS
01 02
Thank you for choosing our CS-A60A WALL WASH LIGHT.
For your own safety, please read this manual before installing the device. This manual covers the
important information on installation and applications. Please install and operate the fixture with
following instructions.
This is a special design LED BATTERY PAR CAN with 6pcs 18W LEDs, RGBWA+UV 6 in 1. It
offers high brightness and good lighting effect. The power consumption is 110W.
This product is used to enliven atmosphere for family gatherings, KTV box, disco ballroom, ballroom,
nightclub, disco, bar, mall, wedding, square, park, etc.
* Please turn on the light when charging, this will reduce the battery life.
Function:
1. Slave/Master,
2. Sound actived,
3. Auto,
4. DMX 512,
5. Color mixing
6. 0-100% Dimming,

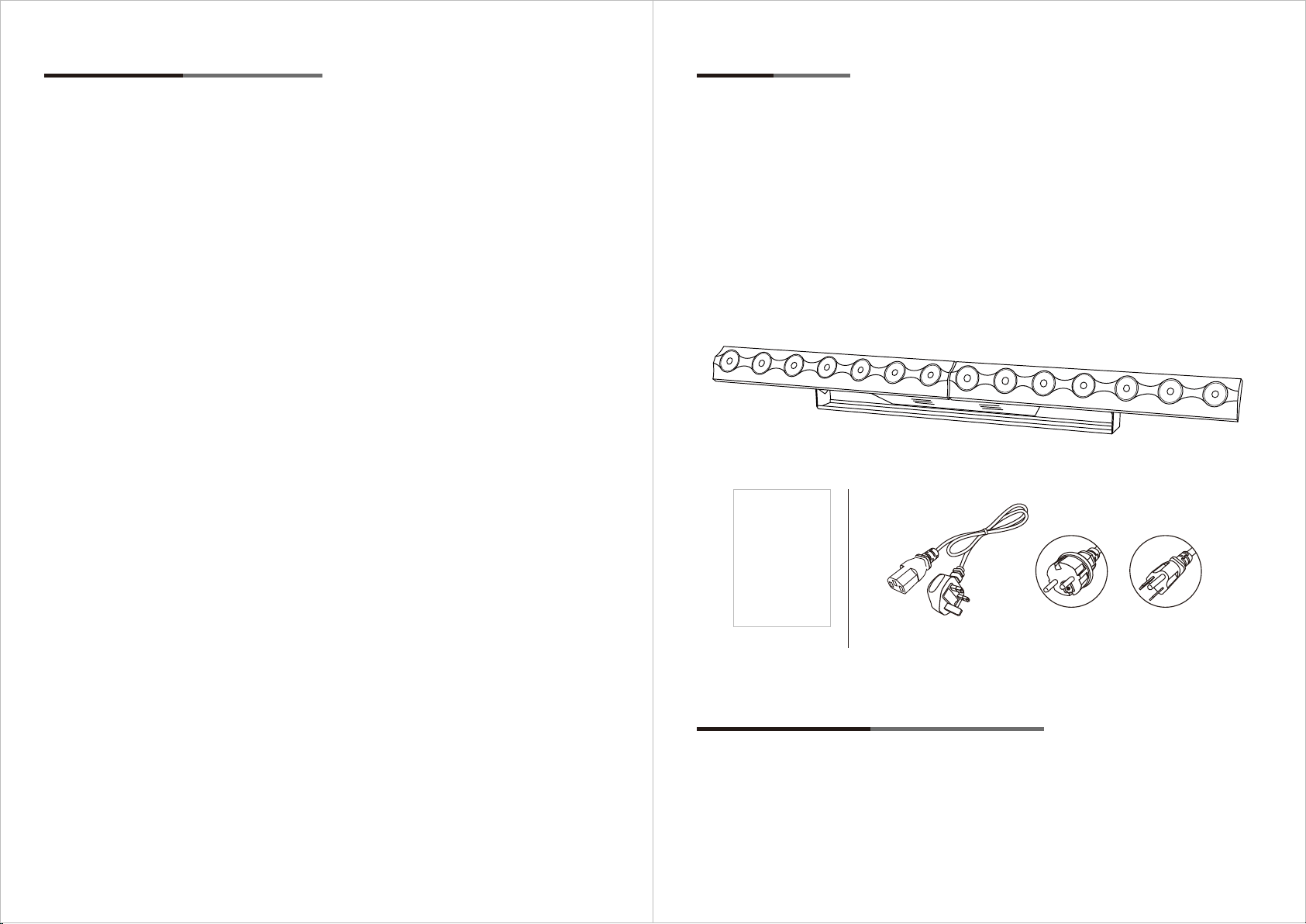

2. UNPACKING
3. FEATURES & SPECIFICATIONS
User Manual
User Manual
KEEP THIS MANUAL FOR FUTURE NEEDS
UK Standard
(Optional)
USAStandard
(Optional)
Euro Standard
(Optional)
Power cable
CS-A60A WALL WASH LIGHT

MENU: Access the menu.
UP: Add key or selection on the key; decrease the value function, shift on the menu.
DOWN: Reduction key or key under the selected; increase the value function down menu.
ENTER: It is used to select and confirm/store the current selection.
1. DMX address setting.
Addr
A001
A512
ENTER
... ...
03 04
7. Rainbow effect,
8. Strobe effect,
9. 59 kinds default program.
Specifications:
LED quantities: 14pcs 3535 warm white LEDs(3W) +
56pcs 5050 RGB 3 in 1 LEDs(0.2W)
Input Voltage: AC100-240V/50-60Hz
Power consumption: 60W
Channel: 6/8/12/60 CH
Beam Angle: 25° (45° Optional)
Display Screen: LCD display
Color: Warm white + RGB 3 in1
Material Science: Alloy & Plastic base
Packing & weight:
Size: 1000mm*75mm*120mm
Net Weight: 2.65kg
Packing: 1050mm*100mm*120mm
Gross Weight: 3.65kg
01. Don’t turn on the fixture if it’s been through severe temperature difference like after transportation
because it might damage the light due to the environment changes. So make sure to operate the
fixture until it is in normal temperature.
02. This light should be keep away from strong shaking during any transportation or movement.
03. Don’t pull up the light by only the head, or it might cause damages to the mechanical parts.
04. Don’t expose the fixture in overheat, moisture or environment with too much dust when installing
it. And don’t lay any power cables on the floor. Or it might cause electronic shock to the people.
05. Make sure the installation place is in good safety condition before installing the fixture.
06. Make sure to put the safety chain and check whether the screws are screwed properly when
installing the fixture.
4. OPERATION INSTRUCTIONS
07. Make sure the lens are in good condition. It’s recommended to replace the units if there are any
damages or severe scratch.
08. Make sure the fixture is operated by qualified personnel who knows the fixture before using.
09. Keep the original packages if any second shipment is needed.
10. Don’t try to change the fixtures without any instruction by the manufacturer or the appointed
repairing agencies.
11. It is not in warranty range if there are any malfunctions from not following the user manual to
operate or any illegal operation, like shock short circuit, electronic shock, lamp broke, etc.

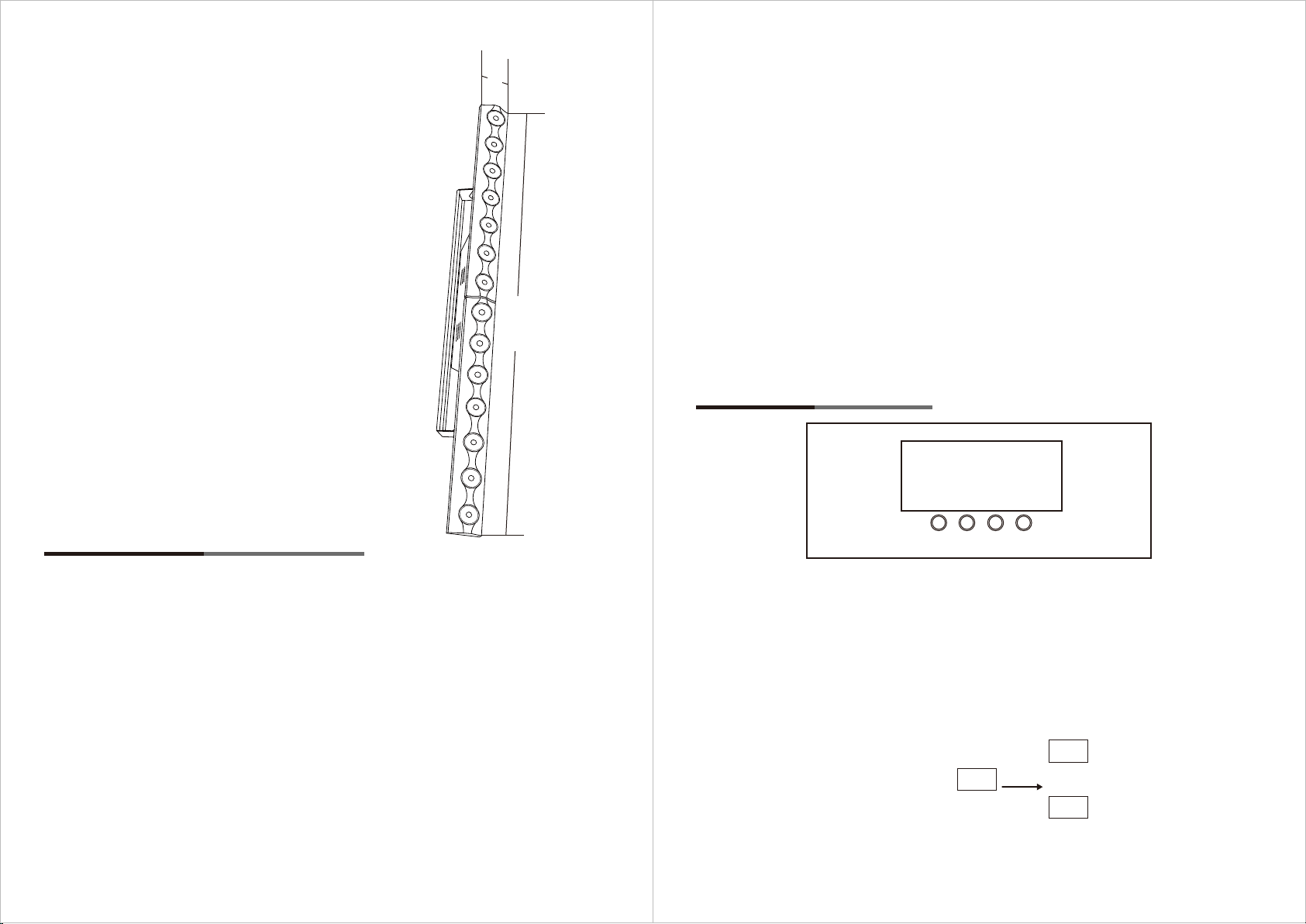

5. MENU OPERATIONS
75mm
170mm
MENU UP DOWN ENTER

05 06
6. DMX CHANNELS
* If you find that the product menu does not comply with this manual,
please contact us immediately and we will send a copy of the manual that
suits you. Thank you!
2. DMX Channel setting
4. Sound actived, the first modes is 59
kindseffect, SU 0 is random effect. The
second modes is sensitivity setting, 0-99,
the sensitivity from weak to strong.
sp
1
sG99
su59
6CH 12CH 60CH 8CHchND
Soun
Su 0
sG00
AUTO
AU59 SP
9
... ...
Au 0
colo
co15
... ...
co 1
Nanu ReD
Gree
Blue
Red
uhit 255
000
NrST
SL
1
SL
2
SLND
DISP
DISP
uer U1 0
ENTER
ENTER
ENTER
ENTER
ENTER
ENTER
ENTER
ENTER
ENTER
ENTER ENTER
... ...
... ...
ENTER
5. Auto, built-in 59 self-propelled modes,
press enter to enter the speed adjustment
interface, the speed from 0 to 99 range from
slow to fast. AU 0 is random effect.
6. Static color effects, 15 static color effects
are available.
7. Manually adjust the color effect, color
mixing effect, brightness can be adjusted.
8. Display positive direction display / display
reverse display setting.
9. Software version
3. Master/Slave
Instructions
Function/ValueChannel
6 Channel
1 Red dimming/0-255 0-255 from dark to bright
2 Green dimming/0-255
0-255 from dark to bright
3 Blue dimming/0-255
0-255 from dark to bright
4 White dimming/0-255
0-255 from dark to bright
5
000-007 No function
008-012 Color effect 1
013-016 Color effect 2
017-020 Color effect 3
021-024 Color effect 4
025-028 Color effect 5
029-032 Color effect 6
033-036 Color effect 7
037-040 Color effect 8
041-044 Color effect 9
045-048 Color effect 10
049-052 Color effect 11
053-056 Color effect 12
057-060 Color effect 13
061-064 Color effect 14
065-068 Color effect 15
069-072 Color effect 16
073-076 Color effect 17
077-080 Color effect 18
081-085 Color effect 19
086-089 Color effect 20
090-093 Color effect 21
094-097 Color effect 22
098-101 Color effect 23
102-105 Color effect 24
106-109 Color effect 25
6Speed adjust for channel 5 effect except
sound actived, 0-255 from slow to fast
Effects/0-255
Speed/0-255
110-113 Color effect 26
114-117 Color effect 27
118-121 Color effect 28
122-125 Color effect 29
126-129 Color effect 30
130-133 Color effect 31
134-137 Color effect 32
138-141 Color effect 33
142-145 Color effect 34
146-149 Color effect 35
150-158 Color effect 36
159-162 Color effect 37
163-166 Color effect 38
167-170 Color effect 39
171-178 Color effect 40
179-198 Color effect 41
199-202 Color effect 42
203-210 Color effect 43
211-214 Color effect 44
215-218 Color effect 45
219-222 Color effect 46
223-226 Color effect 47
227-231 Color effect 48
232-247 Color effect 49
248-255 Sound actived

07 0807
Instructions
Function/ValueChannel
8 Channel
3 Red dimming/0-255 0-255 from dark to bright
4 Green dimming/0-255 0-255 from dark to bright
5 Blue dimming/0-255 0-255 from dark to bright
6 White dimming/0-255 0-255 from dark to bright
7
000-007 No function
008-012 Color effect 1
013-016 Color effect 2
017-020 Color effect 3
021-024 Color effect 4
025-028 Color effect 5
029-032 Color effect 6
033-036 Color effect 7
037-040 Color effect 8
041-044 Color effect 9
045-048 Color effect 10
049-052 Color effect 11
053-056 Color effect 12
057-060 Color effect 13
061-064 Color effect 14
065-068 Color effect 15
069-072 Color effect 16
073-076 Color effect 17
077-080 Color effect 18
081-085 Color effect 19
086-089 Color effect 20
090-093 Color effect 21
094-097 Color effect 22
098-101 Color effect 23
102-105 Color effect 24
106-109 Color effect 25
8Speed adjust for channel 5 effect except
sound actived, 0-255 from slow to fast
Effects
Speed
110-113 Color effect 26
114-117 Color effect 27
118-121 Color effect 28
122-125 Color effect 29
126-129 Color effect 30
130-133 Color effect 31
134-137 Color effect 32
138-141 Color effect 33
142-145 Color effect 34
146-149 Color effect 35
150-158 Color effect 36
159-162 Color effect 37
163-166 Color effect 38
167-170 Color effect 39
171-178 Color effect 40
179-198 Color effect 41
199-202 Color effect 42
203-210 Color effect 43
211-214 Color effect 44
215-218 Color effect 45
219-222 Color effect 46
223-226 Color effect 47
227-231 Color effect 48
232-247 Color effect 49
248-255 Sound actived
1 Dimming/0-255 0-255 from dark to bright
2 Strobe/0-255 0-255 from slow to fast
12 Channel ① ②
Instructions
Function/ValueChannel
3 Red 1 dimming/0-255 0-255 from dark to bright
4 Green 1 dimming/0-255 0-255 from dark to bright
5 Blue 1 dimming/0-255 0-255 from dark to bright
6 White 1 dimming/0-255 0-255 from dark to bright
11
000-007 No function
008-012 Color effect 1
013-016 Color effect 2
017-020 Color effect 3
021-024 Color effect 4
025-028 Color effect 5
029-032 Color effect 6
033-036 Color effect 7
037-040 Color effect 8
041-044 Color effect 9
045-048 Color effect 10
049-052 Color effect 11
053-056 Color effect 12
057-060 Color effect 13
061-064 Color effect 14
065-068 Color effect 15
069-072 Color effect 16
073-076 Color effect 17
077-080 Color effect 18
081-085 Color effect 19
086-089 Color effect 20
090-093 Color effect 21
094-097 Color effect 22
098-101 Color effect 23
102-105 Color effect 24
106-109 Color effect 25
Effects
110-113 Color effect 26
114-117 Color effect 27
118-121 Color effect 28
122-125 Color effect 29
126-129 Color effect 30
130-133 Color effect 31
134-137 Color effect 32
138-141 Color effect 33
142-145 Color effect 34
146-149 Color effect 35
150-158 Color effect 36
159-162 Color effect 37
163-166 Color effect 38
167-170 Color effect 39
171-178 Color effect 40
179-198 Color effect 41
199-202 Color effect 42
203-210 Color effect 43
211-214 Color effect 44
215-218 Color effect 45
219-222 Color effect 46
223-226 Color effect 47
227-231 Color effect 48
232-247 Color effect 49
248-255 Sound actived
1 Dimming/0-255 0-255 from dark to bright
2 Strobe/0-255 0-255 from slow to fast
7 Red 2 dimming/0-255 0-255 from dark to bright
8 Green 2 dimming/0-255 0-255 from dark to bright
9 Blue 2 dimming/0-255 0-255 from dark to bright
10 White 2 dimming/0-255 0-255 from dark to bright

09 10
12 Speed adjust for channel 5 effect except
sound actived, 0-255 from slow to fast
Speed
60 Channel
Instructions
Function/ValueChannel
3 Red 01 dimming/0-255
0-255 from dark to bright
4 Green 01 dimming/0-255
0-255 from dark to bright
5 Blue 01 dimming/0-255
0-255 from dark to bright
6 White 01 dimming/0-255
0-255 from dark to bright
1 Dimming/0-255 0-255 from dark to bright
2 Strobe/0-255 0-255 from slow to fast
7 Red 02 dimming/0-255
0-255 from dark to bright
8 Green 02 dimming/0-255
0-255 from dark to bright
9 Blue 02 dimming/0-255
0-255 from dark to bright
10 White 02 dimming/0-255
0-255 from dark to bright
01 02 03 04 05 06 07 08 09 10 11 12 13 14
11 Red 03 dimming/0-255
0-255 from dark to bright
12 Green 03 dimming/0-255
0-255 from dark to bright
13 Blue 03 dimming/0-255
0-255 from dark to bright
14 White 03 dimming/0-255
0-255 from dark to bright
15 Red 04 dimming/0-255
0-255 from dark to bright
16 Green 04 dimming/0-255
0-255 from dark to bright
17 Blue 04 dimming/0-255
0-255 from dark to bright
18 White 04 dimming/0-255
0-255 from dark to bright
19 Red 05 dimming/0-255
0-255 from dark to bright
20 Green 05 dimming/0-255
0-255 from dark to bright
21 Blue 05 dimming/0-255
0-255 from dark to bright
22 White 05 dimming/0-255 0-255 from dark to bright
23 Red 06 dimming/0-255 0-255 from dark to bright
24 Green 06 dimming/0-255 0-255 from dark to bright
25 Blue 06 dimming/0-255 0-255 from dark to bright
26 White 06 dimming/0-255 0-255 from dark to bright
27 Red 07 dimming/0-255 0-255 from dark to bright
28 Green 07 dimming/0-255 0-255 from dark to bright
29 Blue 07 dimming/0-255 0-255 from dark to bright
30 White 07 dimming/0-255 0-255 from dark to bright
31 Red 08 dimming/0-255 0-255 from dark to bright
32 Green 08 dimming/0-255 0-255 from dark to bright
33 Blue 08 dimming/0-255 0-255 from dark to bright
34 White 08 dimming/0-255 0-255 from dark to bright
35 Red 09 dimming/0-255 0-255 from dark to bright
36 Green 09 dimming/0-255 0-255 from dark to bright
37 Blue 09 dimming/0-255 0-255 from dark to bright
38 White 09 dimming/0-255 0-255 from dark to bright
39 Red 10 dimming/0-255 0-255 from dark to bright
40 Green 10 dimming/0-255 0-255 from dark to bright
41 Blue 10 dimming/0-255 0-255 from dark to bright
42 White 10 dimming/0-255 0-255 from dark to bright
43 Red 11 dimming/0-255 0-255 from dark to bright
44 Green 11 dimming/0-255 0-255 from dark to bright
45 Blue 11 dimming/0-255 0-255 from dark to bright
46 White 11 dimming/0-255 0-255 from dark to bright
43 Red 11 dimming/0-255 0-255 from dark to bright
44 Green 11 dimming/0-255 0-255 from dark to bright
45 Blue 11 dimming/0-255 0-255 from dark to bright
47 Red 12 dimming/0-255 0-255 from dark to bright
48 Green 12 dimming/0-255 0-255 from dark to bright
46 White 11 dimming/0-255 0-255 from dark to bright

The following points have to be considered during the inspection:
1. All screws for installing the devices or parts of the device have to be tightly connected and must
not be corroded.
2. There must not be any deformations on the housing, color lenses, fixations and installation spots
(ceiling, suspension, trussing).
3. Mechanically moved parts must not show any traces of wearing and must not rotate with
unbalances.
4. The electric power supply cables must not show any damage, material fatigue or sediments.
Further instructions depending on the installation spot and usage have to be adhered by a skilled
installer and any safety problems have to be removed
*CAUTION!
Disconnect from mains before starting maintenance operation.
In order to make the lights in good condition and extend the life time, we suggest a regular cleaning
to the lights.
1. Clean the inside and outside lens each week to avoid the weakneness of the lights
due to accumulation of dust.
2. Clean the fan each week.
3. A detailed electric check by approved electrical engineer each three month, make sure that the
circuit contacts are in good condition, prevent the poor contact of circuit from overheating.
4. Frequent cleaning. Please use a moist, lint- free cloth. Never use alcohol or solvents.
There are no serviceable parts inside the device. Please refer to the instructions under “Installation
instructions”.
Should you need any spare parts, please order genuine parts from your local dealer
8. MAINTENANCE AND CLEANING
59
000-007 No function
008-012 Color effect 1
013-016 Color effect 2
017-020 Color effect 3
021-024 Color effect 4
025-028 Color effect 5
029-032 Color effect 6
033-036 Color effect 7
037-040 Color effect 8
041-044 Color effect 9
045-048 Color effect 10
049-052 Color effect 11
053-056 Color effect 12
057-060 Color effect 13
061-064 Color effect 14
065-068 Color effect 15
069-072 Color effect 16
073-076 Color effect 17
077-080 Color effect 18
081-085 Color effect 19
086-089 Color effect 20
090-093 Color effect 21
094-097 Color effect 22
098-101 Color effect 23
102-105 Color effect 24
106-109 Color effect 25
Effects
110-113 Color effect 26
114-117 Color effect 27
118-121 Color effect 28
122-125 Color effect 29
126-129 Color effect 30
130-133 Color effect 31
134-137 Color effect 32
138-141 Color effect 33
142-145 Color effect 34
146-149 Color effect 35
150-158 Color effect 36
159-162 Color effect 37
163-166 Color effect 38
167-170 Color effect 39
171-178 Color effect 40
179-198 Color effect 41
199-202 Color effect 42
203-210 Color effect 43
211-214 Color effect 44
215-218 Color effect 45
219-222 Color effect 46
223-226 Color effect 47
227-231 Color effect 48
232-247 Color effect 49
248-255 Sound actived
49 Blue 12 dimming/0-255
0-255 from dark to bright
50 White 12 dimming/0-255
0-255 from dark to bright
51 Red 13 dimming/0-255
0-255 from dark to bright
52 Green 13 dimming/0-255
0-255 from dark to bright
53 Blue 13 dimming/0-255
0-255 from dark to bright
54 White 13 dimming/0-255
0-255 from dark to bright
55 Red 14 dimming/0-255
0-255 from dark to bright
56 Green 14 dimming/0-255
0-255 from dark to bright
57 Blue 14 dimming/0-255
0-255 from dark to bright
58 White 14 dimming/0-255
0-255 from dark to bright
11 12
60 Speed adjust for channel 5 effect except
sound actived, 0-255 from slow to fast
Speed
