Coloronix Downlight SR 2.0 Series User manual

800.595.6302 coloronix.com |1Specications are subject to change without notice.
CAT. NO.:
TYPE:
PROJECT:
800.595.6302 coloronix.com | 1Specications are subject to change without notice.
APPLICATION
For use as linear, direct flood and/or accent lighting, installed as an
above grade fixture. Perfect for applications desiring a dynamic color
changing effect. Recommended for retail, modern residential, hospitality
and entertainment installations. RGBW design allows fine-tuned pastel
colors and saturated hues without sacrificing illumination brightness. DMX
control option allows the use of DMX512 Control Systems to individually
control and change colors, set looks, and add lighting effects which can
affect moods, feelings and atmosphere.
• 76W (16-LED) 3,000 Max. Lumen
• DMX direct via LCD display, Proprietary quick connectors included
• IP65
• 40o beam spread
• LED Die Colors: RGBW
• Using proprietary technology, colors are efficiently blended together
through an internal mixing chamber. The one-color output reduces
unsightly views of isolated rainbow like striations.
• Smooth and flicker-free dimming of all colors down to 1%
• 3 Year Warranty
CAT. NO.:
TYPE:
PROJECT:
ColorFacade - Wall Grazing
C-SS2-RGBW-5L-16
40" Adjustable RGBW Linear Flood/
Spot DMX Light
DIMENSIONS
2022.03.01
39-23/32"
5-7/8"
90°
5-23/32"
9-5/8"
ACCESSORIES
Glare Shield Visor
To direct the light & reduce glare; if ordered,
tthhee VVSSRR wwiillll aarrrriivvee iinnssttaalllleedd oonn ffiixxttuurree..
C-P-SS2-5L-16-VSR
60" Plug-In Cord (in addition to cord
included with unit)
C-SWR-PWR-WL--60-Pl
For connecting mains power to unit.
Terminated in a 15A male Edison
connector.
C-SWR-PWR-WL-8080" Power Jumper
For daisy chaining power from powered
unit to unpowered unit. No more than
9 units max from main power feed.
300" (25') Data Cable Interconnect C-SWR-DMX-WL-300
For daisy chaining DMX from one
fixture to another. Pre-terminated in
4-Pin proprietary connector. Maximum
32 fixtures may be connected on any
DMX run (for bare-end at one end,
please specify -HW).
80" DMX/Data Jumper C-SWR-DMX-WL-80
For daisy chaining DMX from one fix-
ture to another. Pre-terminated in 4-Pin
proprietary connector. Maximum 32
fixtures may be connected on any DMX
run (for bare-end at one end, please
specify -HW).
Wet Location Power End Caps (in
addition to the set included with unit) C-PCL008-WL-PWR
Protective cover for use in wet location
environments for capping power
connector cable.
Wet Location DMX End Caps (in
addition to the set included with unit) C-PCL008-WL-DMX
Protective cover for use in wet location
environments to cap DMX cables. Not
a DMX terminator.
Optional Glare Shield Visor
LxDxH: 39.7" x 5.7" x 5.9"

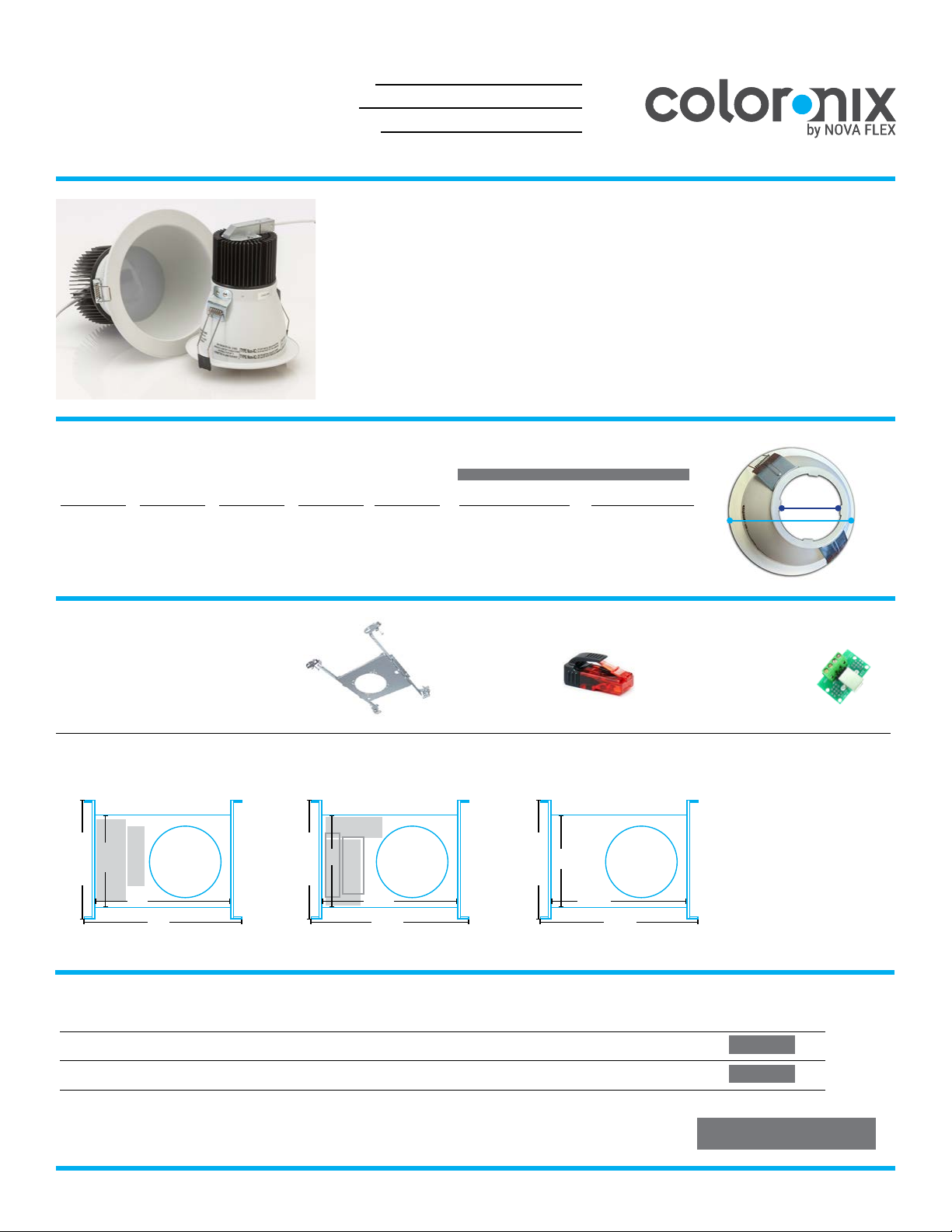

Downlight SR Series 2.0
4”, 6” 8” and 10” RGBW
Recessed DMX Downlights
C-SH6LD-SR4 | C-SH6LD-SR6
C-SH6LD-SR8 | C-SH6LD-SR10
CAT. NO.:
TYPE:
PROJECT:
For use as direct ambient or accent lighting,
installed as a recessed fixture. Perfect for
applications desiring a dynamic color changing
effect. Recommended for retail, modern
residential, hospitality and entertainment
installations. RGBW design allows fine-tuned pastel
colors and saturated hues without sacrificing
illumination brightness. Use with DMX 512 control
systems to individually control and change colors,
set looks, and add lighting effects which can affect
moods, feelings and atmosphere.
• 24V design provides greater efficiency
• Available in black or white trim
• Includes: 60W 24V power supply
(NF-PS-UNV-60W-24V], Data enabler
(NF-DMX-5A-4CH] and 18” power feed
• Proprietary 5”, 5-pin connector
• Smooth and flicker-free dimming of all colors
down to 1%
• 3 Year Warranty
• ETL Listed
ACCESSORIES
800.595.6302 coloronix.com | 1Specications are subject to change without notice.
APPLICATION
For use as linear, direct flood and/or accent lighting, installed as an
above grade fixture. Perfect for applications desiring a dynamic color
changing effect. Recommended for retail, modern residential, hospitality
and entertainment installations. RGBW design allows fine-tuned pastel
colors and saturated hues without sacrificing illumination brightness. DMX
control option allows the use of DMX512 Control Systems to individually
control and change colors, set looks, and add lighting effects which can
affect moods, feelings and atmosphere.
• 76W (16-LED) 3,000 Max. Lumen
• DMX direct via LCD display, Proprietary quick connectors included
• IP65
• 40o beam spread
• LED Die Colors: RGBW
• Using proprietary technology, colors are efficiently blended together
through an internal mixing chamber. The one-color output reduces
unsightly views of isolated rainbow like striations.
• Smooth and flicker-free dimming of all colors down to 1%
• 3 Year Warranty
CAT. NO.:
TYPE:
PROJECT:
ColorFacade - Wall Grazing
C-SS2-RGBW-5L-16
40" Adjustable RGBW Linear Flood/
Spot DMX Light
DIMENSIONS
2022.03.01
39-23/32"
5-7/8"
90°
5-23/32"
9-5/8"
ACCESSORIES
Glare Shield Visor
To direct the light & reduce glare; if ordered,
tthhee VVSSRR wwiillll aarrrriivvee iinnssttaalllleedd oonn ffiixxttuurree..
C-P-SS2-5L-16-VSR
60" Plug-In Cord (in addition to cord
included with unit)
C-SWR-PWR-WL--60-Pl
For connecting mains power to unit.
Terminated in a 15A male Edison
connector.
C-SWR-PWR-WL-8080" Power Jumper
For daisy chaining power from powered
unit to unpowered unit. No more than
9 units max from main power feed.
300" (25') Data Cable Interconnect C-SWR-DMX-WL-300
For daisy chaining DMX from one
fixture to another. Pre-terminated in
4-Pin proprietary connector. Maximum
32 fixtures may be connected on any
DMX run (for bare-end at one end,
please specify -HW).
80" DMX/Data Jumper C-SWR-DMX-WL-80
For daisy chaining DMX from one fix-
ture to another. Pre-terminated in 4-Pin
proprietary connector. Maximum 32
fixtures may be connected on any DMX
run (for bare-end at one end, please
specify -HW).
Wet Location Power End Caps (in
addition to the set included with unit) C-PCL008-WL-PWR
Protective cover for use in wet location
environments for capping power
connector cable.
Wet Location DMX End Caps (in
addition to the set included with unit) C-PCL008-WL-DMX
Protective cover for use in wet location
environments to cap DMX cables. Not
a DMX terminator.
Optional Glare Shield Visor
LxDxH: 39.7" x 5.7" x 5.9"
DIMENSIONS & ORDERING
Fixture Size
4 inch
6 inch
8 inch
10 inch
White Trim
C-SH6LD-SR4WW
C-SH6LD-SR6WW
C-SH6LD-SR8WW
C-SH6LD-SR10WW
DMX RJ45/Terminal
Block Coupler
C-PCL003
APPLICATION
•
•
•
•
•
•
•
•
•
ColorFlush - Ceiling (H-Series)
SR6LED21
BLUETOOTH
COLORONIX |WWW.RGBW.COM | PH. 323.677.4242 | A DIVISION OF EEMA LIGHTING GROUP | ALL RIGHTS RESERVED
HOUSING
SH6LD
CONTROL
Blank:
-WALIB:
FINISH
/ SR6LED21BB-PWM:
/ SR6LED21WW-PWM:
POWER INPUT
V024:
C70RGBW-PWM:
• SWR2RJ45-BK-72
•
•
•
•HB24
Black Trim
C-SH6LD-SR4BB
C-SH6LD-SR6BB
C-SH6LD-SR8BB
C-SH6LD-SR10BB
Choose Trim Color
RJ45 DMX
Terminator
C-PCL002
CONTROLS
C-SCC11 NF-DMX-5A-4CH* 4 DMX512
C-SCC5 NF-DMX-5A-4CH* 4 DMX512
1W 200mA at 5V
1W 65mA at 12V
SPEC SHEET
SPEC SHEET
Product Code Required to Pair with Zones Dimming Function Wattage
Power
Spec Sheet Link
* 1pc NF-DMX-5A-4CH comes with each downlight
Fixture Mounting Frame
4”: C-SH4-FRM
6”: C-SH6-FRM
8”: C/SP-SH8-FRM
10”: C/SP-SH10-FRM
Outer Width
5.88”
7.88”
- -
11.00”
Inner Width
3.25”
4.06”
- -
4.50”
Can Depth
3.50”
4.00”
- -
5.00”
w/heatsink
6.25”
6.75”
- -
7.75”
Inner Outer
width
4” Frame - mount driver & data
enabler flat side by side
13.5” - 24”
adjustable
14”
12”
7.63”
Frame depth: 1” /add ~2.75” for fixture
13.5” - 24”
adjustable
14.5”
12.5”
13.5” - 24”
adjustable
15.63”
13.44”
13”
6” Frame - 2 mouting options:
driver on edge & data enabler flat,
side by side or both flat forming L
10” Frame - mount driver & data
enabler on edges, side by side
9”
Frame depth: 1” /add ~2.75” for fixtureFrame depth: 0.75” /add ~2.75” for fixture
DOWNLOAD PHOTOMETRICS

800.595.6302 coloronix.com |2Specications are subject to change without notice.
CAT. NO.:
TYPE:
PROJECT:
800.595.6302 coloronix.com | 1Specications are subject to change without notice.
APPLICATION
For use as linear, direct flood and/or accent lighting, installed as an
above grade fixture. Perfect for applications desiring a dynamic color
changing effect. Recommended for retail, modern residential, hospitality
and entertainment installations. RGBW design allows fine-tuned pastel
colors and saturated hues without sacrificing illumination brightness. DMX
control option allows the use of DMX512 Control Systems to individually
control and change colors, set looks, and add lighting effects which can
affect moods, feelings and atmosphere.
• 76W (16-LED) 3,000 Max. Lumen
• DMX direct via LCD display, Proprietary quick connectors included
• IP65
• 40o beam spread
• LED Die Colors: RGBW
• Using proprietary technology, colors are efficiently blended together
through an internal mixing chamber. The one-color output reduces
unsightly views of isolated rainbow like striations.
• Smooth and flicker-free dimming of all colors down to 1%
• 3 Year Warranty
CAT. NO.:
TYPE:
PROJECT:
ColorFacade - Wall Grazing
C-SS2-RGBW-5L-16
40" Adjustable RGBW Linear Flood/
Spot DMX Light
DIMENSIONS
2022.03.01
39-23/32"
5-7/8"
90°
5-23/32"
9-5/8"
ACCESSORIES
Glare Shield Visor
To direct the light & reduce glare; if ordered,
tthhee VVSSRR wwiillll aarrrriivvee iinnssttaalllleedd oonn ffiixxttuurree..
C-P-SS2-5L-16-VSR
60" Plug-In Cord (in addition to cord
included with unit)
C-SWR-PWR-WL--60-Pl
For connecting mains power to unit.
Terminated in a 15A male Edison
connector.
C-SWR-PWR-WL-8080" Power Jumper
For daisy chaining power from powered
unit to unpowered unit. No more than
9 units max from main power feed.
300" (25') Data Cable Interconnect C-SWR-DMX-WL-300
For daisy chaining DMX from one
fixture to another. Pre-terminated in
4-Pin proprietary connector. Maximum
32 fixtures may be connected on any
DMX run (for bare-end at one end,
please specify -HW).
80" DMX/Data Jumper C-SWR-DMX-WL-80
For daisy chaining DMX from one fix-
ture to another. Pre-terminated in 4-Pin
proprietary connector. Maximum 32
fixtures may be connected on any DMX
run (for bare-end at one end, please
specify -HW).
Wet Location Power End Caps (in
addition to the set included with unit) C-PCL008-WL-PWR
Protective cover for use in wet location
environments for capping power
connector cable.
Wet Location DMX End Caps (in
addition to the set included with unit) C-PCL008-WL-DMX
Protective cover for use in wet location
environments to cap DMX cables. Not
a DMX terminator.
Optional Glare Shield Visor
LxDxH: 39.7" x 5.7" x 5.9"
Downlight SR Series 2.0
4”, 6” 8” and 10” RGBW
Recessed DMX Downlights
C-SH6LD-SR4 | C-SH6LD-SR6
C-SH6LD-SR8 | C-SH6LD-SR10
SPECIFICATIONS
LED Die-Colors: RGBW
SR4
SR8
SR6
SR10
OUTPUT
Beam Angles
Lumens
Input Voltage
Power Consumption
Efficacy Lm/W
LED Channels
ELECTRICAL
PHYSICAL
Dims with trim H x W x L
Lens
Mounting
Abient Temperature Range
Luminaire Run Lengths
Max Wire Length
24 6V LEDs, 6 per color
12 6V LEDs, 3 per color
24 6V LEDs, 6 per color
24 6V LEDs, 6 per color
74o
65o
80o
~77o
565
35.7
33
41.7
~38
Red/Green/Blue/White
Red/Green/Blue/White
Red/Green/Blue/White
Red/Green/Blue/White
24V
24V
24V
24V
25W
17W
25W
25W
7--1/4” X 7-7/8” diameter
6-7/8” x 5-7/8 diameter
Coming Soon
Coming Soon
Polycarbonate
Polycarbonate
Polycarbonate
Polycarbonate
Steel pressure springs
mounted on trim to
ensure positive retention.
0 -120˚ F
0 -120˚ F
0 -120˚ F
0 -120˚ F
3 fixtures per class 2
4 fixtures per class 2
3 fixtures per class 2
3 fixtures per class 2
15’
15’
15’
15’
Steel pressure springs
mounted on trim to
ensure positive retention.
Steel pressure springs
mounted on trim to
ensure positive retention.
Steel pressure springs
mounted on trim to
ensure positive retention.
Weight with trim
Coming Soon
Coming Soon
Coming Soon
Coming Soon
876
~950
1036
CONTROL
Interface: DMX
Control System: DirectDMX Color Control. Color controlled with USITT
DMX512A Standard Protocol to work with Coloronix or 3rd Party DMX
Systems. Data Input/Output ports allow daisy-chaining of DMX Signal.
Dimming: Smooth and flicker-free dimming of all colors down to 1%
CERTIFICATIONS
WARRANTY 3-Years
LUMEN MAINTENANCE
L70 Life: 35,000 hours for ambient temps under 85F
ETL Listed
DOWNLOAD PHOTOMETRICS

800.595.6302 coloronix.com |3Specications are subject to change without notice.
800.595.6302 coloronix.com | 1Specications are subject to change without notice.
APPLICATION
For use as linear, direct flood and/or accent lighting, installed as an
above grade fixture. Perfect for applications desiring a dynamic color
changing effect. Recommended for retail, modern residential, hospitality
and entertainment installations. RGBW design allows fine-tuned pastel
colors and saturated hues without sacrificing illumination brightness. DMX
control option allows the use of DMX512 Control Systems to individually
control and change colors, set looks, and add lighting effects which can
affect moods, feelings and atmosphere.
• 76W (16-LED) 3,000 Max. Lumen
• DMX direct via LCD display, Proprietary quick connectors included
• IP65
• 40o beam spread
• LED Die Colors: RGBW
• Using proprietary technology, colors are efficiently blended together
through an internal mixing chamber. The one-color output reduces
unsightly views of isolated rainbow like striations.
• Smooth and flicker-free dimming of all colors down to 1%
• 3 Year Warranty
CAT. NO.:
TYPE:
PROJECT:
ColorFacade - Wall Grazing
C-SS2-RGBW-5L-16
40" Adjustable RGBW Linear Flood/
Spot DMX Light
DIMENSIONS
2022.03.01
39-23/32"
5-7/8"
90°
5-23/32"
9-5/8"
ACCESSORIES
Glare Shield Visor
To direct the light & reduce glare; if ordered,
tthhee VVSSRR wwiillll aarrrriivvee iinnssttaalllleedd oonn ffiixxttuurree..
C-P-SS2-5L-16-VSR
60" Plug-In Cord (in addition to cord
included with unit)
C-SWR-PWR-WL--60-Pl
For connecting mains power to unit.
Terminated in a 15A male Edison
connector.
C-SWR-PWR-WL-8080" Power Jumper
For daisy chaining power from powered
unit to unpowered unit. No more than
9 units max from main power feed.
300" (25') Data Cable Interconnect C-SWR-DMX-WL-300
For daisy chaining DMX from one
fixture to another. Pre-terminated in
4-Pin proprietary connector. Maximum
32 fixtures may be connected on any
DMX run (for bare-end at one end,
please specify -HW).
80" DMX/Data Jumper C-SWR-DMX-WL-80
For daisy chaining DMX from one fix-
ture to another. Pre-terminated in 4-Pin
proprietary connector. Maximum 32
fixtures may be connected on any DMX
run (for bare-end at one end, please
specify -HW).
Wet Location Power End Caps (in
addition to the set included with unit) C-PCL008-WL-PWR
Protective cover for use in wet location
environments for capping power
connector cable.
Wet Location DMX End Caps (in
addition to the set included with unit) C-PCL008-WL-DMX
Protective cover for use in wet location
environments to cap DMX cables. Not
a DMX terminator.
Optional Glare Shield Visor
LxDxH: 39.7" x 5.7" x 5.9"
Downlight SR Series 2.0
4”, 6” 8” and 10” RGBW Recessed DMX Downlights
C-SH6LD-SR4 | C-SH6LD-SR6 | C-SH6LD-SR8 | C-SH6LD-SR10
The SR Series RGBW Color Changing Downlights are professional, top-of-the-line color changing fixtures. They draw on solid-state
elements in order to produce highlights and washes in architectural spaces. “RGBW” is an acronym for “Red, Green, Blue, and
White.” RGBW LED color mixing luminaries have the potential to produce 4.3 billion colors, and 16.7 million white light tones.
When installed and operated according to this manual, these fixtures will operate safely and dependably for their rated lifespan.
These luminaries require a USITT DMX 512 control signal on four consecutive channels total. The unit includes a DATA OUT output
for connection to additional units or other DMX512 devices.
Scope
The purpose of this manual is to show proper use and installation of color-changing downlights for peak performance. This manual
must be complemented by additional references, consultation from qualified professional(s), and observance of state and local
codes and regulations. This rule applies to any interior structure, exterior structure, or environment. Please read and comply with all
instructions and warnings in this manual when installing or using this product.
THIS MANUAL INTENDED FOR electrical contractors, electrical engineers, and licensed electricians.
SAFETY HAZARD ICON KEY
DANGER = Avoiding pending danger will result in serious injury or death.
WARNING = Avoiding this warning may result in serious injury or death.
CAUTION = Not exercising caution may result in minor to moderate injury, or property damage.
The SS2 Series are active, top-of-the-line RGBW color changing fixtures that can be used in indoor or outdoor projects. They
draw on solid-state elements, to produce highlights and washes in architectural spaces. RGBW is an acronym for Red Green
Blue and White. RGBW LED color mixing luminaires have the potential to produce 4.3 billion colors and 16.7 million white
light tones.
When installed and operated according to this manual, these fixtures will operate safely and dependably for their rated
lifespan. These luminaries require a USITT DMX 512 control signal on four consecutive channels total. The unit includes a
DATA OUT output for connection to additional units or other DMX512 devices.
SCOPE
The purpose of this manual is to show proper use and installation of color-changing flood lights for peak performance. This
manual must be complimented by additional references, consultation from qualified professional(s), and observance of state
and local codes and regulations. This rule applies to any interior structure, exterior structure, or environment.
Therefore, it is important to: please read and comply with all instructions and warnings in this manual when installing or
using this product.
THIS MANUAL INTENDED FOR electrical contractors, electrical engineers, and licensed electricians.
ADDITIONAL SUPPLY OPTIONS
•DMX512 compatible controller (optional)
•DMX extension (optional)
•DMX feed connector
•4x4 inch electrical junction box rated for the application (optional)
•Controller (DMX512 compatible)
•Proper mounting bolts, washers, and lock washers to secure the fixture to the mounting surface
SAFETY HAZARD ICON KEY
DANGER = avoiding
pending danger will result in serious injury or death.
WARNING = avoiding this warning may result may in serious injury or death.
CAUTION = not exercising caution may result in minor to moderate injury, or property damage.
SAFETY HAZARD PRECAUTIONS
DANGER: Not turning off the main power before wiring, installing, connecting, or disconnecting this product may
result in serious injury, or death.
WARNING: Not following NEC codes, local codes, or consulting a certified professional may result in property
damage, serious injury, or death.
800.595.6302 coloronix.com | 3
C-SS2-RGBW-5L-16
The SS2 Series are active, top-of-the-line RGBW color changing fixtures that can be used in indoor or outdoor projects. They
draw on solid-state elements, to produce highlights and washes in architectural spaces. RGBW is an acronym for Red Green
Blue and White. RGBW LED color mixing luminaires have the potential to produce 4.3 billion colors and 16.7 million white
light tones.
When installed and operated according to this manual, these fixtures will operate safely and dependably for their rated
lifespan. These luminaries require a USITT DMX 512 control signal on four consecutive channels total. The unit includes a
DATA OUT output for connection to additional units or other DMX512 devices.
SCOPE
The purpose of this manual is to show proper use and installation of color-changing flood lights for peak performance. This
manual must be complimented by additional references, consultation from qualified professional(s), and observance of state
and local codes and regulations. This rule applies to any interior structure, exterior structure, or environment.
Therefore, it is important to: please read and comply with all instructions and warnings in this manual when installing or
using this product.
THIS MANUAL INTENDED FOR electrical contractors, electrical engineers, and licensed electricians.
ADDITIONAL SUPPLY OPTIONS
•DMX512 compatible controller (optional)
•DMX extension (optional)
•DMX feed connector
•4x4 inch electrical junction box rated for the application (optional)
•Controller (DMX512 compatible)
•Proper mounting bolts, washers, and lock washers to secure the fixture to the mounting surface
SAFETY HAZARD ICON KEY
DANGER = avoiding
pending danger will result in serious injury or death.
WARNING = avoiding this warning may result may in serious injury or death.
CAUTION = not exercising caution may result in minor to moderate injury, or property damage.
SAFETY HAZARD PRECAUTIONS
DANGER: Not turning off the main power before wiring, installing, connecting, or disconnecting this product may
result in serious injury, or death.
WARNING: Not following NEC codes, local codes, or consulting a certified professional may result in property
damage, serious injury, or death.
800.595.6302 coloronix.com | 3
C-SS2-RGBW-5L-16
The SS2 Series are active, top-of-the-line RGBW color changing fixtures that can be used in indoor or outdoor projects. They
draw on solid-state elements, to produce highlights and washes in architectural spaces. RGBW is an acronym for Red Green
Blue and White. RGBW LED color mixing luminaires have the potential to produce 4.3 billion colors and 16.7 million white
light tones.
When installed and operated according to this manual, these fixtures will operate safely and dependably for their rated
lifespan. These luminaries require a USITT DMX 512 control signal on four consecutive channels total. The unit includes a
DATA OUT output for connection to additional units or other DMX512 devices.
SCOPE
The purpose of this manual is to show proper use and installation of color-changing flood lights for peak performance. This
manual must be complimented by additional references, consultation from qualified professional(s), and observance of state
and local codes and regulations. This rule applies to any interior structure, exterior structure, or environment.
Therefore, it is important to: please read and comply with all instructions and warnings in this manual when installing or
using this product.
THIS MANUAL INTENDED FOR electrical contractors, electrical engineers, and licensed electricians.
ADDITIONAL SUPPLY OPTIONS
•DMX512 compatible controller (optional)
•DMX extension (optional)
•DMX feed connector
•4x4 inch electrical junction box rated for the application (optional)
•Controller (DMX512 compatible)
•Proper mounting bolts, washers, and lock washers to secure the fixture to the mounting surface
SAFETY HAZARD ICON KEY
DANGER = avoiding
pending danger will result in serious injury or death.
WARNING = avoiding this warning may result may in serious injury or death.
CAUTION = not exercising caution may result in minor to moderate injury, or property damage.
SAFETY HAZARD PRECAUTIONS
DANGER: Not turning off the main power before wiring, installing, connecting, or disconnecting this product may
result in serious injury, or death.
WARNING: Not following NEC codes, local codes, or consulting a certified professional may result in property
damage, serious injury, or death.
800.595.6302 coloronix.com | 3
C-SS2-RGBW-5L-16
The SS2 Series are active, top-of-the-line RGBW color changing fixtures that can be used in indoor or outdoor projects. They
draw on solid-state elements, to produce highlights and washes in architectural spaces. RGBW is an acronym for Red Green
Blue and White. RGBW LED color mixing luminaires have the potential to produce 4.3 billion colors and 16.7 million white
light tones.
When installed and operated according to this manual, these fixtures will operate safely and dependably for their rated
lifespan. These luminaries require a USITT DMX 512 control signal on four consecutive channels total. The unit includes a
DATA OUT output for connection to additional units or other DMX512 devices.
SCOPE
The purpose of this manual is to show proper use and installation of color-changing flood lights for peak performance. This
manual must be complimented by additional references, consultation from qualified professional(s), and observance of state
and local codes and regulations. This rule applies to any interior structure, exterior structure, or environment.
Therefore, it is important to: please read and comply with all instructions and warnings in this manual when installing or
using this product.
THIS MANUAL INTENDED FOR electrical contractors, electrical engineers, and licensed electricians.
ADDITIONAL SUPPLY OPTIONS
•DMX512 compatible controller (optional)
•DMX extension (optional)
•DMX feed connector
•4x4 inch electrical junction box rated for the application (optional)
•Controller (DMX512 compatible)
•Proper mounting bolts, washers, and lock washers to secure the fixture to the mounting surface
SAFETY HAZARD ICON KEY
DANGER = avoiding
pending danger will result in serious injury or death.
WARNING = avoiding this warning may result may in serious injury or death.
CAUTION = not exercising caution may result in minor to moderate injury, or property damage.
SAFETY HAZARD PRECAUTIONS
DANGER: Not turning off the main power before wiring, installing, connecting, or disconnecting this product may
result in serious injury, or death.
WARNING: Not following NEC codes, local codes, or consulting a certified professional may result in property
damage, serious injury, or death.
800.595.6302 coloronix.com | 3
C-SS2-RGBW-5L-16
The SS2 Series are active, top-of-the-line RGBW color changing fixtures that can be used in indoor or outdoor projects. They
draw on solid-state elements, to produce highlights and washes in architectural spaces. RGBW is an acronym for Red Green
Blue and White. RGBW LED color mixing luminaires have the potential to produce 4.3 billion colors and 16.7 million white
light tones.
When installed and operated according to this manual, these fixtures will operate safely and dependably for their rated
lifespan. These luminaries require a USITT DMX 512 control signal on four consecutive channels total. The unit includes a
DATA OUT output for connection to additional units or other DMX512 devices.
SCOPE
The purpose of this manual is to show proper use and installation of color-changing flood lights for peak performance. This
manual must be complimented by additional references, consultation from qualified professional(s), and observance of state
and local codes and regulations. This rule applies to any interior structure, exterior structure, or environment.
Therefore, it is important to: please read and comply with all instructions and warnings in this manual when installing or
using this product.
THIS MANUAL INTENDED FOR electrical contractors, electrical engineers, and licensed electricians.
ADDITIONAL SUPPLY OPTIONS
•DMX512 compatible controller (optional)
•DMX extension (optional)
•DMX feed connector
•4x4 inch electrical junction box rated for the application (optional)
•Controller (DMX512 compatible)
•Proper mounting bolts, washers, and lock washers to secure the fixture to the mounting surface
SAFETY HAZARD ICON KEY
DANGER = avoiding
pending danger will result in serious injury or death.
WARNING = avoiding this warning may result may in serious injury or death.
CAUTION = not exercising caution may result in minor to moderate injury, or property damage.
SAFETY HAZARD PRECAUTIONS
DANGER: Not turning off the main power before wiring, installing, connecting, or disconnecting this product may
result in serious injury, or death.
WARNING: Not following NEC codes, local codes, or consulting a certified professional may result in property
damage, serious injury, or death.
800.595.6302 coloronix.com | 3
C-SS2-RGBW-5L-16
DANGER = Not turning off the main power before wiring, installing, connecting, or disconnecting
this product may result in serious injury, or death.
WARNING = Not following NEC codes, local codes, or consulting a certified professional may result
in property damage, serious injury, or death.
WARNING = Not following instructions or safety labels may result in property damage, or serious injury.
WARNING = Modifying, servicing, or ignoring these safety indications may void the warranty.
WARNING = Install safety cables per local and structural engineer’s code.
The SS2 Series are active, top-of-the-line RGBW color changing fixtures that can be used in indoor or outdoor projects. They
draw on solid-state elements, to produce highlights and washes in architectural spaces. RGBW is an acronym for Red Green
Blue and White. RGBW LED color mixing luminaires have the potential to produce 4.3 billion colors and 16.7 million white
light tones.
When installed and operated according to this manual, these fixtures will operate safely and dependably for their rated
lifespan. These luminaries require a USITT DMX 512 control signal on four consecutive channels total. The unit includes a
DATA OUT output for connection to additional units or other DMX512 devices.
SCOPE
The purpose of this manual is to show proper use and installation of color-changing flood lights for peak performance. This
manual must be complimented by additional references, consultation from qualified professional(s), and observance of state
and local codes and regulations. This rule applies to any interior structure, exterior structure, or environment.
Therefore, it is important to: please read and comply with all instructions and warnings in this manual when installing or
using this product.
THIS MANUAL INTENDED FOR electrical contractors, electrical engineers, and licensed electricians.
ADDITIONAL SUPPLY OPTIONS
•DMX512 compatible controller (optional)
•DMX extension (optional)
•DMX feed connector
•4x4 inch electrical junction box rated for the application (optional)
•Controller (DMX512 compatible)
•Proper mounting bolts, washers, and lock washers to secure the fixture to the mounting surface
SAFETY HAZARD ICON KEY
DANGER = avoiding
pending danger will result in serious injury or death.
WARNING = avoiding this warning may result may in serious injury or death.
CAUTION = not exercising caution may result in minor to moderate injury, or property damage.
SAFETY HAZARD PRECAUTIONS
DANGER: Not turning off the main power before wiring, installing, connecting, or disconnecting this product may
result in serious injury, or death.
WARNING: Not following NEC codes, local codes, or consulting a certified professional may result in property
damage, serious injury, or death.
800.595.6302 coloronix.com | 3
C-SS2-RGBW-5L-16
CAUTION = Hot swapping, not turning off fixtures before connection or disconnection, will void the
warranty, and damage property.
The SS2 Series are active, top-of-the-line RGBW color changing fixtures that can be used in indoor or outdoor projects. They
draw on solid-state elements, to produce highlights and washes in architectural spaces. RGBW is an acronym for Red Green
Blue and White. RGBW LED color mixing luminaires have the potential to produce 4.3 billion colors and 16.7 million white
light tones.
When installed and operated according to this manual, these fixtures will operate safely and dependably for their rated
lifespan. These luminaries require a USITT DMX 512 control signal on four consecutive channels total. The unit includes a
DATA OUT output for connection to additional units or other DMX512 devices.
SCOPE
The purpose of this manual is to show proper use and installation of color-changing flood lights for peak performance. This
manual must be complimented by additional references, consultation from qualified professional(s), and observance of state
and local codes and regulations. This rule applies to any interior structure, exterior structure, or environment.
Therefore, it is important to: please read and comply with all instructions and warnings in this manual when installing or
using this product.
THIS MANUAL INTENDED FOR electrical contractors, electrical engineers, and licensed electricians.
ADDITIONAL SUPPLY OPTIONS
•DMX512 compatible controller (optional)
•DMX extension (optional)
•DMX feed connector
•4x4 inch electrical junction box rated for the application (optional)
•Controller (DMX512 compatible)
•Proper mounting bolts, washers, and lock washers to secure the fixture to the mounting surface
SAFETY HAZARD ICON KEY
DANGER = avoiding
pending danger will result in serious injury or death.
WARNING = avoiding this warning may result may in serious injury or death.
CAUTION = not exercising caution may result in minor to moderate injury, or property damage.
SAFETY HAZARD PRECAUTIONS
DANGER: Not turning off the main power before wiring, installing, connecting, or disconnecting this product may
result in serious injury, or death.
WARNING: Not following NEC codes, local codes, or consulting a certified professional may result in property
damage, serious injury, or death.
800.595.6302 coloronix.com | 3
C-SS2-RGBW-5L-16
The SS2 Series are active, top-of-the-line RGBW color changing fixtures that can be used in indoor or outdoor projects. They
draw on solid-state elements, to produce highlights and washes in architectural spaces. RGBW is an acronym for Red Green
Blue and White. RGBW LED color mixing luminaires have the potential to produce 4.3 billion colors and 16.7 million white
light tones.
When installed and operated according to this manual, these fixtures will operate safely and dependably for their rated
lifespan. These luminaries require a USITT DMX 512 control signal on four consecutive channels total. The unit includes a
DATA OUT output for connection to additional units or other DMX512 devices.
SCOPE
The purpose of this manual is to show proper use and installation of color-changing flood lights for peak performance. This
manual must be complimented by additional references, consultation from qualified professional(s), and observance of state
and local codes and regulations. This rule applies to any interior structure, exterior structure, or environment.
Therefore, it is important to: please read and comply with all instructions and warnings in this manual when installing or
using this product.
THIS MANUAL INTENDED FOR electrical contractors, electrical engineers, and licensed electricians.
ADDITIONAL SUPPLY OPTIONS
•DMX512 compatible controller (optional)
•DMX extension (optional)
•DMX feed connector
•4x4 inch electrical junction box rated for the application (optional)
•Controller (DMX512 compatible)
•Proper mounting bolts, washers, and lock washers to secure the fixture to the mounting surface
SAFETY HAZARD ICON KEY
DANGER = avoiding
pending danger will result in serious injury or death.
WARNING = avoiding this warning may result may in serious injury or death.
CAUTION = not exercising caution may result in minor to moderate injury, or property damage.
SAFETY HAZARD PRECAUTIONS
DANGER: Not turning off the main power before wiring, installing, connecting, or disconnecting this product may
result in serious injury, or death.
WARNING: Not following NEC codes, local codes, or consulting a certified professional may result in property
damage, serious injury, or death.
800.595.6302 coloronix.com | 3
C-SS2-RGBW-5L-16
The SS2 Series are active, top-of-the-line RGBW color changing fixtures that can be used in indoor or outdoor projects. They
draw on solid-state elements, to produce highlights and washes in architectural spaces. RGBW is an acronym for Red Green
Blue and White. RGBW LED color mixing luminaires have the potential to produce 4.3 billion colors and 16.7 million white
light tones.
When installed and operated according to this manual, these fixtures will operate safely and dependably for their rated
lifespan. These luminaries require a USITT DMX 512 control signal on four consecutive channels total. The unit includes a
DATA OUT output for connection to additional units or other DMX512 devices.
SCOPE
The purpose of this manual is to show proper use and installation of color-changing flood lights for peak performance. This
manual must be complimented by additional references, consultation from qualified professional(s), and observance of state
and local codes and regulations. This rule applies to any interior structure, exterior structure, or environment.
Therefore, it is important to: please read and comply with all instructions and warnings in this manual when installing or
using this product.
THIS MANUAL INTENDED FOR electrical contractors, electrical engineers, and licensed electricians.
ADDITIONAL SUPPLY OPTIONS
•DMX512 compatible controller (optional)
•DMX extension (optional)
•DMX feed connector
•4x4 inch electrical junction box rated for the application (optional)
•Controller (DMX512 compatible)
•Proper mounting bolts, washers, and lock washers to secure the fixture to the mounting surface
SAFETY HAZARD ICON KEY
DANGER = avoiding
pending danger will result in serious injury or death.
WARNING = avoiding this warning may result may in serious injury or death.
CAUTION = not exercising caution may result in minor to moderate injury, or property damage.
SAFETY HAZARD PRECAUTIONS
DANGER: Not turning off the main power before wiring, installing, connecting, or disconnecting this product may
result in serious injury, or death.
WARNING: Not following NEC codes, local codes, or consulting a certified professional may result in property
damage, serious injury, or death.
800.595.6302 coloronix.com | 3
C-SS2-RGBW-5L-16
WARNING = Inspect product before use. DO NOT use if damaged.
The SS2 Series are active, top-of-the-line RGBW color changing fixtures that can be used in indoor or outdoor projects. They
draw on solid-state elements, to produce highlights and washes in architectural spaces. RGBW is an acronym for Red Green
Blue and White. RGBW LED color mixing luminaires have the potential to produce 4.3 billion colors and 16.7 million white
light tones.
When installed and operated according to this manual, these fixtures will operate safely and dependably for their rated
lifespan. These luminaries require a USITT DMX 512 control signal on four consecutive channels total. The unit includes a
DATA OUT output for connection to additional units or other DMX512 devices.
SCOPE
The purpose of this manual is to show proper use and installation of color-changing flood lights for peak performance. This
manual must be complimented by additional references, consultation from qualified professional(s), and observance of state
and local codes and regulations. This rule applies to any interior structure, exterior structure, or environment.
Therefore, it is important to: please read and comply with all instructions and warnings in this manual when installing or
using this product.
THIS MANUAL INTENDED FOR electrical contractors, electrical engineers, and licensed electricians.
ADDITIONAL SUPPLY OPTIONS
•DMX512 compatible controller (optional)
•DMX extension (optional)
•DMX feed connector
•4x4 inch electrical junction box rated for the application (optional)
•Controller (DMX512 compatible)
•Proper mounting bolts, washers, and lock washers to secure the fixture to the mounting surface
SAFETY HAZARD ICON KEY
DANGER = avoiding
pending danger will result in serious injury or death.
WARNING = avoiding this warning may result may in serious injury or death.
CAUTION = not exercising caution may result in minor to moderate injury, or property damage.
SAFETY HAZARD PRECAUTIONS
DANGER: Not turning off the main power before wiring, installing, connecting, or disconnecting this product may
result in serious injury, or death.
WARNING: Not following NEC codes, local codes, or consulting a certified professional may result in property
damage, serious injury, or death.
800.595.6302 coloronix.com | 3
C-SS2-RGBW-5L-16
CAUTION = Do not use sharp tools near the reflector or lens.
The SS2 Series are active, top-of-the-line RGBW color changing fixtures that can be used in indoor or outdoor projects. They
draw on solid-state elements, to produce highlights and washes in architectural spaces. RGBW is an acronym for Red Green
Blue and White. RGBW LED color mixing luminaires have the potential to produce 4.3 billion colors and 16.7 million white
light tones.
When installed and operated according to this manual, these fixtures will operate safely and dependably for their rated
lifespan. These luminaries require a USITT DMX 512 control signal on four consecutive channels total. The unit includes a
DATA OUT output for connection to additional units or other DMX512 devices.
SCOPE
The purpose of this manual is to show proper use and installation of color-changing flood lights for peak performance. This
manual must be complimented by additional references, consultation from qualified professional(s), and observance of state
and local codes and regulations. This rule applies to any interior structure, exterior structure, or environment.
Therefore, it is important to: please read and comply with all instructions and warnings in this manual when installing or
using this product.
THIS MANUAL INTENDED FOR electrical contractors, electrical engineers, and licensed electricians.
ADDITIONAL SUPPLY OPTIONS
•DMX512 compatible controller (optional)
•DMX extension (optional)
•DMX feed connector
•4x4 inch electrical junction box rated for the application (optional)
•Controller (DMX512 compatible)
•Proper mounting bolts, washers, and lock washers to secure the fixture to the mounting surface
SAFETY HAZARD ICON KEY
DANGER = avoiding
pending danger will result in serious injury or death.
WARNING = avoiding this warning may result may in serious injury or death.
CAUTION = not exercising caution may result in minor to moderate injury, or property damage.
SAFETY HAZARD PRECAUTIONS
DANGER: Not turning off the main power before wiring, installing, connecting, or disconnecting this product may
result in serious injury, or death.
WARNING: Not following NEC codes, local codes, or consulting a certified professional may result in property
damage, serious injury, or death.
800.595.6302 coloronix.com | 3
C-SS2-RGBW-5L-16
CAUTION = Do not look directly into beam, with or without optical instruments.
The SS2 Series are active, top-of-the-line RGBW color changing fixtures that can be used in indoor or outdoor projects. They
draw on solid-state elements, to produce highlights and washes in architectural spaces. RGBW is an acronym for Red Green
Blue and White. RGBW LED color mixing luminaires have the potential to produce 4.3 billion colors and 16.7 million white
light tones.
When installed and operated according to this manual, these fixtures will operate safely and dependably for their rated
lifespan. These luminaries require a USITT DMX 512 control signal on four consecutive channels total. The unit includes a
DATA OUT output for connection to additional units or other DMX512 devices.
SCOPE
The purpose of this manual is to show proper use and installation of color-changing flood lights for peak performance. This
manual must be complimented by additional references, consultation from qualified professional(s), and observance of state
and local codes and regulations. This rule applies to any interior structure, exterior structure, or environment.
Therefore, it is important to: please read and comply with all instructions and warnings in this manual when installing or
using this product.
THIS MANUAL INTENDED FOR electrical contractors, electrical engineers, and licensed electricians.
ADDITIONAL SUPPLY OPTIONS
•DMX512 compatible controller (optional)
•DMX extension (optional)
•DMX feed connector
•4x4 inch electrical junction box rated for the application (optional)
•Controller (DMX512 compatible)
•Proper mounting bolts, washers, and lock washers to secure the fixture to the mounting surface
SAFETY HAZARD ICON KEY
DANGER = avoiding
pending danger will result in serious injury or death.
WARNING = avoiding this warning may result may in serious injury or death.
CAUTION = not exercising caution may result in minor to moderate injury, or property damage.
SAFETY HAZARD PRECAUTIONS
DANGER: Not turning off the main power before wiring, installing, connecting, or disconnecting this product may
result in serious injury, or death.
WARNING: Not following NEC codes, local codes, or consulting a certified professional may result in property
damage, serious injury, or death.
800.595.6302 coloronix.com | 3
C-SS2-RGBW-5L-16

800.595.6302 coloronix.com |4Specications are subject to change without notice.
800.595.6302 coloronix.com | 1Specications are subject to change without notice.
APPLICATION
For use as linear, direct flood and/or accent lighting, installed as an
above grade fixture. Perfect for applications desiring a dynamic color
changing effect. Recommended for retail, modern residential, hospitality
and entertainment installations. RGBW design allows fine-tuned pastel
colors and saturated hues without sacrificing illumination brightness. DMX
control option allows the use of DMX512 Control Systems to individually
control and change colors, set looks, and add lighting effects which can
affect moods, feelings and atmosphere.
• 76W (16-LED) 3,000 Max. Lumen
• DMX direct via LCD display, Proprietary quick connectors included
• IP65
• 40o beam spread
• LED Die Colors: RGBW
• Using proprietary technology, colors are efficiently blended together
through an internal mixing chamber. The one-color output reduces
unsightly views of isolated rainbow like striations.
• Smooth and flicker-free dimming of all colors down to 1%
• 3 Year Warranty
CAT. NO.:
TYPE:
PROJECT:
ColorFacade - Wall Grazing
C-SS2-RGBW-5L-16
40" Adjustable RGBW Linear Flood/
Spot DMX Light
DIMENSIONS
2022.03.01
39-23/32"
5-7/8"
90°
5-23/32"
9-5/8"
ACCESSORIES
Glare Shield Visor
To direct the light & reduce glare; if ordered,
tthhee VVSSRR wwiillll aarrrriivvee iinnssttaalllleedd oonn ffiixxttuurree..
C-P-SS2-5L-16-VSR
60" Plug-In Cord (in addition to cord
included with unit)
C-SWR-PWR-WL--60-Pl
For connecting mains power to unit.
Terminated in a 15A male Edison
connector.
C-SWR-PWR-WL-8080" Power Jumper
For daisy chaining power from powered
unit to unpowered unit. No more than
9 units max from main power feed.
300" (25') Data Cable Interconnect C-SWR-DMX-WL-300
For daisy chaining DMX from one
fixture to another. Pre-terminated in
4-Pin proprietary connector. Maximum
32 fixtures may be connected on any
DMX run (for bare-end at one end,
please specify -HW).
80" DMX/Data Jumper C-SWR-DMX-WL-80
For daisy chaining DMX from one fix-
ture to another. Pre-terminated in 4-Pin
proprietary connector. Maximum 32
fixtures may be connected on any DMX
run (for bare-end at one end, please
specify -HW).
Wet Location Power End Caps (in
addition to the set included with unit) C-PCL008-WL-PWR
Protective cover for use in wet location
environments for capping power
connector cable.
Wet Location DMX End Caps (in
addition to the set included with unit) C-PCL008-WL-DMX
Protective cover for use in wet location
environments to cap DMX cables. Not
a DMX terminator.
Optional Glare Shield Visor
LxDxH: 39.7" x 5.7" x 5.9"
Downlight SR Series 2.0
4”, 6” 8” and 10” RGBW Recessed DMX Downlights
C-SH6LD-SR4 | C-SH6LD-SR6 | C-SH6LD-SR8 | C-SH6LD-SR10
UNPACKING Use the packing list to ensure all accessories are included.Survey the unit to ensure it isn’t cracked or damaged.
Please recycle or appropriately discard of any packing materials.
PREPARATION Before Installation, we suggest:
• Consult the provided submittal drawings to recognize layouts of luminaries, power supplies, & wiring layouts
• Drawing out a layout plan consisting of locations of luminaries and wiring
• Record DMX addresses on a mapping grid for easy reference and addressing (where applicable)
• An electrical inspector reviews all wiring plans
DATA
CONSIDERATION
• Use a Belden® 9481 or similar cable for DMX data connectivity, or plenum-rated CAT5 8-wire cable
• AC power and DATA cables may NOT run in the same conduit, due to possible errors
TO INSTALL
SUCCESSFULLY
1. Mount and align fixture
2. AC power connections
3. DMX connections
MOUNTING & ALIGNMENT
1. Using Fixture only: Feed SR fixture through the bottom of the mounting hole in ceiling, and
use the two mounting clips on the side of the fixture to level and hold the fixture in place
(clips will touch top/inside of the ceiling).
2. Using Fixture Mounting Frame: Mount the frame on the top/inside of the ceiling, lining up
the mounting hole in the ceiling with the corresponding hole in the mounting frame. Feed SR
fixture through the bottom of the mounting hole in ceiling, and use the two mounting clips one
each side of the fixture to level and hold the fixture in place (clips will touch top/inside of the
mounting frame in the ceiling; see picture 2).
NOTE: Requires electrician to install. Supply lead wires shouldn't be connected to a dimmer.
NOTE: The heat sink/light engine component and the white or black trim are shipped unassembled
(see picture 1). To assemble, carefully align the indentations on the heat sink/light engine with the
same on the inside diameter of the trim, and turn slightly to click into place.
Picture 1
Picture 2
n Please note, the power supply and data enabler can be mounted on the frame as well, next to the fixture, if desired. See next page for mounting options.
MOUNTING OPTIONS WITH FRAME
4” Frame 6” Frame - 2 options 10” Frame

800.595.6302 coloronix.com |5Specications are subject to change without notice.
800.595.6302 coloronix.com | 1Specications are subject to change without notice.
APPLICATION
For use as linear, direct flood and/or accent lighting, installed as an
above grade fixture. Perfect for applications desiring a dynamic color
changing effect. Recommended for retail, modern residential, hospitality
and entertainment installations. RGBW design allows fine-tuned pastel
colors and saturated hues without sacrificing illumination brightness. DMX
control option allows the use of DMX512 Control Systems to individually
control and change colors, set looks, and add lighting effects which can
affect moods, feelings and atmosphere.
• 76W (16-LED) 3,000 Max. Lumen
• DMX direct via LCD display, Proprietary quick connectors included
• IP65
• 40o beam spread
• LED Die Colors: RGBW
• Using proprietary technology, colors are efficiently blended together
through an internal mixing chamber. The one-color output reduces
unsightly views of isolated rainbow like striations.
• Smooth and flicker-free dimming of all colors down to 1%
• 3 Year Warranty
CAT. NO.:
TYPE:
PROJECT:
ColorFacade - Wall Grazing
C-SS2-RGBW-5L-16
40" Adjustable RGBW Linear Flood/
Spot DMX Light
DIMENSIONS
2022.03.01
39-23/32"
5-7/8"
90°
5-23/32"
9-5/8"
ACCESSORIES
Glare Shield Visor
To direct the light & reduce glare; if ordered,
tthhee VVSSRR wwiillll aarrrriivvee iinnssttaalllleedd oonn ffiixxttuurree..
C-P-SS2-5L-16-VSR
60" Plug-In Cord (in addition to cord
included with unit)
C-SWR-PWR-WL--60-Pl
For connecting mains power to unit.
Terminated in a 15A male Edison
connector.
C-SWR-PWR-WL-8080" Power Jumper
For daisy chaining power from powered
unit to unpowered unit. No more than
9 units max from main power feed.
300" (25') Data Cable Interconnect C-SWR-DMX-WL-300
For daisy chaining DMX from one
fixture to another. Pre-terminated in
4-Pin proprietary connector. Maximum
32 fixtures may be connected on any
DMX run (for bare-end at one end,
please specify -HW).
80" DMX/Data Jumper C-SWR-DMX-WL-80
For daisy chaining DMX from one fix-
ture to another. Pre-terminated in 4-Pin
proprietary connector. Maximum 32
fixtures may be connected on any DMX
run (for bare-end at one end, please
specify -HW).
Wet Location Power End Caps (in
addition to the set included with unit) C-PCL008-WL-PWR
Protective cover for use in wet location
environments for capping power
connector cable.
Wet Location DMX End Caps (in
addition to the set included with unit) C-PCL008-WL-DMX
Protective cover for use in wet location
environments to cap DMX cables. Not
a DMX terminator.
Optional Glare Shield Visor
LxDxH: 39.7" x 5.7" x 5.9"
Downlight SR Series 2.0
4”, 6” 8” and 10” RGBW Recessed DMX Downlights
C-SH6LD-SR4 | C-SH6LD-SR6 | C-SH6LD-SR8 | C-SH6LD-SR10
DMX DATA/POWER CONNECTIONS
24V DC
24V DC
INDIVIDUALLY CONTROLLED
60W UNIVERSAL DRIVER [NF-PS-UNV-60W-24V and DATA ENABLER (NF-DMX-5A-4CH) - supplied with fixture]
POWER SUPPLY
& DATA ENABLER
POWER SUPPLY
& DATA ENABLER
POWER SUPPLY
& DATA ENABLER
Fixtures on a serial data link must be daisy chained in one single line to comply with the EIA-485 standard, no more than 32 fixtures should be connected on one
data link. Connecting more, on one serial data link without the use of a DMX optically-isolated splitter, may result in deterioration of the digital DMX signal.
Maximum recommended serial data link distance: 50 m [1640 ft]
Maximum recommended number of fixtures on a serial data link: 32
DMX Data Cable
If installer prefers 3--wire data cables, we suggest Belden© 9481 or equivalent cable which meets the specifications for EIA RS-485 applications [use PCL002 DMX
hardwiring DMX coupler]. Standard microphone cables cannot transmit DMX data reliably over long distances. The cable must have the following characteristics:
Type: Shielded, 2-conductor twisted pair
Maximum capacitance between conductors: 30 pF/ft
Maximum capacitance between conductor and shield: 55 pF/ft
Maximum resistance: 20 ohms/1000ft
Normal impedance: 100 - 140 chms
If installer prefers a RJ45/CAT5 installation, a RJ45 jack can be used
DATA CONNECTION [FOR DMX CONTROL]
NOTE: To comply with all local codes and jurisdiction, qualified communications technicians must do communications wiring.
NOTE: Communication cables and AC power lines must not be run in the same conduit.
A. Route Data Cables in series between housing and any communication accessories using DATA IN and DATA OUT.
B. In Order that they may be easily accessed from the room once construction is complete, secure data cables in the immediate proximity of the housings.
Coloronix by Nova Flex strongly recommends clearly marking communication cables in such a way to indicate the correct order of connection.
A. Use RJ45 DMX terminator, insert in “DATA OUT” of last fixture in series.
NOTE: To avoid signal transmission problems and interferences, it is always advisable to connect a DMX signal terminator.

800.595.6302 coloronix.com |6Specications are subject to change without notice.
800.595.6302 coloronix.com | 1Specications are subject to change without notice.
APPLICATION
For use as linear, direct flood and/or accent lighting, installed as an
above grade fixture. Perfect for applications desiring a dynamic color
changing effect. Recommended for retail, modern residential, hospitality
and entertainment installations. RGBW design allows fine-tuned pastel
colors and saturated hues without sacrificing illumination brightness. DMX
control option allows the use of DMX512 Control Systems to individually
control and change colors, set looks, and add lighting effects which can
affect moods, feelings and atmosphere.
• 76W (16-LED) 3,000 Max. Lumen
• DMX direct via LCD display, Proprietary quick connectors included
• IP65
• 40o beam spread
• LED Die Colors: RGBW
• Using proprietary technology, colors are efficiently blended together
through an internal mixing chamber. The one-color output reduces
unsightly views of isolated rainbow like striations.
• Smooth and flicker-free dimming of all colors down to 1%
• 3 Year Warranty
CAT. NO.:
TYPE:
PROJECT:
ColorFacade - Wall Grazing
C-SS2-RGBW-5L-16
40" Adjustable RGBW Linear Flood/
Spot DMX Light
DIMENSIONS
2022.03.01
39-23/32"
5-7/8"
90°
5-23/32"
9-5/8"
ACCESSORIES
Glare Shield Visor
To direct the light & reduce glare; if ordered,
tthhee VVSSRR wwiillll aarrrriivvee iinnssttaalllleedd oonn ffiixxttuurree..
C-P-SS2-5L-16-VSR
60" Plug-In Cord (in addition to cord
included with unit)
C-SWR-PWR-WL--60-Pl
For connecting mains power to unit.
Terminated in a 15A male Edison
connector.
C-SWR-PWR-WL-8080" Power Jumper
For daisy chaining power from powered
unit to unpowered unit. No more than
9 units max from main power feed.
300" (25') Data Cable Interconnect C-SWR-DMX-WL-300
For daisy chaining DMX from one
fixture to another. Pre-terminated in
4-Pin proprietary connector. Maximum
32 fixtures may be connected on any
DMX run (for bare-end at one end,
please specify -HW).
80" DMX/Data Jumper C-SWR-DMX-WL-80
For daisy chaining DMX from one fix-
ture to another. Pre-terminated in 4-Pin
proprietary connector. Maximum 32
fixtures may be connected on any DMX
run (for bare-end at one end, please
specify -HW).
Wet Location Power End Caps (in
addition to the set included with unit) C-PCL008-WL-PWR
Protective cover for use in wet location
environments for capping power
connector cable.
Wet Location DMX End Caps (in
addition to the set included with unit) C-PCL008-WL-DMX
Protective cover for use in wet location
environments to cap DMX cables. Not
a DMX terminator.
Optional Glare Shield Visor
LxDxH: 39.7" x 5.7" x 5.9"
Downlight SR Series 2.0
4”, 6” 8” and 10” RGBW Recessed DMX Downlights
C-SH6LD-SR4 | C-SH6LD-SR6 | C-SH6LD-SR8 | C-SH6LD-SR10
If problems occur during usage, unplug the product immediately and email support@novaflexled.com or call 800-595-6302.
Replacing a Failed Fixture: “Hot Swapping” a fixture is not allowed. If a fixture needs to be replaced, the steps are to:
1.Disconnect the DMX input at the junction box of the fixture needing replacement, THEN disconnect DMX output
2.Replace fixture
3.Reconnect AC negative, THEN AC positive
4.Reconnect DATA output, THEN DATA input
5.Reconnect power and make sure the replaced fixture and the entire system is in working order
If fixture does not light, check if:
• Electrical power is not connected.
• Electrical power is less than specific voltage.
• Electrical power is greater than specified voltage.
If fixture does not respond to DMX control signal, check if:
• DMX control device and RGBW are addressed differently.
• DMX cable is damaged.
• DMX control device is disconnected or not operating.
• DMX device needs to be restarted.
• LED fixture was not restarted after address change.
• Restart fixture.
If the fixture is not responding to DMX, check if:
• DMX addressing is incorrect
• The wrong polarity settings may be on the controller: Check polarity switch settings on the controller.
• DMX cables may be loose: Check cable connectors.
If DMX control operation flickers or is intermittent, check if:
• RGBW fixture or final DMX device in daisy chain is not terminated.
• DMX cable is damaged.
• DMX control device is operating at less than 25Hz.
If there is a loss of signal, check if:
• Non-DMX cables are being used: Use only DMX compatible cables
• Signals are bouncing: DMX terminator is not installed as suggested.
If output is less than normal, check if:
• Environment temperature may be in excess of 114°F/45°C.
• Lens may be damaged or dirty.
• DMX control or RGBW channels may be set at low level.
View Nova Flex Terms & Conditions at www.novaflexled.com for more details.
TROUBLESHOOTING
