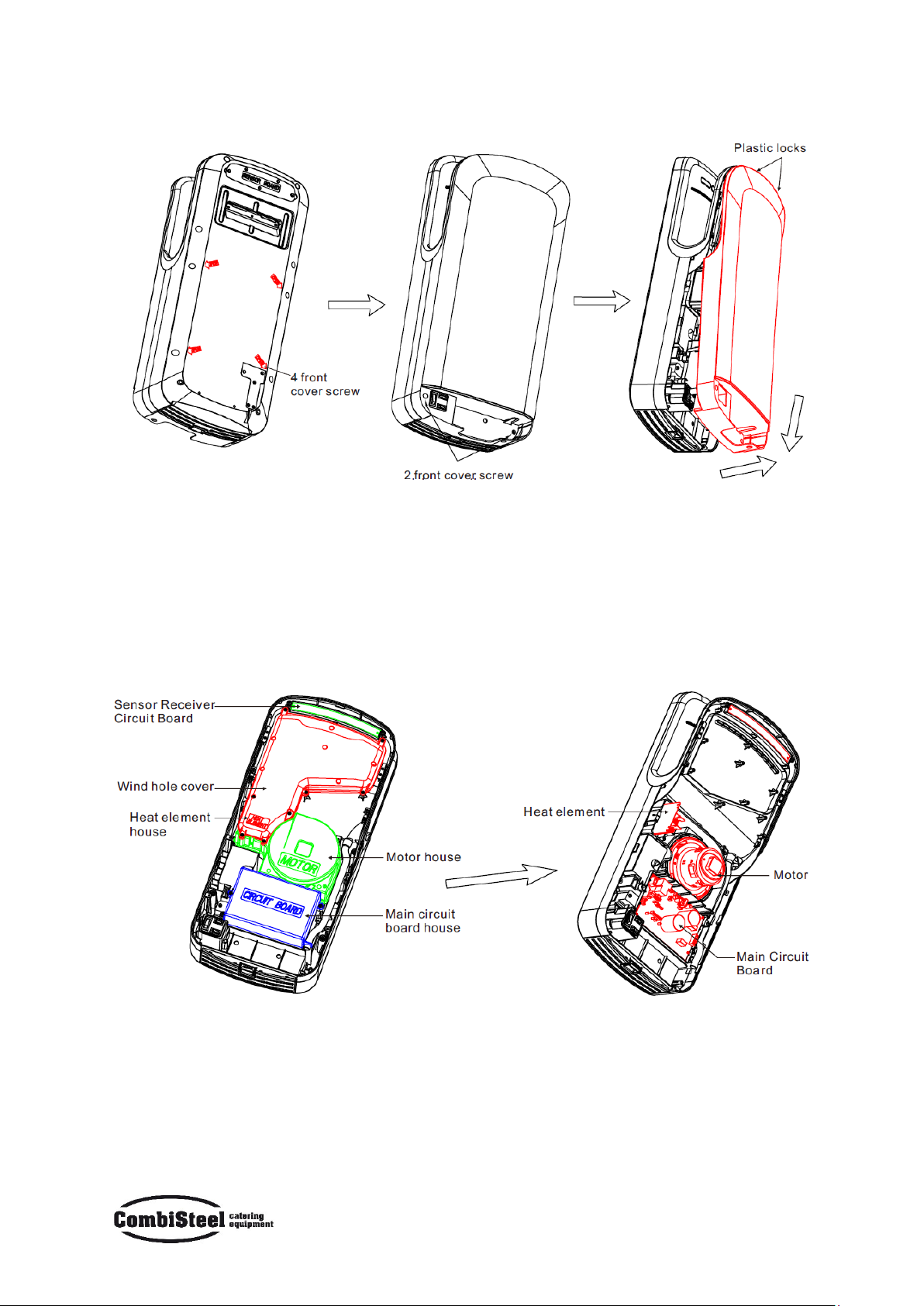

OPEN HAND DRYER FRONT COVER....................................................................................................................... 10
REPLACE MAIN CIRCUIT BOARD, SENSOR RECEIVER BOARD, MOTOR, HEAT ELEMENT .......................................10

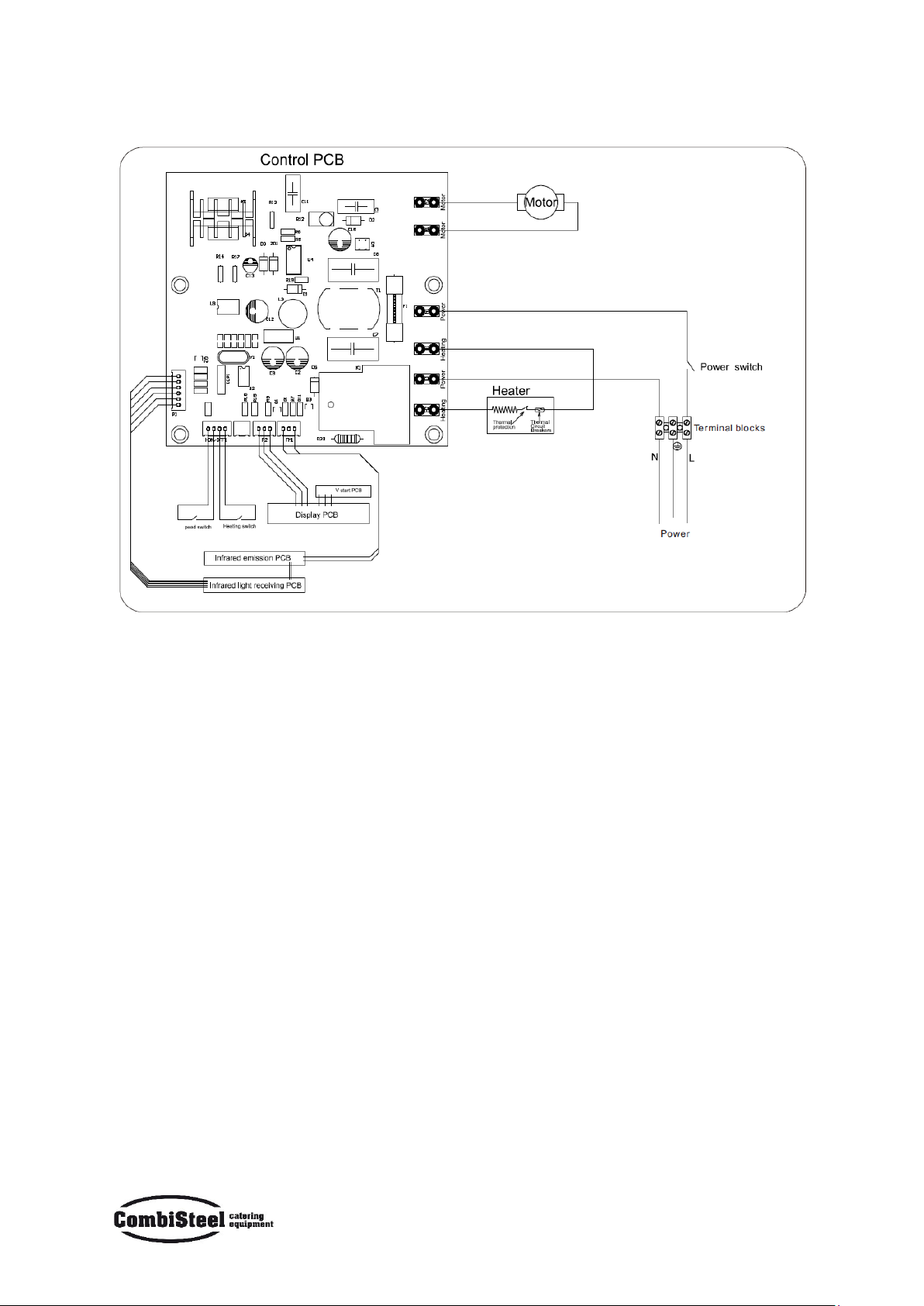

HAND DRYER BY BRUSH MOTOR ELECTRIC DIAGRAM..........................................................................................11
NEDERLANDS
1. BESCHRIJVING...................................................................................................................................................12
2. KENMERKEN ..................................................................................................................................................... 12
3. SPECIFICATIES....................................................................................................................................................12
4. VEILIGHEIDSINFORMATIE..................................................................................................................................12
5. UITPAKKEN / STANDAARD ACCESSOIRES .......................................................................................................... 13
6. INSTALLATIE....................................................................................................................................................... 14
7. HOE TE GEBRUIKEN ..........................................................................................................................................14
8. INSTRUCTIES VOOR ONDERHOUD EN REINIGING............................................................................................. 15
9. DIAGNOSTIEK & OPLOSSINGEN ........................................................................................................................15
10. BEPERKTE GARANTIE ......................................................................................................................................16
VERVANG HEPA-FILTER EN REINIG PRE-FILTER......................................................................................................16
VERVANG WATERBAK EN VERWIJDER HANDDROGER UIT MUUR ........................................................................17
VERVANG SENSOR DETECTOR & LED LICHT CIRCUIT BESTURING.........................................................................17
VERVANG DISPLAY PRINTPLAAT............................................................................................................................ 18
OPEN HANDDROGER VOORKLEP ..........................................................................................................................18
VERVANG DE HOOFDCIRCUITKAART, SENSOR ONTVANGERKAART, MOTOR, VERWARMINGSELEMENT .............19
HANDDROGER MET BORSTELMOTOR ELEKTRISCH DIAGRAM..............................................................................20

3
www.combisteel.com
DEUTSCH
1. BESCHREIBUNG.................................................................................................................................................21
2. FORTGESCHRITTENE EIGENSCHAFTEN UND MERKMALE ................................................................................. 21
3. SPEZIFIKATIONEN..............................................................................................................................................21
4. SICHERHEITSINFORMATIONEN .........................................................................................................................21
5. AUSPACKEN / SERIENMÄSSIGES ZUBEHÖR.......................................................................................................23
6. INSTALLATION/MONTAGE................................................................................................................................. 24
7. VERWENDUNG DES GERÄTS .............................................................................................................................25
8. WARTUNGS- UND REINIGUNGSANWEISUNGEN............................................................................................... 25
9. DIAGNOSE & BEHEBUNG ..................................................................................................................................26
10. EINGESCHRÄNKTE GARANTIE .........................................................................................................................26
AUSTAUSCH DES HEPA-FILTERS UND REINIGUNG DES VORFILTERS......................................................................27
HERAUSNEHMEN DER WASSERWANNE UND DEMONTAGE DES HÄNDETROCKNRS VON DER WAND.................27
AUSTAUSCH DES SENSORERKENNUNGS- & & LED-LICHT PLATINE .......................................................................28
AUTAUSCH DER PLATINE DER ANZEIGE ................................................................................................................ 28
ÖFFNEN DER VORDEREN ABDECKUNG DES HÄNDETROCKNERS.......................................................................... 29
AUSTAUSCH DER HAUPTPLATINE, SENSOREMPFANGSPLATINE, DES MOTORS, HEIZELEMENTS ..........................29
HÄNDETROCKNER MIT BÜRSTENMOTOR – ELEKTRISCHER SCHALTPLAN............................................................. 30
FRANÇAIS
1. DESCRIPTION ....................................................................................................................................................31
2. FONCTIONNALITÉS AVANCÉES.......................................................................................................................... 31
3. CARACTÉRISTIQUES .......................................................................................................................................... 31
4. INFORMATION DE SÉCURITÉ............................................................................................................................. 31
5. DÉBALLAGE / ACCESSOIRES STANDARD............................................................................................................32
6. INSTALLATION ................................................................................................................................................... 33
7. COMMENT L’UTILISER ......................................................................................................................................33
8. INSTRUCTIONS D'ENTRETIEN ET DE NETTOYAGE..............................................................................................34
9. DIAGNOSTICS ET SOLUTIONS............................................................................................................................ 34
10. GARANTIE LIMITÉE..........................................................................................................................................35
REMPLACER LE FILTRE HEPA ET NETTOYER LE PRE-FILTRE....................................................................................35
REMPLACER LE PLATEAU D'EAU ET DÉSINSTALLER LE SECHE-MAINS DU MUR ....................................................36
REMPLACER LE DÉTECTEUR DE CAPTEUR ET LA CARTE DE CIRCUIT DE LUMIÈRE DE LED.................................... 36
REMPLACER LA CARTE DE CIRCUIT D'AFFICHAGE.................................................................................................37
COUVERCLE AVANT SECHE-MAINS .......................................................................................................................37
REMPLACER LA CARTE DE CIRCUIT PRINCIPAL, LA CARTE DE RÉCEPTEUR DE CAPTEUR, LE MOTEUR, L'ÉLÉMENT
DE CHALEUR ......................................................................................................................................................... 38

4
www.combisteel.com
1. DESCRIPTION
The hand dryer is a surface-mounted hand dryer powered by a brushless or brush motor, and delivers 1650 watts
of drying power. The dryer incorporates a replaceable HEPA filter and a reused air intake pre-filter. An infrared
sensor is used to automatically activate the dryer. The dryer is intended for use in commercial, industrial, office
and public facility environment.
2. ADANCE FEATURES
THIN design with rapid drying, cost effective and most hygienic.
25Seconds continuous timer protection.
Anti-splash structure design.
Using highly efficient motor to create strong air flow to scrape the water off the hands.
No disposal, storage and labor cost compared with paper towel, only clean once a day.
Clean air by UV sterilization to keep air bacteria free.
99% of all bacteria filtered by HEPA filter with easy changeable system.
Up to 90% saving compared to paper towel costs.
ECO-friendly product by power saving clean technology and less amount of carbon dioxide.
3. SPECIFICATIONS
Voltage: 220V-240V 50/60Hz
Power: 1850W(Heater on)/750W(Heater off)
Air Temperature: 40℃(Room Temp.= 25℃)
Air Velocity: 100M/S
Air Flow: 150M3/H
Drying Time: 7-9S
Protection Level: IPXI
Electric Isolation: CLASS II
Motor: Brush Motor
Noise(at 1M): 70dB
Cabinet Material: ABS Plastic
Net Weight: 7.5KGS
Gross Weight: 9.3KGS
4. SAFETY INFORMATION
DANGER Failure to disconnect the power source before installation or servicing can result in serious injury or
death from electric shock. Always disconnect the power source before servicing or installing the hand dryer.
WARNING Risk of fire, electric shock, personal injury or property damage are possible if local codes, or safety
recommendations are not followed.
Use only for drying hands and do not use hand dryer for any purpose other than drying hands.
Carefully follow all instructions for installation on the enclosed installation template/instructions.
Installation should only be performed by qualified persons in compliance with all applicable national and
local codes and standards.
When cutting or drilling into wall or ceiling, do not damage electrical wiring and other hidden utilities.
Always connect to a branch circuit with circuit breaker or fuse protection with an electrical rating greater
than the model hand dryer’s rated amperage.
Use only the electrical power(voltage and frequency) specified for the model hand dryer being installed.
Each hand dryer must have a dedicated circuit.
For indoor use only. Do not use outdoors. Do not expose to rain, sun or extreme temperatures. Do not use
near source of water or extreme heat.
To limit a voltage drop, and insure efficient operation, use of right size wire is required.

5
www.combisteel.com
Repair work should only be performed by an authorized electrician.
This appliance is not intended for use by persons with reduced physical, sensory or mental capabilities, or
lack of experience and knowledge, unless they have been give supervision or instruction concerning use of
the appliance by a person responsible for their safety.
WARNING Risk of fire, electric shock, personal injury or property damage are possible if the following safety
precautions are not followed.
Repair work should only use genuine replacement parts.
Do not insert foreign objects in the unit or place heavy objects on the unit.
Do not use in corrosive environments or explosive atmospheres.
Do not use in extremely humid locations or near source of water.
Do not immerse appliance in water or other liquid.
Children should be supervised not to play with the appliance.
WARNING When you dispose of an old appliance or any components, follow any local and national laws on
disposal of electronic waste. This appliance must not be disposed together with the domestic waste. This
appliance has to be disposed at an authorized place for recycling of electrical and electronic appliances.
By collecting and recycling waste, you help save natural resources, and make sure the product is disposed in
an environmental friendly and healthy way.
5. UNPACKING / STANDARD ACCESSORIES
1. Remove all packing material. Recycling is recommended.
2. Carefully remove the hand dryer from the shipping carton, using care not to drop the appliance.
3. Inspect carefully for any damage that may have occurred during transit. Check for any loose, missing or
damaged parts. If the hand dryer is damaged or missing parts, promptly inform the dealer where you purchased
it.
Standard items included with the hand dryer are:

6
www.combisteel.com

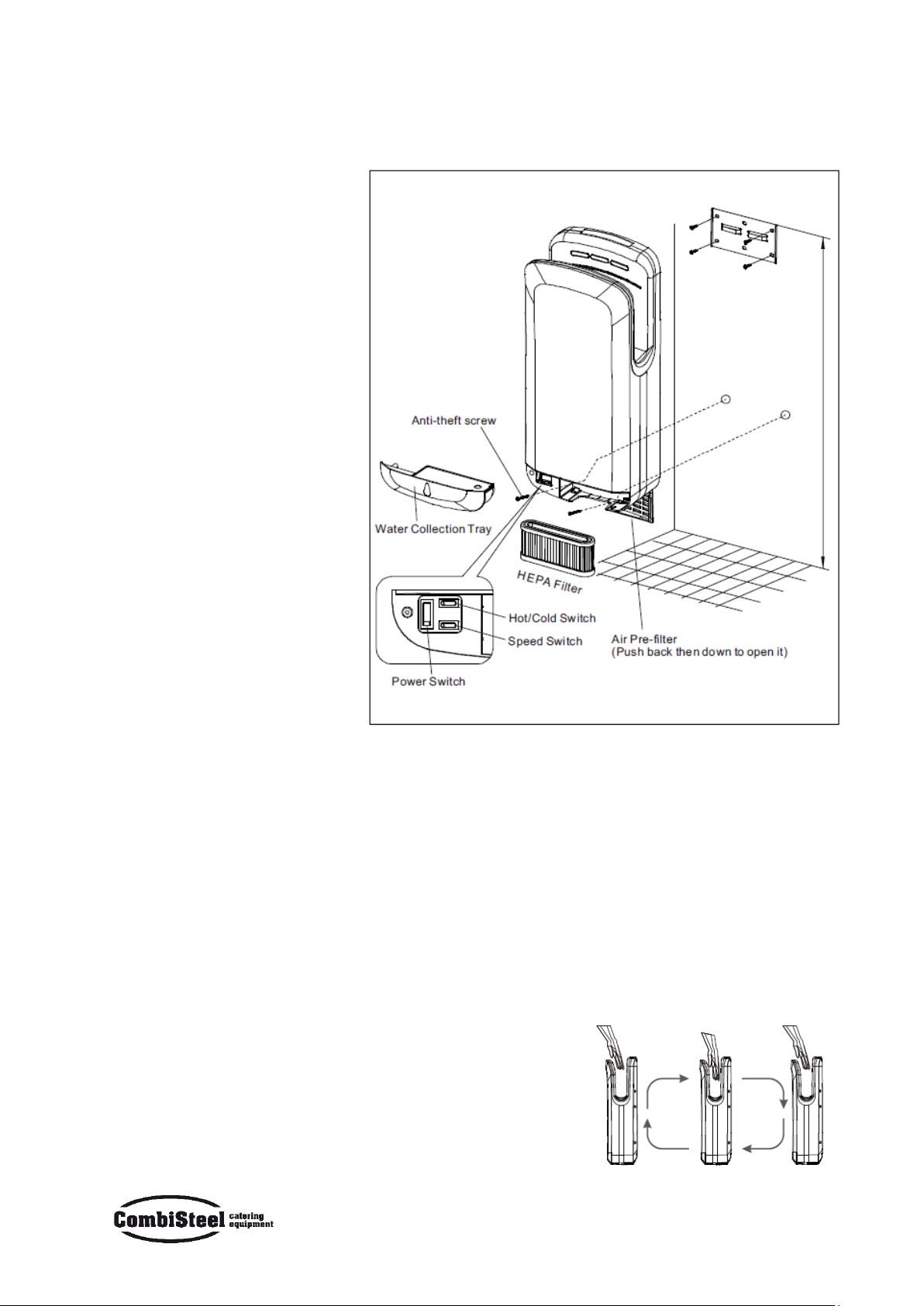

6. INSTALLATION
CAUTION Improper mounting could result in personal injury or property damage.
1. Use the mounting template
provided to mark the locations for the
8 screws to attach the wall mounting
bracket to the wall.
2. It is recommended that at least 2 of
the 6 screws for the unit be fastened
into a wall stud or support.
3. To use the hollow wall plugs
included with the wall mounting kit,
pre-drill the wall in the marked
locations using a 6/25" (6mm) drill,
insert the wall plugs and tap flush to
the wall.
4. Complete the attachment of the wall
mounting bracket to the wall with the
6 mounting screws.
5. If the hand dryer supplied with cable
& plug then hang it on bracket.
6. If the hand dryer is supplied without
cable plug and please open the power
supply kit cover on hand dryer back
then connect it as follows <Power
should be OFF>:
A. Connect the live wire (Coloured
Brown, Red, or Black) to the terminal
block marked “L”.
B. Connect the neutral wire (Coloured
Black, Blue) to the terminal block
marked “N”.
C. Connect the ground wire (Coloured
Green & Yellow) to the terminal block marked “E”.
Replace power supply kit cover then hang dryer on bracket.
7. Remove the water tray from the bottom of dryer, and complete the attachment of the dryer with left 2 screws.
8. Before replace water tray, there is an option to run the dryer heater On or OFF and air speed High or Low. The
switch is clearly marked.
9. Replace the water tray.

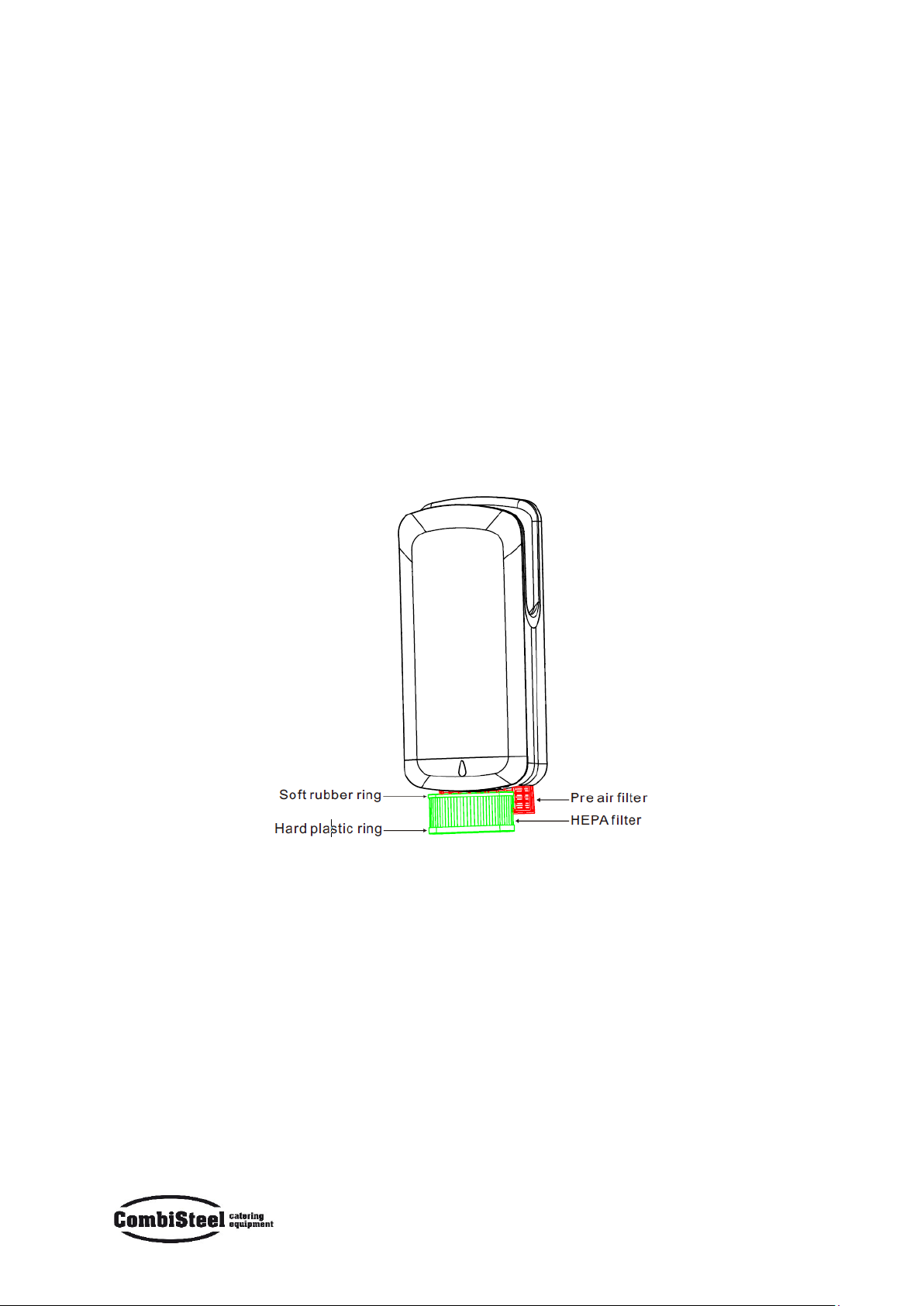

10. Open the pre-filter to install the HEPA filter if necessary. HEPA’s rubber ring is at the top.
11. Connect plug to power supply socket or turn on power.
7. HOW TO USE
1. No-touch operation.
2. There is a blue LED light to guide user to the air flow.
3. The hand dryer will start automatically when hands are inserted.
4. Slowly move your hands up and down through the air stream for
7-10 seconds.
5. The hand dryer will stop automatically after hands are removed.
LED Display: The LED display provides information about the operation
and servicing needs of the hand dryer.
A. Drying time and welcome diagram B. Power indicator
C. Air sterilization indicator D. Self-check indicator

7
www.combisteel.com
The dryer is equipped with an ON/OFF Power Switch, Speed Control Switch and Hot/Cold Switch for option if
desired. The factory default setting for the Power Switch “ON”, Speed Control Switch “HIGH” and Hot/Cold Switch
“HOT”. All the switches are located inside the dryer - left side of the water collection tray. To access, remove the
water collection tray and it is clearly shown.
8. MAINTENANCE AND CLEANING INSTRUCTIONS
CAUTION on HEPA: Failure to replace a used / dirty HEPA filter can cause overheating of the hand dryer’s motor
or heat element then may invalidate your warranty right. It is recommended to clean it once/week.
1. This hand dryer is equipped with removable intake air pre-filter and a replaceable HEPA filter.
2. Regularly check filter status is required. High traffic may require more frequent replacement of the HEPA filter.
3. The removable intake air pre-filter can be cleaned and re-used.
4. Replacement filters can be purchased through your dealer where you purchased the hand dryer.
5. HEPA filter is recommended to be cleaned by a vacuum cleaner.
CAUTION on Water Collection Tray: Regularly check water collection tray’ s water level from its front viewer and
empty the water. Clean the tray then replace it. Full tray will overflow onto the floor.
CLEANING
All surfaces of the hand dryer can be cleaned with a soft cloth and no-abrasive, non-caustic cleaning solutions.
Provided cleaning brush should be used for cleaning the drain hole in the bottom of the drying cavity.
9. DIAGNOSTICS & REMEDIES
SYMPTOM
CORRECTIVE ACTION
Hand dryer fails to start
Check power supply is turned on and the power switch on hand
dryer is on.
Check for foreign objects in the drying cavity that maybe blocking
the sensors.
Insert hands a little further into the drying cavity to active sensors.
Hand dryer turns on/off erratically
Clean sensor area inside the drying cavity.
No hot air
Heater is not workable if ambient temperature is more than 25℃.
Check heater fuse or heater assemble isn’t broken.
Low airflow
Turn speed control switch at position of “H”
Hand dryer locked
Hand dryer will be locked by program if voltage changed range is
more than 15%.
If long time without operation the hand dryer locked. Turn off the
hand dryer several minutes then turn it on.
10. LIMITED WARRANTEE
This hand dryer has a 1year warranty from the date of purchase for any manufacturing defect. It covers
replacement of defective parts except when caused by improper use of the hand dryer. This warranty is only
valid if the form card has been properly filled up with the vendor stamp. For any warranty claim you should
contact your local distributor or manufacturer.
Model: ………………………………………. Serial No.: ………………………………………….
Distributor: ……………………………….. Customer: ………………………………………….
Address: ………………………………..………………………………..……………………………………………..
Tel No.: …………………………………….. Fax No.: ………………………………………………
Date of purchase: ………………………………..………………………………..………………………………..
For Seller: …………………………………. Signature & Stamp: …………………………….

8
www.combisteel.com
REPLACE HEPA FILTER AND CLEAN PRE-FILTER
WARNING: Disconnect power at the breaker or unplug the hand dryer before any servicing & maintenance !
1. Press back then down to open pre air filter.
2. Take the HEPA filter out. When replacing a new HEPA, be sure that the HEPA’s rubber ring is at the top.
3. Clean the dust lint on the pre-filter.
REPLACE WATER TRAY AND UNINSTALL HAND DRYER FROM WALL
1. If there is a water overflow pipe connected, please move it.
2. Pull front to take the water tray out. Then loosen two anti-theft screws <Only HEPA is moved when re-fixing
these two screws>.
3. First pull up then pull front to take hand dryer from wall. Take care, it weighs 11KG.
4. After reinstallation, before replacing water tray, there is an option to run the dryer heater On or OFF and air
speed High or Low. The switch is clearly marked.

9
www.combisteel.com
REPLACE SENSOR DETECTOR & LED LIGHT CIRCUIT BOARD
Replace Sensor Detector & LED Light Circuit Board:
1. Loosen screw on sensor detector & LED light circuit board holder. Use a screwdriver to pull the cover a little
to open it.
2. Take cover out lightly and the circuit board will come together ! Be careful there is wire connected on the
circuit board.
3. Loosen two screws on circuit board and replace a new one.
REPLACE DISPLAY CIRCUIT BOARD
Replace Display Circuit Board:
1. Move the sticker away. Be careful not to damage the hand dryer edge as it will affect the surface appearance.
2. Loosen two screws on the timer circuit board holder. Use a screwdriver to pull the holder a little to open it.
3. Take holder out lightly and the circuit board will come together ! Be careful there is wire connected on the
circuit board.
4. Loosen two screws on circuit board and replace a new one.
5. After replacing the new circuit board right, it is suggested to use a new sticker for best appearance.

10
www.combisteel.com
OPEN HAND DRYER FRONT COVER
1. Loosen 4 front cover screws on hand dryer back base as the arrow marked.
2. Loosen 2 front cover screws on the hand dryer front & bottom.
3. Pull the front cover up then back a little to take it.
4. Pull the cover slowly and slightly because there are plastic locks on the top side.
5. Please do not damage the top side plastic locks because it is used to fix the front cover well on the base.
REPLACE MAIN CIRCUIT BOARD, SENSOR RECEIVER BOARD, MOTOR, HEAT
ELEMENT
Replace Main Circuit Board: Move marked circuit board house cover and replace a new circuit board.
Replace Sensor Receiver circuit board: .Move marked circuit board screw and replace a new one.
Replace Heat Element:
1. Move marked wind hole cover. Take the heat element out then replace a new one.
2. Replace wind hole cover. Be sure the air seal rubber at right location to avoid wind leakage.
