CombiSteel WHIRLWIND User manual

Hand Dryer
Hurricane, Whirlwind, Typhoon, Twister,
Tornado, Cyclone Compact & Cyclone Flat
User Manual
Gebruikershandleiding
Gebrauchsanweisung
Le mode d’emploi

2
www.combisteel.com
CONTENT
ENGLISH
1. WARNING............................................................................................................................................................ 3
2. NOTE...................................................................................................................................................................3
3. SPECIFICATIONS ..................................................................................................................................................3
4. INSTALLATION .....................................................................................................................................................5
5. OPERATION .........................................................................................................................................................5
6. MAINTENANCE ...................................................................................................................................................5
7. PACKING LIST ...................................................................................................................................................... 5
8. DIAGNOSTICS & REMEDIES.................................................................................................................................6
9. DIAGRAM............................................................................................................................................................7
10. LIMITED WARRANTEE .......................................................................................................................................7
NEDERLANDS
1. WAARSCHUWING ...............................................................................................................................................8
2. OPMERKING........................................................................................................................................................8
3. SPECIFICATIES...................................................................................................................................................... 8
4. INSTALLATIE.......................................................................................................................................................10
5. WERKING ..........................................................................................................................................................10
6. ONDERHOUD ....................................................................................................................................................10
7. VERPAKKINGSLIJST............................................................................................................................................10
8. DIAGNOSTIEK & OPLOSSINGEN ........................................................................................................................11
9. DIAGRAM..........................................................................................................................................................12
10. BEPERKTE GARANTIE ......................................................................................................................................12
DEUTSCH
1. WARNUNG ........................................................................................................................................................ 13
2. HINWEIS............................................................................................................................................................13
3. SPEZIFIKATIONEN..............................................................................................................................................13
4. INSTALLATION ...................................................................................................................................................15
5. BETRIEB.............................................................................................................................................................15
6. INSTANDHALTUNG ............................................................................................................................................15
7. PACKLISTE..........................................................................................................................................................15
8. FEHLER & BEHEBUNG .......................................................................................................................................16
9. DIAGRAMM....................................................................................................................................................... 17
10. GEWÄHRLEISTUNG ......................................................................................................................................... 17
FRANÇAIS
1. AVERTISSEMENT ...............................................................................................................................................18
2. REMARQUE.......................................................................................................................................................18
3. SPÉCIFICATIONS ................................................................................................................................................18
4. INSTALLATION ...................................................................................................................................................20
5. FONCTION......................................................................................................................................................... 20
6. MAINTENANCE .................................................................................................................................................20
7. CONTENU..........................................................................................................................................................20
8. DIAGNOSTICS & RECOURS ................................................................................................................................ 21
9. SCHÉMA ............................................................................................................................................................22
10. GARANTIE ....................................................................................................................................................... 22

3
www.combisteel.com
1. WARNING
•This product is intended for installation by a qualified service person.
•Disconnect power at the service breaker before installing or servicing.
•Failure to properly ground unit could result in severe electrical shock.
•All units must be supplied with a 3-wire connection. The ground wire must be connected to the dryer’s
backplate.
2. NOTE
Do not install dryer over washbasin.
If the power supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similar
qualified person in order to avoid a hazard. Means for disconnection must be incorporated in the fixed wiring in
accordance with the current wiring regulations.

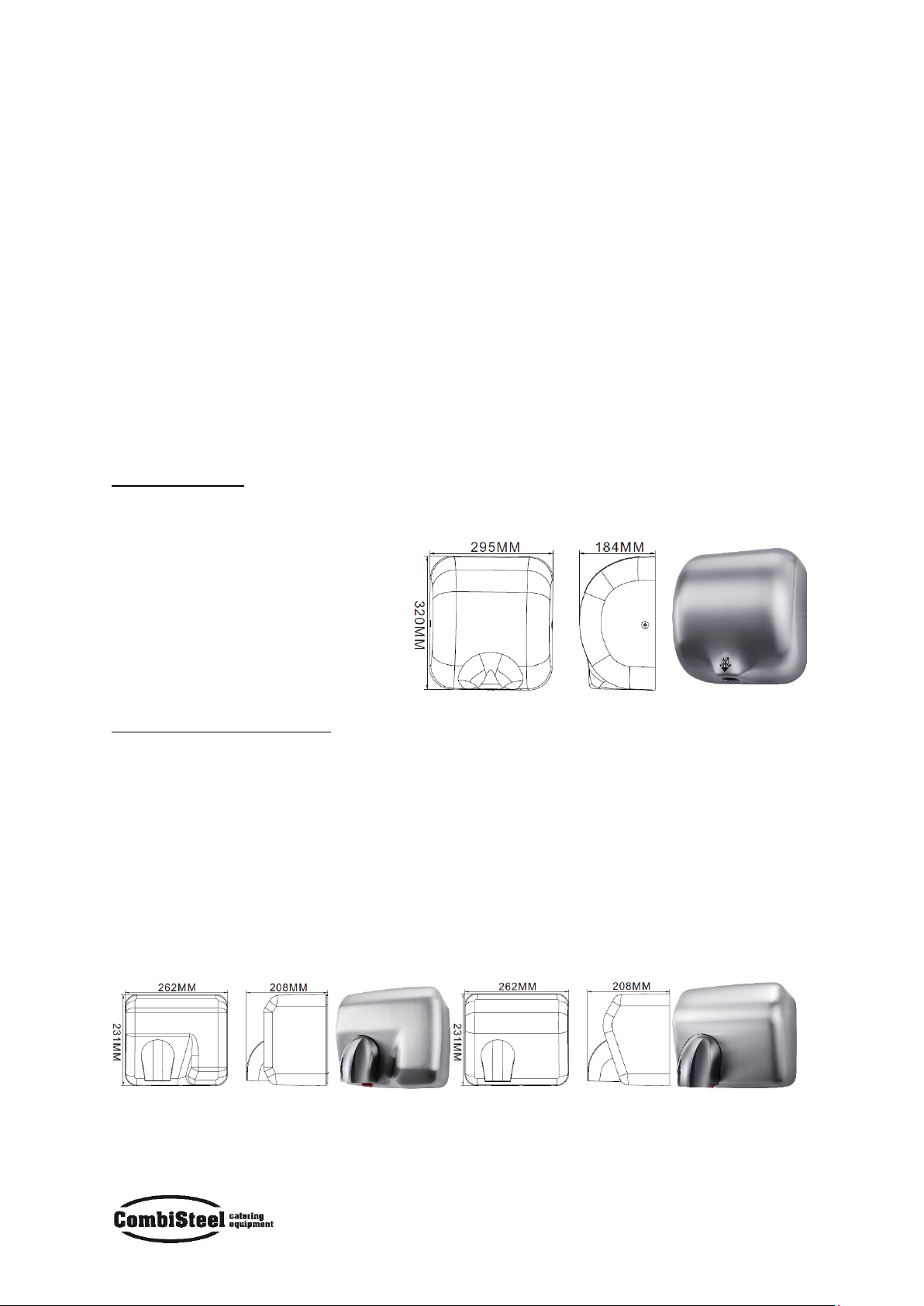

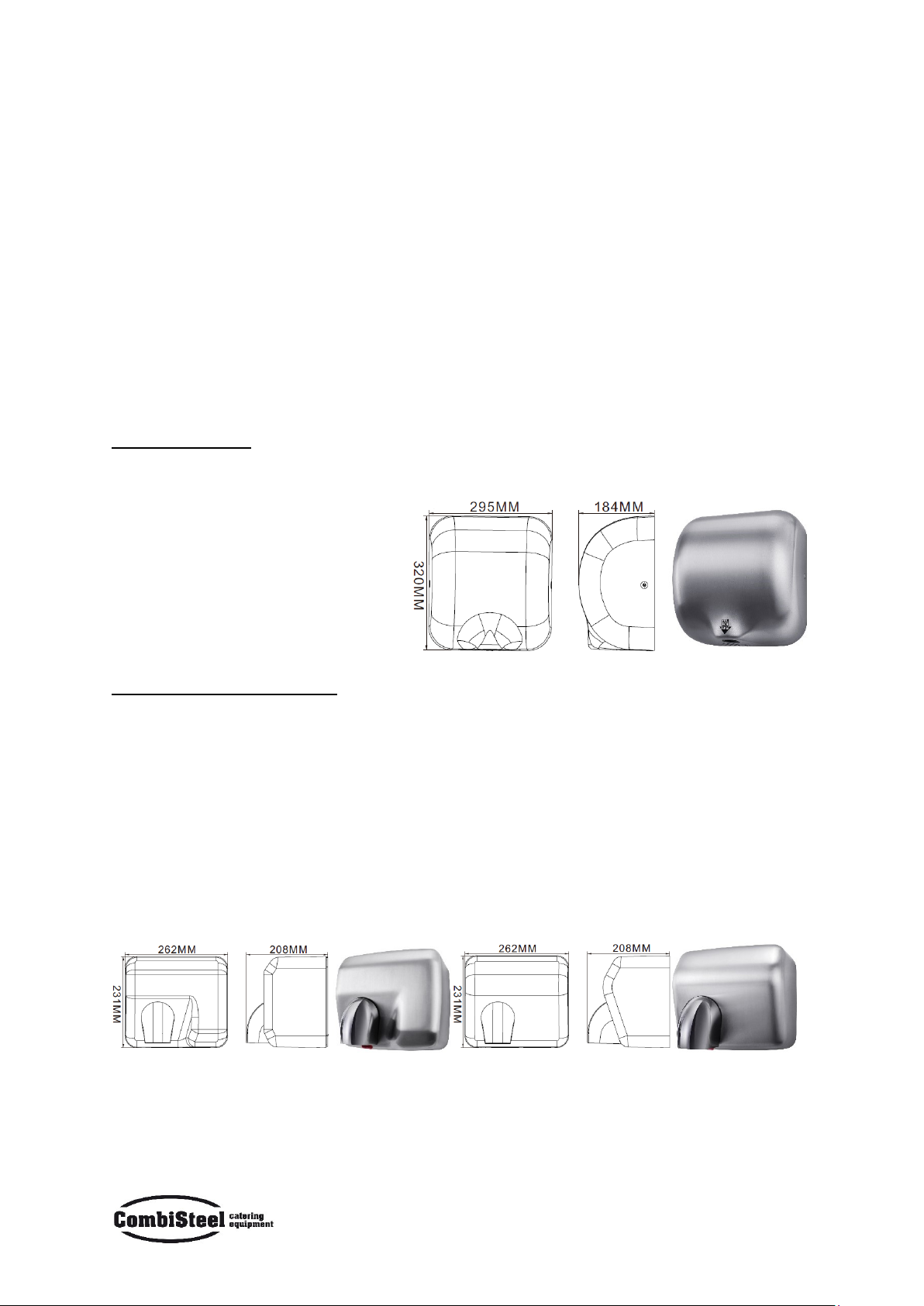

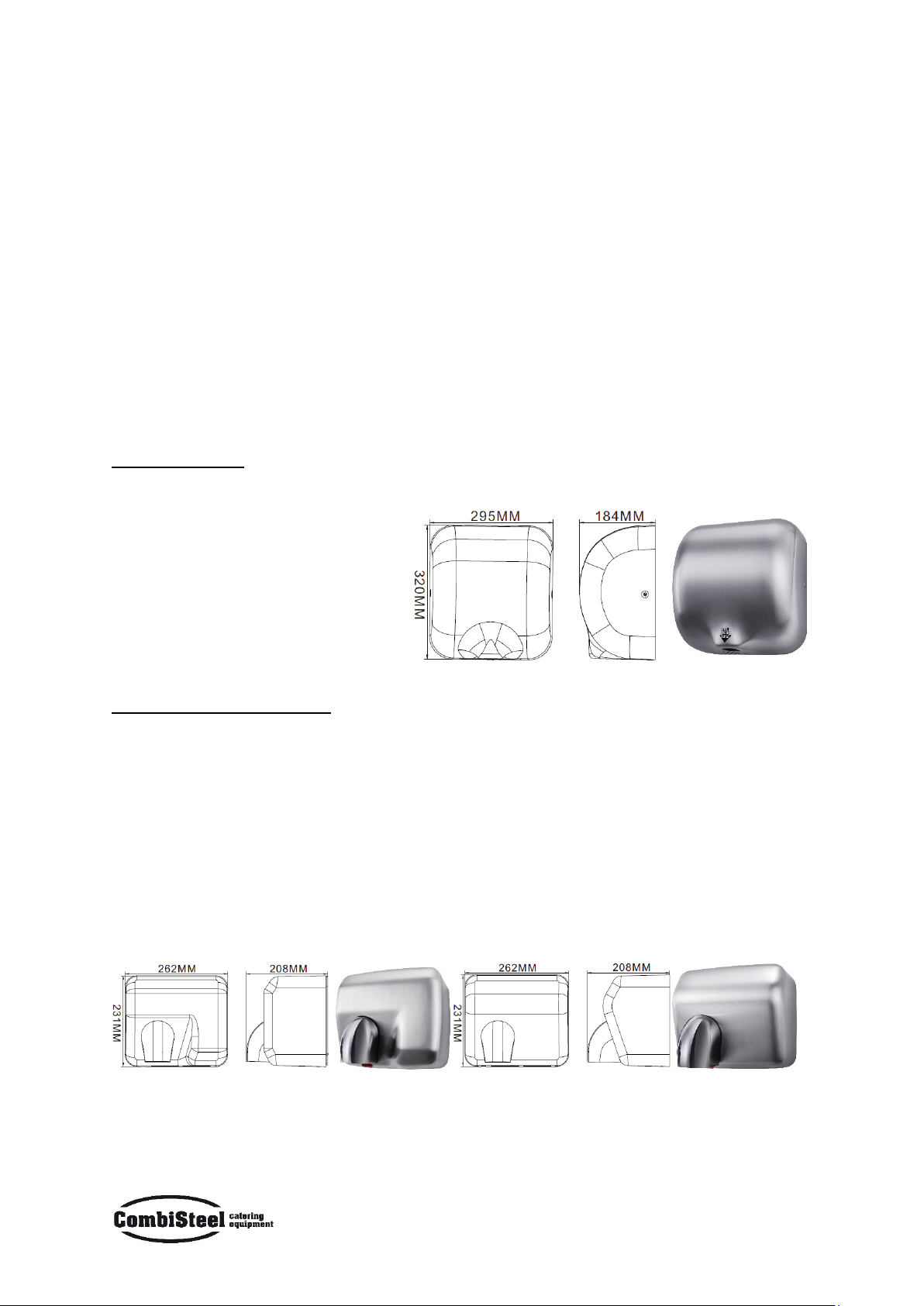

3. SPECIFICATIONS
MODEL: HURRICANE
Voltage: 220V-240V 50/60Hz, 8A, 1800W(Hot) / 2.4A, 550W(Cold)
Air Temperature: 45°C (D=10CM,Room Temp.=25°C)
Air Velocity: 100M/S
Air Flow: 140M3/H
Drying Time: 8-10S
Sensor range: 5-15CM
Protection Level: IPX1
Electric Isolation: CLASS 1
Brush Motor: 22000RPM
Noise(at 1M): 74dB
Cabinet Material: Stainless Steel 304
MODEL: WHIRLWIND & TYPHOON
Voltage: 220V-240V 50/60Hz, 10A, 2300W
Air Temperature: 50°C (D=10CM,Room Temp.=25°C)
Air Velocity: 26M/S
Air Flow: 270M3/H
Drying Time: 15-20S
Sensor range: 5-15CM
Protection Level: IPX1
Electric Isolation: CLASS 1
Nozzle: 360°revolving
Noise(at 1M): 70dB
Brush Motor: 7500RPM
Cabinet Material: Stainless Steel 304

4
www.combisteel.com

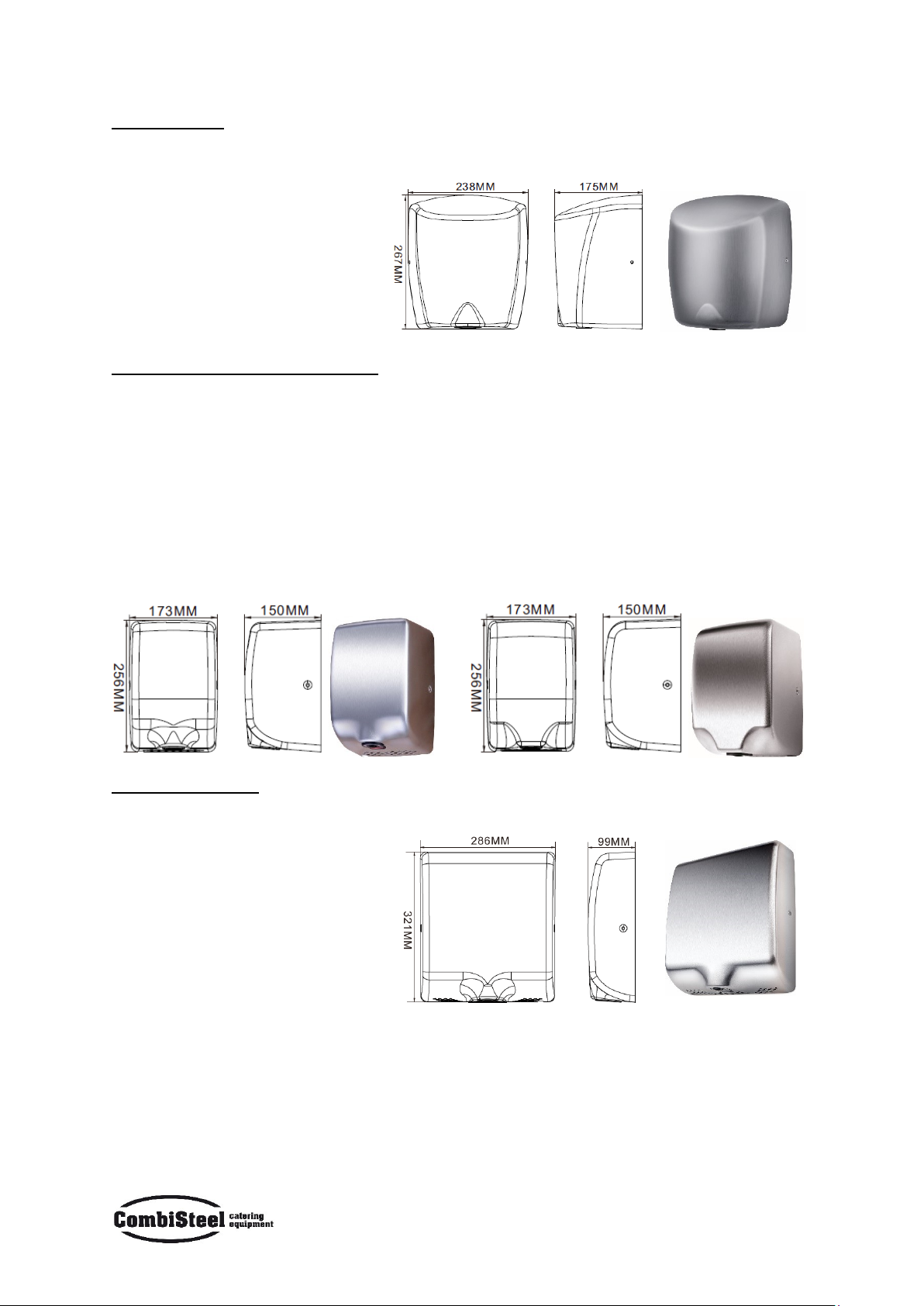

MODEL: TWISTER
Voltage: 220V-240V 50/60Hz, 6A , 1350W(Hot)/2.4A , 550W(Cold)
Air Temperature: 45°C (D=10CM,Room Temp.=25°C)
Air Velocity: 74M/S
Air Flow: 140M3/H
Drying Time: 8-10S
Sensor range: 5-15CM
Protection Level: IPX1
Electric Isolation: CLASS 1
Brush Motor: 22000RPM
Noise(at 1M): 69dB
Cabinet Material: Stainless Steel 304
MODEL: TORNADO & CYCLONE COMPACT
Voltage: 220V-240V 50/60Hz,1400W(Hot)/500W(Cold)
Air Temperature: 40°C (D=10CM,Room Temp.=25°C)
Air Velocity: 100M/S
Air Flow: 130M3/H
Drying Time: 10-12s
Sensor range: 5-15CM
Protection Level: IPX1
Electric Isolation: CLASS 1
Brush Motor: 25000RPM
Noise(at 1M): 70dB
Cabinet Material: Stainless Steel 304
MODEL: CYCLONE FLAT
Voltage: 220V-240V 50/60Hz,1000W
Air Temperature: 35°C (D=10CM,Room Temp.=25°C)
Air Velocity: 100M/S
Air Flow: 130M3/H
Drying Time: 12S
Sensor range: 5-15CM
Protection Level: IPX1
Electric Isolation: CLASS 1
Brush Motor: 30000RPM
Noise(at 1M): 70dB
Cabinet Material: Stainless Steel 304

5
www.combisteel.com
4. INSTALLATION
1. Installation must be carried out in accordance with the current edition of the local wiring regulations code
having jurisdiction. Installation should be performed only by a qualified electrician.
2. Place template against wall at desired height (see mounting height recommendations) and mark locations of
4 mounting holes Dia. 8mm (5/16”).
3. Remove and retain 2 side security hex cover screws and cover. Then mount the hand dryer base on the wall.
4. Before replacing the cover, there is an option to run the dryer heater on or heater off. The switch is clearly
marked.
5. Replace cover. Do not over-tighten screws.
6. Connect the hand dryer plug to the power supply.
a. Connect the live wire (coloured Brown or Red) to the terminal block marked “L”.
b. Connect the neutral wire (coloured Black or Blue) to the terminal block marked “N”.
c. Connect the ground wire (coloured Green or Yellow) to the terminal block marked “E”.
5. OPERATION
•No-touch operation.
•There is a blue LED light to guide user to the air flow.
•Shake excess water from hands.
•Place hands under the outlet to start operation.
•Rub hands lightly and rapidly.
•Stops automatically after hands are removed.
6. MAINTENANCE
•Periodic cleaning of the unit is recommended.
•Remove cover and clean dryer dust lint.
•Wipe the cover with a damp cloth and mild cleaning solution. Do not soak.
•Never use abrasives to clean the cover.
7. PACKING LIST
Hand Dryer: 1PC
User Manual: 1PC
Installation Template: 1PC
Plug in Dia. 8x38mm: 4PCS
Screw in Dia. 5x36mm: 4PCS
Hex screwdriver: 1PC

6
www.combisteel.com
8. DIAGNOSTICS & REMEDIES
SYMPTOM
CORRECTIVE ACTION
If the dryer will not run
Ensure the breaker supplying the dryer is operational. If it is,
disconnect the power and remove the dryer cover.
Taking suitable precautions to avoid shock hazard, reconnect the
power and check for voltage at the terminal block.
If there is power and the dryer will not run, replace the Electric
Circuit Board (large one) and/or Microcomputer Board (Middle
one) and/or Sensor Board. Turn the blower wheel several times by
hand to establish if it is blocked
If the dryer cycles by itself, runs all the
time, or is not sensitive enough
Ensure that there is no obstruction on or in front of the infrared
sensor. Clean any dirt off the sensor lens.
Try adjusting the sensitivity potentiometer on Microcomputer
Board (Blue knob). Turn anti-clockwise to decrease the sensor
range.
If the problem persists, replace the Microcomputer Board and/or
Sensor Board
If the heat element gets hot but the fan
motor does not turn
Disconnect the power. Remove the dryer cover and check for
obstructions in the fan housing. Damaged fans must be replaced. If
there are no obstructions, replace the motor or brushes
If the dryer runs but makes a buzzing
sound
Disconnect the power. Remove the dryer cover and check the fan
for rubbing on the housing as its rotates. Replace fan if the
condition exists.
If the fan motor runs but the heating
element does not get hot (dryer blows
cold air)
Disconnect the power and remove the dryer cover. Check that the
heat on/off switch is switched to on. Check loose and damaged
wires. Remove the blower housing.
Check the heating element to see if it is burnt or damaged.
Damaged element must be replaced. If the element does not
appear damaged, disconnect it at the Electric Board and check
element wire continuity. Please check thermostat on the heating
element at the same time.
If the motor makes a ticking/whining
noise when it rotates
Disconnect the power. Remove the dryer cover and check the
brushes for worn condition, replace them if necessary.

7
www.combisteel.com
9. DIAGRAM
10. LIMITED WARRANTEE
This hand dryer has a 1 year warranty from the date of purchase for any manufacturing defect. It covers
replacement of defective parts except when caused by improper use of the hand dryer. This warranty is only
valid if the form card has been properly filled in with the suppliers stamp. For any warranty claim you should
contact your local distributor or manufacturer.
Model: ………………………………………. Serial No.: ………………………………………….
Distributor: ……………………………….. Customer: ………………………………………….
Address: ………………………………..………………………………..……………………………………………..
Tel No.: …………………………………….. Fax No.: ………………………………………………
Date of purchase: ………………………………..………………………………..………………………………..
For Seller: …………………………………. Signature & Stamp: …………………………….

8
www.combisteel.com
1. WAARSCHUWING
•Dit product is bedoeld voor installatie door een gekwalificeerde onderhoudsmonteur.
•Ontkoppel de stroomtoevoer naar de service-onderbreker voor installatie en onderhoud.
•Het niet goed aankoppelen van het toestel kan leiden tot ernstige elektrische schokken.
•Alle apparaten moeten worden voorzien van een 3-draads verbinding. De aardingsdraad moet op de
achterplaat van de droger worden aangesloten.
2. OPMERKING
Installeer de droger niet boven de wasbak.
Als het netsnoer beschadigd is, moet het worden vervangen door de fabrikant of zijn onderhouds-
vertegenwoordiger of een vergelijkbaar gekwalificeerd persoon om gevaar te voorkomen. Middelen voor
ontkoppeling moeten worden opgenomen in de vaste bedrading in overeenstemming met de huidige
bedradingsvoorschriften.
3. SPECIFICATIES
MODEL: HURRICANE
Voltage: 220V-240V 50/60Hz, 8A, 1800W(Heet) / 2.4A, 550W(Koud)
Luchttemperatuur: 45°C (D=10CM,Kamertemp.=25°C)
Luchtsnelheid: 100M/S
Luchtstroom: 140M3/H
Droogtijd: 8-10S
Sensorbereik: 5-15CM
Beschermingsniveau: IPX1
Elektrische isolatie: KLASSE 1
Borstelmotor: 22000RPM
Ruis(at 1M): 74dB
Kastmateriaal: Roestrvrij staal 304
MODEL: WHIRLWIND & TYPHOON
Voltage: 220V-240V 50/60Hz, 10A, 2300W
Luchttemperatuur: 50°C (D=10CM,Kamertemp.=25°C)
Luchtsnelheid: 26M/S
Luchtstroom: 270M3/H
Droogtijd: 15-20S
Sensorbereik: 5-15CM
Beschermingsniveau: IPX1
Elektrische isolatie: KLASSE 1
Spuitmond: 360°draaien
Ruis(at 1M): 70dB
Borstelmotor: 7500RPM
Kastmateriaal: Roestrvrij staal 304

9
www.combisteel.com
MODEL: TWISTER
Voltage: 220V-240V 50/60Hz, 6A , 1350W(Hot)/2.4A , 550W(Cold)
Luchttemperatuur: 45°C (D=10CM,Kamertemp.=25°C)
Luchtsnelheid: 74M/S
Luchtstroom: 140M3/H
Droogtijd: 8-10S
Sensorbereik: 5-15CM
Beschermingsniveau: IPX1
Elektrische isolatie: KLASSE 1
Borstelmotor: 22000RPM
Ruis(at 1M): 69dB
Kastmateriaal: Roestrvrij staal 304
MODEL: TORNADO & CYCLONE COMPACT
Voltage: 220V-240V 50/60Hz,1400W(Hot)/500W(Cold)
Luchttemperatuur: 40°C (D=10CM,Kamertemp.=25°C)
Luchtsnelheid: 100M/S
Luchtstroom: 130M3/H
Droogtijd: 10-12s
Sensorbereik: 5-15CM
Beschermingsniveau: IPX1
Elektrische isolatie: KLASSE 1
Borstelmotor: 25000RPM
Ruis(at 1M): 70dB
Kastmateriaal: Roestrvrij staal 304
MODEL: CYCLONE FLAT
Voltage: 220V-240V 50/60Hz,1000W
Luchttemperatuur: 35°C (D=10CM,Kamertemp.=25°C)
Luchtsnelheid: 100M/S
Luchtstroom: 130M3/H
Droogtijd: 12S
Sensorbereik: 5-15CM
Beschermingsniveau: IPX1
Elektrische isolatie: KLASSE 1
Borstelmotor: 30000RPM
Ruis(at 1M): 70dB
Kastmateriaal: Roestrvrij staal 304

10
www.combisteel.com
4. INSTALLATIE
1. De installatie moet worden uitgevoerd in overeenstemming met de huidige editie van de code voor lokale
bedradingsvoorschriften die jurisdictie heeft. Installatie mag alleen worden uitgevoerd door een gekwalificeerde
elektricien.
2. Plaats het sjabloon tegen de muur op de gewenste hoogte (zie aanbevelingen voor de montagehoogte) en
markeer de locaties van 4 montagegaten Dia. 8 mm (5/16 ").
3. Verwijder en bewaar de twee schroeven aan de zijkant en de afdekking van het deksel. Monteer vervolgens
de handdrogerbasis op de muur.
4. Voordat de kap wordt teruggeplaatst, is er een optie om de droogkast aan of de kachel uit te zetten. De
schakelaar is duidelijk gemarkeerd.
5. Plaats de kap terug. Draai de schroeven niet te vast.
6. Sluit de stekker van de handendroger aan op de voeding.
a. Sluit de stroomdraad (bruin of rood gekleurd) aan op het klemmenbord gemarkeerd met "L".
b. Verbind de neutrale draad (gekleurd zwart of blauw) met het klemmenblok gemarkeerd met "N".
c. Verbind de aardingsdraad (gekleurd groen of geel) met het klemmenblok gemarkeerd met "E".
5. WERKING
•No-touch bediening.
•Er is een blauw LED-lampje om de gebruiker naar de luchtstroom te leiden.
•Schud overtollig water van de handen.
•Plaats handen onder de uitloop om werking te starten.
•Wrijf handen licht en snel.
•Stopt automatisch nadat de handen zijn verwijderd.
6. ONDERHOUD
•Periodieke reiniging van het apparaat wordt aanbevolen.
•Verwijder het deksel en maak stof van de droger schoon.
•Veeg de klep af met een vochtige doek en een milde reinigingsoplossing. Niet laten weken.
•Gebruik nooit schuurmiddelen om de behuizing schoon te maken.
7. VERPAKKINGSLIJST
Handdroger: 1PC
Gebruikershandleiding: 1PC
Installatie Template: 1PC
Plug in Dia. 8x38mm: 4PCS
Schroef in Dia. 5x36mm: 4PCS
Hex schroevendraaier: 1PC
