Comfortaire COMFORT AIRE RAD-81C User manual

MODEL:RG-61B MODELS:RADS-51 B
RADS-51C
RAD-61A
RAD-81C RADS-51B
RADS-51C/
mmmm_
_]:!iiiiii_ii_iiiiiiii
iiiii_ii!!i!!i!i

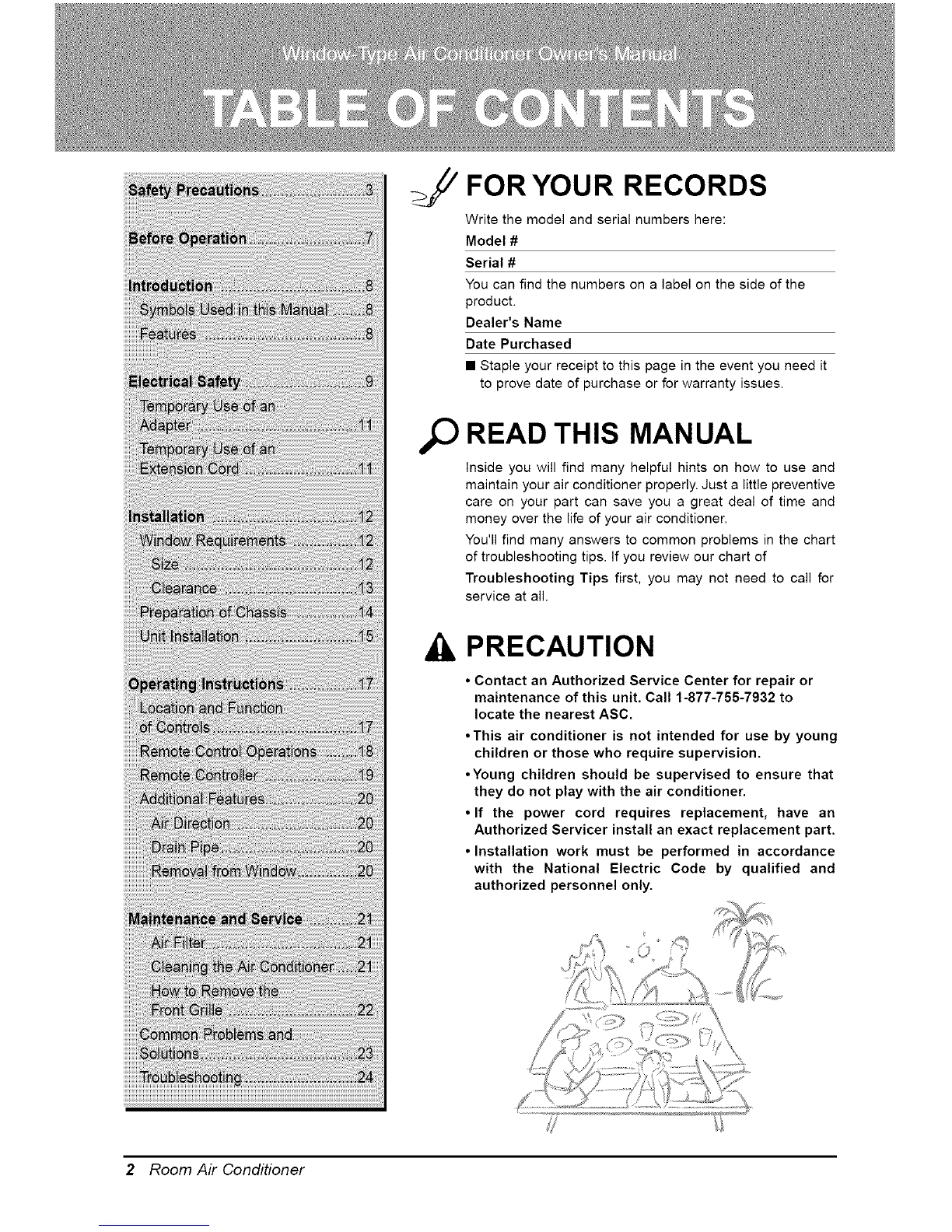

FOR YOUR RECORDS
Write the model and serial numbers here:
Model #
Serial #
You can find the numbers on a label on the side of the
product.
Dealer's Name
Date Purchased
• Staple your receipt to this page in the event you need it
to prove date of purchase or for warranty issues.
READ THIS MANUAL
Inside you will find many helpful hints on how to use and
maintain your air conditioner properly. Just a little preventive
care on your part can save you a great deal of time and
money over the life of your air conditioner.
You'll find many answers to common problems in the chart
of troubleshooting tips. If you review our chart of
Troubleshooting Tips first, you may not need to call for
service at all.
PRECAUTION
• Contact an Authorized Service Center for repair or
maintenance of this unit. Call 1-877-755-7932 to
locate the nearest ASC.
• This air conditioner is not intended for use by young
children or those who require supervision.
•Young children should be supervised to ensure that
they do not play with the air conditioner.
• If the power cord requires replacement, have an
Authorized Servicer install an exact replacement part.
• Installation work must be performed in accordance
with the National Electric Code by qualified and
authorized personnel only.
2Room Air Conditioner

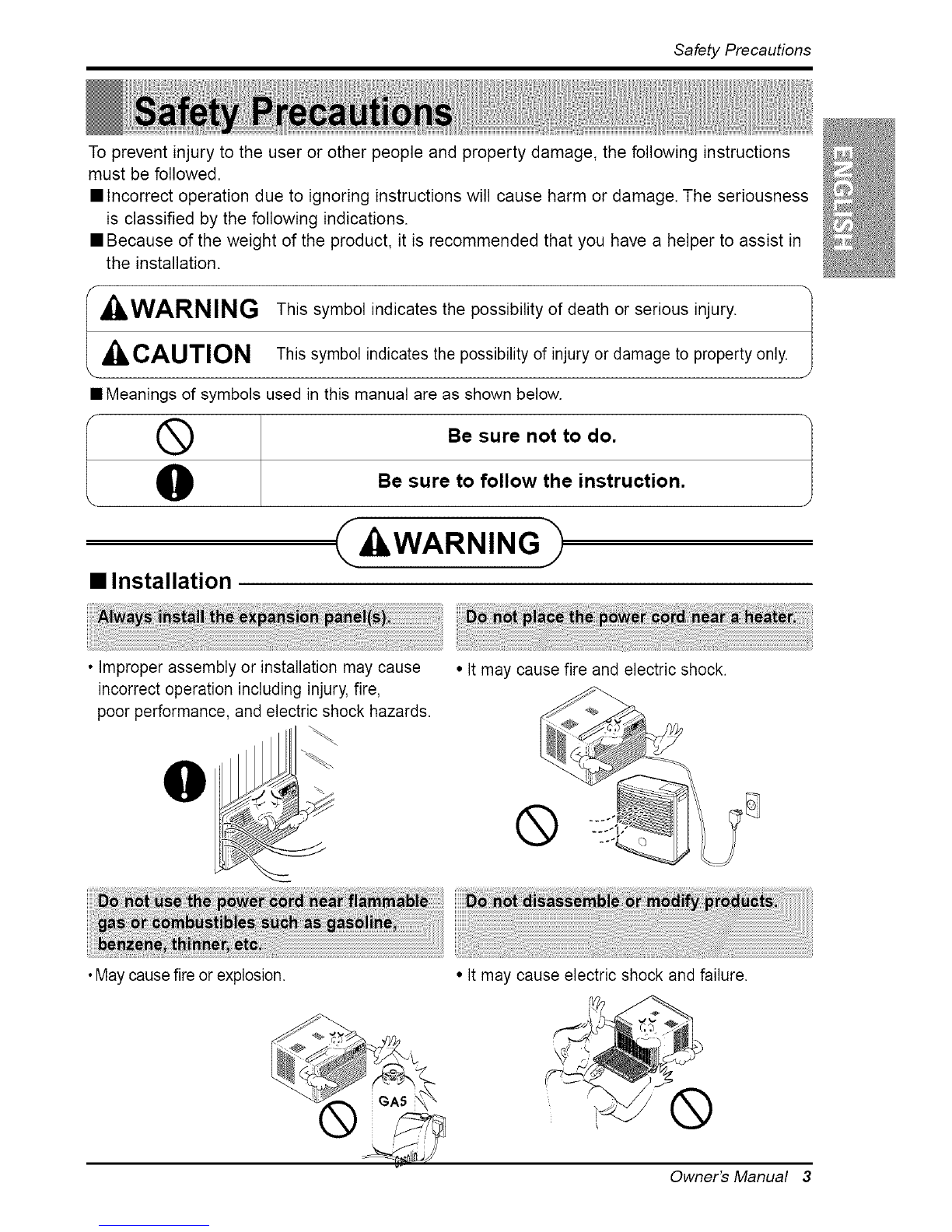

SafetyPrecautions
To prevent injury to the user or other people and property damage, the following instructions
must be followed.
• Incorrect operation due to ignoring instructions will cause harm or damage. The seriousness
is classified by the following indications.
• Because of the weight of the product, it is recommended that you have a helper to assist in
the installation.
WARNING This symbol indicates the possibility of death or serious injury.
.CAUTION This symbol indicates the possibility of injury or damage to propertyonly. 1
• Meanings of symbols used in this manual are as shown below.
•Installation
Be sure not to do.
Be sure to follow the instruction.
(&WARN,NG)
J
• Improper assembly or installation may cause
incorrect operation including injury, fire,
poor performance, and electric shock hazards.
@
•May causefire or explosion.
• It may cause fire and electric shock.
• It may cause electric shock andfailure.
Owner's Manual 3

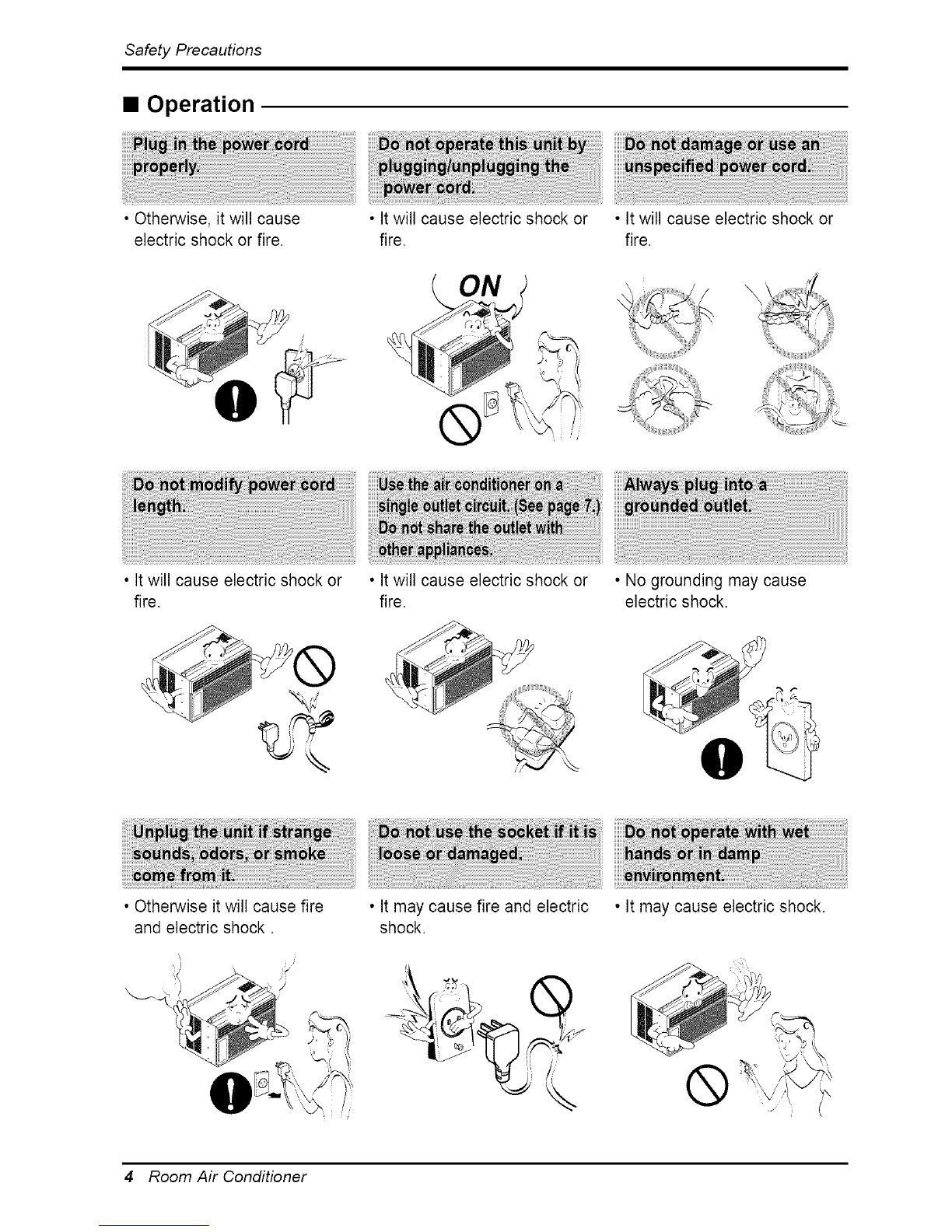

Safety Precautions
• Operation
• Otherwise, it will cause
electric shock or fire.
• Itwill cause electric shock or
fire.
• Itwill cause electric shock or
fire.
ON
• Otherwise it will cause fire
and electric shock.
• Itwill cause electric shock or
fire.
• It may cause fire and electric
shock.
• It will cause electric shock or
fire.
• No grounding may cause
electric shock.
• It may cause electric shock.
®
4 Room Air Conditioner

• The air conditioner must be operated in a
enclosed area to be most effective.
• Itwill cause electric shock or failure of
machine.
Safety Precautions
• It may cause explosion or fire.
•Installation
• Edges are sharp and may
cause injury.
<
•Water may enter the unit and degrade the
insulation. It may cause an electric shock.
,CAUTION
• It may cause failure of
appliance or performance
deterioration.
• If the outer case is damaged,
it must be repaired or
replaced immediately.
Leaving it damaged could
result in the air conditioner
falling out of the window,
creating a safety hazard.
Owner's Manual 5

Safety Precautions
• It may cause injury.
• Operation
Sharp
• It may cause electric shock
and damage.
• Since the fan rotates at high
speed during operation, it may
cause injury.
• This could injure the pet or
damage the plant.
• Itwillwastepowerandmay
causeanaccident.
•Theairconditionerisnotdesigned
toactasarefrigerationsystem.
• Operation without filters or with
dirty filter will cause failure and
poor performance.
• The appearance of the air
conditioner may deteriorate,
change color, or develop
surface flaws.
• It is not sanitary and could
cause illness or personal
injury hazard.
• The chemicals in batteries
could cause burns or
other health hazards.
• The chemicals in batteries could cause
burns or other health hazards.
0
6Room Air Conditioner

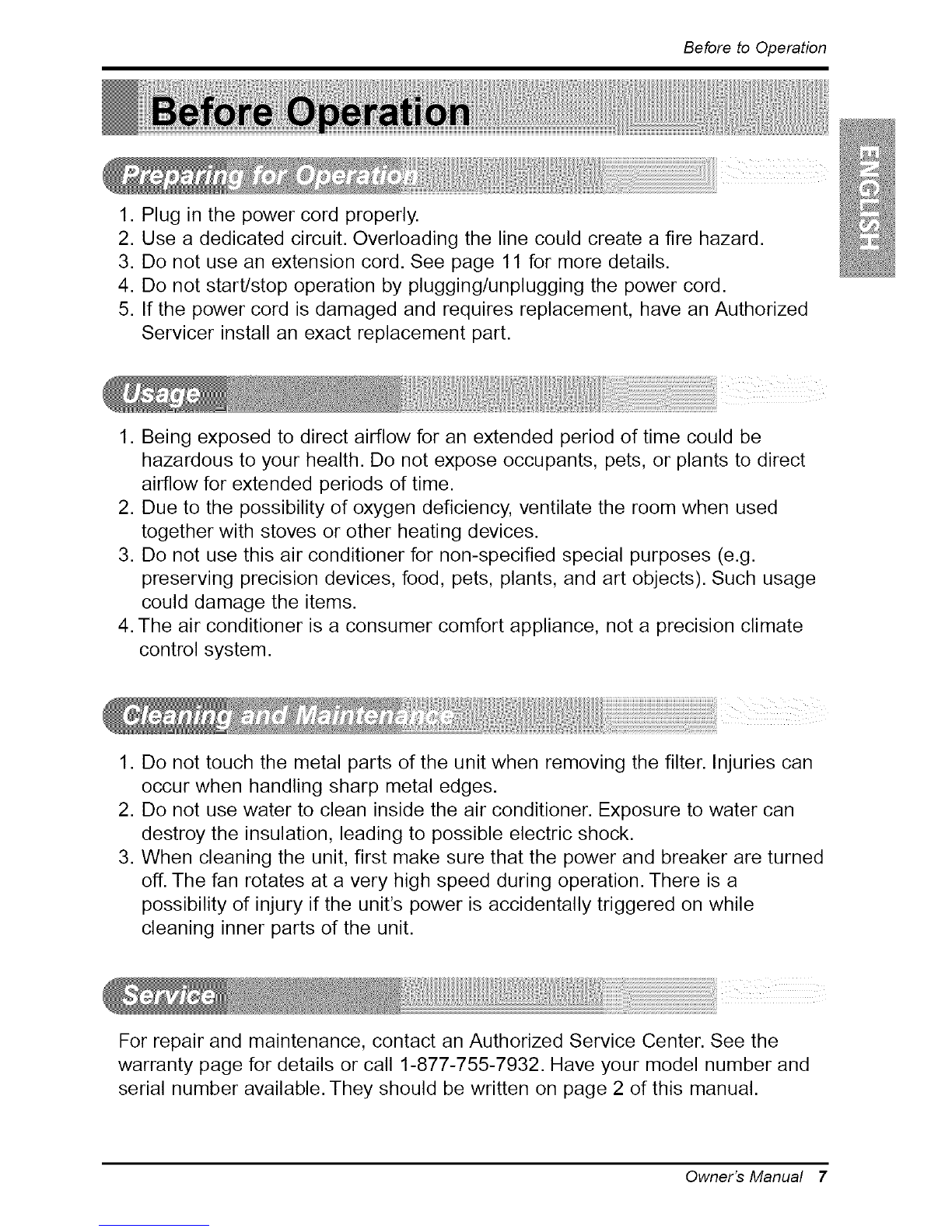

BeforetoOperation
1. Plug in the power cord properly.
2. Use a dedicated circuit. Overloading the line could create a fire hazard.
3. Do not use an extension cord. See page 11 for more details.
4. Do not start/stop operation by plugging/unplugging the power cord.
5. If the power cord is damaged and requires replacement, have an Authorized
Servicer install an exact replacement part.
1. Being exposed to direct airflow for an extended period of time could be
hazardous to your health. Do not expose occupants, pets, or plants to direct
airflow for extended periods of time.
2. Due to the possibility of oxygen deficiency, ventilate the room when used
together with stoves or other heating devices.
3. Do not use this air conditioner for non-specified special purposes (e.g.
preserving precision devices, food, pets, plants, and art objects). Such usage
could damage the items.
4. The air conditioner is a consumer comfort appliance, not a precision climate
control system.
1. Do not touch the metal parts of the unit when removing the filter. Injuries can
occur when handling sharp metal edges.
2. Do not use water to clean inside the air conditioner. Exposure to water can
destroy the insulation, leading to possible electric shock.
3. When cleaning the unit, first make sure that the power and breaker are turned
off. The fan rotates at a very high speed during operation. There is a
possibility of injury if the unit's power is accidentally triggered on while
cleaning inner parts of the unit.
For repair and maintenance, contact an Authorized Service Center. See the
warranty page for details or call 1-877-755-7932. Have your model number and
serial number available. They should be written on page 2 of this manual.
Owner's Manual 7

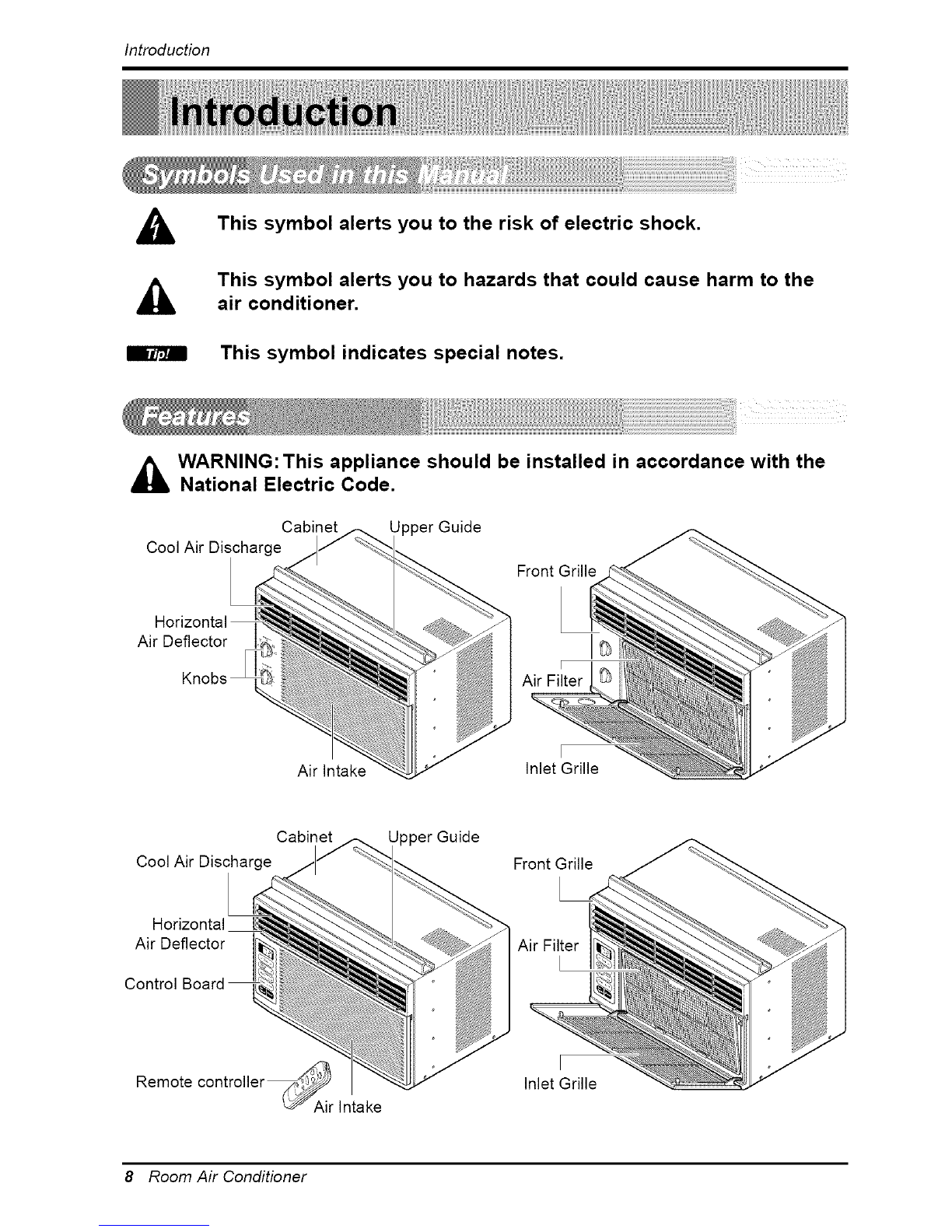

Introduction
This symbol alerts you to the risk of electric shock.
This symbol alerts you to hazards that could cause harm to the
air conditioner.
This symbol indicates special notes.
_ARNING: This appliance should be installed in accordance with the
National Electric Code.
Cabinet 3er Guide
Cool Air Discharge Front Grille
Horizontal
Air Deflector
Air Filter
Air Intake Inlet Grille
Cabinet
Cool Air Discharge
Jpper Guide
Front Grille
Horizontal
Air Deflector
Control
Air Filler
I
Inlet Grille
8 Room Air Conditioner

E/ectricalSafety
115V~ 230V~
\
Power cord may include a current
interrupter device. A test and reset button is
provided on the plug case. The device
should be tested on a periodic basis by first
pressing the TEST button and then the
RESET button. If the TEST button does not
trip or if the RESET button will not stay
engaged, discontinue use of the air
conditioner and contact a qualified service
technician.
Use Wall Receptacle Power Supply
@
Standard 125V,3-wiregrounding
receptaclerated 15A, 125VAC
@
Standard 250V, 3-wire grounding
receptacle rated 15A, 250V AC
@
Standard 250V, 3-wire grounding
receptacle rated 20A, 250V AC
Use 15 AMP time
delay fuse or 15 AMP
circuit breaker.
Use 20 AMP time
delay fuse or 20 AMP
circuit breaker.
Use of extension cords
Because of potential safety hazards, we
strongly discourage the use of an extension
cord. However, if you wish to use an
extension cord, use a CSA certified/UL-listed
3-wire (grounding) extension cord, rated 15A,
125V.
All wiring should be made in accordance with
local electrical codes and regulations.
Aluminum house wiring may pose special
problems. Consult a qualified electrician.
ELECTRICAL SAFETY
IMPORTANT GROUNDING INSTRUCTIONS
Air conditioner has a three-prong grounding plug on
its power supply cord, which must be plugged into
properly grounded three-prong wall receptacle for
your protection against possible shock hazard.
230, 208, and 2301208 VOLT UNITS
These units are equipped with a three-prong
grounding plug on the power supply cord, which
must be plugged into a matching properly grounded
three-prong wall receptacle for your protection
against possible shock hazard. If such an outlet is
not present, one must be installed by a qualified
electrician in accordance with the National Electrical
Code and local codes and ordinances.
DO NOT USE AN EXTENSION CORD on 230,
208, and 230/208 Volt units.
Owner's Manual 9

ElectricalSafety
WARNING: This appliance must be properly grounded.
The power cord of this appliance is equipped with a three-prong grounding plug.
To minimize the risk of electric shock, use the plug with a standard three-slot
grounding wall power outlet. If the power outlet does not include a grounding slot,
have a qualified electrician replace the outlet before you use the room air
conditioner.
WARNING: Changing the outlet without making the appropriate wiring
changes will create an unsafe condition that could result in fire or
electrical shock. Refer all such work to alicensed and qualified
electrician.
Preferred method
Ensure proper ground
exists before use
WARNING: Do not cut or remove the grounding prong from the power
plug.
WARNING: Attaching the adapter ground terminal to the wall
receptacle cover screw does not ground the appliance unless the
cover screw is metal and not insulated, and the wall receptacle is
grounded through the house wiring.
WARNING: If you have any doubt whether the air conditioner is
properly grounded, have the wall receptacle and circuit checked by a
qualified electrician.
10 Room Air Conditioner

ElectricalSafety
We strongly discourage the use of an adapter due to potential safety hazards.
For temporary connections, use only a UL-listed adapter, available from most
local hardware stores. Ensure that the large slot in the adapter is aligned with
the large slot in the receptacle for a proper polarity connection.
To disconnect the power cord from the adapter, use one hand on each to avoid
damaging the ground terminal. Avoid frequently unplugging the power cord as
this can lead to eventual ground terminal damage.
Temporary method
Adapter Plug_
Metal Screw
Receptacle Cover
WARNING: Never use the appliance with abroken adapter.
We strongly discourage the use of an extension cord due to potential safety
hazards. For temporary situations, use only CSA certified and UL listed 3-wire
grounded extension cords, rated 15 A, 125 V.
Owner's Manual 11

Installation
Type A: 11 EA Type B: 5 EA Type C: 3 EA
(Short Screw) (Wood Screw) (L Bracket)
F_ E
E
(.O
Type D: 1 EA Type E: 1 EA Type F: 2 EA Type G: 1 EA
(Seal Strip) (Sash Seal) (Guide Panel) (Support Bracket)
(Adhesive backed) (Notadhesivebacked)
Have the following tools available for installation:
* Screwdriver (Flathead and Phillips) * Ruler
* Knife * Hammer
* Pencil * Level
Size
This room air conditioner is
designed for installation in standard
double-hung windows with actual
opening widths from 22" to 36".
The upper and lower window sash
must open sufficiently to allow a
clear vertical opening of 13" from the
bottom of the upper sash to the
window sill.
("1
l I
WARNING: This product is aWINDOW AIR CONDITIONER.
As such, astandard single-hung or double-hung window is required
for proper installation. Non-window installations, including using
sleeves, holes in walls, and other installations are not recommended.
12 Room Air Conditioner

Installation
Clearance
Proper clearance enhances the cooling efficiency of the unit and prevents heat
radiation of the condenser.
1. If a storm window presents interference, fasten a 2" wide wood strip to the inner
window sill across the full width of the sill. The wood strip should be thick
enough to raise the height of the window sill so that the unit can be installed
without interference by the storm window frame.
2. See Figure. B.The top of the wood strip should be approximately 3/4"higher
than the storm window frame (Storm Window Frame) or wood strip (Outdoors)
to help condensation to drain properly to the outside.
3. Install a second wood strip (approximately 6" long by 11/2"wide and same
thickness as first strip) in the center of the sill flush against the back off the
inner sill. This will raise the L bracket as shown Figure. B.
4. If the distance between Storm Window Frame and Wood Strip Mounted on Top
of Inner Sill is more than 1", two of wood strips are not necessary.
S
®N
Inner SilI
l " Sill
Indoors q ItJ Outdoors
Wood Strip Mounted 1" Max.
on Topof InnerSill _"1 _ ^, 3/4"
_ ulearance
_ Storm A
_J I .,_v _ Window
Indoors I Ik.IOutdoors
Figure. A Figure. B
Owner's Manual 13

Installation
1. Insert the guide panels into the guides
of the air conditioner. Fasten the
curtains to the unit with screws
(Type A).
:Use a long screwdriver and
installing the screws will be easier.
2. Cut the adhesive-backed seal strip
(Type D) to the window width.
Remove the backing from the seal
strip and attach the seal strip to the
underside of the bottom window.
3. Locating unit in window
Open the window and mark center line
on the center of the inner sill.
RoomSide
4. Attach L bracket
4-1. Install the L brackets behind the
inner window sill, with short side of
bracket as shown. Use the 2 screws
(Type A) provided.
4-2. The bracket helps to hold unit
securely in place. Be sure to place
bracket edge flush against back of
inner sill.
Inner Sill
Outer Sill Type A Inside
\Center Line
Outside
LBracket
14 Room Air Conditioner

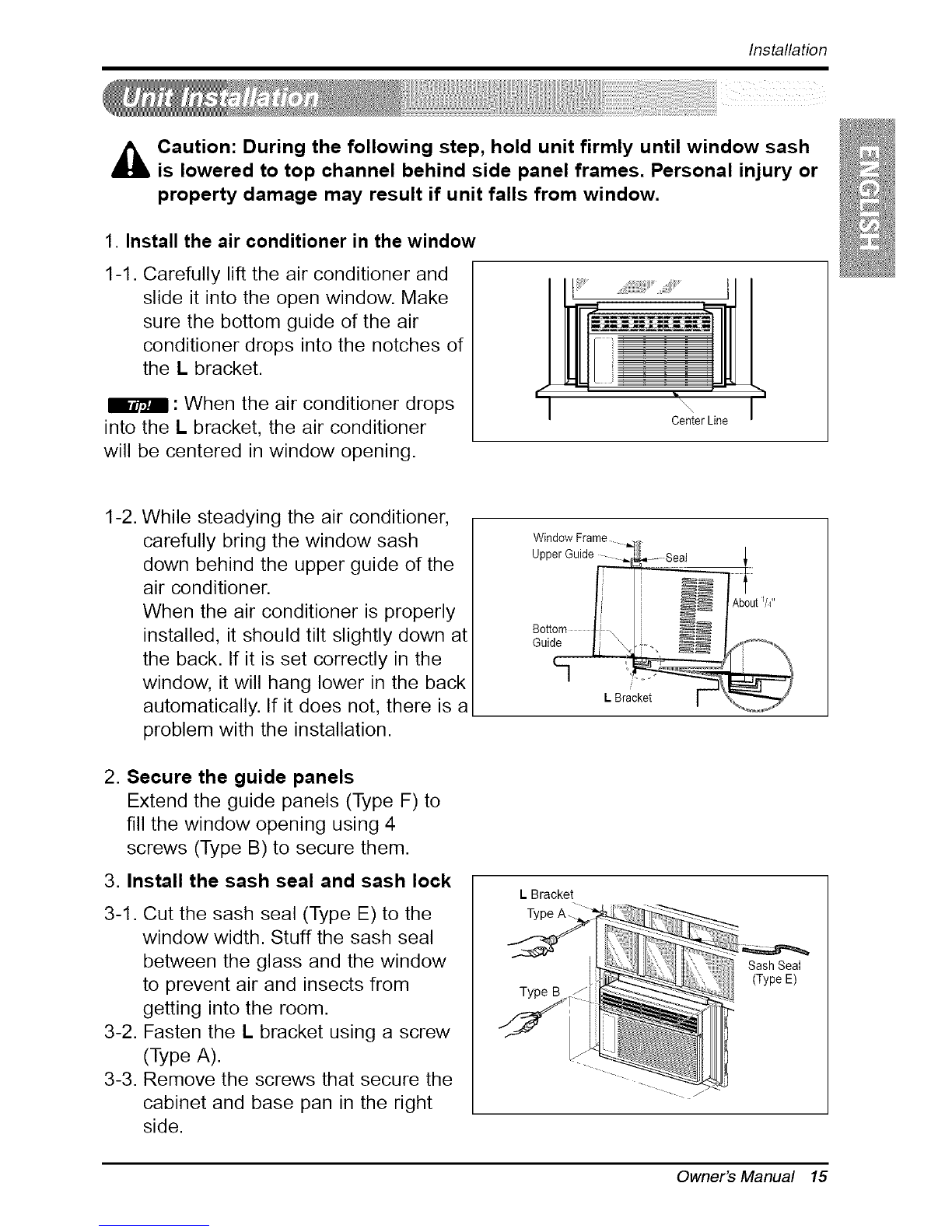

Installation
i
_ aution: During the following step, hold unit firmly until window sash
is lowered to top channel behind side panel frames. Personal injury or
property damage may result if unit falls from window.
1Install the air conditioner in the window
1-1. Carefully lift the air conditioner and
slide it into the open window. Make
sure the bottom guide of the air
conditioner drops into the notches of
the Lbracket.
:When the air conditioner drops
into the Lbracket, the air conditioner
will be centered in window opening.
CenterLine
®_
1-2. While steadying the air conditioner,
carefully bring the window sash
down behind the upper guide of the
air conditioner.
When the air conditioner is properly
installed, it should tilt slightly down at
the back. If it is set correctly in the
window, it will hang lower in the back
automatically. If it does not, there is a
problem with the installation.
2. Secure the guide panels
Extend the guide panels (Type F) to
fill the window opening using 4
screws (Type B) to secure them.
3. Install the sash seal and sash lock
3-1. Cut the sash seal (Type E) to the
window width. Stuff the sash seal
between the glass and the window
to prevent air and insects from
getting into the room.
3-2. Fasten the Lbracket using a screw
(Type A).
3-3. Remove the screws that secure the
cabinet and base pan in the right
side.
Window Frame _:
LBracket
Type A..
Type B
Sash Seal
(Type E)
Owner's Manual 15

Installation
3-4. Fasten the support bracket (Type G)
using a screw removed from the air
conditioner cabinet. Attach the
support bracket (Type G) to the inner
window sill with a screw (Type B).
Support Bracket (Type G)
4. Window installation of room air conditioner is now completed.
See ELECTRICAL DATA for attaching power cord to electrical outlet.
16 Room Air Conditioner

OperatingInstructions
CAUTION: If you turn off the air conditioner or switch from cooling to
the fan, wait at least 3 minutes before setting to cooling again. ®_
Operation
off
High I _ High
Low_//
Fan _,_
Thermostat
5
4 I 6
3 ,,,,7
2 _ "_8
9
Off - Turns air conditioner off.
High Fan - High speed fan operation without cooling.
Low Fan - Low speed fan operation without cooling.
High Cool - Cooling with high speed fan operation.
Low Cool - Cooling with low speed fan operation.
This automatically controls the temperature of the indoor air.
Turn the knob so that arrow points to the larger marks for greater
cooling. Point the arrow to the smaller marks for more moderate
cooling.
(i.e.the higher the number, the greater the cooling)
FOR NORMAL COOLING
1. Turn the operation switch to the High Cool or the Low Cool setting.
2. Set the thermostat control to the desired temperature mark (the mid-point is a
good starting position). If the room temperature is not satisfactory after a
reasonable time, adjust the control to a cooler or warmer setting, as
appropriate.
FOR MAXIMUM COOLING
1. Turn the operation switch to the High Cool setting.
2. Set the thermostat control to the largest temperature mark.
FOR QUIETER OPERATION
1. Turn the operation switch to the Low Cool setting.
2. Set the thermostat control as needed.
Owner's Manual 17

OperatingInstructions
The controls look like this:
Controls
v Temp A
Energy
Saver
DryO
Mode D
Timer
J
peratureSetting
• This button can automatically control thetemperature
of the room. The temperature can be set within a range of
60°F to 86°F by I°F.
Select the lower numberfor lower temperature of the room.
EnergySaver
The fan stops when the compressor stops cooling.
• Approximately every 3 minutes the fan will turn on and
check the room air to determine if cooling is needed.
Fan/Cool/Dry
• Everytime you push this button, it will toggle between
COOL, FAN,and DRY.
On/OffTimer
- Stopping Operation
Each press of the buttoncycles through the optionsin this
order: 1 Hour-, 2 Hours -, 3 Hours -, 4 Hours-, 5 Hours
-, 6 Hours-, 7 Hours -, 8 Hours-, g Hours-, 10 Hours-,
11 Hours-, 12Hours -, CANCEL.
The set temperature will be raised 2°F after 30 minutes
and again after another 30 minutes.
- Stopping Operation
Each press of the buttoncycles through the optionsin this
order: 1 Hour-, 2 Hours -, 3 Hours -, 4 Hours-, 5 Hours
-, 6 Hours-, 7 Hours -, 8 Hours-, 9 Hours-, 10 Hours-,
11 Hours-, 12 Hours-, CANCEL.
Power
• To turn the unit ON, push the button. To turn the unit OFF,
push the button again.
• This button takes priority over any other buttons.
• When the unit is first powered up,it defaults to settings of
High Cool at 72°F.
FanSpeed
• Pressing the FanSpeed button toggles between Lowand
High speeds.
_d after an electrical power failure, the unit will begin to run at its last setting. 1
18 Room Air Conditioner

OperatingInstructions
,_ CAUTION: The remote controller will not function properly if strong
light strikes the sensor window of the air conditioner or if there are
obstacles between the remote controller and the air conditioner,
Power
• To turn the set ON, push the button. To turn the set OFF, push the button again.
• This button takes priority over any other buttons.
• When you first turn it on, the set is on the High cool mode and the temp. at 72°F
Temperature Setting
• This button controls the room temperature setting in a range between
60°F and 86°F in 1oincrements.
Fan Speed
• Pressing the Fan Speed button toggles between Low and
High speeds.
On/Off Timer
- Stopping Operation
Each press of the buttoncycles through the optionsin this order:
1 Hour-, 2 Hours-, 3 Hours-* 4 Hours-, 5 Hours-, 6 Hours-_7Hours
-, 8 Hours-_ 9Hours-_ 10Hours-, 11Hours-, 12Hours-, CANCEL.
The set temperature will be raised by2°F after 30minutes and
again after another 30 minutes.
-Starting Operation
Each press of the buttoncycles through the optionsin this order:
1 Hour -* 2 Hours-* 3 Hours-* 4 Hours-, 5 Hours -, 6 Hours -,
7 Hours-, 8 Hours-, 9 Hours -, 10 Hours -, 11 Hours-* 12 Hours
-, CANCEL.
EnergySaver
The fan stops when the compressor stops cooling.
• Approximately every 3 minutes the fan will turn on and
check the room air to determine if cooling is needed.
•Temp •
Fan Speed
Timer Mode
Energy
Saver
Cool/Fan/Dry
• Everytime you push this button, it will toggle between COOL, FAN, and DRY.
How to Insert Batteries
1.Remove the cover from the back of the remote
controller
2. Insert two (AAA) batteries.
• Be sure of the polarity when installing the
batteries.
• Be sure that both batteries are new.
3.Re-attach the cover,
• Do not use rechargeable
batteries. Such batteries
differ from standard dry cells
in shape, dimensions, and
performance.
• Remove the batteries from
the remote controller if the air
conditioner is not going to be
used for an extended length
of time.
®_
Owner's Manual 19

Operating Instructions
Air Direction
Adjusting the air direction using the
horizontal air deflector control.
Using the control tabs, the air flow can
be directed to the left, right, straight
ahead, or any combination of these
directions.
===================== _ ilmlm:::m
r..... ; ; ; ; ;
:: =- .- :
Drain Pipe
In humid weather, excess water may
cause the Base Pan to overflow. To
drain the water, remove the Drain Cap
and secure the Drain Pipe to the rear
hole of the Base Pan.
Press the drain pipe into the hole by
pushing down and away from the fins
to avoid injury.
This air conditioner is equipped with a
slinger fan. (See drawing, right.)
The fan has an outer ring that runs in
the water that collects in the base pan
if it gets deep. That condensate is then
picked up by the fan and expelled
through the condenser, making the air
conditioner more efficient.
(_) Hang i (_) Push
DrainPipe--_-_ DrainCap
_k AUTION: Be careful when inserting the drain pipe. Push away from
the sharp fin area to avoid injuring yourself.
Removal From Window
Turn the air conditioner off, disconnect the power cord, remove the L bracket, the
screws and Support Bracket installed through the top and bottom of the guide
panels, and save for reinstallation later. Close the guide panels. Keeping a firm grip
on the air conditioner, raise the sash, and carefully tilt the air conditioner backward,
draining any condensate. Lift the air conditioner from the window and remove the
sash seal from between the windows.
Be sure to drain ALL condensate from the air conditioner. If you don't, it could run
out while you carry the unit, making a mess and creating a slipping hazard. This
simple step will save you much cleaning and make a safer work environment.
20 Room Air Conditioner
