Thank you for buying a dependable, energy-saving and easyotoooperate
room air conditioner. This manual contains useful information for
you to maintain, operate, install and safely use your room air conditioner°
Your air conditioner cleans, cools and dehumidifies the air in your room to
provide you with the ultimate level of comfort.
Pleaseread instructionscarefully before using the product° Also, do not
forget to fiJJout and maiJthe Product Warranty Card.
Recerd Your MedeJ aad SerieJ Number°
For aJJyour service caJJsduring the warranty period, the foJJowing
information wiJJbe needed. Attach the sales receipt to this guide and keep
for future reference° This information can be obtained from the seriaJ pJate,
which is on your air conditioner. This is either on the cabinet (side or back),
or you may have to remove the front griJJeto Jocate it.
TABLE
RECEPTACLE AND FUSE TYPES
RATED VOLTS 125/60 250/60
AMPS ] 5 20 15 20 3(}
WALL OUTLET

] } The air conditioner must be connected to a proper electricaloutletwith
the correct electrical supply. (see table)
2)Proper grounding must be ensured to reduce the risk of shock and fire°
DO NOT CUT OR REMOVETHEGROUNDING PRONG. If you do
not have a threeoprong electric receptacle outlet in the wall, have a
certified electrician install the proper receptacle. The wall receptacle
MUST be properly grounded.
Do not use if the power cord is frayed or otherwise damaged.
Also,avoid using it if there are cracks or abrasion damage
amongthe length, plug or connector°
4} DO NOT USE AN ADAPTER OR AN EXTENSION CORD.
5)When instaJJingyour air conditioner in a window, make sure the window
is strong enough to homdthe weight of the air conditionen You amsowant
to secure and instamlyour air conditioner properly to prevent it from
faJJing.Extra brackets andlor support may be required depending on
your window.
6} Do not bJockthe airfJowinsideor outsidethe air conditioner with Minds,
drapes, protectivecovers,shrubsor bushes.
7) Becarefumof sharp edges on the front and rear fins of the unit that couJd
cut and cause serious iniury.
8) BecarefuJwhen Jiffing the air conditioner to instaJJor remove the unit.
AJways use two or more peopJefor this.
29} AJways unpJugthe air conditioner before servicing it or moving it.

A Word Fro_ ¢omfort°Aire
Product Registration
Safe,/Precautions
Warnings
EmectrlcamSafety
Energy Saving Guide
Features
Operating Guide
Normal Operating Sounds
Operating Instructions

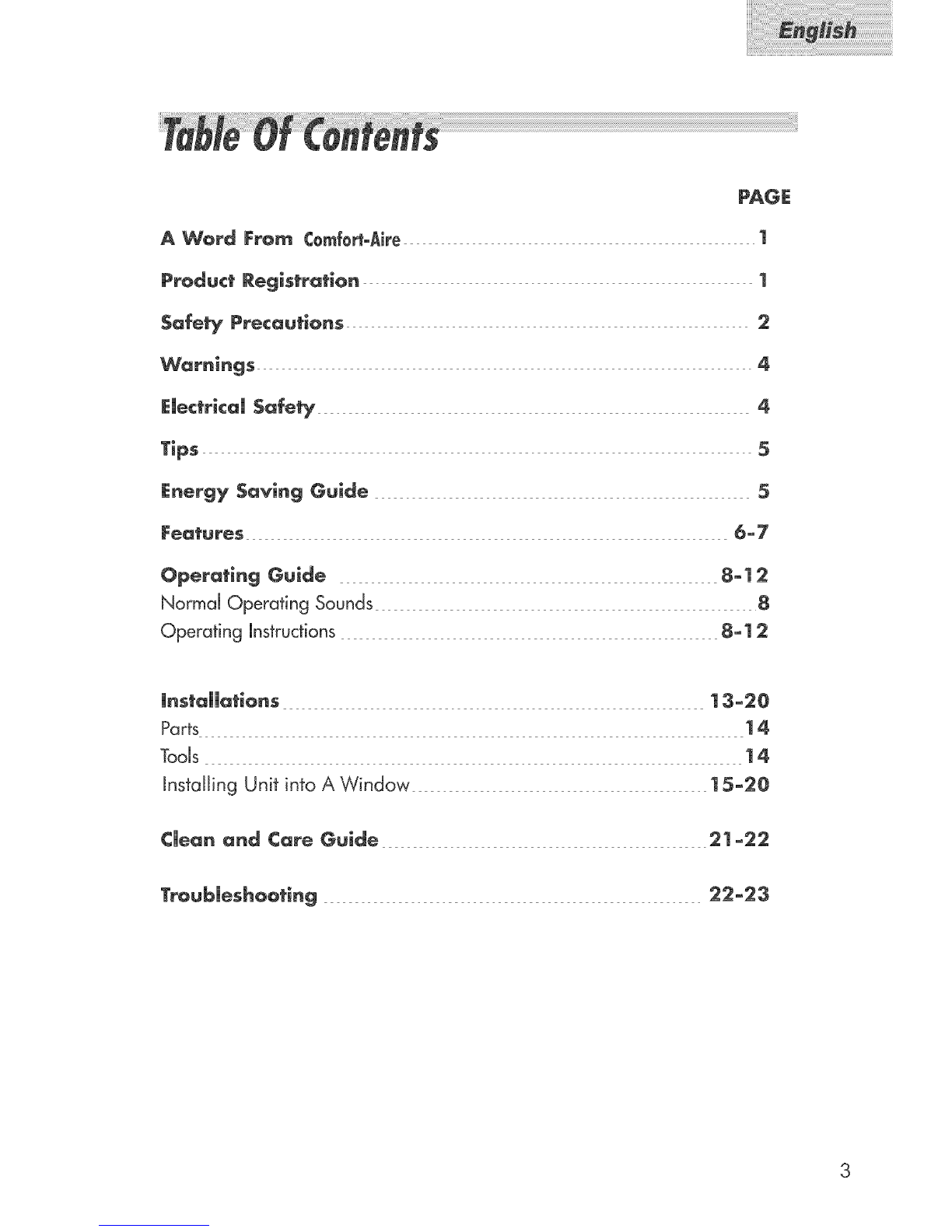

PAGE
1
1
4
4
5
5
6_7
8-128
8-12
Parts
Tools
installing Unit into A Window
Clean and Care Gulde
13_2G
14
14
15_2G
21 _22

FoJJowingthe safety messages is very important.
These messages can save you from being iniured or kiJJed.
Warning symboJsaJert you to be carefuJ and mean Danger° AJways
foJJowinstructions to be safe and reduce chances of iniury or death.
Warning and Danger signs wiJJprecede safety messages.
WARN|NG:
This room air conditioner must be grounded.
Grounding reduces the risk of electric shock by
providing an escape wire for the eJectriccurrent.
The power cord has a grounding wire with a
grounding pJugoPJugit into an outJetthat is
properJy instaJJedand grounded.
improper use of the grounding
pJugcan resuJtin a risk of eJectricshock.
CaJJa quaJified eJectrician if you don't understand
the grounding instructions,or if you are not
sure if the air conditioner is properJy grounded°
if the waJJoutJetis not grounded, pJeasecontact an
eJectridan to have it repJacedwith a properJy
grounded outJet.
Do not, under any circumstances, cut or remove the
third (ground) prong from the power cord.
We strongJyadvise against using an adapter plug.
Test power pJug before each use:
1. Press"reset" button.
2 _Press"test" button. Unit shouJd trip.
3. Press"reset" button again for use.
Do not use if above test faiJs.
Jf this device trips, the cause of the malfunction must
be corrected before further use of the device o
4

®Air conditioners are designed for use in a double hung "window or
through the waJJinstallation only. (As applicable in your modal)
o While installing unit be sure to tilt air conditioner 5 degrees outward to
have the water drip outside the house.
install the unit on the north side,as that is normally the shaded side_This
wiJJenhance the operation of your unit.
The window has to be strong for instaJJationoExtra brackets and/or
support may be required depending on your window. (Bracketsand
supports not included in aJJmodels_1
Measure the window before installing, if the window is too big for the
unit you may require professional installation°
o Use the correct electric voltage and proper ampere for the unit to run
effectively.
Only Jeta certified electrician modify your electrical outlet.
Use a dedicated line for the operation of your air conditioner to avoid
the possibility of an electrical surge°
When installing your air conditioner, make sureto seal aJJareas where
there is a possibility of air leakage°
The airflow should not be blocked, either inside by curtains, drapes or
furniture,or outside by shrubsor bushes.
Do not needlesslyusean electrical light or other appliances that
produce heat.
Keepthe vent dosed on the air conditioner when in the coding function.
o Keepthe blinds and drapes drawn on aJJother windows.
While cooking,usean exhaust fan in the kitchen to remove the excess
heat.
Always usethe correct BTUsize air conditioner to cod the room to
attain optimum efficiency.

%ii
vent
controller
side
JOUV@FS
easy-access
filters
touch pad
1.Thermostat
This allows you to adjust the temperature of the
air--the lower the setting,the cooler the air
temperature With this you can set the
temperature to your desired comfort level You
can set the temperature between 61°F and 86 °
F
2°Fan Speed
With this you can control the fan speed as well
as the A/C (cooling) speed
You have 3 levels of A/C Speed to set at your
desired level LO will circulate air at the lowest
velocity, MED at medium velocity and HIGH
will circulate at the maximum, velocity You have
3 levels of Fan Speed to set at your desired
comfort level: HIGH, MED and LOW
3. Functlon
Your air conditioner has 4 Functions
a) COOL
Here the air conditioner will operate the
compressor and the desired fan speed set to
give you cold air for your comfort
b) FAN
You can run the fan without the A/C function
on cooler days The fan can be set to run at
3 speeds as desired
c) DEHUMIDIFY
This enables your air conditioner to operate as
a dehumidifier as well It will remove the excess
moisture from the air to keep your room at a
comfortable, dry stage You can use this feature
alone in case you do not wish to use the air
condifionen
d) ENERGY SAVER
When this feature is "On", the fan will shut off
three minutes after the compressor cycles off
This will reduce energy consumption and noise
When the compressor turns back on, the fan
will turn on at the same time In the "Off"
position, the fan will not shut off when the
compressor cycles off
4.Timer
Your air conditioner can be set to go on or off
at your desire This can be programmed up to
24 hours in advance
5.4-Way Air FJc_w
The air directional louvers Jetyou control the
direction of the airflow to the desired direction
The airflow can be directed up-down-right side-
left side
6

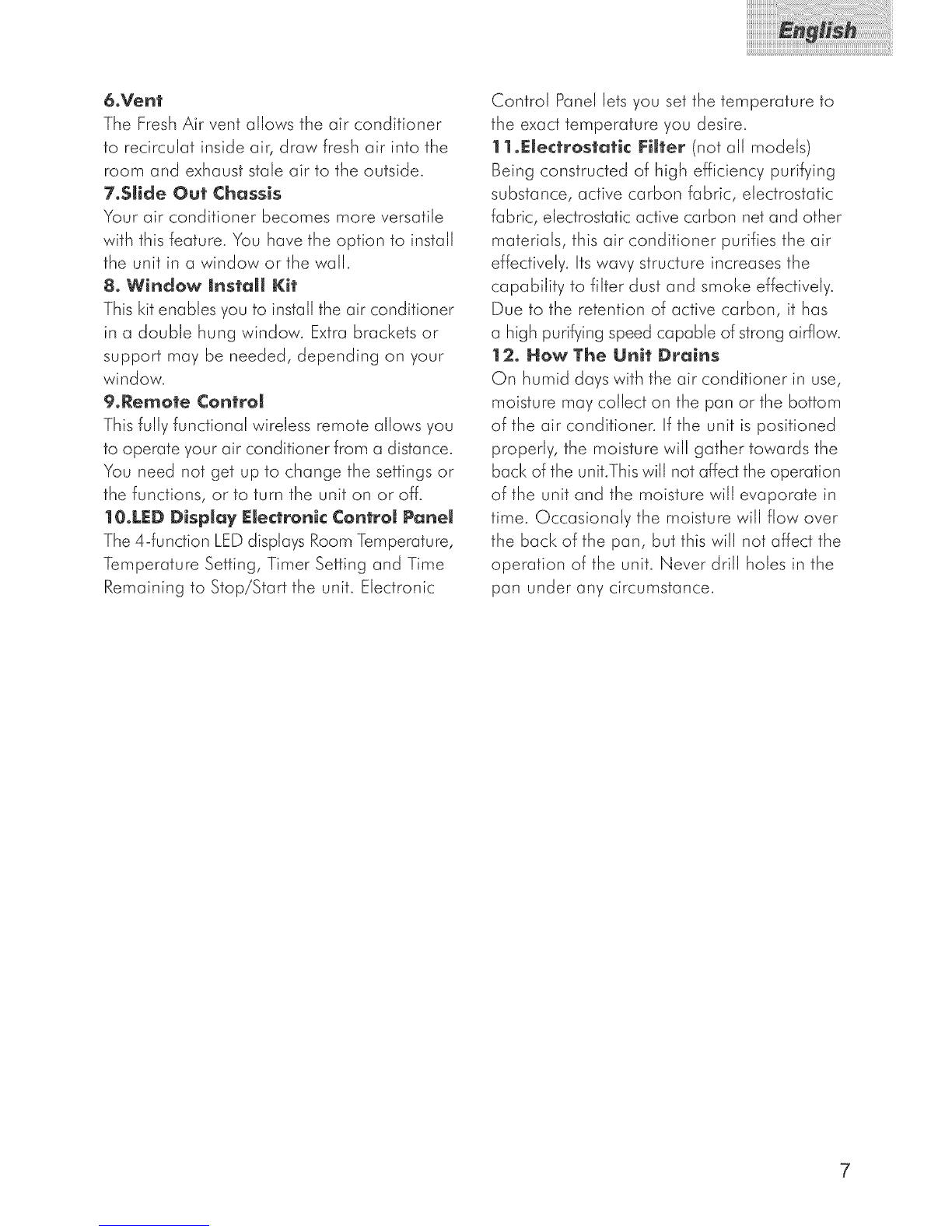

6°Vent
The Fresh Air vent allows the air conditioner
to recirculat inside air, draw fresh air into the
room and exhaust stale air to the outside.
7.Slide Out Chassis
Your air conditioner becomes more versatile
with this feature. You have the option to install
the unit in a window or the wall.
8. Window Install Kit
This kit enables you to install the air conditioner
in a double hung window. Extra brackets or
support may be needed, depending on your
window.
9oRemote Control
This fully functional wireless remote allows you
to operate your air conditioner from a distance.
You need not get up to change the settings or
the functions, or to turn the unit on or off.
10.LED Display Electronic Control Panel
The 4-function LED displays Room Temperature,
Temperature Setting, Timer Setting and Time
Remaining to Stop/Start the unit. Electronic
Control Panel lets you set the temperature to
the exact temperature you desire_
11.Electrostatic IFJlter (not all models)
Being constructed of high efficiency purifying
substance, active carbon fabric, electrostatic
fabric, electrostatic active carbon net and other
materials, this air conditioner purifies the air
effectively. Its wavy structure increases the
capability to filter dust and smoke effectively_
Due to the retention of active carbon, it has
a high purifying speed capable of strong airflow.
12. How Yhe Unit Drains
On humid days with the air conditioner in use,
moisture may collect on the pan or the bottom
of the air conditioner. If the unit is positioned
properly, the moisture will gather towards the
back of the unit.This will not affect the operation
of the unit and the moisture will evaporate in
time. OccasionaJy the moisture will flow over
the back of the pan, but this will not affect the
operation of the unit. Never drill holes in the
pan under any circumstance.

lllUe d OllliSe tiH %Se Hds

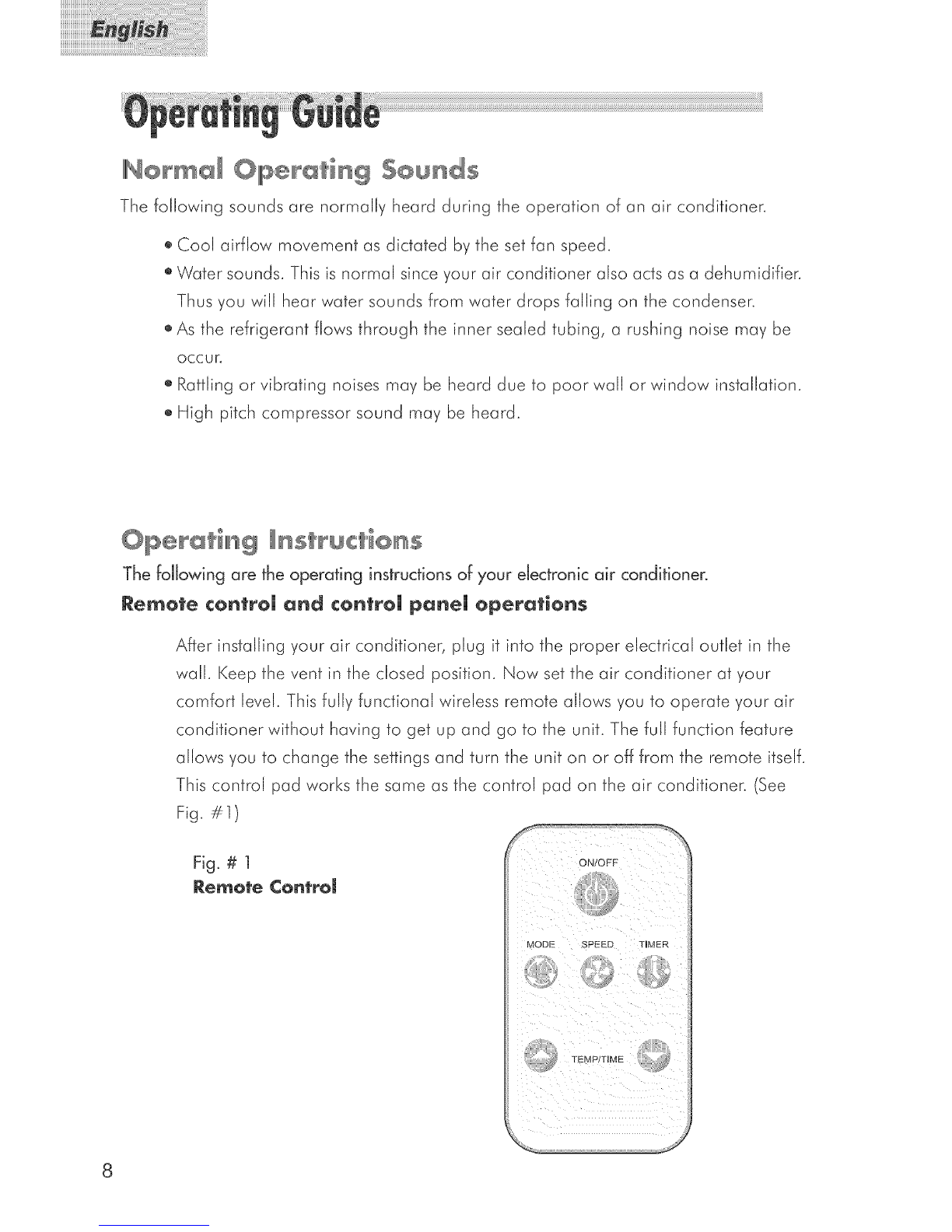

The following sounds are normally heard during the operation of an air conditioner.
®Cool airflow movement as dictated by the set fan speed.
®Water sounds. This is normal since your air conditioner also acts as a dehumidifier.
Thus you will hear water sounds from water drops falling on the condenser.
®As the refrigerant flows through the inner sealed tubing, a rushing noise may be
Occur.
® Rattling or vibrating noises may be heard due to poor wall or window installation.
® High pitch compressor sound may be heard.
8
Open.tim IHS'I d'iOHS
The foiowing are the operating instructions of your dectronic air conditioner.
Remote control and control panel operations
After installing your air conditioner, plug it into the proper electrical outlet in the
wall. Keep the vent in the closed position. Now set the air conditioner at your
comfort level. This fully functional wireless remote allows you to operate your air
conditioner without having to get up and go to the unit. The full function feature
allows you to change the settings and turn the unit on or off from the remote itself.
This control pad works the same as the control pad on the air conditioner. (See
Fig. #1)
Fig. # 1
Remote ¢ontrd
ON/OFF
MODE SPFFD TIMER
i

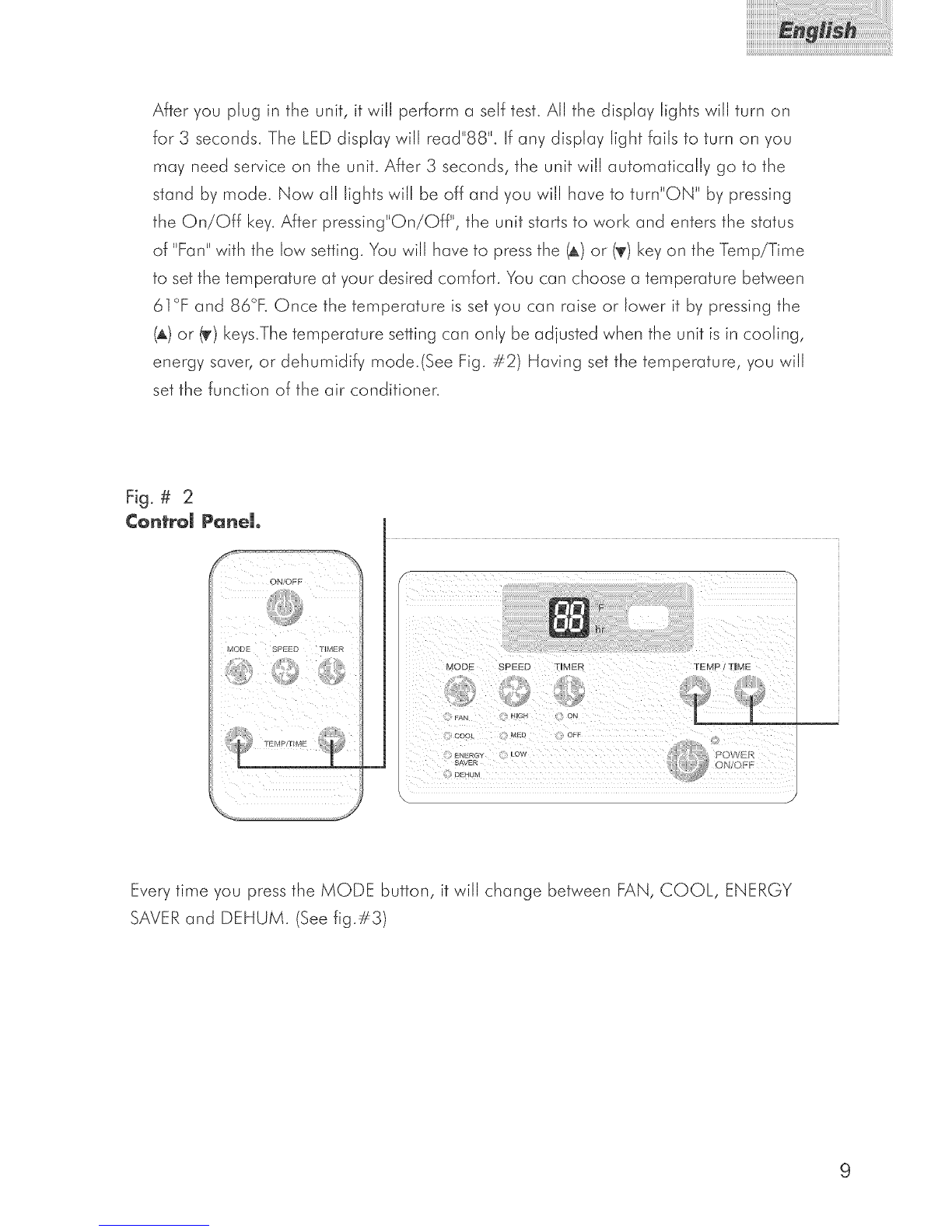

Afteryou plug inthe unit,ifwillperform a selftest.Allthe displaylightswillturnon
for 3 seconds. The LED display will read"88"L If any display light fails to turn on you
may need service on the unit. After 3 seconds, the unit will automatically go to the
stand by mode. Now all lights will be off and you will have to turn"ON" by pressing
the On/Off key. After pressing"On/Off", the unit starts to work and enters the status
of "Fan" with the low setting. You will have to press the (A) or (_) key on the Temp/Time
to set the temperature at your desired comfort. You can choose a temperature between
61°F and 86°E Once the temperature is set you can raise or lower it by pressing the
(A) or {T) keys.The temperature setting can only be adjusted when the unit is in cooling,
energy saver, or dehumidify mode.(See Fig. #2) Having set the temperature, you will
set the function of the air conditionen
Fig, # 2
¢ontreJ Panel,
ON/OFF
MODE SPEED TIMER
MODE SPEED TmMER TEMP/'liME
Every time you press the MODE button, it will change between FAN, COOL, ENERGY
SAVER and DEHUM. (See fig.#3)

f
M( SPEED TIME_q TEMP /TIME
coo[ MED DFF
EN_RG' _C
_AV_R
DEHUM
Once the mode function is established, you will have to set the fan speed. (See fig. #4)
Every time you press the SPEED button, fan speed will change between LO\,% HIGH and
MED.
1) If you choose the COOL mode you can run the fan in one of the 3 speeds: HIGH, MED,
or LOW.
2) For cool days you may want to run the "FAN" function. Here the fan runs at one of 3
speeds (HIGH fan, MED fan, LOW fan) as desired by you.
3) The dehumidify function removes excess moisture from the air on excessively humid days.
Tr: temperature inside the room.
Ts: the set temperature.
1) When Tr>Ts+3°F :, the compressor will run the fan continuously at the selected speed.
2) When Ts-l°Fi Tri Ts+3°F, the compressor will cycle for 10 minutes on and 6 minutes off.
3) When Tr<Ts-I°F, the compressor will shut off.
The dehumidification process takes place between the set temperature-1 and 3°F above
the set temperature.
4) Energy Saver: The unit runs the same as the COOL setting in the ENERGY SAVER mode.
But the fan will be off 3 minutes after the compressor cycle off.
10

Fig. # 4
¢on_roJ P_neJo 1
V_ODE SPE ED TIMER TEMP / TiME
FAN HIGH D['
CO0 MED DFF
_OW
SAVER
r)FHUM
Timer On or Timer Off mode is used to pre-start or shut off your unit in advance. You can
program this up to 24 hours in advance. You can use the Timer in 4 functions, i.e. COOL,
ENERGY SAVER, DEHUMID or FAN.
®Timer on (See Fig.#5)
The unit must be on to set the timer. Unit will shut down automatically after it accepts the
settings in 5 seconds. Use this mode to pre-set the start time of the unit 24 hours in advance.
a) Press TIMER ON. LED display will show "XX" (time set last time). When power is connected
for the first time, LED display will show "01 ".
b) Set the desired number of hours by pressing the (,_)pad of the Temp/Time buttons, once
for each hour. If you passed the desired time, use the (_) pad key to lower the selection.
c) After you set TIMER ON, LED display will show the time. This time displayed means:
the unit will starts after X hours.
® Timer off ( See Fig. #5)
The unit must be running to set time off. Use this to preset the time you would like the
unit to shut off.
a) Press TIMER OFF. LED display will show "XX"(time set last fime).When power is connected
for the first time, LED display will show "01"
b) Set desired number by pressing the (A) pad of the Temp/Time buttons, once for each
hour. If you pass the desired time, use the (_') pad key to lower the selection.
c) After you set TIMER OFF, LED display will show the room temperature about 5 seconds
Jaten
When using the timer, the unit will revert to the last COOL and FAN settings when activated.
The timer must be reset every time you choose to use it.
11

Fig. # 5
Cont.| Pan÷|. 1
MODE SPEE:D TIE
-_,N lqG_ ON
COOL MFD OFF
=NERG LO
SAVFR
_LHU_
TEMP /TIME
_p ,,_/_ ¸
Adiusting the Air Flow #irection
Airf!ovv' carl be adjusted by changing the direction of the air conditioner's louvers.
This can also increase the cooling efficiency of the air conditioner,
Adjusting Horizontal Air Flow
Direction
Adjusting the vertical louvers left and
right will change horizontal airflow,
Adjusting Vertical Air Flow #irection
Adjusting the horizontal vane up and down will
change vertical airflow. The vane can be adjusted
by nudging the back of the vane up and down.
Adjusting Horizontal Air Flow Adjusting VerticaJ Air Flow
Recommended orientation of louvers:
Adjust louvers to face upwards when cooling to maximize cooling efficiency.
12

Before you install your air conditioner, check the following:
1) The unit is free of all obstructions inside and outside the room, e.g. drapes, curtains,
furniture, plants, shrubs, bushes, trees, other structures like buildings, garage, etc.
The air conditioner must have a clear, unobstructed airflow through the condenser to
remove heat.
2) The window is strong enough to hold the weight of the air conditioner. Extra brackets
or supports may be needed depending on your windows. (Brackets or supports not
provided in all models)
3) The windowsill and track are strong enough to hold the weigh of the air conditioner.
4) The wall is strong enough to hold the unit. Extra brackets or supports may be needed
depending on the wall. (Brackets or supports not provided in all models).
5) There is adequate and proper power supply near the air conditioner.
6) DO NOT use adapter plugs.
7) DO NOT use extension cords.
8) DO NOT cut or remove the ground prong.
9) DO NOT modify the plug or the electrical wall outlet in any way. Efplug does not
fit the electrical outlet have a certified electrician do the necessary change.
10) DO NOT connect electrical power to the unit before installation.
11) DO NOT use if power cord is worn out, frayed or otherwise damaged. Avoid using
if there are cracks or abrasion damage along the length, plug or connection.
12) Be careful of exposed sharp edges of the cabinet and sharp coils (fins) on the
back of the unit that could cut and cause serious injury.
13

Parts
Parts Supplied
window seal
gasket
wood screws 31/32 _'
curtain
aHachment
screws ] 3/32"
basepan angle Iocknut
19/32' long
SCFeW and
[ocknut
installation bracke_ Remote _-_'_ left and right
(leftand right) control side curtains
Model: RADS 181A
YouwiJJneed to have the following tools to help you in the installation of
your air conditioner.
•Scissors
• Phillips Screwdriver
®Standard Screwdriver
®Pliers
_Wrench
_DriJJand Drill Bits
eTape Measure
eGJoves
®Level
_Sockets
14

In;

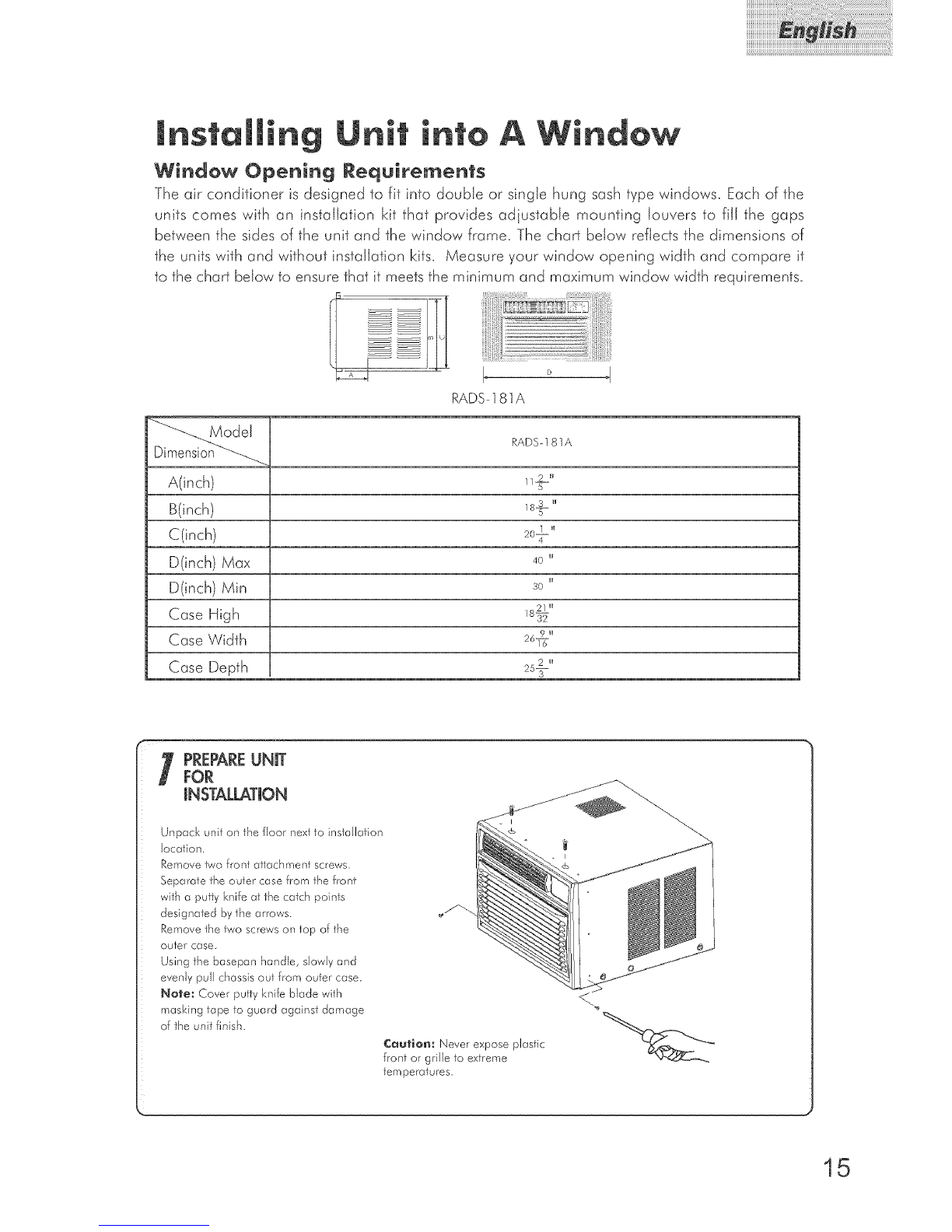

Window Opening Requirements
The air conditioner is designed to fit into double or single hung sash type windows= Each of the
units comes with an installation kit that provides adjustable mounting louvers to fill the gaps
between the sides of the unit and the window frame= The chart below reflects the dimensions of
the units with and without installation kits= Measure your window opening width and compare it
to the chart below to ensure that it meets the minimum and maximum window width requirements=
iiiiiii'ii i iii¸¸¸ iii!ii'ii'iiiiii
D
RADS 181A
RADS-181A
A(inch)
B(inch)
C(inch) 20_"
D(inch) Max 40"
D(inch) Min 30"
Case High
Case Width
Case Depth
IREPAREUNUT
FOR
iNSTALLATiON
Unpack unit on the floor next to installation
location.
Remove two front atiachment screws.
Separate the outer case from the front
wiih a putty knife at the catch points
designated by the arrows
Remove the two screws on top of the
outer CaSe,
Using the basepan handle, slowly and
evenly pull chassis out from outer case,
Note: Cover pu¢_yknife blade with
masking tape to guard against damage
of the unii finish.
Caution: Never expose plastic
front or grille to extreme
temperaiures.
15

ASSEMBLE
CURTAINS/TOP
RAIL
Inslall top rail with four ] 3/32 _screws.
Slide left-hand curtain assembly into
Jeffend of top and botlom rails. Repeat
for right-hand currain assembly. Fasten
curtain retainer strips to the sides of
the outer case with six ] 3/32 _'screws.
PREPARE
WINDOW FOR
INSTALLATION
inspect window track, sash, and silt
for its ability to support the weight of
air conditioner.
Measure the width between the
window moldings to ensure the instant
Mount will fit the window frame.
instant Mount models are designed
for windows wide (for details see
page 15)
The instantMount kit supplied with
unit is designed for mounting in most
double-hung windows without
storm windows.For installation in
window frame with storm window,
modify sill by adding wood strips(not
Storm window installation
If storm window frame does not allow
adequate clearance below sill (1/2
required), remove storm window
frame or create clearance by adding a
wood strip (at least 1 1/2 wide) along
entire width of sill Fasten wood strip
to sill with at least three countersunk
wood screws (not supplied with kit).
This provides a smooth surface for
mounting air conditioner.
1/2"
Minimum
I 1/2" _
Minimum '_
JWood
Mobile home window installation
Add wood strip (at least 1 1/2 _ wide)
along entire width of window sill
Thickness of wood strip should match
height of front lip on window frame.
Fasten wood strip to sill with a
minimum of three countersunk wood
screws (not supplied with kit). This
provides a smooth surface for
mounting air conditioner.
Must be a minimum
of 1/2" to dear
I bottom rail on unit
o
included) to inner and outer sills. This StormWindow ",,/_. : R
raises the unit and eliminates Frame
0
U
T
D
0
0
R
, interference of storm window frame. ,_
16

mNSTALL OUYER
CASE mNWINDOW
Place outer case in window, Lower
sash until it rests behind front flange
of top raih Botlom rail must rest
behind window siih
Toprail sash
Boltomrail
Curtain assembly cut
away for clarity.
About
5D
Use lwo wood screws 31/32 to fix the case to
windows sash, install left & right installation bracket
and as shown in fig, install bolt(2 ]/2 long flat head
bolt and loci<nut) to the installation bracket and adiust
them to proper length ,then use 4 (19/32 )screws to fix
_he bracket on the case,
Expand both curtains to contact the ......
window frame, install four wood
screws 31/32 , Two in each upper right and
left of the curtains,
Inslall three wood screws 31/32 _top mounting rail
screws,
NOTE: To make screws easier to
drive, drill a pilot hole into the sash
through clearance hole in curtains,
17

mNSTALL SASH B_CKET
& SEAL GASKET
hlstall sash bracket on top of indoor window sash
with one wood screw 31/32 to prevent raising of
window fl°om the outside, Screw the anchor directly
into the side of window frame. For hard wood or
metal window frames, drill a pilot hole to start the screw.
|mportant:Be careful not to drill the pilot hole too deep,
Add a piece of Cape to the drill bit as a depth gauge,
Also stay clear of glass. Be careful not to damage the
function of the window,
Cut window seal gasket to width of window. Stuff window
seal strip between the outdoor window glass and the top of
the indoor sash. This will stop air leakage which reduces
RETURN
CHASSISTO THE
OUTERCASE
Find someone €o help you replace
the chassis in ou¢er case. Replace
front panel and grille.
¢autiom
For security purposes, reins€all screws
at cabinets sides, removed in step
one.
IMPORTANT:
Because the window sash helps keep
the unit in window, make certain the
window sash contacis the outer case
before, reinstalling the chassis.
18

w mm slide-outchassisonly
Note: Remove the 2 shipping screwson the top of the air conditioner
that hold the chassisto the outer shell casing. Once removed,
these do not have to be reoinstaJJed.To ensure that your air
conditioner is properly installed in the wall, it is recommended
that it be installed by a certified technician who is familiar with
through the waJJinstaJJafionso

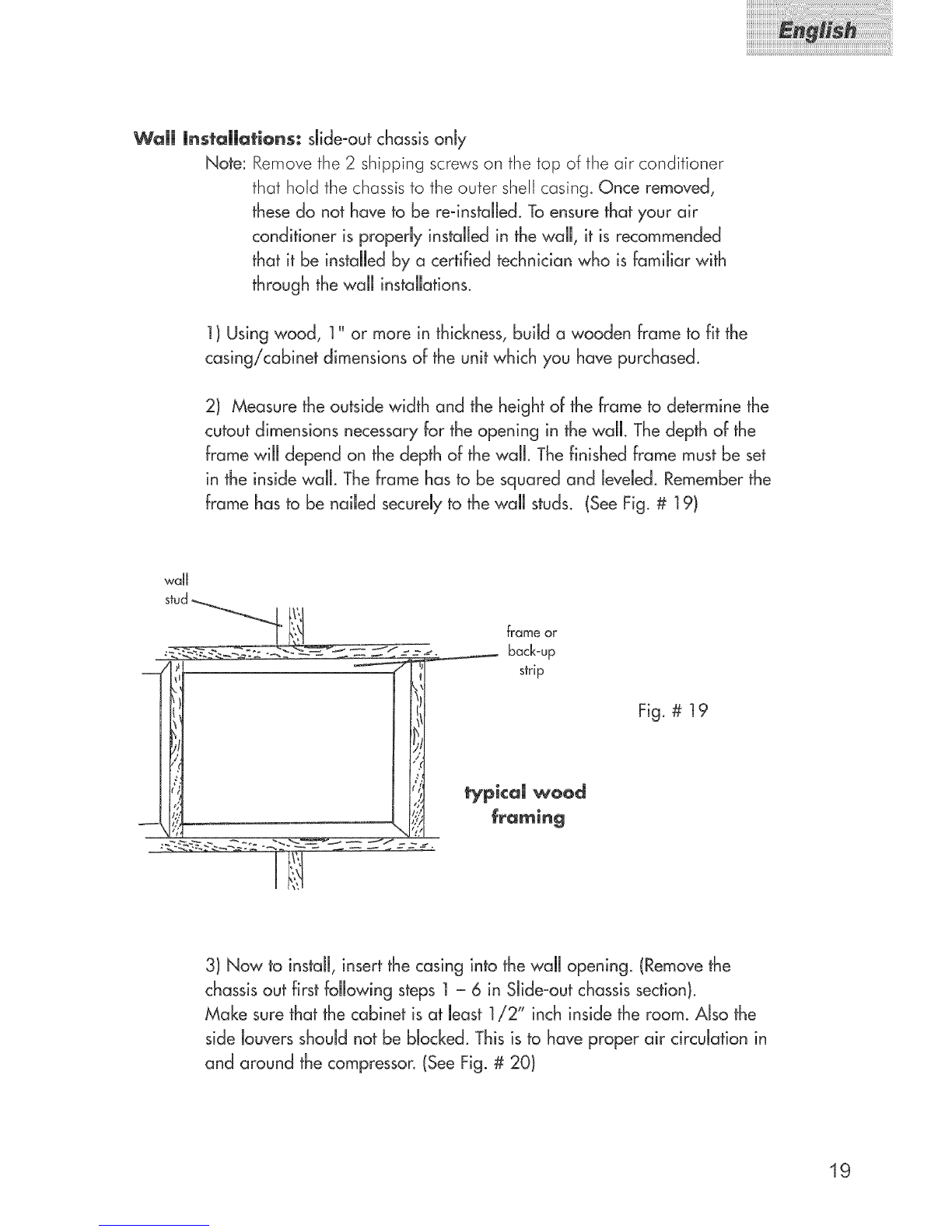

1) Using wood, 1" or more in thickness, build a wooden frame to fit the
casing/cabinet dimensions of the unit which you have purchased.
2) Measure the outside width and the height of the frame to determine the
cutout dimensions necessary for the opening in the wall. The depth of the
frame wiJJdepend on the depth of the walk The finished frame must be set
in the inside walk The frame has to be squared and leveled. Remember the
frame has to be nailed securely to the waJJstuds. (See Fig. # 19)
wall
stud_ _,
frame or
__ backoup
strip
Fig. # 19
3) Now to install, insert the casing into the waJJopening. (Remove the
chassis out first following steps 1 -6 in Slide-out chassis section).
Make sure that the cabinet is at bast 1/2" inch inside the room. Also the
side louversshould not be blocked. This is to have proper air circulation in
and around the compressor. (See Fig. # 20)
19
