Comfortaire RADS Series User manual

www.marsdelivers.com
Owner’s Manual
RADS Series
Window Type Room Air Conditioner
RADS-183R
RADS-253R

!
Table of Contents
.........................................04
.............................................................................................................................................................................04
.............................................................................................................................................................................05
......................................................................................................................................07
...................................................08
...............................................................................................09
.............................................................................................14
.........................................................................................................................................................15
..........................................................................................................................................................20
................................................................................................................................................21
.......................................................................22
.....................................................23
..................................................................................................................................................23
.....................................................................................................24
........................................................................................................25
..................................................................28
.............................................................................................................................................................28
.............................................................................................................................................................28
..................................................................................................................................................................28
............................................................29
IMPORTANT SAFETY INSTRUCTIONS
1.Warning
2.Caution
3.Operation of Current Device
INSTALLATION INSTRUCTIONS
1.Installation Instructions(for 5000 to 12000Btu/h)
2.Installation Instructions(for 15000 to 28500Btu/h)
A.Window Mounting
B.Thru-The-Wall Installation
C.Masonry Construction
NORMAL SOUNDS
AIR CONDITIONER FEATURES
1.Air Directional Louvers
2.Mechanical control operating instructions
3.Electronic control operating instructions
CARE AND CLEANING
1.Air lter cleaning
2.Cabinet cleaning
3.Winter storage
TROUBLESHOOTING TIPS

WARNING
Important Safety
Instructions
Inside you will nd many helpful hints on how to use and maintain your air conditioner
properly. Just a little preventive care on your part can save you a great deal of time and
money over the life of your air conditioner. You'll nd many answers to common
problems in the chart of troubleshooting tips. If you review our chart of Troubleshooting
Tips rst, you may not need to call for service at all.
To prevent injury to the user or other people and property damage, the following
instructions must be followed. Incorrect operation due to ignoring of instructions may
cause harm or damage. The seriousness is classied by the following indications.
.
READ THIS MANUAL
Plug in power plug properly. Otherwise, it may cause electric shock or re due to excess heat
generation. Do not operate or stop the unit by inserting or pulling out the power plug.It may
cause electric shock or re due to heat generation. Do not damage or use an unspecied
power cord.It may cause electric shock or re. If the power cord is damaged, it must be
replaced by the manufacturer or an authorised service centre or a similarly qualied person
in order to avoid a hazard.
Always install circuit breaker and a dedicated power circuit. Incorrect installation may cause
re and electric shock. Do not operate with wet hands or in damp environment. It may cause
electric shock . Do not direct airow at room occupants only. This could damage your health.
Always ensure eective grounding.Incorrect grounding may cause electric shock. Do not
allow water to run into electric parts.It may cause failure of machine of electric shock. Do not
modify power cord length or share the outlet with other appliances. It may cause electric
shock or re due to heat generation.
Unplug the unit if strange sounds, smell, or smoke comes from it. It may cause re and electric
shock. Do not use the socket if it is loose or damaged. It may cause re and electric shock. Do
not open the unit during operation. It may cause electric shock.
Keep rearms away. It may cause re. Do not use the power cord close to heating appliances.
It may cause re and electric shock. Do not use the power cord near ammable gas or
combustibles, such as gasoline, benzene, thinner, etc. It may cause an explosion or re.
Ventilate room before operating air conditioner if there is a gas leakage from another
appliance. It may cause explosion, re and, burns. Do not disassemble or modify unit. It may
cause failure and electric shock.
This symbol indicates the possibility of death or serious injury .
Always do this.
Never do this.
CAUTION
This symbol indicates the possibility of injury or damage to property.
WARNING
Page 4 
IMPORTANT SAFETY INSTRUCTIONS

CAUTION
Page 5 
Important Safety
Instructions
Important Safety
Instructions
This appliance is not intended for use by persons (including children) with reduced physical ,
sensory or mental capabilities or lack of experience and knowledge, unless they have been
givensu pervision or instruction concerning use of the appliance by a person responsible for
their safety.
Children should be supervised to ensure that they do not play with the appliance.
This appliance can be used by children aged from 8 years and above and persons with reduced
physical, sensory or men concerning use of the appliance in a safe way and understand the
hazards involved. Children shall not play with the appliance. Cleaning and user maintenance
shall not be made by children without supervision.
If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or
similarly qualied persons in order to avoid a hazard.
The appliance shall be installed in accordance with national wiring regulations.
Do not operate your air conditioner in a wet room such as a bathroom or laundry room.
The appliance with electric heater shall have at least 1meter space to the combustible
materials.
Contactthe authorised service technician for repair or maintenance of this unit.
Contact the authorised installer for installation of this unit.
Do not operate the louvers with your hands, it may cause an injury.
CAUTION
When the air lter is to be removed, do not touch the metal parts of the unit. It may cause an
injury. Do not put a pet or house plant where it will be exposed to direct air ow. This could
injure the pet or plant. Ventilate the room well when used together with a stove, etc. An
oxygen shortage may occur.
Do not use strong detergent such as wax or thinner but use a soft cloth. Appearance may be
deteriorated due to change of product color or scratching of its surface. Do not clean the air
conditioner with water. Water may enter the unit and degrade the insulation. It may cause an
electric shock. Do not use for special purposes. Do not use this air conditioner to preserve
precision devices, food, pets, plants, and art objects.lt may cause deterioration of quality, etc.
Stop operation and close the window in storm or hurricane. Operation with windows opened
may cause wetting of indoor and soaking of household furniture. When the unit is to be
cleaned, switch o, and turn o the circuit breaker.Do not clean unit when power is on as it
may cause re and electric shock, it may cause an injury. Ensure that the installation bracket
of the outdoor appliance is not damaged due to prolonged exposure. If bracket is damaged,
there is concern of damage due to falling of unit.
Always insert the lters securely. Clean lter once every two weeks. Operation without lters
may cause failure. Hold the plug by the head of the power plug when taking it out. It may
cause electric shock and damage. Turn o the main power switch when not using the unit
for a long time. It may cause failure of product or re.
Do not place obstacles around air-inlets or inside of air-outlet. It may cause failure of
appliance or accident. Do not place heavy object on the power cord and ensure that the
cord is not compressed. There is danger of re or electric shock. Do not drink water drained
from air conditioner. It contains contaminants and could make you sick.
Use caution when unpacking and installing. Sharp edges could cause injury.
If water enters the unit, turn the unit o at the powei outlet and switch o the circuit breaker.
Isolate supply by taking the power-plug out and contact a qualied service technician.

WARNING
Important Safety
Instructions
Do not, under any
circumstances, cut,
remove, or bypass
the grounding prong.
NOTE:
The power supply cord with this air conditioner contains a current detection device
designed to reduce the risk of re. Please refer to the section Operation of Current Device
for details.In the event that the power supply cord is damaged, it cannot be repaired-it must
be replaced with acord from the Product Manufacturer.
Avoid re hazard or electric shock. Do not
use an extension cord or an adaptor plug.
Do not remove any prong from the power
cord.
Grounding type wall receptacle
Power supply cord with
3-prong grounding plug
and current detection
device.
WARNING
Do not store or use gasoline or other ammable vapors and liquids in the vicinity of this or any other
appliance.
To reduce the risk of re, electrical shock, or injury to persons when using your air conditioner, follow
basic precautions, including the following:
Be sure the electrical service is adequate for the model you have chosen. This information can be
found on the serial plate, which is located on the side of the the cabinet and behind the grille.
If the air conditioner is to be istalled in a window,you will probably want to clean both sides of the
glass rst. If the window is a triple-trackty pew it has creen panel included, remove the screen
completely before installation.
Be sure the airconditionerh as been securely and correctly in stalled accordingto the installation
instructions in this manual. Save this manual for possible future use in removing or installing this unit.
When handling the air conditioner, be careful to avoid cutsf romsnarpm etalf ins on front and
rear coils.
The complete electical rating of your new room air conditioner is stated on the serial plate. Refer to
the rating when checking the electrical requirements.
Be sure the air conditioner is properly grounded. To minimize shock and re hazards, proper
grounding is important. The power cord is equipped with a three-prong grounding plug for
protection against shock hazards.
Your air conditioner must be used in a properly grounded wall receptacle. If the wall receptacle you
intend to use is not adequately grounded or protected by a time delay fuse or circuit breaker, have a
qualied electrician install the proper receptacle. Ensure the receptacle is accessible after the unit
installation.
Do not run air conditioner without side protective cover in place.This could result in mechanical
damage within the air conditioner.
Do not use an extension cord or an adapter plug.
For Your Safety
Prevent Accidents
Electrical Information
Page 6 

Important Safety
Instructions
Operation of Current Device
(Applicable to the unit adopts current detection device only )
Note: Performance may be reduced
outside of these operating
temperatures.
NOTE:
Do not use this device to turn the unit on or o.
Always make sure the RESET button is pushed in for correct operation.
The power supply must be replaced if it fails reset when either the TEST button is pushed,
or it cannot be reset. A new one can be obtained from the product manufacturer.
If power supply cord is damaged, it cannot be repaired. It MUST be replaced by one
obtained from the product manufacturer.
NOTE:This air conditioner is designed to be operated under condition as follows:
The power supply cord contains a current device that senses damage to the power cord.
To test your power supply cord do the following:
1.Plug in the Air Conditioner.
2.The power supply cord will have TWO buttons on the plug head. Press the TEST button,
you will notice a click as the RESET button pops out.
3.Press the RESET button, again you will notice a click as the button engages.
4.The power supply cord is now supplying electricity to the unit. (On some products this it
also indicated by a light on the plug head.)
Page 7 
Cooling
operation
Outdoor temp:
Indoor temp:
Heating
operation
Outdoor temp:
O
O
23-76 F/ C-5-24
Indoor temp:
O
32-80 F/
O
0-27 C
O O O O
64-109 F/18-43 C (64-125 F/18-52 C
for special tropical models)
O
62-90 F/
O
17-32 C

Installation
Instructions
NOTE:

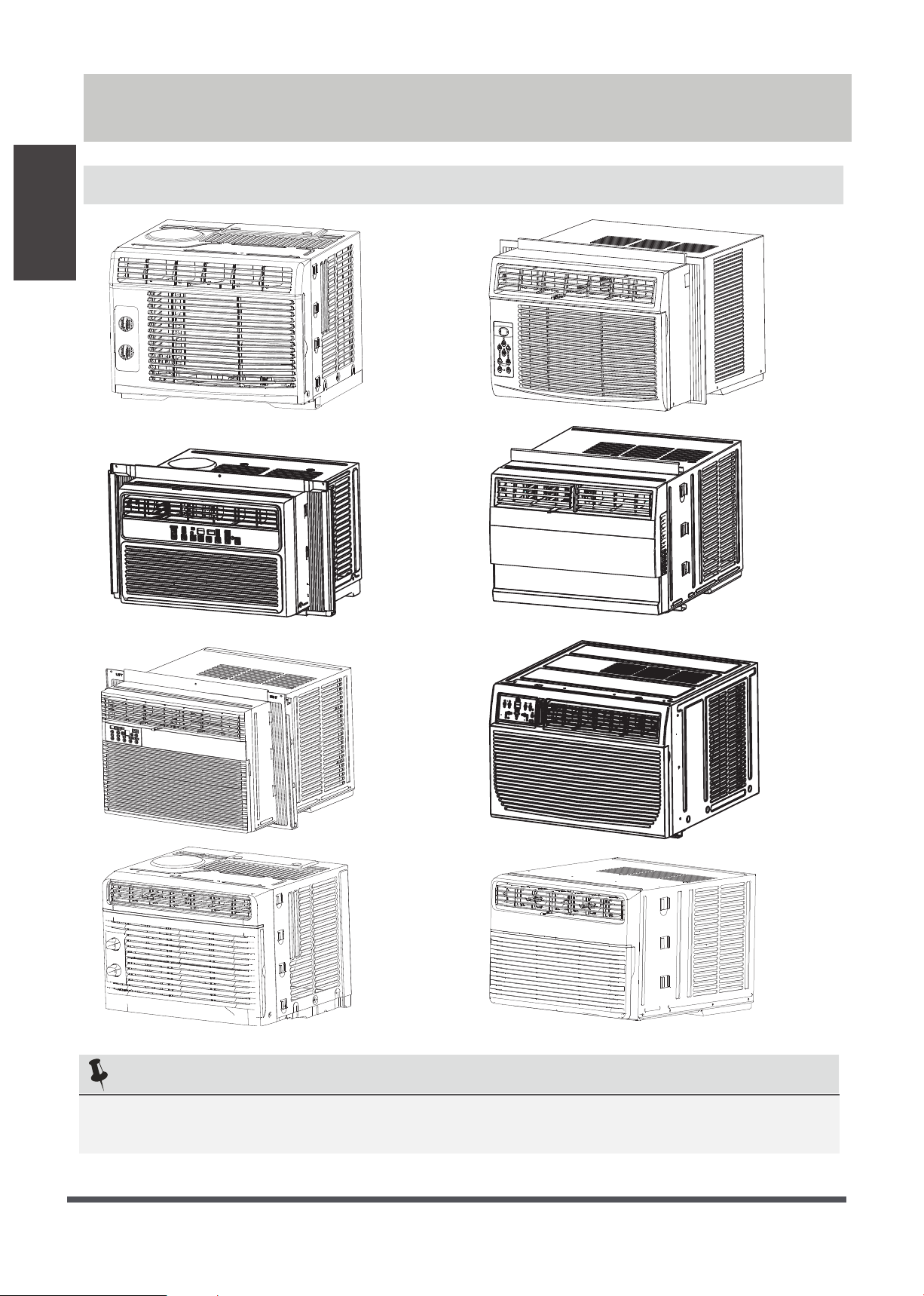

NOTE: The unit you purchased may be look like one of the followings:
All the illustrations in this manual are for explanation purpose only. The air conditioner you
have may be slightly dierent. The actual shape shall prevail.
Page 8 

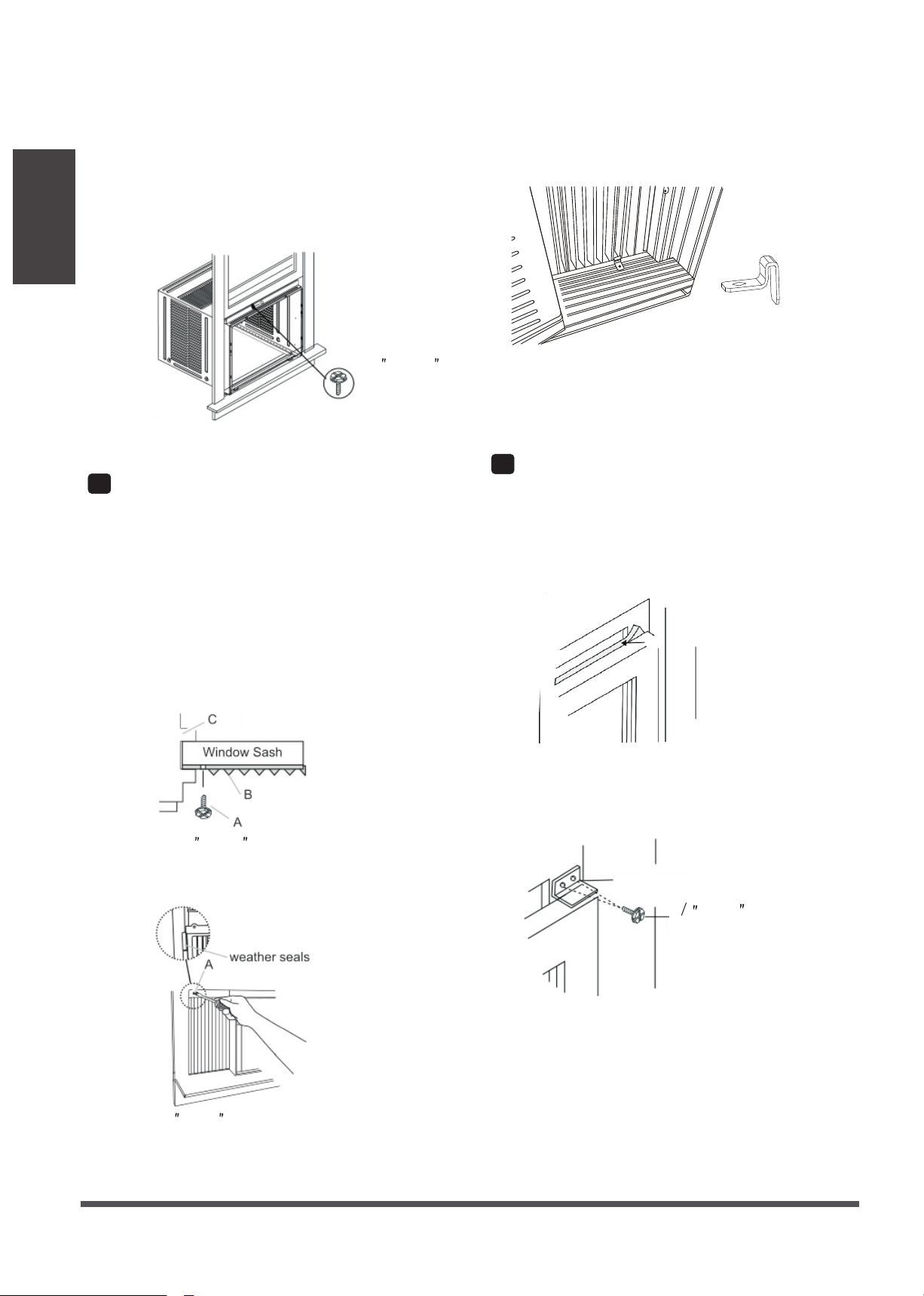

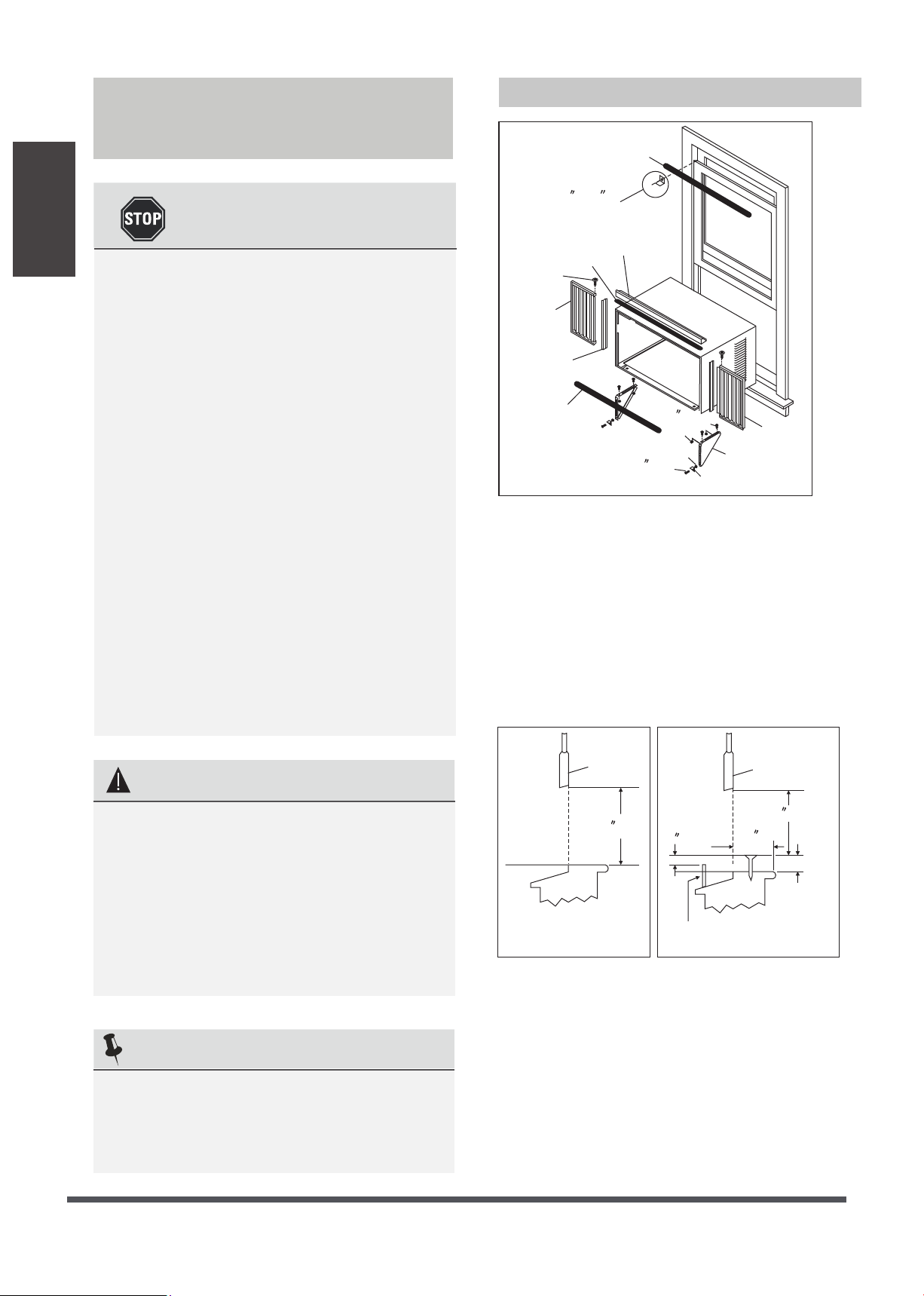

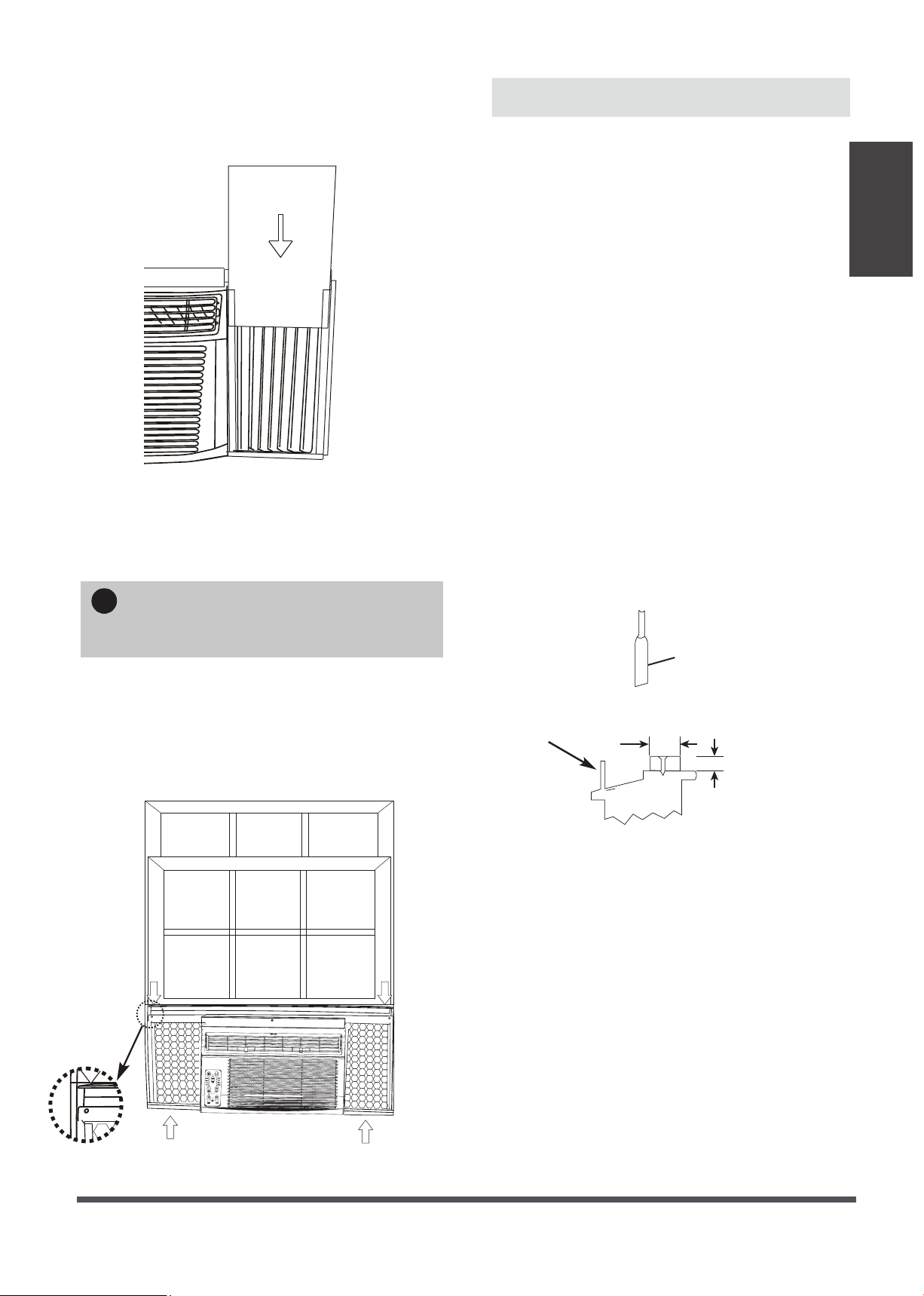

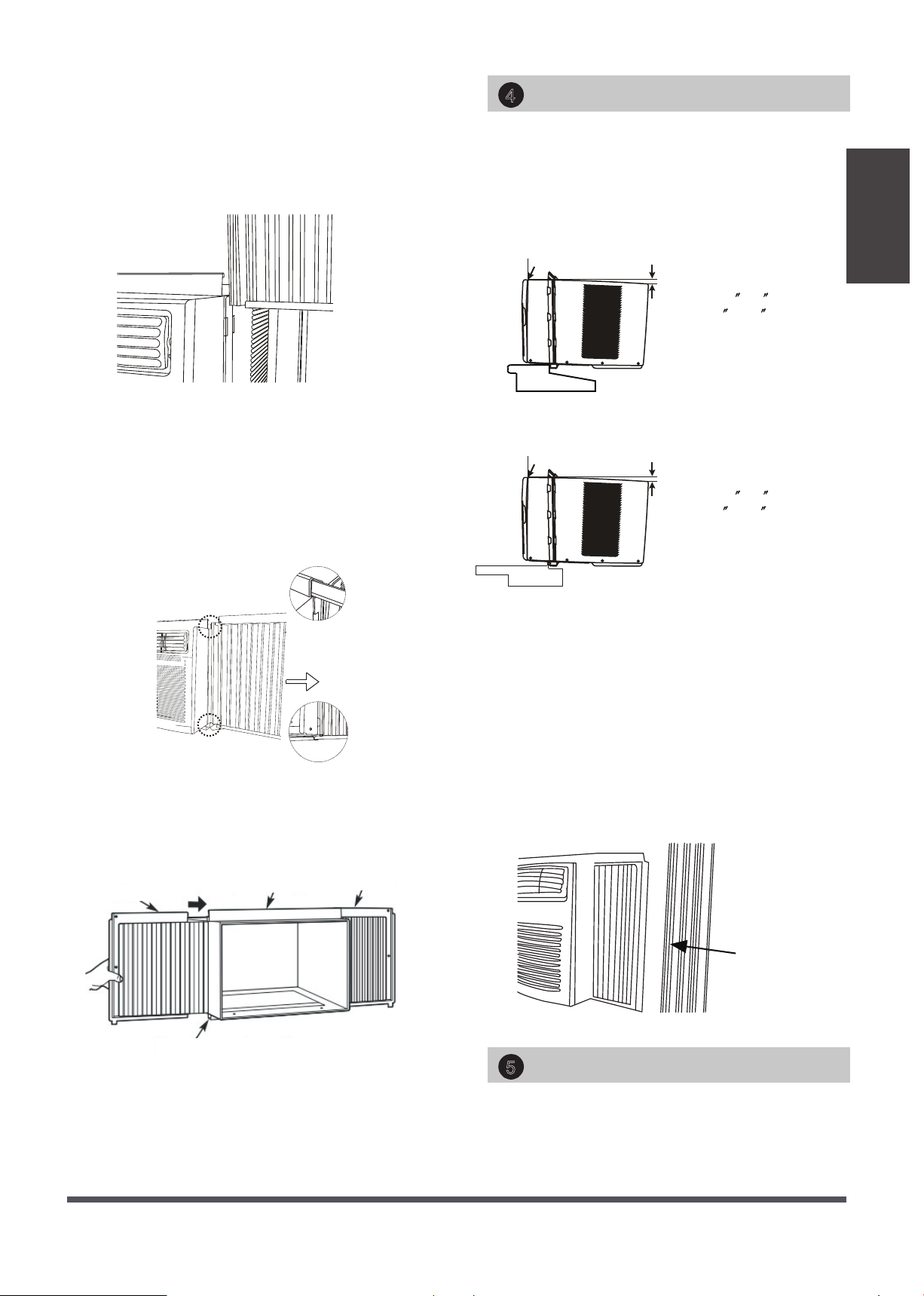

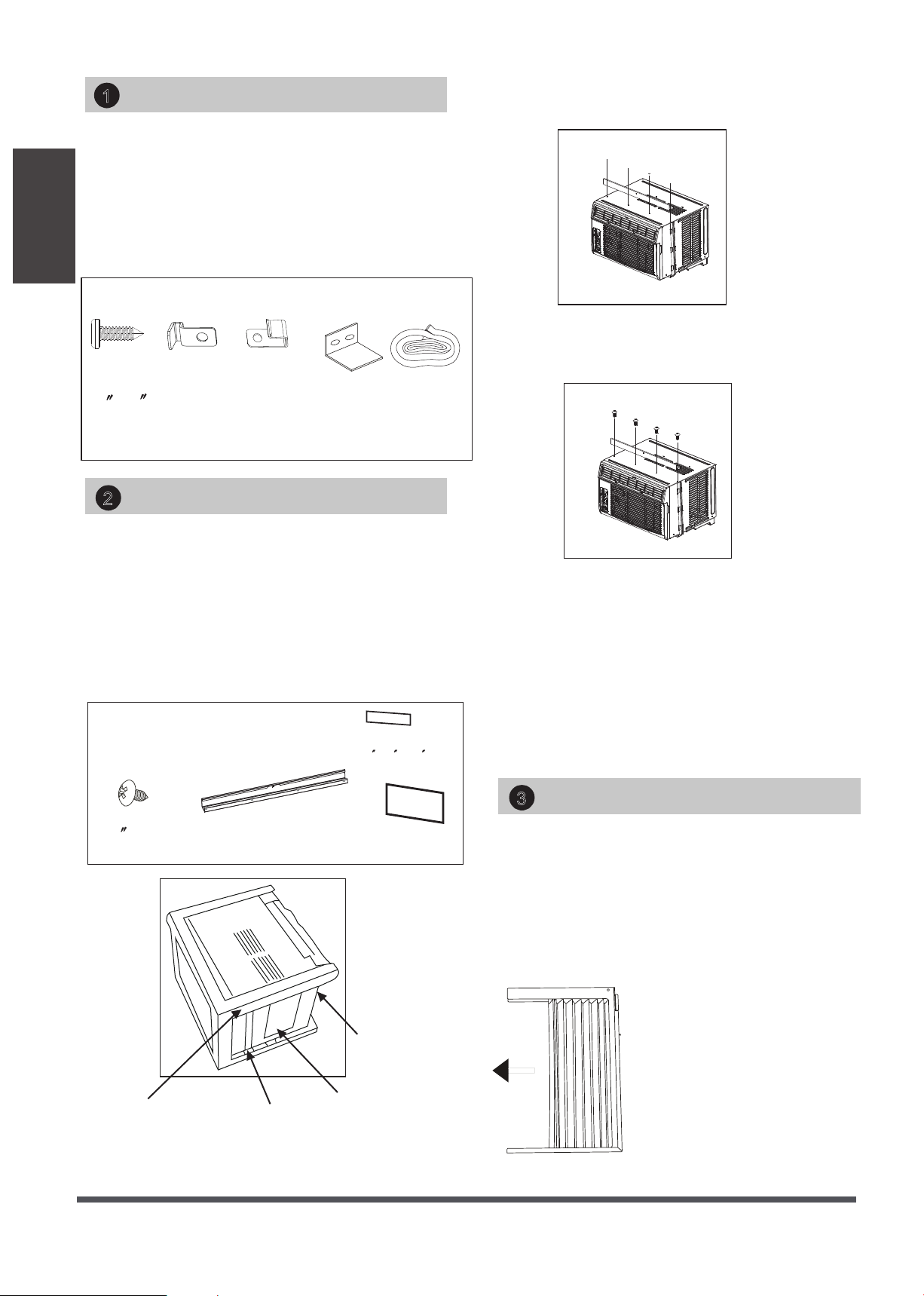

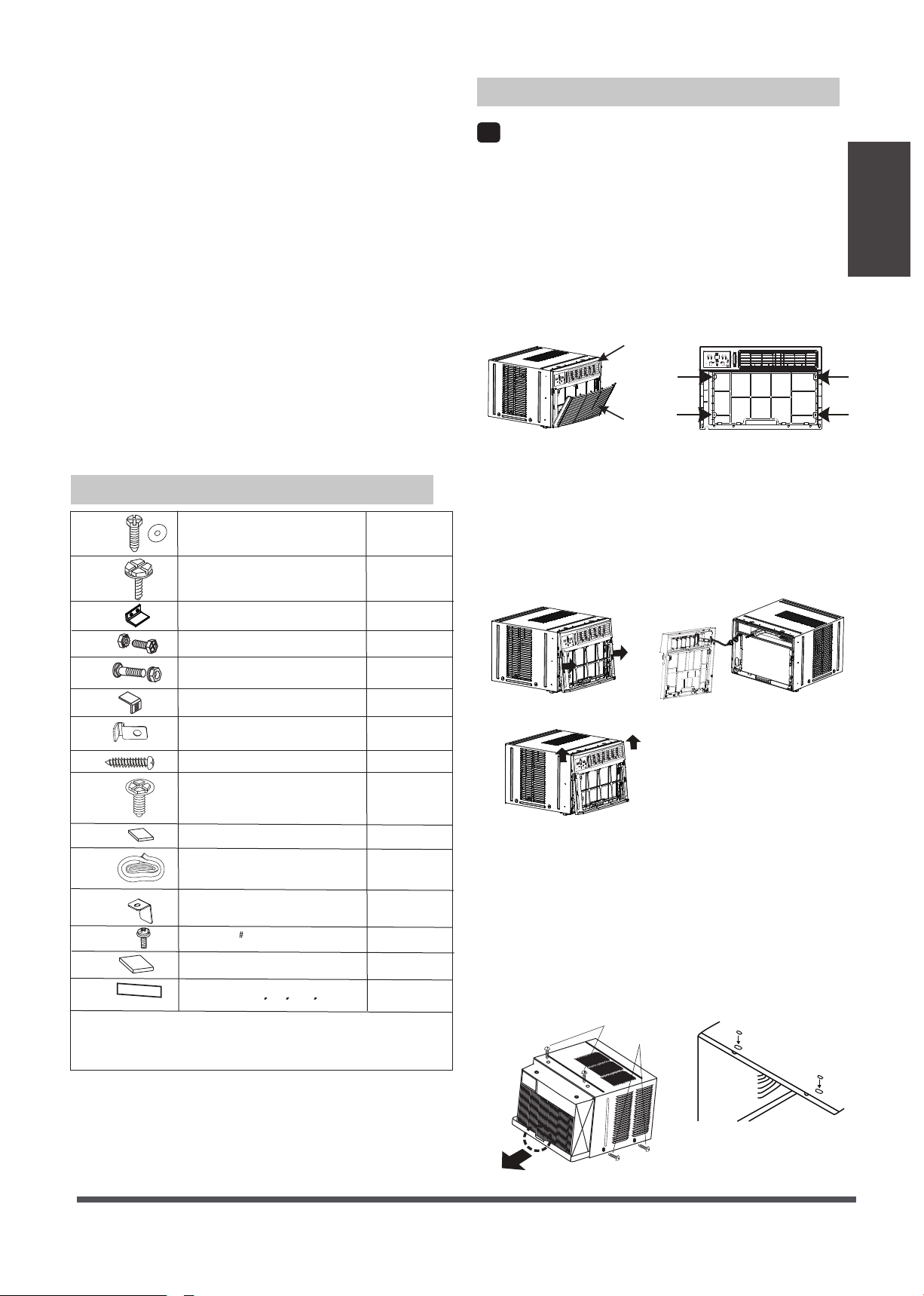

INSTALLATION INSTRUCTIONS

Installation Instructions
(for 5000 to 12000Btu/h)
Installation
Instructions
NOTE:
Save Carton and these Installation
Instructions for future reference. The carton
is the best way to store unit during winter,
or when not in use.
CAUTION
Do not, under any circumstances, cut or
remove the third (ground) prong from the
power cord.
Do not change the plug on the power cord
of the air conditioner.
Aluminum house
wiring may present special
problems- consult a qualied electircian.
When handling unit, be
careful to avoid cuts
from sharp metal edges and aluminum ns
on front and rear coils.
BEFORE YOU BEGIN
Read these instructions completely and
carefully.
MPORTANT-Save these instructions for
local inspector ’ s use.
IMPORTANT-Observe all governing codes
and ordianaces.
Note to Installer- Be sure to leave these
instructions with the Consumer.
Note to Consumer- Keep these instructions
for futrue reference.
Skill level- Installatio of this appliance
requires basic mechanical skills.
Completion time- Approximately 1 hour.
We recommend that two people install this
product.
Proper installation is the responsibility of
the installer.
Product failure due to improper installation
is not covered under the Warranty.
You MUST use all supplied parts and use
proper installation procedures as described
in these instructions when installing this air
conditioner.
TOOLS YOU WILL NEED
TOOLS YOU MAY USE
H
WINDOW REQUIREMENTS
Your air conditioner is designed to install in
standard double hung windows with opening
widths of 23 to 36 inches(584mm to 914mm).
Screwdriver
Level
Screwdriver
Pencil
Ruler or tape
measure
Scissors or knife
Page 9 
Model
H
6000~8000Btu/h
10000~12000Btu/h
14 (356mm)
15-1/2 (394mm)
Table 1
5000~6000Btu/h
13 (330mm)
H

Page 10
Installation
Instructions
3/ 4 (or 1/
Screws
(7)
2 )
Lock Frame
(2)
Sash Lock
(1)
Window sash
seal foam
(1)
Lock Frame
(2)
(For Wooden
windows)
(For Vinyl-Clad
windows)
(on some models)
Lower sash must open suciently to allow a clear
vertical opening of 13 inches (330mm). Side
louvers and the rear of the AC must have clear air
space to allow enough airow through the
condenser, for heat removal. The rear of the unit
must be outdoors, not inside a building or garage.
PREPARE THE WINDOW
1
Mounting Hardware
A: Remove the air conditioner from the carton
and place on a at surface.
B: Remove top rail and R1 hardware and weather
stripping from the packaging material as shown
in Fig. A(R1 hardware and weather stripping are
only available for≥15000Btu / h Energy star
models).
Packaging
Fig.A
Top Rail R1 hardware
R1 hardware
Top Rail Hardware
3/8 Screws
4)
Top Rail
1)
R1 hardware
2)
(10 *3/4 *1/12 )
Weather stripping
5)
PREPARE AIR CONDITIONER
2
3INSTALL THE ACCORDION PANELS
NOTE: The top rail hardware and the Fig.A,
Fig.B and Fig.C are not applicable to the units
more than 10000Btu/h.Before installing unit,
the top rail must be assembled on the unit
(For <10000Btu/h models only).
C: Align the hole in the top rail with those in the
top of the unit as shown in Fig.B
D: Secure the top rail to the unit with the 3/8"
Screws as shown in Fig.C.
Fig.1
Fig.C
Fig.B
NOTE: For safety reasons, all four(4) screws MUST
be securely fastened.
NOTE: Top rail and Sliding Panels at each side
are oset to provide the proper pitch to the rear
of (5/16 "). This is necessary for proper condensed
water utilization and drainage. If you are not
using the Side Panels for any reason, this pitch to
the rear must be maintained.
A.Place unit on oor, a bench
or a table. Hold the Accordion
Panel in one hand and gently
pull back the center to free
the open end. See Fig.1

Page 11
Installation
Instructions
"Ⅰ"section
Top Rail
Bottom Rail
Top Rail
Bottom Rail
Top left
Top right
Fig.2
Fig.3
Fig.4
NOTE: If storm window blocks AC, see Fig. 11.
B. Slide the free end " I" section of the panel
directly into the cabinet as shown in Fig. 2. Slide
the panel down. Be sure to leave enough space
to slip the top and bottom of the frame into the
rails on the cabinet.
C. Once the panel has been installed on the side
of the cabinet, make sure it sits securely inside
the frame channel by making slight adjustments.
Slide the top and bottom ends of the frame into
the top and bottom rails of the cabinet. Fig .3.
D. Slide the panel all the way in and repeat on
the other side.
Wooden Windows
INSIDE
OUTSIDE
H:About 3/4 to 1 （for 5 to 8K);
Measure from the cabinet edge
3
H:About 1 to 1 / （for 10 to12K);
8
H
Vinyl-Clad Windows
INSIDE
OUTSIDE
H:About 3/4 to 1 （for 5 to 8K);
Measure from the cabinet edge
3
H:About 1 to 1 / （for 10 to12K);
8
H
INSTALL SUPPORT BRACKET
5
SECURE THE ACCORDION PANELS
NOTE: Check that air conditioner is tilted back
about H (Fig.5A and Fig.5B) (tilted about 3°to
4°downward to the outside).
After proper installation, condensate should
not drain from the overow drain hole during
normalu se,correct the slope otherwise.
Fig.5A
Fig.5B
Fig.6
A.Keep a rm grip on the air conditioner,
carefully place the unit into the window
opening so the bottom of the air conditioner
frame is against the window sill (Fig.5A and
Fig.5B). Carefully close the window behind the
top rail of the unit.
B.Extend the side panels out against the window
frame(Fig.6).
A.Place the frame lock between the frame
extensions and the window sill as shown(Fig.7A
for Wooden windows), (Fig.7B for Vinyl-Clad
windows) .
window
frame
4

Page12 
Installation
Instructions
Measure the inner width
of the side curtain
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17
1 2 3 4 5 6
Fig.7A Fig.7B
Fig.8A Fig.8B
Fig.9
Fig.10
A: For wooden windows:
Drive 1/ 2" (12.7 mm) locking screws through the
frame lock and into the sill (Fig.8A).
NOTE: To prevent window sill from splitting, drill
1/8 " (3mm) pilot holes before driving screws.
Drive 1/ 2" (12.7mm) locking screws through
frame holes into window sash (Fig.8B).
B: For Vinyl-Clad windows:(on some models):
Drive 1/ 2" (12.7 mm) locking screws through
the frame lock and into the window sashl (Fig.8B).
NOTE: Before driving the screws, use a drill to
drill 5 holes through the holes in the frame lock
and frame extensions into the windows sash as
shown (Fig. 8B).
C.To secure lower sash in place, attach right angle
sash lock with 3/4" (19mm) or 1/2" (12.7mm) screw
as shown(Fig.9).
D.Cut window sash seal foam and insert it in the
space between the upper and lower sashes (Fig. 10).
DRIVE LOCKING SCREWS
6
FOAM SEAL
Fig.11
Fig.12
In order to minimize air leaks and ensure optimal
insulation, it is necessary to install the included
R1 hardware to the side curtain. Follow the
instructions below.
Step 1. After the unit is installed to the window,
measure the inner width of the side curtain as
shown (Fig.11).
Step 2. Remark a line on the provide R1 insulation
panel according to a length 1/8 “ (3mm) less than
the measured width in step 1, then cut the R1
insulation panel along the line (Fig .12).
INSTALL R1 HARDWARE (only
applicable to ≥15000Btu/h Energy
star models )
7
or

Page 13
Installation
Instructions
8INSTALL WEATHER STRIPPING
(only be applicable to Energy star
models )
Fig.13
Fig.14
Step 3. Slide the R1 insulation panel into the side
curtain, the side with pattern should facing the
indoor side.(Fig.13)
Step 4. Repeat on the other side.
In order to minimize air leaks between the room
air conditoner and the window opening, trim the
weather stripping with a proper length, peel o
the protective backing and plug any gaps if
needed (Fig .14).
Board
thickness
as required,
for proper
pitch to rear,
along entire
sill. Fasten
with nails or
screws.
Storm window
frame or other
obstruction.
SASH
1-1/2"min
(38 mm)
If AC is Blocked by Storm Window
Fig.15
Add wood as shown in Fig.15, or remove
storm window before air conditioner is
installed.
If Storm Window Frame must remain, be sure
the drain holes or slots are not caulked or
painted shut. Accumulated Rain Water or
Condensation must be allowed to drain out.
Removing AC From Window
Turn AC o, and disconnect power cord.
Remove sash seal from between windows, and
unscrew safety sash lock.
Remove screws installed through frame and
frame- lock.
Remove the R1 Panel and close (slide) side panels
into frame.
Keeping a rm grip on air conditioner, raise sash
and carefully remove.
Be carefully not to spill any remaining water while
lifting unit from window. Store parts WITH air
conditioner.

Page 14 
Installation Instructions
(for 15000 to 28500Btu/h)
Installation
Instructions
CAUTION
Do not, under any circumstances, cut or remove
the third (ground) prong from the power cord.
Do not change the plug on the power cord of
the air conditioner.
Aluminum house wiring may present special
problems- consult a qualied electircian.
When handling unit, be careful to avoid cuts
from sharp metal edges and aluminum ns on
front and rear coils.
BEFORE YOU BEGIN
Read these instructions completely and
carefully.
IMPORTANT-Save these instructions for
local inspector ’ s use.
IMPORTANT-Observe all governing codes
and ordianaces.
Note to Installer- Be sure to leave these
instructions with the Consumer.
Note to Consumer- Keep these instructions
for futrue reference.
Skill level- Installation of this appliance
requires basic mechanical skills.
Completion time- Approximately 1 hour.
We recommend that two people install this
product.
Proper installation is the responsibility of
the installer.
Product failure due to improper installation
is not covered under the Warranty.
You MUST use all supplied parts and use
proper installation procedures as described
in these instructions when installing this air
conditioner.
NOTE:
Save Carton and these Installation
Instructions for future reference. The carton
is the best way to store unit during winter,
or when not in use.
Do the following before starting to install unit.
See illustrations below.
Check dimensions of your unit to determine
model type:
Unit Height: 18 5/8 " 17 5/8 ''
Unit Width: 26 " 23 "
Min. Window Opening: 19 " 18 "
Min. Window Width: 31" 28"
Max. Window Width: 42" 40 "
1 .Check window opening size-- the mounting
parts furnished with this air conditioner are
made to install in a wooden sill double-hung
window. The standard parts are for window
dimensions listed above. Open sash to a
minimum of 19 inches(483mm). See Fig.D.
2.Check condition of window-- all wood parts
of window must be in good shape and able to
rmly hold the needed screws. If not, make
repairs before installing unit.
12
/
12
/12
/
12
/
58
/
SASH
.
19 MIN.
indow Frame or
bstruction Storm Window
Frame or Other
Obstruction
Board
Thickness
As Required,
Along Entire
Sill. Fasten
With Two Nails
Or Screws.
/2 MIN.
1/2 MIN.
1
19 MIN.
SASH
Window Sash Seal
Safety Lock and
3 /4 (or1/2 ) Long
Hex Head Screw
Top Angle
Foam Gasket
Washer Head
Locking screw
Frame
Assembly
(Left)
Side Retainer
Bottom rail
seal to Unit 1 /2 Long
Screw and
Locknuts
Locknut
3 /4 Long
Flat Head
Bolt Sill Angle
Bracket
Window Support
Bracket
Frame
Assembly
(Right)
Preliminary Instructions
Fig.D Fig.E

Installation
Instructions
Page 15 
Locking screw 10X 1/ 4 panhead
screws (for Vinyl-Clad window)(on some models)
Phillips
7/16 inch Locking screw and
Flat washer for window panels
3 / 4 （or 1/2)inch Long
Hex-head Screw
Safety Lock
1 / 2 inch Long screw and Locknut
3 / 4 inch Long Flat Head
Bolt and Locknut
Sill Angle Bracket
Long hex-head locking
screw for top angle, side
retainer 5 /16 inch Long
2 ea.
7
1
4ea.
2ea.
2
10
Foam insert 2
Window sash
seal foam 1
R1 hardware 2
(10 *3/4 *1/12 )
NOET: R1 hardware and Weather stripping is only
for Energy star models 15000Btu/h models
only .
(for ≥
)
Weather stripping 5
Safety Lock
(for Vinyl-Clad window)(on some models)
2
2
Lock Frame(For Wooden
windows)(on some models)
2
3 / 4 inch Long Screw(on some models)
2
3. Check your storm windows-- if your storm
window frame does not allow the clearance
required, correct by adding a piece of wood
as shown in Fig.E,or by removing storm window
while room air conditioner is being installed.
4 .Check for anything that could block airow-
check area outside of window for things such
as shrubs, trees, or awnings. Inside, be sure
furniture, drapes, or blinds will not stop proper
airow.
5. Check the available electrical service- Power
supply must be the same as that shown on the
unit serial nameplate. Power cord is 48 inches
long. Be sure you have an outlet near.
6. Carefully unpack air conditioner- Remove all
packing material. Protect oor or carpet from
damage. Two people should be used to move
and install unit.
Tools Required
A large at blade screwdriver; Tape measure;
Adjustable wrench or pliers; Pencil; Level Socket
wrenches; Phillips Screwdriver.
Hardware(Packed with the unit)
1
Front Grille
Front Panel
shipping
screws
Remove Air Conditioner from Cabinet
A. Window Mounting
NOTE: Remove any packaging material from
cabinet exterior.
1. Pull down front grille and remove lter.
(See Fig.1).
2. Lift front grille upwards and place to one side.
3. Locate the four front screws and remove. These
screws will be needed to re-install the front panel
(see Fig.2).
4. Push metal cabinet side to release plastic tabs
on each side of front panel (see Fig.3).
5. Gently lift front panel o unit(see Fig.3A).
6. Disconnect the connector plug of the display
panel from the unit and place front panel to
one side(see Fig.4).
7. Remove shipping screws from top of unit and
also on the side by the base if installed(see Fig.5).
8. Hold the cabinet while pulling on the base
pan handle, and carefully remove the unit.
9. Add two foam inserts to holes in top of
cabinet where shipping screws were
removed from (see Fig .6)
Fig.1 Fig.2
Fig.3
Fig.3A
Fig.4
Fig.5 Fig.6

Installation
Instructions
Page 16 
2
3
Plastic
Frame
Window Filler
Panel
Side Retainer
5 16 long
hex-head
/
Shipping Packaging
Plastic tie
Top
View
Air Conditioner
Cabinet Plastic
Frame
"Ⅰ" Section Window
Filler
Panel
Locking
Screw
Hole
Window
inner Sill
Sill
Angle
Window
outer Sill
10. Your unit may come with internal packaging.
This packaging must be removed prior to installing
the air conditioner back into the cabinet.(see Fig .7).
1. Attach foam gasket to top angle above holes as
shown in Fig.6.
2. Install top angle and side retainers to cabinet as
shown in Fig.8(10 screws).
1. Place cabinet on oor, a bench, or a table.
2. Slide "I ' section of window ller panel into
side retainer on the side of the cabinet (see Fig.9
& Fig.10).
Do both sides.
3. Insert top and bottom legs of window ller
panel frame into channel in the top angle and
bottom rail. Do both sides.
4. Insert washer head locking 7/16” screws (2) into
holes in top leg of ller panel frame (see step 6). Do
not totally tighten. Allow leg to slide freely. Screws
will be tightened after section 6.
1. Open window and mark center of window inner
sill as shown(Fig.11).
2. Place cabinet in window with bottom sill angle
rmly seated over window sill as shown. Bring
window down temporarily behind top angle to
hold cabinet in place(Fig.12).
3. Shift cabinet left or right as needed to line up
center of cabinet on center line marked on inner
sill.
4. For wooden window: Fasten cabinet to window
inner sill with two screws into holes (Fig.13) (You
may wish to pre-drill pilot holes).
For Vinyl-Clad window: Place two safety locks into
the holes located in the bottom of the cabinet and
drive two #10X1/4" pan-head Phillips locking screws
through the safety locks into the cabinet as shown
(FIG.13B)(on some models).
5. Remove protective strip from adhesive side of
Bottom Rail Foam Seal.
Apply Seal over screws fastening bottom rail to
window inner sill.
Fig.7
Fig.8
Fig.9
Fig.10
Fig.11 Fig.12
Install top angle and side retainers
Assemble Window Filler Panels
4Place Cabinet in window

Page 17 
Installation
Instructions
1 2 Long Screws
And Locknuts
Left
Right
Sill Angle
Bracket
Flat Head
Bolt
2 Each Required For
Each Support Bracket
Locknut
Mark
1 2 Long Screws
and Locknuts
L oc king S c rew
7/16"Locking Screw
and Washer
1/4
5/8
5
Side Louvers
Window Sash
Window Sill
Sill Angle Bracket
1 5
About1 / to1 /
4 8
Measure from
the cabinet edge.
3 4 (or1 )Long
Hex-head Screw
/2
1. Hold each support bracket ush against outside
of sill, and tight to bottom of cabinet as shown in
Fig.15A. Mark brackets at top level of sill and remove.
2. Assemble sill angle bracket to support brackets
at the marked position(Fig.15B).
Hand tighten, but allow for any changes later.
3. Install support brackets(with sill angle brackets
attached) to correct hole in bottom of cabinet as
shown in Fig.16.
4. Tighten all 6 bolts securely.
1. Carefully raise window to expose ller panel
locking screws. Loosen screws so ller panels
slide easily.
2. Extend panels to ll window opening
completely. Tighten locking screws on top
(Fig.17).
3. Close window behind top angle.
Fig.13 Fig.13B
Fig.15B
Fig.16
Fig.17
Fig.14
Fig.15A
5Install Support Bracket
6Extend Window Filler Panels
NOTE: Check that air conditioner is tilted back about
1 "to 1 " (tilted about 3° to 4°downward to the
outside). After proper installation, condensate should
not drain from the overow drain hole during
normal use,correct the slope otherwise (Fig .14).

Page 18 
Installation
Instructions
Window Sash Seal
Fig.18A
A.3/ 4 (or 1/2 ) long hex head screw
B. Left-hand Window Filler
Panel Top Leg
C. Window channel
Fig.18B
A.3/ 4 (or1/2 ) long hex head screw
Safety Lock
3 4 (or1 )Long
Hex-head Screws
/2
1. Extend the window ller panels out against
the window frame.
2. Use a 1/8" drill bit to drill a starter hole
through the hole in the top leg of each window
ller panel and into the window sash (Fig. 18A
and Fig. 18B). Connect with one 3/ 4 " (or 1/ 2")
long hex head screw.
1. Trim sash seal to t window width. Insert
into space between upper and lower sashes
(Fig.18).
2. Attach right angle safety lock (Fig. 19).
4. Attach the top angle to window frame: Use a
3/32" drill bit to drill one hole through the hole
in the middle of top angle into the window frame,
and drive one 3/ 4 " (or 1/ 2 '' ) HEX-HEAD locking
screw through hole in the middle of top angle
into the window frame as shown (Fig.17A)
3. Attach the Lock Frames to the winow sill
using two 3/ 4 " (19mm) screws(Fig.18C)
(on some models)
7Attach Window Filler Panels to
Window Frame
8Install Window Sash Seal and Safety
Lock
Fig.17A
Fig.18C
Fig.18
Fig.19
3/ 4 (or 1/ 2 ) long
HEX-HEAD
SCREW

Installation
Instructions
Page 19 
or
Measure the inner width
of the side curtain
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17
1 2 3 4 5 6
1. Lift air conditioner and carefully slide into
cabinet leaving 6 inches protruding.
2. DO NOT push on controls or nned coils.
3. Be sure chassis is rmly seated towards rear of
cabinet.
4. Installation of front is the reverse of removal
outlined in Section 1.
In order to minimize air leaks and ensure optimal
insulation, it is necessary to install the included R1
hardware to the side curtain. Follow the
instructions below.
Step 1. After the unit is installed to the window,
measure the inner width of the side curtain as
shown (Fig.20).
Step 2. Remark a line on the provided R1
insulation panel according to a length 1/8 "
(3mm) less than the measured width in step 1,
then cut the R1 insulation panel along the line
(Fig. 12).
Step 3. Slide the R1 insulation panel into the
side curtain, the side with pattern should facing
the indoor(Fig. 22).
In order to minimize air leaks between the room
air conditoner and the window opening, trim the
weather stripping with a proper length, peel o
the protective backing and plug any gaps if
needed (Fig.23).
Step 4. Repeat on the other side.
9Install Chassis into Cabinet and Install
Front to Unit
10 NSTALL R1 HARDWARE (only applicable
to ≥15000Btu/h Energy star models )
11 INSTALL WEATHER STRIPPING (only
applicable to Energy star models )
Fig.20
Fig.21
Fig.22
Fig.23

Installation
Instructions
Page 20
NAIL SPACERS
TO STUDS
LEVEL
Caulks
Required
Aluminum Flashing
Over Bottom Of Frame Over
8-1/2
)
Inside Frame Height: 18-7/8"(47.9cm) or18" (45.7cm)
Inside Frame Width: 26-3/4"(67.9cm) or 23-7/8"(60.6cm
Frame
Height
Inside
Frame
Y
Inside
Width
Up to 8-1/2"
3-3/8" MIN
(8.6 cm)
2Prepare Wall
1Select Wall Location
B. Thru-The-Wall Installation
NOTE: Consult local building codes prior to
installation or a qualied carpenter.
NOTE: If wall thickness is 8-1/2 " or more, add
aluminum ashing over bottom of frame opening
to assure no water can enter area between inner
and outer wall.
The air conditioner has a slide-out chassis, so
that it can be installed through an outside wall
as specied below:
Max. Wall thickness: 12" or 10"
IMPORTANT: Side louvers must never be blocked.
NOTE: All parts needed for Thru-The-Wall
Installation are provided, except a wood frame,
shims, and 10 wood screws(#10-1" long minimum).
Select a wall surface that:
1. does not support major structural loads such
as the frame construction at ends of windows,
and under truss-bearing points, etc.
2. does not have plumbing or wiring inside.
3. is near existing electrical outlets or where
another outlet can be installed.
4.is not blocked to the area to be cooled.
5. allows unblocked airow from rear sides and
end(outside) of installed air conditioner.
1. Prepare wall in frame construction (including
brick and stucco veneer). Working from inside
the room, nd wall stud nearest the center of
area where air conditioner will be installed (by
sounding wall or by magnetically nding nails).
2. Cut or knock out a hole on each side of center
stud.
3. Measure between inside edges of every other
stud as shown in Fig.1.
4. Build a wooden frame with the INSIDE dimensions
of your model listed above. (Remember to measure
twice). Frame depth should be the same as wall
thickness. Fill in the space from the opening to the
studs with wood spacers,as shown.
5. Nail frame to spacers to spacers with front ush
with drywall.
Carefully measure and cut an opening with the
following dimensions depending on your model.
See Fig.1 and Fig.2.
WIDTH " X"= inside model width plus twice the
thickness of framing material used.
HEIGHT '' Y " = inside model height plus twice the
thickness of framing material used.
Fig.2
Fig.3
Fig.4
Fig.1
