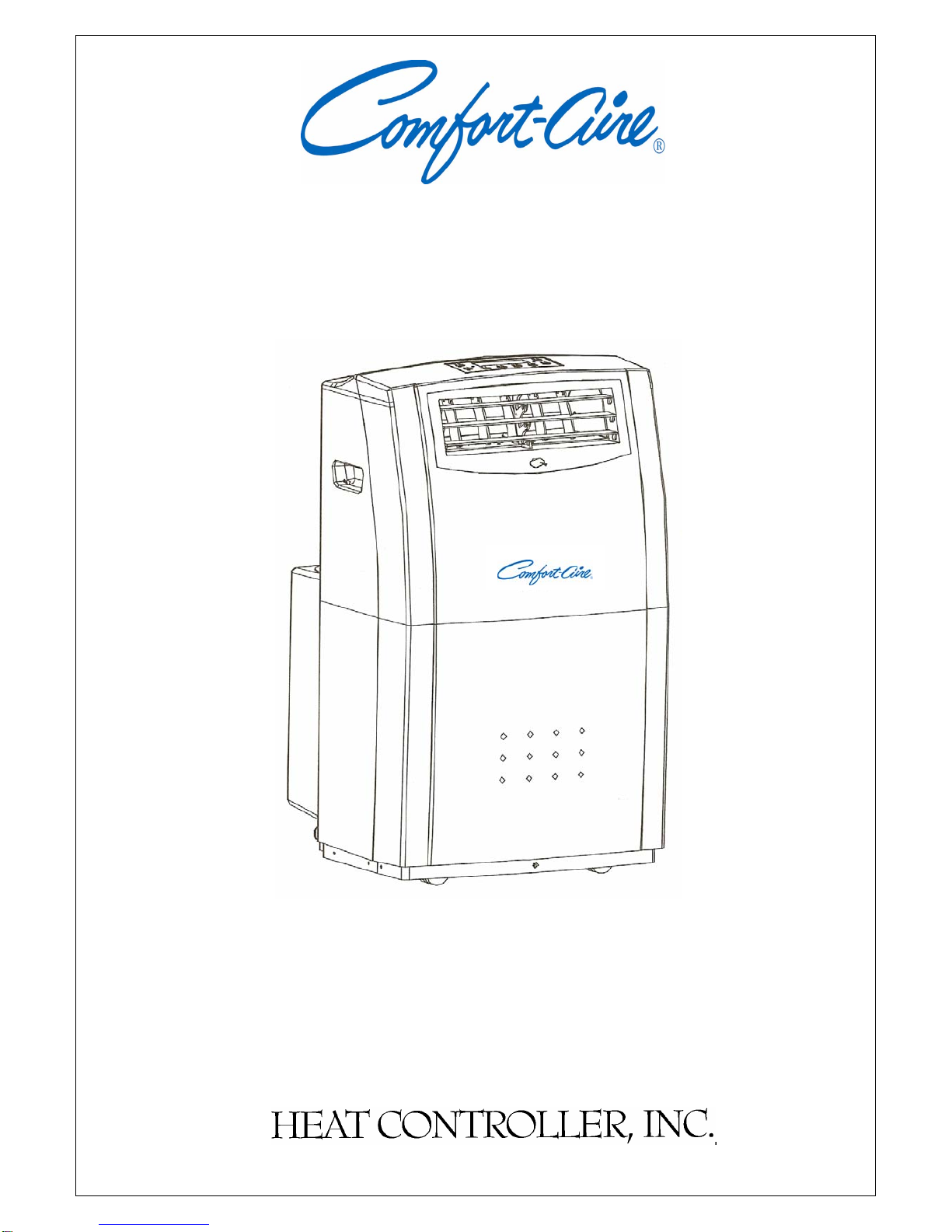

Comfortaire PE-121A User manual

Model: PE-91A
PE-121A
PORTABLE AIR CONDITIONER
OWNER’S MANUAL
COOL - HEAT - DEHUMIDIFY

SECTION PAGE
1. BEFORE USE............................................................ 3
2. QUICK SET UP.......................................................... 4
3. INTRODUCTION........................................................ 5
4. SUGGESTIONS FOR USE ........................................ 5
5. SPECIFICATIONS...................................................... 6
6. PARTS & ACCESSORIES......................................... 7
7. SAFETY ..................................................................... 8-9
8. INSTALLATION.......................................................... 10-11
9. OPERATION .............................................................. 12-17
9.1 Control Panel................................................................ 12
9.2 Remote Controller........................................................ 13
9.3 Operation in Auto, Cool, Heat, Dry & Fan Mode ........ 14-15
9.4 Timer Setting Procedure.............................................. 16
9.5 Air Flow Direction Control........................................... 17
10. DRAIN EXCESS CONDENSATE WATER ............................. 18
11. MAINTENANCE ..................................................................... 19-20
12. TROUBLESHOOTING GUIDE............................................... 21
13. WIRING DIAGRAM………………………………………………. 22
2
Heat Controller, Inc.
 1900 Wellworth Avenue  Jackson, MI 49203
INDEX
PLEASE READ CAREFULLY. KEEP THIS INSTRUCTION MANUAL FOR FUTURE
REFERENCE.

3
Heat Controller, Inc.
 1900 Wellworth Avenue  Jackson, MI 49203
Keep your ORIGINAL purchase
receipt.
Your receipt is your proof of
purchase and may be necessary
for warranty service.
BEFORE USE
1
.
READ THIS ENTIRE INSTRUCTION MANUAL BEFORE USE
! ATTENTION !
This manual describes installation, operation, and maintenance of the
portable air conditioner product.
If you need assistance, please call:
CUSTOMER SERVICE
1-517-787-2100
FOR FUTURE REFERENCE, PLEASE RECORD THE FOLLOWING:
Model No.: ________________________________________________
Serial No.:_________________
Date of Purchase: _______________________________

4
Heat Controller, Inc.
 1900 Wellworth Avenue  Jackson, MI 49203
QUICK SET UP
2.
Unpack the unit:
•Remove the foam cap.
•With two people, lift and
remove the unit from the
foam packing base
without tilting the unit.
•Remove the plastic bag.
Check to see if unit is complete
including all parts and
accessories (Ref. Section 6,
Parts & Accessories).
Test LCDI Plug. (Ref. Section
7, Safety Rules).
Place the unit UPRIGHT to
allow the refrigerant and oil to
stabilize. Wait 3 hours before
using. (Ref. Section 7,
Safety).
Attach air inlet and air outlet hose. Follow instructions per Section 8,
Installation.
Plug the unit into a properly grounded 15 Amp, 115V AC, circuit. (Ref.
Section 7, Safety Rules).
Follow Section 9, Operation to set preferred function mode. When
Water-Full indicator illuminates, empty the residual condensate water. (Ref.
Section 10, Drain Excess Condensate Water).
Handle your unit with care. Move it gently. Always keep air filter clean.
Do not cover air inlet grid and air outlet grid.

5
Heat Controller, Inc.
 1900 Wellworth Avenue  Jackson, MI 49203
INTRODUCTION
3.
This Portable Air Conditioner is designed for improving living and working
comfort by adjusting the temperature and humidity in a room. Its mobility
makes it easy to use in various rooms.
This unit is provided with one outside air inlet hose and one hot-air outlet hose
to enhance cooling performance. This unit has an Auto Restart function. In
case of power failure, the unit will restart in the last setting selected when
power resumes.
To ensure the optimal efficiency of the air conditioner, keep doors and windows
closed. In order to optimize the functioning of your air conditioner, close
window coverings to minimize sun load in the room.
This unit has a three-minute compressor delay protection circuit
SUGGESTIONS FOR USE
4.
1. This unit is designed for use indoors only and is not intended for outdoor
use.
2. Do not locate the unit where furniture or other objects can obstruct the
cooling airflow on back or above unit.
3. Prevent any kink or sharp bend in the air inlet and hot-air outlet hoses.
4. Unit must always be used in an upright position.
5. After unpacking, place the unit upright to allow the refrigerant and oil to
stabilize. Wait 3 hours before using.
6. Place the unit on the floor not on a table or other elevated surface.
7. Keep the filter clean.

PE-91A / PE-121A
Electrical Supply 115V / 60 Hz
Cooling Capacity (BTUH) 9000 / 12000
Heating Capacity (BTUH) 3412 / 4265
Cooling Amps 10.0 / 11.5
Heating Amps 8.7 / 10.9
Dehumidifying Capacity (Pts/Hr) 2.5 / 2.8
Refrigerant R22
Fan Speeds Low / Med / Hi
Airflow (CFM) 210
Noise Level dB(A) 51 / 52
Net Weight (lb) 85.5 / 87.5
Product Dimension (in) 19.1(W) x 19.4(D) x 31.9(H)
Max. Length of Air Inlet and Outlet Hose (in) 71
Programming Timer (hr) 1 - 24
6
Heat Controller, Inc.
 1900 Wellworth Avenue  Jackson, MI 49203
SPECIFICATIONS
5.

a.
7
Heat Controller, Inc.
 1900 Wellworth Avenue  Jackson, MI 49203
PARTS & ACCESSORIES
6.
Upper drain port
Lower drain port
(Rubber plug inside)

8
Heat Controller, Inc.
 1900 Wellworth Avenue  Jackson, MI 49203
SAFETY
7.
Connection to the main electrical supply must comply with local and national
electrical codes.
1. Do not damage the power cord.
2. Never lay this unit down. Operate in upright position only.
3. Be sure that air inlets and outlets are not blocked or covered up.
4. Never place anything on top of the unit.
5. Do not use this product outdoors.
6. Never connect the unit to a defective outlet.
7. Plug the unit into a properly grounded 15 Amp, 115V AC circuit. Check
your breaker box to determine which circuit the outlet is on. A dedicated
circuit is recommended.
8. Make sure that the unit is correctly connected before turning on the unit.
9. Do not use the plug as a disconnecting means.
10.DO NOT USEAN EXTENSION CORD for this unit.
11.Do not use an adapter plug to a two slot outlet unless proper grounding of
the outlet and/or ground wire is verified. Consult an Electrician.
12.Do not bend or crush the air inlet or air outlet hoses.
13.Do not allow children to play near the unit.
14.Do not place the power cord under a carpet.
15.Keep the area around the exhaust port/air inlet and air outlet hoses
sufficiently clean and make sure that it is not congested.
16.For any repairs, refer directly to our Customer Service Department.
Repairs carried out by unqualified people may cause damage or may
even be dangerous and may void the warranty.
DO NOT:
•Place objects inside the air outlet or air inlet grid.
•Use this unit inside closets or cabinets.
•Repair, disassemble and/or modify the unit by yourself.
•Use this unit in proximity to inflammable and/or explosive substances.
•Operate this unit without filter.
Before cleaning this unit, make sure that it is unplugged. Do not wash the unit
with water, gasoline or solvents of any kind. (See Section 11).
To avoid the risk of shock, the product should never be used in bathrooms,
shower rooms, or in any other steamy or wet areas.
Do not use the unit on a table as the unit is supported by wheels. Place unit on
level floor.

9
Heat Controller, Inc.
 1900 Wellworth Avenue  Jackson, MI 49203

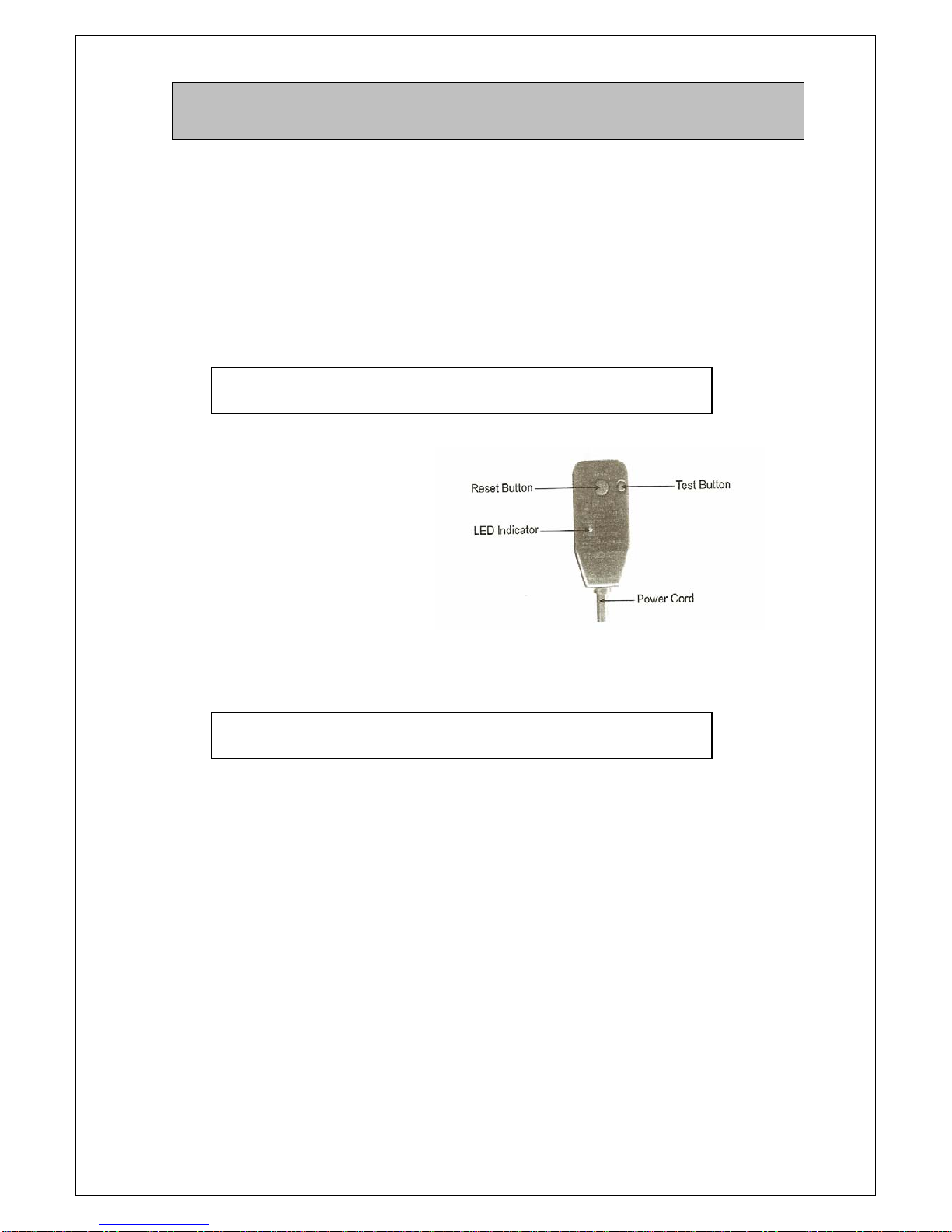

This unit is provided with Leakage Current Detection and Interruption circuit
(LCDI) built into the plug of the power supply cord. This device provides
protection to reduce the risk of fire due to arcing faults in the power supply
cord. Before use, follow the “Plug Testing Instructions” to ensure that the
LCDI circuit functions properly.
PLUG TESTING INSTRUCTIONS:
1. Press Test Button.
It should trip.
2. Press Reset Button
firmly for use. Reset
Button may require
pressure to engage.
DO NOT USE IF ABOVE TEST FAILS
Do not use the TEST and RESET buttons as an on/off switch. They are
only meant to be used for periodically checking the LCDI plug.
CALL CUSTOMER SERVICE IF TEST FAILS.
Replace defective cords only with genuine replacement parts from
Heat Controller.
SAFETY (continued)
7.
(Plug on unit may vary from picture.)

10
Heat Controller, Inc.
 1900 Wellworth Avenue  Jackson, MI 49203

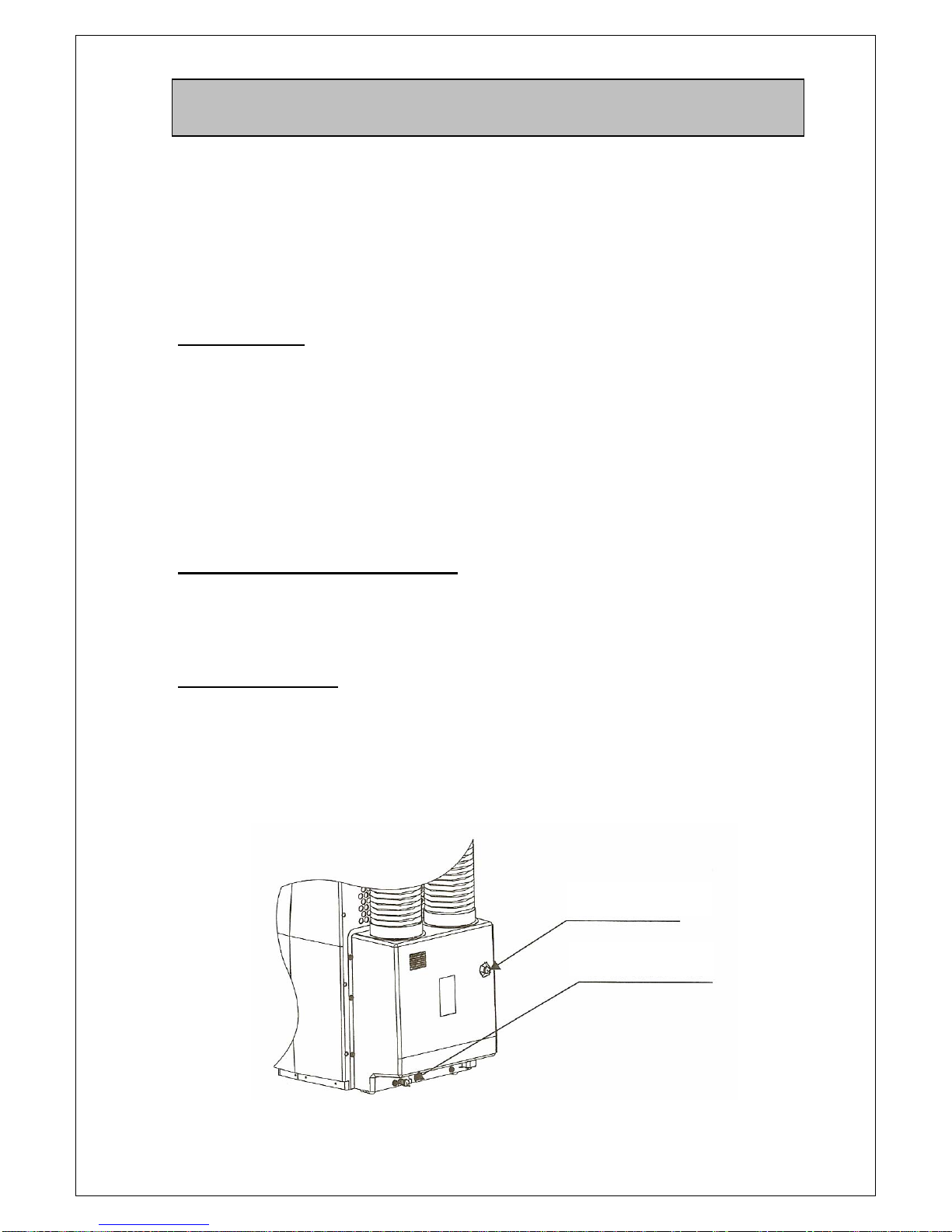

INSTALLATION
8.
When this portable air conditioner operates in the cool mode, fresh outdoor air
must be directed into the unit and hot air must be exhausted out of the room to
complete heat exchange of the condenser. When the unit operates in FAN or
HEAT mode, no outdoor air is used hence it is not necessary to complete
window kit installation.
Installation Kit:
Air Inlet & Air Outlet Hose (2 sets) Telescoping Window Panel Kit
Unit with Hoses Attached Cover the Exhaust Port When Unit Not in Use
There are two exhaust ports at the back of the unit. Cover the exhaust ports
when unit is not in use. To ready unit for installation, remove the exhaust port
cover by turning in a counter-clockwise direction.

11
Heat Controller, Inc.
 1900 Wellworth Avenue  Jackson, MI 49203
1. Measure the window the unit will be installed into and adjust the telescoping
Window Panels to fit into the window. If window is either too wide or too
tall, fill the remaining space with foam or other appropriate material. Make
sure that the holes on the Window Panel are exposed for connection of
Window Kit Adaptor.
2. Screw the hose clockwise into the Terminal End, and the other end of the
hose to the Window Kit Adaptor. Apply same procedures to both air inlet
hose and air outlet hose.
3. Secure the Terminal End to the Exhaust Port. Apply same procedures to
both air inlet hose and air outlet hose.
4. Connect the Window Kit Adaptor to each of the holes on the Window Panel.
VERTICAL HORIZONTAL
INSTALLATION
8.
8.1 Installation Procedures

NOTE: To toggle the displayed temperature between °C and °F, press the
ON/OFF button for approximately 20 seconds and then release. (The °F printed
on the Control Panel will remain unchanged.)
.
12
Heat Controller, Inc.
 1900 Wellworth Avenue  Jackson, MI 49203
OPERATION
9.
9.1 Control Panel and Dis
p
la
y
Dry Mode

TEMP/ TI ME
FAN SPEED
TI MER MODE
ON/ OFF
13
Heat Controller, Inc.
 1900 Wellworth Avenue  Jackson, MI 49203
OPERATION
9.

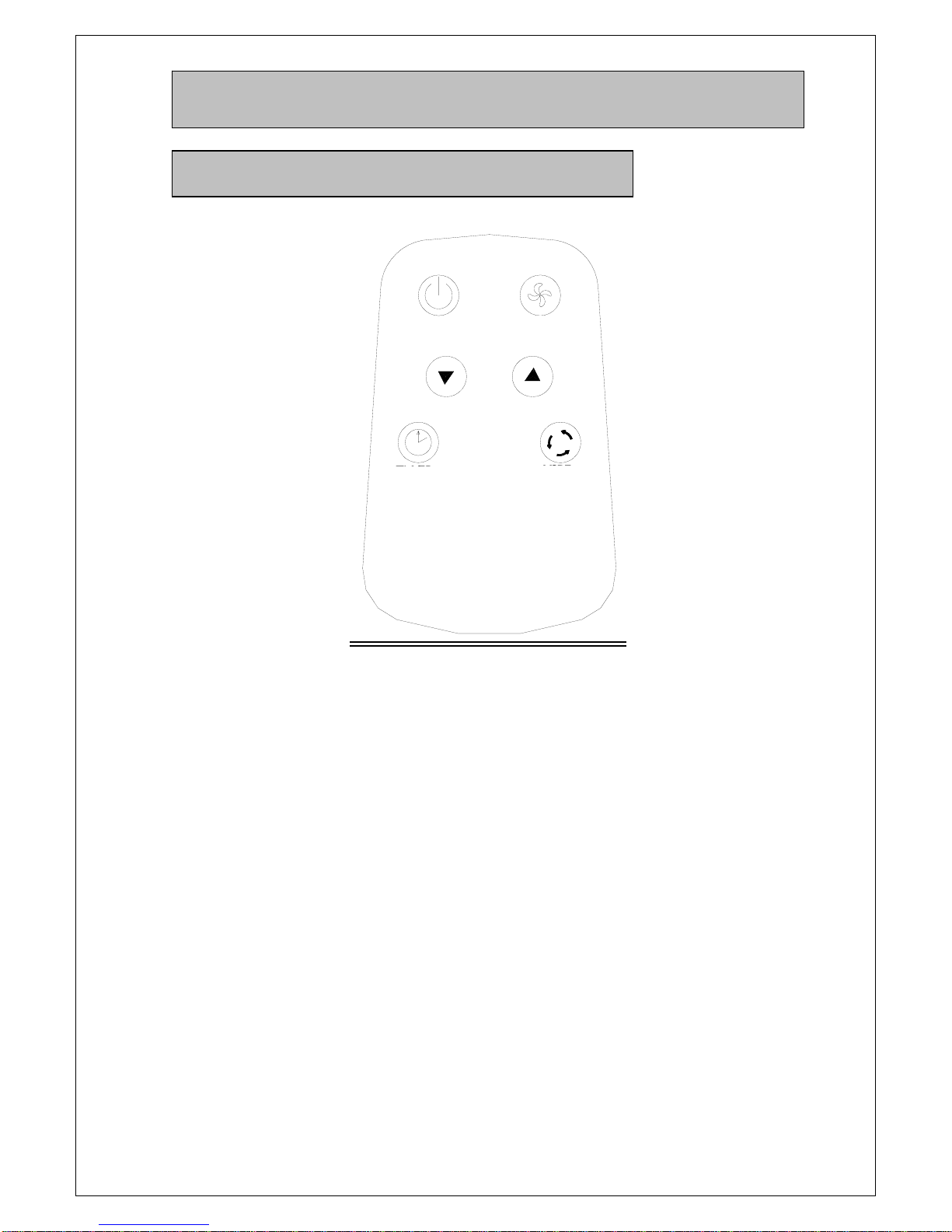

9.2 Remote Controller
Fig. Remote Controller
The buttons on the Remote Controller perform the same functions as the
equivalent button on the Control Panel.
The Remote Controller uses lithium battery Model CR2025. Install battery
before using the Remote Controller.
MODE
TIMER
TEMP/TIME
ON OFF FAN SPEED

14
Heat Controller, Inc.
 1900 Wellworth Avenue  Jackson, MI 49203
OPERATION
9.
9.3 Auto
,
Cool
,
Heat
,
Dr
y,
Fan Mode
You can operate the unit using the Control Panel on the unit, or with the
Remote Controller.
Auto Mode:
1. Plug the Power Cord into the power outlet.
2. Turn on the unit by pressing the ON/OFF Button on the Control Panel.
3. Press the Mode Button until the signal “ “ appears on the display.
4. Select the fan speed by using the FAN button.
During the AUTO mode, the unit will operate in HEAT mode when the room
temperature is below 70°F.
The unit will operate in FAN only mode when the room temperature is between
70°F and 80°F.
The unit will operate in COOL mode when the room temperature is above 80°F.
Cool Mode:
1. Plug the Power Cord into the power outlet.
2. Turn on the unit by pressing the ON/OFF Button on the Control Panel.
3. Press the Mode Button until the signal appears on the display.
4. Set the room temperature to your desired room temperature with
Temperature Changing Button.
5. Set temperature range from 64°F to 90°F.
6. Recommended temperature for your comfort: is 82°F to 86°F.
7. Select fan speed by pressing the FAN Button.

15
Heat Controller, Inc.
 1900 Wellworth Avenue  Jackson, MI 49203
OPERATION
9.
9.3 Auto
,
Cool
,
Heat
,
Dr
y,
Fan Mode
Dry Mode:
1. Plug the Power Cord into the power outlet.
2. Turn on the unit by pressing the ON/OFF Button on the Control Panel.
3. Press the Mode Button until the signal “ “ appears on the display.
4. Set the room temperature to your desired room temperature with
temperature change button.
5. Keep the windows and the doors closed to aid the effectiveness.
6. The unit will only operate at low fan speed in Dry Mode. It is
recommended not to install the exhaust hose for the best dehumidifying
effect; however, the room may become too warm for comfort. In this case,
the exhaust hose should be used.
NOTE: The unit will not perform dehumidifying when the room temperature
is lower than 64°F.
Heat Mode:
1. Plug the Power Cord into the power outlet.
2. Turn on the unit by pressing the ON/OFF Button on the Control Panel.
3. Press the Mode Button until signal “ “ appears on the display.
4. Set the room temperature to your desired room temperature with
Temperature Changing Button.
Then set temperature range from 60°F to 82°F.
We recommend temperature for your comfort between 69°F to 75°F.
5. Select the fan speed by pressing the Fan Speed Button. It is
recommended to use a low fan setting.
The Heating Function is provided by an electric heat element. The
compressor will not operate in HEAT Mode. It is not necessary to connect any
of the exhaust hoses to the unit.
Fan Only Mode:
1. Plug the Power Cord into the power outlet.
2. Turn on the unit by pressing the ON/OFF Button on the Control Panel.
3. Press the Mode Button until signal appears on the display.
4. Select the fan speed by pressing the Fan Speed Button.

16
Heat Controller, Inc.
 1900 Wellworth Avenue  Jackson, MI 49203
Press TIMER
button. Digit
“3” will flash
on LED
display.
TIMER LED
indicator will
illuminate.
OPERATION
9.
9.4 Timer Setting Procedure
ON-TIMER Program Setting:
When the unit is OFF, you can program the ON TIMER to start the unit after desired
number of hours. Procedure:
Preset
desired
operation
mode.
Press
or
button to
desired
hours.
Number
of hours
will
appear
on LED
10-second
pause after
pressing
or button
signals
completion of
timer
programming.
Number of hours on LED
display will count down as
time lapses. When the
display shows “0” , meaning
programmed hour expires, the
product will start operation in
the preset mode. If you do
not preset mode before
setting ON TIMER, the unit
will start in the mode of last
operation.
HOW TO CANCEL ON-TIMER Program Setting:
Press TIMER button.
Number of hours will
flash on LED display
Press TIMER button again.
Number of hours will disappear on
LED display. TIMER LED
indicator light will turn off.
ON-TIMER program
cancelled.
OFF-TIMER Program Setting:
Press TIMER
button. Digit
“3” will flash on
LED display.
TIMER LED
indicator will
illuminate.
Press or
button to
your desired
hours.
Number of
hours will
appear on LED
display.
10-second pause after
pressing or
button signals
completion of timer
programming. Indicator
will illuminate.
When the
programmed hour
expires, the product
will stop.
Press TIMER button.
Number of hours will
flash on LED display
Press TIMER button again.
TIMER LED indicator will turn off.
Set temperature will appear on
LED display.
OFF-TIMER program
cancelled.
HOW TO CANCEL OFF-TIMER Program Setting:

17
Heat Controller, Inc.
 1900 Wellworth Avenue  Jackson, MI 49203
OPERATION
9.
9.5 Air Flow Direction Control
Horizontal Swing Strip
Press button. The horizontal swing strip controls the up-down
air direction and will move up and down automatically. Release
H-SWING button when the horizontal strip comes to your desired direction.
H-SWING
Vertical Swing Strip
Press button once. The vertical strip controls left/right air
direction and will swing left and right automatically. Press the V-SWING
button again when the vertical strip comes to your desired direction, the
vertical strip will stop.
V-SWING

18
Heat Controller, Inc.
 1900 Wellworth Avenue  Jackson, MI 49203
DRAIN EXCESS CONDENSATE WATER
10.
Condensate Disposal:
Drain Water from Upper Drain Port:
Procedures: Connect the Water Drain House to the Upper Drain Port
allowing water to flow to a water bucket. (See above illustration).
Remember to reinstall the cap on Upper Drain Port after draining water. The
Upper Drain Port can be used if a floor drain or some other means of
disposing of condensate is not available.
Drain Water from Lower Drain Port: (Before Long Term Storage Only)
Procedures: Remove the Rubber Drain Plug on Lower Drain Port.
Connect the Water Drain Hose to allow water to drain to a floor drain or other
water outlet. Remember to reinstall the Rubber Drain Plug after draining
water.
Under normal operating conditions, this unit is designed to dispose of
condensate collected via an internal system that pumps water onto the hot
condenser coil for re-evaporation. It is then expelled to the outdoors via the
air outlet hose. If the unit is operated for prolonged periods during very high
humidity conditions, this system may become overwhelmed and the unit will
shut off. Excess water must be drained from the unit before it will restart.
Lower Drain Port
Upper Drain Port

19
Heat Controller, Inc.
 1900 Wellworth Avenue  Jackson, MI 49203
MAINTENANCE
11.
MAKE SURE POWER SUPPLY IS SWITCHED OFF AND THE PLUG IS
PULLED OUT OF THE POWER OUTLET BEFORE ANY MAINTENANCE IS
PERFORMED.
•Do not immerse the unit in water or other liquids.
•Do not pour liquids onto the unit.
Clean the Filter
If the filter is blocked with dust, the airflow volume will reduce and the cooling
effect will be reduced.
•It is recommended to clean the filter once every two weeks or as
needed.
•Remove the filter from the back of the unit by pulling straight up. Wash
the filter gently with warm water (about 104°F.)
•Dry it thoroughly and then place it back into the product.
•Do not bend the filter.
Clean Exterior Surface of the Unit
•Clean with a damp sponge.
•Dry it with a clean, soft cloth.
•Never use alcohol or any product containing solvents.
Long-Term Storage
A
t the end of the season, or when you do not plan to use the unit for an
extended period of time, we recommend that you take the following steps:
1. Drain water from the lower drain port.
2. Clean the filter.
3. Store the power cord
Upper Drain Port
Lower Drain Port

20
Heat Controller, Inc.
 1900 Wellworth Avenue  Jackson, MI 49203
MAINTENANCE
11.
11.1 Storing the Power Cord
To avoid damage to the power cord when the unit is not in use, always store the
power cord at the back of the unit in its original location (as shown in the figure
below).
