Comfortaire COMFORT AIRE RADS-151A User manual

(RADS-151A)
MODEL:RADS-151A
RAD-183B
9.,

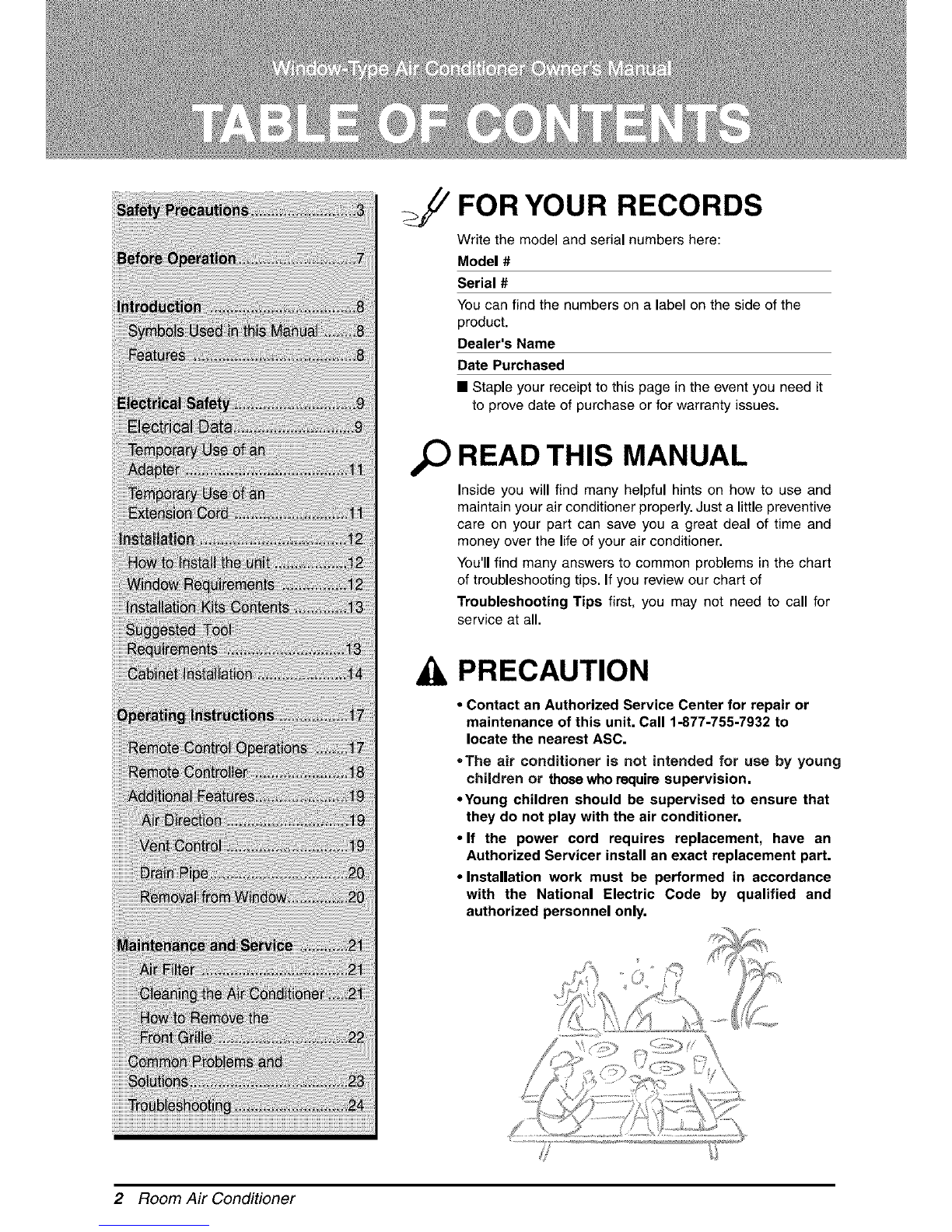

FOR YOUR RECORDS
Write the model and serial numbers here:
Model #
Serial #
You can find the numbers on a label on the side of the
product.
Dealer's Name
Date Purchased
•Staple your receipt to this page in the event you need it
to prove date of purchase or for warranty issues.
/O READ THIS MANUAL
Inside you will find many helpful hints on how to use and
maintain your air conditioner properly. Just a little preventive
care on your part can save you a great deal of time and
money over the life of your air conditioner.
You'll find many answers to common problems in the chart
of troubleshooting tips. If you review our chart of
Troubleshooting Tips first, you may not need to call for
service at all.
PRECAUTION
•Contact an Authorized Service Center for repair or
maintenance of this unit. Call 1-877-755-7932 to
locate the nearest ASC.
•The air conditioner is not intended for use by young
children or those who require supervision.
•Young children should be supervised to ensure that
they do not play with the air conditioner.
•If the power cord requires replacement, have an
Authorized Servicer install an exact replacement part.
• Installation work must be performed in accordance
with the National Electric Code by qualified and
authorized personnel only.
2Room Air Conditioner

SafetyPrecautions
To prevent injury to the user or other people and property damage, the following instructions
must be followed.
• Incorrect operation due to ignoring instructions will cause harm or damage. The seriousness
is classified by the following indications.
• Because of the weight of the product, it is recommended that you have a helper to assist in
the installation.
WARNING This symbol indicates the possibility of death or serious injury.
kCAUTION This symbol indicates the possibility of injury or damage to propertyonly. 1
• Meanings of symbols used in this manual are as shown below.
•Installation
Be sure not to do.
Be sure to follow the instruction.
(&WARN,NG)
J
• Improper assembly or installation may cause
incorrect operation including injury,fire,
poor performance, and electric shock hazards.
@
• It may cause explosion or fire.
• It may cause fire and electric shock.
• It may cause electric shock and failure.
Owner's Manual 3

Safety Precautions
• Operation
• Otherwise, it will cause
electric shock or fire.
• Itwill cause electric shock or
fire.
• Itwill cause electric shock or
fire. ON
• Otherwise it will cause fire
and electric shock.
• Itwill cause electric shock or
fire.
• It may cause fire and electric
shock.
• It will cause electric shock or
fire.
• No grounding may cause
electric shock.
• It may cause electric shock.
4 Room Air Conditioner

•The air conditioner must be operated in a
enclosed area to be most effective.
• It will cause electric shock or failure of
machine.
Safety Precautions
• Itmay cause an explosion or fire.
\
Water may enter the unit and degrade the
insulation. It may cause an electric shock.
•Installation
•Edgesaresharpandmay
causeinjury.
CAUTION
®
• It may cause failure of
appliance or performance
deterioration.
\
• If the outer case _sdamaged,
it must be repaired or
replaced immediately.
Leaving it damaged could
result in the air conditioner
falling out of the window,
creating a safety hazard.
Owner's Manual 5

Safety Precautions
• It may cause injury.
• Operation
Sharp
• It may cause electric shock
and damage. ®
• Since the fan rotates at high
speed during operation, it may
cause injury.
•This could injurethe pet or
harm the plant•
• Itwillwastepowerandmay
causeanaccident.
•Theairconditionerisnotdesigned
toactasarefrigerationsystem.
• Operation without filters or with
dirty filters will cause failure and
poor performance.
• The appearance of the air
conditioner may deteriorate,
change color, or develop
surface flaws.
• It is not sanitary and could
cause illness or personal
injury.
®
• The chemicals in batteries
could cause burns or
other health hazards.
• The chemicals in batteries could cause
burns or other health hazards.
0
6Room Air Conditioner

1. Plug in the power cord properly.
Before Operation
2. Use a dedicated circuit. Overloading the line could create a fire hazard.
3. Do not use an extension cord. See page 11 for more details.
4. Do not start/stop operation by plugging/unplugging the power cord.
5. If the power cord is damaged and requires replacement, have an Authorized
Servicer install an exact replacement part.
1. Being exposed to direct airflow for an extended period of time could be
hazardous to your health. Do not expose occupants, pets, or plants to direct
airflow for extended periods of time.
2. Due to the possibility of oxygen deficiency, ventilate the room when used
together with stoves or other heating devices.
3. Do not use this air conditioner for non-specified special purposes (e.g.
preserving precision devices, food, pets, plants, and art objects). Such usage
could damage the items.
4. The air conditioner is a consumer comfort appliance, not a precision climate
control system.
1. Do not touch the metal parts of the unit when removing the filter. Injuries can
occur when handling sharp metal edges.
2. Do not use water to clean inside the air conditioner. Exposure to water can
destroy the insulation, leading to possible electric shock.
3. When cleaning the unit, first make sure that the power and breaker are turned
off. The fan rotates at a very high speed during operation. There is a
possibility of injury if the unit's power is accidentally triggered on while
cleaning inner parts of the unit.
For repair and maintenance, contact an Authorized Service Center. See the
warranty page for details or call 1-877-755-7932. Have your model number and
serial number available. They should be written on page 2 of this manual.
Owner's Manual 7

Introduction
This symbol alerts you to the risk of electric shock.
This symbol alerts you to hazards that could cause harm to the
air conditioner.
This symbol indicates special notes.
_ARNING: This appliance should be installed in accordance with the
National Electric Code.
Upper Guide
Cabinet _
Front Grille
Air Filter
Horizontal Air Deflector
(Horizontal Louver)
Vertical Air Deflector
(Vertical Louver)
Air Discharge
Intake
(Inlet Grille)
Brace
Evaporator --
Control Board
Remote Controller __
Compressor
Condenser
-- Base Pan
Power Cord
8 Room Air Conditioner

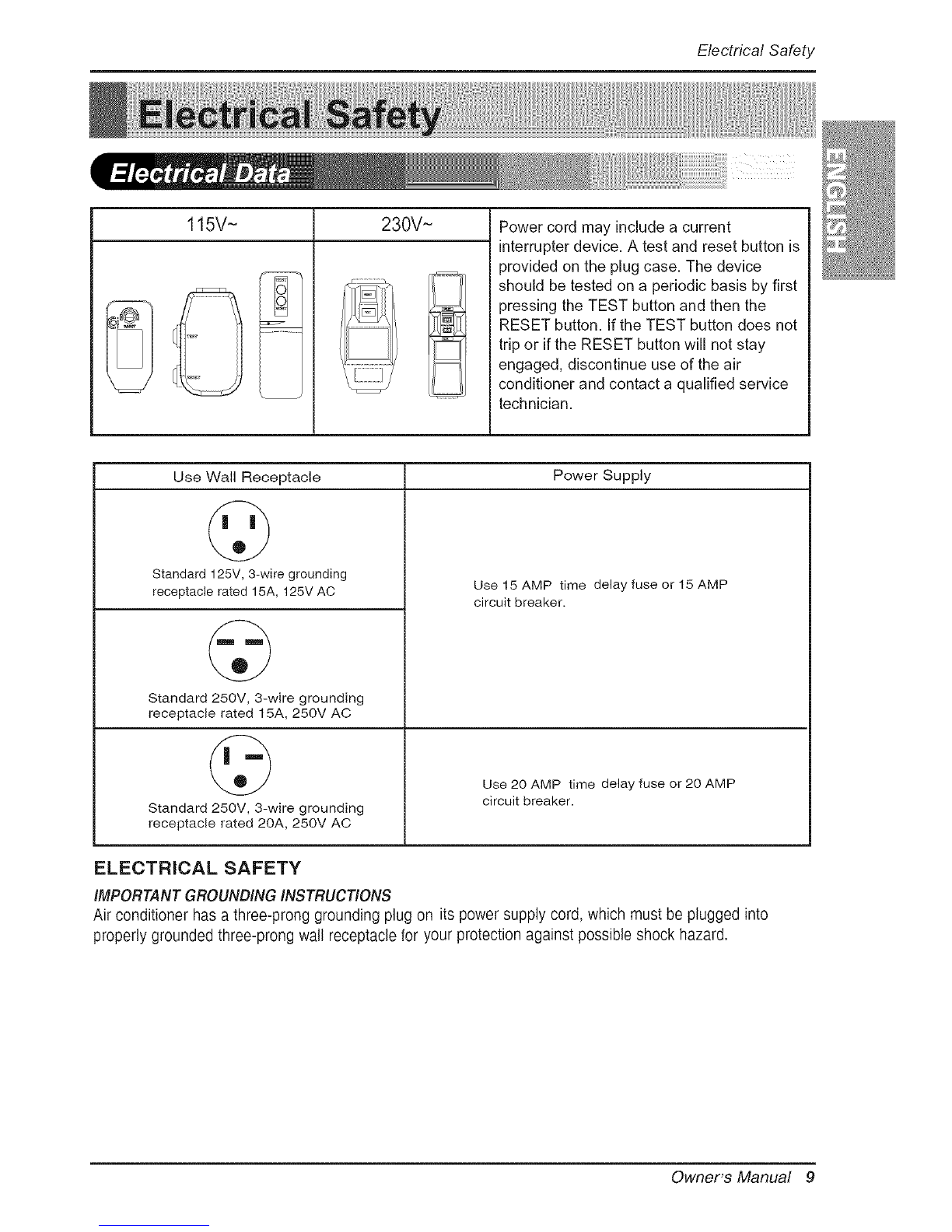

ElectricalSafety
115V~ 230V~!Power cord may include a current
interrupter device. A test and reset button is
provided on the plug case. The device
should be tested on a periodic basis by first
pressing the TEST button and then the
RESET button. If the TEST button does not
trip or if the RESET button will not stay
engaged, discontinue use of the air
conditioner and contact a qualified service
technician.
Use Wall Receptacle Power Supply
©
Standard 125V, 3-wire grounding
receptacle rated 15A, 125V AC
©
Standard 250V, 3-wire grounding
receptacle rated 15A, 250V AC
Standard 250V, 3-wire grounding
receptacle rated 20A, 250V AC
Use 15 AMP time delay fuse or 15 AMP
circuit breaker.
Use 20 AMP time delay fuse or 20 AMP
circuit breaker.
ELECTRICAL SAFETY
iMPORTANT GROUNDING iNSTRUCTiONS
Air conditioner has a three-prong grounding plug on its power supply cord, which must be plugged into
properly grounded three-prong wall receptacle for your protection against possible shock hazard.
Owner's Manual 9

ElectricalSafety

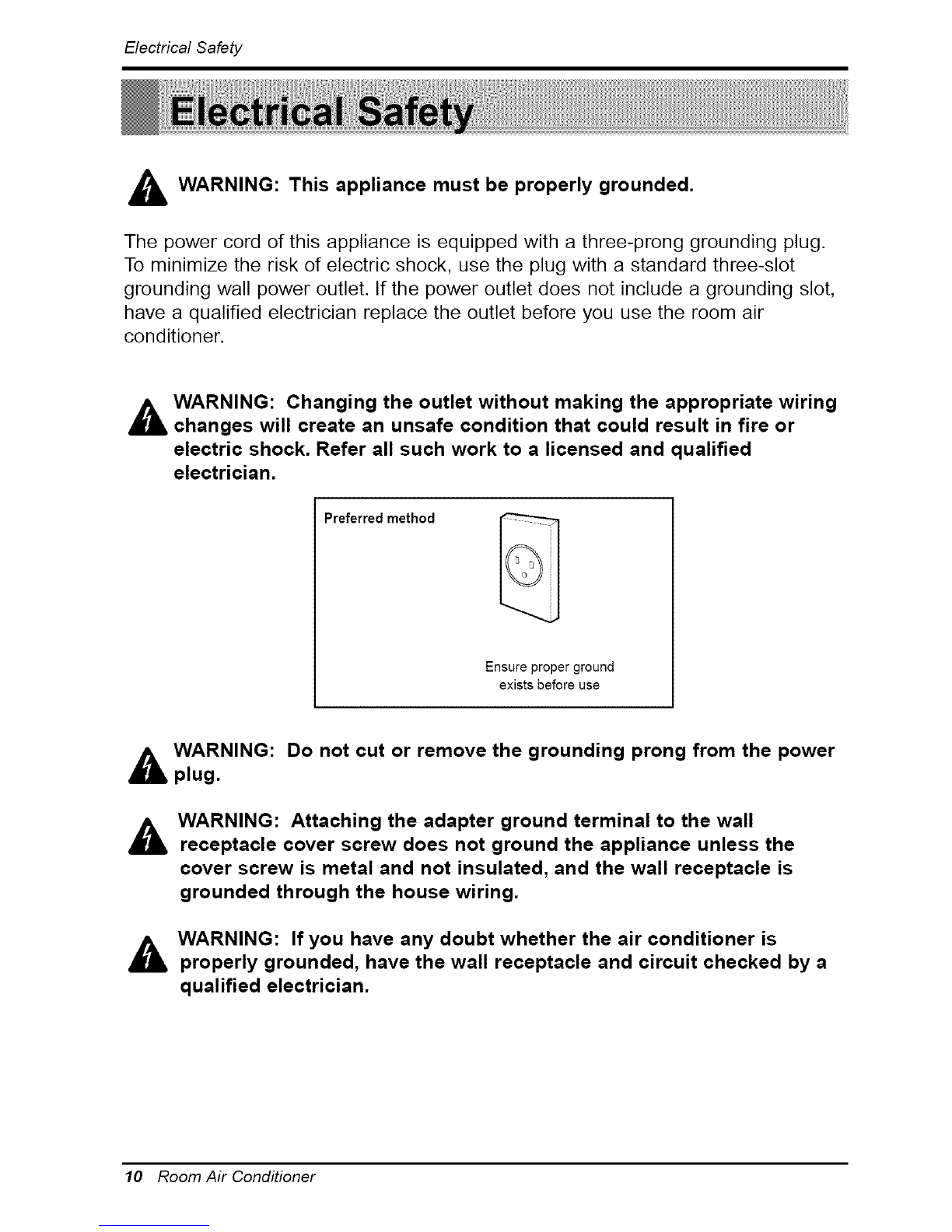

WARNING: This appliance must be properly grounded.
The power cord of this appliance is equipped with a three-prong grounding plug.
To minimize the risk of electric shock, use the plug with a standard three-slot
grounding wall power outlet. If the power outlet does not include a grounding slot,
have a qualified electrician replace the outlet before you use the room air
conditioner.
WARNING: Changing the outlet without making the appropriate wiring
changes will create an unsafe condition that could result in fire or
electric shock. Refer all such work to a licensed and qualified
electrician.
Preferred method
Ensure proper ground
exists before use
WARNING: Do not cut or remove the grounding prong from the power
plug.
WARNING: Attaching the adapter ground terminal to the wall
receptacle cover screw does not ground the appliance unless the
cover screw is metal and not insulated, and the wall receptacle is
grounded through the house wiring.
WARNING: If you have any doubt whether the air conditioner is
properly grounded, have the wall receptacle and circuit checked by a
qualified electrician.
10 Room Air Conditioner

ElectricalSafety
We strongly discourage the use of an adapter due to potential safety hazards.
For temporary connections, use only a UL-listed adapter, available from most
local hardware stores. Ensure that the large slot in the adapter is aligned with
the large slot in the receptacle for a proper polarity connection.
To disconnect the power cord from the adapter, use one hand on each to avoid
damaging the ground terminal. Avoid frequently unplugging the power cord as
this can lead to eventual ground terminal damage.
Temporary method
Adapter Plug_
Metal
Receptacle Cover
Screw
WARNING: Never use the appliance with abroken adapter.
115VOLT UNIT
We strongly discourage the use of an extension cord due to potential safety
hazards.For temporary situations,use only CSA certified and UL listed 3-wire
grounded extension cords,rated 15 A,125V.
All wiring should be made in accordance with local electrical codes and regulations.
Aluminum house wiring may pose special problems. Consult a qualified electrician.
230,208, and 230/208 VOLT UNITS
These units are equipped with a three-prong grounding plug on the power supply cord, which
must be plugged into a matching properly groundedthree-prong wall receptacle for your protection
against possible shock hazard. If such an outlet is not present, one must be installed by a qualified
electrician in accordance with the National Electrical Code and local codes and ordinances.
DO NOT USE AN E×TENSION CORD on 230,208, and 230/208 Volt units.
Owner's Manual 11

Installation

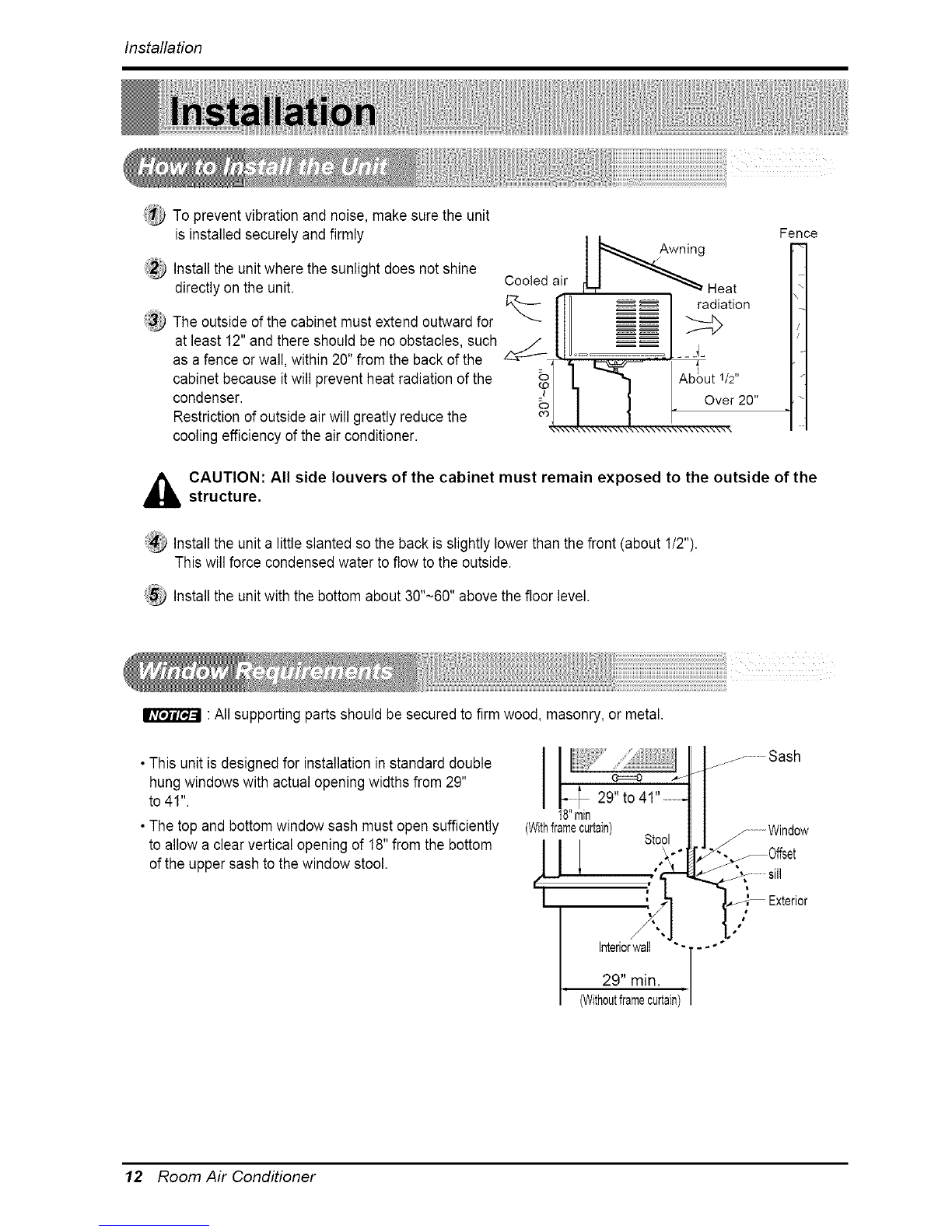

To prevent vibration and noise, make surethe unit
is installed securely andfirmly Fence
Install the unit where the sunlight does not shine
directly on the unit. Cooled air i_.._ "_ Heat \\
° l_ _ adiati°
The outside of the cabinet must extend outward for
at least 12" and there should be no obstacles, such J
as a fence or wall, within 20" from the back of the -
condenser.Cabinetbecause it will prevent heat radiation of the il t .._ Abo_2r"20,, ,. _
Restriction of outside air will greatly reduce the - -,............ _..........
cooling efficiency of the air conditioner.
_lb AUTION: All side louvers of the cabinet must remain exposed to the outside of thestructure.
Install the unit a littleslanted so the back is slightly lower than the front (about 1/2").
This will force condensed water to flow to the outside.
Install the unit with the bottom about 30"~60" above the floor level.
:All supporting parts should be secured to firm wood, masonry, or metal.
• This unit is designed for installation in standard double
hung windows with actual opening widths from 29"
to 41".
• The top and bottom window sash must open sufficiently
to allow a clear vertical opening of 18" from the bottom
of the upper sash to the window stool.
Interiorwall "- .... ÷
29" min. I
(Withoutframecurtain)
J Sash
j Window
_0ffset
12 Room Air Conditioner

Installation
I SCREWDRIVER(Philips and Flathead), RULER, KNIFE, HAMMER, PENCIL, LEVEL I

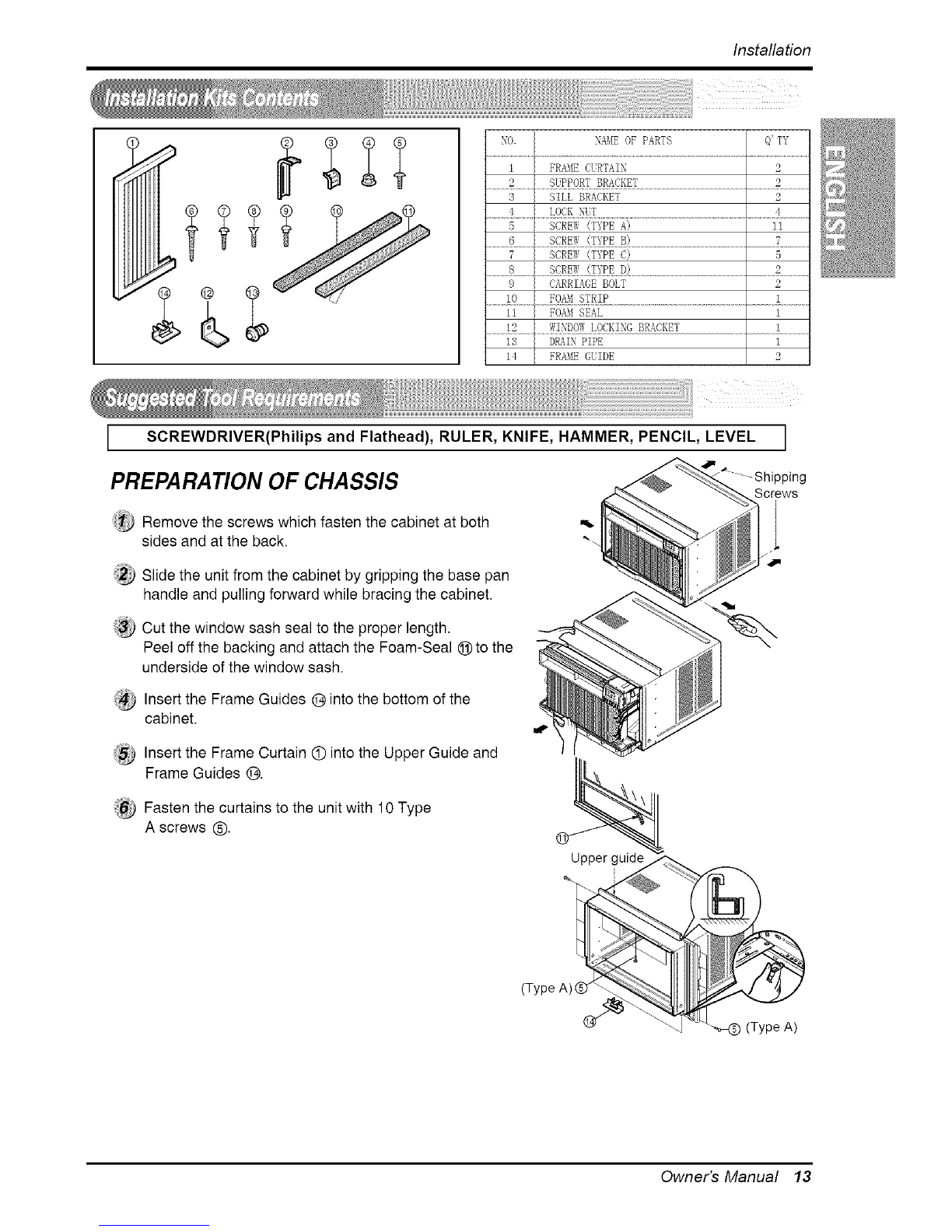

PREPARATION OF CHASSIS
Remove the screws which fasten the cabinet at both
sides and at the back.
Slide the unit from the cabinet by gripping the base pan
handle and pulling forward while bracing the cabinet.
Cut the window sash seal to the proper length.
Peel off the backing and attach the Foam-Seal @to the
underside of the window sash.
Insert the Frame Guides @ into the bottom of the
cabinet.
Insert the Frame Curtain 0 into the Upper Guide and
Frame Guides @.
Fasten the curtains to the unit with 10 Type
A screws _).
" -- -Shipping
Screws
i
Owner's Manual 13

Installation

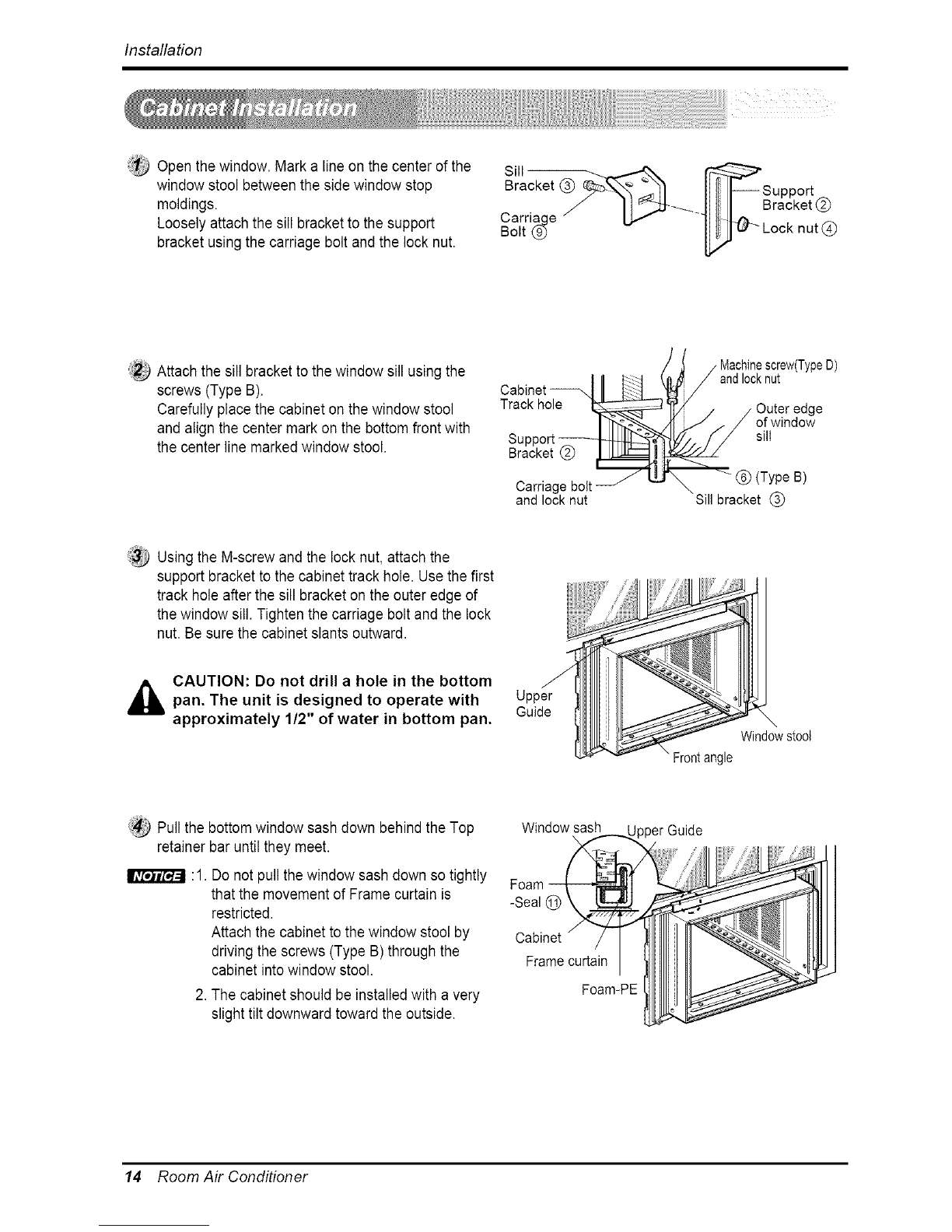

'_ Open the window. Mark a line on the center of the
window stool between the sidewindow stop
moldings.
Loosely attach the sill bracket to the support
bracket using the carriage bolt andthe lock nut.
Bracket (_)
Carriage
Bolt (9)
)ort
Bracket (_)
®
Attach the sill bracket to the window sill using the
screws (Type B).
Carefully place the cabinet on the window stool
and align the center mark on the bottom front with
the center line marked window stool.
Cabinet
Track hole
Support-
Bracket
Carriage bolt
and lock nut
Machinescrew(TypeD)
andlocknut
of window
sill
(_ (Type B)
Sill bracket (_)
Using the M-screw and the lock nut, attach the
support bracket to the cabinet track hole. Use the first
track hole after the sill bracket on the outer edge of
the window sill. Tighten the carriage bolt and the lock
nut. Be sure the cabinet slants outward.
"1
CAUTION: Do not drill a hole in the bottom
,_ pan. The unit is designed to operate with Upper
Guide
approximately 1/2" of water in bottom pan.
Pull the bottom window sash down behind the Top
retainer bar until they meet.
:1. Do not pull the window sash down so tightly
that the movement of Frame curtain is
restricted.
Attach the cabinet to the window stool by
driving the screws (Type B) through the
cabinet into window stool.
2.The cabinet should be installed with a very
slight tilt downward toward the outside.
Window sash
Foam_-
Framecurtain
._per Guide
Foam-PE
14 Room Air Conditioner

Installation
Pull each Frame curtain fully to each window sash
track, and pull the bottom window sash down behind
the Top retainer bar until it meets.
Attach each Frame curtain the window sash by using
screws (Type C.)
:_ Slide the unit into the cabinet.
,_ CAUTION: For security purpose,
reinstall screws(Type A)
at cabinet's sides.
Front Angle
_) Screw(Type B)
SO!rcordJ _!!!i_i!______i!_ii_!i!i!i!_!ii!iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii_i_i_i_i_________orew
Cut the Foam-strip to the proper length and insert
between the upper window sash andthe lower
window sash.
Foam-Strip
Attach the Window locking bracket with a screw
(Type C.) bracket
Owner's Manual 15

Installation

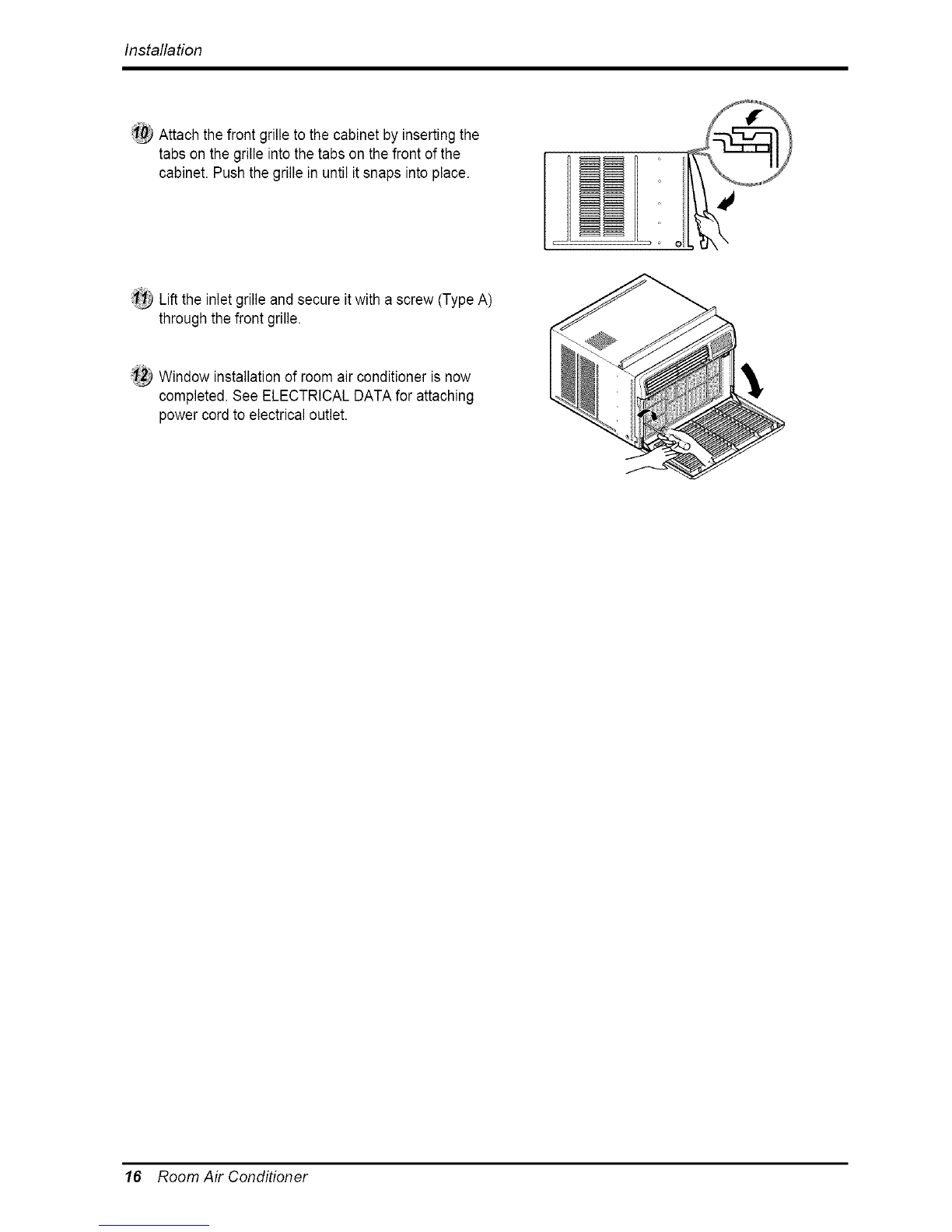

Attach the front grille to the cabinet by inserting the
tabs on the grille into the tabs on the front of the
cabinet. Push the grille in until it snaps into place.
Lift the inlet grille and secure it with a screw (Type A)
through the front grille.
7,:_ Window installation of room air conditioner is now
completed. See ELECTRICAL DATA for attaching
power cord to electrical outlet.
16 Room Air Conditioner

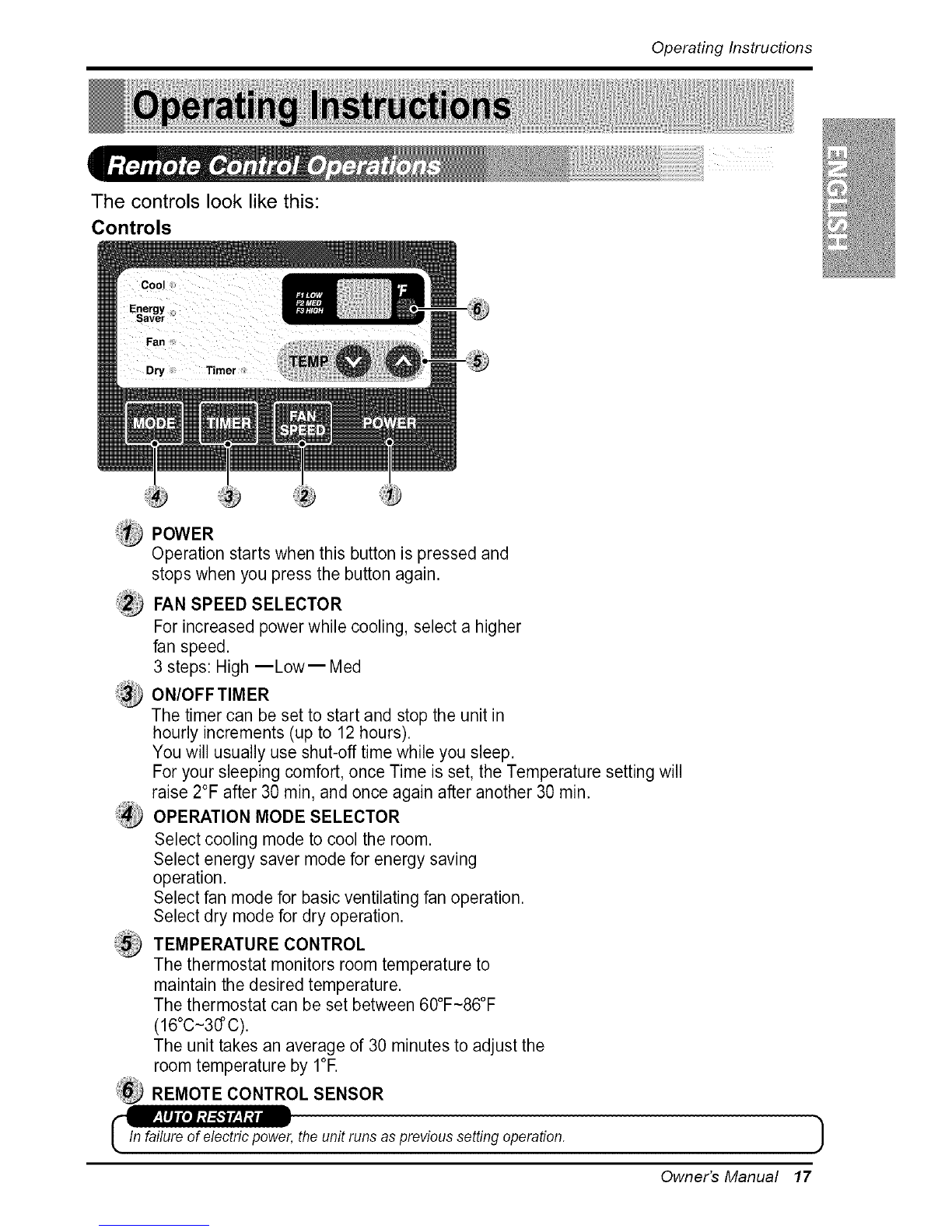

The controls look like this:
Controls
Operating Instructions
POWER
Operation starts when this button is pressed and
stops when you press the button again.
FAN SPEED SELECTOR
For increased power while cooling, select a higher
fan speed.
3 steps: High mLow-- Med
ON/OFF TIMER
The timer can be set to start and stop the unit in
hourly increments (up to 12 hours).
You will usually use shut-off time while you sleep.
For your sleeping comfort, once Time is set, the Temperature setting will
raise 2°F after 30 min, and once again after another 30 min.
OPERATION MODE SELECTOR
Select cooling mode to cool the room.
Select energy saver mode for energy saving
operation.
Select fan mode for basic ventilating fan operation.
Select dry mode for dry operation.
TEMPERATURE CONTROL
The thermostat monitors room temperature to
maintain the desired temperature.
The thermostat can be set between 60°F-86°F
(16°C-30_C).
The unit takes an average of 30 minutes to adjust the
room temperature by l°R
REMOTE CONTROL SENSOR
_theunitrunsasprevioussettingoperation.
Owner's Manual 17

OperatingInstructions
CAUTION: The Remote Controller will not function properly if strong
light strikes the sensor window of the air conditioner or if there are
obstacles between the Remote Controller and the air conditioner.
Power
Operation starts when this button is pressed and
stops when you press the button again.
Temperature Control
The thermostat monitors room temperature to
maintain the desired temperature.
The thermostat can be set between 60°F~86°F
(16°C~30°C).
The unit takes an average of 30 minutes to adjust the
room temperature by I°F.
Fan Speed
For increased power while cooling, select a higher
fan speed.
3 steps: High-Low-Meal
On/Off Timer
The timer can be se__os_ar_and s_op_neun_ _n
hourly increments (up to 12 hours).
You will usually use shut-off time while you sleep.
For your sleeping comfort, once Time is set, the Temperature setting
will raise 2°F after 30 min, and once again after another 30 min.
Operation Mode Selector
Select cooling mode to cool the room.
Select energy saver mode for energy saving
operation.
Select fan mode for basic ventilating fan operation.
Select dry mode for dry operation.
How to Insert Batteries
1. Remove the cover from the back of the remote
controller
2. Insert two size AAA batteries.
Be sure of the polarity when installing the
batteries.
Be sure that both batteries are new.
3. Re-attach the cover.
Fan Speed
Timer Mode
Do not use rechargeable
batteries. Such batteries
differ from standard dry cells
in shape, dimensions, and
performance.
Remove the batteries from
the remote controller if the air
conditioner is not going to be
used for an extended length
of time.
18 Room Air Conditioner

OperatingInstructions

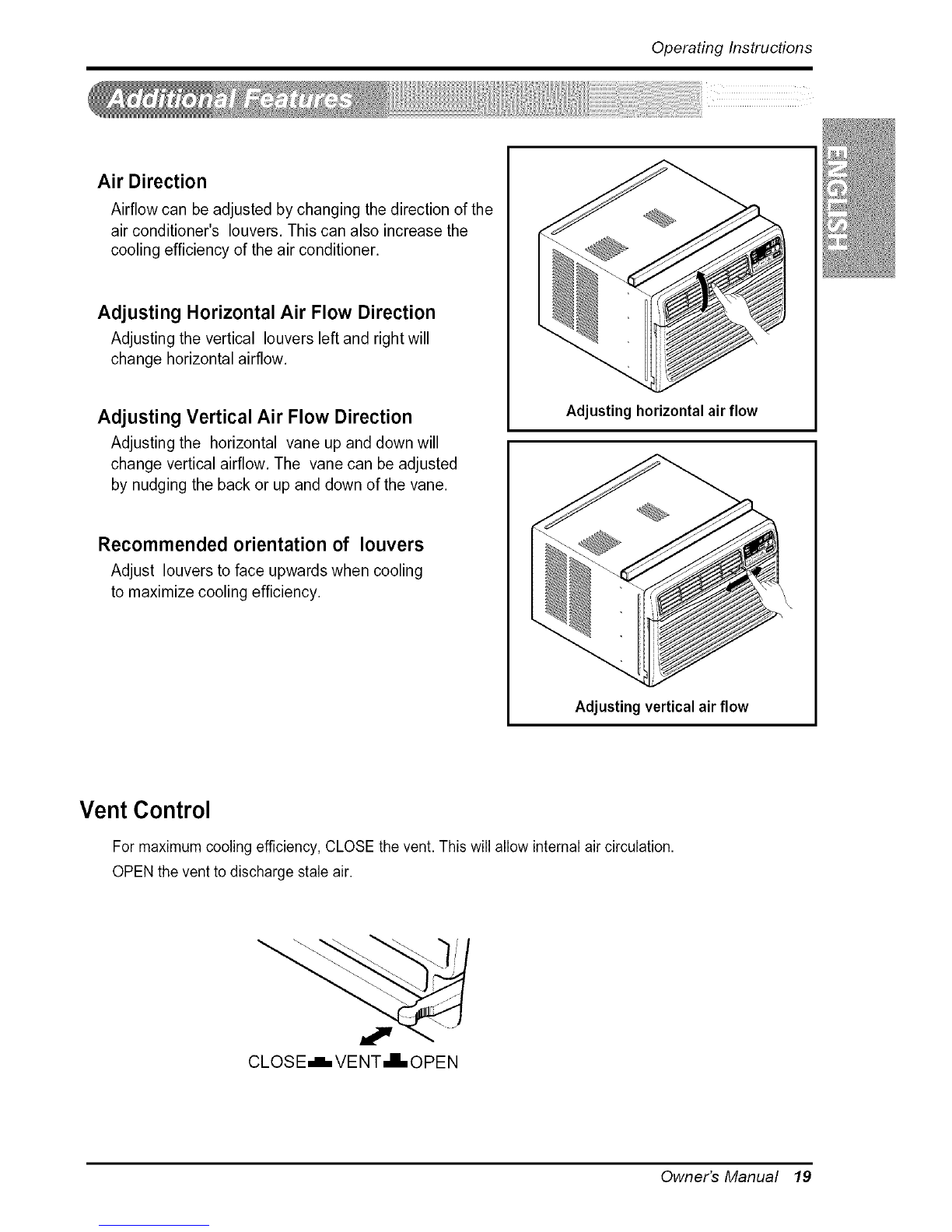

Air Direction
Airflow can beadjusted by changingthe direction of the
air conditioner's louvers. This can also increase the
coolingefficiency of the air conditioner.
Adjusting Horizontal Air Flow Direction
Adjustingthe vertical louvers leftand rightwill
change horizontalairflow.
Adjusting Vertical Air Flow Direction
Adjustingthe horizontal vane up and down will
change vertical airflow.The vane can be adjusted
by nudgingthe back or up and down of the vane.
Recommended orientation of louvers
Adjust louvers toface upwardswhen cooling
to maximizecoolingefficiency.
Adjusting horizontal air flow
Adjusting vertical air flow
Vent Control
Formaximumcoolingefficiency,CLOSEthevent.Thiswillallowinternalaircirculation.
OPENthe venttodischargestaleair.
CLOSE-LVENT-LOPEN
Owner's Manual 19

OperatingInstructions

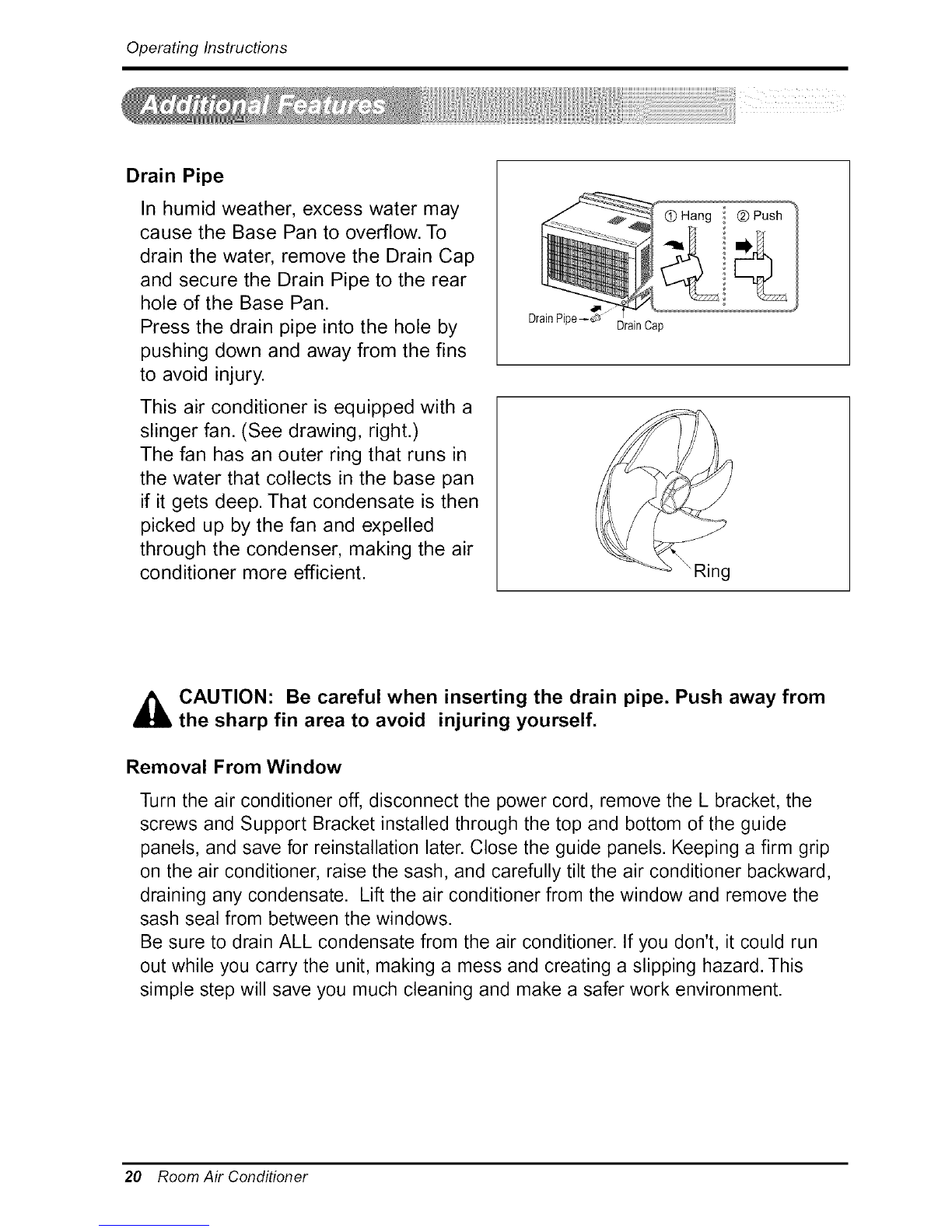

Drain Pipe
In humid weather, excess water may
cause the Base Pan to overflow. To
drain the water, remove the Drain Cap
and secure the Drain Pipe to the rear
hole of the Base Pan.
Press the drain pipe into the hole by
pushing down and away from the fins
to avoid injury.
This air conditioner is equipped with a
slinger fan. (See drawing, right.)
The fan has an outer ring that runs in
the water that collects in the base pan
if it gets deep. That condensate is then
picked up by the fan and expelled
through the condenser, making the air
conditioner more efficient.
(_) Hang i (_) Push
4m
Drain Pipe_ Drain Cap
_'_Ring
_lb AUTION: Be careful when inserting the drain pipe. Push away from
the sharp fin area to avoid injuring yourself.
Removal From Window
Turn the air conditioner off, disconnect the power cord, remove the L bracket, the
screws and Support Bracket installed through the top and bottom of the guide
panels, and save for reinstallation later. Close the guide panels. Keeping a firm grip
on the air conditioner, raise the sash, and carefully tilt the air conditioner backward,
draining any condensate. Lift the air conditioner from the window and remove the
sash seal from between the windows.
Be sure to drain ALL condensate from the air conditioner. If you don't, it could run
out while you carry the unit, making a mess and creating a slipping hazard. This
simple step will save you much cleaning and make a safer work environment.
20 Room Air Conditioner
