Comino GRANDO RM V2L User manual

GRANDO RM. User Manual 1
GRANDO RM
V2L/V2S
USER MANUAL
COMINO
HOLDING LTD.
2020

GRANDO RM. User Manual 2
OVERVIEW
1. INTRODUCTION
1.1 Intended use
2. PRODUCT DESCRIPTION
2.1 Product elements
3. SAFETY INSTRUCTIONS
3.1 Warnings and safety information
3.2 General
3.3 Intended use
3.4 Information for vulnerable people
3.5 Installation
3.6 Usage
3.7 Maintenance and reparations
3.8 Explanations of the signs on the computer
4. INSTALLATION
4.1 Unpacking and checking the contents
4.2 Installing
4.3 Power supply unit
4.4 Inrush current
4.5 Line fuse
4.6 Eciency
4.7 Power modules replacement
5. STARTING UP THE DEVICE
5.1 Self-diagnostic
5.2 Self-diagnostic errors
5.3 Menu navigation
5.4 Main part
5.4.1 Internal cooling system control buttons usage
5
5
6
6
7
7
7
8
9
9
11
12
12
13
13
14
15
17
17
17
17
18
18
20
21
23
23

GRANDO RM. User Manual 3
5.4.2 Control buttons illumination
5.3.4 Actual values menu
5.5 Commands menu
5.6 Control hotkeys
5.7 Service menu
6. POSSIBLE ACCIDENTS
6.1 Possible accidents during operation and self-diagnostic
6.2 Temperature sensors accidents
6.3 Fans and pumps
6.4 Operational reasons
6.5 Failure: No signal from the computing unit
7. SHUTDOWN PROCEDURE
7.1 Sound alerts
8 TROUBLESHOOTING
9. MAINTENANCE AND CLEANING
9.1 Checking and relling coolant
9.1.1 V2 Coolant control procedure
9.1.2 Relling coolant
9.1.3 Draining the coolant from the system
10. 10.2.5” DRIVES INSTALLATION
11. DISPOSAL
12. WARRANTY
OVERVIEW
24
25
29
30
32
34
34
34
36
37
39
42
42
42
49
49
49
50
51
52
54
55

GRANDO RM. User Manual 4
Congratulations on purchasing your GRANDO RM Professional Computing
Device. We are pleased to welcome you as a customer. These user instructions
contain all safety information and instructions necessary for using your
GRANDO RM.
Before using your device, please familiarise yourself with all relevant
information. Only use the device in the manner described and for the
applications indicated. If you pass on the device, be absolutely sure
to also pass on all instructions and other relevant documents.
!

GRANDO RM. User Manual 5
Intended Use
This device is intended for use as a Professional Computer. The device shall
not be used in caustic or potentially explosive environments, or for medical
purposes. The device may only be used as specied in these user instruc-
tions.
A GRANDO Professional Computer may only be used with the original
accessories and original components.
INTRODUCTION
1.1
1.
DANGER INDICATES AN IMMINENTLY HAZARDOUS
SITUATION WHICH, IF NOT AVOIDED, WILL RESULT
IN DEATH OR SERIOUS INJURY
DANGER
!
WARNING INDICATES A POTENTIAL HAZARDOUS SITUATION
WHICH, IF NOT AVOIDED, COULD RESULT IN DEATH
OR SERIOUS INJURY
WARNING
!
CAUTION INDICATES A POTENTIALLY HAZARDOUS SITUATION
WHICH, IF NOT AVOIDED, COULD RESULT IN MINOR
OR MODERATE INJURY
CAUTION
!
NOTICE INDICATES A SITUATION WHICH, IF NOT AVOIDED,
COULD RESULT IN PROPERTY DAMAGE
NOTICE
!

GRANDO RM. User Manual 6
Product Elements
Rack mounting handles kit
PRODUCT DESCRIPTION
2.1
2.
Display
Power button 1 (PB1)
Power button 2 (PB2)

GRANDO RM. User Manual 7
Warnings and safety information
General
• Follow all the instructions. This will avert re, explosions, electric shock
and other hazards that can cause material damage and/or severe injury
or death
• Please ensure that all those who use the device have read these
warnings and instructions and follow them
• Keep all safety information and instructions available for future reference
and pass them onto users who subsequently use the device
• The manufacturer assumes no liability for instances of material damage
or personal injury caused by any incorrect use of the device or non-
compliance with safety instructions. The warranty is invalidated in such
cases.
SAFETY INSTRUCTIONS
3.1
3.2
3.
MAKE SURE YOU READ AND UNDERSTAND ALL SAFETY
INSTRUCTIONS
WARNING
!

GRANDO RM. User Manual 8
Intended use
• The device is intended for indoor use. Never use it outdoors
• Only use the device within the power limits specied. In the event
the device suffers damage, it shall be disconnected from the mains
and no longer used
• To prevent overheating, the device shall not be covered or placed near
to sources of heat or in direct sunlight, and it shall only be used
in ambient temperatures between +3°C and +38°C
• To prevent the system from overheating, do not cover the air intake
and outtake vents of the device
• Do not use the device during a gas leak
• Do not use the device close to magnetic or electric elds
• Do not use the device during a thunderstorm
• To prevent electric shocks, unplug the cable from the socket before
moving the system
• Do not turn on the device with the side covers removed
• Do not place objects on the surface of the device or insert foreign
objects into it
• Use the device with care, avoid impacts and mechanical damage,
moisture on the device both outside and inside
• Use the device in a well-ventilated area
3.3
THE DEVICE IS NOT SUITABLE FOR USE IN POTENTIALLY
EXPLOSIVE ENVIRONMENTS
DANGER
!
SAFETY INSTRUCTIONS3.

GRANDO RM. User Manual 9
Information for vulnerable people
• This device shall not be used by those (including children) with physical
or mental-health issues or a lack of experience and/or knowledge,
unless they are supervised by somebody who assumes responsibility for
their safety and gives them corresponding instructions on how to use
the device correctly.
• To avert injuries, keep the device away from children. Children shall be
supervised to ensure they do not play with the device.
Installation
3.4
3.5
NEVER LEAVE CHILDREN UNSUPERVISED WITH THE PACKAG-
ING MATERIAL. THE PACKAGING MATERIAL REPRESENTS
A RISK OF SUFFOCATION.
CHILDREN FREQUENTLY UNDERESTIMATE THESE DANGERS.
KEEP CHILDREN AWAY FROM THE PACKAGING MATERIAL.
DANGER
!
BE VIGILANT AT ALL TIMES, AND ALWAYS BE CAREFUL WHAT
YOU ARE DOING. DO NOT USE ELECTRICAL EQUIPMENT IF
YOU ARE LACKING IN CONCENTRATION OR AWARENESS, OR
ARE UNDER THE INFLUENCE OF DRUGS, ALCOHOL OR MED-
ICATION. A BRIEF MOMENT OF CARELESSNESS CAN CAUSE
SERIOUS ACCIDENTS AND INJURY WHEN USING ELECTRICAL
APPLIANCES.
DANGER
!
NEVER TOUCH A MAINS POWER PLUG WITH WET HANDS.
KEEP THE DEVICE AWAY FROM MOISTURE.
DANGER
!
SAFETY INSTRUCTIONS3.

GRANDO RM. User Manual 10
• Only use the mains power cord supplied with the device. Other power
cables can damage the device. Do not use the power cable together
with any other devices.
• Before using the device, check it for any signs of damage. If there is any
visible damage, a strong odour or excessive heating of components,
disconnect all power plugs immediately and do not use the device.
• Do not place the device on uneven or unstable surfaces.
• Do not expose the device to dirty or dusty environments.
• Do not expose the device to direct sunlight, or place it on heat-sensitive
surfaces or close to heaters, air-conditioners or combustible materials.
• Keep the device away from combustible materials such as curtains
and drapes.
• Do not use any damaged power cables, accessories or other peripheral
devices.
• Do not use the device near liquids or in rainy or humid conditions,
or expose it to them.
• Before using an adapter or extension cable, seek the assistance
of a specialist because they can cut out the protective earthing circuitry.
• The software and hardware shall be installed as in the user instructions.
• If the device is not installed and used as in these user instructions, it can
cause interference to radio and television reception and other electronic
devices in residential areas.
• Before connecting the device to the power supply, ensure your local
mains voltage matches that indicated on the device. If you are uncertain
about the voltage of the power supply, contact your electricity supplier.
SAFETY INSTRUCTIONS3.

GRANDO RM. User Manual 11
• The device shall be connected to a properly installed and earthed AC
power socket.
• The mains power socket you use shall be installed close to the device
and be easily accessible.
• Be particularly careful not to damage the electric plug. Only use the
device with an appropriate, correctly installed and easily accessible
mains power socket.
• Ensure the device can be disconnected from the power supply at any
time. To disconnect the power supply, pull out the mains power plug.
• Protect the mains power plug from being used by others (especially
children).
• The mains power plug shall not be exposed to mechanical stress such
as tension or overstretching, or be dropped. Damage to the mains
power plug can cause complete failure of the device.
Usage
• Never leave the device unsupervised when it is switched on. If the
device cannot be used without an associated risk, it shall be switched
off and protected against unintentional use.
• When it is not needed, and during thunderstorms, always disconnect
the device from the power supply.
• Never remove a USB data carrier when the computer is working.
3.6
SAFETY INSTRUCTIONS3.

GRANDO RM. User Manual 12
RISK OF EXPLOSION! DO NOT CHANGE THE BATTERY!
USED BATTERIES SHALL BE DISPOSED OF IN LINE
WITH THE USER INSTRUCTIONS. DO NOT REMOVE
THE BATTERY YOURSELF. SEE SECTION DISPOSAL.
CAUTION
!
3.7
3.8
SAFETY INSTRUCTIONS3.
Maintenance and reparations
• Alterations to the device and technical modications are not permitted.

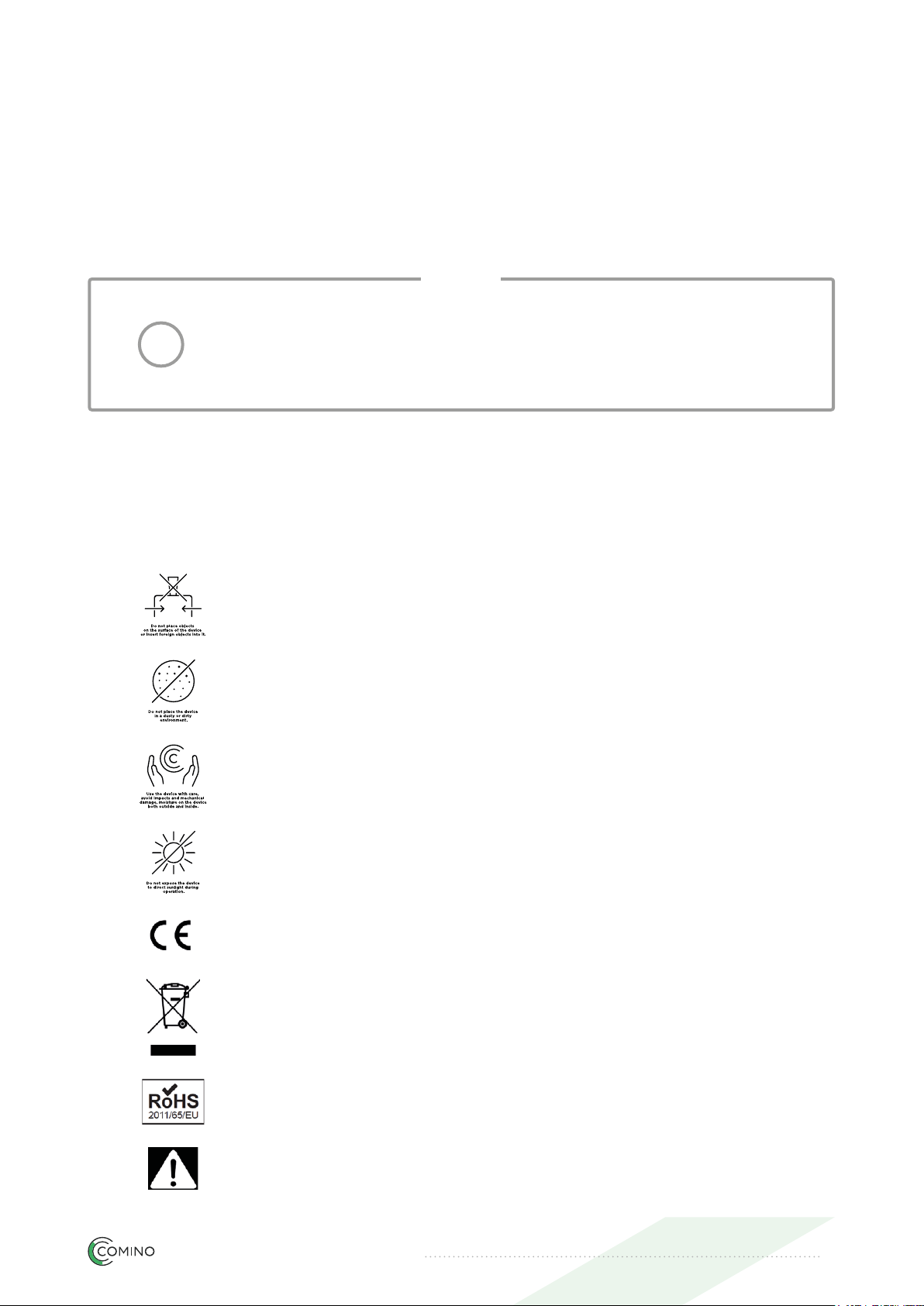

Explanations of the signs on the computer
Use the device with care, avoid impacts and mechanical damage,
moisture on the device both outside and inside.
Do not place the device in a dusty or dirty environment.
Do not place objects on the surface of the device or
insert foreign objects into it.
Do not expose the device to direct sunlight during operation.
Your Professional Computer satises the relevant
European directives.
This device shall not be disposed of as unsorted waste
and shall be taken to a specialist collection point.
The device satises the RoHS directive.
Unplug the mains power plug before opening the device.

GRANDO RM. User Manual 13
Unpacking and checking the contents
Unpack the device. Check if the package contains all of the components
ordered:
• GRANDO RM
• Power Cables (up to 3)
• Rack mounting ears kit x2
• Rail adapters x2
• Patch cord
Make sure that device is not visibly damaged. If there is visible damage,
do not use the devices and contact the manufacturer.
4.1
INSTALLATION4.
BEFORE USING THE DEVICE, CHECK IT FOR ANY SIGNS
OF DAMAGE. IF THERE IS VISIBLE DAMAGE, DO NOT USE
THE DEVICE AND CONTACT THE MANUFACTURER.
WARNING
!
A
B
C
D
E
A
B
E
D
C

GRANDO RM. User Manual 14
Installing
Place the device in a 4U rack space or on a horizontal surface. It’s allowed
to place GRANDO RM vertically or horizontally.
When installing in a 4U rack space, the rack mount ears kit should be at-
tached to the device. GRANDO RM should be installed on the special 19”
guide rails or shelf (should be purchased on a separate basis).
4.2

GRANDO RM. User Manual 15
Connect all (up to 3) AC power cables to each of the power supply units
of GRANDO RM. All PSUs should be powered for correct Device operation.
Power supply unit
Your system includes Comino Energia power supply unit (PSU) containing
up to 3 SFX Power Supply Units (PSUs), 750W each or up to 2 ATX PSU
1700W each depending on conguration.
Each PSU supports line to neutral 110-220V AC and EU standards
connection (50/60Hz US and EU standards). It is allowed to connect differ-
ent PSUs to different lines
4.3

GRANDO RM. User Manual 16
SETTING UP2.
UNIT
VACrms
Hz
MAX
264
63
9A @110V
4A @220V
Nom
100-240
60-50
MIN
90
47
Neutral
220V
220V
220V
Grounding
N
AA-N 220VAC
B-N 220VAC
C-N 220VAC
CORRECT
LINE TO NEUTRAL
B
C
G
LINE TO NEUTRAL
Neutral
120V
120V
120V
Grounding
N
AA-N 120V 1-Ph
B-N 120V 1-Ph
C-N 120V 1-Ph
B
C
G
CORRECT
ELECTRICITY WORKS MUST BE COORDINATED WITH
A CERTIFIED ELECTRICIAN. UNAUTHORIZED WORKS
CAN COST YOU YOUR LIFE.
DANGER
!
THE POWER SUPPLY SHALL OPERATE WITHIN LIMITED
INPUT VOLTAGE RANGE AS DEFINED IN TABLE 1.
WARNING
!
PARAMETER
Vin
Vin Frequency
Iin
EU Standard US Standard

GRANDO RM. User Manual 17
Inrush current
The power supply must meet inrush requirements for any rated AC volt-
age, during turn on at any phase of AC voltage, during a single cycle AC
dropout condition, during repetitive ON/OFF cycling of AC, and over the
specied temperature rang. The peak inrush current shall be less than the
ratings of its critical components (including input fuse, bulk rectiers, and
surge limiting device).
Line fuse
Each PSU is supplied with a fast blow type fuse in the live line input wire.
It protects PSU from the short circuit inside of it.
Line fuse is resistant to starting current or inner protection circuits.
In case a line fuse is blown up, please check internal components
of the PM for damages or contact the developer.
Eciency
Power Supply Unit is certied with an 80 Plus Platinum level certicate
of ecient energy use. Maximum eciency reaches 94% at 220 Vin
and 50% load.
SETTING UP
4.4
4.5
4.6
2.

GRANDO RM. User Manual 18
After connecting the power supplies to the AC mains, the controller will
automatically turn on, followed by liquid cooling system self-diagnosis.
GRANDO RM is equipped with a two-line show, it will display information
about the operating modes of the device.
The preliminary stage, performed only when the Internal cooling system is
powered for the rst time or after power loss recovery. In case of perform-
ing a Computing unit regular shutdown without removing the connection
voltage, the Internal Cooling System automatically goes into standby mode
until it is turned on again.
Self-diagnostic
When Internal Cooling system is powered, the self-diagnostic procedure
begins and the display successively shows:
STARTING UP THE DEVICE
5.1
5.
COMINO COOLIN G
SYSTEM START

GRANDO RM. User Manual 19
Upon successful completion of the self-diagnostic procedure, the display
successively shows:
Further on, the unit goes into standby mode.
STARTING UP THE DEVICE5.
COOL ING SYSTEM
SELF-TEST
COOL ING SYSTEM
SELF-TEST PASSED
COOL ING SYSTEM
STANDBY
F/W VER:
XXXXXXXXXXX

GRANDO RM. User Manual 20
Self-diagnostic errors
In case of error detection or occurrence, the display cyclically shows infor-
mation about the error itself and the following message and proceed to
error display:
When non-critical errors occur that allow further use of the equipment
When critical errors occur that prevent further operation
of the equipment until the malfunction is xed
5.2
STARTING UP THE DEVICE5.
COOL ING SYSTEM
SELF-TEST ALARM
COOL ING SYSTEM
SELF-TEST FAILED
