Commax CIOT-1020M User manual

1
CIOT-1020M User Manual
https://smartel.ua

2
Contents
Safety Warning & Caution .................................................................................................................................2
1 Main funciton........................................................................................................................................ 4
Basic Screen Configuration .............................................................................................................. 6
2 Home Screen.......................................................................................................................................10
Home Area .............................................................................................................................................10
2.1. Editing a space list ........................................................................................................11
2.2. Registering a device .....................................................................................................12
2.3. Placing device (move / delete) .................................................................................15
2.4. Controlling devices .........................................................................................................18
2.5. Widget area........................................................................................................................18
3 House Reporter ..................................................................................................................................20
3.1. Edit house reporter.........................................................................................................20
3.2. Setting the weather area..............................................................................................20
4 Control....................................................................................................................................................22
4.1. Control lighting.................................................................................................................22
4.2. Multi-sensor........................................................................................................................23
4.3. Magnetic sensor...............................................................................................................23
4.4. Adding devices..................................................................................................................24
4.5. Edit device...........................................................................................................................25
5 Application............................................................................................................................................26
5.1. Interphone...........................................................................................................................26
5.2. Door entrance....................................................................................................................27
5.3. Call log..................................................................................................................................29
5.4. security..................................................................................................................................30
5.5. Checking visitor ..............................................................................................................33
5.6. Etc App..................................................................................................................................35
5.7. Setting the Wall Pad.......................................................................................................38
6 Scene / Booking Control .............................................................................................................49
https://smartel.ua

3
Start
1Main function
Function
Description
COMMAX
Widget
Display of widget type such as today's weather, indoor
temperature and humidity, smart plug electricity amount,
absence information
Login and
Membership
User subscription and login to use UC and Cloud
My Reporter
To view and set the integrated value information provided
by the app
COMMAX
launcher
Support for space control / editing / addition to the main
screen and main functions (weather, quick menu,
household device information, individual device control)
Scene control
It is main functions that can display basic values (away,
burglar), appear user-specified scenes, and register new
scenes and delete
My house coach
Offer various lifestyle tips to users by apps
Device control
Funciton to control a wireless device that works with wall-
pad
Apps
Show all apps that are registered in the wall-pad
Door call /
recording
Video call with IP door and recording function through IP
network
House to call
Call between household and another household through IP
network
Lobby call /
recording
Video call to lobby and recording function by IP network
Guard call
Voice call to guard station by IP network
Call list
Checking the call list and recorded video of lobby phone
and IP Door
https://smartel.ua

4
CCTVlive view/
recording
Real-time and CCTV video monitoring service
Fucntion to display and record multiple images on two or
more monitors
CCTV video
recording view
Check recorded CCTV images by date
Security fuction
Using wireless IoT sensor (magnetic, PIR) to away, burglar,
emergency handling
Scenario Control
Multi-control function for device by user condition
System
management
Manual setting of the basic environment (IP setting, etc.)
by the user
Automatic
device
registration
User can register interlock device (IP Door, CCTV, IoT
device, etc.)
COMMAX
Setting
IP and various environce setting for lobby call and system
operation
Mobile call
Calls to mobile phones login ID same as wallpad
Video streaming
server
Format reset function to send CCTV / Door image to
external (UC)
Cloud server
Wall pad control by smartphone through cloud server
Notification
Fuction to notify emergency from your house
to mobile phone
Interlocked mobile phone
(Smart devices are compatible with Android OS (4.4.1 or later), iOS (8.0 or
later)
OS
Resolution
Mobile phone
Apple
1136x640
iPhone5s
1920x1080
iPhone6
1334x750
iPhone6s
1920x1080
iPhone6 Plus
1334x750
iPhone7
https://smartel.ua

5
Android
1920x1080
Nexus5x
2048x1536
Nexus9
2560x1440
Galaxy Note 4
2560x1440
GalaxyS5 edge
1920x1080
GalaxyS4
2560 x 1440
LG G3 cat6
Total
11ea
https://smartel.ua

6
No.
CONTENTS
No.
CONTENTS
1
Touch screen
9
MIC
2
SPEAKER
10
HOME
3
CMOS
11
POWER S/W
4
POWER LED
12
SENSOR(OPTION)
5
EMERGENCY
13
PoE
6
GUARD CALL
14
RS-485(OPTION)
7
Door Release
15
Door Release(OPTION)
8
DIAL
16
Basic Screen Configuration
https://smartel.ua

7
The moving of screen for using scrolling
The screen change
The navigation bar of home screen bottom
Go to home screen
Go back
Volume control
Go to Setting
Home screen bottom setting bar
Wifi setting
Go to system wireless Wifi setting
IPsetting
Go to wired network IP setting
https://smartel.ua

8
Internet
status
Check the status of external Internet connection
Door
registration
Go to IP Door Camera registration
User
registration
Go to user registration
IoT Device
registration
Go to IoTt device registration
Wall pad
settings
Go to wall pad setting
OS setting
Go to OS setting
https://smartel.ua

9
2Home Screen
Home Area
View the door
camera
View the door camera
dial
Dial key for call
Device
status
Door, network, membership status display
* Icons is displayed during abnormal operation
all Apps
All App list
Scene contorl
Scene and Reservation control
Emergency button
User Emergency button
https://smartel.ua

10
2.1. Editing a space list
1) ‘Press an empty space on background screen for one second.
2) Drag the space you want to move and move it to the desired location
3) Press the "X" button to delete the space.
4) Press "+" button to add space
5) Press the Cancel button to cancel editing.
6) Press the 'complete ' button to save the space list.
[공간 목록편집 화면]
Adding Space
1) Enter the name of the space.
https://smartel.ua

11
2) Press "Enter" on the keyboard.
3) Select a space image .
4) ‘Press 'OK' button to add space.
5) ‘Previous' button will move to previous screen
[공간 추가 화면]
2.2. Registering a device
Method 1.
1) Press an empty space on background screen for one second.
2) Press register IoT Device
https://smartel.ua

12

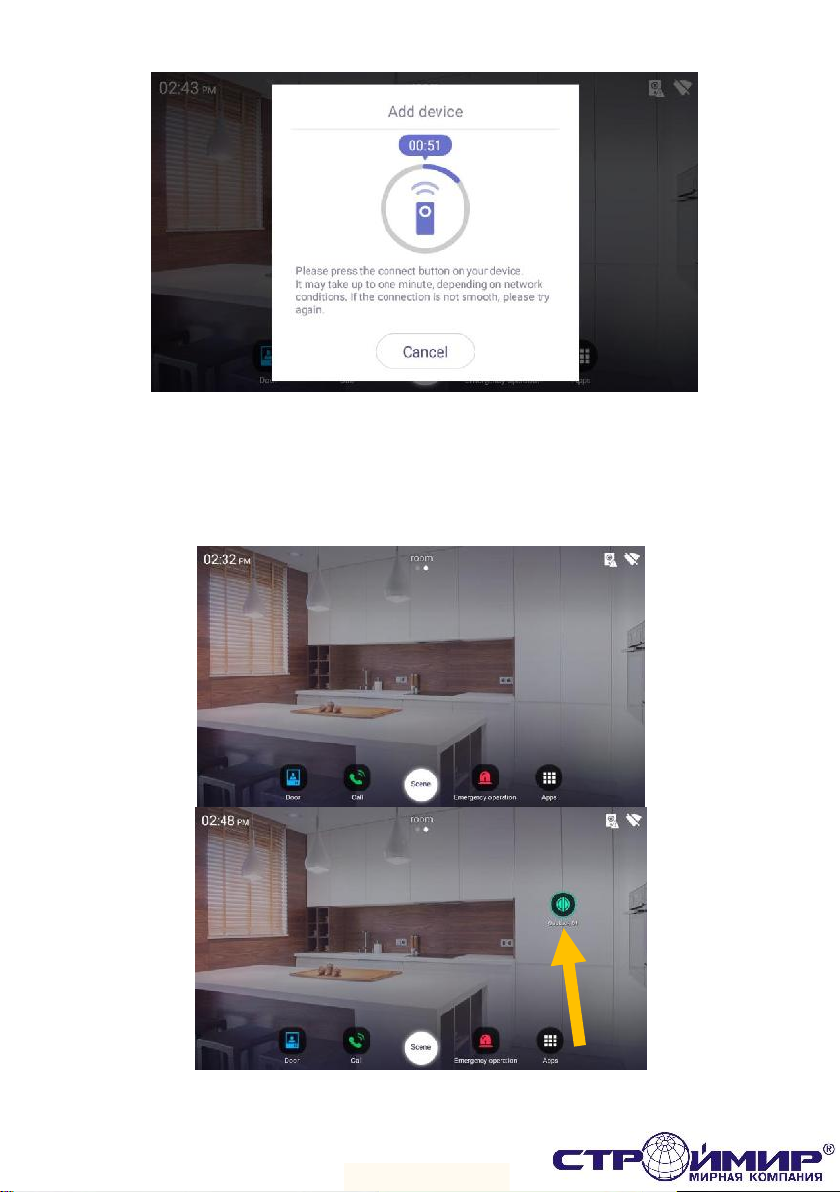

3) Connect the device according to the device pairing method..
4) The device can be paired for up to 60 seconds.
5) Press Cancel 'button to cancel the device pairing method.
6) When a device is registered, the device is automatically placed on the
screen
https://smartel.ua

13

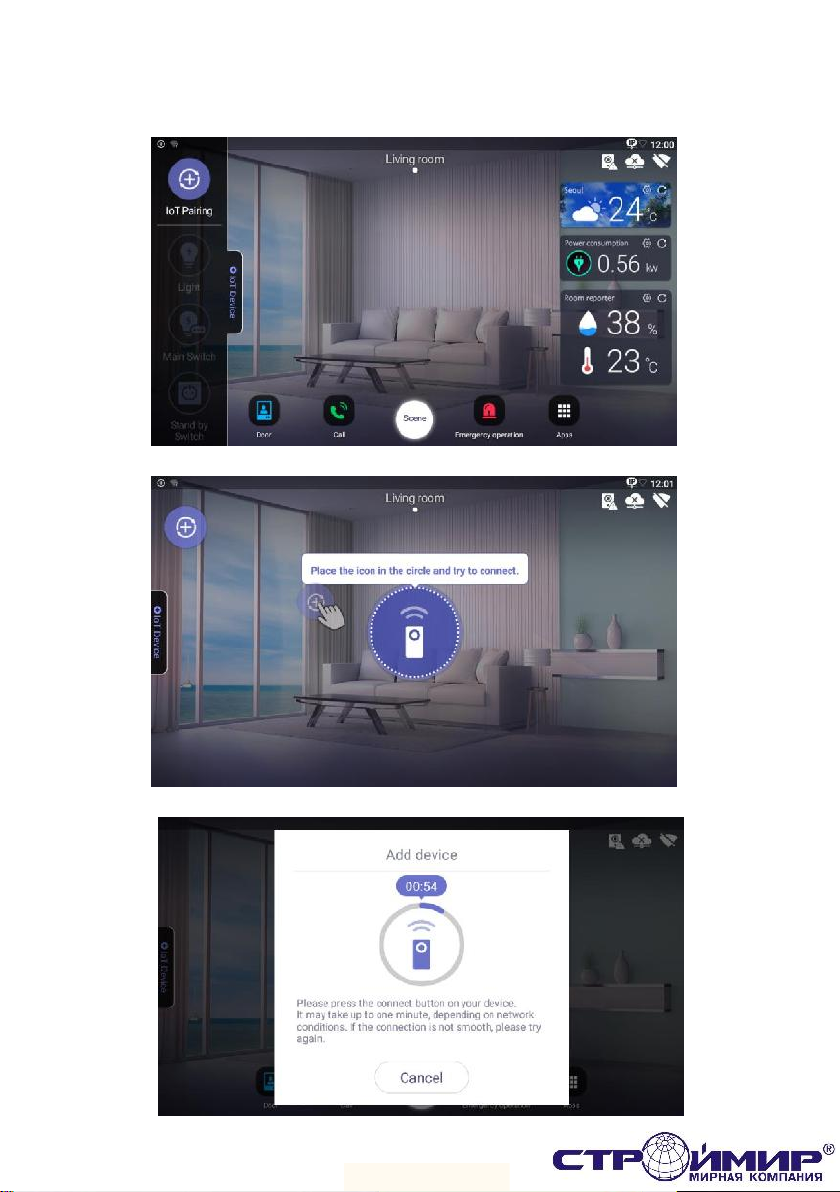

Method 2.
1) Drag or click IoT Device ICON leftside on screen
2) Click IoT Pairing ICON on upside and drag center on screen.
3) Connect the device by using device pairing method.
https://smartel.ua

14
2.3. Placing device (move / delete)
Method1.
1) Press an empty space on background screen for one second
2) Press ‘Device icon placement’.
3) You can move to the desired location by pressing the device you want to
move.
4) Drag the device, move it to the desired location, and release the device
5) To delete a device, press the corresponding icon longer to move to the
desired location..
https://smartel.ua

15
6) To delete a device, press the icon longer and move it to the upper trash...
[Device delet screen]
Method 2.
1) Drag or click IoT Device ICON leftside on screen
https://smartel.ua

16
1) You can move to the desired location by pressing the device you want to
move.
2) To delete a device, press the icon longer and move it to the upper trash...
https://smartel.ua

17
2.4. Controlling devices
1) Move to the space to control.
2) You can turn the device on / off by pressing the device you want to
control..
[The device control sreen]
2.5. Widget Area
1) Provide a summary of our home environment and external environment
information at present..
2) Press empty space on background screen for one second.
3) Press widget .
4) Select and drag the widget you want to display on the background
https://smartel.ua

18
5) To delete a widget, press the widge tlonger and move it to the upper
trash.
https://smartel.ua

19
3House Reporter
We provide value information on the screen that allows us to understand our home
environment and external conditions..
[The house reporter screen]
3.1. Edit house reporter
1) Press edit "buttonu
2) Press the "(On / Off)" button and you can select the value information
item to be displayed..
3) OK "button to save the changed item.
[The house report edit screen]
3.2. Setting the weather area
1) ‘Press the "Today's weather information" button.
2) Enter the name of the area to search.
https://smartel.ua

20

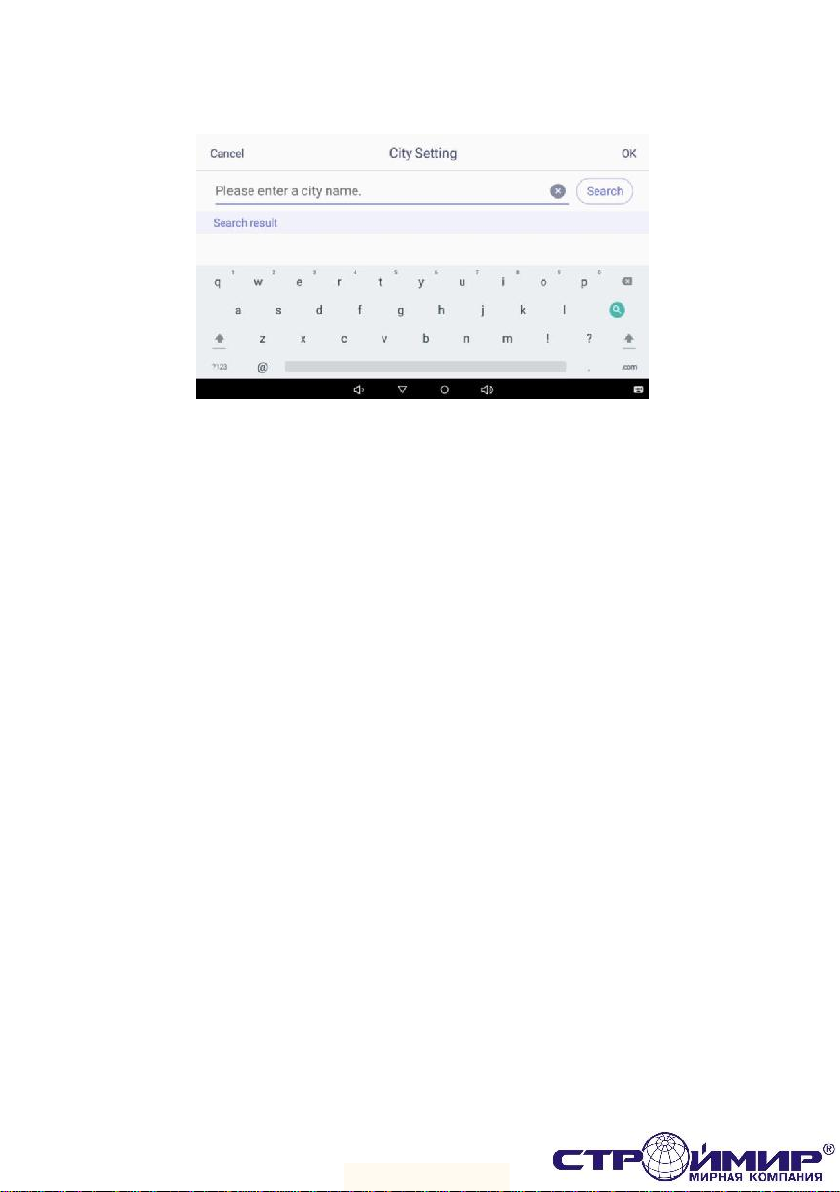

3) Press the "Search" button..
4) Select one of areas from search list .
[The weather area setting screen]
