Community DXP4800 User manual

DXP4800
Loudspeaker Management System
INSTALLATIONGUIDE
Owner’s Manual

REFERENCE TO EC STATEMENT OF CONFORMITY
This document confirms that the range of products of Community Professional Loudspeakers
bearing the CE label meet all the requirements in the EMC directive 89/336/EEC laid down by
the Member States Council for adjustment of legal requirements, furthermore the products
comply with the rules and regulations referring to the electromagnetic compatibility of devices
from 30 August 1995.
The Community Professional Loudspeakers products bearing the CE label comply with the
following harmonized or national standards:
DIN EN 55013:08-1991
DIN EN 55020:05-1995
DIN EN 50082-1:03-1993
The authorized declaration and compatibility certification resides with the manufacturer and can
be viewed upon request. The responsible manufacturer is the company:
Community Light & Sound, Inc.
Dba: Community Professional Loudspeakers
333 East 5th Street
Chester, PA 19013
USA
Tel: [phone]
Fax: [phone]
Community DXP4800 Owner’s Manual Page 2

Table of Contents
1.0 Introduction.....................................................................4
2.0 Features...........................................................................4
3.0 Front Panel Functions....................................................6
4.0 Rear Panel Functions.....................................................7
5.0 Powering Up the Device.................................................8
6.0 Operating the Device......................................................8
6.1 Input menus ..............................................................8
6.2 Output Menus............................................................9
6.3 System Menus.........................................................11
7.0 Quick Reference ...........................................................15
8.0 PC Control Software.....................................................16
9.0 Specifications ...............................................................17
10.0 Warranty and Service Information ..............................18
Community DXP4800 Owner’s Manual Page 3

1.0 Introduction
Welcome! You’ve joined the group of people that have chosen high quality Community
loudspeaker systems, accessories, and components for over 35 years. We’re really gratified
you did and we will do our best to make sure you are satisfied with your new DXP4800 digital
system controller. In order for you to get the most effective use of this product please take a
few minutes to read this manual. We have included a great deal of useful information that will
help you to realize the best performance, operation, sound quality, and reliability from your new
controller. This manual contains information for the proper set-up and operation of the
Community DXP4800 controller. While every attempt has been made to ensure this information
is correct and up to date, Community continuously incorporates worthwhile improvements to
each product which may include changes and/or modifications not contained in this manual.
The DXP4800 is a complete 4 input - 8 output digital loudspeaker management system
designed for the touring or fixed sound installation markets. The absolute latest in available
technology is utilized with 32-bit (40-bit extended) floating point processors and high
performance 24-bit Analog Converters. The high-bit DSP prevents noise and distortion induced
by truncation errors of the commonly used 24-bit fixed-point devices. A complete set of
parameters include I/O levels, delay, polarity, 6 bands of parametric EQ per channel, multiple
crossover selections and full function limiters. Precise frequency control is achieved with its 1
Hz resolution. Inputs and outputs can be routed in multiple configuration to meet any
requirements. The DXP4800 can be controlled or configured in real time on the front panel or
with the intuitive PC GUI accessed via the RS-232 interface. Software upgrade for CPU and
DSP via PC keeps the device current with newly developed algorithms and functions once
available. Multiple setup storage and system security complete this professional package.
The Community DXP4800 is inherently rugged and is carefully packed in well designed cartons.
It is a good idea to carefully inspect the unit after it has been removed from the packaging as
sometimes there is hidden damage due to some unfortunate incident during shipment. Please
note that once the shipment has left Community (or the dealer), the responsibility for damage is
borne by the freight company. This means that if there is damage, you must file a claim with the
freight company. Each freight company has its own set of regulations that must be followed and
forms that must be filled out. Therefore, the freight company must be contacted as soon as a
shipping damage problem is discovered. Save the carton and packing material because many
damage claims will be considered invalid if these are thrown away. The Community dealer and
the factory will try to help in any way possible. Remember, though, it is up to the party receiving
the shipment to file a damage claim.
It is always a good idea to keep the carton and packing material in case the unit must be
shipped back to your dealer or country distributor.
CONTENTS
The shipping carton contains the following items:
(1) DXP4800 Digital System Controller
(1) Owner’s manual
(1) Warranty card
(1) XLink software
Community DXP4800 Owner’s Manual Page 4

2.0 Features
4 Inputs and 8 Outputs with flexible routing
32-bit (40-bit extended) floating point DSP
48/96kHz Sampling Rate Selectable
High Performance 24-bit A/D Converters
1 Hz Frequency Resolution
6 Parametric Equalizers for each Input and Output
Multiple Crossover types with Full Function Limiters
Precise Level, Polarity and Delay
CPU and DSP upgrade via PC
Individual Channel Buttons with Linking capability
4-Line x 26 Character Backlit LCD Display
Full 5-segment LED’s on every Input and Output
Storage of up to 30 Program Setups
Multiple Levels of Security Locks
RS-232 Interface for PC Control and Configuration
Options include Digital Audio I/O, RS485 and CobraNet
Community DXP4800 Owner’s Manual Page 5

3.0 Front Panel Functions
3
1 46 5
2
1. Mute keys - Mute/Unmute input and output channels. When an input channel is muted, a
red LED will come on for indication.
2. Gain/Menu keys - Selects the corresponding channel for the LCD menu display and is
acknowledged by a green LED. The last modified menu will be displayed on the LCD.
Linking multiple channels is accomplished by pressing and holding the first channel key,
then pushing the other desired channels. This eases programming for same parameters
across multiple channels. Multiple Inputs can be linked together and multiple Outputs can be
linked together. Inputs and Outputs are linked separately.
3. Peak Level LED - Indicates the current peak level of the Signal:
Signal (-42dB), -12dB, -6dB, -3dB, Over/Limit. The Input Over LED references to the
device's maximum headroom. The Output Limit LED references to the threshold of the
limiter.
4. LCD -Shows all the necessary information to control the unit.
5. Rotary Thumb Wheel - Changes parameter data values. The wheel has travel velocity
sensing which eases large incremental data modifications. For modifying delay and
frequency (1 Hz resolution), pressing the Speed key simultaneously will
increment/decrement the data value by 100X.
6. Menu Control keys - There are 6 menu keys: <<Menu (Menu Down), Menu>> (Menu Up),
<<Cursor (Cursor Down), Cursor>> (Cursor Up), Enter/Sys/Speed and Exit. The function
of each key is explained below:
<<Menu: Previous menu screen
Menu>>: Next menu screen
<<Cursor: Previous cursor in the menu screen
Cursor>>: Next cursor in the menu screen
Enter/Sys/Speed: Enter is used only in the System Menu to proceed with selected
actions.
Sys enters the System Menu from the main menu.
Speed modifies delay and frequency (1 Hz resolution mode)
data values by 100X.
Exit: Exit to the Main Menu
Community DXP4800 Owner’s Manual Page 6

4.0 Rear Panel Functions
1,2,3 4 6
541,2,3
1. Main Power - Connects via a standard IEC socket. A compatible power cord is supplied
with the unit. The voltage input can be switched between 115VAC or 230VAC. The
DXP4800 features a voltage switch to choose between 115VAC or 230VAC.
2. Main Fuse - T0.5A-250V for 115VAC and T0.25A-250V for 230VAC. Slow blow type.
3. Power switch - Controls power On/Off.
4. RS232 - a standard female DB9 socket. A straight through cable is required for PC
connection.
5. Option slots - Digital Audio I/O, RS485 and CobraNet cards can be installed and connected
via these slots.
6. XLR input and outputs - Separate 3-pin XLR connectors are provided for each audio input
and output. The device's output stage employs the balanced impedance topology. All I/O
connectors have pin 1 as ground (shield), pin 2 as + and pin 3 as -.
Community DXP4800 Owner’s Manual Page 7

5.0 Powering Up the Device
After powering up the unit, the following initialization screen is displayed on the LCD:
** COMMUNITY ***
** DXP4800 CONTROLLER ***
------ INITIALIZING ------
The initialization process takes about 8 seconds and during that period the unit boots and
displays the DXP4800 firmware version. After the initialization process is finished the DXP4800
displays its main screen:
** COMMUNITY ***
******** DXP4800 ********
PROGRAM:01 XXXXXXXXXXXX
The screen shows the current program number and program name assigned to the unit. The
program assigned is always the last program the user recalled or stored before powering down
the unit. Now the DXP4800 is ready to operate.
6.0 Operating the Device
Tips: Channel Linking - If the user presses one of the Input or Output Menu keys, holds it down
and presses any other Menu key(s) in the same group (Input or Output group), then the
channels are linked together. The green menu LEDs for the linked channels are lit. Any
modification of the data for the selected channel will be applied to the linked channels as well.
To cancel the linking, just press any other Menu key or the Sys key after releasing the held key.
6.1 Input Menus
Each of the DXP4800 input channels has a separate Menu key. There are 3 menus for each
input channel.
Signal - Signal parameters
IN
_
1:XXXXXX MENU:Signal
LEVEL:0.00dB
POL :+
DELAY:0 (000.000ms)
Community DXP4800 Owner’s Manual Page 8

LEVEL - Gain, -40.00dB to +15.00dB in 0.25dB steps.
POL - Polarity, can be normal (+) or inverted (-).
DELAY - Delay in 21us steps. Can be displayed in ms, ft or m. The time unit of the delay
can be changed in the System menu. The maximum delay permitted is 24,000 steps
(500ms).
EQ - EQ parameters
IN
_
1:XXXXXX MENU:EQ
EQ# :1 BW:0.33oct
LEVEL:0.00dB Q=4.36
FREQ :1000Hz TYPE:Param
EQ# - Selects one of the 6 available Equalizers.
LEVEL - EQ level gain. Ranges from -30.00dB to +15.00dB in 0.25dB steps.
FREQ - EQ center frequency. Ranges from 20 to 20,000Hz in either 1Hz steps or 1/36
octave steps. The sampling rate and the frequency steps can be selected in the System
Menu.
BW - EQ Bandwidth. Ranges from 0.02 to 2.50 octaves in steps of 0.01 octave steps for
PEQ. The Q value is automatically shown beneath the octave value. For Lo-Slf or Hi-
Shf, it is either 6 or 12dB/Oct.
Type - Type of EQ. The types can be parametric (PEQ), Lo-shelf (Lo-shf) and Hi-shelf
(Hi-shf).
Ch-Name - Channel Name
IN
_
1:XXXXXX MENU:Ch-Name
NAME:XXXXXX
Name - Channel name. It is 6 characters in length.
6.2 Output Menus
Each output channel of the DXP4800 has a separate menu key. There are 6 menus for each
output channel.
Signal - Signal parameters
OUT
_
1:XXXXXX MENU:Signal
LEVEL:0.00dB
POL :+
DELAY:0 (000.000ms)
Refer to the Input Menus for details
Community DXP4800 Owner’s Manual Page 9

EQ - EQ paramters
OUT
_
1:XXXXXX MENU:EQ
EQ# :1 BW:0.33oct
LEVEL:0.00dB Q=4.36
FREQ :1000Hz TYPE:Param
Refer to the Input Menus for details

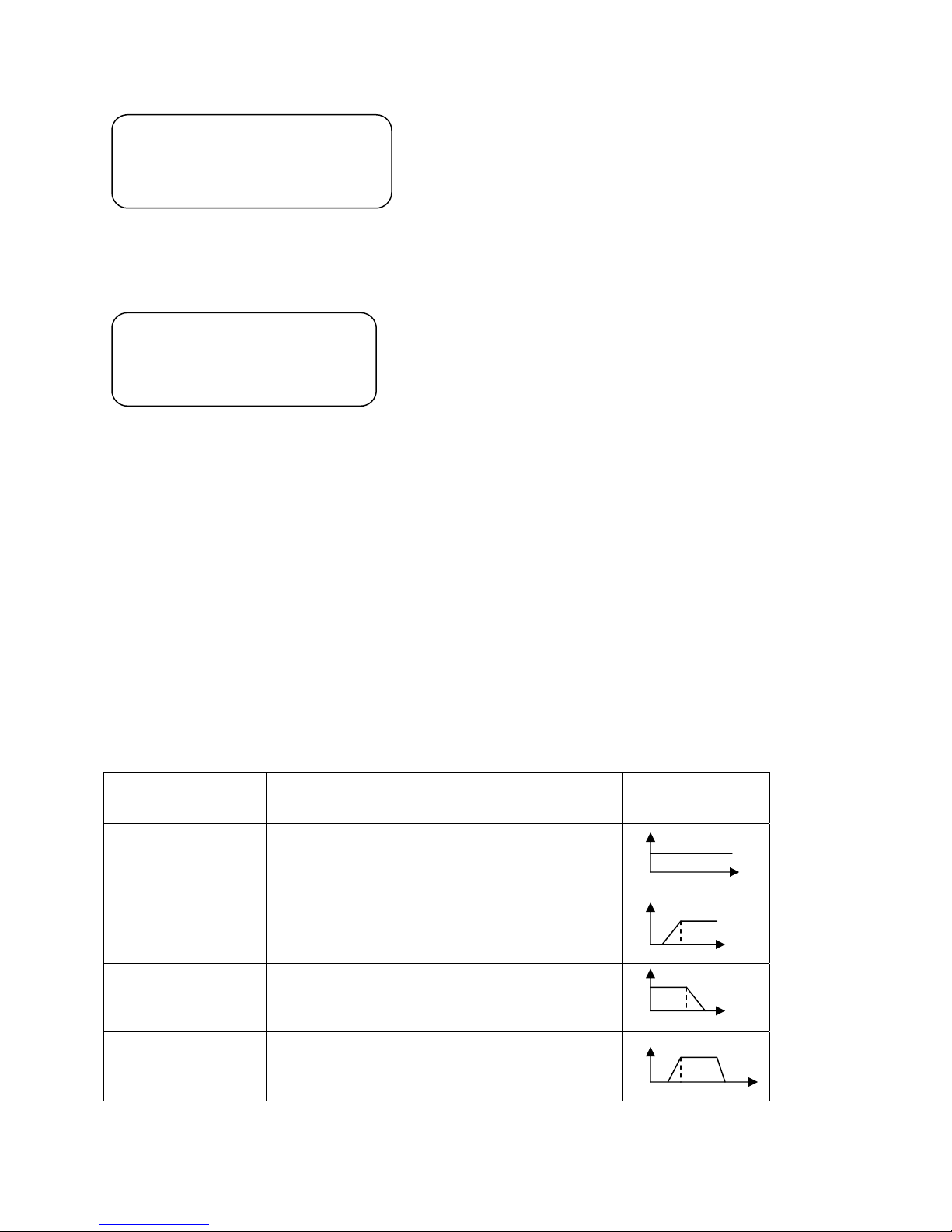

XOver - Crossover parameters
FTRL - Filter Type of low frequency crossover point (high pass). Types can be Buttwrth
(Butterworth), Link-Ri (Linkritz Riley) or Bessel.
FRQL - Filter cut-off Frequency of low frequency crossover point (high pass). Ranges
from 20 to 20,000Hz in either 1Hz steps or 1/36 octave steps. The frequency steps can
be selected in the System Menu.
SLPL - Filter Slope of low frequency crossover point (high pass). Ranges from 6 to
48dB/octave (48kHz) or 6 to 24dB/octave (96kHz) in 6dB/octave steps. If the selected
Filter Type is Linkritz Riley, the available slopes are 12 / 24 / 36 / 48 dB/octave (48kHz)
or 12 / 24 (96kHz).
FTRH - Filter Type of high frequency crossover point (low pass).
FRQH - Filter cut-off Frequency of high frequency crossover point (low pass).
SLPH - Filter Slope of high frequency crossover point (low pass).
Filter
configuration Low crossover point High crossover point
None FTRL Off FTRH Off
Highpass FTRL not Off FTRH Off
FRQL
Lowpass FTRL Off FTRH not Off
FRQH
Bandpass FTRL not Off FTRH not Off
FRQL FRQH
OUT
_
1:XXXXXX MENU:XOver
FTRL:Off FTRH:Off
FRQL:1000Hz FRQL:1000Hz
SLPL:24dB SLPH:24dB
Community DXP4800 Owner’s Manual Page 10

Limit - Output Limter
OUT
_
1:XXXXXX MENU:Limit
THRESH :+20.0dBu
ATTACK :100ms
RELEASE:32x
THRESH - Limit Threshold. Ranges from -20 to +20dBu in 0.5dB steps.
ATTACK - Attack time. Ranges from 0.3 to 1ms in 0.1ms steps, then ranges from 1 to
100ms in 1ms steps.
RELEASE - Release time. Can be set at 2X, 4X, 8X, 16X or 32X the attack time.
Source - Input Source
OUT
_
1:XXXXXX MENU:Source
1:On 4:Off
2:Off
3:Off
1,2,3,4 – Input channel source for the current output channel. Can be set to enable the
input source (On) or disable it (Off). If more than one input source are enabled, they will
be added together as the source for the current output channel.
Ch-Name - Channel Name
OUT
_
1:XXXXXX MENU:Ch-Name
NAME:XXXXXX
Refer to the Input Menus for details
6.3 System Menus
The System Menus allow the user to control and change parameters that are related to the
system behavior and general operation. It can be accessed by pressing the Sys key in the main
menu (when no Input/Output or System Menu is activated). All System Menus require the Enter
key to be pressed for the selected action.
Recall - Program Recall
The DXP4800 has a built in non-volatile memory that can store up to 30 different program
setups. A program can be recalled using this menu.
Community DXP4800 Owner’s Manual Page 11

SYSTEM-SETUP MENU:Recall
PROG:01
NAME:XXXXXXXXXXXX
PROG - Program Number to be recalled..
NAME - Program Name of the program. This is read only, the user has no access to
them.
Store - Program store
The DXP4800 has a built in non-volatile memory that can store up to 30 different program
setups. A program can be stored using this menu. The old program with the same program
number will be replaced. Once the program is stored in the flash memory, it can be recalled at a
later time, even after power down.
SYSTEM-SETUP MENU:Store
PROG:01
NAME:XXXXXXXXXXXX
PROG - Program Number for the current data to be stored.
NAME - Program Name, allows a maximum length of 12 characters.
Config - Device Configuration
SYSTEM-SETUP MENU:Config
MODE:2-Way
MODE - configures the mode of operation.
Mode: Out 1 Out 2 Out 3 Out 4 Out 5 Out 6 Out 7 Out 8
None Any Any Any Any Any Any Any Any
Stereo 2-Way In1 In1 In2 In2 Any Any Any Any
Stereo 3-Way In1 In1 In1 In2 In2 In2 Any Any
Stereo 4-Way In1 In1 In1 In1 In2 In2 In2 In2
The unit assigns the Input source for the corresponding outputs when the Mode of Configuration
is selected. The crossover point parameters like the filter type, cut-off frequency and slope have
to be configured manually in the Xover Menu in each Output menu.
*Note: The configuration mode configures the input sources when selected. The user can
change the source afterwards if desired. It does not keep the configuration in memory.
Community DXP4800 Owner’s Manual Page 12

Copy - Copy channels
SYSTEM-SETUP MENU:Copy
SOURCE:In1
TARGET:In2
Copy Channels from the source to the target. When the Source and Targets are both Inputs or
Outputs, all audio parameters will be copied. When one of the Source or the Target is an input
while the other is an output, only the Level, Polarity, Delay and EQ are copied.
SOURCE - Channel to be copied from.
TARGET - Channel to be copied to.
General - General system parameters
SYSTEM-SETUP MENU:General
FREQ MODE :All Freq
DELAY UNIT:01
DEVICE# :1
FREQ MODE - Selects the frequency control mode for EQ and crossover filters. Can be
36 steps/octave or All Frequencies (1 Hz resolution).
DELAY UNIT - ms, ft or m.
DEVICE# - Assigns the device ID from 1 to 16. This ID is useful when a network of more
than 1 unit is present.
PC Link - PC Link Enable
SYSTEM-SETUP MENU:PC Link
PCLINK:On
PCLINK: - PC Link Enable. It enables (On) or disables (Off) RS232 communication with
the PC software. It is recommended to turn off the link when the unit is not connected to
the PC.
Sampling - Sampling Rate Selection
SYSTEM-SETUP MENU:Sampling
SAMPLING RATE:96kHz
Community DXP4800 Owner’s Manual Page 13

SAMPLING RATE: - Sampling Rate selection. The unit can operate under 48kHz or
96kHz sampling rate according to this option. The device has to be shut down and
turned back on for the hardware effect to take place. For 96kHz operation, crossover
slopes can be up to 24dB/Oct only, while 48kHz gives crossover slopes to 48dB/Oct.
Security - Security Locks
The DXP4800 enables the user to secure the unit and prevent undesired changes in the setup.
In order to switch between the security level the user must enter the correct password.
SYSTEM-SETUP MENU:Security
MENU:In-Signal
LOCK:No
PASSWORD:XXXX
MENU - Selects the menu to be locked/unlocked. The options are:
•In-Signal - Input Signal Menu (Level, Polarity, Delay).
•In-EQ - Input EQ Menu.
•In-Name - Input Channel Name Menu.
•Out-Signal - Output Signal Menu (Level, Polarity, Delay).
•Out-EQ - Output EQ Menu.
•Out-Xover - Output Crossover Menu.
•Out-Limit - Output Limit Menu.
•Out-Source - Output Source Menu.
•Out-Name - Output Channel Name Menu.
•System - System Menu.
LOCK - Selects to lock (Yes) or unlock (No) the corresponding menu.
PASSWORD – The password of the DXP4800 is 4 characters in length. The user can
change it via the PC application software. The factory default of a new unit does not
require a password.
Community DXP4800 Owner’s Manual Page 14

7.0 Quick Reference
Parameters Menu
<<Menu>> Field <<Cursor>> Min Max Steps Units
Level Signal LEVEL -40 +15 0.25 dB
Polarity Signal POL + / -
Delay Signal DELAY 0 24,000 1 21us steps
EQ Number EQ EQ# 1 6 1
EQ Level EQ LEVEL -30 +15 0.25 dB
EQ Frequency EQ FREQ 20 20,000 1 Hz
EQ Bandwidth EQ BW 0.0
2 2.50 0.01 Octave
Crossover Low XOver FTRL Off / Butterworth / Linkwitz-Riley / Bessel
Crossover Low XOver FRQL 20 20,000 1 Hz
Crossover Low XOver SLPL 6 48 (48kHz)
24 (96kHz) 6 dB/octave
Crossover High XOver FTRH Off / Butterworth / Linkwitz-Riley / Bessel
Crossover High XOver FRQH 20 20,000 1 Hz
Crossover High XOver SLPH 6 48 (48kHz)
24 (96kHz) 6 dB/octave
Out Limit Thresh Limit THRESH -20 +20 0.5 dBu
Out Attack Time Limit ATTACK 0.3 100 0.1/1 ms
Out Release Time Limit RELEASE 2 / 4 / 8 / 16 / 32X Attack time
Source Source 1, 2, 3, 4 Off / On
Channel Name Ch-Name NAME 6 characters
Community DXP4800 Owner’s Manual Page 15

8.0 PC Control Software
The DXP4800 is shipped with a special PC Graphic User Interface (GUI) application - XLink.
XLink gives the user an option to control the DXP4800 unit from a remote PC via the RS232
serial communication link. The GUI application makes it much easier to control and monitor the
device, allowing the user to get the whole picture on one screen. Programs can be recalled and
stored from/to the PC’s hard drive, thus expanding the storage to become virtually limitless.
XLink software can also be downloaded from Community’s website at www.loudspeakers.net.
Community DXP4800 Owner’s Manual Page 16

9.0 Specifications
Inputs and Outputs
Input Impedance: >10k Ohms
Output Impedance: 50 Ohms
Maximum Level: +20dBu
Type: Electronically balanced
Audio Performance
Frequency Response: +/- 0.1dB (20 to 20kHz)
Dynamic Range: 115dB typ (unweighted)
CMMR: > 60dB (50 to 10kHz)
Crosstalk: < -100dB
Distortion: 0.001% (1kHz @18dBu)
Digital Audio Performance
Processor: 32-bit (40-bit extended)
Sampling Rate: 48kHz/96kHz
Analog Converters: High Performance 24-bit
Propagation Delay: 3ms
Front Panel Controls
Display: 4 x 26 Character Backlit LCD
Level Meters: 5 segment LED
Buttons: 12 Mute Controls
12 Gain/Menu Controls
6 Menu Controls
Dial Encoder: Embedded Thumb Wheel
Connectors
Audio: 3-pin XLR
RS-232: Female DB-9
Power: Standard IEC Socket
General
Power: 115 / 230 VAC (50 / 60Hz)
Dimensions: 19”x1.75”x8” (483x44x203 mm)
Weight: 10lbs / 4.6kg
Audio Control Parameters
Gain: -40 to +15dB in 0.25dB steps
Polarity: +/-
Delay: Up to 500ms per I/O
Equalizers (6 per I/O)
Type: Parametric, Hi-shelf, Lo-shelf
Gain: -30 to +15dB in 0.25dB steps
Bandwidth: 0.02 to 2.50 octaves (Q=0.5 to 72)
Crossover Filters (2 per Output)
Filter Types: Butterworth, Bessel, Linkwitz Riley
Slopes: 6 to 48dB/oct (48kHz)
6 to 24dB/oct (96kHz)
Limiters
Threshold: -20 to +20dBu
Attack: 0.3 to 100ms
Release: 2 to 32X the attack time
System Parameters
No. of Programs: 30
Program Names: 12 character length
Delay Units: ms, ft, m
Frequency Modes: 36 steps/oct, 1Hz resolution
Security Locks: Any individual menu
PC Link: Off, On
Copy channels: All parameters
Channel Names: 6 character length
Note: Specifications subject to change without notice
Community DXP4800 Owner’s Manual Page 17

10. Warranty and Service Information
The Community DXP4800 Electronic System Controller is warranted in the USA to be free from
defects in materials and workmanship for a period of one (1) years, as determined by one of the
following two methods, whichever is longer:
1. Starting from the date of retail purchase, as noted on the sales receipt from an authorized
Community dealer,
OR
2. Starting from the date of manufacture, determined by the serial number, if the sales receipt is
not available.
This warranty applies to the product; therefore, the remainder of the warranty period will be
automatically transferred to any subsequent owner.
This warranty applies only to failure of a Community DXP4800 caused by defects in materials
and workmanship during the stated warranty period. It does not apply to a unit that has been
subjected to abuse, accident, modification, improper handling/installation, or repairs made
without factory authorization or by anyone other than authorized Community Field Service
Stations. This warranty is void if the serial number has been defaced, altered or removed.
Products covered by this warranty will be repaired or replaced at the option of Community,
without charge for materials or labor, provided all the terms of this warranty have been met.
Obtaining Warranty Service:
Warranty service may be obtained from the factory or from an authorized Field Service Station.
To obtain factory or field warranty service for products purchased in the United States, return
the product for inspection to the address below, freight prepaid, in the original packaging. If the
original packaging is not available, call or write Community Warranty Service to obtain proper
packaging materials or hand carry the product to the nearest Field Service Station. Call (610)
876-3400 for the nearest authorized Field Service Station.
Community Warranty Service
333 East 5th Street
Chester, PA 19013-4511
For factory service, please call [phone] for a Return Authorization (R/A) number before
shipping. If the product is shipped, the following information must be included in the package:
1. Owner’s complete name, daytime phone number, return street address and return
authorization number.
2. The serial number of the product being returned and a copy of the retail sales receipt, if
possible.
3. A complete description of the problem(s) experienced, including a brief description of how the
equipment is being used and with what brand, model and output power of amplifier. Upon
Community DXP4800 Owner’s Manual Page 18

receipt, the service center will determine if the problem is covered under warranty. If covered
under warranty, the product will be repaired or replaced, at Community’s option, and returned
to the owner freight prepaid. If the problem is not covered under warranty, the owner will be
notified of the problem with an estimate of the repair costs.
Consequential and Incidental Damages: Community shall not be liable for any consequential
or incidental damages including, without limitation, injury to persons, property, or loss of use.
Some states do not allow the exclusion or limitations of consequential or incidental damages, so
the above limitations and exclusions may not apply.
This Community warranty is not extended by the length of time which an owner is deprived of
the use of the product. Repairs and replacement parts provided under the terms of this warranty
shall carry only the remaining portion of the warranty.
Community reserves the right to change the design of any product from time to time, without
notice and with no obligation to make corresponding changes in products previously sold or
manufactured.
While this warranty gives specific legal rights, there may also be other rights that vary from state
to state. No action to enforce this warranty shall be permitted ninety days after expiration of the
warranty period.
THIS STATEMENT OF WARRANTY SUPERSEDES ANY PREVIOUS WARRANTY
STATEMENTS FOR COMMUNITY ELECTRONIC PRODUCTS.
WARRANTY INFORMATION AND SERVICE FOR COUNTRIES OTHER THAN THE USA
To obtain specific warranty information and available service locations for countries other than
the United States of America, contact the authorized Community Distributor for your specific
country or region.
Community DXP4800 Owner’s Manual Page 19

333 East 5th Street, Chester, PA 19013-4511 U.S.A.
Phone [phone] Fax [phone]
www.loudspeakers.net
