COMPANION AQUACUBE RV User manual

OWNERS MANUAL
Australia’s original Outdoor brand
OWNERS MANUAL
Part No. COMP827
AQUACUBE RV
AUSTRALIA ONLY
Cert. SAI - 400097
SAI Global
AS 2658 - 2008
GAS SAFETY
CERTIFICATION
®
WARNING
OUTDOOR
USE ONLY

2
GENERAL WARNINGS
• This appliance shall only be connected to a cylinder with a POL cylinder valve certified to
AS2469 standards.
• This appliance is designed for outdoor use only and must be operated away from any flammable
material or surfaces and materials.
• This appliance is to be stored in a dry and well ventilated location free from direct sunlight.
• Do not store when valve is still connected to the cylinder.
• Make sure that the cylinder is disconnected and is stored in a well ventilated area,
free from direct sunlight, heat and ignition sources.
• If being stored indoors, ensure that the location complies with the standard AS/NZS1596.
• This appliance must only be serviced by an authorised service agent, return to your place of
purchase for service and repair.
DANGER!
• During operation all surfaces will be extremely hot and should not be touched or handled.
• Do not use the appliance if it is leaking, damaged or does not operate properly.
• Handle with care even after brief use, always pick up using the handles, not the cylinder.
• It may be hazardous to attempt to fit other types of gas containers or cartridges.
• Use only in well ventilated areas.
• Always operate appliance a minimum of 1000mm from flammable materials, walls and
1000mm from the ceiling.
• Do not use adaptors. Do not modify appliance to fit other connectors or cylinders.
• Do not use multiple appliances to heat a single utensil.
• Children must be supervised by an adult at all times.
• Never leave appliance unattended when operating.
• Use as a cooking appliance only, not to be used as heater or modified for any other reason.
• Avoid boil over and spills on to burners.
IMPORTANT: Read these instructions for use carefully. Familiarise yourself with the appliance
before connecting it to a gas container. Keep these instructions for future reference.
CARBON MONOXIDE HAZARD
Using this appliance in an enclosed space may cause DEATH.
Do not use in caravans, tents, marine craft, cars, mobile
homes or similar locations.

3
OWNERS MANUAL
IMPORTANT
• Use outdoors only.
• Keep children away at all times.
• CAUTION: Accessible parts may be very hot. Please take care when handling or moving
the appliance.
• Appliance is to be used on a stable, level, flat, non-flammable surface. The appliance should be
protected from direct drafts and in a well ventilated place.
• Only cooking vessels with a minimum diameter of 250mm and a maximum of 300mm are to be
used with this appliance.
• Take care that the primary air intakes, located on the burner tube of this appliance are not
obstructed, or that air flow is restricted by placing items or other appliances close to or adjacent
to the inlets.
• If you smell gas, immediately turn the gas off at the cylinder and move the appliance and
cylinder to a well ventilated area outside, keeping well away from sources of heat such as
naked flames and pilot lights.
• Do not attempt to move or relocate the appliance when it is operating, extinguish the burner
and allow to cool, disengage the gas cylinder then move the appliance.
CHECKING FOR GAS LEAKS
• Check that all connections are tight and that the gas cylinder connection has
been tightened before you turn the cylinder gas valve on.
• NEVER check for leaks with a flame or pilot light.
• Using Companion Gas Leak Detection Spray or soapy water, coat all connections,
if bubbles appear turn the cylinder gas control off and retighten the connection
before re-testing.
• Inspect the appliance regularly for signs of wear, leaks or incorrect operation.
If symptoms such as flaring of the burner, issues with lighting, damages to
hoses or connections or leaks from seals or gas controls are identified do not
attempt to repair, return to your authorised stockist for service and maintenance.
CHANGING GAS CYLINDER
• To check if gas remains in the cylinder, disconnect from the appliance and hold the cylinder in
a vertical position then shake from side to side, if there is a sound or feel of liquid movement
inside, the cylinder contains gas.
• When changing gas cylinders ensure this is conducted outside in a well ventilated location
free from people, animals and ignition sources such as naked flames, pilot lights and electrical
equipment with heaters or elements.
COMP10256

4
SAFETY INSTRUCTIONS
This appliance shall only be used in an above ground open air situation with natural ventilation,
without stagnant areas, where gas leakage and products of combustion are rapidly dispersed by
wind and natural convection.
Any enclosure in which the appliance is used
shall comply with one of the following:
(A) An enclosure with walls on all sides,
but with no overhead cover.
(B) Within a partial enclosure that includes an overhead
cover and no more than two walls.
(C) Within a partial enclosure that includes an overhead
cover and more than two walls, the following shall apply:
(1) At least 25% of the total wall area is
completely open.
(2) 30% or more in total of the remaining
wall side, back and front wall areas is
open and unrestricted.
(3) In the case of balconies, 20% or more
of the total wall area shall remain open
and unrestricted.
1
1
2
2
1

5
OWNERS MANUAL
IMPORTANT – This appliance is designed to be used with a source water temperature of 20ºC or
below, if the temperature of the outlet water exceeds 45-50ºC the burners will shut off and will only
relight once the outlet water temperature falls below 45ºC.
This appliance is designed to raise the outlet water temperature by a maximum (average) of
30-35ºC above the source water temperature and can be adjusted by the water flow and gas control.
In the event that the temperature lift is insufficient, simply run water through the appliance once
returning the heated water to the source water reservoir. Run again through the appliance until the
desired temperature is reached.
SAFETY FEATURES
This appliance is equipped with the following safety features:
• Over Temperature Sensor – the appliance will not allow the burner to remain in operation once
the outlet water temperature reaches 45-50º, the burner will automatically relight once the
outlet temperature falls below 45º.
• Water Flow Sensor – water must be flowing through the system to allow the burner to ignite.
In the case that the water supply is restricted or ceases, ie. the Flow Switch is in the “OFF”
position, the burner will be extinguished and will not relight until the water flow recommences.

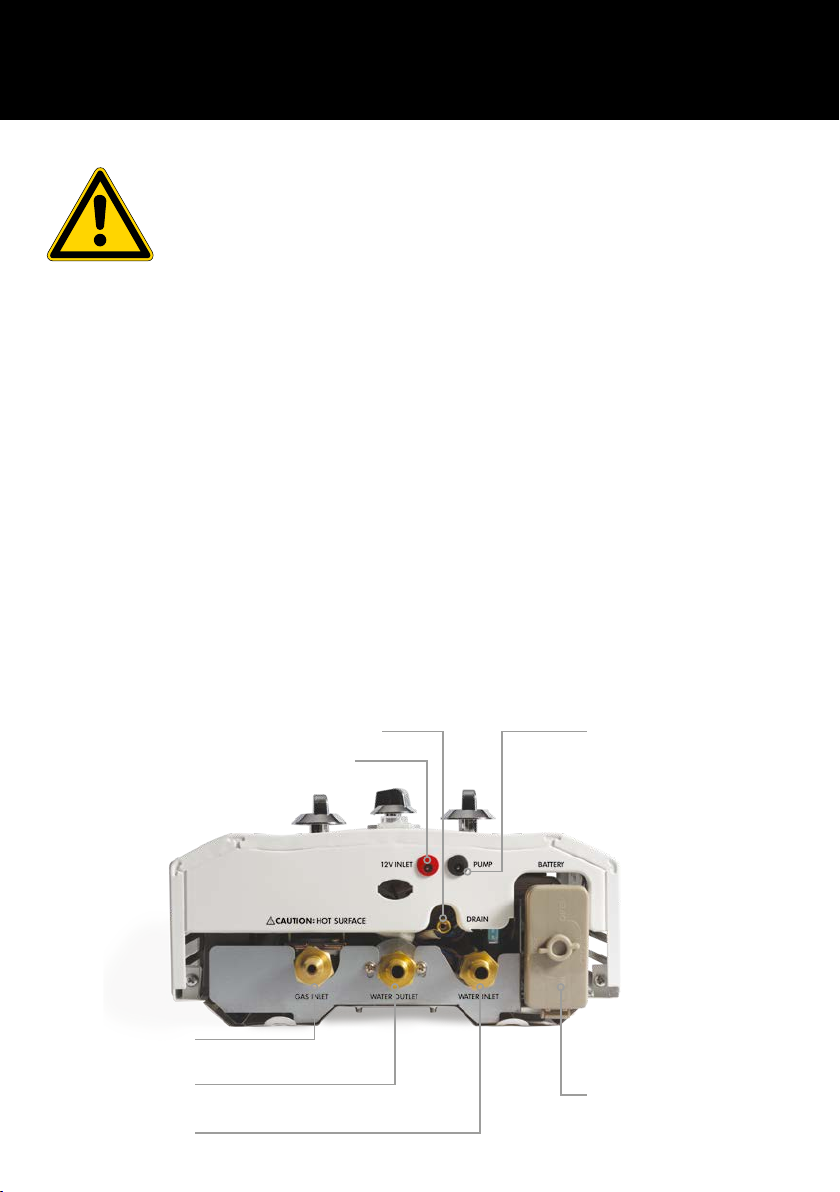

BATTERY
COMPARTMENT
GAS INLET
12V INLET
DRAIN PUMP INLET
WATER INLET
WATER OUTLET
CARBON MONOXIDE HAZARD
USING THIS APPLIANCE IN AN ENCLOSED SPACE MAY CAUSE DEATH.
DO NOT USE IN CARAVANS, TENTS, MARINE CRAFT, CARS, MOBILE
HOMES OR SIMILAR LOCATIONS.

APPLIANCE INCLUDES
6
SHOWER HEAD
& HOSE
GAS HOSE
& REGULATOR
PUMP & HOSE 12V DC LEAD
CARRY HANDLE
BURNER
VIEW WINDOW
2 xD BATTERIES*
(NOT INCLUDED)
GAS CONTROL
GAS INLET
LCD DISPLAY
WATER OUTLET WATER INLET
12V
POWER SWITCH
MODE CONTROL
WATER CONTROL
*D batteries to power electronic ignition

7
OWNERS MANUAL
SETTING UP
The COMP827 is designed to be positioned in a vertical position and is to be partly
sheltered from the rain and the potential to be sprayed by the shower head whilst
in operation. This appliance is not designed to be used as a permanent shower or
supply of hot water.
Step 1. Remove the shower from the box and check that all accessories
are included.
Step 2. Attach the 1 x gas and 2 x water adaptors to the inlet connections on
the base of the shower, ensuring that each adaptor is fitted with the
black rubber “O” rings and tighten with a spanner.
– DO NOT FINGER TIGHTEN.
(IMPORTANT – Failure to include the “O” rings or tightening with
a spanner will result in LP Gas & water leaks causing failure
in operation).
Step 3. Insert 2 x D batteries (not included) in the battery compartment and
secure the door.
Step 4. Select a strong and secure position and locate the shower on
the two (2) hanging points - Follow diagram measurements for
correct mounting. DO NOT use the carry handle as a securing or
mounting point.
Step 5. Once the shower is securely mounted attach the quick connect
fittings for the shower & pump to the marked adaptors on the
base of the appliance.
Step 6. Connect the power cables for the pump & 12V DC power supply
to the appliance and then connect to a suitable DC power source.
Step 7. Attach the quick connect fitting for the LP Gas hose & regulator
to the inlet adaptor & then connect to the POL propane gas cylinder
& tighten.
Step 8. Turn the gas cylinder on in an anti-clockwise direction one (1) full
turn, then check connections for leaks with Companion Gas Leak
Detector or soapy water (do not use a flame). If a leak is detected turn
the cylinder valve off, allow any residual gas to disperse, retighten all
connections then retest.
2
7
3
4
5
Note: The Gas Cylinder must not be
located under the appliance,
it must be moved to the side
and as far from the appliance
as the gas hose will allow
6
50mm
50mm
ø6mm
455mm

8
1
5
4
2
3
The temperature of the water can be increased or decreased by adjusting
either the gas & water flow controls to achieve the desired water temperature.
When being used in colder climates or the inlet water temperature is below
+10 degrees select the “Winter” mode to increase the burner performance.
The water flow can be stopped at any time by sliding the flow switch on the
shower head to the “OFF” position, the burner will extinguish and the pump
will continue to operate.
To reignite the burner, slide the flow switch to the “ON” position and water will
flow from the shower head and the burner will reignite within 5 to 10 seconds.
IMPORTANT – Water remaining in the heat exchanger while the flow is
stopped may become hot. When the flow is resumed the user must check
the temperature output to ensure that it is suitable and not too hot.
Once the user has finished with the appliance, slide the flow switch to the “OFF”
position and turn the power switch to “OFF”.
OPERATION
It is IMPORTANT that the following steps are followed to ensure that the appliance
will start correctly.
Step 1. Turn MODE control to SUMMER
Step 2. Turn GAS control to LOW
Step 3. Set WATER FLOW to HIGH
Step 4. Press SHOWER HEAD flow control switch to ON and set SPRAY PATTERN
to the OUTSIDE RING
Step 5. Press POWER SWITCH ON
Step 6. Water will start to flow from the shower head and the burner will
ignite – Allow the water temperature to stabilize before making
any adjustments

9
OWNERS MANUAL
ADJUSTING WATER TEMPERATURE
Step 1. To increase water temperature turn GAS control to MEDIUM / HIGH
& allow temperature to stabilise
Step 2. Adjust the water flow to achieve the desired water temperature
If ideal temperature is not achieved in SUMMER MODE the following steps can
be followed with the appliance operating:
Step 1. Turn GAS control to LOW
Step 2. Set WATER FLOW to HIGH
Step 3. Turn MODE control to WINTER
Step 4. To increase water temperature turn GAS control to MEDIUM / HIGH
& allow temperature to stabilise
NOTE: If LED display shows E3 - turn OFF POWER SWITCH and repeat
START SETTINGS
NOTE: If LED display shows – E3 this is caused by the outlet water temperature
exceeding the 45-50°C cut-out setting, reasons for this may include:
• Start-up procedure not followed correctly – check settings and restart
• Inlet water temperature above 20°C & incorrect appliance settings
– check settings and restart
• Outlet water temperature was not allowed to stabilise – check settings
and allow outlet water to stabilise before adjusting the gas or water
flow rate
1
4
1
2
3

10
Part No. COMP827
Water flow 2 to 3L (average) per minute
Inlet voltage 12V DC - 5A
Dimensions 290L x 153W x 550Hmm (Excluding handle)
Injector size 0.60mm x 6
Gas consumption 20.53 Mj/hr
Weight 6.53 kg
SPECIFICATIONS
TECHNICAL DETAILS
1PACKING THE APPLIANCE
Step 1. Disconnect the power and gas supply to the appliance.
Step 2. Disconnect the pump and shower head checking the flow switch
is in the “ON” position, hold the hoses vertically until all the water
has been drained.
Step 3. Unscrew the drain plug from the base of the appliance to allow the
water remaining in the exchanger to drain out.
Step 4. Once all appliance components and accessories are dry, they can
be stored away.
IMPORTANT – Ensure that the appliance has been allowed to cool for
a minimum of 30 minutes before draining the exchanger as the internal
water will still be HOT.
3
CARE INSTRUCTIONS
Using warm soapy water with a mild detergent wipe down all surfaces and areas of the appliance, taking care not to
allow water to enter the burner outlets or aeration holes located in the burner tube.
DO NOT submerge the appliance in a sink or bowl.
DO NOT use abrasive cleaners or bleach.
MAINTENANCE AND SERVICE
During operation if it is noted that the burner flame is unstable, is changing colour from blue to yellow or has a
distinct smell it is important that you take the appliance to your local authorised gas appliance repairer for inspection.
Periodically check the gas control is tight and has no leaks, follow the testing for leaks procedure. Check the gas
connection and regulator for any signs of wear or damage, if identified contact customer service for a replacement
assembly immediately.
For further information or assistance please contact customer service on 1300 555 197 or email
[email protected]
2

11
OWNERS MANUAL
Unit will not
switch on -
display will
not illuminate
Check DC fuse in cigarette lighter fitting
Check that adequate AC/DC power
is available
Check D batteries
Burner will
not light
Check that gas cylinder is turned on and
that there is gas in cylinder
Check that the water is flowing from
shower head
Check that the water is not over temperature
Water is not
hot enough Check operating instructions
Water is
too hot Check operating instructions
PROBLEM CAUSE
Water will
not flow from
shower head
Check that appliance is switched on
Check sufficient water is available
Check that the pump is connected to
the appliance
Check that pump fuse is not blown
Check that adequate DC power is available
Check DC fuse in cigarette lighter fitting
Check that the shower flow switch is in the
ON position
TROUBLE SHOOTING GUIDE
The guide should be followed in case of failure
of the appliance to operate correctly. If symptoms
persist contact Customer Service on 1300 555 197
or [email protected],
www.companionbrands.com.au
ERROR CODES
The appliance is fitted with operational & safety features
that can be identified by the error code E3 in the event that
the unit will not operate:
E3: No flame / burner not lit
E3: Over temp shut off - water temp exceeds 48ºC
DO NOT ATTEMPT TO REPAIR
OR MODIFY THE APPLIANCE

Distributed by
Companion Brands
Bundoora Victoria 3083
www.companionbrands.com.au
COM5210
